7-62 Vehicle care and maintenance
7

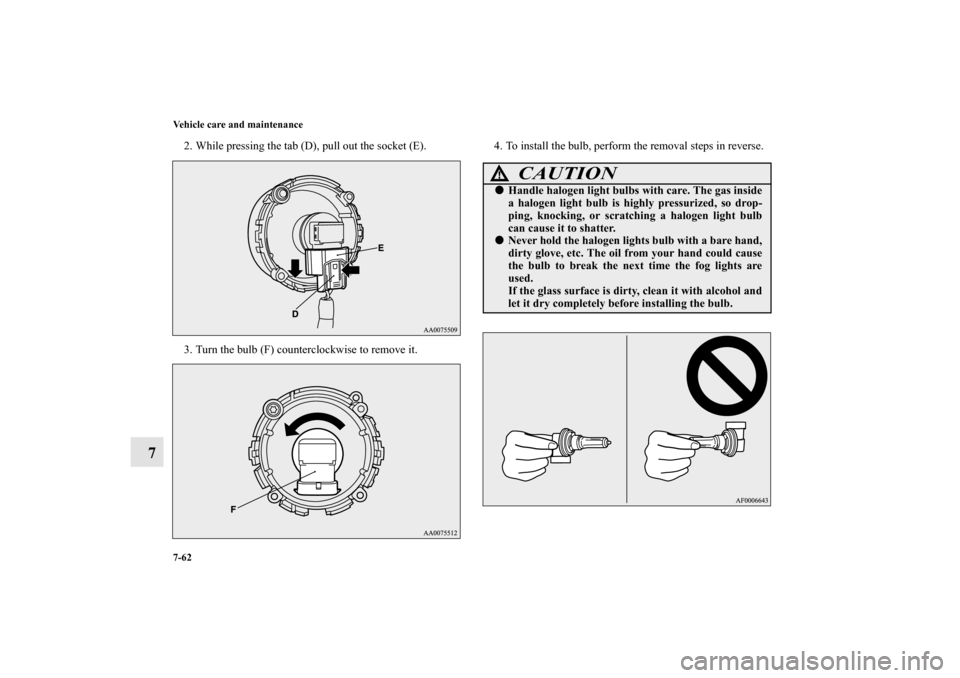

2. While pressing the tab (D), pull out the socket (E).
3. Turn the bulb (F) counterclockwise to remove it.4. To install the bulb, perform the removal steps in reverse.
CAUTION
!

Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0105501US.book 62 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-63
7
Rear combination lights
N00943700399
Tail and stop lights, rear turn signal lights and rear

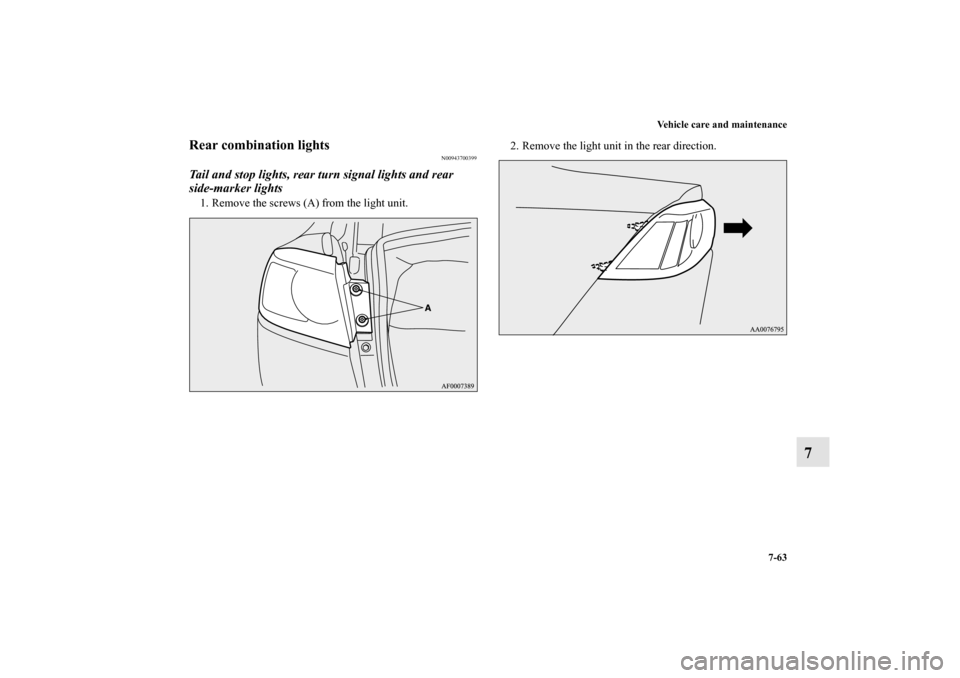

side-marker lights1. Remove the screws (A) from the light unit.2. Remove the light unit in the rear direction.
BK0105501US.book 63 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-64 Vehicle care and maintenance
7

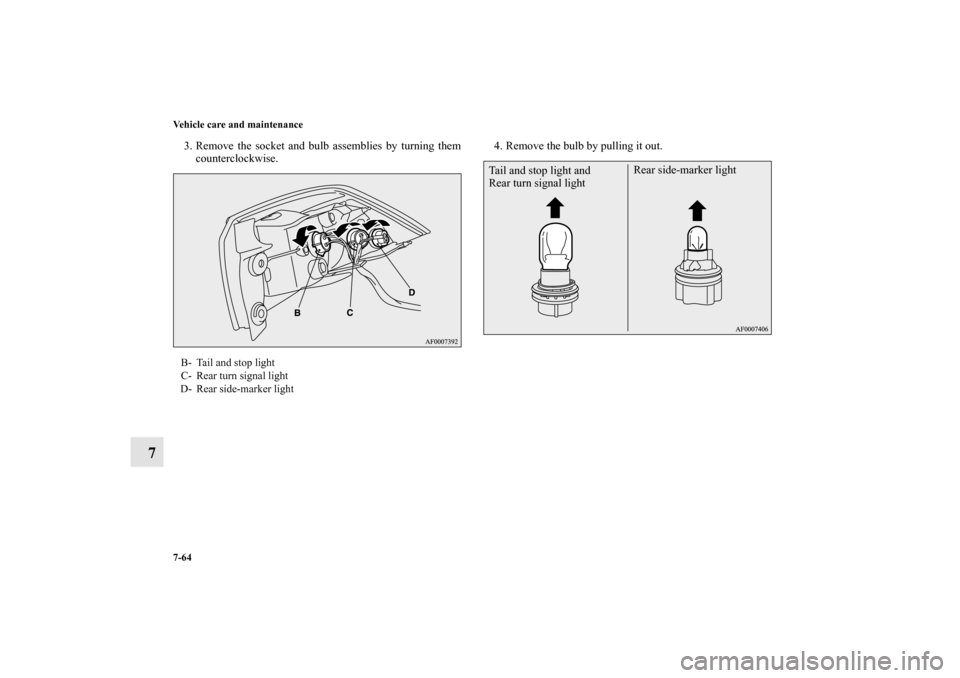

3. Remove the socket and bulb assemblies by turning them
counterclockwise.4. Remove the bulb by pulling it out.B- Tail and stop light
C- Rear turn signal light
D- Rear side-marker light
Tail and stop light and
Rear turn signal lightRear side-marker light
BK0105501US.book 64 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-65
7

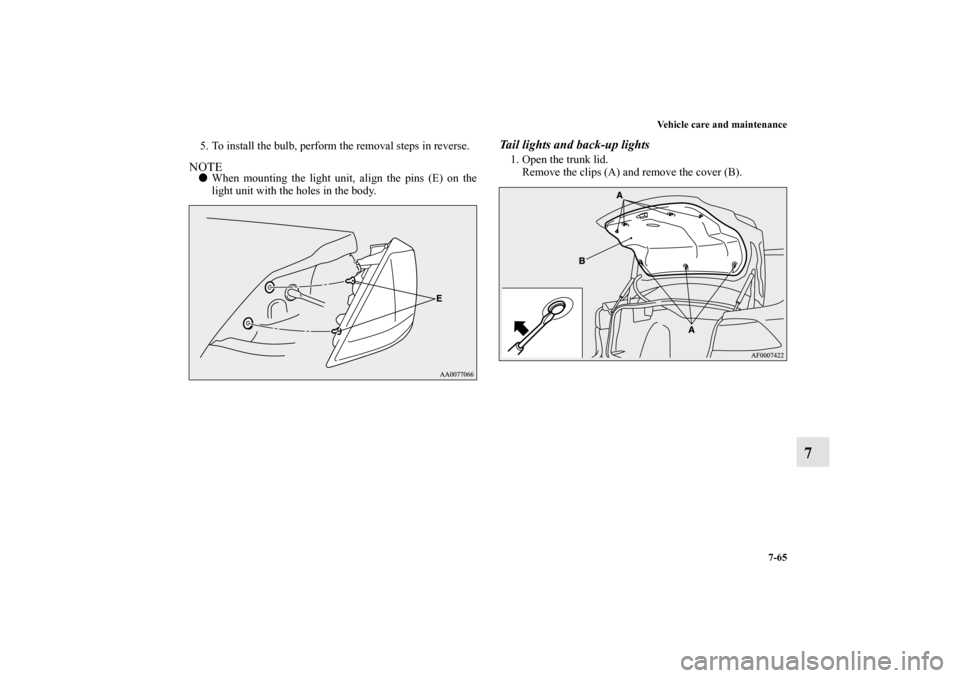

5. To install the bulb, perform the removal steps in reverse.NOTE

When mounting the light unit, align the pins (E) on the
light unit with the holes in the body.
Tail lights and back-up lights1. Open the trunk lid.
Remove the clips (A) and remove the cover (B).
BK0105501US.book 65 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-66 Vehicle care and maintenance
7

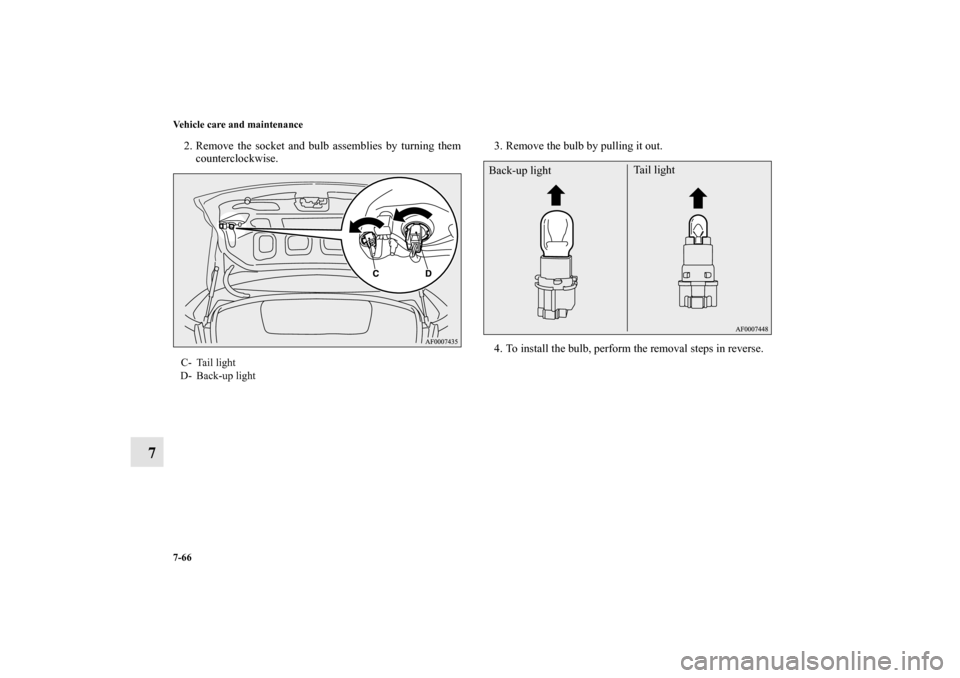

2. Remove the socket and bulb assemblies by turning them
counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.C- Tail light
D- Back-up light
Back-up lightTail light
BK0105501US.book 66 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-67
7
License plate light
N00944000344

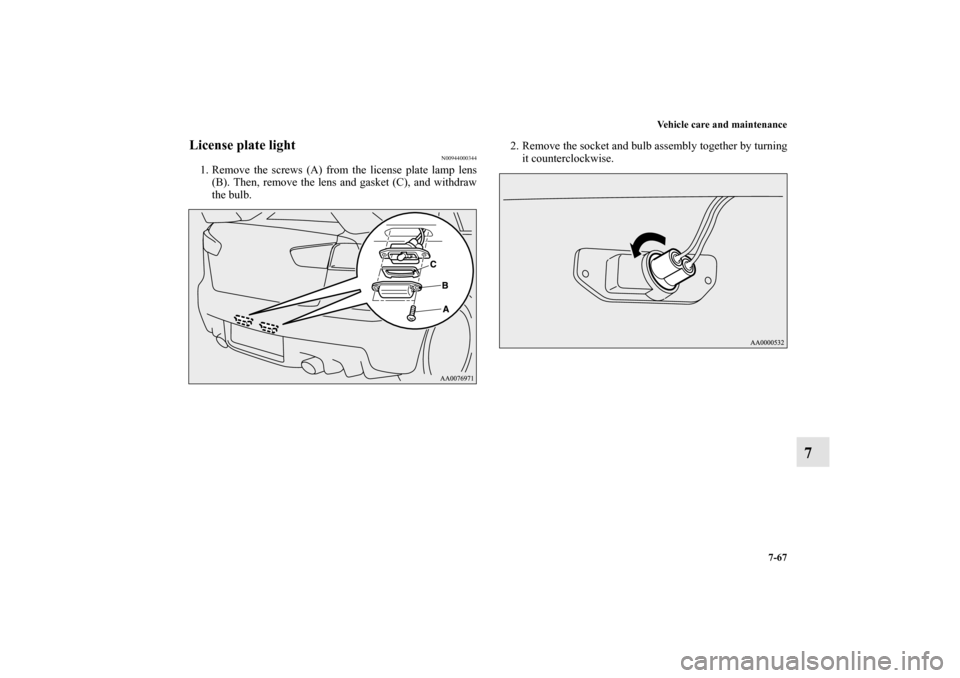

1. Remove the screws (A) from the license plate lamp lens
(B). Then, remove the lens and gasket (C), and withdraw
the bulb.2. Remove the socket and bulb assembly together by turning
it counterclockwise.
BK0105501US.book 67 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-68 Vehicle care and maintenance
7

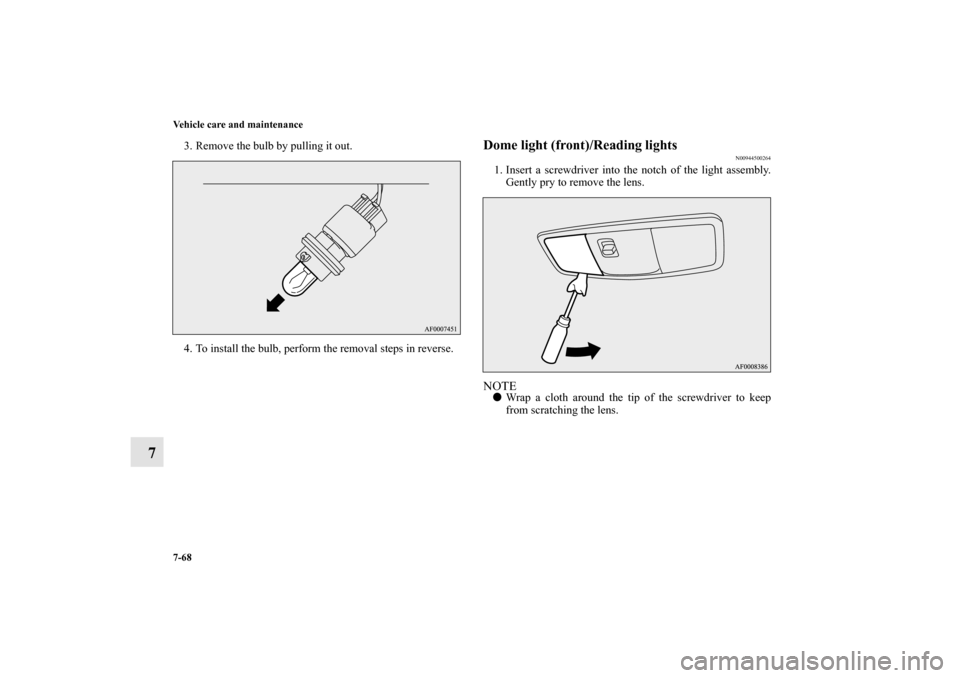

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Dome light (front)/Reading lights
N00944500264
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0105501US.book 68 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-69
7

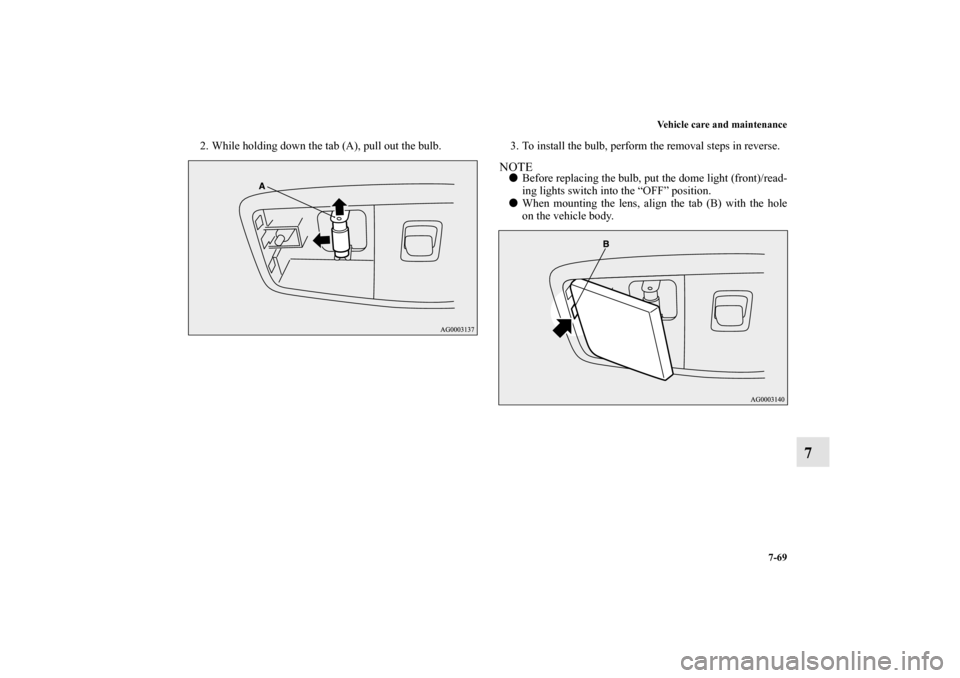

2. While holding down the tab (A), pull out the bulb. 3. To install the bulb, perform the removal steps in reverse.
NOTE

Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.


When mounting the lens, align the tab (B) with the hole
on the vehicle body.
BK0105501US.book 69 ページ ２００９年８月１０日　月曜日　午前１０時３２分

7-70 Vehicle care and maintenance
7
Dome light (rear)
(if so equipped)
N00944100332

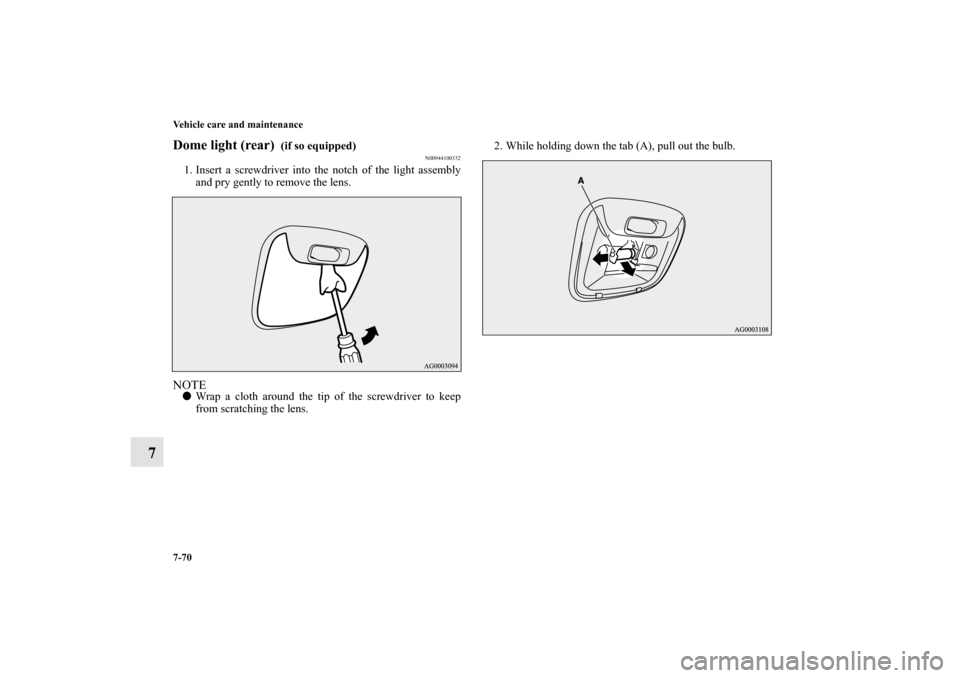

1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
BK0105501US.book 70 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Vehicle care and maintenance
7-71
7

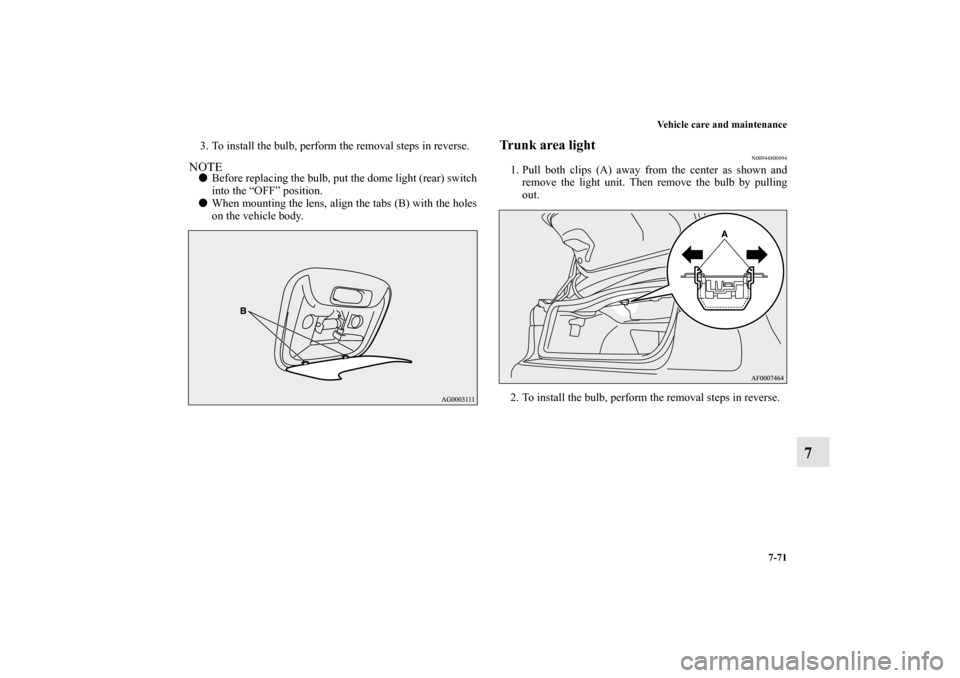

3. To install the bulb, perform the removal steps in reverse.NOTE

Before replacing the bulb, put the dome light (rear) switch
into the “OFF” position.


When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
Trunk area light
N00944800094
1. Pull both clips (A) away from the center as shown and
remove the light unit. Then remove the bulb by pulling
out.
2. To install the bulb, perform the removal steps in reverse.
