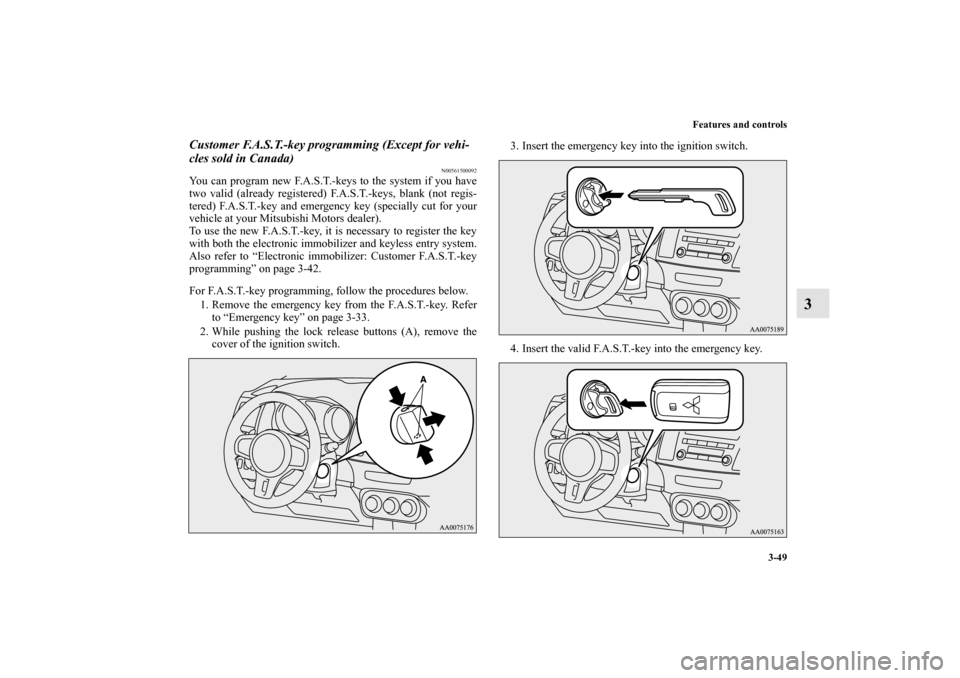

Features and controls
3-49
3
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561500092
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Electronic immobilizer: Customer F.A.S.T.-key
programming” on page 3-42.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-33.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.3. Insert the emergency key into the ignition switch.
4. Insert the valid F.A.S.T.-key into the emergency key.
BK0105501US.book 49 ページ ２００９年８月１０日　月曜日　午前１０時３２分

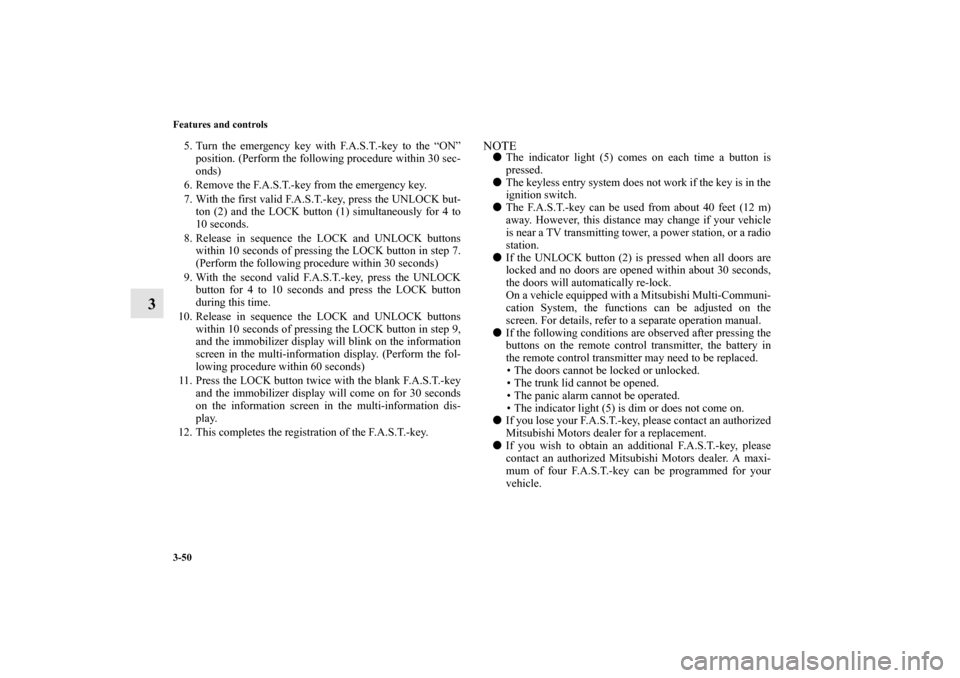

3-50 Features and controls
3
5. Turn the emergency key with F.A.S.T.-key to the “ON”
position. (Perform the following procedure within 30 sec-
onds)
6. Remove the F.A.S.T.-key from the emergency key.
7. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton (2) and the LOCK button (1) simultaneously for 4 to
10 seconds.
8. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 7.
(Perform the following procedure within 30 seconds)
9. With the second valid F.A.S.T.-key, press the UNLOCK
button for 4 to 10 seconds and press the LOCK button
during this time.
10. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 9,
and the immobilizer display will blink on the information
screen in the multi-information display. (Perform the fol-
lowing procedure within 60 seconds)
11. Press the LOCK button twice with the blank F.A.S.T.-key
and the immobilizer display will come on for 30 seconds
on the information screen in the multi-information dis-
play.
12. This completes the registration of the F.A.S.T.-key.
NOTE

The indicator light (5) comes on each time a button is
pressed.


The keyless entry system does not work if the key is in the
ignition switch.


The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.


If the UNLOCK button (2) is pressed when all doors are
locked and no doors are opened within about 30 seconds,
the doors will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.


If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
 The doors cannot be locked or unlocked.
 The trunk lid cannot be opened.
 The panic alarm cannot be operated.
 The indicator light (5) is dim or does not come on.


If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.


If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.
BK0105501US.book 50 ページ ２００９年８月１０日　月曜日　午前１０時３２分

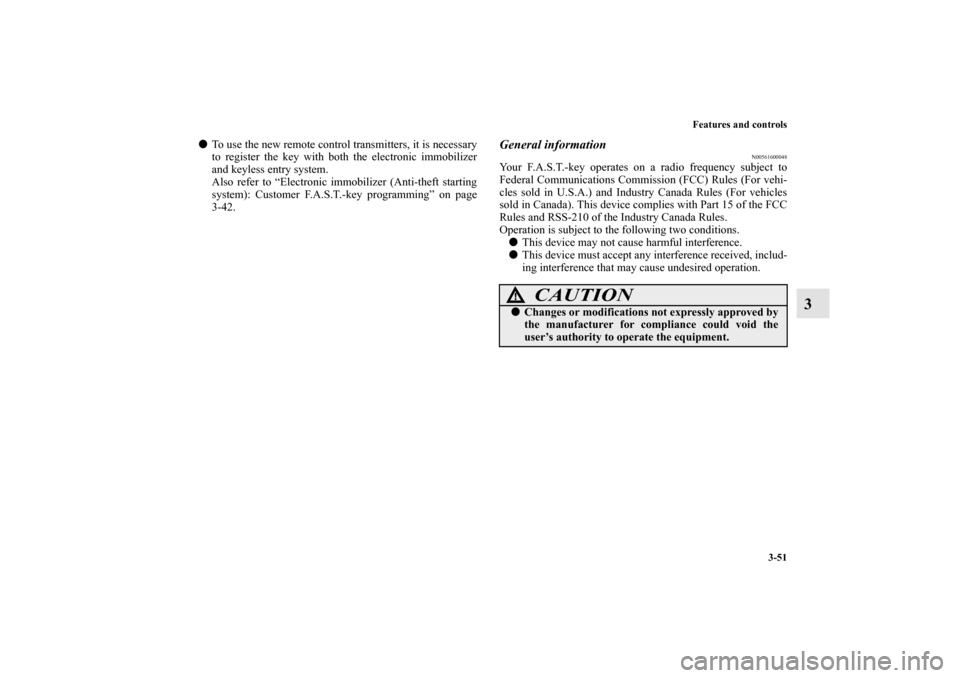

Features and controls
3-51
3


To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer F.A.S.T.-key programming” on page
3-42.
General information
N00561600048
Your F.A.S.T.-key operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.


This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!

Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0105501US.book 51 ページ ２００９年８月１０日　月曜日　午前１０時３２分

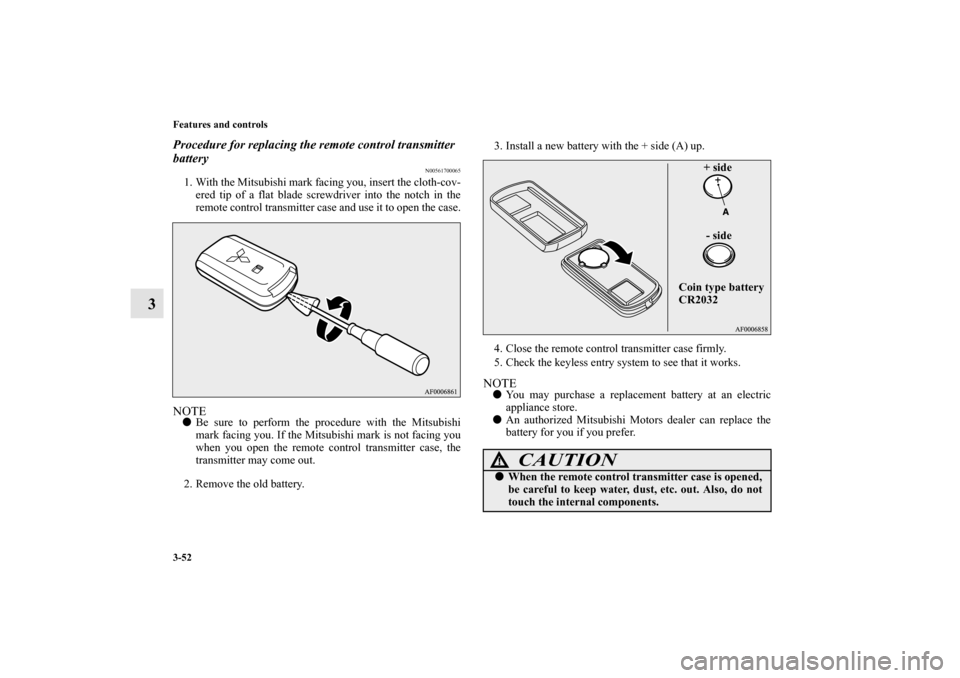

3-52 Features and controls
3
Procedure for replacing the remote control transmitter
battery
N00561700065
1. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE

Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
transmitter may come out.
2. Remove the old battery.3. Install a new battery with the + side (A) up.
4. Close the remote control transmitter case firmly.
5. Check the keyless entry system to see that it works.
NOTE

You may purchase a replacement battery at an electric
appliance store.


An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
CAUTION
!

When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
Coin type battery
CR2032+ side
- side
BK0105501US.book 52 ページ ２００９年８月１０日　月曜日　午前１０時３２分

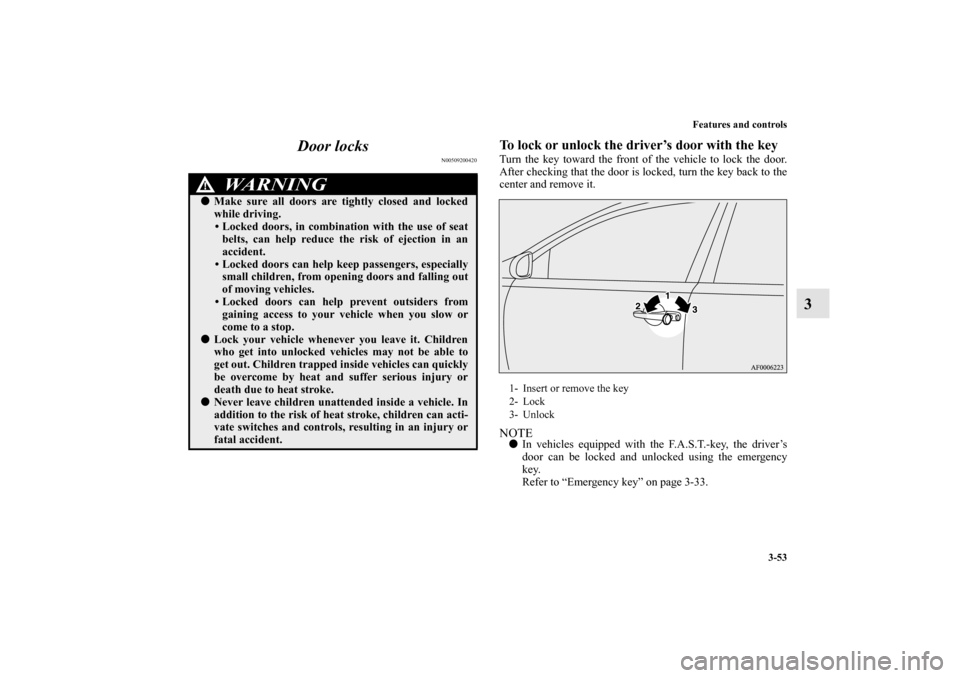

Features and controls
3-53
3 Door locks
N00509200420
To lock or unlock the driver’s door with the keyTurn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it. NOTE

In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-33.
WA R N I N G
!

Make sure all doors are tightly closed and locked
while driving. Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
 Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
 Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.


Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.


Never leave children unattended inside a vehicle. In
addition to the risk of heat stroke, children can acti-
vate switches and controls, resulting in an injury or
fatal accident.
1- Insert or remove the key
2- Lock
3- Unlock
BK0105501US.book 53 ページ ２００９年８月１０日　月曜日　午前１０時３２分

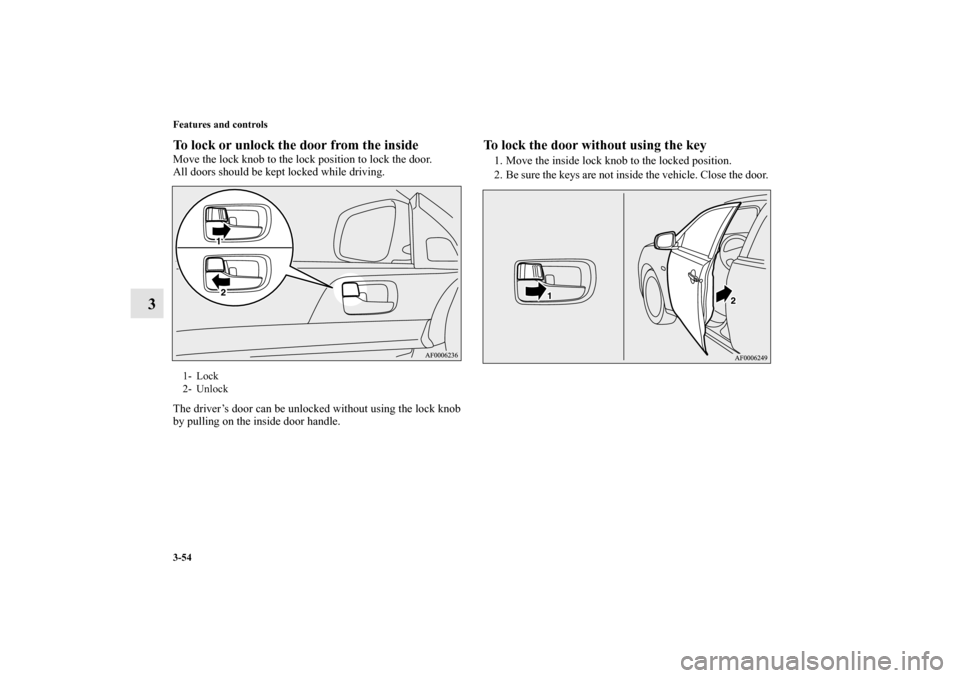

3-54 Features and controls
3
To lock or unlock the door from the inside Move the lock knob to the lock position to lock the door.
All doors should be kept locked while driving.
The driver’s door can be unlocked without using the lock knob
by pulling on the inside door handle.
To lock the door without using the key 1. Move the inside lock knob to the locked position.
2. Be sure the keys are not inside the vehicle. Close the door.
1- Lock
2- Unlock
BK0105501US.book 54 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-55
3

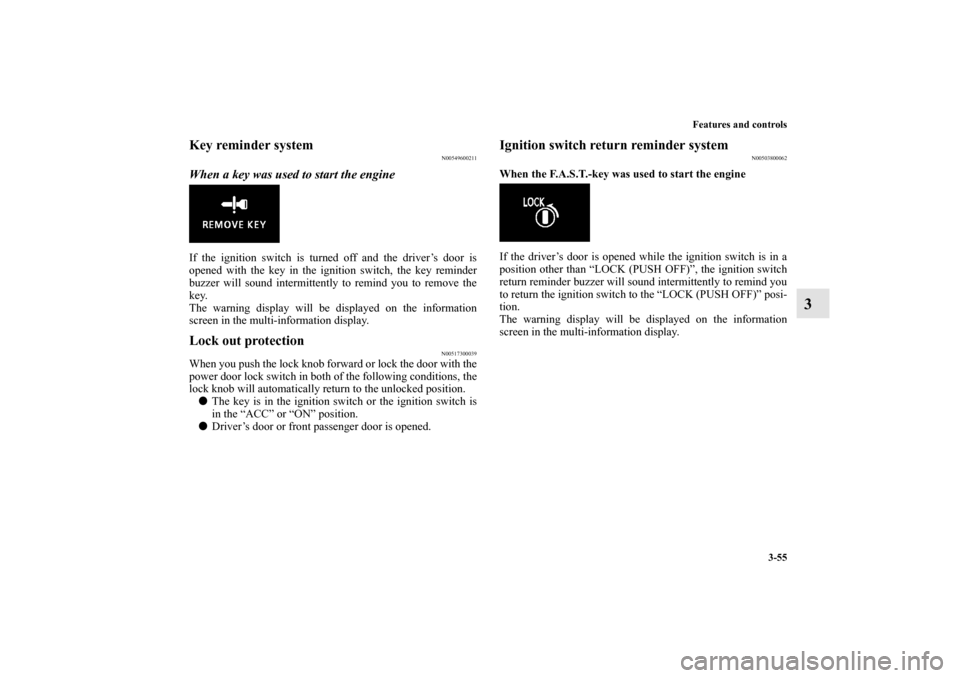

Key reminder system
N00549600211
When a key was used to start the engineIf the ignition switch is turned off and the driver’s door is
opened with the key in the ignition switch, the key reminder
buzzer will sound intermittently to remind you to remove the
key.
The warning display will be displayed on the information
screen in the multi-information display.Lock out protection
N00517300039
When you push the lock knob forward or lock the door with the
power door lock switch in both of the following conditions, the
lock knob will automatically return to the unlocked position.

The key is in the ignition switch or the ignition switch is
in the “ACC” or “ON” position.


Driver’s door or front passenger door is opened.
Ignition switch return reminder system
N00503800062
When the F.A.S.T.-key was used to start the engine
If the driver’s door is opened while the ignition switch is in a
position other than “LOCK (PUSH OFF)”, the ignition switch
return reminder buzzer will sound intermittently to remind you
to return the ignition switch to the “LOCK (PUSH OFF)” posi-
tion.
The warning display will be displayed on the information
screen in the multi-information display.
BK0105501US.book 55 ページ ２００９年８月１０日　月曜日　午前１０時３２分

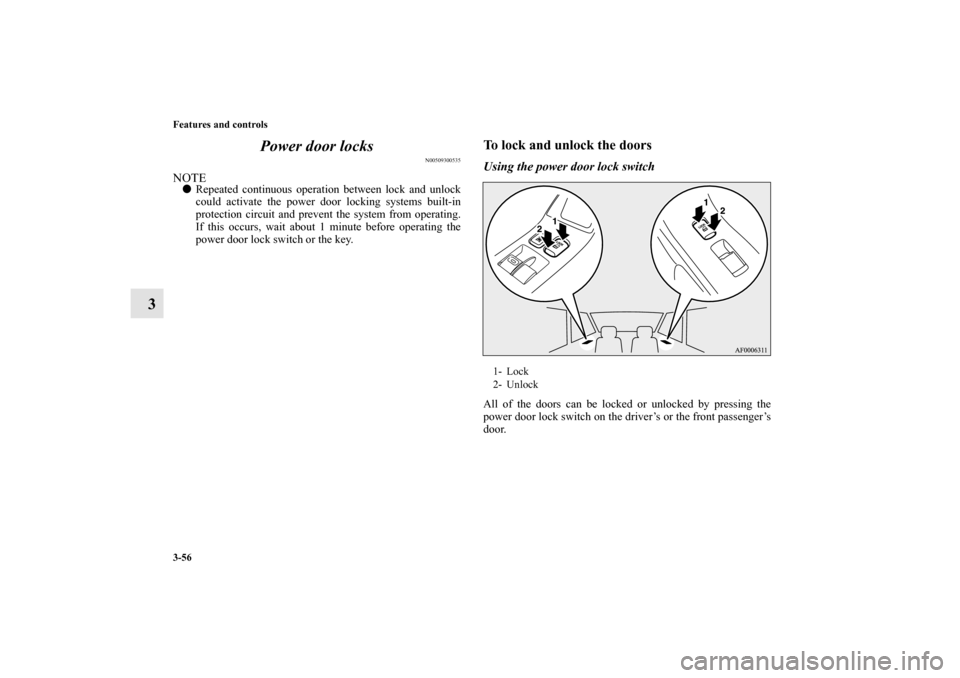

3-56 Features and controls
3Power door locks
N00509300535
NOTE

Repeated continuous operation between lock and unlock
could activate the power door locking systems built-in
protection circuit and prevent the system from operating.
If this occurs, wait about 1 minute before operating the
power door lock switch or the key.
To lock and unlock the doorsUsing the power door lock switchAll of the doors can be locked or unlocked by pressing the
power door lock switch on the driver’s or the front passenger’s
door. 1- Lock
2- Unlock
BK0105501US.book 56 ページ ２００９年８月１０日　月曜日　午前１０時３２分

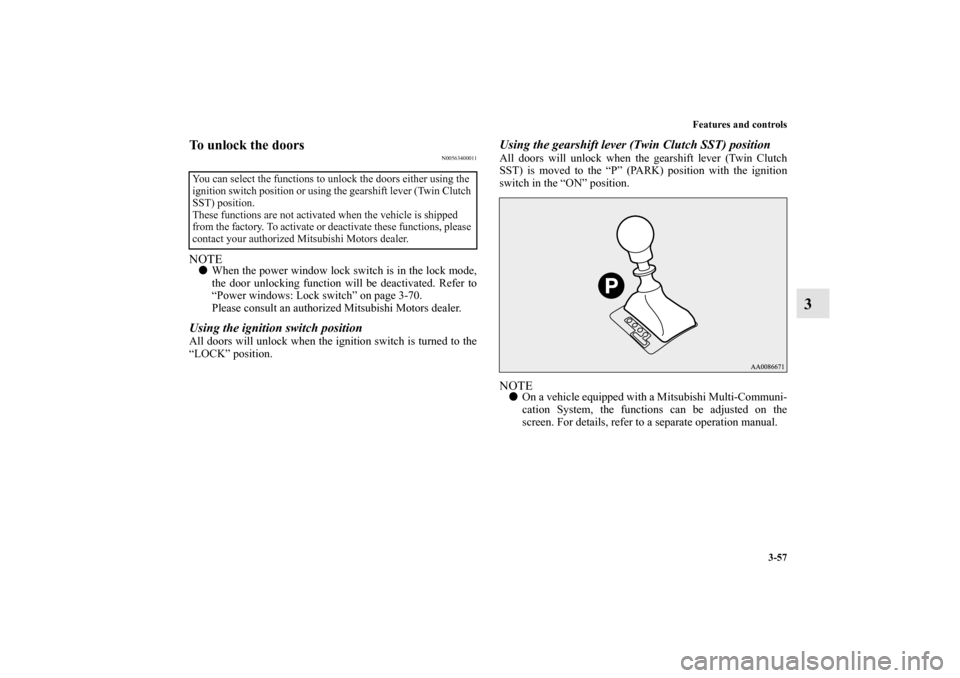

Features and controls
3-57
3
To unlock the doors
N00563400011
NOTE

When the power window lock switch is in the lock mode,
the door unlocking function will be deactivated. Refer to
“Power windows: Lock switch” on page 3-70.
Please consult an authorized Mitsubishi Motors dealer.
Using the ignition switch positionAll doors will unlock when the ignition switch is turned to the
“LOCK” position.
Using the gearshift lever (Twin Clutch SST) positionAll doors will unlock when the gearshift lever (Twin Clutch
SST) is moved to the “P” (PARK) position with the ignition
switch in the “ON” position.NOTE

On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
You can select the functions to unlock the doors either using the
ignition switch position or using the gearshift lever (Twin Clutch
SST) position.
These functions are not activated when the vehicle is shipped
from the factory. To activate or deactivate these functions, please
contact your authorized Mitsubishi Motors dealer.
BK0105501US.book 57 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-58 Features and controls
3“Child safety locks” for rear door
N00509400233
Except for vehicles sold in CanadaFor vehicles sold in Canada
Child safety locks help prevent rear passengers, especially chil-
dren, from opening the rear door using the inside door handle.
A lock lever for the child safety lock is provided on each rear
door.
When the lever is in the lock position (1), the rear door cannot
be opened using the inside door handle.
To open the rear door when the child safety lock lever is in the
lock position, pull the outside door handle.
When the lever is in the release position (2), the child safety
lock is released and the rear door can be opened using the
inside door handle.1- To lock
2- To release
