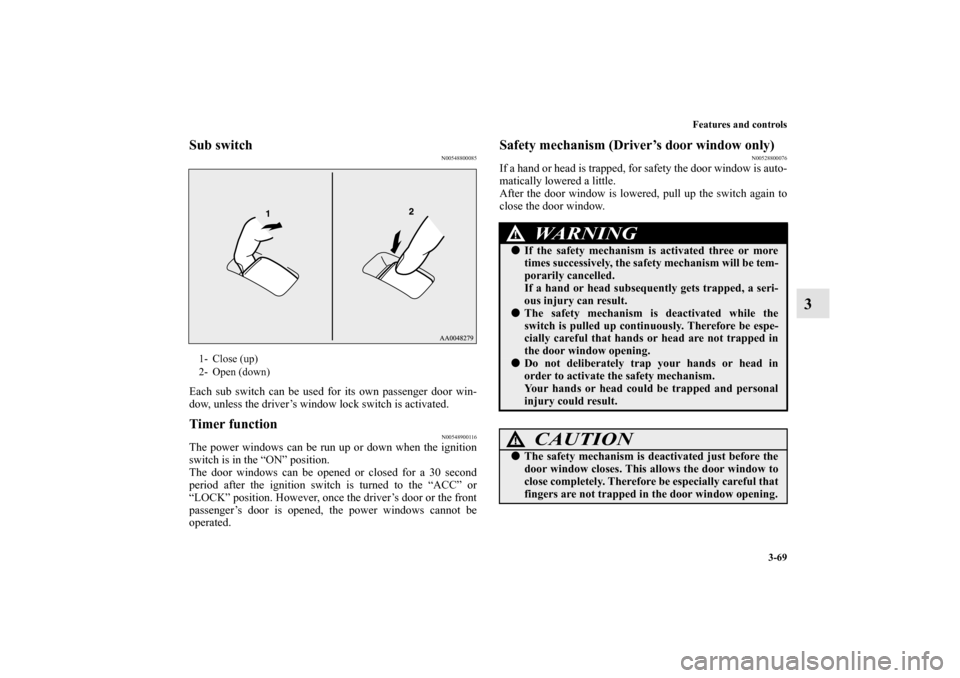

Sub switch
N00548800085
Each sub switch can be used for its own passenger door win-
dow, unless the driver’s window lock switch is activated. Timer function
N00548900116
The power windows can be run up or down when the ignition
switch is in the “ON” position.
The door windows can be opened or closed for a 30 second
period after the ignition switch is turned to the “ACC” or
“LOCK” position. However, once the driver’s door or the front
passenger’s door is opened, the power windows cannot be
operated.
Safety mechanism (Driver’s door window only)
N00528800076
If a hand or head is trapped, for safety the door window is auto-
matically lowered a little.
After the door window is lowered, pull up the switch again to
close the door window.
1- Close (up)
2- Open (down)
WA R N I N G
!

If the safety mechanism is activated three or more
times successively, the safety mechanism will be tem-
porarily cancelled.
If a hand or head subsequently gets trapped, a seri-
ous injury can result.


The safety mechanism is deactivated while the
switch is pulled up continuously. Therefore be espe-
cially careful that hands or head are not trapped in
the door window opening.


Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Your hands or head could be trapped and personal
injury could result.CAUTION
!

The safety mechanism is deactivated just before the
door window closes. This allows the door window to
close completely. Therefore be especially careful that
fingers are not trapped in the door window opening.
BK0105501US.book 69 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-70 Features and controls
3

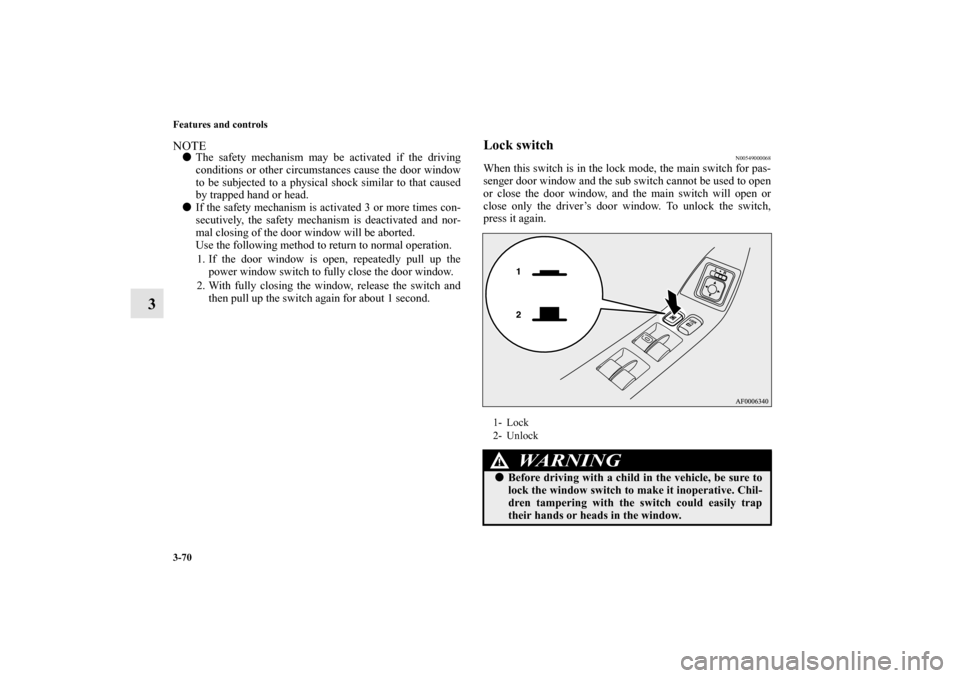

NOTE

The safety mechanism may be activated if the driving
conditions or other circumstances cause the door window
to be subjected to a physical shock similar to that caused
by trapped hand or head.


If the safety mechanism is activated 3 or more times con-
secutively, the safety mechanism is deactivated and nor-
mal closing of the door window will be aborted.
Use the following method to return to normal operation.
1. If the door window is open, repeatedly pull up the
power window switch to fully close the door window.
2. With fully closing the window, release the switch and
then pull up the switch again for about 1 second.
Lock switch
N00549000068
When this switch is in the lock mode, the main switch for pas-
senger door window and the sub switch cannot be used to open
or close the door window, and the main switch will open or
close only the driver’s door window. To unlock the switch,
press it again.1- Lock
2- Unlock
WA R N I N G
!

Before driving with a child in the vehicle, be sure to
lock the window switch to make it inoperative. Chil-
dren tampering with the switch could easily trap
their hands or heads in the window.
BK0105501US.book 70 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-71
3

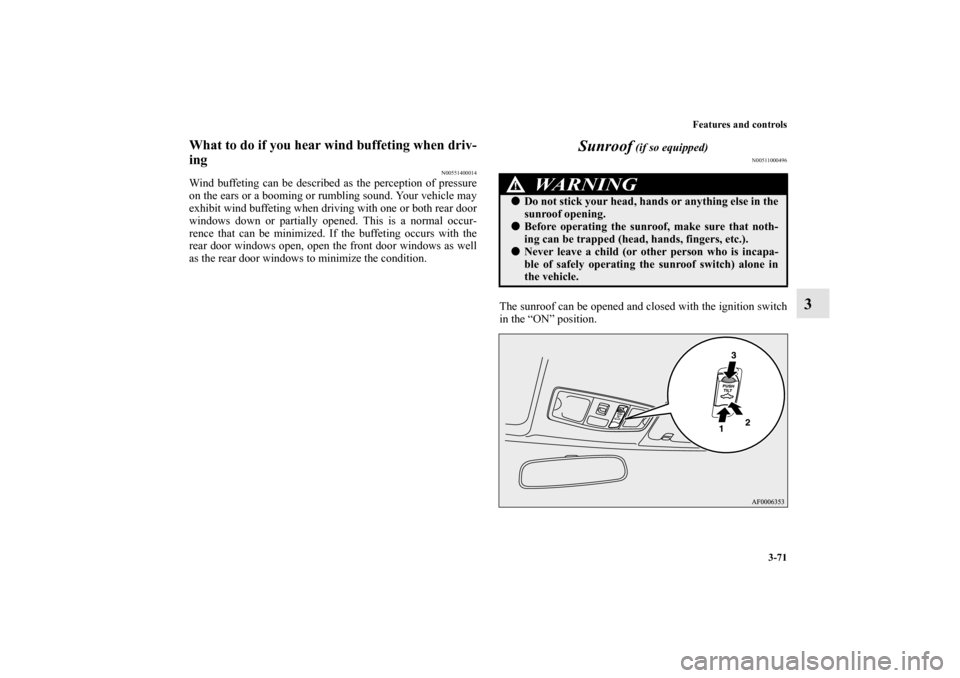

What to do if you hear wind buffeting when driv-
ing
N00551400014
Wind buffeting can be described as the perception of pressure
on the ears or a booming or rumbling sound. Your vehicle may
exhibit wind buffeting when driving with one or both rear door
windows down or partially opened. This is a normal occur-
rence that can be minimized. If the buffeting occurs with the
rear door windows open, open the front door windows as well
as the rear door windows to minimize the condition.
Sunroof
(if so equipped)
N00511000496
The sunroof can be opened and closed with the ignition switch
in the “ON” position.
WA R N I N G
!

Do not stick your head, hands or anything else in the
sunroof opening.


Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).


Never leave a child (or other person who is incapa-
ble of safely operating the sunroof switch) alone in
the vehicle.
BK0105501US.book 71 ページ ２００９年８月１０日　月曜日　午前１０時３２分

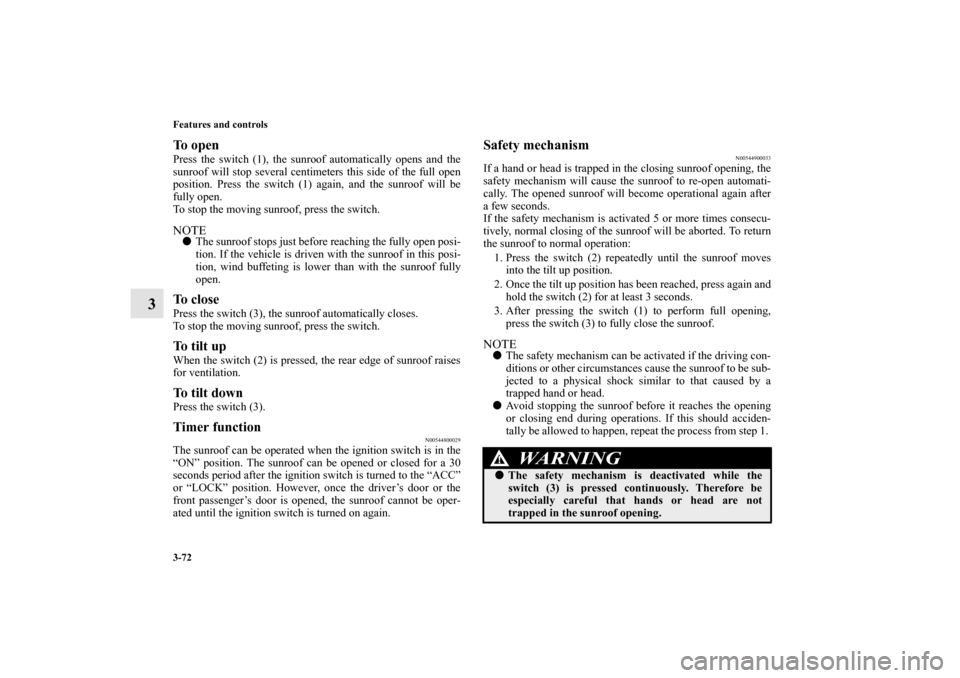

3-72 Features and controls
3
To open Press the switch (1), the sunroof automatically opens and the
sunroof will stop several centimeters this side of the full open
position. Press the switch (1) again, and the sunroof will be
fully open.
To stop the moving sunroof, press the switch. NOTE

The sunroof stops just before reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this posi-
tion, wind buffeting is lower than with the sunroof fully
open.
To closePress the switch (3), the sunroof automatically closes.
To stop the moving sunroof, press the switch.To tilt up When the switch (2) is pressed, the rear edge of sunroof raises
for ventilation. To tilt down Press the switch (3). Timer function
N00544800029
The sunroof can be operated when the ignition switch is in the
“ON” position. The sunroof can be opened or closed for a 30
seconds period after the ignition switch is turned to the “ACC”
or “LOCK” position. However, once the driver’s door or the
front passenger’s door is opened, the sunroof cannot be oper-
ated until the ignition switch is turned on again.
Safety mechanism
N00544900033
If a hand or head is trapped in the closing sunroof opening, the
safety mechanism will cause the sunroof to re-open automati-
cally. The opened sunroof will become operational again after
a few seconds.
If the safety mechanism is activated 5 or more times consecu-
tively, normal closing of the sunroof will be aborted. To return
the sunroof to normal operation:
1. Press the switch (2) repeatedly until the sunroof moves
into the tilt up position.
2. Once the tilt up position has been reached, press again and
hold the switch (2) for at least 3 seconds.
3. After pressing the switch (1) to perform full opening,
press the switch (3) to fully close the sunroof.NOTE

The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-
jected to a physical shock similar to that caused by a
trapped hand or head.


Avoid stopping the sunroof before it reaches the opening
or closing end during operations. If this should acciden-
tally be allowed to happen, repeat the process from step 1.
WA R N I N G
!

The safety mechanism is deactivated while the
switch (3) is pressed continuously. Therefore be
especially careful that hands or head are not
trapped in the sunroof opening.
BK0105501US.book 72 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-73
3
4. The sunroof should now operate in the normal manner.
NOTE

When leaving the vehicle unattended, be sure to close the
sunroof and if a key was used to start the engine, remove
the key from the ignition switch.


Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).


Do not sit on or place heavy luggage on the sunroof or
roof opening edge.


Do not apply any force that may cause damage to the sun-
roof.


Release the switch when the sunroof has reached a com-
pletely open or completely closed position.


If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.


Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.


Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.


Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.


After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.


Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.

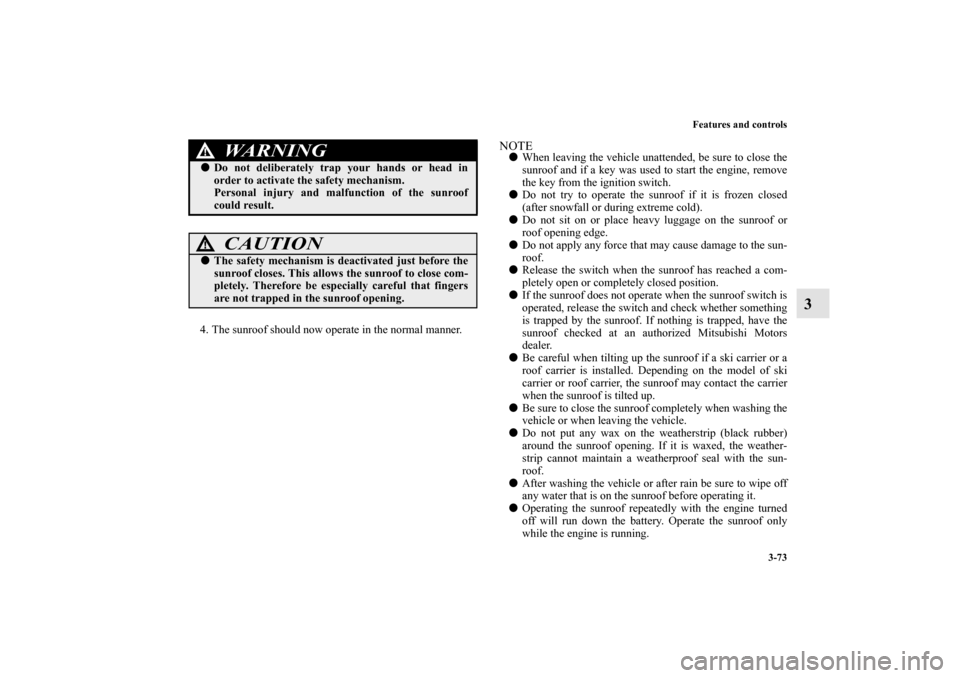

Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Personal injury and malfunction of the sunroof
could result.CAUTION
!

The safety mechanism is deactivated just before the
sunroof closes. This allows the sunroof to close com-
pletely. Therefore be especially careful that fingers
are not trapped in the sunroof opening.WA R N I N G
!
BK0105501US.book 73 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-74 Features and controls
3

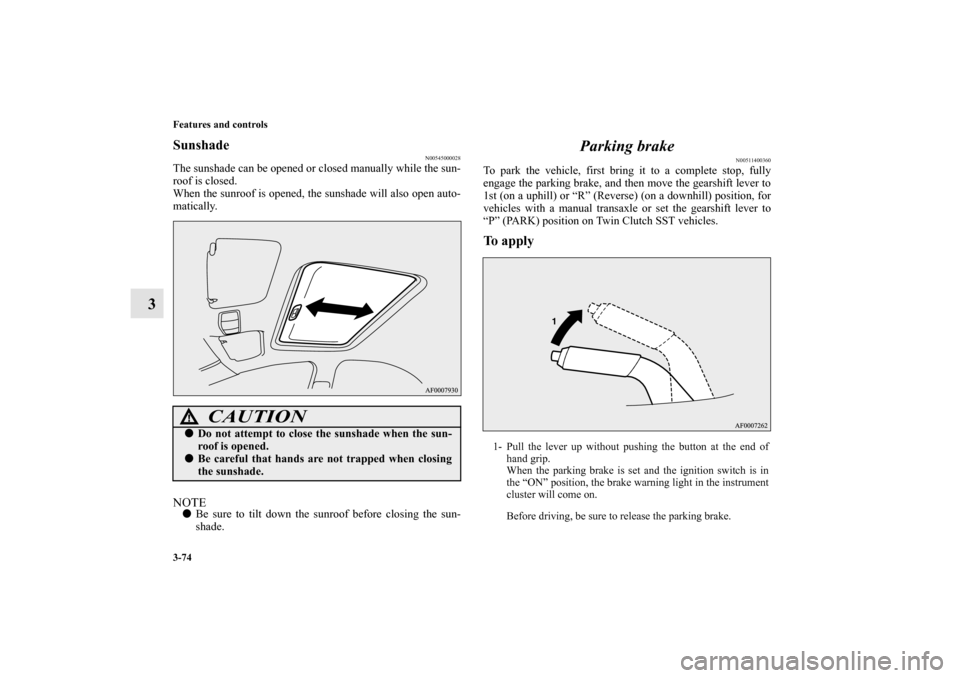

Sunshade
N00545000028
The sunshade can be opened or closed manually while the sun-
roof is closed.
When the sunroof is opened, the sunshade will also open auto-
matically.NOTE

Be sure to tilt down the sunroof before closing the sun-
shade.
Parking brake
N00511400360
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
1st (on a uphill) or “R” (Reverse) (on a downhill) position, for
vehicles with a manual transaxle or set the gearshift lever to
“P” (PARK) position on Twin Clutch SST vehicles.To apply
CAUTION
!

Do not attempt to close the sunshade when the sun-
roof is opened.


Be careful that hands are not trapped when closing
the sunshade.
1- Pull the lever up without pushing the button at the end of
hand grip.
When the parking brake is set and the ignition switch is in
the “ON” position, the brake warning light in the instrument
cluster will come on.
Before driving, be sure to release the parking brake.
BK0105501US.book 74 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-75
3

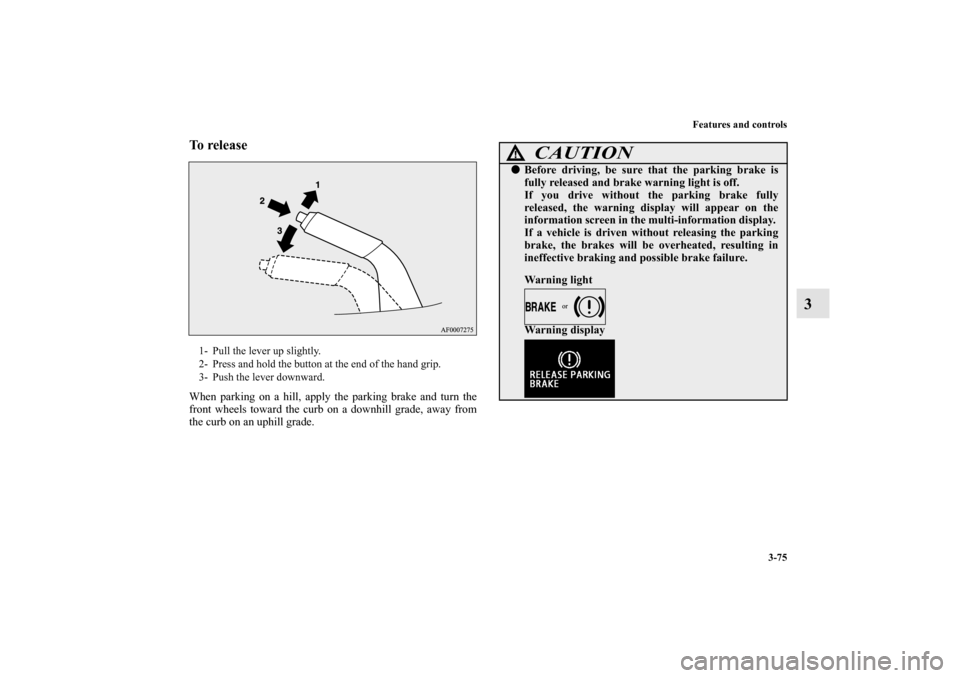

To release When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.1- Pull the lever up slightly.
2- Press and hold the button at the end of the hand grip.
3- Push the lever downward.
CAUTION
!

Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display
BK0105501US.book 75 ページ ２００９年８月１０日　月曜日　午前１０時３２分

3-76 Features and controls

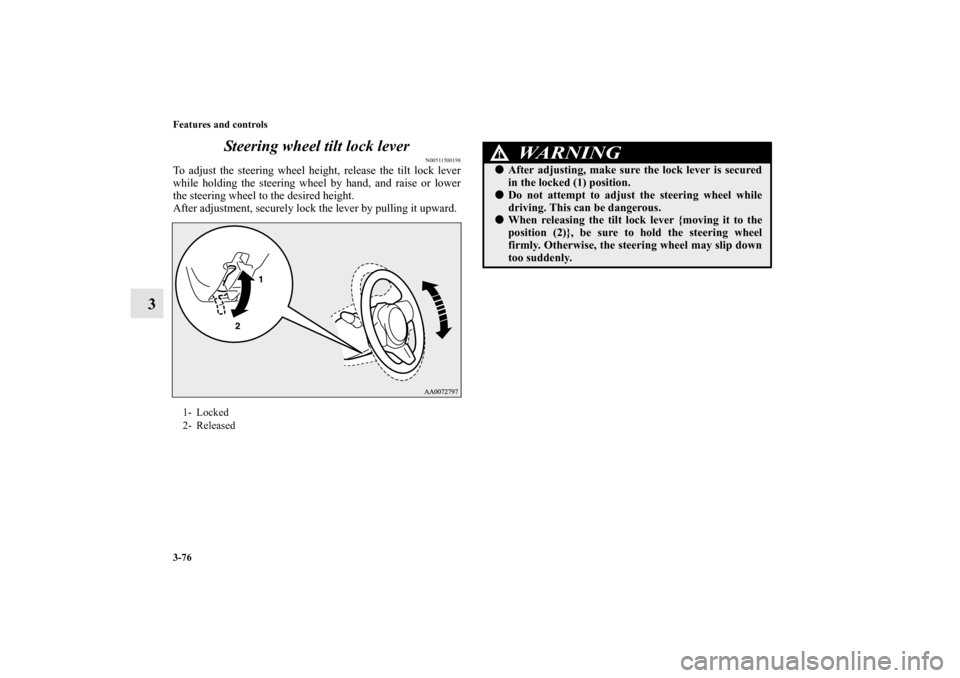

3Steering wheel tilt lock lever
N00511500198
To adjust the steering wheel height, release the tilt lock lever
while holding the steering wheel by hand, and raise or lower
the steering wheel to the desired height.
After adjustment, securely lock the lever by pulling it upward.1- Locked
2- Released
WA R N I N G
!

After adjusting, make sure the lock lever is secured
in the locked (1) position.


Do not attempt to adjust the steering wheel while
driving. This can be dangerous.


When releasing the tilt lock lever {moving it to the
position (2)}, be sure to hold the steering wheel
firmly. Otherwise, the steering wheel may slip down
too suddenly.
BK0105501US.book 76 ページ ２００９年８月１０日　月曜日　午前１０時３２分

Features and controls
3-77

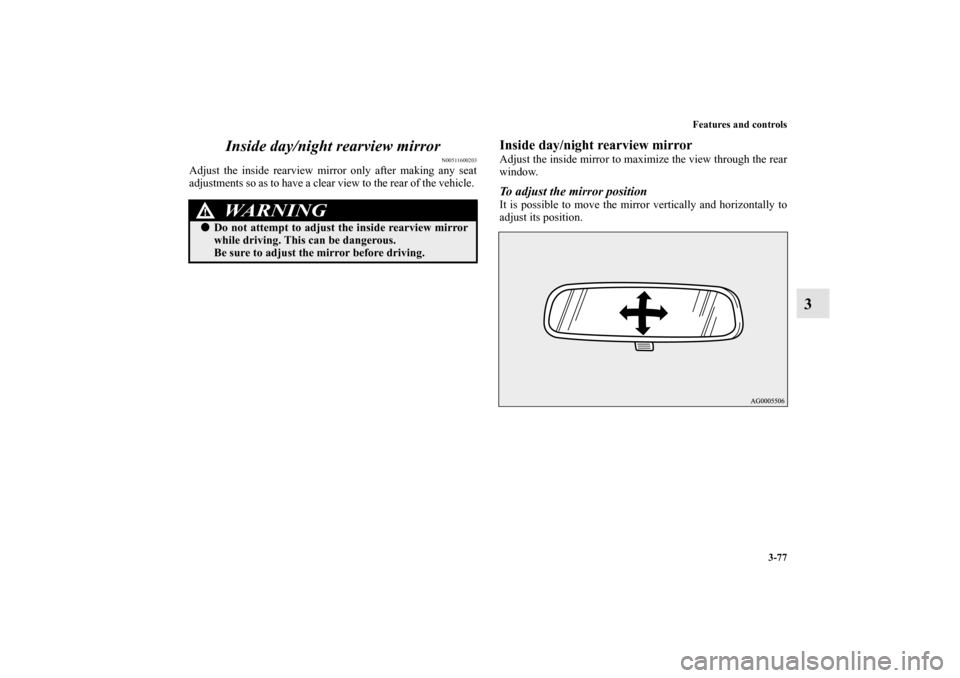

3 Inside day/night rearview mirror
N00511600203
Adjust the inside rearview mirror only after making any seat
adjustments so as to have a clear view to the rear of the vehicle.
Inside day/night rearview mirrorAdjust the inside mirror to maximize the view through the rear
window.To adjust the mirror positionIt is possible to move the mirror vertically and horizontally to
adjust its position.
WA R N I N G
!

Do not attempt to adjust the inside rearview mirror
while driving. This can be dangerous.
Be sure to adjust the mirror before driving.
BK0105501US.book 77 ページ ２００９年８月１０日　月曜日　午前１０時３２分

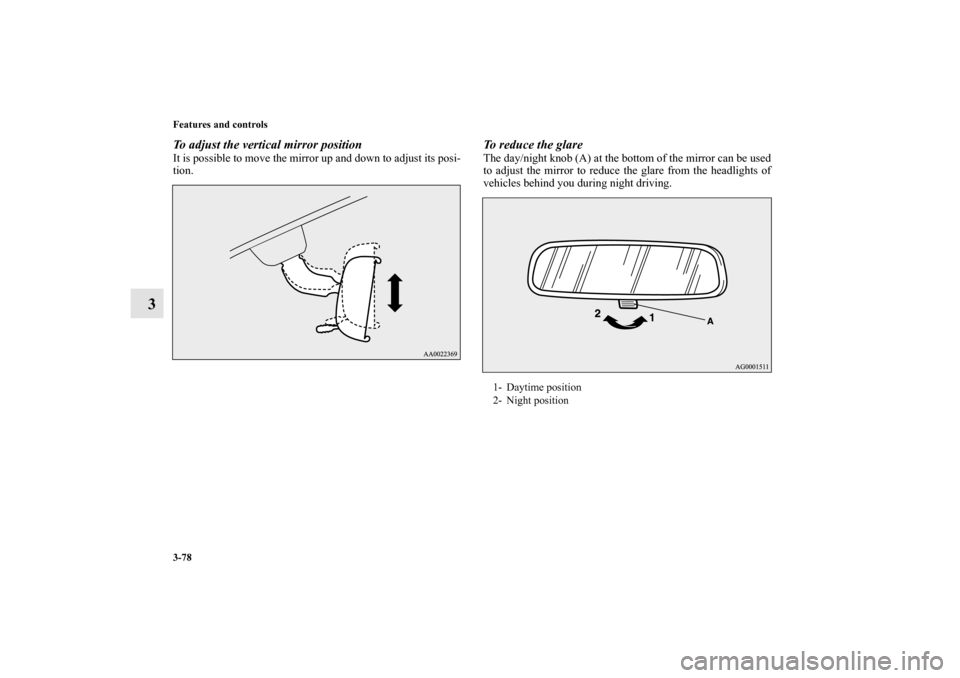

3-78 Features and controls
3
To adjust the vertical mirror positionIt is possible to move the mirror up and down to adjust its posi-
tion.
To reduce the glareThe day/night knob (A) at the bottom of the mirror can be used
to adjust the mirror to reduce the glare from the headlights of
vehicles behind you during night driving.1- Daytime position
2- Night position
BK0105501US.book 78 ページ ２００９年８月１０日　月曜日　午前１０時３２分
