3-154 Features and controls
3
NOTEThe trip computer function fuel units, temperature units,
display language, and other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-155.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-186.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON”)” on page 3-159.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-161.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-189.

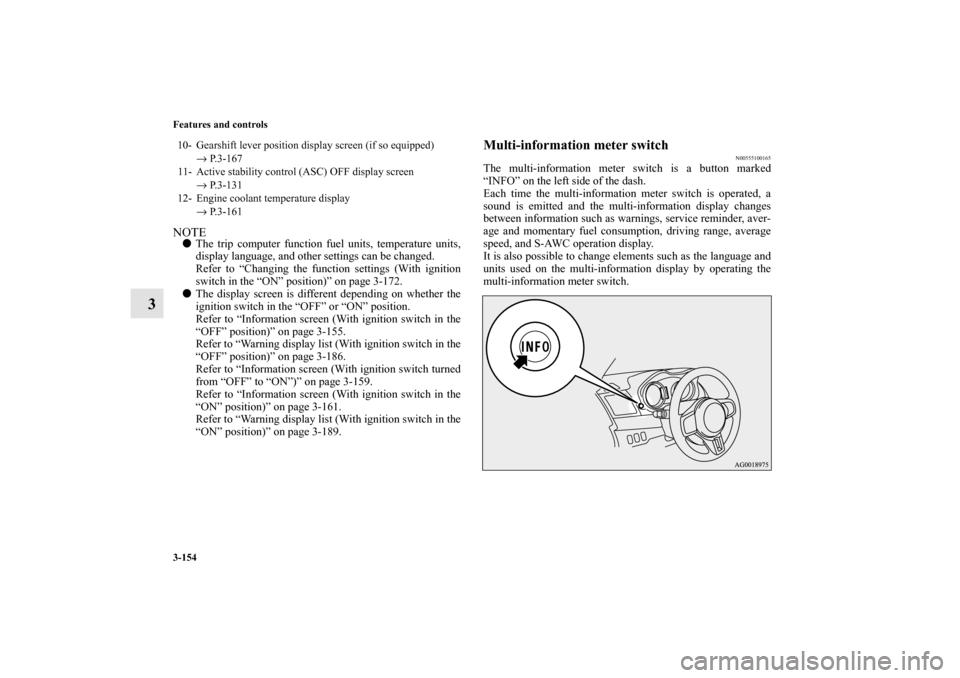

Multi-information meter switch
N00555100165
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, service reminder, aver-
age and momentary fuel consumption, driving range, average
speed, and S-AWC operation display.
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
10- Gearshift lever position display screen (if so equipped)
→ P. 3 - 1 6 7
11- Active stability control (ASC) OFF display screen
→ P. 3 - 1 3 1
12- Engine coolant temperature display
→ P. 3 - 1 6 1BK0142300US.book 154 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 242 of 618

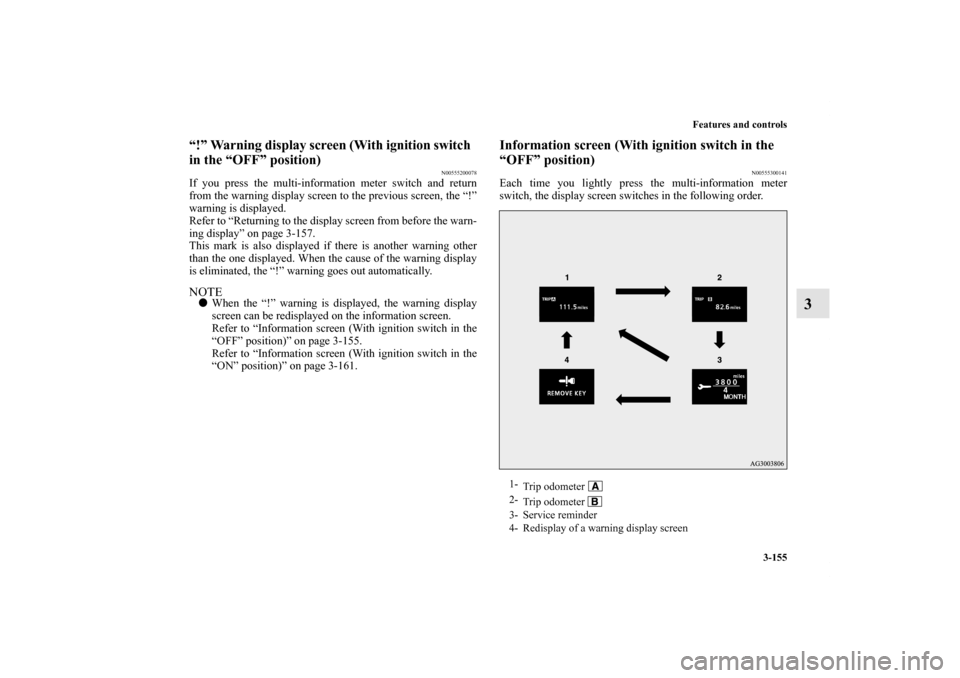

Features and controls
3-155
3
“!” Warning display screen (With ignition switch
in the “OFF” position)
N00555200078
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the “!”
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-157.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the “!” warning goes out automatically.NOTEWhen the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-155.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-161.
Information screen (With ignition switch in the
“OFF” position)
N00555300141
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.1-
Trip odometer
2-
Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
BK0142300US.book 155 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 243 of 618

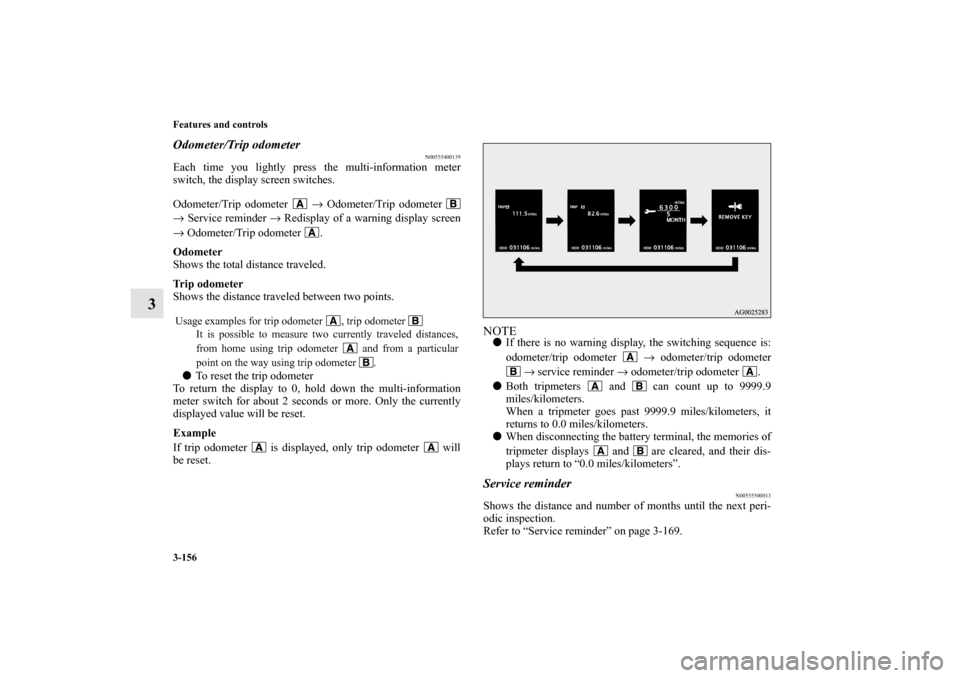

3-156 Features and controls
3
Odometer/Trip odometer
N00555400139
Each time you lightly press the multi-information meter
switch, the display screen switches.
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
To reset the trip odometer
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example
If trip odometer is displayed, only trip odometer will
be reset.
NOTEIf there is no warning display, the switching sequence is:
odometer/trip odometer → odometer/trip odometer
→ service reminder → odometer/trip odometer .
Both tripmeters and can count up to 9999.9
miles/kilometers.
When a tripmeter goes past 9999.9 miles/kilometers, it
returns to 0.0 miles/kilometers.
When disconnecting the battery terminal, the memories of
tripmeter displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.Service reminder
N00555500013
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-169.
Usage examples for trip odometer , trip odometer
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .BK0142300US.book 156 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 244 of 618

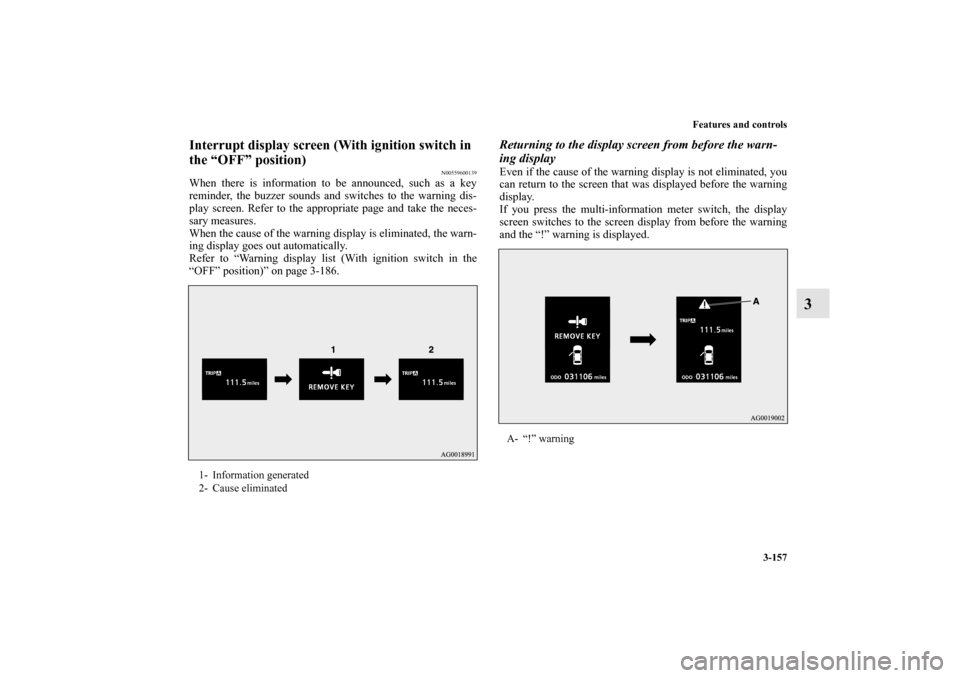

Features and controls
3-157
3
Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600139
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-186.
Returning to the display screen from before the warn-
ing displayEven if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the screen display from before the warning
and the “!” warning is displayed.
1- Information generated
2- Cause eliminated
A- “!” warning
BK0142300US.book 157 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 245 of 618

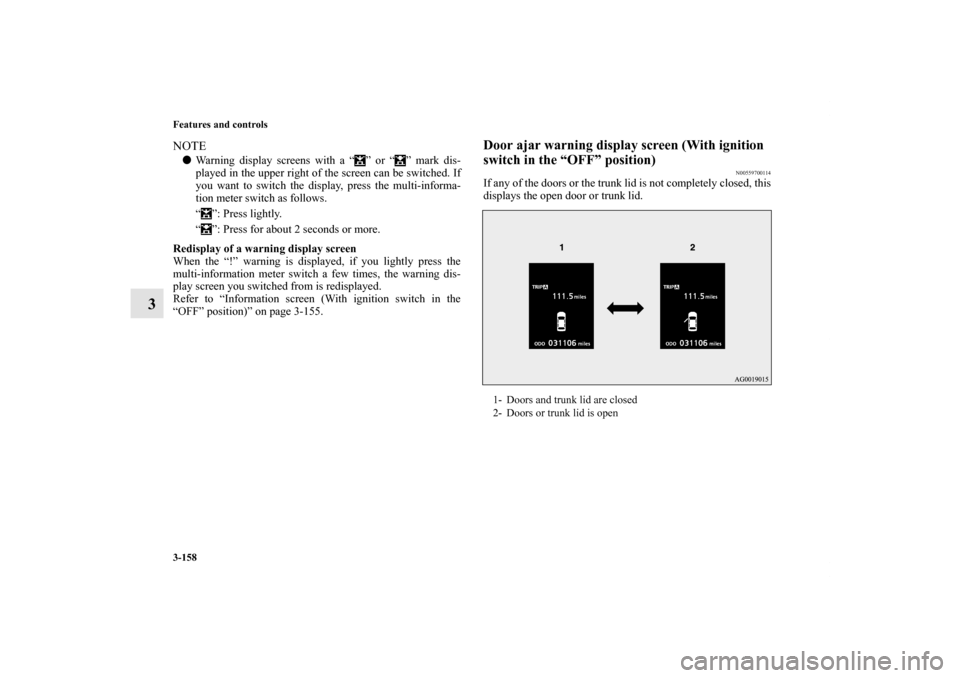

3-158 Features and controls
3
NOTEWarning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the “!” warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-155.
Door ajar warning display screen (With ignition
switch in the “OFF” position)
N00559700114
If any of the doors or the trunk lid is not completely closed, this
displays the open door or trunk lid.1- Doors and trunk lid are closed
2- Doors or trunk lid is open
BK0142300US.book 158 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 246 of 618
Features and controls
3-159
3

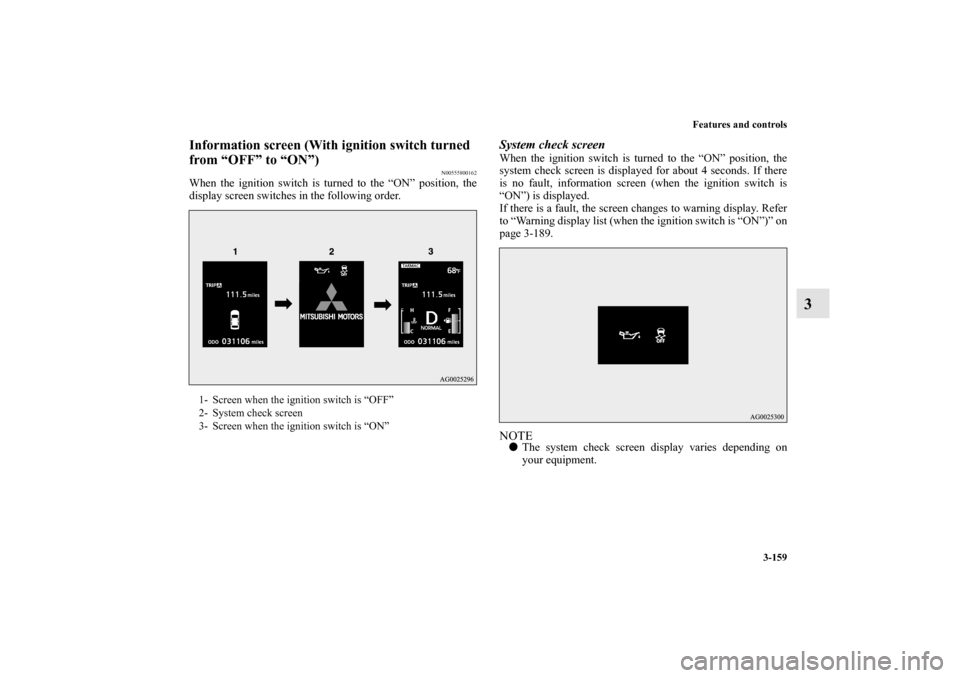

Information screen (With ignition switch turned
from “OFF” to “ON”)
N00555800162
When the ignition switch is turned to the “ON” position, the
display screen switches in the following order.
System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
is no fault, information screen (when the ignition switch is
“ON”) is displayed.
If there is a fault, the screen changes to warning display. Refer
to “Warning display list (when the ignition switch is “ON”)” on
page 3-189.NOTEThe system check screen display varies depending on
your equipment.
1- Screen when the ignition switch is “OFF”
2- System check screen
3- Screen when the ignition switch is “ON”
BK0142300US.book 159 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 247 of 618

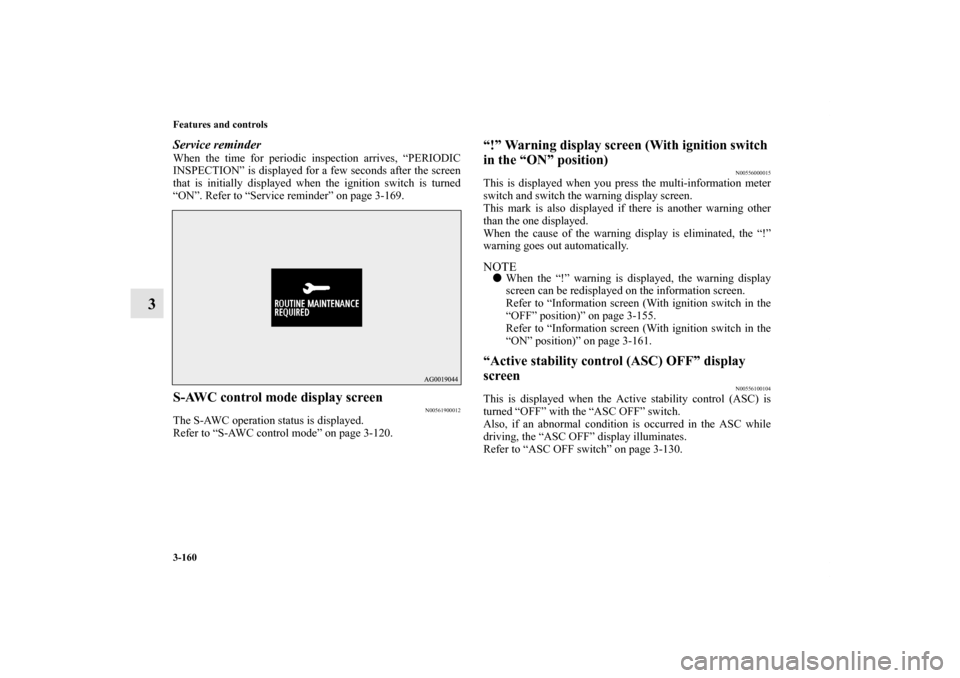

3-160 Features and controls
3
Service reminderWhen the time for periodic inspection arrives, “PERIODIC
INSPECTION” is displayed for a few seconds after the screen
that is initially displayed when the ignition switch is turned
“ON”. Refer to “Service reminder” on page 3-169.S-AWC control mode display screen
N00561900012
The S-AWC operation status is displayed.
Refer to “S-AWC control mode” on page 3-120.
“!” Warning display screen (With ignition switch
in the “ON” position)
N00556000015
This is displayed when you press the multi-information meter
switch and switch the warning display screen.
This mark is also displayed if there is another warning other
than the one displayed.
When the cause of the warning display is eliminated, the “!”
warning goes out automatically.NOTEWhen the “!” warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-155.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-161.“Active stability control (ASC) OFF” display
screen
N00556100104
This is displayed when the Active stability control (ASC) is
turned “OFF” with the “ASC OFF” switch.
Also, if an abnormal condition is occurred in the ASC while
driving, the “ASC OFF” display illuminates.
Refer to “ASC OFF switch” on page 3-130.
BK0142300US.book 160 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 248 of 618

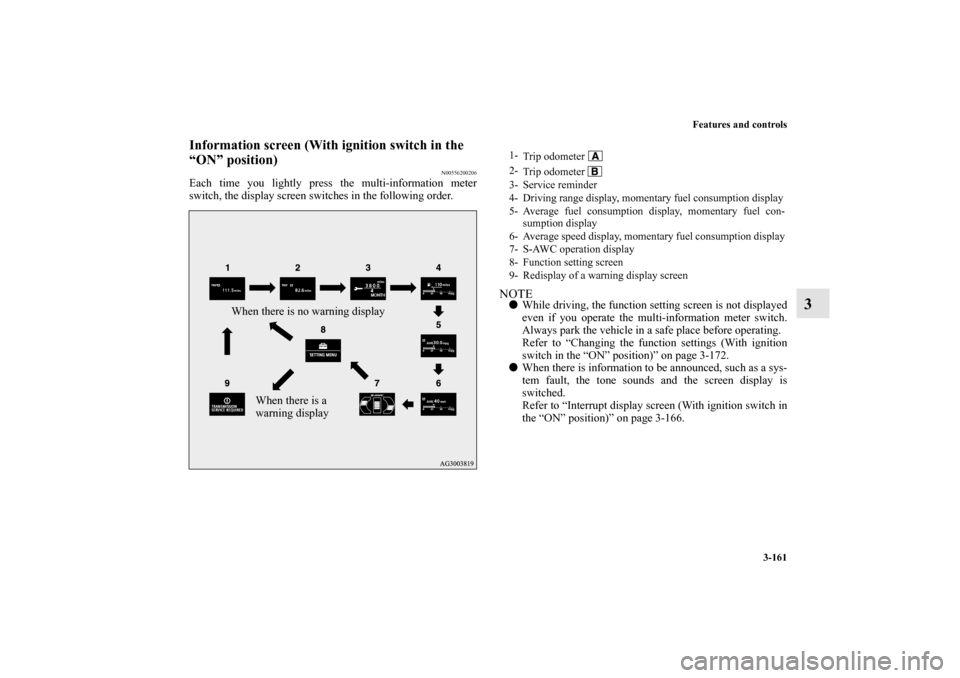

Features and controls
3-161
3
Information screen (With ignition switch in the
“ON” position)
N00556200206
Each time you lightly press the multi-information meter
switch, the display screen switches in the following order.
NOTEWhile driving, the function setting screen is not displayed
even if you operate the multi-information meter switch.
Always park the vehicle in a safe place before operating.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
When there is information to be announced, such as a sys-
tem fault, the tone sounds and the screen display is
switched.
Refer to “Interrupt display screen (With ignition switch in
the “ON” position)” on page 3-166.
When there is no warning display
When there is a
warning display
1-
Trip odometer
2-
Trip odometer
3- Service reminder
4- Driving range display, momentary fuel consumption display
5- Average fuel consumption display, momentary fuel con-
sumption display
6- Average speed display, momentary fuel consumption display
7- S-AWC operation display
8- Function setting screen
9- Redisplay of a warning display screen
BK0142300US.book 161 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 249 of 618

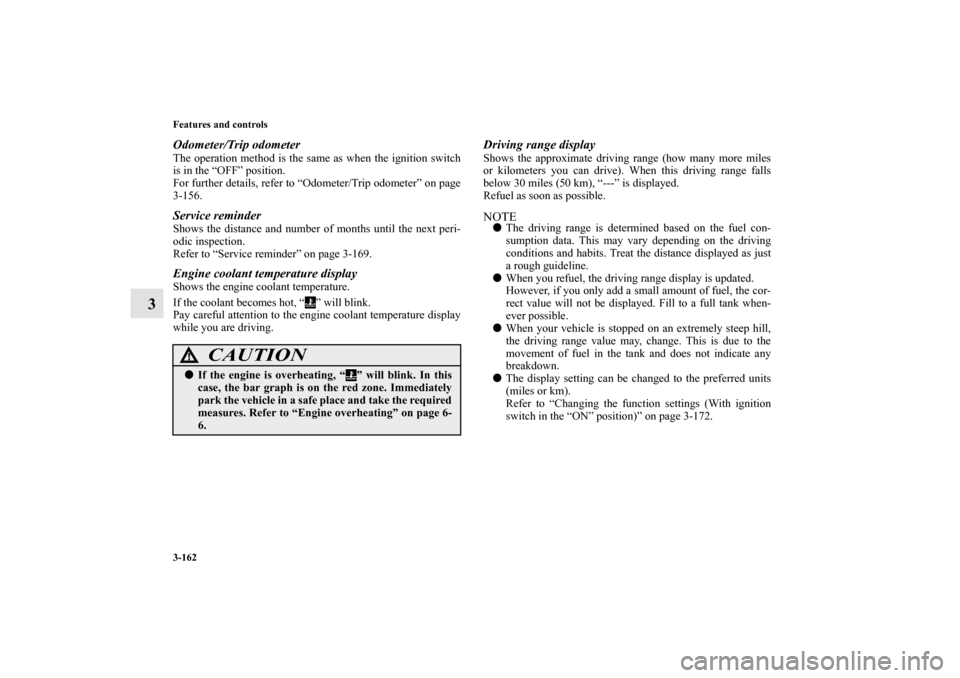

3-162 Features and controls
3
Odometer/Trip odometerThe operation method is the same as when the ignition switch
is in the “OFF” position.
For further details, refer to “Odometer/Trip odometer” on page
3-156.Service reminderShows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-169.Engine coolant temperature displayShows the engine coolant temperature.
If the coolant becomes hot, “ ” will blink.
Pay careful attention to the engine coolant temperature display
while you are driving.
Driving range displayShows the approximate driving range (how many more miles
or kilometers you can drive). When this driving range falls
below 30 miles (50 km), “---” is displayed.
Refuel as soon as possible.NOTEThe driving range is determined based on the fuel con-
sumption data. This may vary depending on the driving
conditions and habits. Treat the distance displayed as just
a rough guideline.
When you refuel, the driving range display is updated.
However, if you only add a small amount of fuel, the cor-
rect value will not be displayed. Fill to a full tank when-
ever possible.
When your vehicle is stopped on an extremely steep hill,
the driving range value may, change. This is due to the
movement of fuel in the tank and does not indicate any
breakdown.
The display setting can be changed to the preferred units
(miles or km).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
CAUTION
!If the engine is overheating, “ ” will blink. In this
case, the bar graph is on the red zone. Immediately
park the vehicle in a safe place and take the required
measures. Refer to “Engine overheating” on page 6-
6.
BK0142300US.book 162 ページ ２０１１年８月７日 日曜日 午前１０時４４分
Page 250 of 618
Features and controls
3-163
3

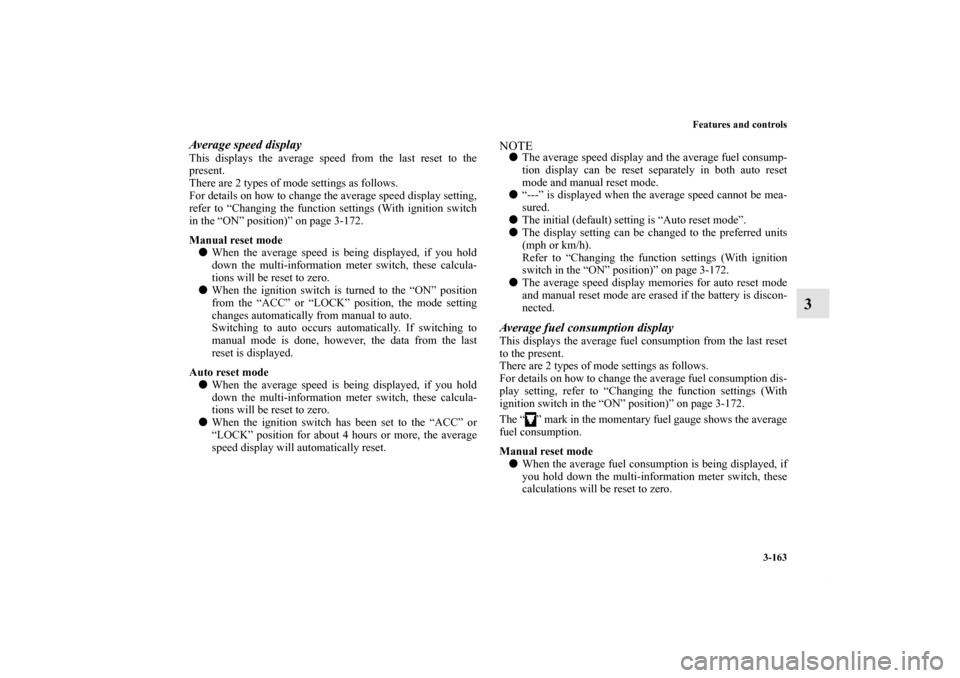

Average speed displayThis displays the average speed from the last reset to the
present.
There are 2 types of mode settings as follows.
For details on how to change the average speed display setting,
refer to “Changing the function settings (With ignition switch
in the “ON” position)” on page 3-172.
Manual reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.
When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode
When the average speed is being displayed, if you hold
down the multi-information meter switch, these calcula-
tions will be reset to zero.
When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
speed display will automatically reset.
NOTEThe average speed display and the average fuel consump-
tion display can be reset separately in both auto reset
mode and manual reset mode.
“---” is displayed when the average speed cannot be mea-
sured.
The initial (default) setting is “Auto reset mode”.
The display setting can be changed to the preferred units
(mph or km/h).
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-172.
The average speed display memories for auto reset mode
and manual reset mode are erased if the battery is discon-
nected.Average fuel consumption displayThis displays the average fuel consumption from the last reset
to the present.
There are 2 types of mode settings as follows.
For details on how to change the average fuel consumption dis-
play setting, refer to “Changing the function settings (With
ignition switch in the “ON” position)” on page 3-172.
The “ ” mark in the momentary fuel gauge shows the average
fuel consumption.
Manual reset mode
When the average fuel consumption is being displayed, if
you hold down the multi-information meter switch, these
calculations will be reset to zero.
BK0142300US.book 163 ページ ２０１１年８月７日 日曜日 午前１０時４４分
