7-58 Vehicle care and maintenance
7

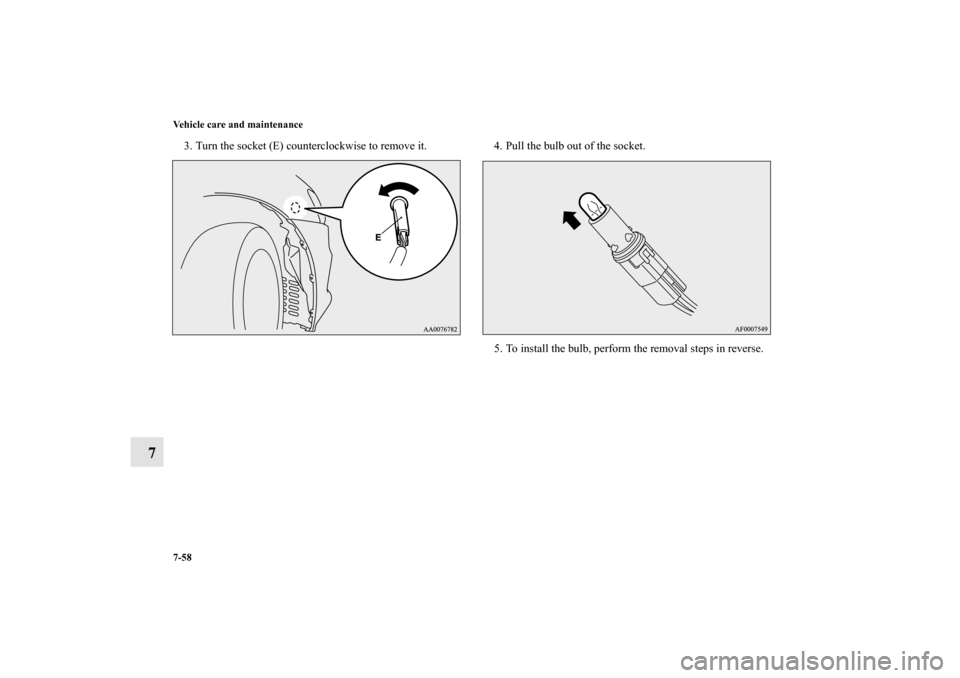

3. Turn the socket (E) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.
BK0142300US.book 58 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-59
7

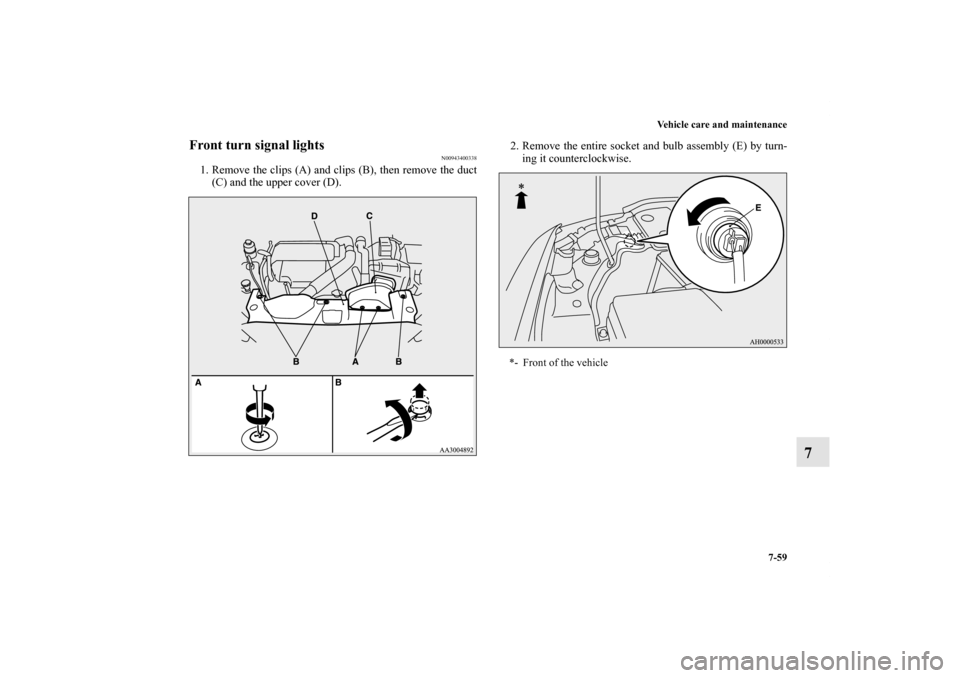

Front turn signal lights
N00943400338
1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.
*- Front of the vehicle
BK0142300US.book 59 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-60 Vehicle care and maintenance
7

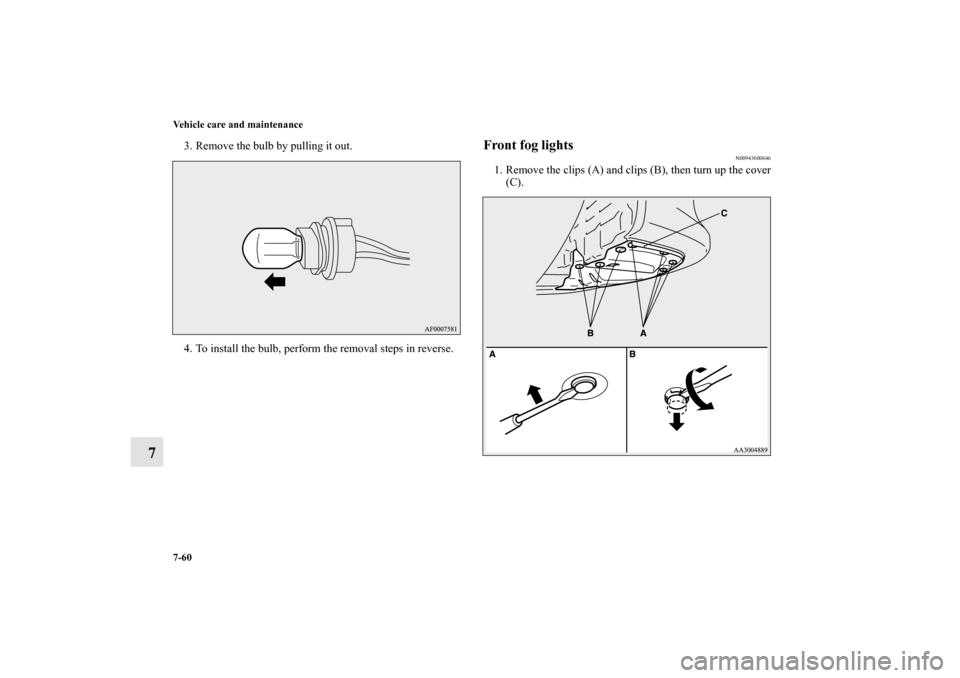

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front fog lights
N00943600646
1. Remove the clips (A) and clips (B), then turn up the cover
(C).
BK0142300US.book 60 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-61
7

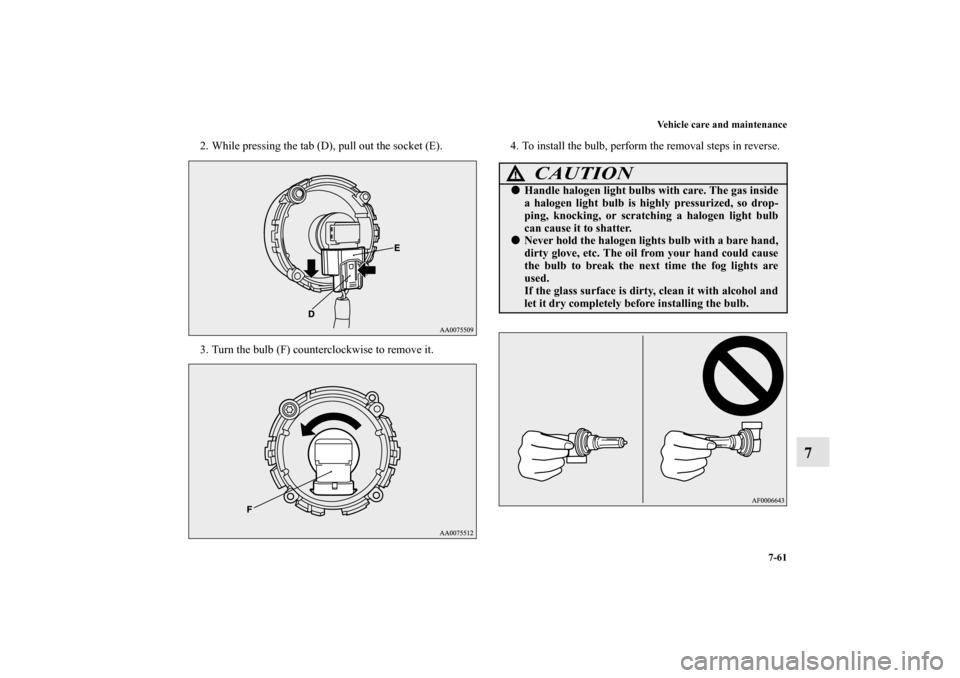

2. While pressing the tab (D), pull out the socket (E).
3. Turn the bulb (F) counterclockwise to remove it.4. To install the bulb, perform the removal steps in reverse.
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc. The oil from your hand could cause
the bulb to break the next time the fog lights are
used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0142300US.book 61 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-62 Vehicle care and maintenance
7

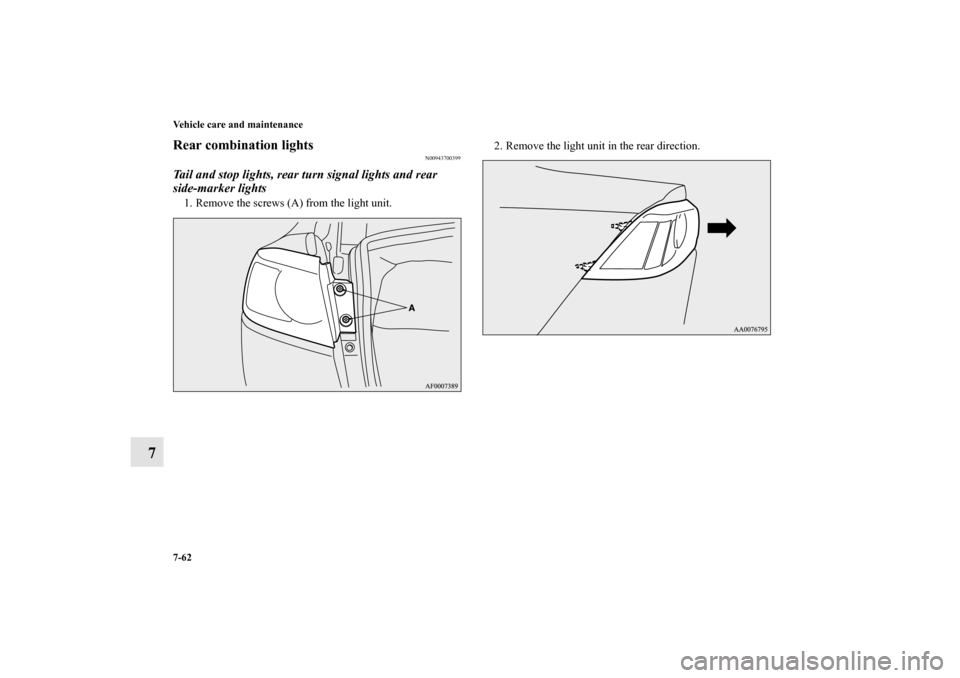

Rear combination lights
N00943700399
Tail and stop lights, rear turn signal lights and rear
side-marker lights1. Remove the screws (A) from the light unit.2. Remove the light unit in the rear direction.
BK0142300US.book 62 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-63
7

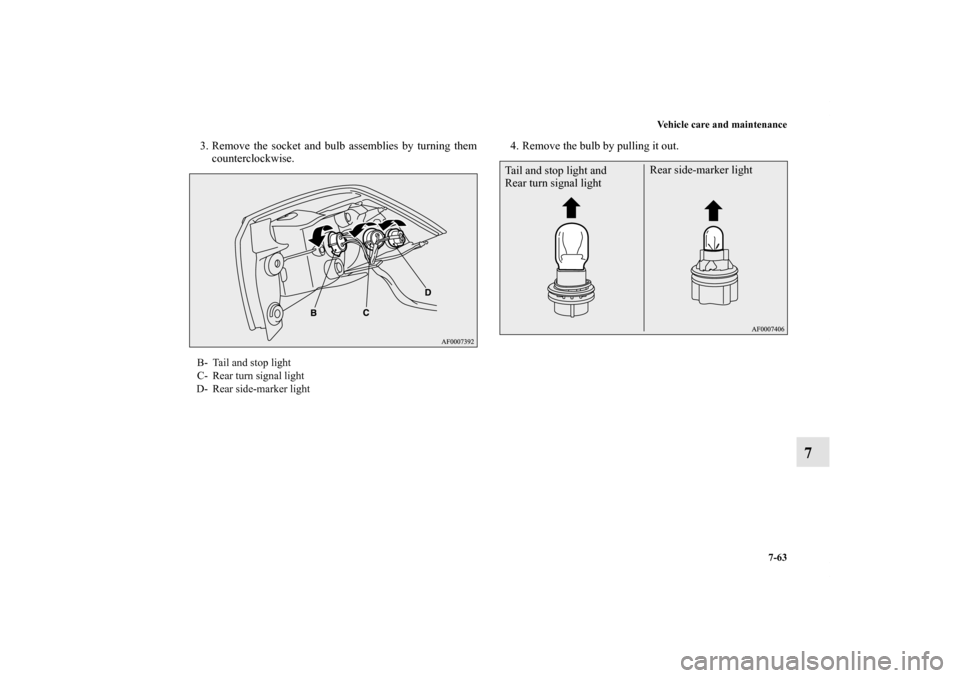

3. Remove the socket and bulb assemblies by turning them
counterclockwise.4. Remove the bulb by pulling it out.B- Tail and stop light
C- Rear turn signal light
D- Rear side-marker light
Tail and stop light and
Rear turn signal lightRear side-marker light
BK0142300US.book 63 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-64 Vehicle care and maintenance
7

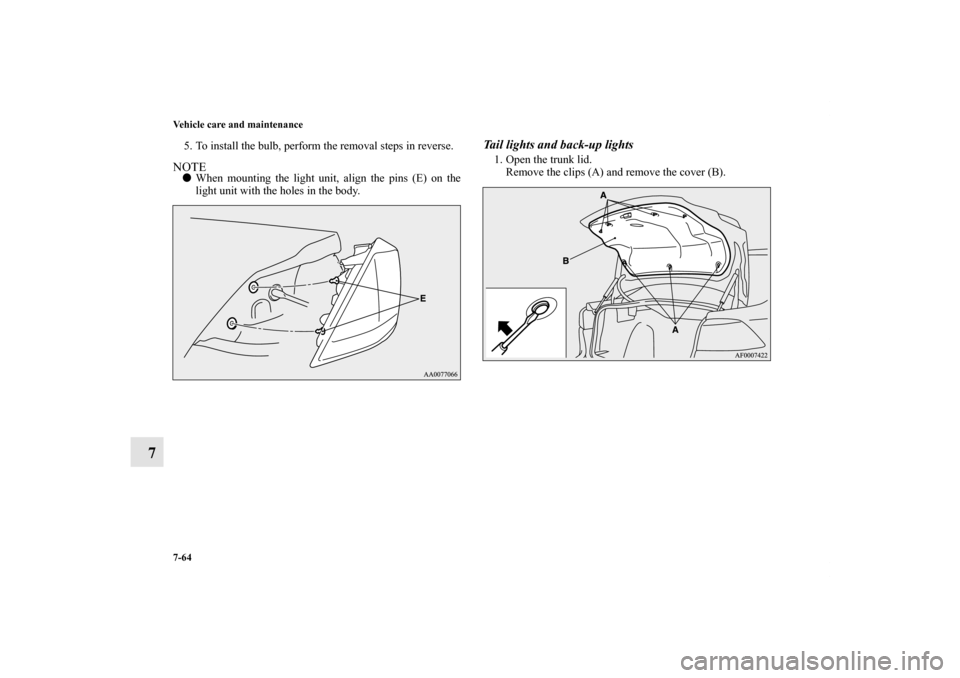

5. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the light unit, align the pins (E) on the
light unit with the holes in the body.
Tail lights and back-up lights1. Open the trunk lid.
Remove the clips (A) and remove the cover (B).
BK0142300US.book 64 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-65
7

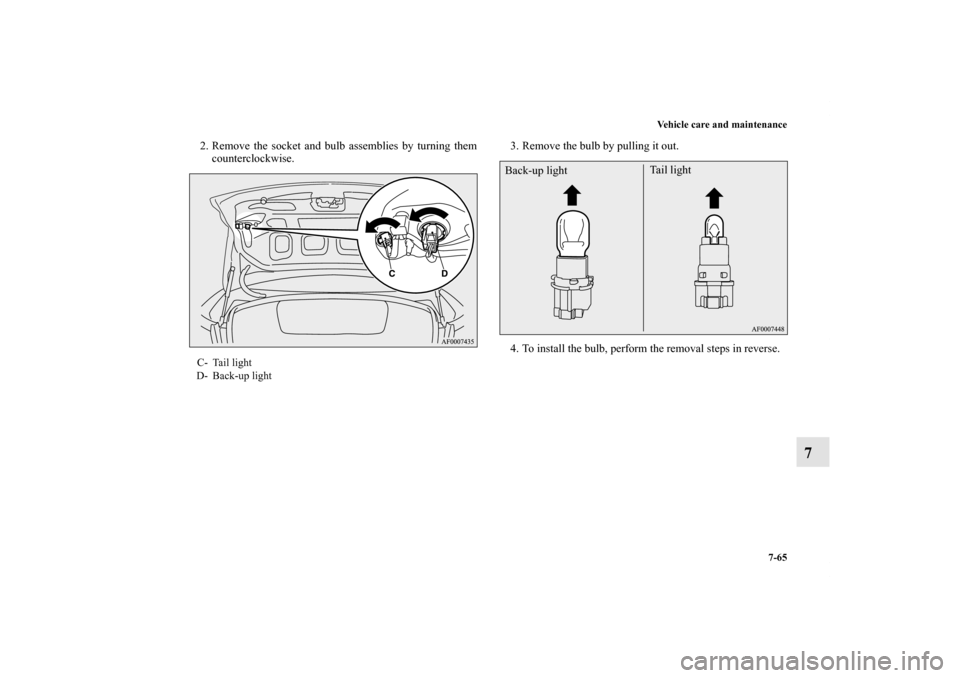

2. Remove the socket and bulb assemblies by turning them
counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.C- Tail light
D- Back-up light
Back-up lightTail light
BK0142300US.book 65 ページ ２０１１年８月７日　日曜日　午前１０時４４分

7-66 Vehicle care and maintenance
7
License plate light
N00944000344

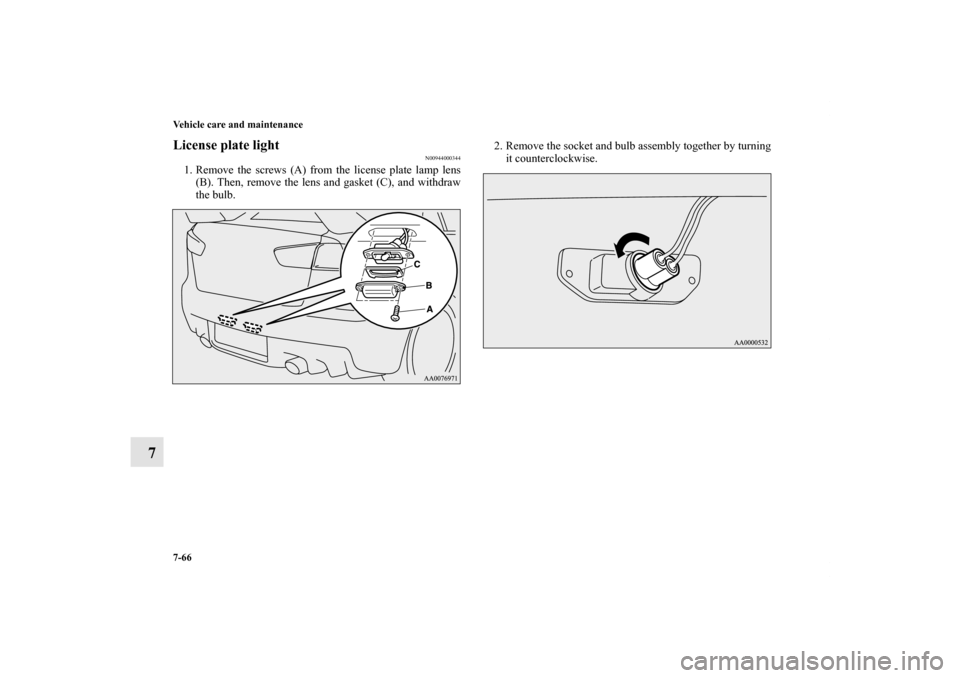

1. Remove the screws (A) from the license plate lamp lens
(B). Then, remove the lens and gasket (C), and withdraw
the bulb.2. Remove the socket and bulb assembly together by turning
it counterclockwise.
BK0142300US.book 66 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Vehicle care and maintenance
7-67
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Dome light (front)/Reading lights
N00944500264

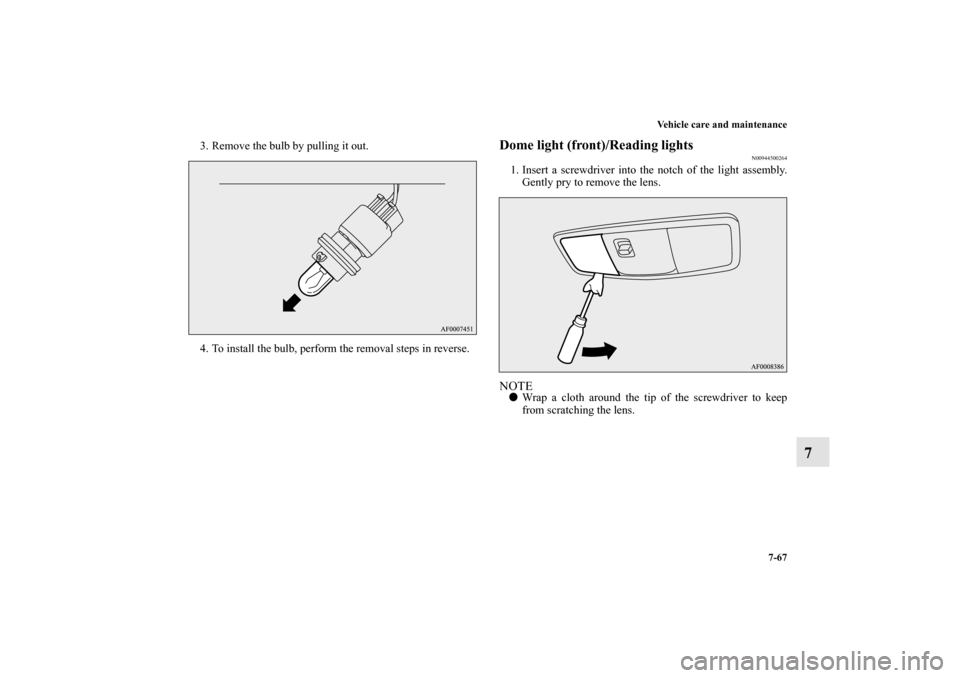

1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
