MITSUBISHI LANCER EVOLUTION 2012 10.G Owners Manual

9-4 Specifications
9

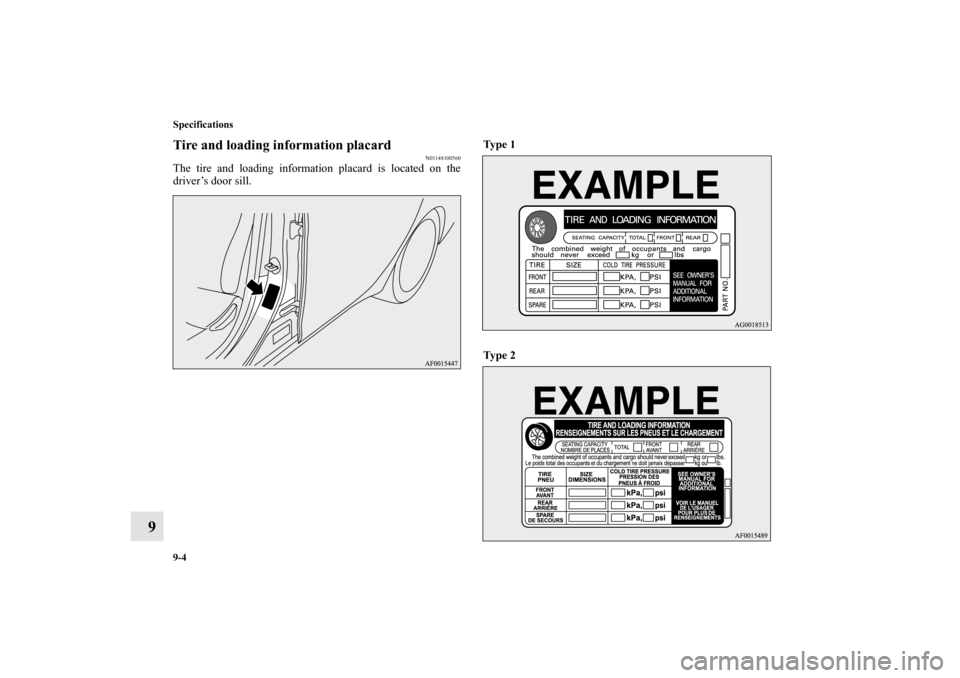

Tire and loading information placard
N01148100560
The tire and loading information placard is located on the
driver’s door sill. Ty p e 1

Ty p e 2
BK0142300US.book 4 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Specifications
9-5
9

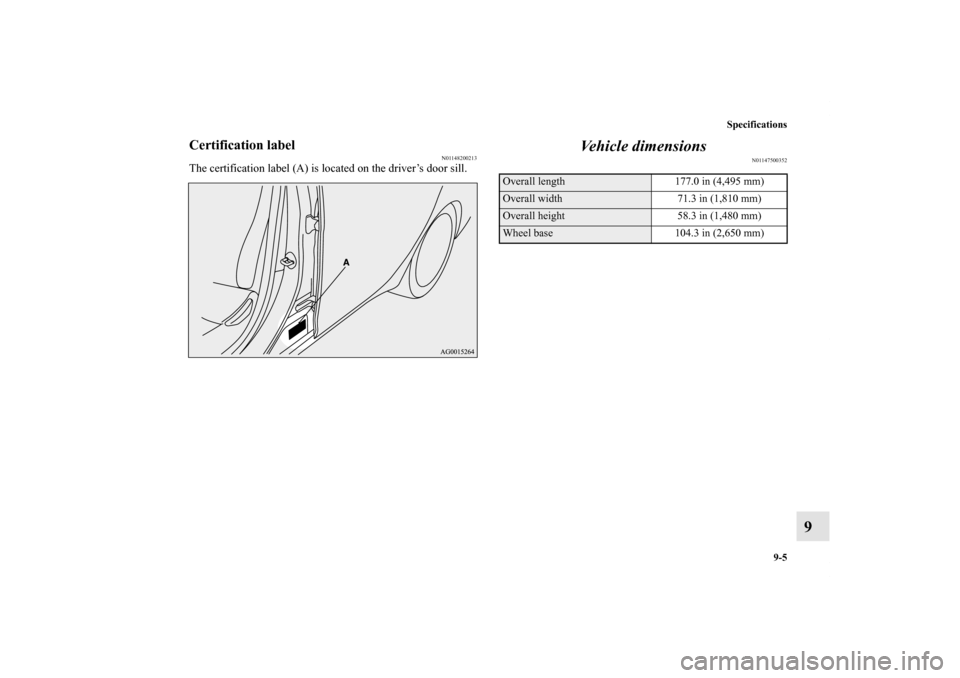

Certification label
N01148200213
The certification label (A) is located on the driver’s door sill.
Vehicle dimensions
N01147500352
Overall length 177.0 in (4,495 mm)Overall width 71.3 in (1,810 mm) Overall height 58.3 in (1,480 mm)Wheel base 104.3 in (2,650 mm)
BK0142300US.book 5 ページ ２０１１年８月７日　日曜日　午前１０時４４分

9-6 Specifications

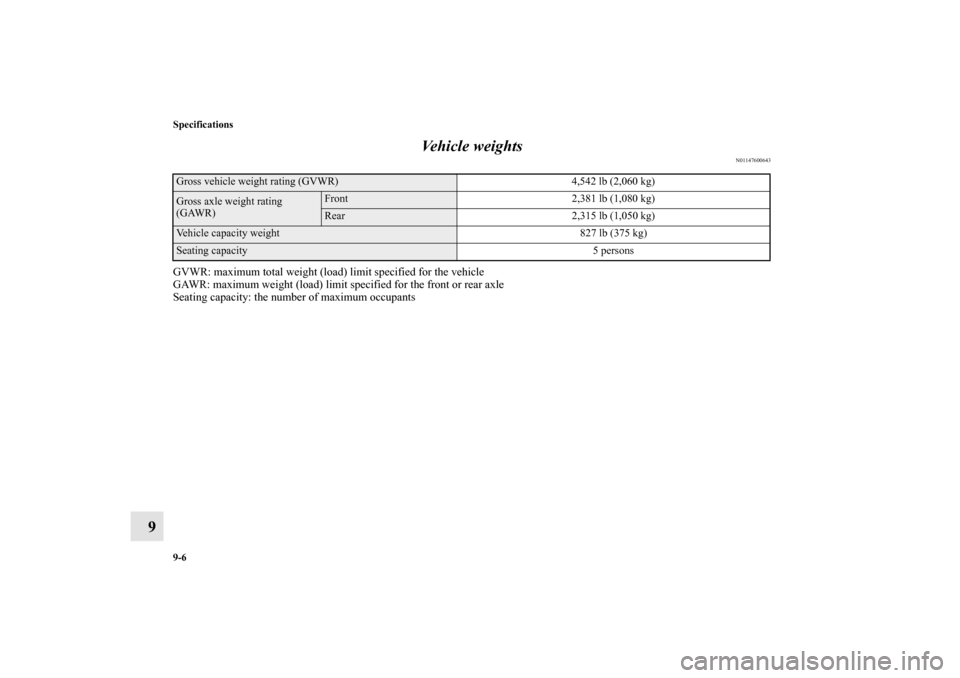

9Vehicle weights
N01147600643
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupantsGross vehicle weight rating (GVWR) 4,542 lb (2,060 kg)Gross axle weight rating
(GAWR)
Front 2,381 lb (1,080 kg)Rear 2,315 lb (1,050 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity 5 personsBK0142300US.book 6 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Specifications
9-7

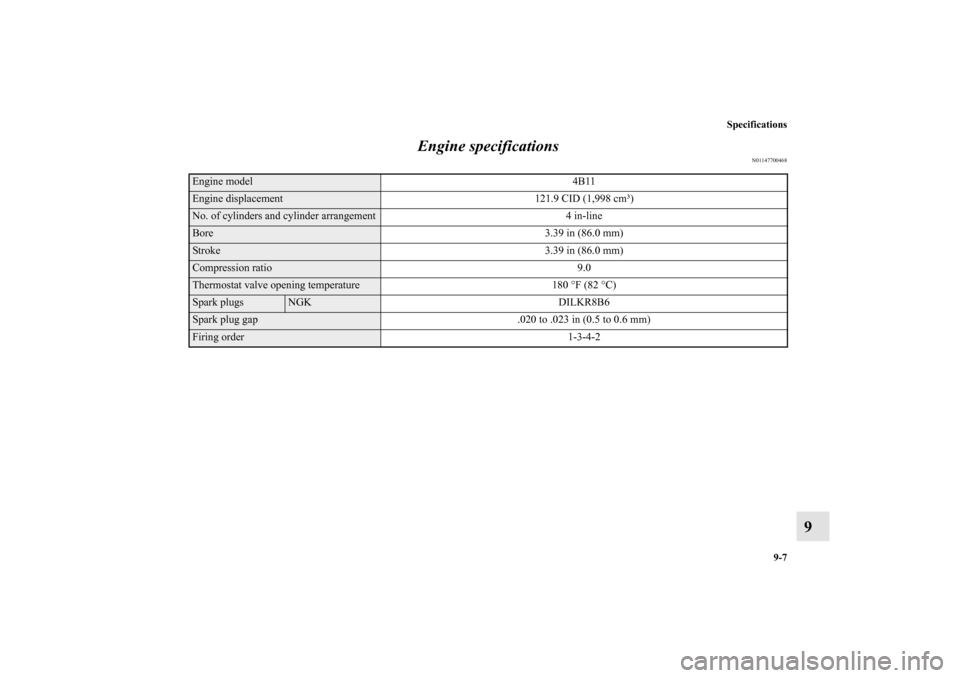

9 Engine specifications
N01147700468
Engine model 4B11Engine displacement 121.9 CID (1,998 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm)Stroke 3.39 in (86.0 mm)Compression ratio 9.0Thermostat valve opening temperature 180 °F (82 °C)Spark plugs
NGK DILKR8B6
Spark plug gap .020 to .023 in (0.5 to 0.6 mm)Firing order 1-3-4-2
BK0142300US.book 7 ページ ２０１１年８月７日　日曜日　午前１０時４４分

9-8 Specifications

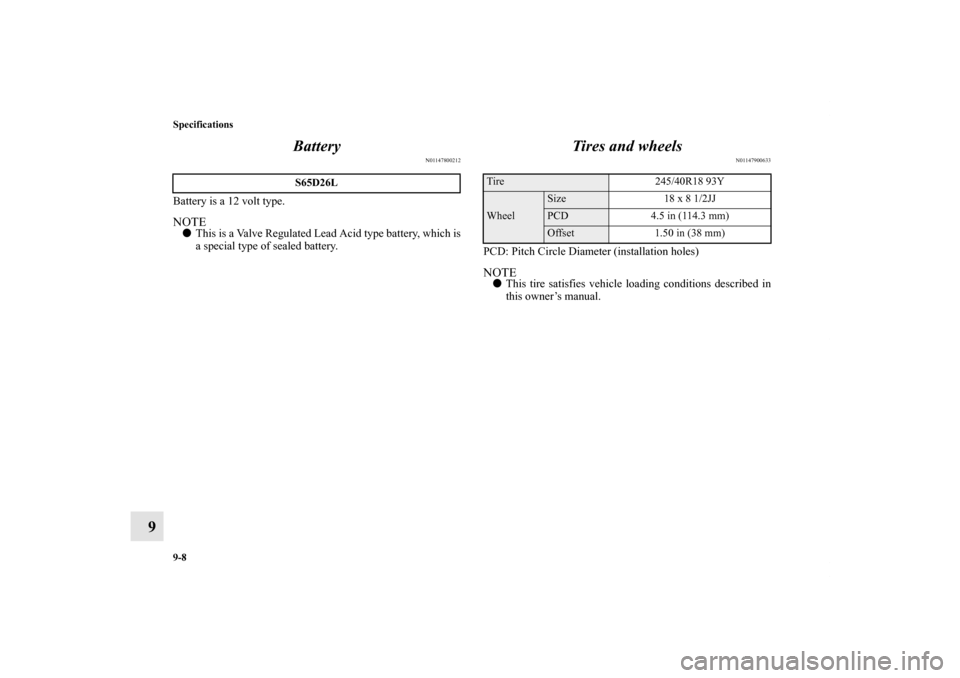

9Battery
N01147800212
Battery is a 12 volt type.NOTE
This is a Valve Regulated Lead Acid type battery, which is
a special type of sealed battery.
Tires and wheels
N01147900633
PCD: Pitch Circle Diameter (installation holes)NOTE
This tire satisfies vehicle loading conditions described in
this owner’s manual.
S65D26L
Tire 245/40R18 93YWheel
Size 18 x 8 1/2JJPCD 4.5 in (114.3 mm)Offset 1.50 in (38 mm)
BK0142300US.book 8 ページ ２０１１年８月７日　日曜日　午前１０時４４分

Specifications
9-9

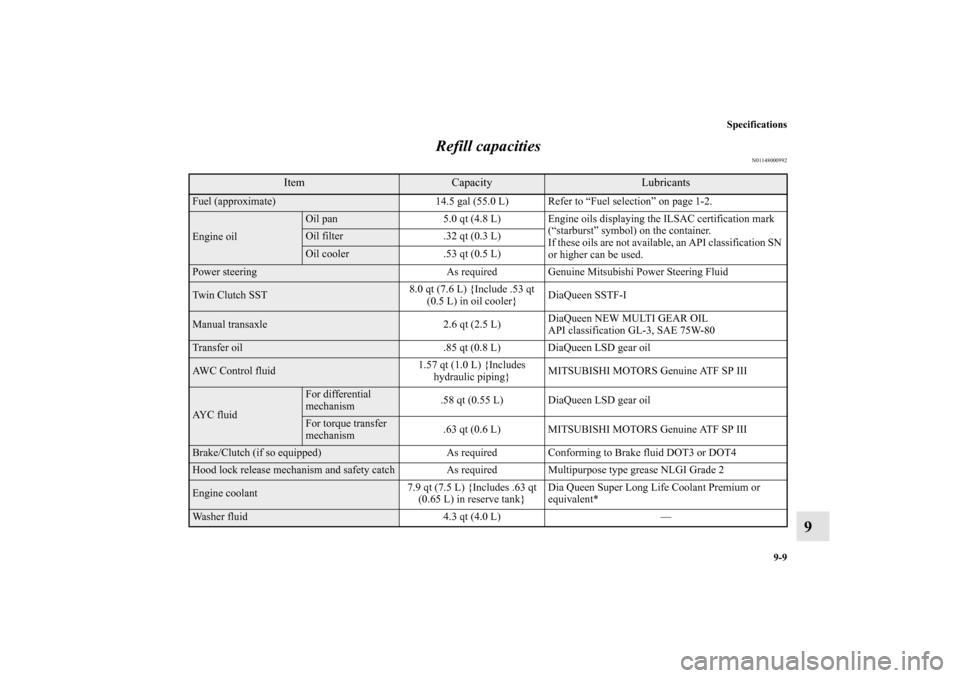

9 Refill capacities
N01148000992
Item
Capacity
Lubricants
Fuel (approximate) 14.5 gal (55.0 L) Refer to “Fuel selection” on page 1-2.Engine oil
Oil pan 5.0 qt (4.8 L) Engine oils displaying the ILSAC certification mark
(“starburst” symbol) on the container.
If these oils are not available, an API classification SN
or higher can be used.Oil filter .32 qt (0.3 L)Oil cooler .53 qt (0.5 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Twin Clutch SST8.0 qt (7.6 L) {Include .53 qt
(0.5 L) in oil cooler}DiaQueen SSTF-IManual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL
API classification GL-3, SAE 75W-80Transfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC Control fluid1.57 qt (1.0 L) {Includes
hydraulic piping}MITSUBISHI MOTORS Genuine ATF SP IIIAY C f l u i d
For differential
mechanism.58 qt (0.55 L) DiaQueen LSD gear oilFor torque transfer
mechanism.63 qt (0.6 L) MITSUBISHI MOTORS Genuine ATF SP III
Brake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant7.9 qt (7.5 L) {Includes .63 qt
(0.65 L) in reserve tank}Dia Queen Super Long Life Coolant Premium or
equivalent*Washer fluid 4.3 qt (4.0 L) —
BK0142300US.book 9 ページ ２０１１年８月７日　日曜日　午前１０時４４分

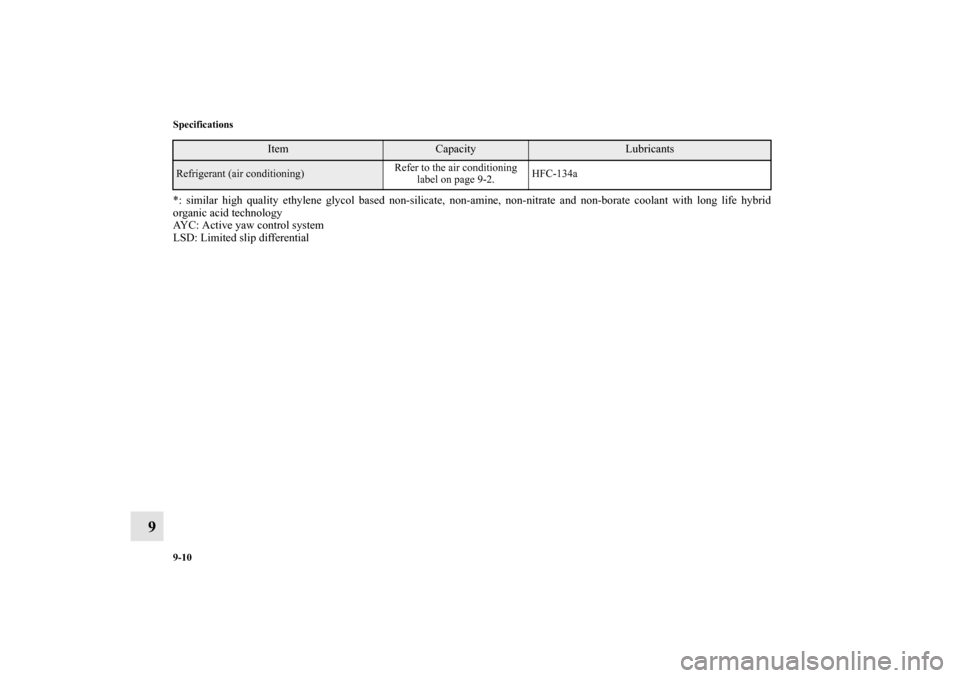

9-10 Specifications
9
*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
AYC: Active yaw control system
LSD: Limited slip differentialRefrigerant (air conditioning)Refer to the air conditioning
label on page 9-2.HFC-134a
Item
Capacity
Lubricants
BK0142300US.book 10 ページ ２０１１年８月７日　日曜日　午前１０時４４分

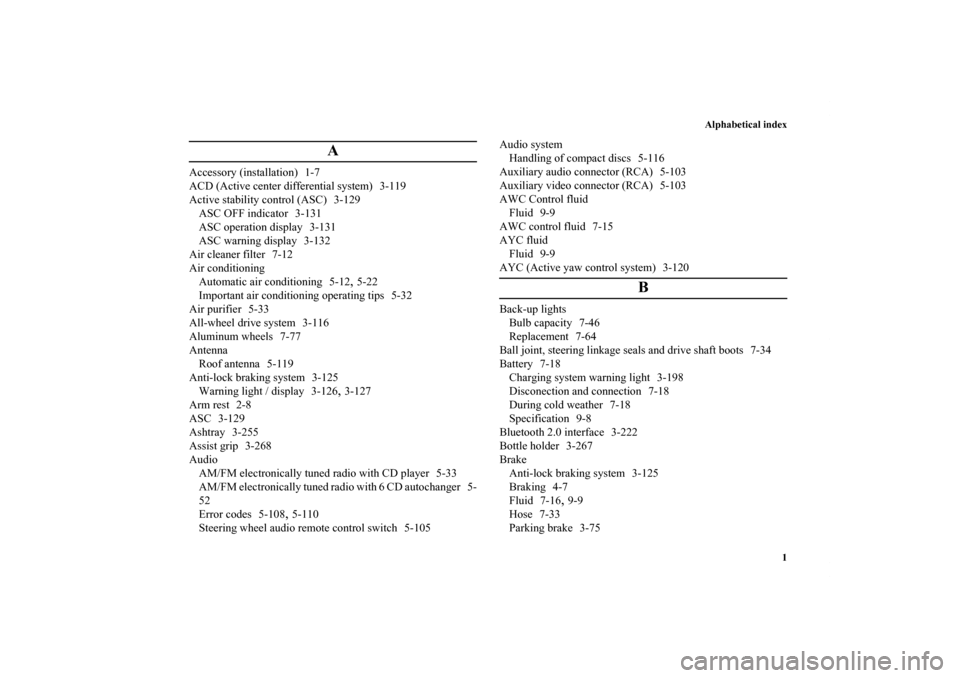

Alphabetical index
1
A
Accessory (installation) 1-7
ACD (Active center differential system) 3-119
Active stability control (ASC) 3-129
ASC OFF indicator 3-131
ASC operation display 3-131
ASC warning display 3-132
Air cleaner filter 7-12
Air conditioning
Automatic air conditioning 5-12
,5-22
Important air conditioning operating tips 5-32
Air purifier 5-33
All-wheel drive system 3-116
Aluminum wheels 7-77
Antenna
Roof antenna 5-119
Anti-lock braking system 3-125
Warning light / display 3-126
,3-127
Arm rest 2-8
ASC 3-129
Ashtray 3-255
Assist grip 3-268
Audio
AM/FM electronically tuned radio with CD player 5-33
AM/FM electronically tuned radio with 6 CD autochanger 5-
52
Error codes 5-108
,5-110
Steering wheel audio remote control switch 5-105Audio system
Handling of compact discs 5-116
Auxiliary audio connector (RCA) 5-103
Auxiliary video connector (RCA) 5-103
AWC Control fluid
Fluid 9-9
AWC control fluid 7-15
AYC fluid
Fluid 9-9
AYC (Active yaw control system) 3-120
B
Back-up lights
Bulb capacity 7-46
Replacement 7-64
Ball joint, steering linkage seals and drive shaft boots 7-34
Battery 7-18
Charging system warning light 3-198
Disconection and connection 7-18
During cold weather 7-18
Specification 9-8
Bluetooth 2.0 interface 3-222
Bottle holder 3-267
Brake
Anti-lock braking system 3-125
Braking 4-7
Fluid 7-16
,9-9
Hose 7-33
Parking brake 3-75
BK0142300US.book 1 ページ ２０１１年８月７日　日曜日　午前１０時４４分

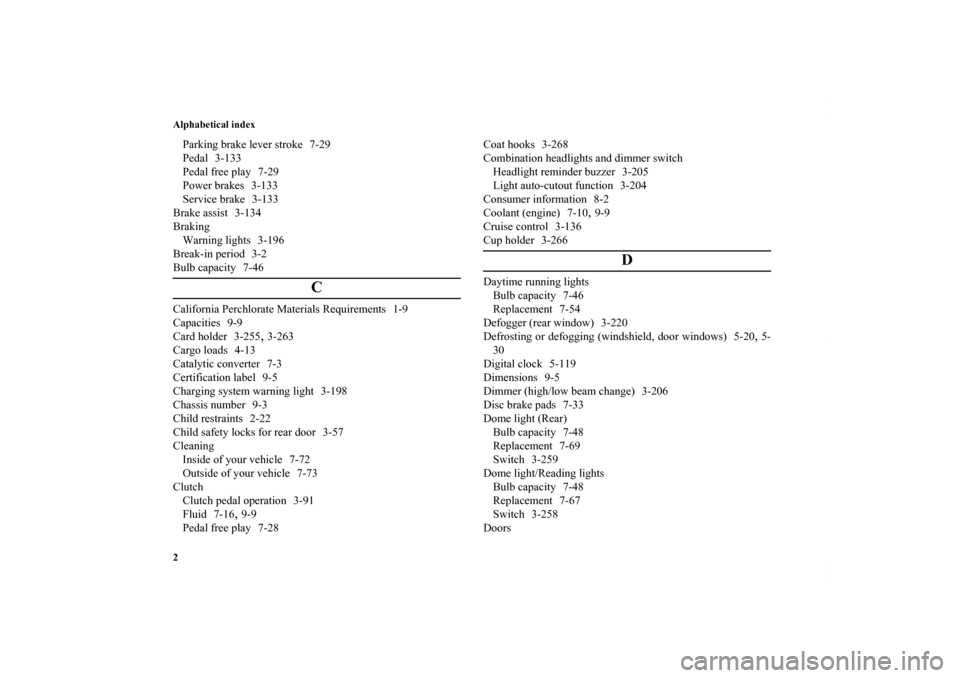

Alphabetical index
2Parking brake lever stroke 7-29
Pedal 3-133
Pedal free play 7-29
Power brakes 3-133
Service brake 3-133
Brake assist 3-134
Braking
Warning lights 3-196
Break-in period 3-2
Bulb capacity 7-46
C
California Perchlorate Materials Requirements 1-9
Capacities 9-9
Card holder 3-255
,3-263
Cargo loads 4-13
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-198
Chassis number 9-3
Child restraints 2-22
Child safety locks for rear door 3-57
Cleaning
Inside of your vehicle 7-72
Outside of your vehicle 7-73
Clutch
Clutch pedal operation 3-91
Fluid 7-16
,9-9
Pedal free play 7-28Coat hooks 3-268
Combination headlights and dimmer switch
Headlight reminder buzzer 3-205
Light auto-cutout function 3-204
Consumer information 8-2
Coolant (engine) 7-10
,9-9
Cruise control 3-136
Cup holder 3-266
D
Daytime running lights
Bulb capacity 7-46
Replacement 7-54
Defogger (rear window) 3-220
Defrosting or defogging (windshield, door windows) 5-20
,5-
30
Digital clock 5-119
Dimensions 9-5
Dimmer (high/low beam change) 3-206
Disc brake pads 7-33
Dome light (Rear)
Bulb capacity 7-48
Replacement 7-69
Switch 3-259
Dome light/Reading lights
Bulb capacity 7-48
Replacement 7-67
Switch 3-258
Doors
BK0142300US.book 2 ページ ２０１１年８月７日　日曜日　午前１０時４４分

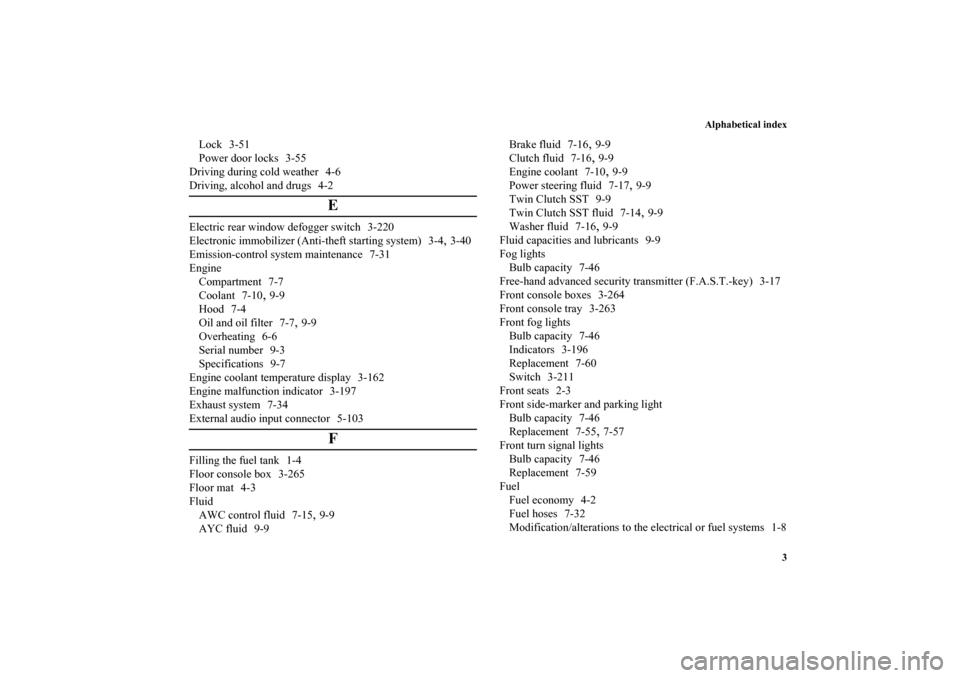

Alphabetical index
3
Lock 3-51
Power door locks 3-55
Driving during cold weather 4-6
Driving, alcohol and drugs 4-2
E
Electric rear window defogger switch 3-220
Electronic immobilizer (Anti-theft starting system) 3-4
,3-40
Emission-control system maintenance 7-31
Engine
Compartment 7-7
Coolant 7-10
,9-9
Hood 7-4
Oil and oil filter 7-7
,9-9
Overheating 6-6
Serial number 9-3
Specifications 9-7
Engine coolant temperature display 3-162
Engine malfunction indicator 3-197
Exhaust system 7-34
External audio input connector 5-103
F
Filling the fuel tank 1-4
Floor console box 3-265
Floor mat 4-3
Fluid
AWC control fluid 7-15
,9-9
AYC fluid 9-9Brake fluid 7-16
,9-9
Clutch fluid 7-16,9-9
Engine coolant 7-10,9-9
Power steering fluid 7-17
,9-9
Twin Clutch SST 9-9
Twin Clutch SST fluid 7-14,9-9
Washer fluid 7-16
,9-9
Fluid capacities and lubricants 9-9
Fog lights
Bulb capacity 7-46
Free-hand advanced security transmitter (F.A.S.T.-key) 3-17
Front console boxes 3-264
Front console tray 3-263
Front fog lights
Bulb capacity 7-46
Indicators 3-196
Replacement 7-60
Switch 3-211
Front seats 2-3
Front side-marker and parking light
Bulb capacity 7-46
Replacement 7-55,7-57
Front turn signal lights
Bulb capacity 7-46
Replacement 7-59
Fuel
Fuel economy 4-2
Fuel hoses 7-32
Modification/alterations to the electrical or fuel systems 1-8
BK0142300US.book 3 ページ ２０１１年８月７日　日曜日　午前１０時４４分
