MITSUBISHI LANCER EVOLUTION 2013 10.G MMCS Manual

Introduction
Thank you for buying a Mitsubishi Motors product.
This Owner’s Manual will add to your understanding
and full enjoyment of the many fine features of the
Mitsubishi Multi Communication System(MMCS).
Throughout this manual the words WARNING
and CAUTION appear.
These are reminders to be especially careful.
Failure to follow the instructions could result in
personal injury or damage to your vehicle.
WARNING
Indicates a strong possibility of severe personal
injury or death if instructions are not followed.
CAUTION
Points out hazards or unsafe practices that could cause minor personal injury or damage to your
vehicle.
You will see another important symbol:
NOTE :Gives helpful information.
© 2011 Mitsubishi Motors Corporation Printed in Japan
\b \b
\f \

  \b
\b \f

NOTE to operate while driving.
enters the MMCS or the MMCS emits smoke or
an abnormal smell) occurs, do not use the MMCS.
Have it inspected at an authorized Mitsubishi
dealer. Do not continue to use the MMCS or try to
repair it yourself.
are not malfunctions:
- Small black spots or bright spots (red, blue, or green) on the screen.
- When it is cold, the screen becomes darker or reddish or operations become slower.
- Color and brightness vary according to the viewing angle.
screen. Do not use any cleaners (such as benzene,
thinners, antistatic agents or chemical cloths), as
they may damage the screen.
the engine is off, as it will discharge the vehicle
battery.

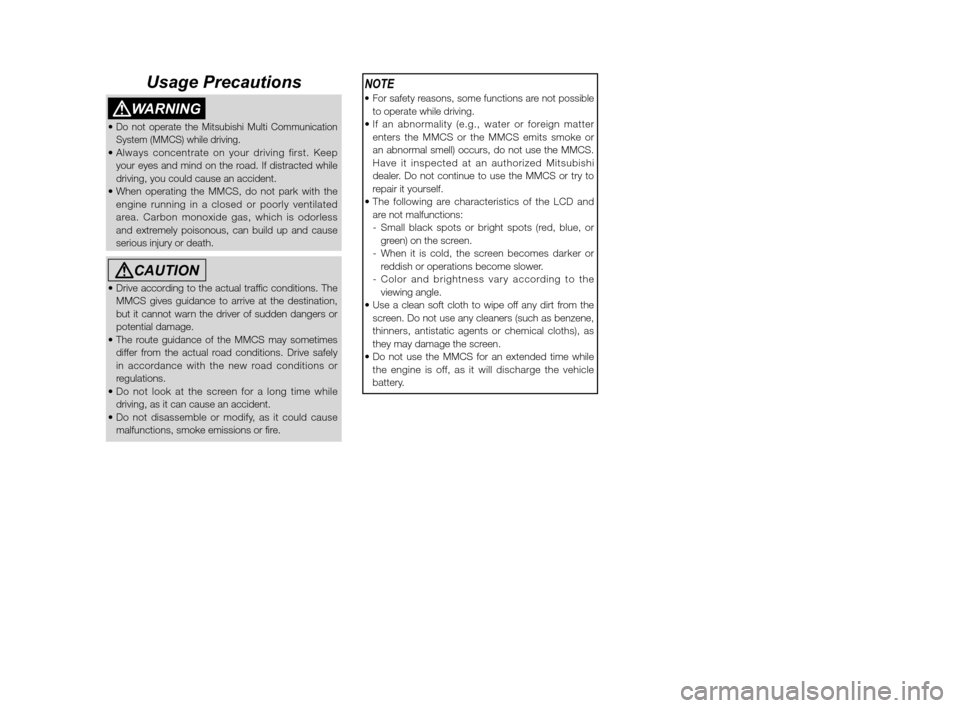

Usage Precautions
WARNING
Do not operate the Mitsubishi Multi Communication
System (MMCS) while driving.
your eyes and mind on the road. If distracted while
driving, you could cause an accident.
engine running in a closed or poorly ventilated
area. Carbon monoxide gas, which is odorless
and extremely poisonous, can build up and cause
serious injury or death.
CAUTION
MMCS gives guidance to arrive at the destination,
but it cannot warn the driver of sudden dangers or
potential damage.
differ from the actual road conditions. Drive safely
in accordance with the new road conditions or
regulations.
driving, as it can cause an accident.
malfunctions, smoke emissions or re.
\b \b
\f \


 \b
\b \f

\b \b
\f \

  \b
\b \f

Navigation System Basic Operation Reference Guide 1-1
IntroductionIntroduction
Navigation System
Basic Operation Reference Guide

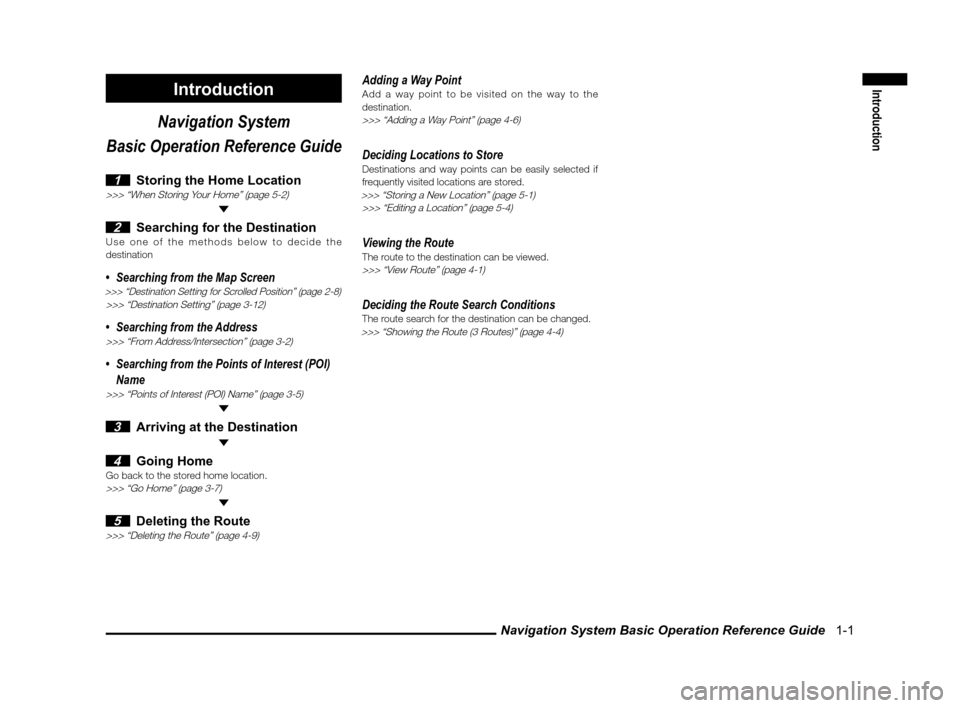

1 Storing the Home Location>>> “When Storing Your Home” (page 5-2)
2 Searching for the DestinationUse one of the methods below to decide the
destination
• Searching from the Map Screen>>> “Destination Setting for Scrolled Position” (page 2-8)>>> “Destination Setting” (page 3-12)
• Searching from the Address>>> “From Address/Intersection” (page 3-2)
• Searching from the Points of Interest (POI)
Name
>>> “Points of Interest (POI) Name” (page 3-5)
3 Arriving at the Destination
4 Going HomeGo back to the stored home location.>>> “Go Home” (page 3-7)
5 Deleting the Route>>> “Deleting the Route” (page 4-9)
Adding a Way PointAdd a way point to be visited on the way to the
destination.
>>> “Adding a Way Point” (page 4-6)
Deciding Locations to StoreDestinations and way points can be easily selected if
frequently visited locations are stored.
>>> “Storing a New Location” (page 5-1)
>>> “Editing a Location” (page 5-4)
Viewing the RouteThe route to the destination can be viewed.>>> “View Route” (page 4-1)
Deciding the Route Search ConditionsThe route search for the destination can be changed.>>> “Showing the Route (3 Routes)” (page 4-4)
\b \b
\f \



 \b
\b \f

Table of Contents 1-2
Table of contents
Introduction
Navigation System
Basic Operation Reference Guide ------ 1-1
Outline of the System -------------------------- 1-6
Parts Name and Functions ------------------- 1-7
Roles of the Panel Operations Keys --------------- 1-7
Role of the Steering Switch --------------------------- 1-7
GPS Measurement ------------------------------ 1-8
Error in the Current Location ------------- 1-10
Route Calculation ----------------------------- 1-12
Gracenote® music recognition service ------ 1-13
EndUser License Agreement ----------------------- 1-13
Basic Operation
Starting the MMCS ------------------------------ 2-1
Operation Instructions ---------------------------------- 2-2
Lists --------------------------------------------------------- 2-2
Menu Screens (Three Menus) --------------- 2-3
Scroll Menu ----------------------------------------------- 2-3
Navi Menu ------------------------------------------------- 2-3
Route Menu ----------------------------------------------- 2-4
Map Screen ---------------------------------------- 2-5
Current Location Screen ------------------------------ 2-5
Changing the Map Display ------------------- 2-6
Displaying the Current Location Screen ----------- 2-6
Changing the Scale ------------------------------------- 2-6
Changing Map Orientation ---------------------------- 2-7
Scrolling the Map ------------------------------- 2-8
Destination Setting for Scrolled Position ---------- 2-8
Viewing the car location ------------------------------- 2-8
Intersection Guidance ----------------------- 2-10
Guidance Map ----------------------------------------- 2-10
Turn List ------------------------------------------------- 2-10
Arrow Guide -------------------------------------------- 2-11
Listening to the Voice Guide -------------- 2-12
How to Enter Text ----------------------------- 2-13
Entering a letter ---------------------------------------- 2-13
Entering a Symbol ------------------------------------ 2-13
Deleting Text -------------------------------------------- 2-13
Switching between Upper Case and Lower Case --- 2-14
Completing the input --------------------------------- 2-14
Voice Operation -------------------------------- 2-15
To use the voice operation -------------------------- 2-15
Destination
Basic Method --------------------------------------------- 3-1
Advanced Search --------------------------------------- 3-1
Basic Method ------------------------------------- 3-2
From Address/Intersection ---------------------------- 3-2
Points of Interest (POI) Name ------------------------ 3-5
Previous 20 ----------------------------------------------- 3-7
Address Book -------------------------------------------- 3-7
Go Home -------------------------------------------------- 3-7
Advanced Search ------------------------------- 3-8
Nearby POI ----------------------------------------------- 3-8
POI along Route ----------------------------------------- 3-9
POI by Dest./Way Point ------------------------------- 3-9
POI along a Street ------------------------------------ 3-10
POI by Freeway --------------------------------------- 3-10
Map Point ----------------------------------------------- 3-11
Return Trip ---------------------------------------------- 3-11 Latitude/Longitude ------------------------------------ 3-11
Destination Setting --------------------------- 3-12
Setting as Destination -------------------------------- 3-12
Setting as Way Point --------------------------------- 3-12
Storing the Location ---------------------------------- 3-13
Route
View Route ---------------------------------------- 4-1
Route Option Icon --------------------------------------- 4-1
Remaining ------------------------------------------------- 4-2
Preview ---------------------------------------------------- 4-2
Route Outline --------------------------------------------- 4-2
Detour ----------------------------------------------- 4-3
Detour Distance ----------------------------------------- 4-3
Avoid Street ----------------------------------------------- 4-3
Editing the Route (Itinerary) ----------------- 4-4
Showing the Route (3 Routes) ----------------------- 4-4
Re-ordering ----------------------------------------------- 4-5
Adding a Way Point ------------------------------------- 4-6
Deleting ---------------------------------------------------- 4-6
Option ------------------------------------------------------ 4-7
Start Demo ---------------------------------------- 4-8
Deleting the Route ------------------------------ 4-9
