Introduction
N09200100963
Thank you for buying a MITSUBISHI LANCER EVOLU-
TION.
We are confident you will enjoy your vehicle. It has been engi-
neered for optimum performance, durability and comfort. By
thoroughly reading this Owner’s Manual, you will gain an
understanding of the many features that are included in the
LANCER EVOLUTION. The Owner’s Manual contains
descriptions and illustrations that will assist in the operation
and maintenance of your vehicle.
Your Authorized Mitsubishi Motors Dealer will be happy to
assist you with any further questions you may have regarding
the operation of your vehicle.
Please note that this manual applies to all LANCER EVOLU-
TION models and explains all features including options.
Some features explained in this manual may not be installed on
your vehicle.
Please leave this Owner’s Manual in the vehicle at the time of
resale. The next owner will appreciate having access to the
information contained here.
This manual includes instructions for standard and optional
equipment available at the time of printing. Mitsubishi Motors
Corporation reserves the right to make changes in design and
specifications and to make additions or improvements in its
product without assuming any obligation to install these on
previously manufactured products.
Throughout this manual the words WA R N I N G and CAUTION
appear.
These are reminders to be especially careful. Failure to follow the
instructions could result in personal injury or damage to your
vehicle.
WA R N I N G
!
Indicates a strong possibility of severe personal injury or
death if instructions are not followed.
CAUTION
!
Points out hazards or unsafe practices that could cause minor
personal injury or damage to your vehicle.
You will see another important symbol:
NOTE Gives helpful information.
WA R N I N G
!Engine exhaust, some of its constituents, and certain
vehicle components contain or emit chemicals
known to the State of California to cause cancer and
birth defects and reproductive harm. In addition,
certain fluids contained in vehicles and certain prod-
ucts of component wear contain or emit chemicals
known to the State of California to cause cancer and
birth defects or other reproductive harm.
©2012 Mitsubishi Motors Corporation Printed in Japan
13GS41EVO(NAFTA)_Cover2.fm 1 ページ 2012年2月24日 金曜日 午前9時14分
Page 2 of 626

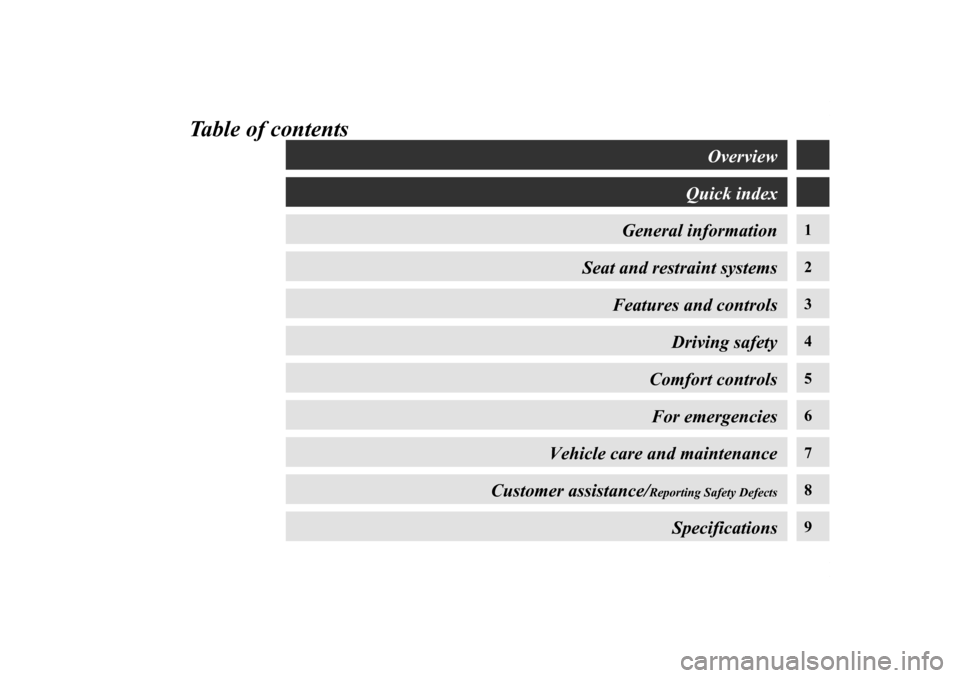

Table of contents
1
2
3
4
5
6
7
8
9
Overview
Quick index
General information
Seat and restraint systems
Features and controls
Driving safety
Comfort controls
For emergencies
Vehicle care and maintenance
Customer assistance/
Reporting Safety Defects
Specifications
BK0150900US.book 1 ページ 2012年5月7日 月曜日 午後12時9分
Page 3 of 626
Overview

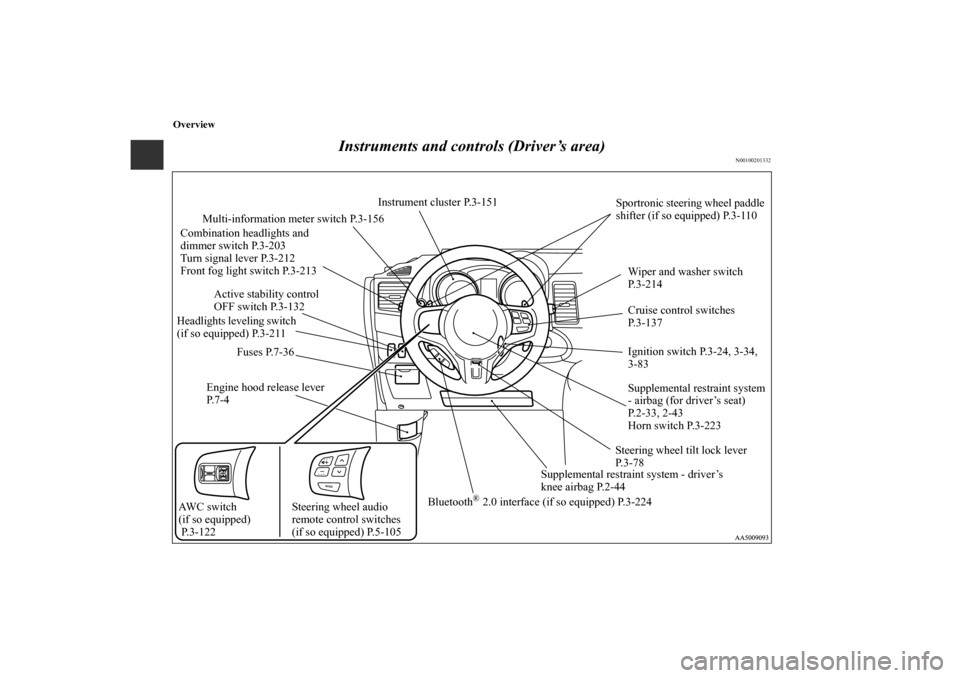

Instruments and controls (Driver’s area)
N00100201332
Combination headlights and
dimmer switch P.3-203
Turn signal lever P.3-212
Front fog light switch P.3-213
Supplemental restraint system
- airbag (for driver’s seat)
P.2-33, 2-43
Horn switch P.3-223 Instrument cluster P.3-151
Cruise control switches
P.3-137 Wiper and washer switch
P.3-214
Fuses P.7-36
Engine hood release lever
P. 7 - 4Sportronic steering wheel paddle
shifter (if so equipped) P.3-110
Ignition switch P.3-24, 3-34,
3-83
Steering wheel tilt lock lever
P. 3 - 7 8
Supplemental restraint system - driver’s
knee airbag P.2-44
Bluetooth
® 2.0 interface (if so equipped) P.3-224
Steering wheel audio
remote control switches
(if so equipped) P.5-105 Multi-information meter switch P.3-156
AWC switch
(if so equipped)
P. 3 - 1 2 2 Headlights leveling switch
(if so equipped) P.3-211Active stability control
OFF switch P.3-132
BK0150900US.book 1 ページ 2012年5月7日 月曜日 午後12時9分
Page 4 of 626
Overview

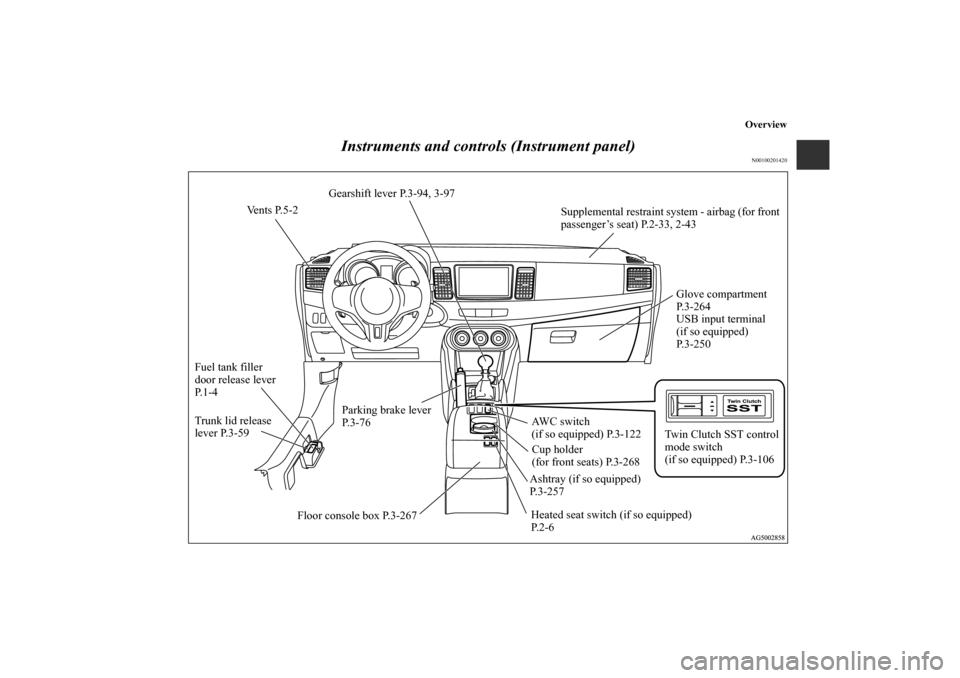

Instruments and controls (Instrument panel)
N00100201420
Vents P.5-2
Supplemental restraint system - airbag (for front
passenger’s seat) P.2-33, 2-43
Twin Clutch SST control
mode switch
(if so equipped) P.3-106 Gearshift lever P.3-94, 3-97
Ashtray (if so equipped)
P.3-257Cup holder
(for front seats) P.3-268 Parking brake lever
P. 3 - 7 6 Fuel tank filler
door release lever
P. 1 - 4
Trunk lid release
lever P.3-59
Heated seat switch (if so equipped)
P. 2 - 6Glove compartment
P.3-264
USB input terminal
(if so equipped)
P.3-250
AWC switch
(if so equipped) P.3-122
Floor console box P.3-267
BK0150900US.book 2 ページ 2012年5月7日 月曜日 午後12時9分
Page 5 of 626
Overview

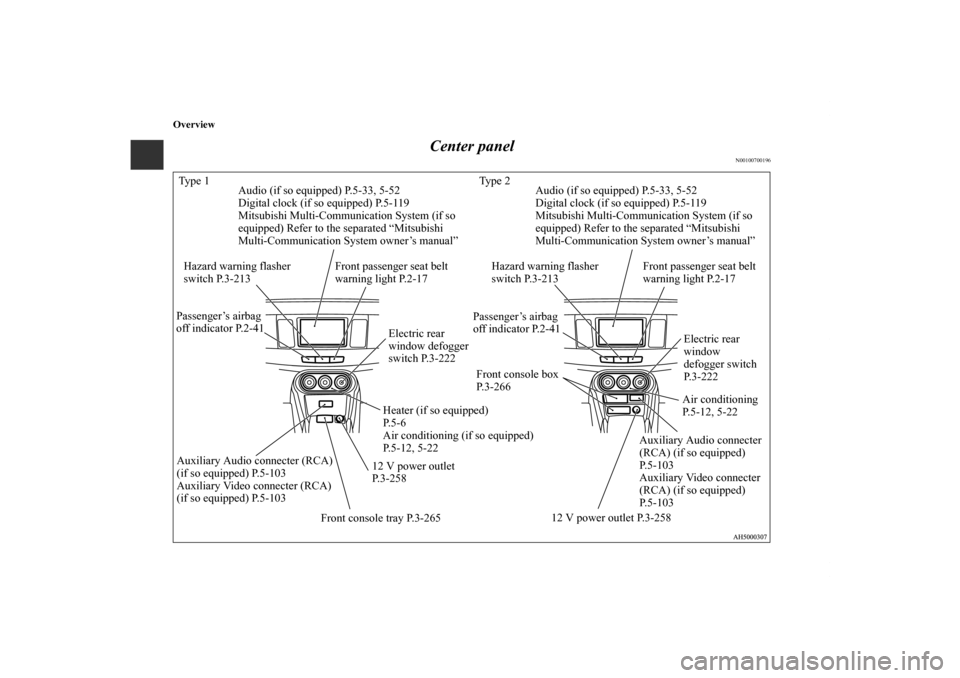

Center panel
N00100700196
Ty p e 1 Ty p e 2
Hazard warning flasher
switch P.3-213
Heater (if so equipped)
P. 5 - 6
Air conditioning (if so equipped)
P.5-12, 5-22
Front console tray P.3-265Front console box
P. 3 - 2 6 6Hazard warning flasher
switch P.3-213
Air conditioning
P.5-12, 5-22
Auxiliary Audio connecter
(RCA) (if so equipped)
P. 5 - 1 0 3
Auxiliary Video connecter
(RCA) (if so equipped)
P. 5 - 1 0 3 Auxiliary Audio connecter (RCA)
(if so equipped) P.5-103
Auxiliary Video connecter (RCA)
(if so equipped) P.5-10312 V power outlet
P. 3 - 2 5 8 Audio (if so equipped) P.5-33, 5-52
Digital clock (if so equipped) P.5-119
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”Audio (if so equipped) P.5-33, 5-52
Digital clock (if so equipped) P.5-119
Mitsubishi Multi-Communication System (if so
equipped) Refer to the separated “Mitsubishi
Multi-Communication System owner’s manual”
Electric rear
window defogger
switch P.3-222Electric rear
window
defogger switch
P. 3 - 2 2 2 Front passenger seat belt
warning light P.2-17 Front passenger seat belt
warning light P.2-17
12 V power outlet P.3-258 Passenger’s airbag
off indicator P.2-41Passenger’s airbag
off indicator P.2-41BK0150900US.book 3 ページ 2012年5月7日 月曜日 午後12時9分
Page 6 of 626
Overview

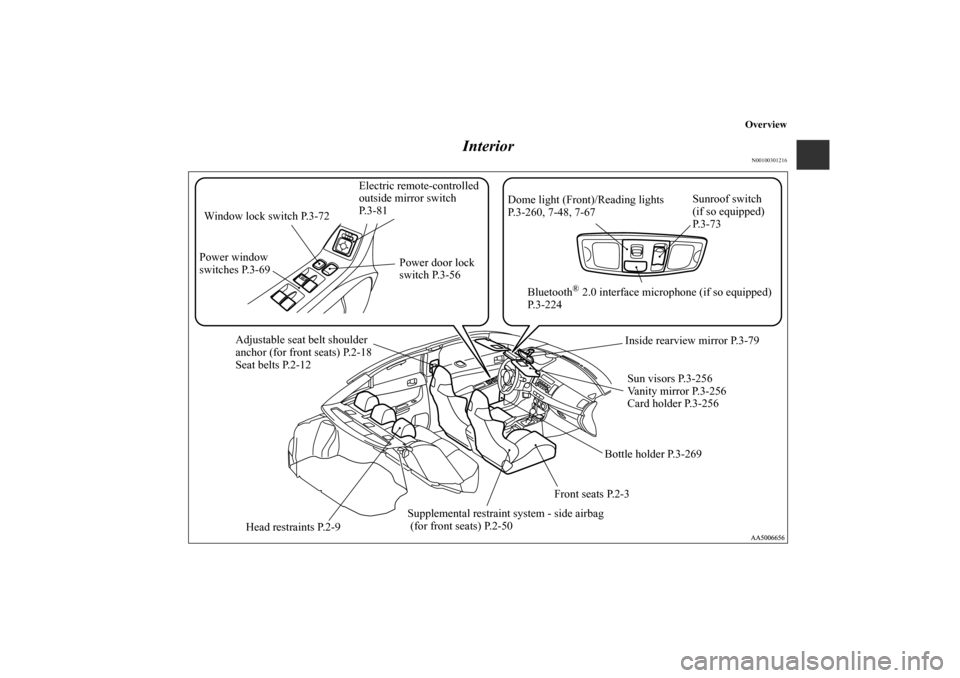

Interior
N00100301216
Adjustable seat belt shoulder
anchor (for front seats) P.2-18
Seat belts P.2-12
Supplemental restraint system - side airbag
(for front seats) P.2-50Front seats P.2-3Sun visors P.3-256
Vanity mirror P.3-256
Card holder P.3-256 Inside rearview mirror P.3-79
Head restraints P.2-9 Window lock switch P.3-72
Power window
switches P.3-69Power door lock
switch P.3-56 Electric remote-controlled
outside mirror switch
P. 3 - 8 1Dome light (Front)/Reading lights
P.3-260, 7-48, 7-67Sunroof switch
(if so equipped)
P. 3 - 7 3
Bluetooth
® 2.0 interface microphone (if so equipped)
P.3-224
Bottle holder P.3-269
BK0150900US.book 4 ページ 2012年5月7日 月曜日 午後12時9分
Page 7 of 626
Overview

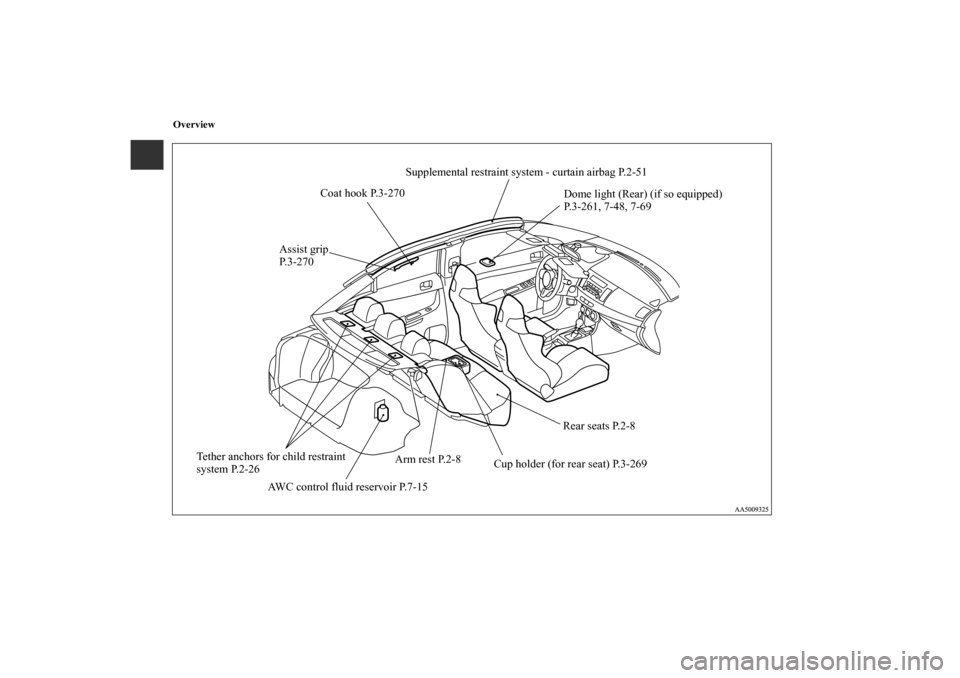

Supplemental restraint system - curtain airbag P.2-51
Dome light (Rear) (if so equipped)
P.3-261, 7-48, 7-69
Rear seats P.2-8
Arm rest P.2-8
Cup holder (for rear seat) P.3-269 Tether anchors for child restraint
system P.2-26Assist grip
P.3-270Coat hook P.3-270
AWC control fluid reservoir P.7-15
BK0150900US.book 5 ページ 2012年5月7日 月曜日 午後12時9分
Page 8 of 626
Overview

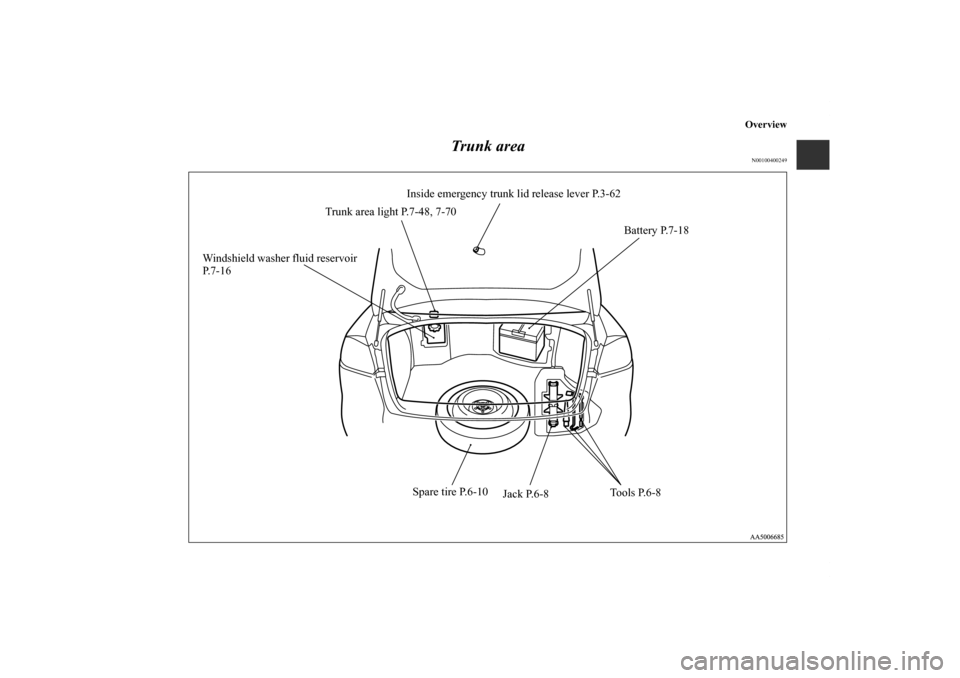

Trunk area
N00100400249
Tools P.6-8 Spare tire P.6-10
Jack P.6-8 Inside emergency trunk lid release lever P.3-62
Trunk area light P.7-48, 7-70
Battery P.7-18
Windshield washer fluid reservoir
P. 7 - 1 6
BK0150900US.book 6 ページ 2012年5月7日 月曜日 午後12時9分
Page 9 of 626
Overview

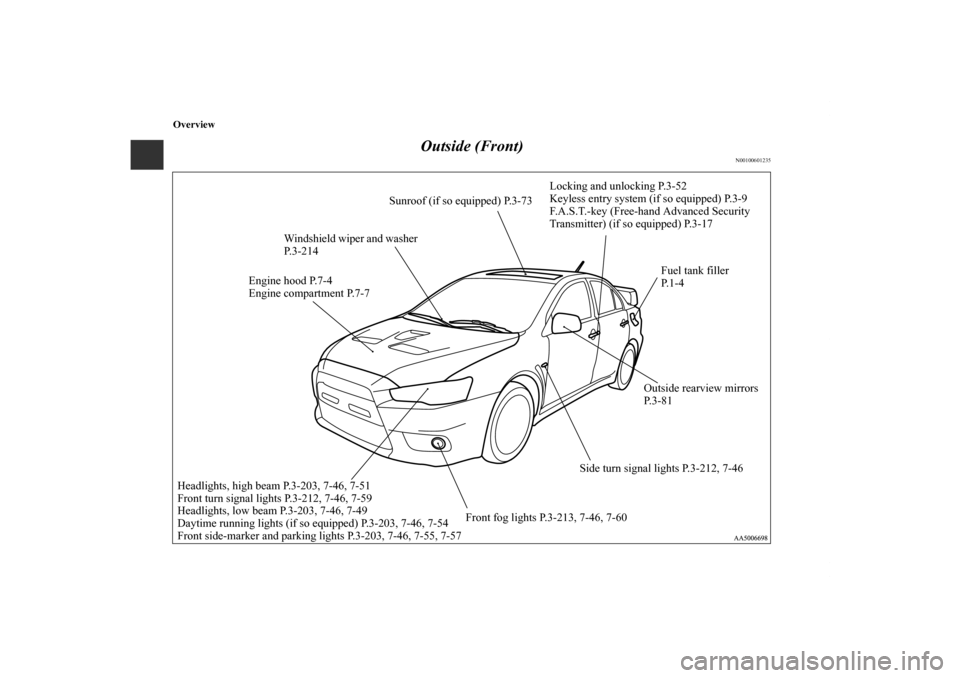

Outside (Front)
N00100601235
Sunroof (if so equipped) P.3-73
Windshield wiper and washer
P.3-214
Engine hood P.7-4
Engine compartment P.7-7
Headlights, high beam P.3-203, 7-46, 7-51
Front turn signal lights P.3-212, 7-46, 7-59
Headlights, low beam P.3-203, 7-46, 7-49
Daytime running lights (if so equipped) P.3-203, 7-46, 7-54
Front side-marker and parking lights P.3-203, 7-46, 7-55, 7-57Side turn signal lights P.3-212, 7-46 Locking and unlocking P.3-52
Keyless entry system (if so equipped) P.3-9
F.A.S.T.-key (Free-hand Advanced Security
Transmitter) (if so equipped) P.3-17
Front fog lights P.3-213, 7-46, 7-60Fuel tank filler
P. 1 - 4
Outside rearview mirrors
P.3-81
BK0150900US.book 7 ページ 2012年5月7日 月曜日 午後12時9分
Page 10 of 626
Overview

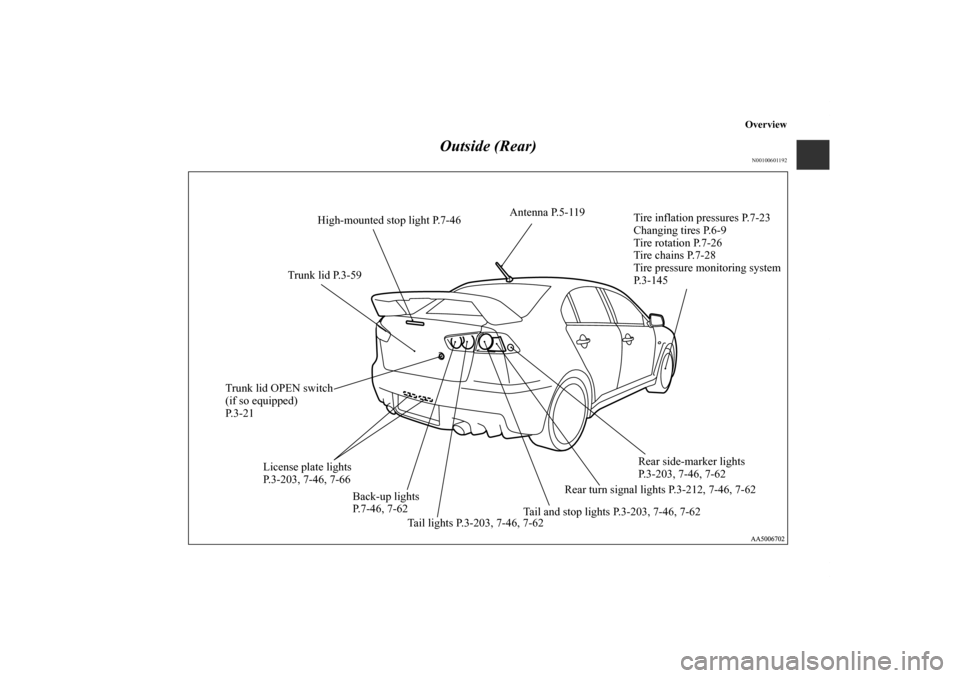

Outside (Rear)
N00100601192
Antenna P.5-119
Tire inflation pressures P.7-23
Changing tires P.6-9
Tire rotation P.7-26
Tire chains P.7-28
Tire pressure monitoring system
P. 3 - 1 4 5
Rear side-marker lights
P.3-203, 7-46, 7-62
Rear turn signal lights P.3-212, 7-46, 7-62
Tail and stop lights P.3-203, 7-46, 7-62
Tail lights P.3-203, 7-46, 7-62 Back-up lights
P.7-46, 7-62 License plate lights
P.3-203, 7-46, 7-66Trunk lid P.3-59High-mounted stop light P.7-46
Trunk lid OPEN switch
(if so equipped)
P. 3 - 2 1
