MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual

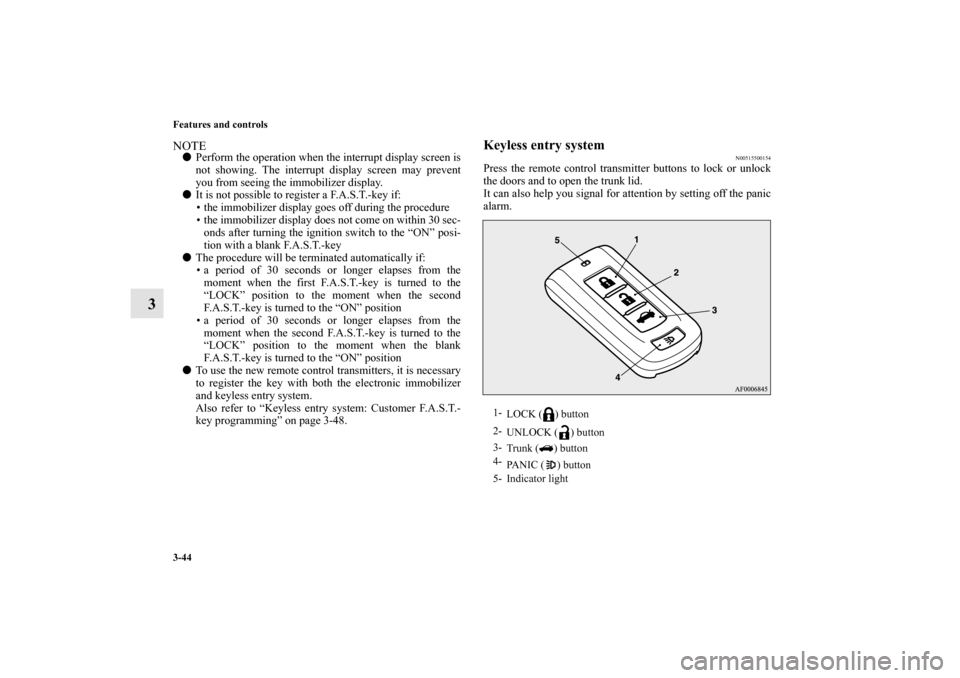

3-44 Features and controls
3
NOTE
Perform the operation when the interrupt display screen is
not showing. The interrupt display screen may prevent
you from seeing the immobilizer display.

It is not possible to register a F.A.S.T.-key if:
• the immobilizer display goes off during the procedure
• the immobilizer display does not come on within 30 sec-
onds after turning the ignition switch to the “ON” posi-
tion with a blank F.A.S.T.-key

The procedure will be terminated automatically if:
• a period of 30 seconds or longer elapses from the
moment when the first F.A.S.T.-key is turned to the
“LOCK” position to the moment when the second
F.A.S.T.-key is turned to the “ON” position
• a period of 30 seconds or longer elapses from the
moment when the second F.A.S.T.-key is turned to the
“LOCK” position to the moment when the blank
F.A.S.T.-key is turned to the “ON” position

To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Keyless entry system: Customer F.A.S.T.-
key programming” on page 3-48.
Keyless entry system
N00515500154
Press the remote control transmitter buttons to lock or unlock
the doors and to open the trunk lid.
It can also help you signal for attention by setting off the panic
alarm.1-
LOCK ( ) button
2-
UNLOCK ( ) button
3-
Trunk ( ) button
4-
PANIC ( ) button
5- Indicator light
BK0150900US.book 44 ページ ２０１２年５月７日　月曜日　午後１２時９分

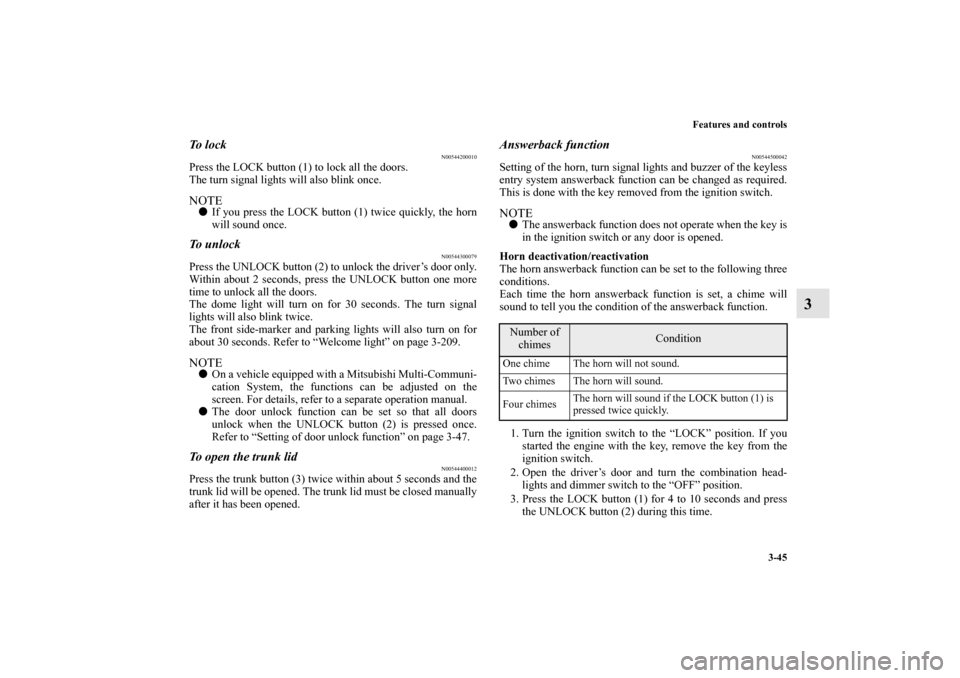

Features and controls
3-45
3
To l o c k
N00544200010
Press the LOCK button (1) to lock all the doors.
The turn signal lights will also blink once.NOTE
If you press the LOCK button (1) twice quickly, the horn
will sound once.To unlock
N00544300079
Press the UNLOCK button (2) to unlock the driver’s door only.
Within about 2 seconds, press the UNLOCK button one more
time to unlock all the doors.
The dome light will turn on for 30 seconds. The turn signal
lights will also blink twice.
The front side-marker and parking lights will also turn on for
about 30 seconds. Refer to “Welcome light” on page 3-209.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

The door unlock function can be set so that all doors
unlock when the UNLOCK button (2) is pressed once.
Refer to “Setting of door unlock function” on page 3-47.To open the trunk lid
N00544400012
Press the trunk button (3) twice within about 5 seconds and the
trunk lid will be opened. The trunk lid must be closed manually
after it has been opened.
Answerback function
N00544500042
Setting of the horn, turn signal lights and buzzer of the keyless
entry system answerback function can be changed as required.
This is done with the key removed from the ignition switch.NOTE
The answerback function does not operate when the key is
in the ignition switch or any door is opened.
Horn deactivation/reactivation
The horn answerback function can be set to the following three
conditions.
Each time the horn answerback function is set, a chime will
sound to tell you the condition of the answerback function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.Number of
chimes
Condition
One chime The horn will not sound.
Two chimes The horn will sound.
Four chimesThe horn will sound if the LOCK button (1) is
pressed twice quickly.
BK0150900US.book 45 ページ ２０１２年５月７日　月曜日　午後１２時９分

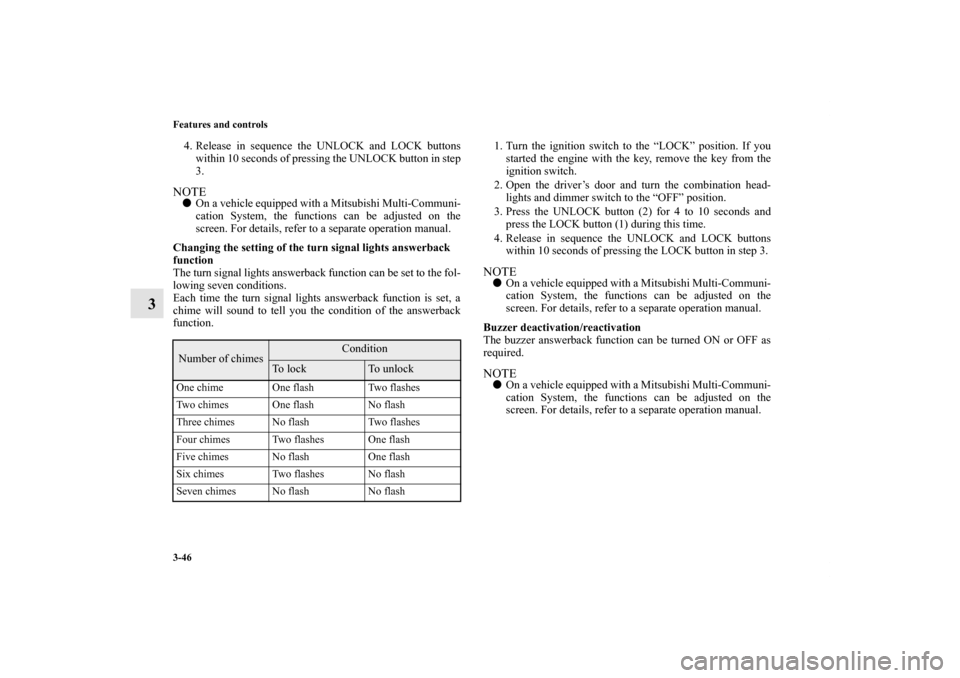

3-46 Features and controls
3
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the UNLOCK button in step
3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Changing the setting of the turn signal lights answerback
function
The turn signal lights answerback function can be set to the fol-
lowing seven conditions.
Each time the turn signal lights answerback function is set, a
chime will sound to tell you the condition of the answerback
function.1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the UNLOCK button (2) for 4 to 10 seconds and
press the LOCK button (1) during this time.
4. Release in sequence the UNLOCK and LOCK buttons
within 10 seconds of pressing the LOCK button in step 3.
NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Buzzer deactivation/reactivation
The buzzer answerback function can be turned ON or OFF as
required.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Number of chimes
Condition
To l o c k
To u n l o c k
One chime One flash Two flashes
Two chimes One flash No flash
Three chimes No flash Two flashes
Four chimes Two flashes One flash
Five chimes No flash One flash
Six chimes Two flashes No flash
Seven chimes No flash No flashBK0150900US.book 46 ページ ２０１２年５月７日　月曜日　午後１２時９分

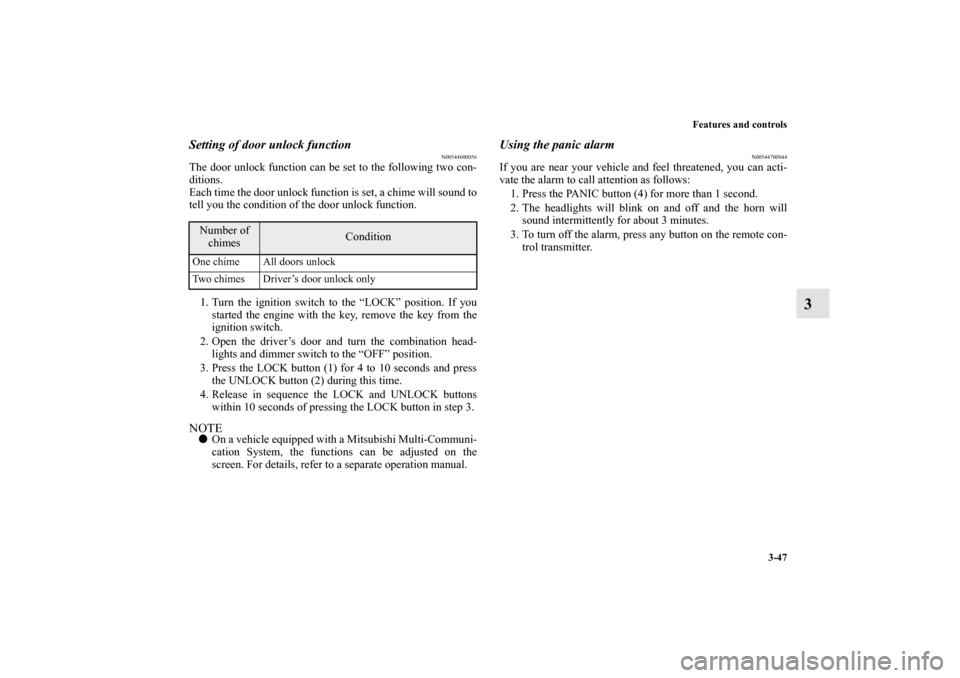

Features and controls
3-47
3
Setting of door unlock function
N00544600056
The door unlock function can be set to the following two con-
ditions.
Each time the door unlock function is set, a chime will sound to
tell you the condition of the door unlock function.
1. Turn the ignition switch to the “LOCK” position. If you
started the engine with the key, remove the key from the
ignition switch.
2. Open the driver’s door and turn the combination head-
lights and dimmer switch to the “OFF” position.
3. Press the LOCK button (1) for 4 to 10 seconds and press
the UNLOCK button (2) during this time.
4. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 3.NOTE
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.
Using the panic alarm
N00544700044
If you are near your vehicle and feel threatened, you can acti-
vate the alarm to call attention as follows:
1. Press the PANIC button (4) for more than 1 second.
2. The headlights will blink on and off and the horn will
sound intermittently for about 3 minutes.
3. To turn off the alarm, press any button on the remote con-
trol transmitter.
Number of
chimes
Condition
One chime All doors unlock
Two chimes Driver’s door unlock only
BK0150900US.book 47 ページ ２０１２年５月７日　月曜日　午後１２時９分

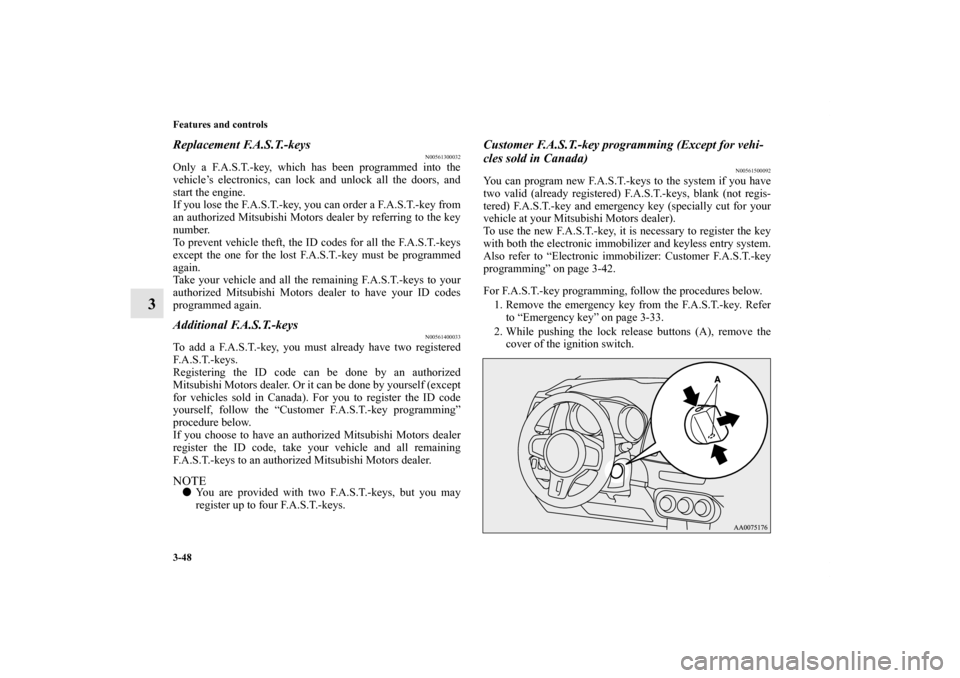

3-48 Features and controls
3
Replacement F.A.S.T.-keys
N00561300032
Only a F.A.S.T.-key, which has been programmed into the
vehicle’s electronics, can lock and unlock all the doors, and
start the engine.
If you lose the F.A.S.T.-key, you can order a F.A.S.T.-key from
an authorized Mitsubishi Motors dealer by referring to the key
number.
To prevent vehicle theft, the ID codes for all the F.A.S.T.-keys
except the one for the lost F.A.S.T.-key must be programmed
again.
Take your vehicle and all the remaining F.A.S.T.-keys to your
authorized Mitsubishi Motors dealer to have your ID codes
programmed again.Additional F.A.S.T.-keys
N00561400033
To add a F.A.S.T.-key, you must already have two registered
F. A . S . T. - k e y s .
Registering the ID code can be done by an authorized
Mitsubishi Motors dealer. Or it can be done by yourself (except
for vehicles sold in Canada). For you to register the ID code
yourself, follow the “Customer F.A.S.T.-key programming”
procedure below.
If you choose to have an authorized Mitsubishi Motors dealer
register the ID code, take your vehicle and all remaining
F.A.S.T.-keys to an authorized Mitsubishi Motors dealer.NOTE
You are provided with two F.A.S.T.-keys, but you may
register up to four F.A.S.T.-keys.
Customer F.A.S.T.-key programming (Except for vehi-
cles sold in Canada)
N00561500092
You can program new F.A.S.T.-keys to the system if you have
two valid (already registered) F.A.S.T.-keys, blank (not regis-
tered) F.A.S.T.-key and emergency key (specially cut for your
vehicle at your Mitsubishi Motors dealer).
To use the new F.A.S.T.-key, it is necessary to register the key
with both the electronic immobilizer and keyless entry system.
Also refer to “Electronic immobilizer: Customer F.A.S.T.-key
programming” on page 3-42.
For F.A.S.T.-key programming, follow the procedures below.
1. Remove the emergency key from the F.A.S.T.-key. Refer
to “Emergency key” on page 3-33.
2. While pushing the lock release buttons (A), remove the
cover of the ignition switch.
BK0150900US.book 48 ページ ２０１２年５月７日　月曜日　午後１２時９分

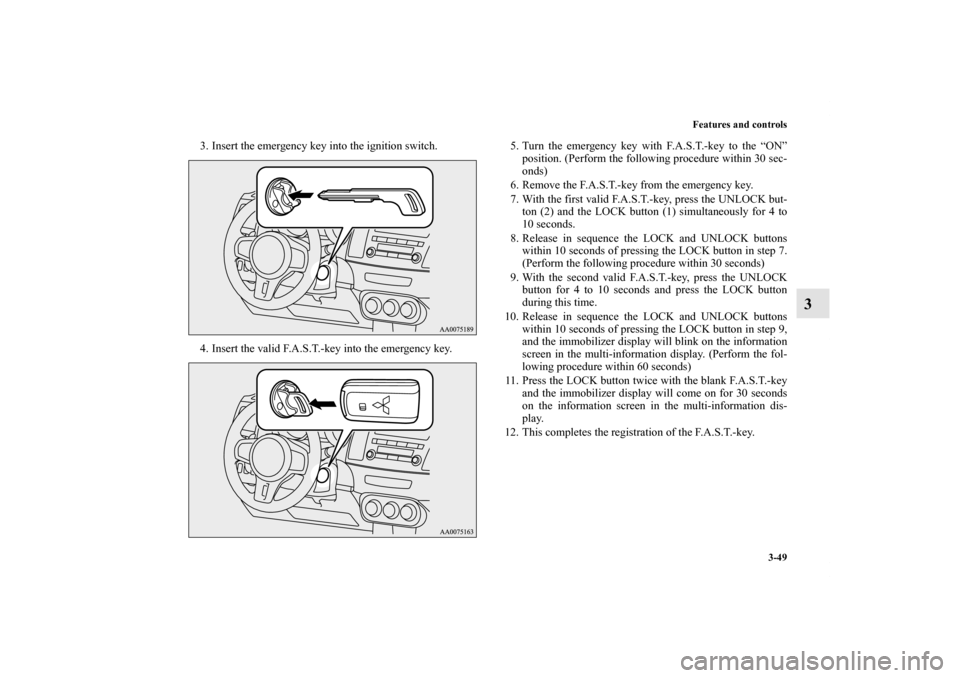

Features and controls
3-49
3
3. Insert the emergency key into the ignition switch.
4. Insert the valid F.A.S.T.-key into the emergency key.5. Turn the emergency key with F.A.S.T.-key to the “ON”
position. (Perform the following procedure within 30 sec-
onds)
6. Remove the F.A.S.T.-key from the emergency key.
7. With the first valid F.A.S.T.-key, press the UNLOCK but-
ton (2) and the LOCK button (1) simultaneously for 4 to
10 seconds.
8. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 7.
(Perform the following procedure within 30 seconds)
9. With the second valid F.A.S.T.-key, press the UNLOCK
button for 4 to 10 seconds and press the LOCK button
during this time.
10. Release in sequence the LOCK and UNLOCK buttons
within 10 seconds of pressing the LOCK button in step 9,
and the immobilizer display will blink on the information
screen in the multi-information display. (Perform the fol-
lowing procedure within 60 seconds)
11. Press the LOCK button twice with the blank F.A.S.T.-key
and the immobilizer display will come on for 30 seconds
on the information screen in the multi-information dis-
play.
12. This completes the registration of the F.A.S.T.-key.
BK0150900US.book 49 ページ ２０１２年５月７日　月曜日　午後１２時９分

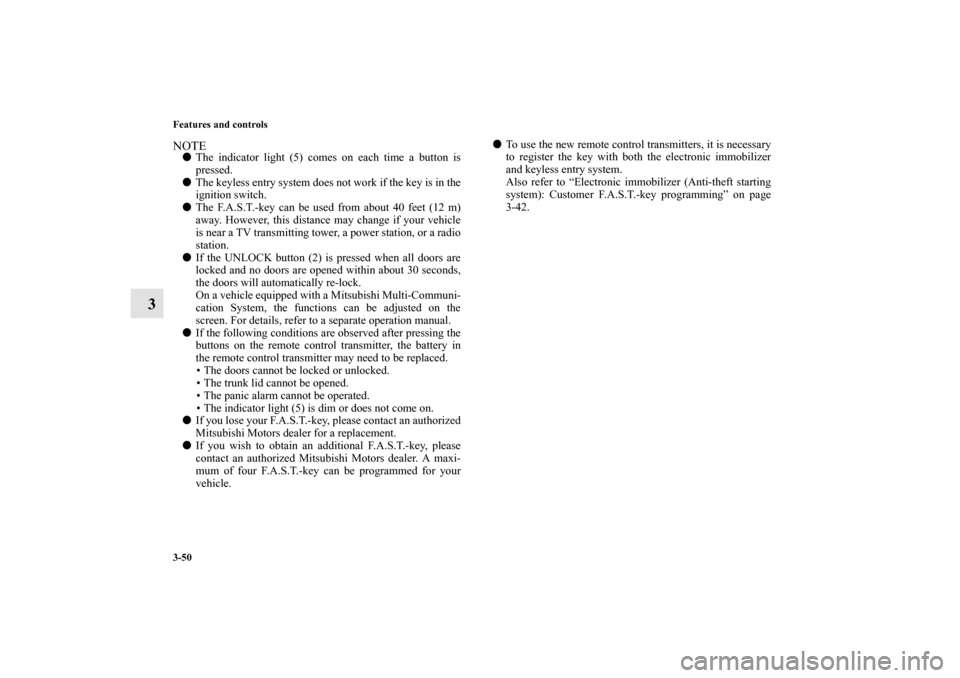

3-50 Features and controls
3
NOTE
The indicator light (5) comes on each time a button is
pressed.

The keyless entry system does not work if the key is in the
ignition switch.

The F.A.S.T.-key can be used from about 40 feet (12 m)
away. However, this distance may change if your vehicle
is near a TV transmitting tower, a power station, or a radio
station.

If the UNLOCK button (2) is pressed when all doors are
locked and no doors are opened within about 30 seconds,
the doors will automatically re-lock.
On a vehicle equipped with a Mitsubishi Multi-Communi-
cation System, the functions can be adjusted on the
screen. For details, refer to a separate operation manual.

If the following conditions are observed after pressing the
buttons on the remote control transmitter, the battery in
the remote control transmitter may need to be replaced.
• The doors cannot be locked or unlocked.
• The trunk lid cannot be opened.
• The panic alarm cannot be operated.
• The indicator light (5) is dim or does not come on.

If you lose your F.A.S.T.-key, please contact an authorized
Mitsubishi Motors dealer for a replacement.

If you wish to obtain an additional F.A.S.T.-key, please
contact an authorized Mitsubishi Motors dealer. A maxi-
mum of four F.A.S.T.-key can be programmed for your
vehicle.
To use the new remote control transmitters, it is necessary
to register the key with both the electronic immobilizer
and keyless entry system.
Also refer to “Electronic immobilizer (Anti-theft starting
system): Customer F.A.S.T.-key programming” on page
3-42.
BK0150900US.book 50 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-51
3
General information
N00561600051
Your F.A.S.T.-key operates on a radio frequency subject to
Federal Communications Commission (FCC) Rules (For vehi-
cles sold in U.S.A.) and Industry Canada Rules (For vehicles
sold in Canada). This device complies with Part 15 of the FCC
Rules and RSS-Gen of the Industry Canada Rules.
Operation is subject to the following two conditions.

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
Procedure for replacing the remote control transmitter
battery
N00561700094
1. Before replacing the battery, remove static electricity from
your body by touching a metal grounded object.
2. With the Mitsubishi mark facing you, insert the cloth-cov-
ered tip of a flat blade screwdriver into the notch in the
remote control transmitter case and use it to open the case.NOTE
Be sure to perform the procedure with the Mitsubishi
mark facing you. If the Mitsubishi mark is not facing you
when you open the remote control transmitter case, the
transmitter may come out.
3. Remove the old battery.
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0150900US.book 51 ページ ２０１２年５月７日　月曜日　午後１２時９分

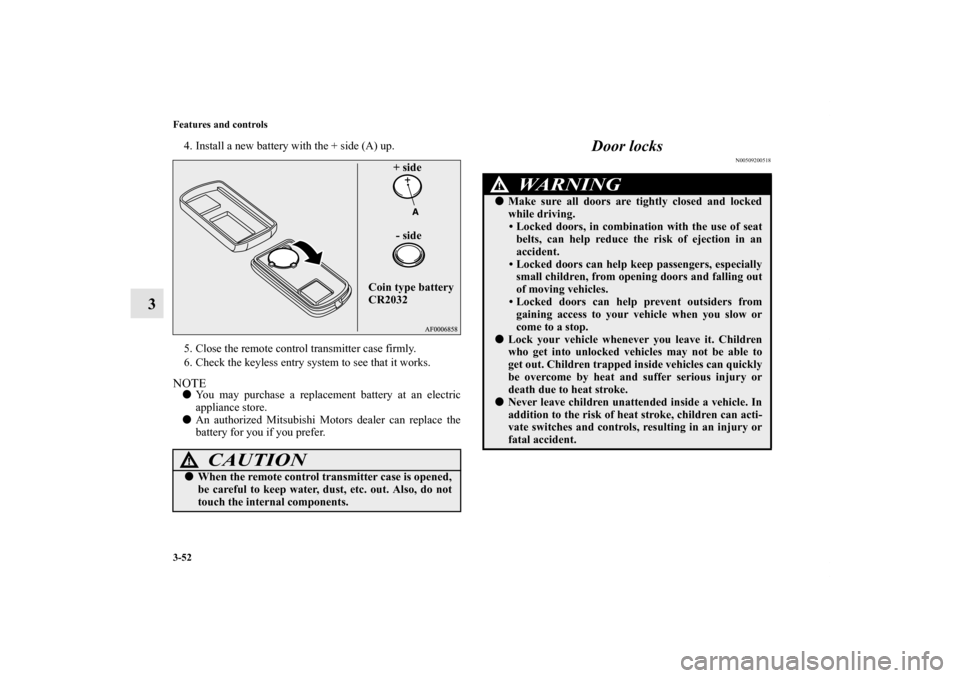

3-52 Features and controls
3
4. Install a new battery with the + side (A) up.
5. Close the remote control transmitter case firmly.
6. Check the keyless entry system to see that it works.NOTE
You may purchase a replacement battery at an electric
appliance store.

An authorized Mitsubishi Motors dealer can replace the
battery for you if you prefer.
Door locks
N00509200518
CAUTION
!
When the remote control transmitter case is opened,
be careful to keep water, dust, etc. out. Also, do not
touch the internal components.
Coin type battery
CR2032+ side
- side
WA R N I N G
!
Make sure all doors are tightly closed and locked
while driving.
• Locked doors, in combination with the use of seat
belts, can help reduce the risk of ejection in an
accident.
• Locked doors can help keep passengers, especially
small children, from opening doors and falling out
of moving vehicles.
• Locked doors can help prevent outsiders from
gaining access to your vehicle when you slow or
come to a stop.

Lock your vehicle whenever you leave it. Children
who get into unlocked vehicles may not be able to
get out. Children trapped inside vehicles can quickly
be overcome by heat and suffer serious injury or
death due to heat stroke.
Never leave children unattended inside a vehicle. In
addition to the risk of heat stroke, children can acti-
vate switches and controls, resulting in an injury or
fatal accident.
BK0150900US.book 52 ページ ２０１２年５月７日　月曜日　午後１２時９分

Features and controls
3-53
3

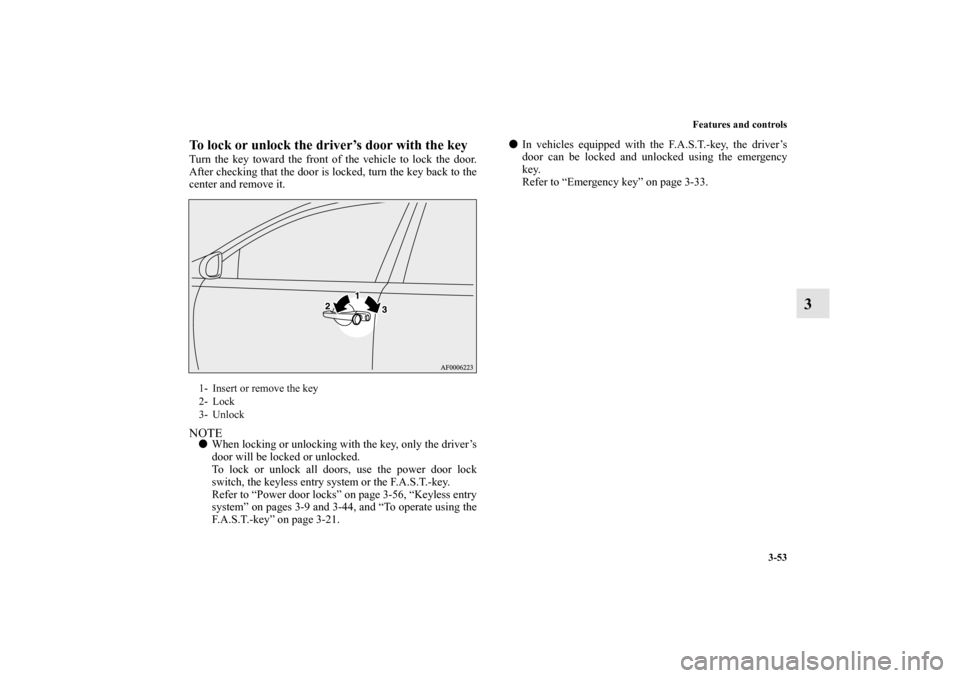

To lock or unlock the driver’s door with the keyTurn the key toward the front of the vehicle to lock the door.
After checking that the door is locked, turn the key back to the
center and remove it. NOTE
When locking or unlocking with the key, only the driver’s
door will be locked or unlocked.
To lock or unlock all doors, use the power door lock
switch, the keyless entry system or the F.A.S.T.-key.
Refer to “Power door locks” on page 3-56, “Keyless entry
system” on pages 3-9 and 3-44, and “To operate using the
F.A.S.T.-key” on page 3-21.
In vehicles equipped with the F.A.S.T.-key, the driver’s
door can be locked and unlocked using the emergency
key.
Refer to “Emergency key” on page 3-33.1- Insert or remove the key
2- Lock
3- Unlock
BK0150900US.book 53 ページ ２０１２年５月７日　月曜日　午後１２時９分
