MITSUBISHI LANCER EVOLUTION 2013 10.G Owners Manual

4-12 Driving safety
4

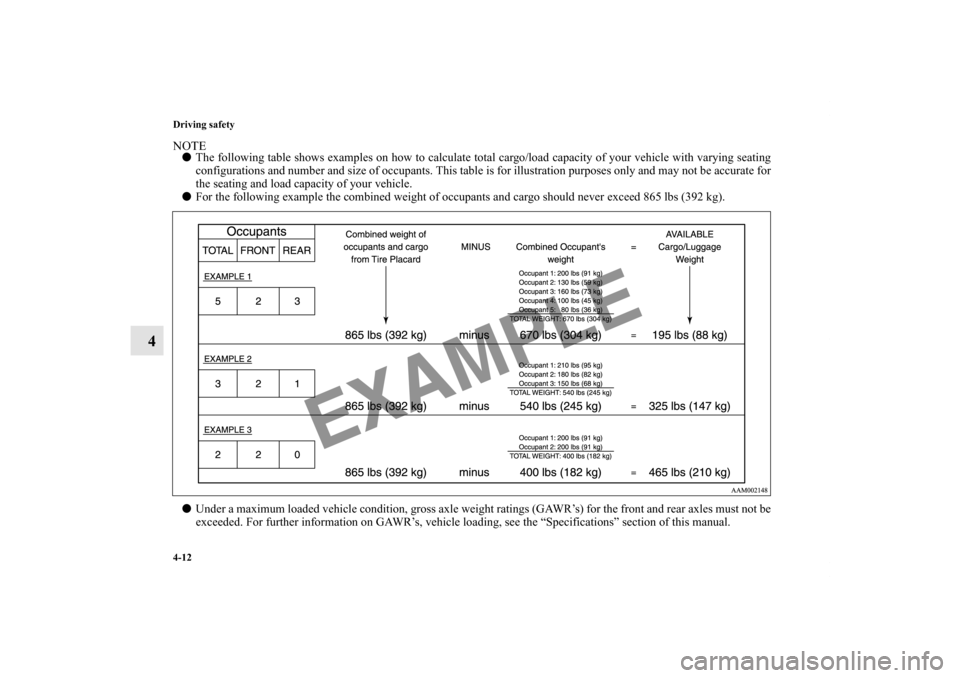

NOTE
The following table shows examples on how to calculate total cargo/load capacity of your vehicle with varying seating
configurations and number and size of occupants. This table is for illustration purposes only and may not be accurate for
the seating and load capacity of your vehicle.

For the following example the combined weight of occupants and cargo should never exceed 865 lbs (392 kg).

Under a maximum loaded vehicle condition, gross axle weight ratings (GAWR’s) for the front and rear axles must not be
exceeded. For further information on GAWR’s, vehicle loading, see the “Specifications” section of this manual.
BK0150900US.book 12 ページ ２０１２年５月７日　月曜日　午後１２時９分

Driving safety
4-13

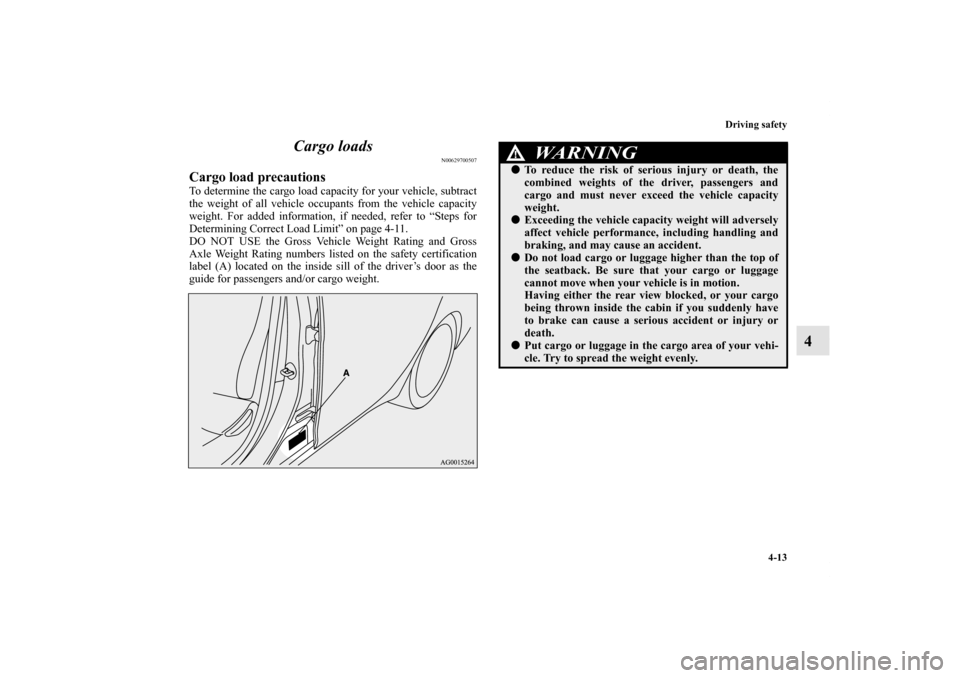

4 Cargo loads
N00629700507
Cargo load precautionsTo determine the cargo load capacity for your vehicle, subtract
the weight of all vehicle occupants from the vehicle capacity
weight. For added information, if needed, refer to “Steps for
Determining Correct Load Limit” on page 4-11.
DO NOT USE the Gross Vehicle Weight Rating and Gross
Axle Weight Rating numbers listed on the safety certification
label (A) located on the inside sill of the driver’s door as the
guide for passengers and/or cargo weight.
WA R N I N G
!
To reduce the risk of serious injury or death, the
combined weights of the driver, passengers and
cargo and must never exceed the vehicle capacity
weight.
Exceeding the vehicle capacity weight will adversely
affect vehicle performance, including handling and
braking, and may cause an accident.
Do not load cargo or luggage higher than the top of
the seatback. Be sure that your cargo or luggage
cannot move when your vehicle is in motion.
Having either the rear view blocked, or your cargo
being thrown inside the cabin if you suddenly have
to brake can cause a serious accident or injury or
death.
Put cargo or luggage in the cargo area of your vehi-
cle. Try to spread the weight evenly.
BK0150900US.book 13 ページ ２０１２年５月７日　月曜日　午後１２時９分

4-14 Driving safety

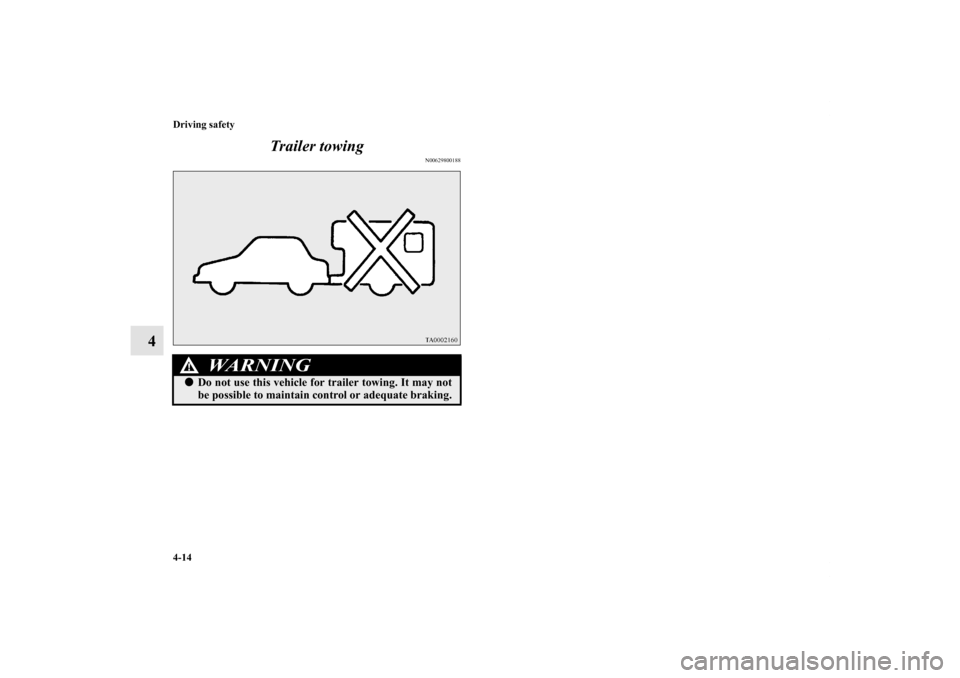

4Trailer towing
N00629800188
WA R N I N G
!
Do not use this vehicle for trailer towing. It may not
be possible to maintain control or adequate braking.
BK0150900US.book 14 ページ ２０１２年５月７日　月曜日　午後１２時９分

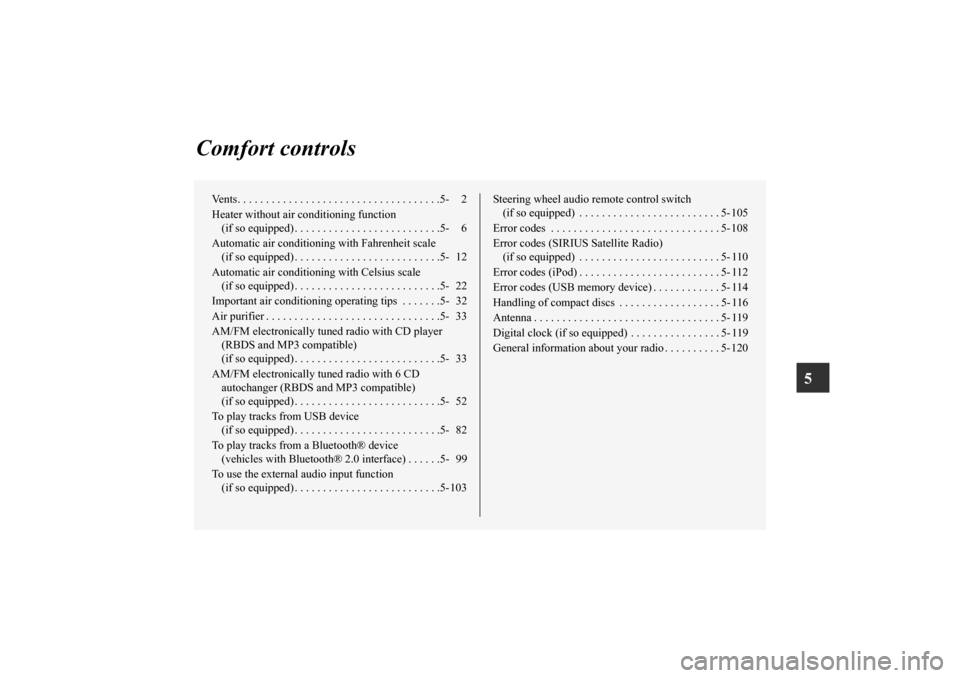

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Heater without air conditioning function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Automatic air conditioning with Fahrenheit scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 12
Automatic air conditioning with Celsius scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 22
Important air conditioning operating tips . . . . . . .5- 32
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 33
AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 33
AM/FM electronically tuned radio with 6 CD
autochanger (RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 52
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 82
To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . .5- 99
To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5-103Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 105
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 108
Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 110
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 112
Error codes (USB memory device) . . . . . . . . . . . . 5- 114
Handling of compact discs . . . . . . . . . . . . . . . . . . 5- 116
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 119
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 5- 119
General information about your radio . . . . . . . . . . 5- 120
BK0150900US.book 1 ページ ２０１２年５月７日　月曜日　午後１２時９分

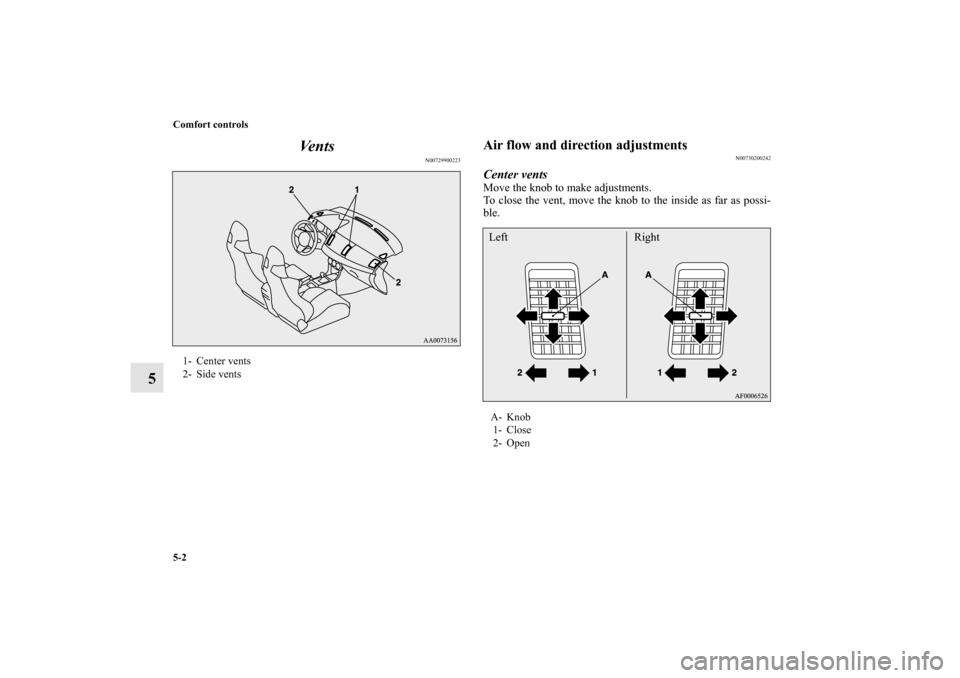

5-2 Comfort controls
5Ve n t s
N00729900223
Air flow and direction adjustments
N00730200242
Center ventsMove the knob to make adjustments.
To close the vent, move the knob to the inside as far as possi-
ble.
1- Center vents
2- Side vents
A- Knob
1- Close
2- OpenLeft Right
BK0150900US.book 2 ページ ２０１２年５月７日　月曜日　午後１２時９分

Comfort controls
5-3
5

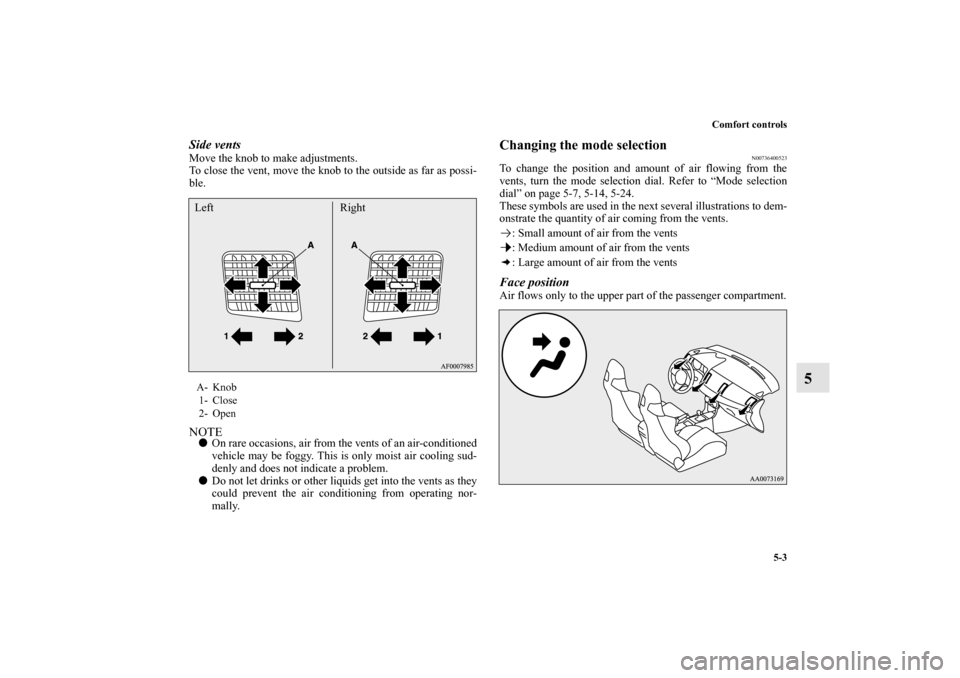

Side ventsMove the knob to make adjustments.
To close the vent, move the knob to the outside as far as possi-
ble.NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.

Do not let drinks or other liquids get into the vents as they
could prevent the air conditioning from operating nor-
mally.
Changing the mode selection
N00736400523
To change the position and amount of air flowing from the
vents, turn the mode selection dial. Refer to “Mode selection
dial” on page 5-7, 5-14, 5-24.
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the ventsFace positionAir flows only to the upper part of the passenger compartment.
A- Knob
1- Close
2- OpenLeft Right
BK0150900US.book 3 ページ ２０１２年５月７日　月曜日　午後１２時９分

5-4 Comfort controls
5

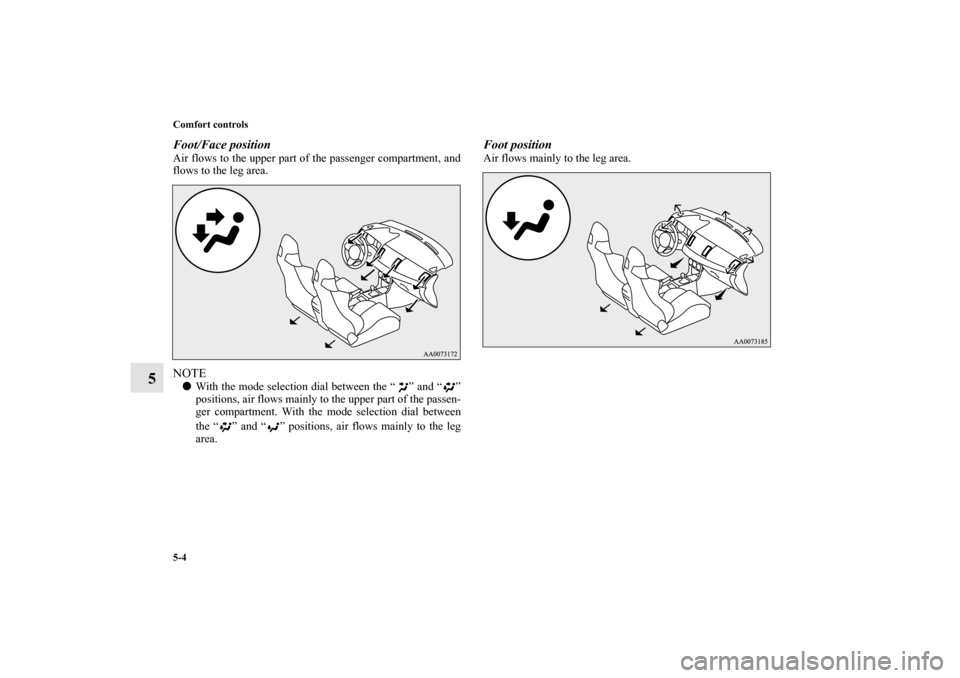

Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
BK0150900US.book 4 ページ ２０１２年５月７日　月曜日　午後１２時９分

Comfort controls
5-5
5

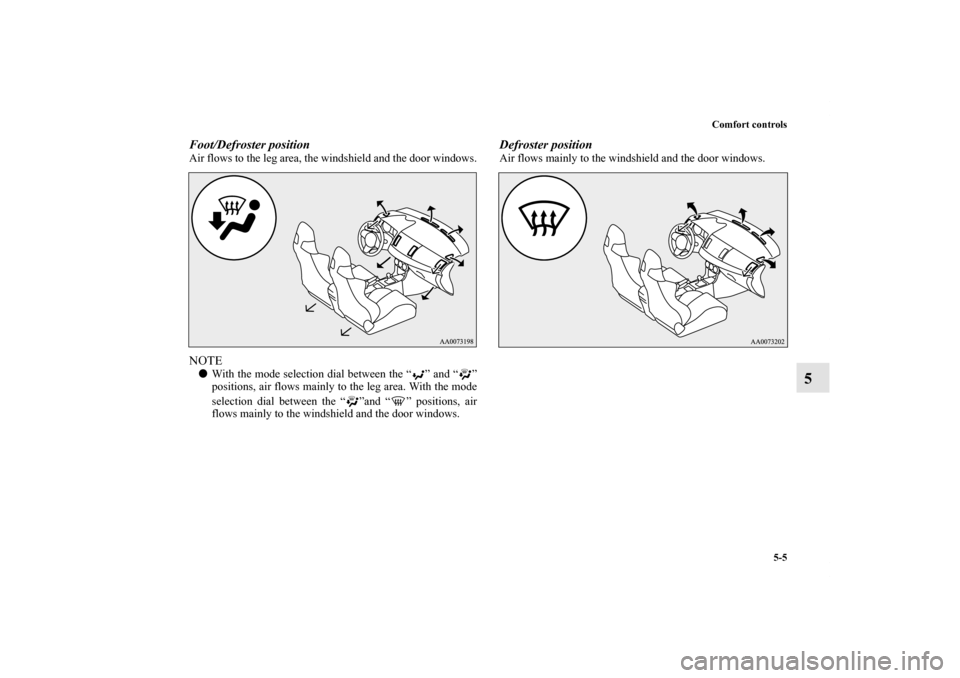

Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
BK0150900US.book 5 ページ ２０１２年５月７日　月曜日　午後１２時９分

5-6 Comfort controls
5Heater without air conditioning function
(if
so equipped)
N00737700031
The heater can only be used while the engine is running.Control panel
N00737800029
NOTE
Button (A) is not available for use. The indicator below
the button doesn’t come on even if it is pushed.
Blower speed selection dial
N00737900020
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
1- Temperature control dial
2- Air selection switch
3- Blower speed selection dial
4- Mode selection dial
5- Electric rear window defogger switch → P. 3 - 2 2 2
BK0150900US.book 6 ページ ２０１２年５月７日　月曜日　午後１２時９分

Comfort controls
5-7
5

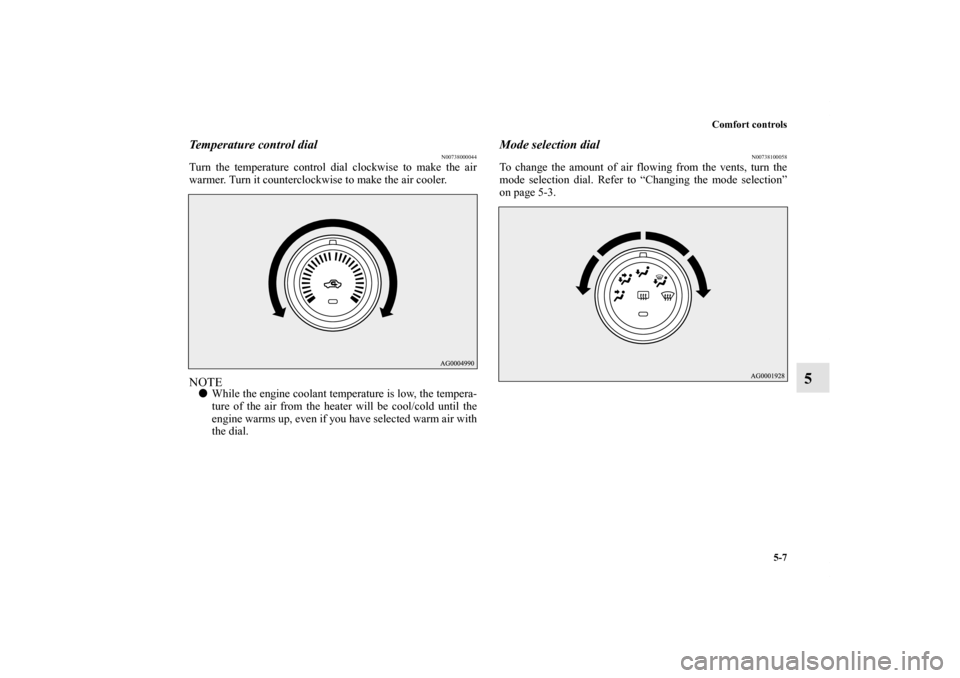

Temperature control dial
N00738000044
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.
Mode selection dial
N00738100058
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
BK0150900US.book 7 ページ ２０１２年５月７日　月曜日　午後１２時９分
