MITSUBISHI LANCER EVOLUTION 2013 10.G Service Manual
Manufacturer: MITSUBISHI, Model Year: 2013, Model line: LANCER EVOLUTION, Model: MITSUBISHI LANCER EVOLUTION 2013 10.GPages: 626, PDF Size: 19.71 MB
Page 41 of 626

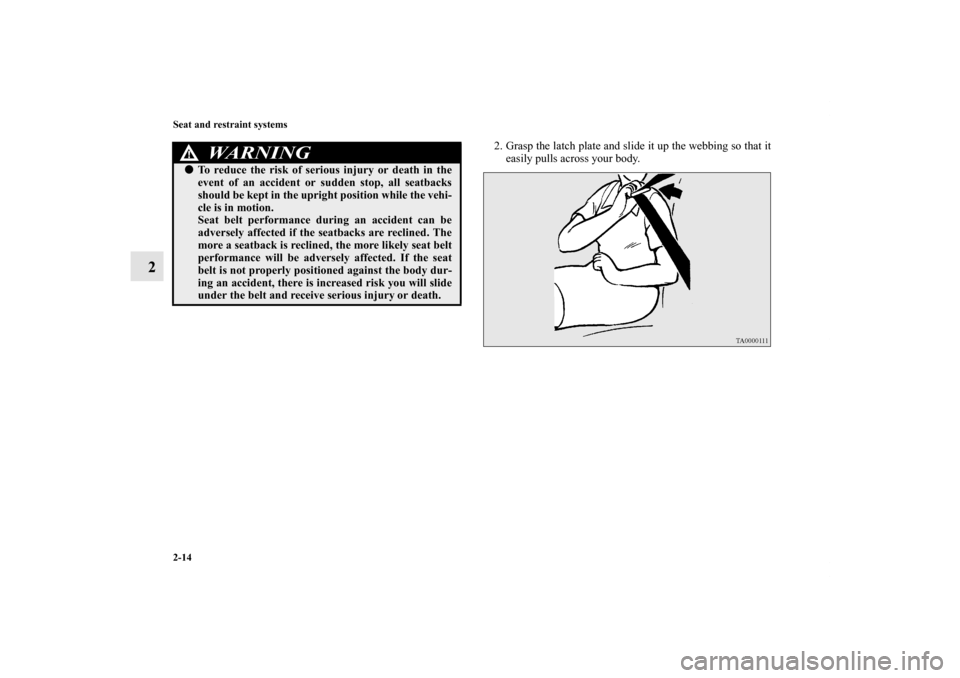

2-14 Seat and restraint systems
2
2. Grasp the latch plate and slide it up the webbing so that it
easily pulls across your body.
WA R N I N G
!To reduce the risk of serious injury or death in the
event of an accident or sudden stop, all seatbacks
should be kept in the upright position while the vehi-
cle is in motion.
Seat belt performance during an accident can be
adversely affected if the seatbacks are reclined. The
more a seatback is reclined, the more likely seat belt
performance will be adversely affected. If the seat
belt is not properly positioned against the body dur-
ing an accident, there is increased risk you will slide
under the belt and receive serious injury or death.
BK0150900US.book 14 ページ 2012年5月7日 月曜日 午後12時9分
Page 42 of 626
Seat and restraint systems
2-15
2

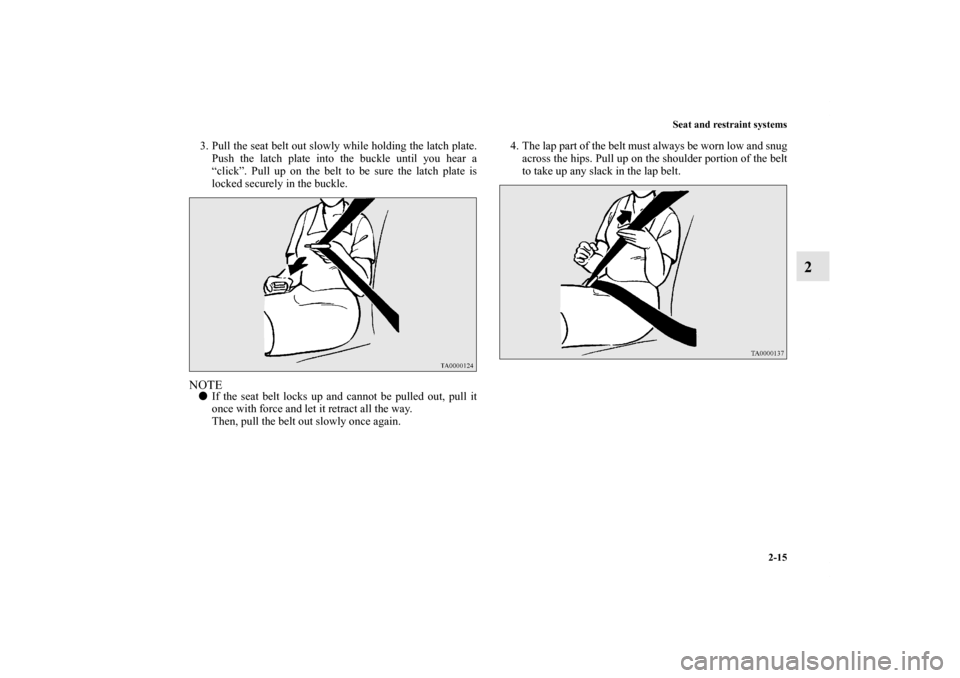

3. Pull the seat belt out slowly while holding the latch plate.
Push the latch plate into the buckle until you hear a
“click”. Pull up on the belt to be sure the latch plate is
locked securely in the buckle.NOTEIf the seat belt locks up and cannot be pulled out, pull it
once with force and let it retract all the way.
Then, pull the belt out slowly once again.4. The lap part of the belt must always be worn low and snug
across the hips. Pull up on the shoulder portion of the belt
to take up any slack in the lap belt.
BK0150900US.book 15 ページ 2012年5月7日 月曜日 午後12時9分
Page 43 of 626
2-16 Seat and restraint systems
2
NOTEWith the exception of the seat belt for the driver, the seat
belts in all other seating positions are equipped with an
Automatic Locking Retractor (ALR) function. If you pull
the seat belt fully out of the retractor, the retractor will
switch to its ALR child restraint installation function (see
page 2-29).
When the ALR function has been activated, the seat belt
will only retract. If this happens, let the belt fully retract,
then pull the seat belt back out, repeating steps 1 through
4.
5. To release the belt, press the button on the buckle and
allow the belt to retract.
If the belt does not retract smoothly, pull it out and check
for kinks or twists in the webbing. Then make sure it
remains untwisted as it retracts.
Driver’s seat belt reminder/warning light and
display
N00418400326
Warning light
Warning display
A tone and warning light are used to remind the driver to fasten
the seat belt.
If the ignition switch is turned to the “ON” position without the
driver’s seat belt being fastened, a warning light will come on
and a tone will sound for approximately 6 seconds to remind
you to fasten your seat belt.
If you then drive with the seat belt unfastened for longer than a
minute from when the ignition switch was turned to the “ON”
position, the warning light will come on and blink repeatedly
and the tone will sound intermittently.
The warning light and the tone will stop after approximately 90
seconds.
WA R N I N G
!Be sure the lap belt portion fits snugly and is worn
as low as possible across the hips, not around the
waist. Failure to follow this instruction will increase
the risk of serious injury or death in the event of an
accident.Be sure the seat belt webbing is not twisted when
worn. Twisted webbing may adversely affect seat
belt performance.
BK0150900US.book 16 ページ 2012年5月7日 月曜日 午後12時9分
Page 44 of 626
Seat and restraint systems
2-17
2
If you then repeatedly stop and start your vehicle with the seat
belt unfastened, the warning light/display and tone will remind
you to fasten your seat belt every time the vehicle starts mov-
ing. You will also be reminded to fasten your seat belt in this
way when you remove your seat belt while driving. The warn-
ing light and the tone go off when the seat belt is fastened.NOTEAt the same time, “FASTEN SEAT BELT” will be dis-
played on the information screen in the multi-information
display.
Front passenger seat belt warning light
N00418300178
The front passenger seat belt warning light is located in the
instrument panel.
When the ignition switch is turned to the “ON” position, this
indicator normally comes on and goes off a few seconds later.
The light comes on when a person sits on the front passenger
seat but does not fasten the seat belt. It goes off when the seat
belt is subsequently fastened.
WA R N I N G
!In order to reduce the risk of serious injury or death
in an accident, always wear your own seat belt. Do
not allow anyone to ride in your vehicle unless he or
she is also seated and wearing a seat belt. Children
should additionally be restrained in a secure child
restraint system.
WA R N I N G
!Do not install any accessory or sticker that makes
the light difficult to see.
BK0150900US.book 17 ページ 2012年5月7日 月曜日 午後12時9分
Page 45 of 626
2-18 Seat and restraint systems
2

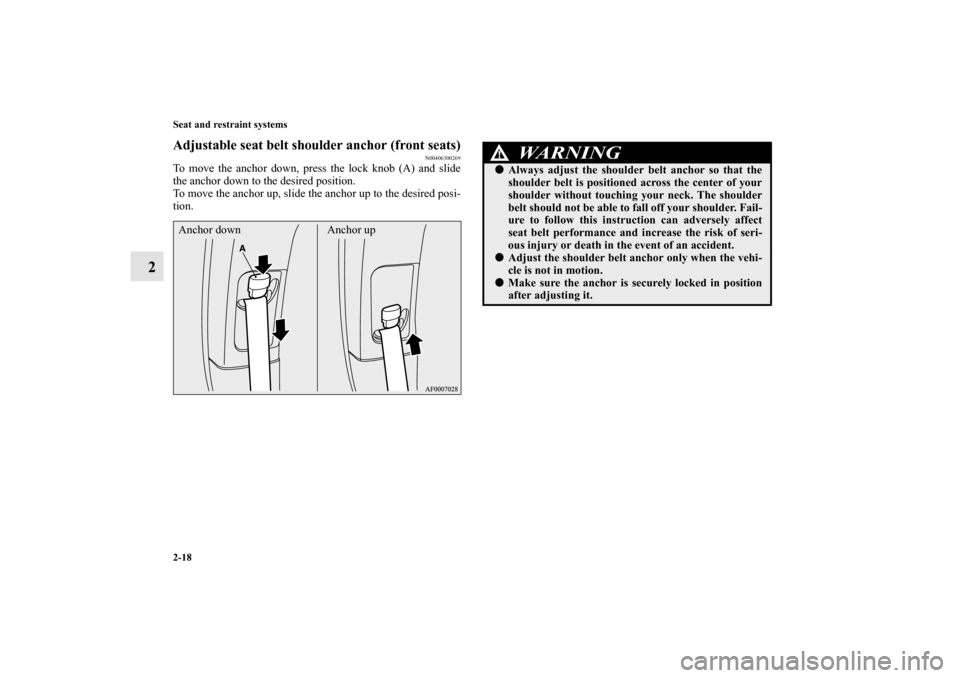

Adjustable seat belt shoulder anchor (front seats)
N00406300269
To move the anchor down, press the lock knob (A) and slide
the anchor down to the desired position.
To move the anchor up, slide the anchor up to the desired posi-
tion.Anchor down Anchor up
WA R N I N G
!Always adjust the shoulder belt anchor so that the
shoulder belt is positioned across the center of your
shoulder without touching your neck. The shoulder
belt should not be able to fall off your shoulder. Fail-
ure to follow this instruction can adversely affect
seat belt performance and increase the risk of seri-
ous injury or death in the event of an accident.Adjust the shoulder belt anchor only when the vehi-
cle is not in motion.Make sure the anchor is securely locked in position
after adjusting it.
BK0150900US.book 18 ページ 2012年5月7日 月曜日 午後12時9分
Page 46 of 626
Seat and restraint systems
2-19
2

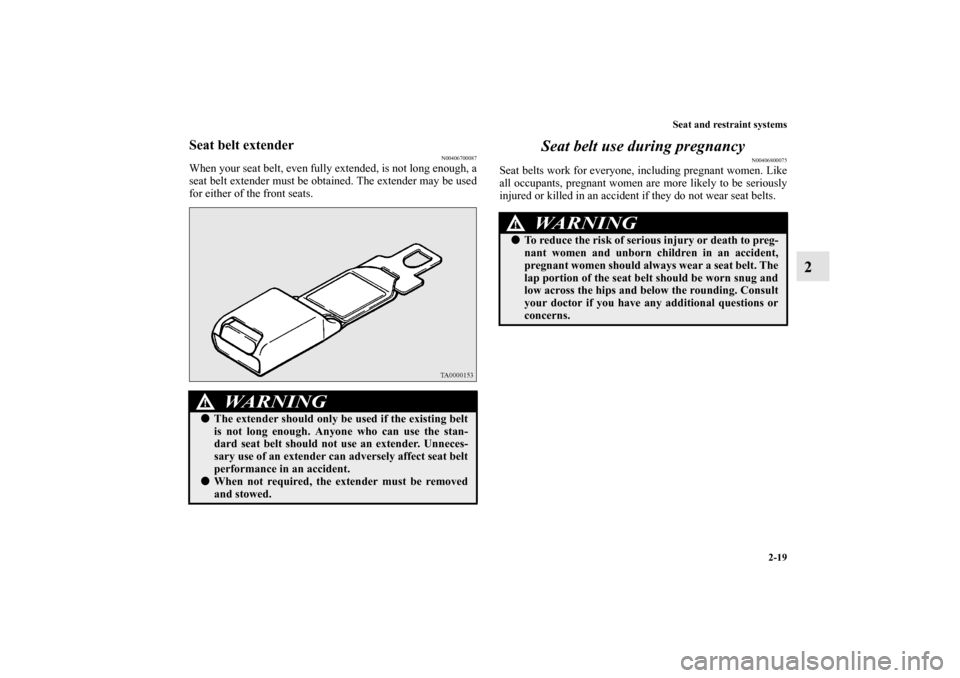

Seat belt extender
N00406700087
When your seat belt, even fully extended, is not long enough, a
seat belt extender must be obtained. The extender may be used
for either of the front seats.
Seat belt use during pregnancy
N00406800075
Seat belts work for everyone, including pregnant women. Like
all occupants, pregnant women are more likely to be seriously
injured or killed in an accident if they do not wear seat belts.
WA R N I N G
!The extender should only be used if the existing belt
is not long enough. Anyone who can use the stan-
dard seat belt should not use an extender. Unneces-
sary use of an extender can adversely affect seat belt
performance in an accident.When not required, the extender must be removed
and stowed.
WA R N I N G
!To reduce the risk of serious injury or death to preg-
nant women and unborn children in an accident,
pregnant women should always wear a seat belt. The
lap portion of the seat belt should be worn snug and
low across the hips and below the rounding. Consult
your doctor if you have any additional questions or
concerns.
BK0150900US.book 19 ページ 2012年5月7日 月曜日 午後12時9分
Page 47 of 626
2-20 Seat and restraint systems
2Seat belt pre-tensioner and force limiter
systems
N00417700638
The driver’s and front passenger’s seats each have a seat belt
equipped with a pre-tensioner system.Pre-tensioner system The driver and front passenger seat belts are equipped with a
seat belt pre-tensioner system. In a moderate-to-severe frontal
or side collision, the pre-tensioner system operates simulta-
neously with the deployment of the front airbags or side air-
bags and curtain airbags.
The seat belt pre-tensioners are located within the seat belt
retractors (A). When activated, the pre-tensioners quickly draw
back seat belt webbing and increase seat belt performance.The seat belt pre-tensioner system includes the following com-
ponents:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The pre-tensioner seat belt system will operate only when the
ignition switch is in the “ON” or “START” position.
1- SRS warning light
2- Front impact sensors
3- Seat belt pre-tensioners
4- Airbag control unit
5- Side impact sensors
BK0150900US.book 20 ページ 2012年5月7日 月曜日 午後12時9分
Page 48 of 626
Seat and restraint systems
2-21
2
When the seat belt pre-tensioners activate, some smoke is
released and a loud noise will be heard. The smoke is not harm-
ful, but care should be taken not to intentionally inhale it, as it
may cause some temporary irritation to people with respiratory
problems.
The pre-tensioners activate in the event of moderate-to-severe
frontal or side impact, even if the seat belt is not being worn.
The seat belt pre-tensioners may not activate in certain types of
collisions, even though the vehicle may appear to be severely
damaged. Such non-activation does not mean something is
wrong with the seat belt pre-tensioner system, but rather that
the collision forces were not severe enough or not of the type to
activate the system.
SRS warning
N00408700108
This warning tells you if there is a problem involving the SRS
airbags and the pre-tensioner seat belts. Refer to “SRS warning
light/display” on page 2-42.Force limiter system
N00408900113
In the event of an accident, the seat belt force limiter system
will help reduce the force applied to the driver and front seat
passenger.
WA R N I N G
!The seat belt pre-tensioner system is designed to
work only once. After the seat belt pre-tensioners
have been activated, they will not work again. They
must promptly be replaced and the entire seat belt
pre-tensioner system inspected by an authorized
Mitsubishi Motors dealer.
BK0150900US.book 21 ページ 2012年5月7日 月曜日 午後12時9分
Page 49 of 626
2-22 Seat and restraint systems

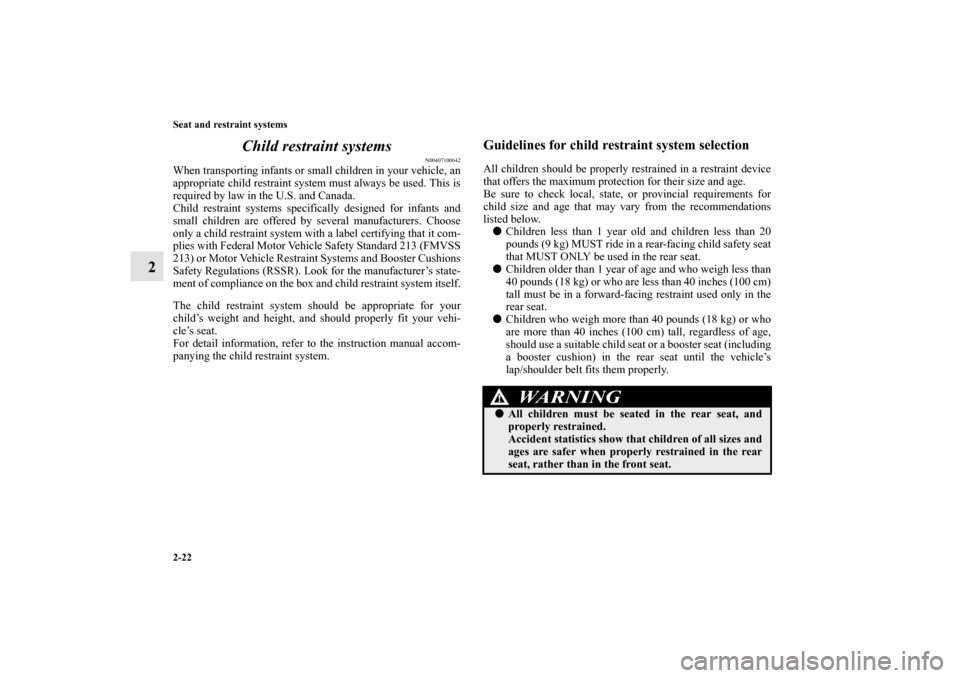

2Child restraint systems
N00407100642
When transporting infants or small children in your vehicle, an
appropriate child restraint system must always be used. This is
required by law in the U.S. and Canada.
Child restraint systems specifically designed for infants and
small children are offered by several manufacturers. Choose
only a child restraint system with a label certifying that it com-
plies with Federal Motor Vehicle Safety Standard 213 (FMVSS
213) or Motor Vehicle Restraint Systems and Booster Cushions
Safety Regulations (RSSR). Look for the manufacturer’s state-
ment of compliance on the box and child restraint system itself.
The child restraint system should be appropriate for your
child’s weight and height, and should properly fit your vehi-
cle’s seat.
For detail information, refer to the instruction manual accom-
panying the child restraint system.
Guidelines for child restraint system selectionAll children should be properly restrained in a restraint device
that offers the maximum protection for their size and age.
Be sure to check local, state, or provincial requirements for
child size and age that may vary from the recommendations
listed below.
Children less than 1 year old and children less than 20
pounds (9 kg) MUST ride in a rear-facing child safety seat
that MUST ONLY be used in the rear seat.
Children older than 1 year of age and who weigh less than
40 pounds (18 kg) or who are less than 40 inches (100 cm)
tall must be in a forward-facing restraint used only in the
rear seat.
Children who weigh more than 40 pounds (18 kg) or who
are more than 40 inches (100 cm) tall, regardless of age,
should use a suitable child seat or a booster seat (including
a booster cushion) in the rear seat until the vehicle’s
lap/shoulder belt fits them properly.
WA R N I N G
!All children must be seated in the rear seat, and
properly restrained.
Accident statistics show that children of all sizes and
ages are safer when properly restrained in the rear
seat, rather than in the front seat.
BK0150900US.book 22 ページ 2012年5月7日 月曜日 午後12時9分

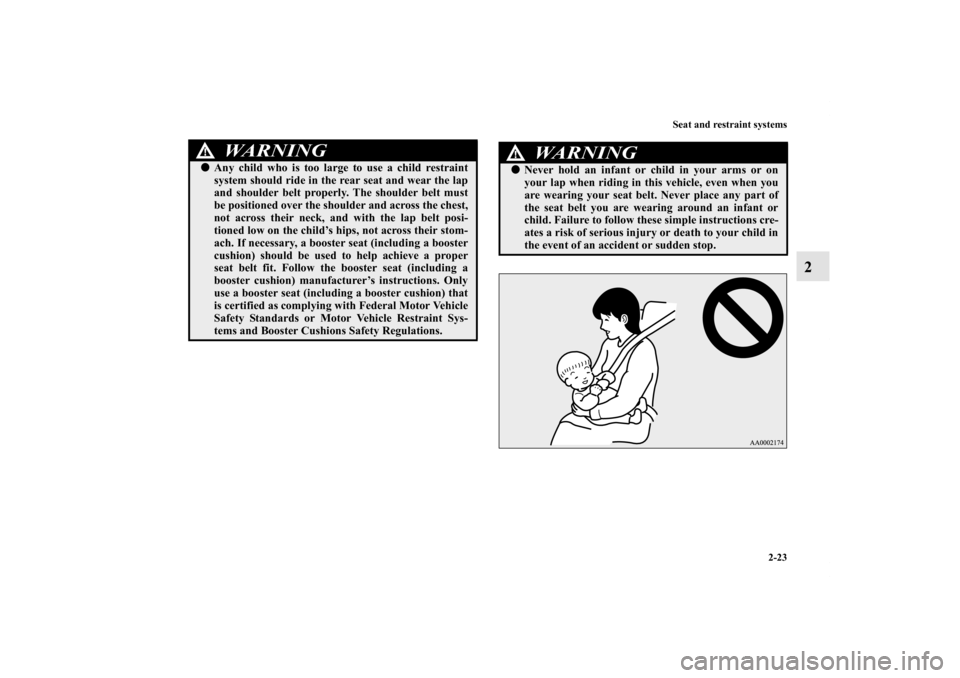

Page 50 of 626
Seat and restraint systems
2-23
2
Any child who is too large to use a child restraint
system should ride in the rear seat and wear the lap
and shoulder belt properly. The shoulder belt must
be positioned over the shoulder and across the chest,
not across their neck, and with the lap belt posi-
tioned low on the child’s hips, not across their stom-
ach. If necessary, a booster seat (including a booster
cushion) should be used to help achieve a proper
seat belt fit. Follow the booster seat (including a
booster cushion) manufacturer’s instructions. Only
use a booster seat (including a booster cushion) that
is certified as complying with Federal Motor Vehicle
Safety Standards or Motor Vehicle Restraint Sys-
tems and Booster Cushions Safety Regulations.
WA R N I N G
!
WA R N I N G
!Never hold an infant or child in your arms or on
your lap when riding in this vehicle, even when you
are wearing your seat belt. Never place any part of
the seat belt you are wearing around an infant or
child. Failure to follow these simple instructions cre-
ates a risk of serious injury or death to your child in
the event of an accident or sudden stop.
BK0150900US.book 23 ページ 2012年5月7日 月曜日 午後12時9分
