MITSUBISHI LANCER EVOLUTION 2015 10.G Owners Manual

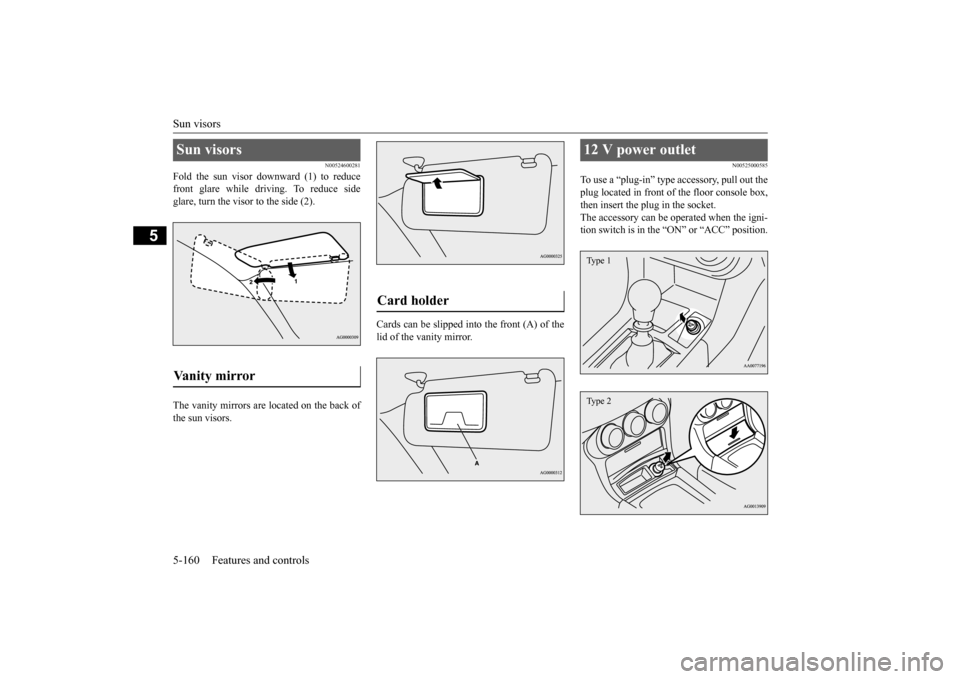

Sun visors 5-160 Features and controls
5
N00524600281
Fold the sun visor downward (1) to reduce front glare while driving. To reduce sideglare, turn the visor to the side (2). The vanity mirrors are located on the back of the sun visors.
Cards can be slipped into the front (A) of the lid of the vanity mirror.
N00525000585
To use a “plug-in” type accessory, pull out the plug located in front of the floor console box,then insert the plug in the socket. The accessory can be operated when the igni- tion switch is in the “
ON” or “ACC” position.
Sun visors Vanity mirror
Card holder
12 V power outlet Type 1Type 2
BK0210800US.book
160 ページ ２０１４年４月８日　火曜日　午前１１時２８分

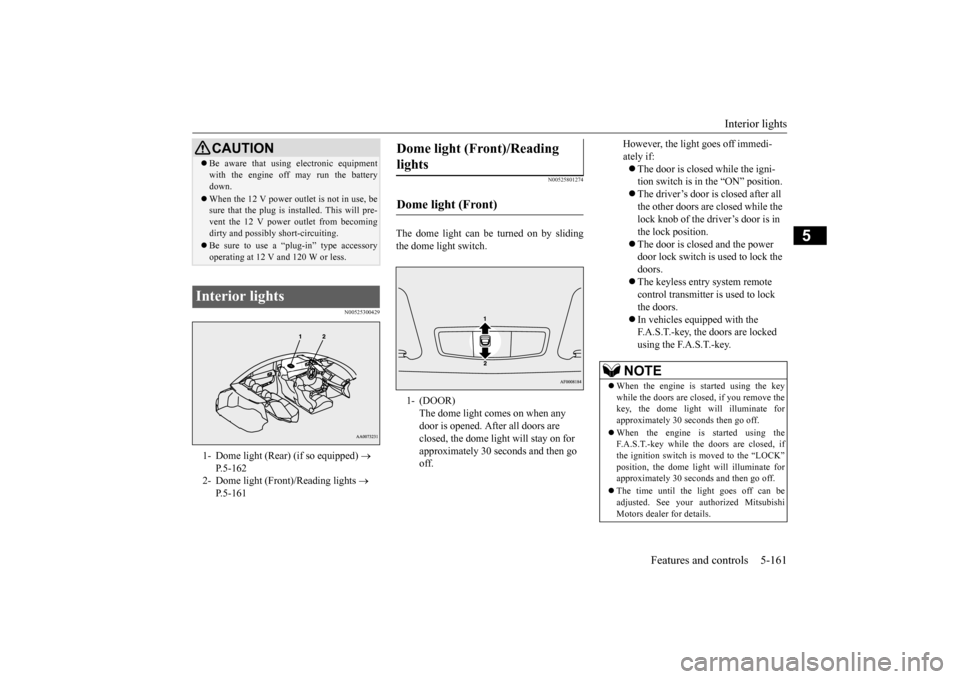

Interior lights
Features and controls 5-161
5
N00525300429
N00525801274
The dome light can be turned on by sliding the dome light switch.
CAUTION Be aware that using electronic equipment with the engine off may run the battery down. When the 12 V power outlet is not in use, be sure that the plug is installed. This will pre- vent the 12 V power outlet from becoming dirty and possibly short-circuiting. Be sure to use a “plug-in” type accessory operating at 12 V and 120 W or less.
Interior lights 1- Dome light (Rear) (if so equipped)

P.5-162
2- Dome light (Front)/Reading lights

P.5-161
Dome light (Front)/Reading lights Dome light (Front) 1- (DOOR)
The dome light comes on when any door is opened. After all doors are closed, the dome light will stay on for approximately 30 seconds and then go off.
However, the light goes off immedi- ately if: The door is closed while the igni- tion switch is in the “ON” position.  The driver’s door is closed after all the other doors are closed while the lock knob of the driver’s door is in the lock position. The door is closed and the power door lock switch is used to lock the doors. The keyless entry system remote control transmitter is used to lock the doors.  In vehicles equipped with the F.A.S.T.-key, the doors are locked using the F.A.S.T.-key.
NOTE
 When the engine is started using the key while the doors are closed, if you remove thekey, the dome light will illuminate for approximately 30 seconds then go off.  When the engine is started using the F.A.S.T.-key while the doors are closed, if the ignition switch is moved to the “LOCK” position, the dome light will illuminate for approximately 30 seconds and then go off.  The time until the light goes off can be adjusted. See your authorized MitsubishiMotors dealer for details.
BK0210800US.book
161 ページ ２０１４年４月８日　火曜日　午前１１時２８分

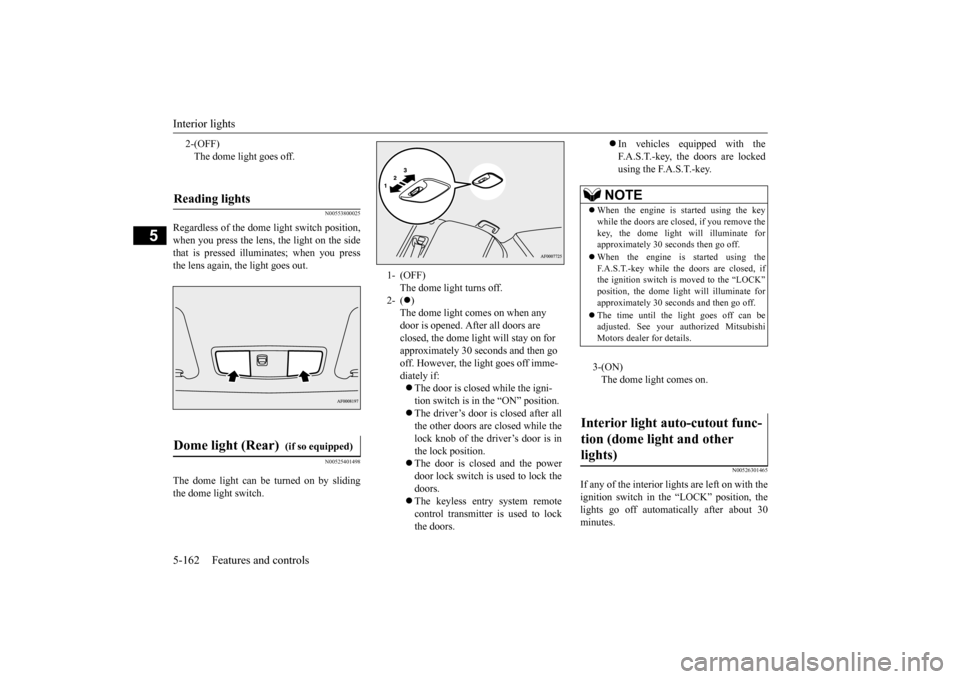

Interior lights 5-162 Features and controls
5
N00553800025
Regardless of the dome light switch position, when you press the lens, the light on the sidethat is pressed illuminates; when you press the lens again, the light goes out.
N00525401498
The dome light can be turned on by sliding the dome light switch.
N00526301465
If any of the interior lights are left on with the ignition switch in the “LOCK” position, the lights go off automatically after about 30minutes.
2-(OFF) The dome light goes off.
Reading lights Dome light (Rear)
(if so equipped)
1- (OFF)
The dome light turns off.
2- (
) The dome light comes on when any door is opened. After all doors are closed, the dome light will stay on for approximately 30 seconds and then go off. However, the light goes off imme-diately if:  The door is closed while the igni- tion switch is in the “ON” position. The driver’s door is closed after all the other doors are closed while the lock knob of the driver’s door is inthe lock position.  The door is closed and the power door lock switch is used to lock thedoors.  The keyless entry system remote control transmitter is used to lockthe doors.
 In vehicles equipped with the F.A.S.T.-key, the doors are lockedusing the F.A.S.T.-key.
NOTE
 When the engine is started using the key while the doors are closed, if you remove the key, the dome light will illuminate forapproximately 30 seconds then go off.  When the engine is started using the F.A.S.T.-key while the doors are closed, if the ignition switch is moved to the “LOCK” position, the dome light will illuminate forapproximately 30 seconds and then go off.  The time until the light goes off can be adjusted. See your authorized Mitsubishi Motors dealer for details.3-(ON) The dome light comes on.
Interior light auto-cutout func- tion (dome light and other lights)
BK0210800US.book
162 ページ ２０１４年４月８日　火曜日　午前１１時２８分

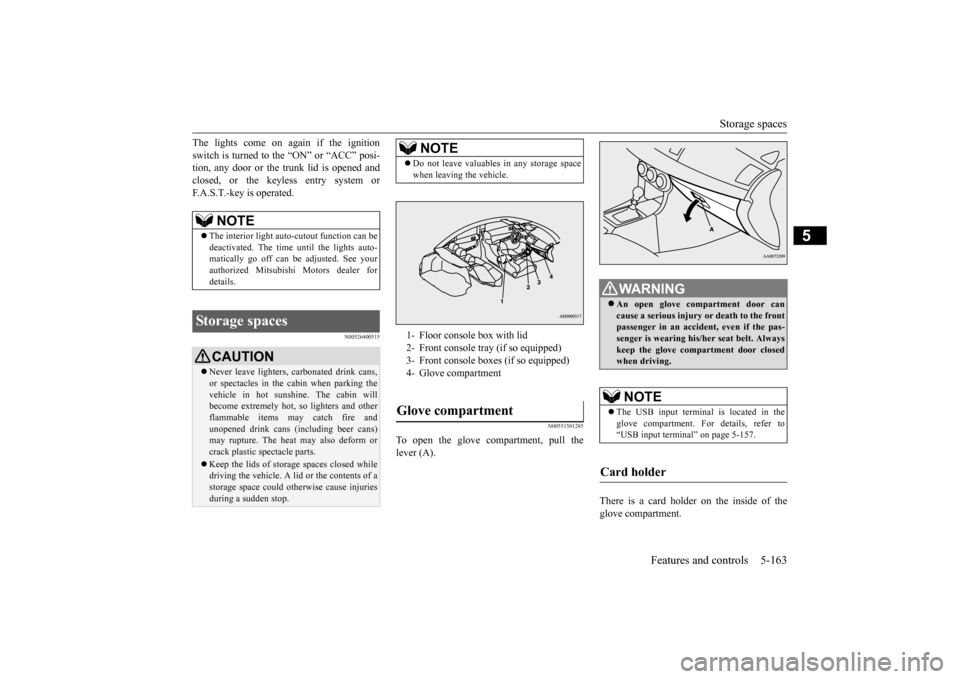

Storage spaces
Features and controls 5-163
5
The lights come on again if the ignition switch is turned to the “ON” or “ACC” posi- tion, any door or the tru
nk lid is opened and
closed, or the keyless entry system orF.A.S.T.-key is operated.
N00526400515
N00551501285
To open the glove compartment, pull the lever (A).
There is a card holder on the inside of the glove compartment.
NOTE
 The interior light auto-cutout function can be deactivated. The time until the lights auto- matically go off can be adjusted. See yourauthorized Mitsubishi Motors dealer for details.
Storage spaces
CAUTION Never leave lighters, carbonated drink cans, or spectacles in the cabin when parking the vehicle in hot sunshine. The cabin will become extremely hot, so lighters and otherflammable items may catch fire and unopened drink cans (including beer cans) may rupture. The heat may also deform or crack plastic spectacle parts. Keep the lids of stor
age spaces closed while
driving the vehicle. A lid or the contents of a storage space could otherwise cause injuriesduring a sudden stop.
NOTE
 Do not leave valuables in any storage space when leaving the vehicle.1- Floor console box with lid 2- Front console tray (if so equipped)3- Front console boxes (if so equipped)4- Glove compartmentGlove compartment
WA R N I N G An open glove compartment door can cause a serious injury or death to the front passenger in an accident, even if the pas-senger is wearing his/her seat belt. Always keep the glove compartment door closed when driving. NOTE
 The USB input terminal is located in the glove compartment. For details, refer to “USB input terminal” on page 5-157.
Card holder
BK0210800US.book
163 ページ ２０１４年４月８日　火曜日　午前１１時２８分

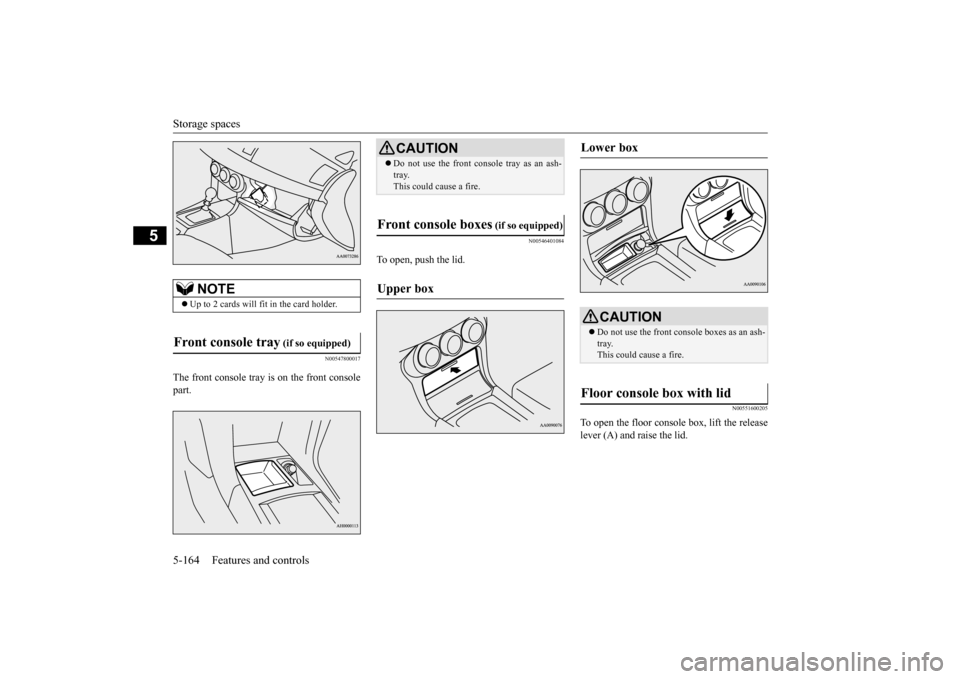

Storage spaces 5-164 Features and controls
5
N00547800017
The front console tray is on the front console part.
N00546401084
To open, push the lid.
N00551600205
To open the floor console box, lift the release lever (A) and raise the lid.
NOTE
 Up to 2 cards will fit in the card holder.
Front console tray
(if so equipped)
CAUTIONDo not use the front c
onsole tray as an ash-
tray. This could cause a fire.
Front console boxes
(if so equipped)
Upper box

Lower box

CAUTION Do not use the front console boxes as an ash- tray. This could cause a fire.
Floor console box with lid
BK0210800US.book
164 ページ ２０１４年４月８日　火曜日　午前１１時２８分

Cup holder
Features and controls 5-165
5
The tissue holder (A) is located on the under- side of the floor console box lid.
N00527301446
The cup holder is located the middle of thefloor console.The cup holder is designed for holding cups or drink-cans securely.
N00537000120
This cup holder is located
in the rear seat arm
rest (A).Pull the rear arm rest down to use the cup holder.
N00502800036
Tissue holder
Cup holder For the front seat
CAUTION Do not drink beverages while driving your vehicle. This is distracting and could causean accident.
For the rear seat Bottle holder
CAUTION Do not drink beverages while driving your vehicle. This is distracting and could cause an accident. Vibration and shaking while driving may cause beverages to spill. Be very careful, as spilling hot beverages could cause burns.
BK0210800US.book
165 ページ ２０１４年４月８日　火曜日　午前１１時２８分

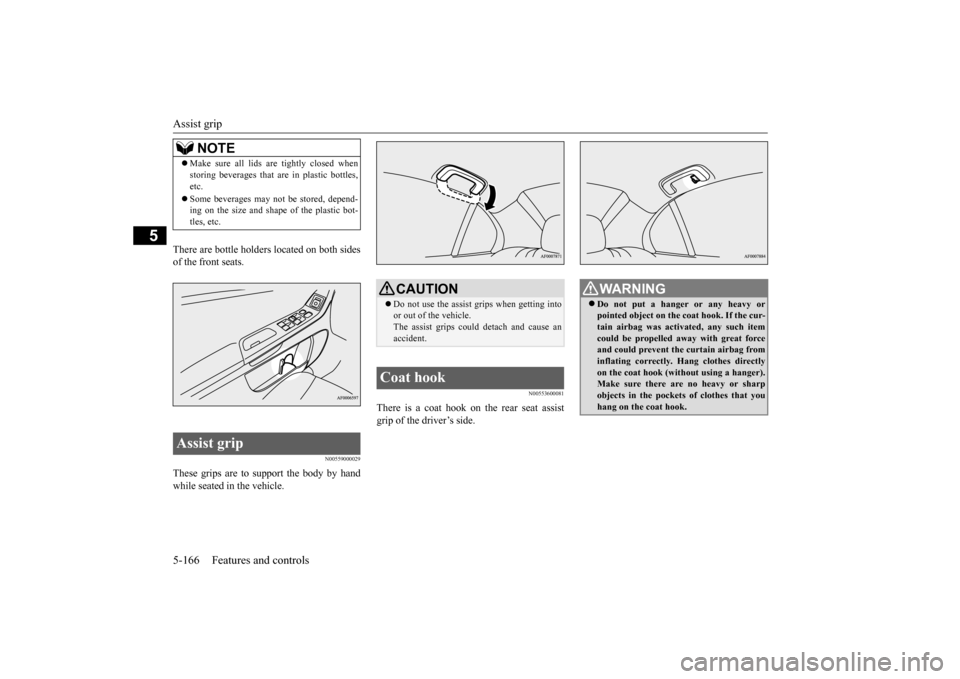

Assist grip 5-166 Features and controls
5
There are bottle holders located on both sides of the front seats.
N00559000029
These grips are to support the body by handwhile seated in the vehicle.
N00553600081
There is a coat hook on the rear seat assist grip of the driver’s side.
NOTE
 Make sure all lids are tightly closed when storing beverages that are in plastic bottles, etc.  Some beverages may not be stored, depend- ing on the size and shape of the plastic bot- tles, etc.
Assist grip
CAUTION Do not use the assist grips when getting into or out of the vehicle. The assist grips could detach and cause an accident.
Coat hook
WA R N I N G Do not put a hanger or any heavy or pointed object on the coat hook. If the cur- tain airbag was activated, any such item could be propelled away with great forceand could prevent the curtain airbag from inflating correctly. Hang clothes directly on the coat hook (without using a hanger).Make sure there are no heavy or sharp objects in the pockets of clothes that you hang on the coat hook.
BK0210800US.book
166 ページ ２０１４年４月８日　火曜日　午前１１時２８分

BK0210800US.book
167 ページ ２０１４年４月８日　火曜日　午前１１時２８分

BK0210800US.book
168 ページ ２０１４年４月８日　火曜日　午前１１時２８分

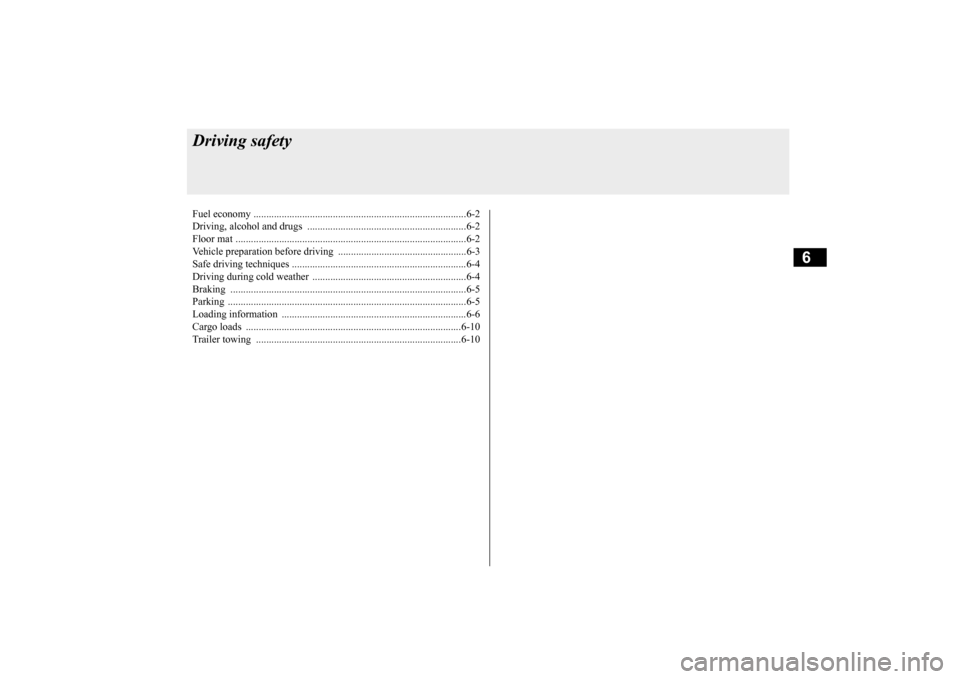

6
Driving safetyFuel economy ............................
.......................................................6-2
Driving, alcohol and dr
ugs ..............................................................6-2
Floor mat ...................................
.......................................................6-2
Vehicle preparation before driving ..................................................6-3Safe driving techniques
..........................................
..........................6-4
Driving during cold weat
her ............................................................6-4
Braking .....................................
.......................................................6-5
Parking ......................................
.......................................................6-5
Loading information
..............................................
..........................6-6
Cargo loads .....................
...............................................................6-10
Trailer towing .................
...............................................................6-10
