54-2
ON-VEHICLE SERVICE 27. . . . . . . . . . . . . . . .
COMBINATION METERS 30. . . . . . . . . . . . . . .
HEADLAMP 32. . . . . . . . . . . . . . . . . . . . . . . .
SERVICE SPECIFICATIONS 32. . . . . . . . . . . .
SPECIAL TOOLS 32. . . . . . . . . . . . . . . . . . . . . .
TROUBLESHOOTING 33. . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 34. . . . . . . . . . . . . . . .
HEADLAMP AND FRONT TURN-SIGNAL
LAMP* 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
FRONT FOG LAMP 39. . . . . . . . . . . . . . . .
SERVICE SPECIFICATIONS 39. . . . . . . . . . . .
ON-VEHICLE SERVICE 39. . . . . . . . . . . . . . . .
FOG LAMP 41. . . . . . . . . . . . . . . . . . . . . . . . . . .
REAR COMBINATION LAMP* 42. . . . . . .
TROUBLESHOOTING 42. . . . . . . . . . . . . . . . . .
REAR COMBINATION LAMP* 42. . . . . . . . . .
SIDE TURN-SIGNAL LAMP 43. . . . . . . . .
SPECIAL TOOL 43. . . . . . . . . . . . . . . . . . . . . . . SIDE TURN-SIGNAL LAMP 43. . . . . . . . . . . .
HAZARD WARNING LAMP
SWITCH, CLOCK 44. . . . . . . . . . . . . . . . . . .
SPECIAL TOOL 44. . . . . . . . . . . . . . . . . . . . . . .
HAZARD WARNING LAMP SWITCH 44. . . .
RADIO AND TAPE PLAYER 45. . . . . . . .
TROUBLESHOOTING 45. . . . . . . . . . . . . . . . . .
RADIO AND TAPE PLAYER 47. . . . . . . . . . . .
SPEAKER 47. . . . . . . . . . . . . . . . . . . . . . . . .
ANTENNA 48. . . . . . . . . . . . . . . . . . . . . . . . .
POLE ANTENNA 48. . . . . . . . . . . . . . . . . . . . . .
REAR WINDOW ANTENNA AND GLASS
DIVERSITY ANTENNA 49. . . . . . . . . . . . . . . . .
REAR WINDOW DEFOGGER 50. . . . . . .
TROUBLESHOOTING AUTOMATIC A/C> 50. . . . . . . . . . . . . . . . . . . . .
ON-VEHICLE SERVICE 50. . . . . . . . . . . . . . . .
REAR WINDOW DEFOGGER SWITCH
51. . .

CHASSIS ELECTRICAL – Ignition SwitchCHASSIS ELECTRICAL – Ignition Switch54-6
IGNITION SWITCH IMMOBILIZER SYSTEM>
SPECIAL TOOL
ToolNumberNameUse
MB991502MUT-II sub
assemblyETACS-ECU input signal checking
TROUBLESHOOTING
DIAGNOSIS FUNCTION
INPUT SIGNAL INSPECTION POINTS WITH ETACS-ECU>
Refer to Group 00 – How to Use Troubleshooting / Inspection
Service Points.
INSPECTION CHART FOR TROUBLE SYMPTOMS
Trouble symptomsInspection
procedureReference page
Communication with
MUTIIis impossible
Key hole illumination lamp remains illuminated.154-7
MUT-II is impossible.
Even if driver’s side door is opened, key hole
illumination lamp does not illuminate.254-7
While key hole illumination lamp is illuminated,
ignition key is turned to the ON position but key hole
illumination lamp does not switch off. (However, it
switch off after 10 seconds.)354-8
Key reminder warning
buzzer systemWhile the key reminder warning buzzer is sounding,
the ignition key is turned to the ON position but the
sound dose not stop. (However, it stops when the
driver’s side door is closed.)354-8
The key reminder warning buzzer dose not stop
sounding even if the key is removed. (However, it
stops when the driver’s side door is closed.)454-9
The key reminder warning buzzer does not sound
ever if the driver’s side door is opened while the key
is still inserted. (However, the ignition key should be
in the OFF position.)554-10
NOTE
If every input signal can not be checked with the MUT-II, a diagnosis circuit system failure is probably
the cause.

CHASSIS ELECTRICAL – Ignition Switch54-7
INSPECTION PROCEDURE FOR TROUBLE SYMPTOMS
Inspection Procedure 1
Key hole illumination lamp remains illuminated.
Probable cause
The cause is probably a harness short or a defective ETACS-ECU or buzzer ECU.
Malfunction of harness wire

Malfunction of ETACS-ECU

Malfunction of buzzer ECU
Disconnect the ignition key cylinder illumination lamp connector
B-84 and measure the continuity:

Between 4 and body earth
OK:ConductingNGCheck the harness wire between the ignition key cylinder illumination
lamp and junction block, and repair if necessary.
OK
Replace the ETACS-ECU or buzzer ECU.
Inspection Procedure 2
Even if driver’s side door is opened, key hole illumination
lamp does not illuminate.
Probable cause
The cause is probably a defective key hole illumination lamp circuit system, or a
defective driver’s side door switch input circuit system if the ignition key reminder
warning buzzer is also faulty.
Malfunction of driver’s side door switch

Malfunction of bulb

Malfunction of connector

Malfunction of harness wire

Malfunction of ETACS-ECU

Malfunction of buzzer ECU
OK
Replace ETACS-ECU or buzzer ECU.

MUT-II Pulse check
Driver’s side door switch input signal
OK:The MUT-II buzzer sounds once
when the driver’s side door switch
is ON.NG
Driver’s side door switch input circuit
system inspection (Refer to Inspection
Procedure 6 on P.54-10.)
OK
Disconncet the key hole illumination
lamp connector B-84, and measure at
the harness side.

Voltage between 3 and body earth
OK:System voltageNGCheck the following connectors:
B-49, B-75, B-73NG
Repair
OK
Check trouble symptom.
NG
Check the harness wire between
ETACS-ECU or buzzer ECU and fusible
link 1, and repair if necessary.
Vehicle with buzzer ECU
Remove ETACS-ECU or buzzer ECU
from junction block, and measure at the
junction block connector B-79

Ignition key cylinder illumination
lamp connector connected

Voltage between 12 and body earth
OK:System voltage
OK
OK
NG
Check the following connectors:
B-84, B-49, B-75, B-73NG
Repair
OK
Check trouble symptom.
Check the harness wire between the
ignition key cylinder illumination lamp
and fusible link 1, and repair if neces-
sary.
NG

CHASSIS ELECTRICAL – Ignition Switch54-8
Inspection Procedure 3
While key hole illumination lamp is illuminated, ignition
key is turned to the ON position but key hole illumination
lamp does not switch off. (However, it switch off after 15
seconds.)
Probable cause
While the key reminder warning buzzer is sounding, the
ignition key is turned to the ON position but the sound
dose not stop. (However, it stops when the driver’s side
door is closed.)
The cause is probably a malfunction of the ignition switch input circuit, ETACS-ECU
or buzzer ECU. Furthermore, if there is a malfunction of a multipurpose fuse, the
cause may also be a short circuit in a harness.
Malfunction of fuse

Malfunction of connector

Malfunction of harness

Malfunction of ETACS-ECU

Malfunction of buzzer ECU
OK
Replace ETACS-ECU.

MUT-II Pulse check
Ignition switch input inspection
OK:The MUT-II buzzer sounds once
when the ignition key is turned
to the ON from OFF position.

NG
Disconnect the junction block connector
B-76 and measure at the harness side.

Voltage between the terminal No.
8 and body earth.
OK:System voltageNGCheck the following connectors:
B-76, B-79Repair
OK
Check trouble symptom.
Replace the buzzer ECU.
Replace ETACS-ECU.
Check the harness wire between the
ignition switch (IG1) and junction block
and repair if necessary.
OK
Junction block harness continuity check
NG
NOTE
The stop indicated with a dotted line
applies only to vehicles with buzzer
ECU. OK
NG
Replace NG

CHASSIS ELECTRICAL – Ignition Switch54-9
Inspection Procedure 4
The key reminder warning buzzer dose not stop sounding
even if the key is removed. (However, it stops when the
driver’s side door is closed.)
Probable cause
The cause is probably a malfunction of the key reminder switch input circuit system,
or a malfunction of ETACS-ECU, or a malfunction of buzzer ECU.
Malfunction of key reminder switch

Malfunction of connector

Malfunction of harness

Malfunction of ETACS-ECU

Malfunction of buzzer ECU
YES
Check the following connectors.
B-84, B-75NG
NG
Inspect the harness between the key
reminder switch and ETACS-ECU or
buzzer ECU, and repair if necessary.
OK
Check trouble symptom.
OK
Replace the ETACS-ECU or the buzzer
ECU.OK
NG
Key reminder switch continuity inspec-
tion (Refer to P. 54-12.)NG
Replace

MUT-II Pulse check
Ignition switch input inspection
OK:The MUT-II buzzer sounds once
when the ignition key is removed
from the key cylinder.OKReplace the ETACS-ECU.
Replace
OK
Check trouble symptom
OK
Disconnect the key reminder switch
connector and connect the terminal No.
5 to the body earth. Does the buzzer
stop sounding?NOCheck the following connectors.
B-84, B-75, B-79NG
Repair

Check the harness wire between the
key reminder switch and the body earth
and repair if necessary.
Replace the buzzer ECU.
NOTE
The stop indicated with a dotted line
applies only to vehicles with buzzer
ECU.

CHASSIS ELECTRICAL – Ignition Switch54-10

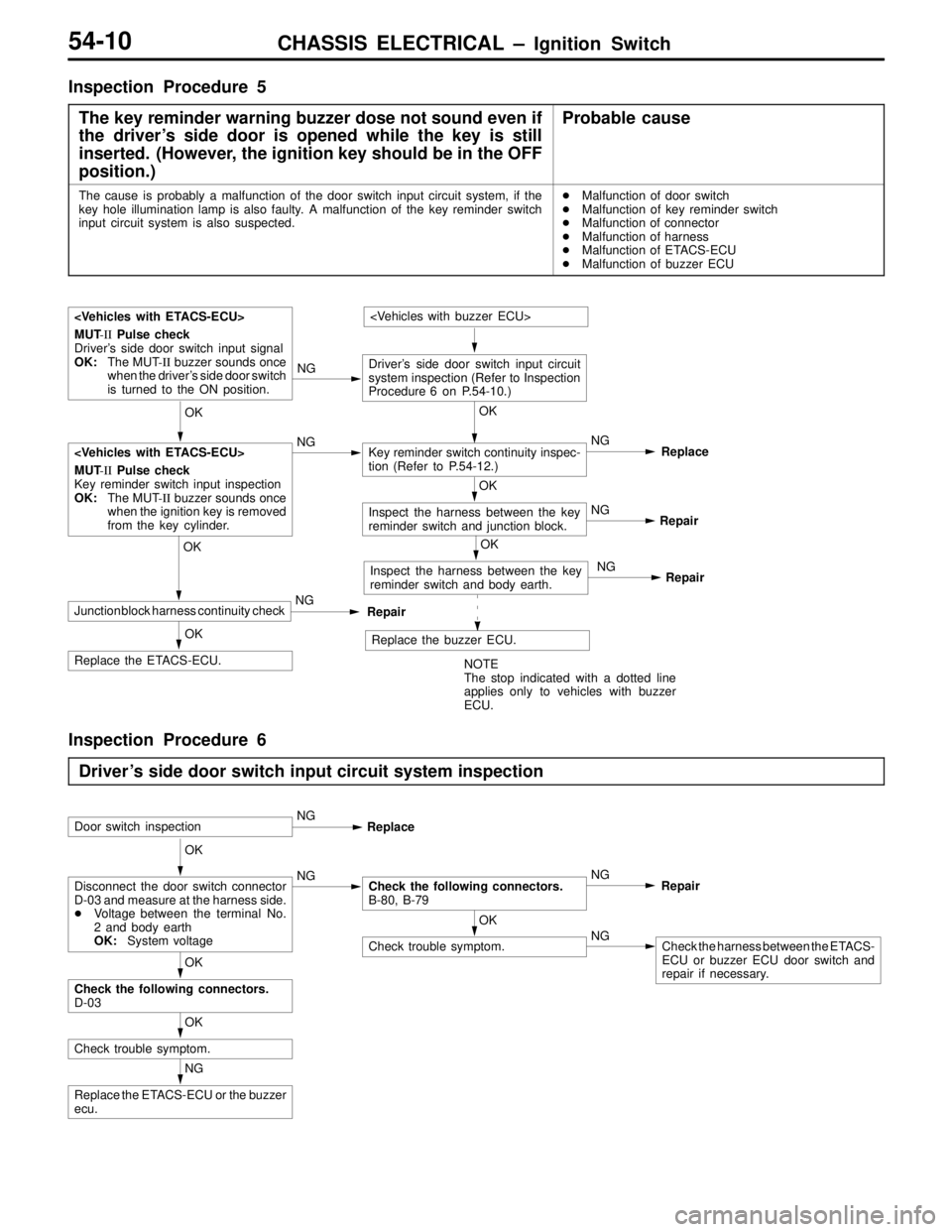

Inspection Procedure 5
The key reminder warning buzzer dose not sound even if
the driver’s side door is opened while the key is still
inserted. (However, the ignition key should be in the OFF
position.)
Probable cause
The cause is probably a malfunction of the door switch input circuit system, if the
key hole illumination lamp is also faulty. A malfunction of the key reminder switch
input circuit system is also suspected.
Malfunction of door switch

Malfunction of key reminder switch

Malfunction of connector

Malfunction of harness

Malfunction of ETACS-ECU

Malfunction of buzzer ECU
Driver’s side door switch input circuit
system inspection (Refer to Inspection
Procedure 6 on P.54-10.)
OK

MUT-II Pulse check
Key reminder switch input inspection
OK:The MUT-II buzzer sounds once
when the ignition key is removed
from the key cylinder.NGKey reminder switch continuity inspec-
tion (Refer to P.54-12.)NG
Replace
OK
Inspect the harness between the key
reminder switch and junction block.NG
Repair
OK
Replace the ETACS-ECU.OK

MUT-II Pulse check
Driver’s side door switch input signal
OK:The MUT-II buzzer sounds once
when the driver’s side door switch
is turned to the ON position.NG
OK
Junction block harness continuity checkNG
Repair

OK
Inspect the harness between the key
reminder switch and body earth.
Replace the buzzer ECU.
NOTE
The stop indicated with a dotted line
applies only to vehicles with buzzer
ECU.NG
Repair
Inspection Procedure 6
Driver’s side door switch input circuit system inspection
Door switch inspectionNG
Replace
OK
Disconnect the door switch connector
D-03 and measure at the harness side.

Voltage between the terminal No.
2 and body earth
OK:System voltageNGCheck the following connectors.
B-80, B-79NG
Repair
OK
Check trouble symptom.NGCheck the harness between the ETACS-
ECU or buzzer ECU door switch and
repair if necessary.
OK
Check trouble symptom.
NG
Replace the ETACS-ECU or the buzzer
ecu.OK
Check the following connectors.
D-03

CHASSIS ELECTRICAL – Headlamp54-33
TROUBLESHOOTING
DIAGNOSIS FUNCTION
INPUT SIGNAL INSPECTION POINTS
Refer to Group 00 – How to Use Troubleshooting / Inspection Service Points.
The lighting monitor buzzer does not sound even when
the ignition key is removed with the tail lamps or
headlamps ON and the driver’s side door open. [However,
the key reminder warning buzzer sounds when inserting
the key into the ignition key cylinder.
Probable cause
The cause is probably a malfunction of the lighting switch input circuit system or
a malfunction of ETACS-ECU or buzzer ECU. When the key reminder warning buzzer
is sounding, the lighting monitor warning buzzer does not sound even if the tail lamps
or headlamps are lit.
Malfunction of harness or connector

Malfunction of ETACS-ECU

Malfunction of buzzer ECU

MUT-II Pulse check
OK:MUT-II buzzer sounds once
when the lighting switch is
turned from OFF to TAIL or
HEAD.NG
Check the following connectors.
B-79Repair
OK
Check trouble symptom.NGOK
Replace the ETACS-ECU.

NG
Check the harness in the junction block.NG
Replace the ETACS-ECU or the buzzer
ECU.OKRepair NG

CHASSIS ELECTRICAL – Rear Combination Lamp54-42
REAR COMBINATION LAMP
TROUBLESHOOTING
For the troubleshooting of the lighting monitor warning buzzer, refer to P.54-33.
REAR COMBINATION LAMP
REMOVAL AND INSTALLATION
Caution: SRS
Before removal of air bag module and clock spring, refer to GROUP 52B – SRS Service Precautions and Air Bag
Module and Clock Spring.
2
1
3
1. Column switchRear combination lamp removal
steps
2. Rear end trim
3. Rear combination lamp
INSPECTION
LIGHTING SWITCH CONTINUITY CHECK
Switch positionTerminal No.
Connector BConnector A
5671
LIGHTING
SWITCH
OFF
SWITCHTAIL
HEAD
Connector A Connector B

CHASSIS ELECTRICAL – Hazard Warning Lamp Switch, Clock
ILL
ILL
54-44
HAZARD WARNING LAMP SWITCH, CLOCK
SPECIAL TOOL
ToolNumberNameUse
MB990784Ornament removerAir conditioner panel removal
HAZARD WARNING LAMP SWITCH
REMOVAL AND INSTALLATION
2
1 3
4
Hazard warning lamp switch
removal steps
1. Air conditioner panel
2. Switch holder
3. Hazard warning lamp switchClock removal steps
1. Air conditioner panel
4. Clock
INSPECTION
HAZARD WARNING LAMP SWITCH CONTINUITY
CHECK
Switch
iti
Terminal No.
position1245679–10
OFF
ON
