54G6 – TIGHTENING TORQUES
Tightening Torques
Par tTightening Torque Nm
Alternator, ignition system
Oil level gauge guide bolt13 ± 1
Water pump pulley bolt8.8 ± 1.0
Auto tension bolt (washer)44 ± 10
Auto tension bolt (flange)24 ± 4
Alternator bracket bolt (flange)24 ± 4
Alternator bracket bolt (washer M8 x 22)22 ± 4
Alternator bracket bolt (washer M8 x 32)20 ± 2
Alternator nut44 ± 10
Crankshaft pulley bolt25 ± 4
Centre cover holt3.0 ± 0.5
Ignition coil bolt10 ± 2
Spark plug25 ± 5
Timing belt
Timing belt cover bolt (flange)11 ± 1
Timing belt cover bolt (washer)9.0 ± 1.0
Power steering pump bracket bolt49 ± 9
Connector bracket bolt11 ± 1
Locker cover bolt3.5 ± 0.5
Plug cap32 ± 2
Tensioner pulley bolt48 ± 5
Tensioner arm bolt21 ± 4
Auto tensioner bolt23 ± 3
Idler pulley bolt35 ± 6
Crank angle sensor bolt8.8 ± 1.0
Oil pump sprocket nut54 ± 5
Crankshaft holt167
Tensioner B bolt19 ± 3
Counterbalance shaft sprocket bolt45 ± 3
Engine support bracket bolt49 ± 5
V.V.T. sprocket bolt65 ± 5
Camshaft sprocket bolt88 ± 10
Fuel system
Throttle body bolt19 ± 3
Cover bolt12 ± 1
Fuel pressure regulator bolt8.8 ± 2.0
Delivery pipe and injector bolt11 ± 1
Vacuum hose and pipe bolt11 ± 1
Solenoid valve assembly bolt9.0 ± 1.0
Vacuum tank bracket bolt9.0 ± 1.0
Secondary air system / Intake manifold
Exhaust manifold heat protector bolt20 ± 3
Air pipe assembly

104G6 – TIMING BELT
Timing Belt
Removal and Installation
Note :
NEVER disassemble the V.V.T. sprocket.
Removal Sequence
1. Timing belt front upper cover
2. Timing belt front lower cover
3. Power steering pump bracket4. Breather hose
5. PCV hose
6. PCV valve
7. PCV valve gasket
8. Oil filler cap

114G6 – TIMING BELT
9. Connector bracket
10. Rocker cover
11.Rocker cover gasket A
12. Rocker cover gasket B
13. Semi-circular packing
14. Plug cap
15. Timing belt
16. Tensioner pulley
17. Tensioner arm
18. Auto tensioner
19. Idler pulley
20. Crank angle sensor
21. Oil pump sprocket
22. Crankshaft bolt
23. Crankshaft sprocket
24. Crankshaft sensing blade
25. Tensioner B26. Timing belt B
27. Counterbalance shaft sprocket
28. Spacer
29. Crankshaft sprocket B
30. Crankshaft key
31. Engine support bracket
32. V.V.T. sprocket bolt
33. V.V.T. sprocket
34. Camshaft sprocket bolt
35. Camshaft sprocket
36. Timing belt rear right cover
37. Timing belt rear left upper cover
38. Timing belt rear left lower cover
Removal Service Point
Removal of plug cap
Hold hexagonal section of camshaft with wrench, and loosen plug cap.
Removal of V.V.T. sprocket bolt
Hold hexagonal section of camshaft with wrench, and loosen V.V.T.
sprocket bolt.
Installation Service Point
Installation of V.V.T. sprocket bolt / V.V.T.
sprocket
1. Apply the minimum suitable coating of engine oil to the following
points:
• Whole circumference of end of camshaft
• Inserted part of V.V.T. sprocket (full circumference; inner
& outer sides)
• Bolt seating of V.V.T. sprocket bolt
2. Install the V.V.T. sprocket.
V. V. T.
sprocket
boltV.V.T. sprocket
Camshaft

* A


* B
B
*
A
*
A
*

* * 1


* * 1


* * 1


* * 1

* * 1

* * 1

* * 1


* * 1
* 1
*
* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* 1
*

* A


* B


* A

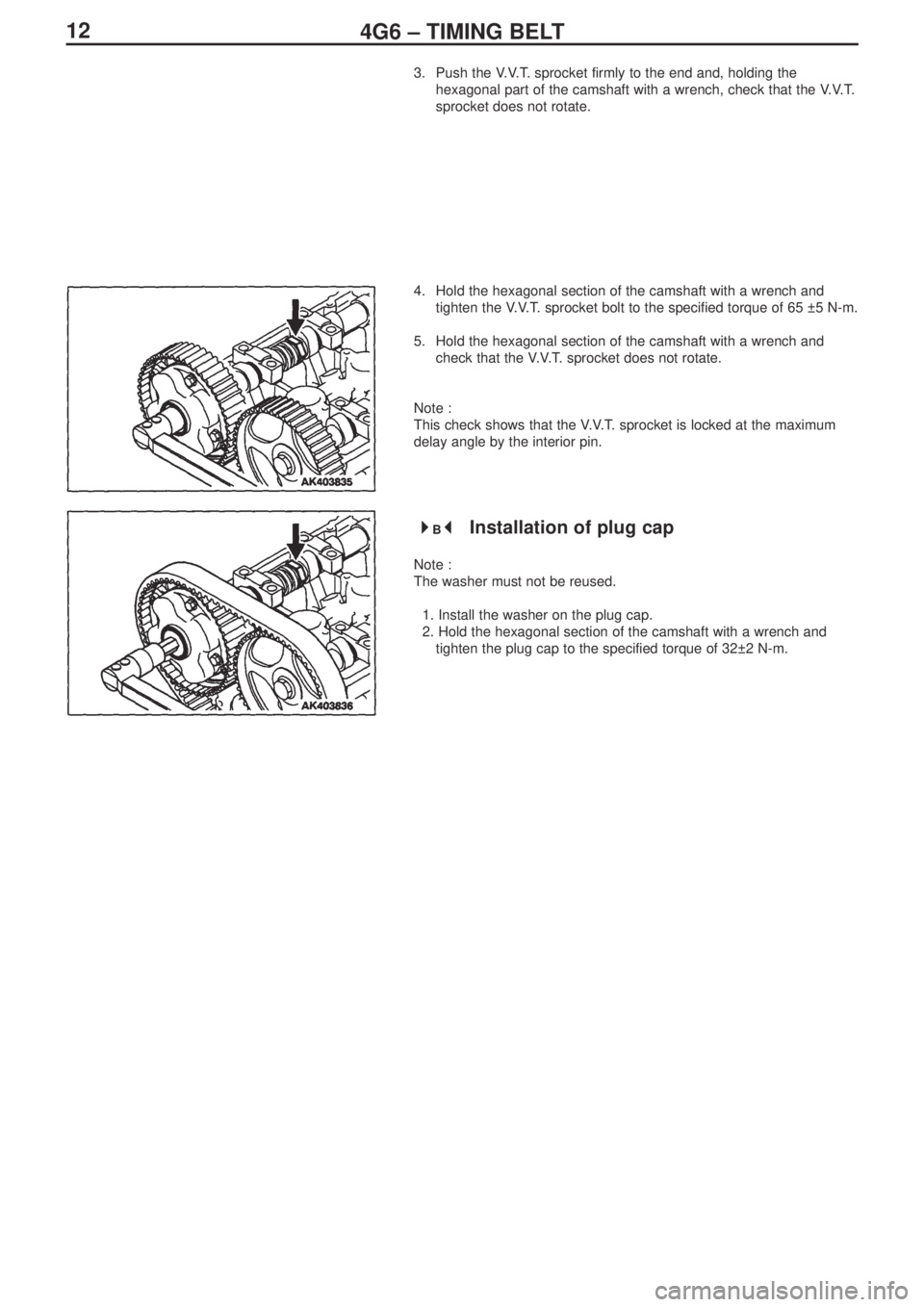

124G6 – TIMING BELT
3. Push the V.V.T. sprocket firmly to the end and, holding the
hexagonal part of the camshaft with a wrench, check that the V.V.T.
sprocket does not rotate.
4. Hold the hexagonal section of the camshaft with a wrench and
tighten the V.V.T. sprocket bolt to the specified torque of 65 ±5 N-m.
5. Hold the hexagonal section of the camshaft with a wrench and
check that the V.V.T. sprocket does not rotate.
Note :
This check shows that the V.V.T. sprocket is locked at the maximum
delay angle by the interior pin.
Installation of plug cap
Note :
The washer must not be reused.
1. Install the washer on the plug cap.
2. Hold the hexagonal section of the camshaft with a wrench and
tighten the plug cap to the specified torque of 32±2 N-m.
B
*

264G6 – CRANKSHAFT / CYLINDER BLOCK
Installation Service Point
Installation of crankshaft bearings
1. Using the table below, select a bearing of the correct size
corresponding to the diameter of the crankshaft journal.
(Selecting a bearing : Example)
If the identifier on the crankshaft journal is 0, and the identifier on the
cylinder block bearing is 1, then a bearing with identification mark 1
should be chosen.
If the identifier on the crankshaft is difficult to make out, measure the
diameter of the journal and choose the bearing that corresponds to the
measured diameter.
Crankshaft journal diameter
Identification mark Journal
diameter (mm)Cylinder
block bearingCrankshaft
bearing
00
11
056.994~57.000
22
00
11
156.988~56.994
22
00
11
256.982~56.988
22
2. Install grooved bearing on cylinder block side.
3. Install bearing without oil groove on bearing cap side.
Position of crankshaft journal diameter identification marks
Timing belt
Cylinder block bearing hole diameter
identification mark
Cylinder
bore size
mark
Position of crankshaft bearing size
identification mark
Identification mark
Groove
Lower bearingUpper bearing
A
*
