MITSUBISHI LANCER EVOLUTION IX 2005 Workshop Manual

3-114CIRCUIT DIAGRAMS - VISION / SAFETY

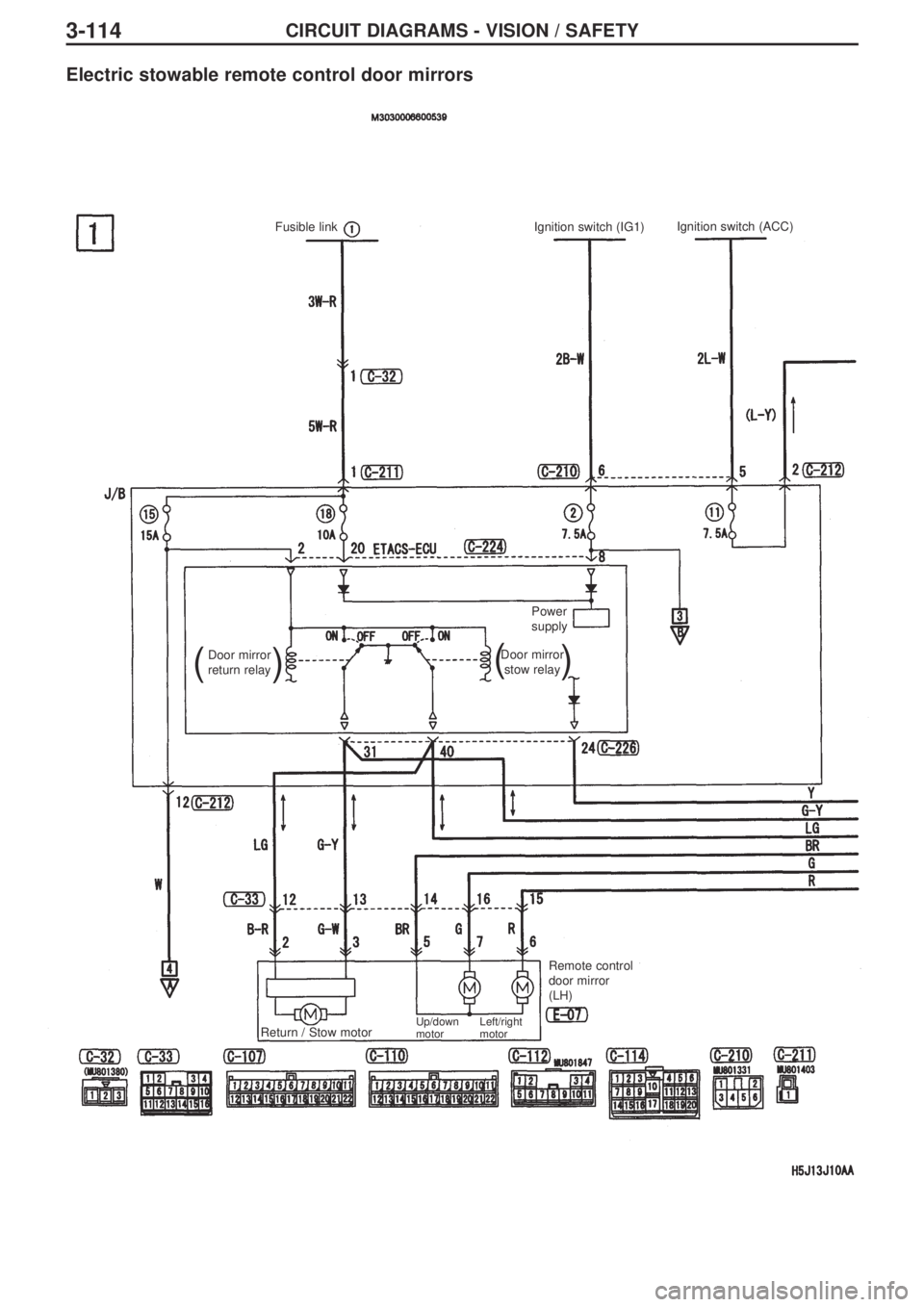

Electric stowable remote control door mirrors
Door mirror
return relay
((
))
Return / Stow motorFusible link Ignition switch (IG1)Ignition switch (ACC)
Door mirror
stow relayPower
supplyUp/down
motorLeft/right
motor
Remote control
door mirror
(LH)

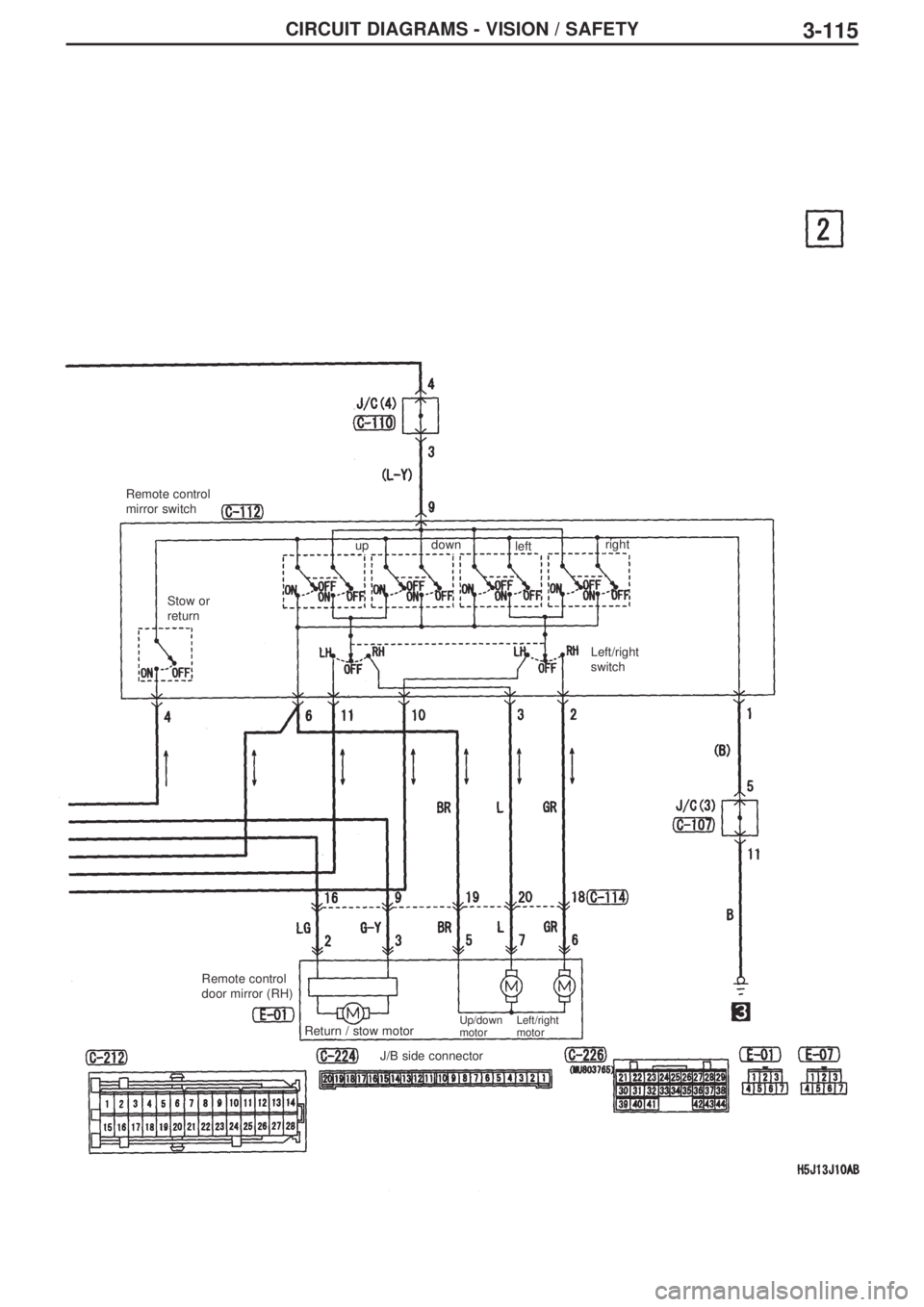

3-115CIRCUIT DIAGRAMS - VISION / SAFETY
Remote control
mirror switch
Stow or
return
Remote control
door mirror (RH)
Return / stow motor
Up/down
motorLeft/right
motor
J/B side connectorLeft/right
switch updown
leftright

3-116CIRCUIT DIAGRAMS - VISION / SAFETY
Engine
control
Electric stowable remote control door mirrors (cont.)
Vehicle speed
sensorJ/B
generic
fuse
(
)
•ABS
•ACD, AYC
•ACD (vehicle w/out AYC)
•SRS airbags, seatbelt pre-tensioners
•Intercooler water spray
•Windscreen washer / wiper
•Warning lights
•Engine control
•Needle meters
•Charging
•Turn signal lights, hazard lights
•Tail lights, position lights, licence plate lights,
lighting monitor warning buzzer
•Fog lamps
•Headlights
•Rear washer / wiper

3-117CIRCUIT DIAGRAMS - VISION / SAFETY

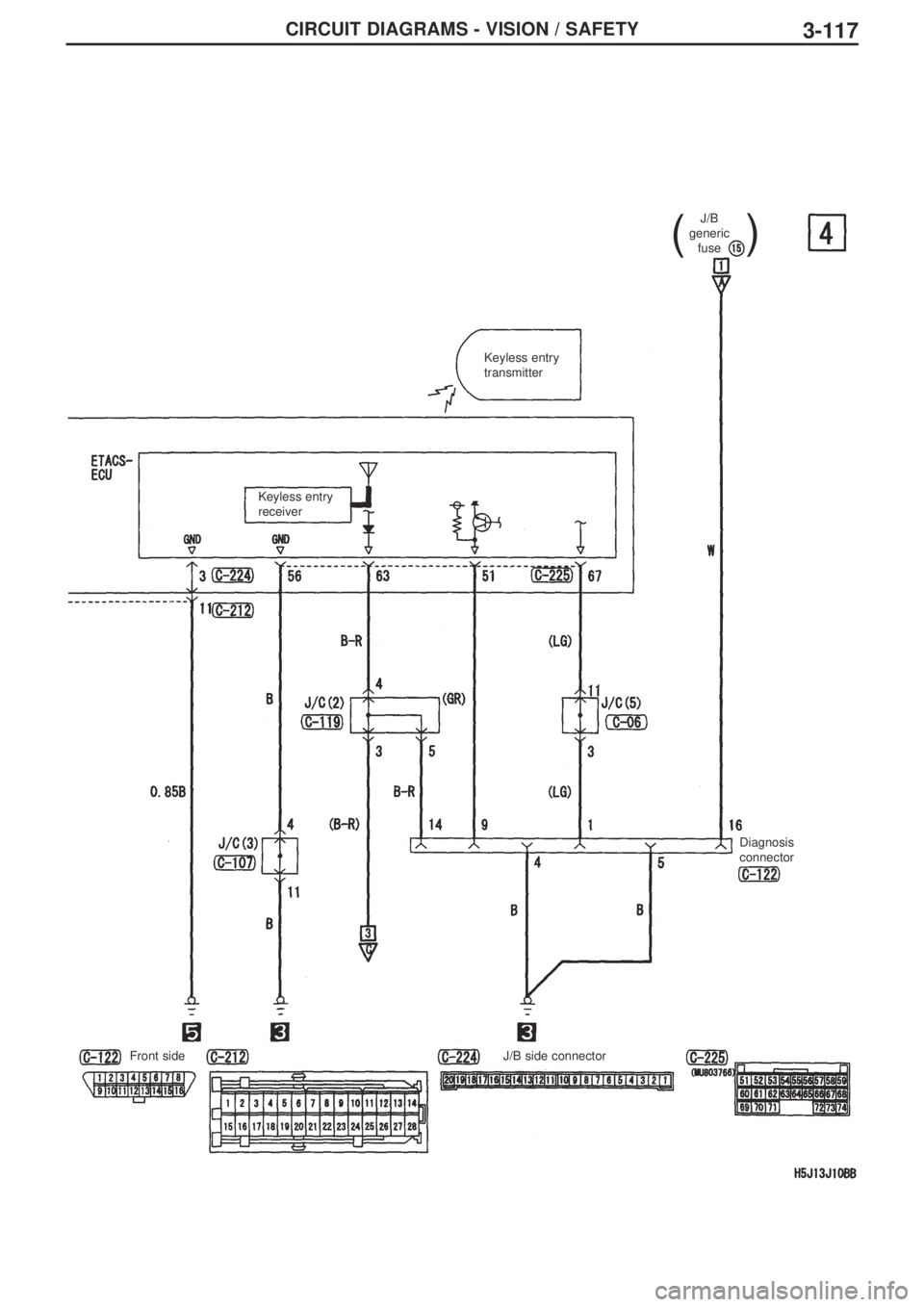

Front sideKeyless entry
receiverKeyless entry
transmitterJ/B
generic
fuse
()
Diagnosis
connector
J/B side connector

3-118CIRCUIT DIAGRAMS - ACCESSORIES
ACCESSORIES

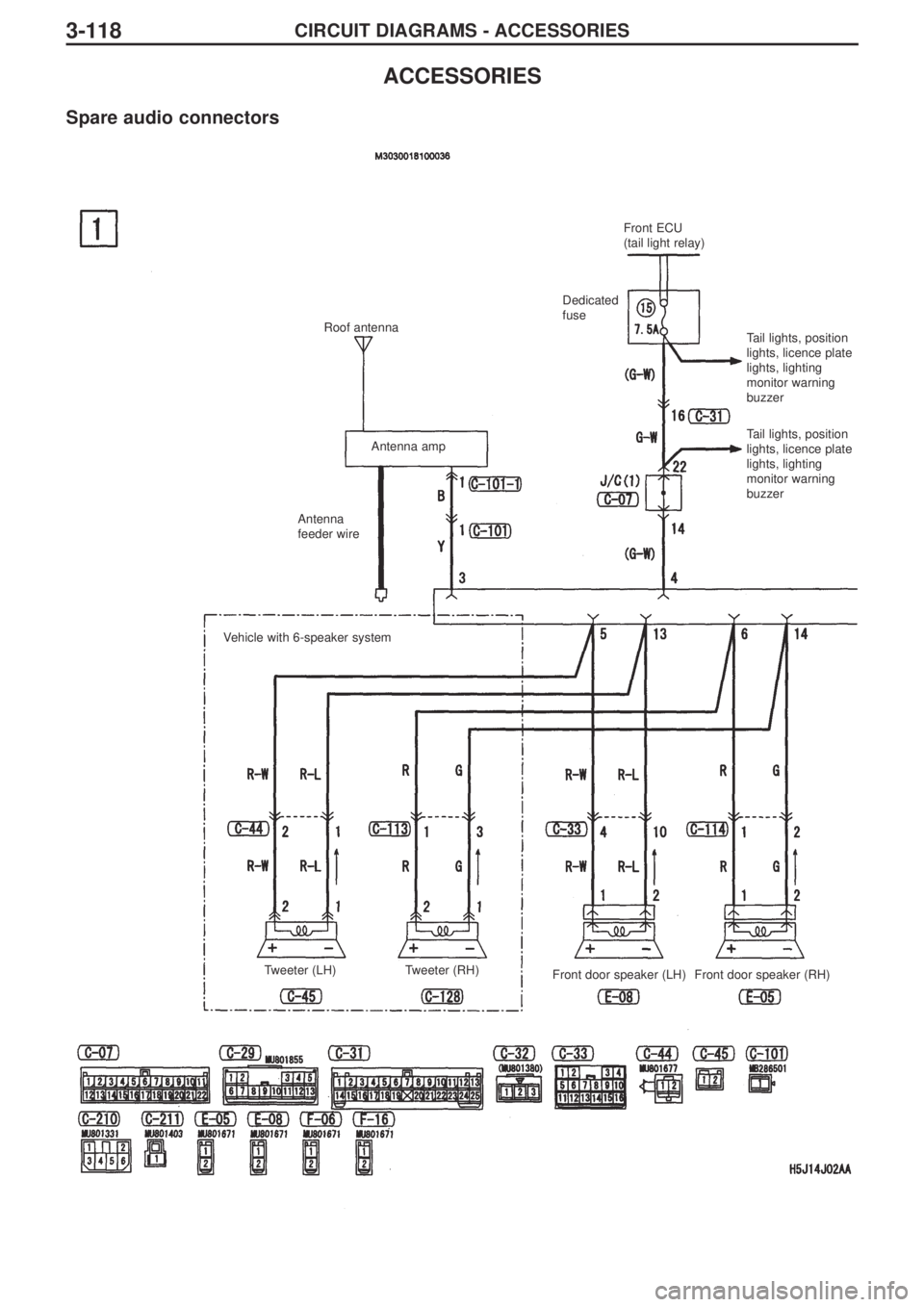

Spare audio connectors
Roof antenna
Antenna amp
Antenna
feeder wire
Vehicle with 6-speaker system
Tweeter (LH) Tweeter (RH)
Front door speaker (LH) Front door speaker (RH)Dedicated
fuse Front ECU
(tail light relay)
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer

3-119CIRCUIT DIAGRAMS - ACCESSORIES

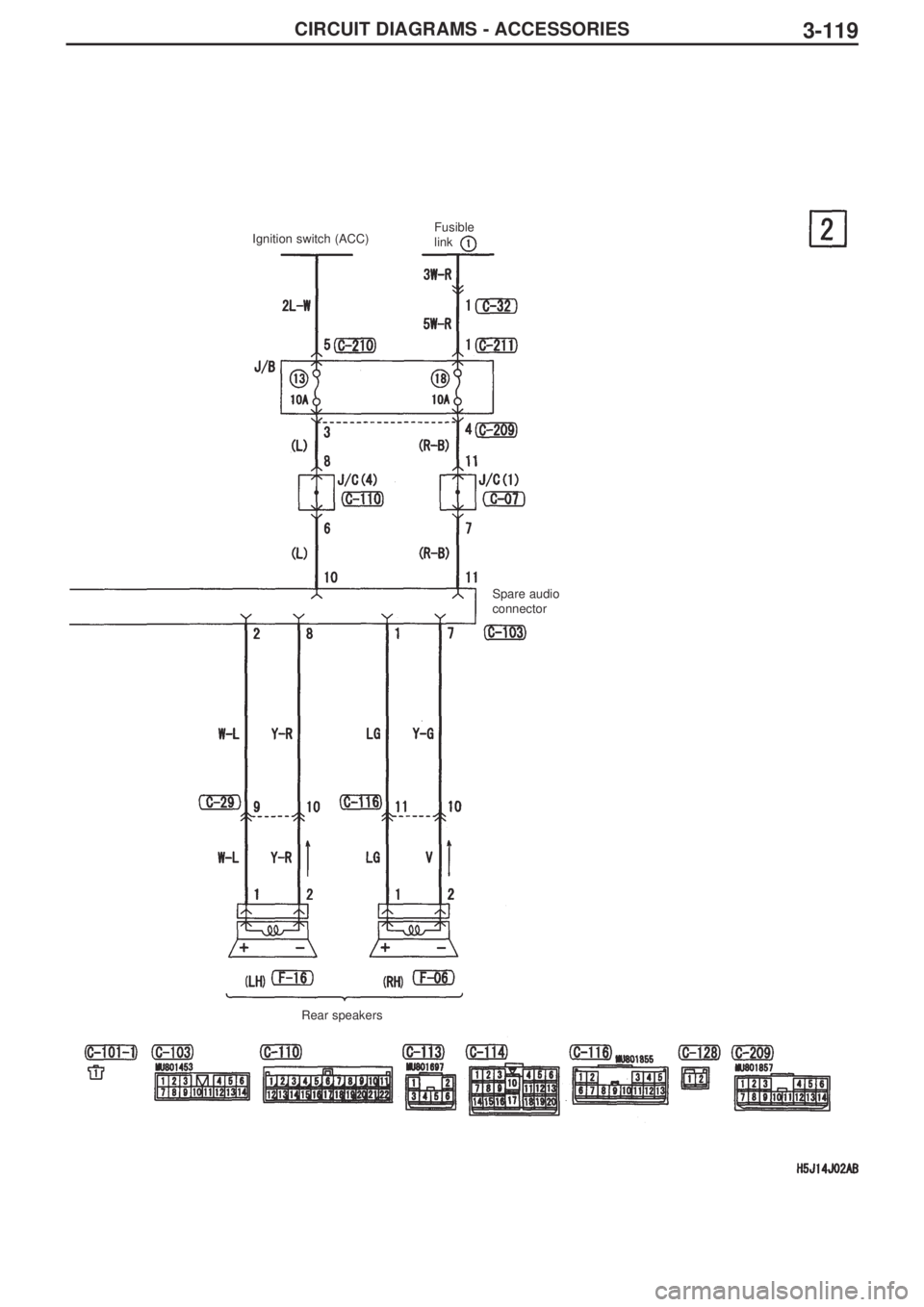

Ignition switch (ACC)Fusible
link
Spare audio
connector
Rear speakers

3-120CIRCUIT DIAGRAMS - ACCESSORIES
Clock
Ignition switch (ACC)Fusible
linkFront ECU
(tail light relay)
Dedicated
fuse
ClockTail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer
Tail lights, position
lights, licence plate
lights, lighting
monitor warning
buzzer

3-121CIRCUIT DIAGRAMS - ACCESSORIES

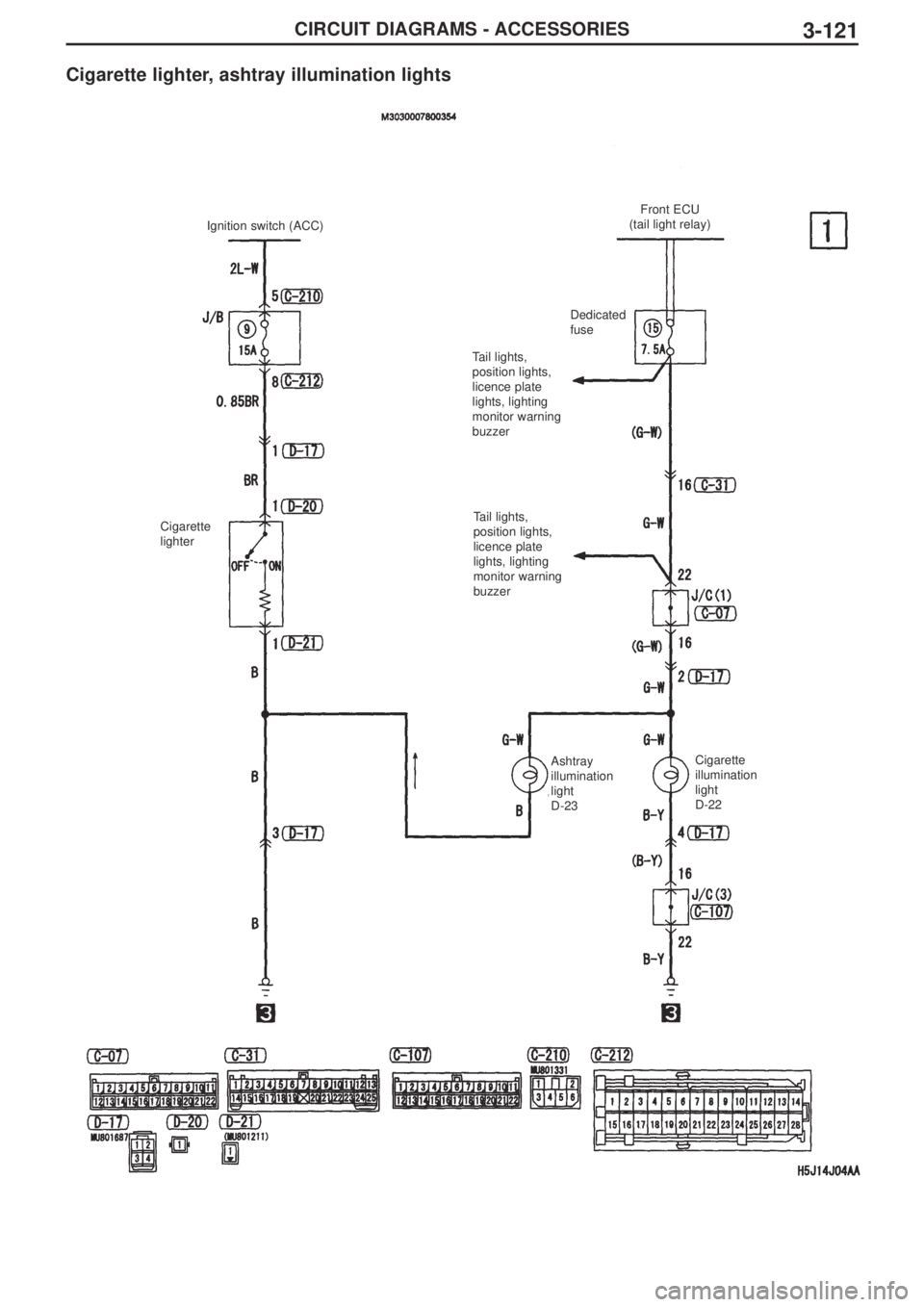

Cigarette lighter, ashtray illumination lights
Cigarette
lighterIgnition switch (ACC)
Tail lights,
position lights,
licence plate
lights, lighting
monitor warning
buzzer
Tail lights,
position lights,
licence plate
lights, lighting
monitor warning
buzzer Front ECU
(tail light relay)
Dedicated
fuse
Ashtray
illumination
light
D-23Cigarette
illumination
light
D-22

3-122CIRCUIT DIAGRAMS - EQUIPMENT
Equipment
ABS
Fusible
link
Ignition switch (IG2)Ignition switch (IG1)Battery
Dedicated
fuse
Combination
meterStop light
switch
Stop light
Solenoid valve
power supplyMotor power
supplyPower
supply

3-123CIRCUIT DIAGRAMS - EQUIPMENT

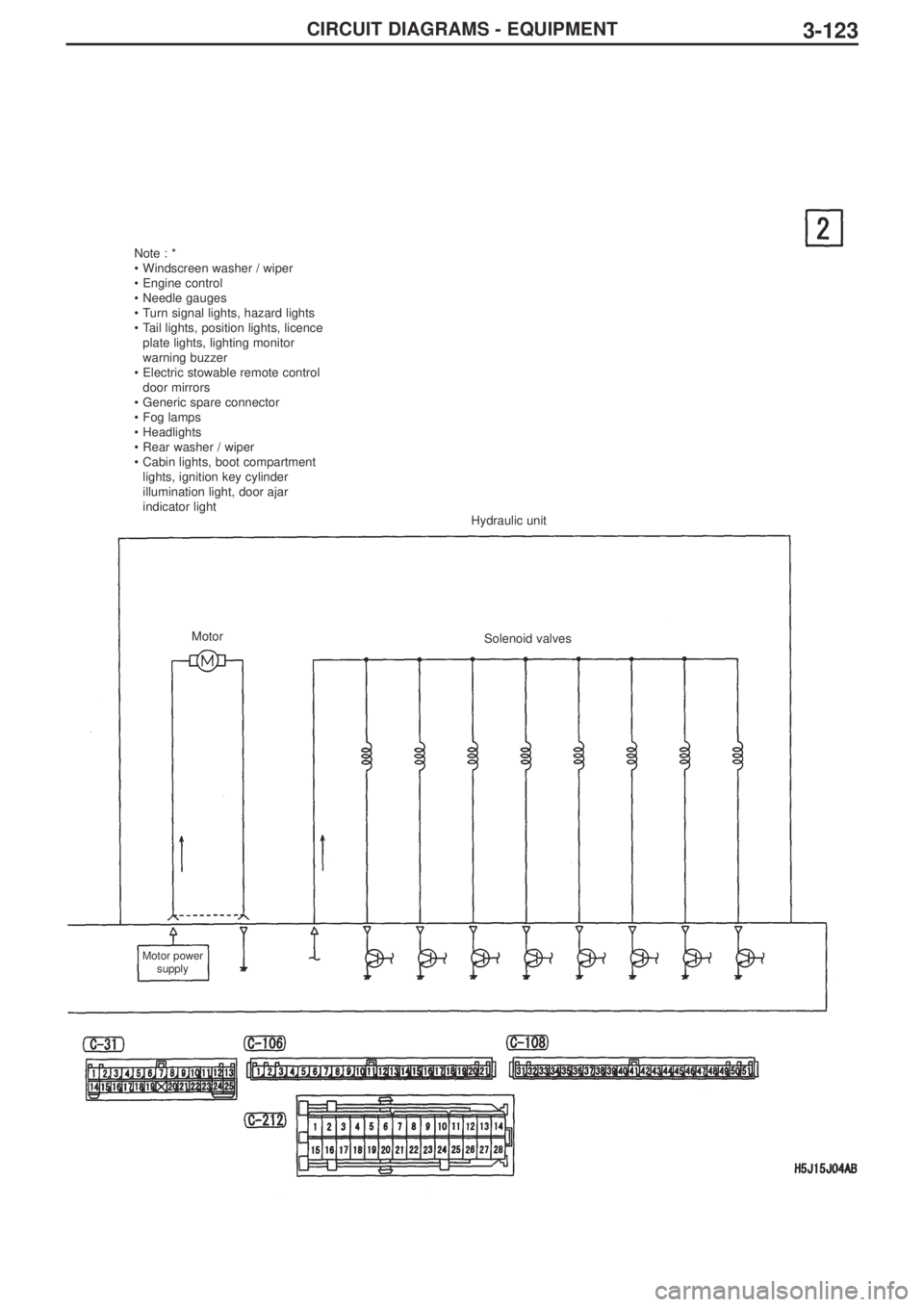

Note : *
•Windscreen washer / wiper
•Engine control
•Needle gauges
•Turn signal lights, hazard lights
•Tail lights, position lights, licence
plate lights, lighting monitor
warning buzzer
•Electric stowable remote control
door mirrors
•Generic spare connector
•Fog lamps
•Headlights
•Rear washer / wiper
•Cabin lights, boot compartment
lights, ignition key cylinder
illumination light, door ajar
indicator light
Motor
Solenoid valves Hydraulic unit
Motor power
supply
