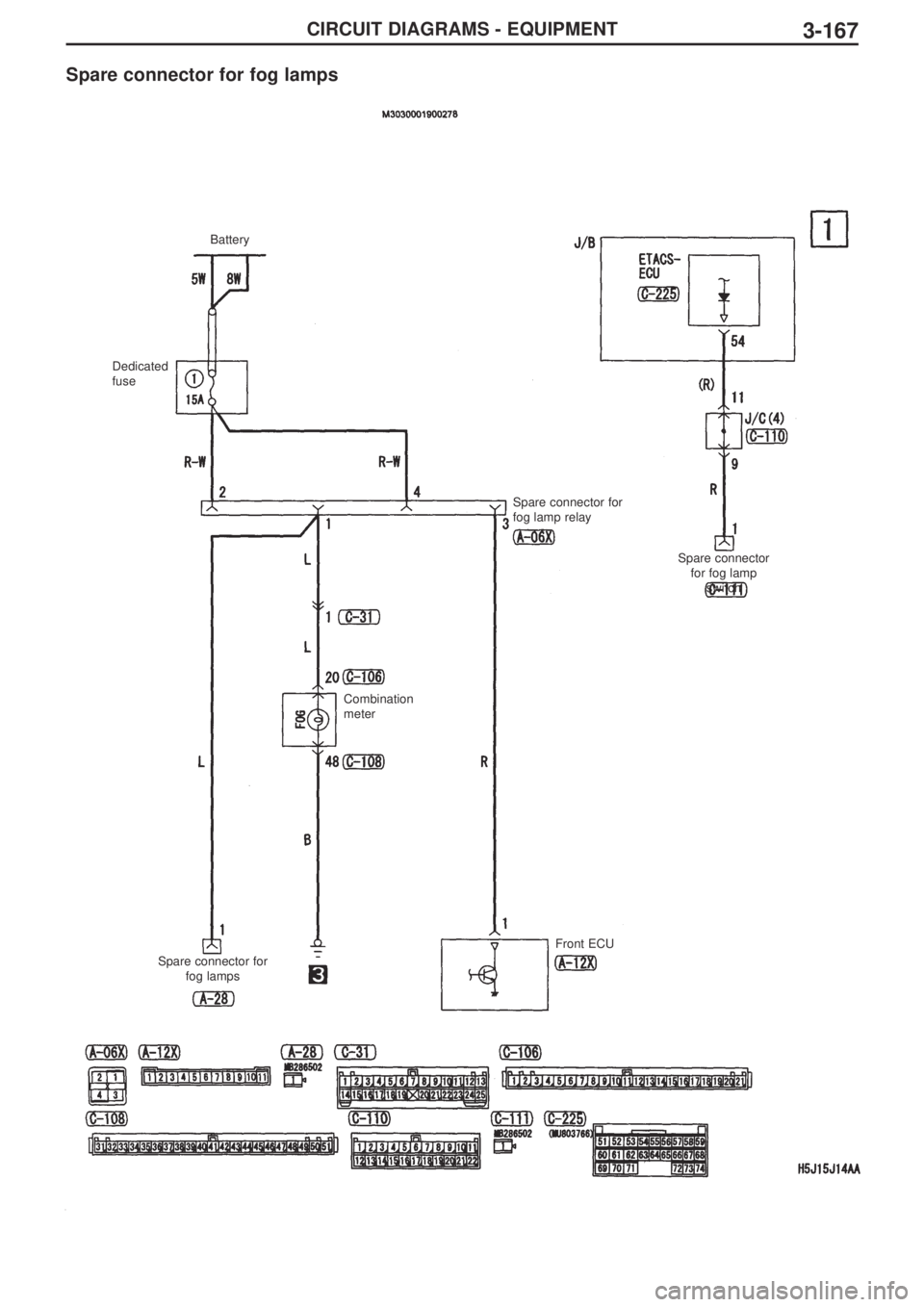

3-167CIRCUIT DIAGRAMS - EQUIPMENT
Spare connector for fog lamps
Battery
Dedicated
fuse
Spare connector for
fog lampsCombination
meterSpare connector for
fog lamp relay
Spare connector
for fog lamp
switch
Front ECU

3-168CIRCUIT DIAGRAMS - EQUIPMENT
Generic spare connector
Vehicle
speed
sensorIgnition switch (IG1)
Ignition switch (ACC)Fusible
linkFront ECU
(tail light relay)
Dedicated
fuse
Generic spare
connector
Engine
controlNote
*1 :
•ABS
•ACD, AYC
•ACD (vehicle w/out AYC)
•SRS airbags, seatbelt pre-tensioners
•Intercooler water spray
•Windscreen washer / wiper
•Warning lights
•Engine control
•Needle meters
•Charging
•Turn signal lights, hazard lights
•Tail lights, position lights, licence plate
lights, lighting monitor warning buzzer
•Fog lamps
•Headlights
•Rear washer / wiper
*2 :
Tail lights, position lights, licence plate
lights, lighting monitor warning buzzer
