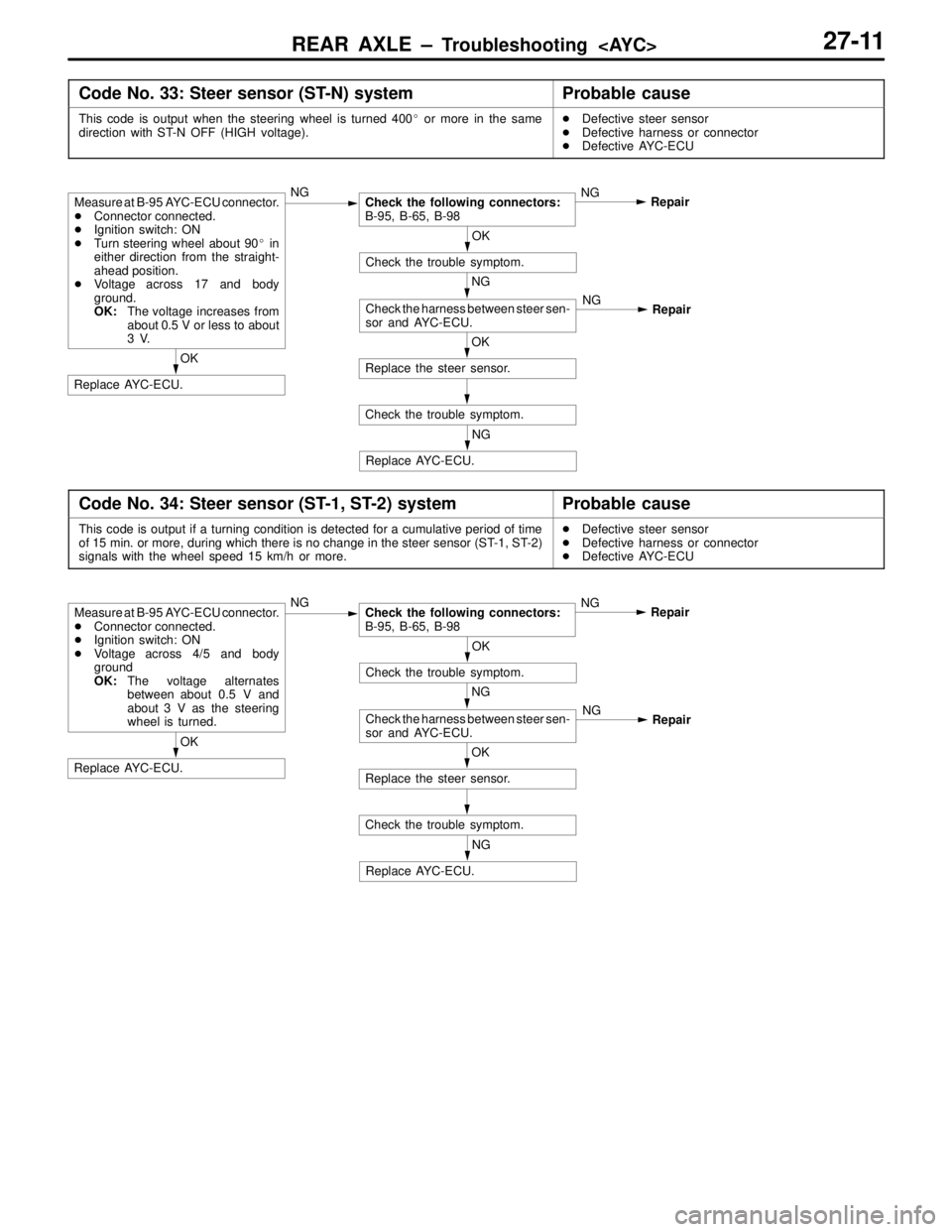

REAR AXLE – Troubleshooting 27-11
Code No. 33: Steer sensor (ST-N) systemProbable cause
This code is output when the steering wheel is turned 400 or more in the same
direction with ST-N OFF (HIGH voltage).
Defective steer sensor

Defective harness or connector

Defective AYC-ECU
NG
Replace AYC-ECU.
Check the trouble symptom.
OK
Replace the steer sensor.
NG
Check the harness between steer sen-
sor and AYC-ECU.NG
Repair
OK
Replace AYC-ECU.
OK
Check the trouble symptom.
Measure at B-95 AYC-ECU connector.

Connector connected.

Ignition switch: ON

Turn steering wheel about 90 in
either direction from the straight-
ahead position.

Voltage across 17 and body
ground.
OK:The voltage increases from
about 0.5 V or less to about
3 V.NGCheck the following connectors:
B-95, B-65, B-98NG
Repair
Code No. 34: Steer sensor (ST-1, ST-2) systemProbable cause
This code is output if a turning condition is detected for a cumulative period of time
of 15 min. or more, during which there is no change in the steer sensor (ST-1, ST-2)
signals with the wheel speed 15 km/h or more.
Defective steer sensor

Defective harness or connector

Defective AYC-ECU
NG
Replace AYC-ECU.
Check the trouble symptom.
OK
Replace the steer sensor.
NG
Check the harness between steer sen-
sor and AYC-ECU.NG
Repair
OK
Replace AYC-ECU.
OK
Check the trouble symptom.
Measure at B-95 AYC-ECU connector.

Connector connected.

Ignition switch: ON

Voltage across 4/5 and body
ground
OK:The voltage alternates
between about 0.5 V and
about 3 V as the steering
wheel is turned.NGCheck the following connectors:
B-95, B-65, B-98NG
Repair

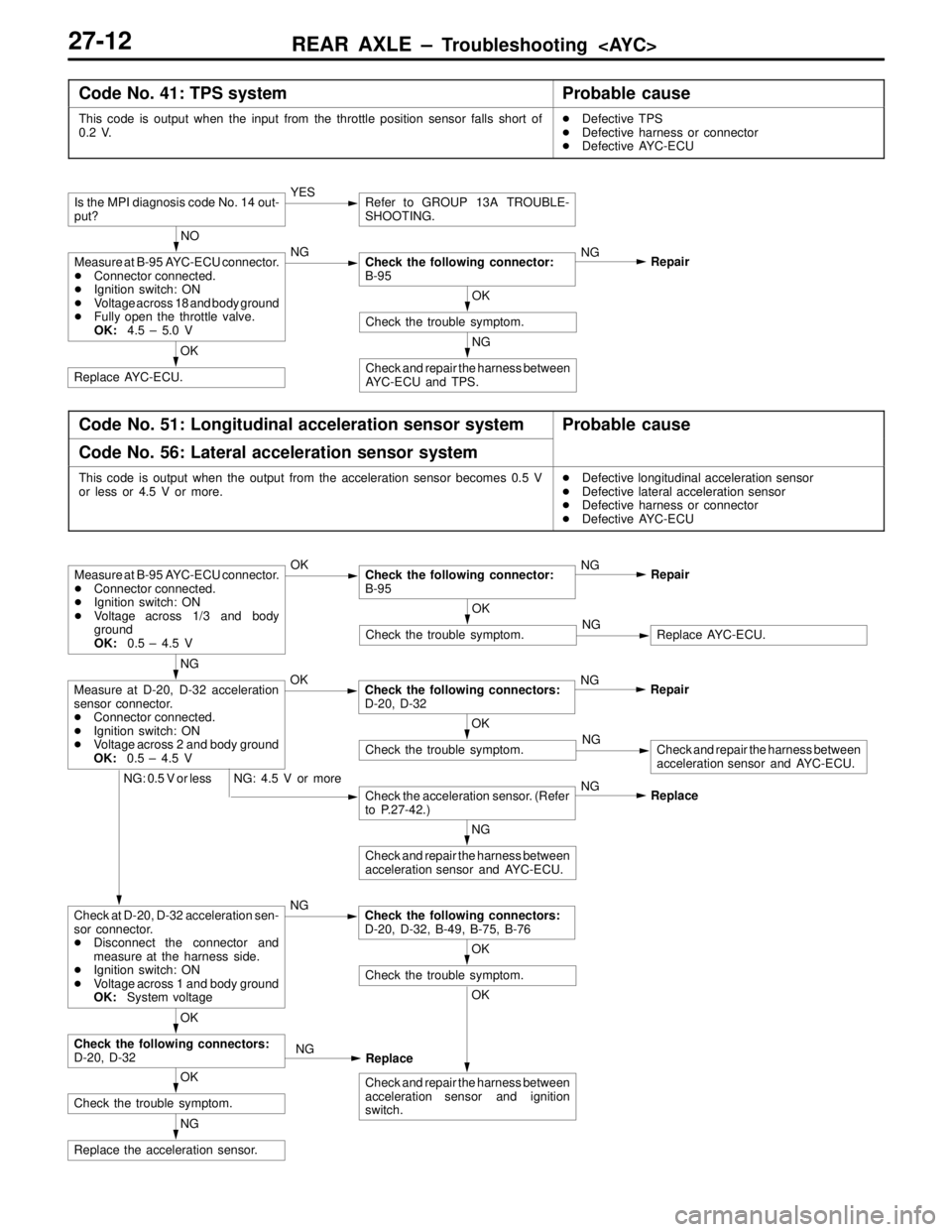

REAR AXLE – Troubleshooting 27-12
Code No. 41: TPS systemProbable cause
This code is output when the input from the throttle position sensor falls short of
0.2 V.
Defective TPS

Defective harness or connector

Defective AYC-ECU
OK
Replace AYC-ECU.
NG
Check and repair the harness between
AYC-ECU and TPS.
OK
Check the trouble symptom.
NO
Measure at B-95 AYC-ECU connector.

Connector connected.

Ignition switch: ON

Voltage across 18 and body ground

Fully open the throttle valve.
OK:4.5 – 5.0 VNGCheck the following connector:
B-95
Is the MPI diagnosis code No. 14 out-
put?YESRefer to GROUP 13A TROUBLE-
SHOOTING.
NG
Repair
Code No. 51: Longitudinal acceleration sensor systemProbable cause
Code No. 56: Lateral acceleration sensor system
This code is output when the output from the acceleration sensor becomes 0.5 V
or less or 4.5 V or more.
Defective longitudinal acceleration sensor

Defective lateral acceleration sensor

Defective harness or connector

Defective AYC-ECU
NG
Replace the acceleration sensor.
OK
Check the trouble symptom.
OK
Check and repair the harness between
acceleration sensor and ignition
switch.
OK
Check the trouble symptom.
NG
Check and repair the harness between
acceleration sensor and AYC-ECU.
NGReplace AYC-ECU.
OK
Check the following connectors:
D-20, D-32
OK
Check the trouble symptom.
OK
Check the trouble symptom.
NG: 4.5 V or more
Check the acceleration sensor. (Refer
to P.27-42.)NG
Replace
NG: 0.5 V or less
Check at D-20, D-32 acceleration sen-
sor connector.

Disconnect the connector and
measure at the harness side.

Ignition switch: ON

Voltage across 1 and body ground
OK:System voltageNGCheck the following connectors:
D-20, D-32, B-49, B-75, B-76NG
Check and repair the harness between
acceleration sensor and AYC-ECU.
NG
Measure at D-20, D-32 acceleration
sensor connector.

Connector connected.

Ignition switch: ON

Voltage across 2 and body ground
OK:0.5 – 4.5 VOKCheck the following connectors:
D-20, D-32NG
Repair
Measure at B-95 AYC-ECU connector.

Connector connected.

Ignition switch: ON

Voltage across 1/3 and body
ground
OK:0.5 – 4.5 VOKCheck the following connector:
B-95NG
Repair
NG
Replace

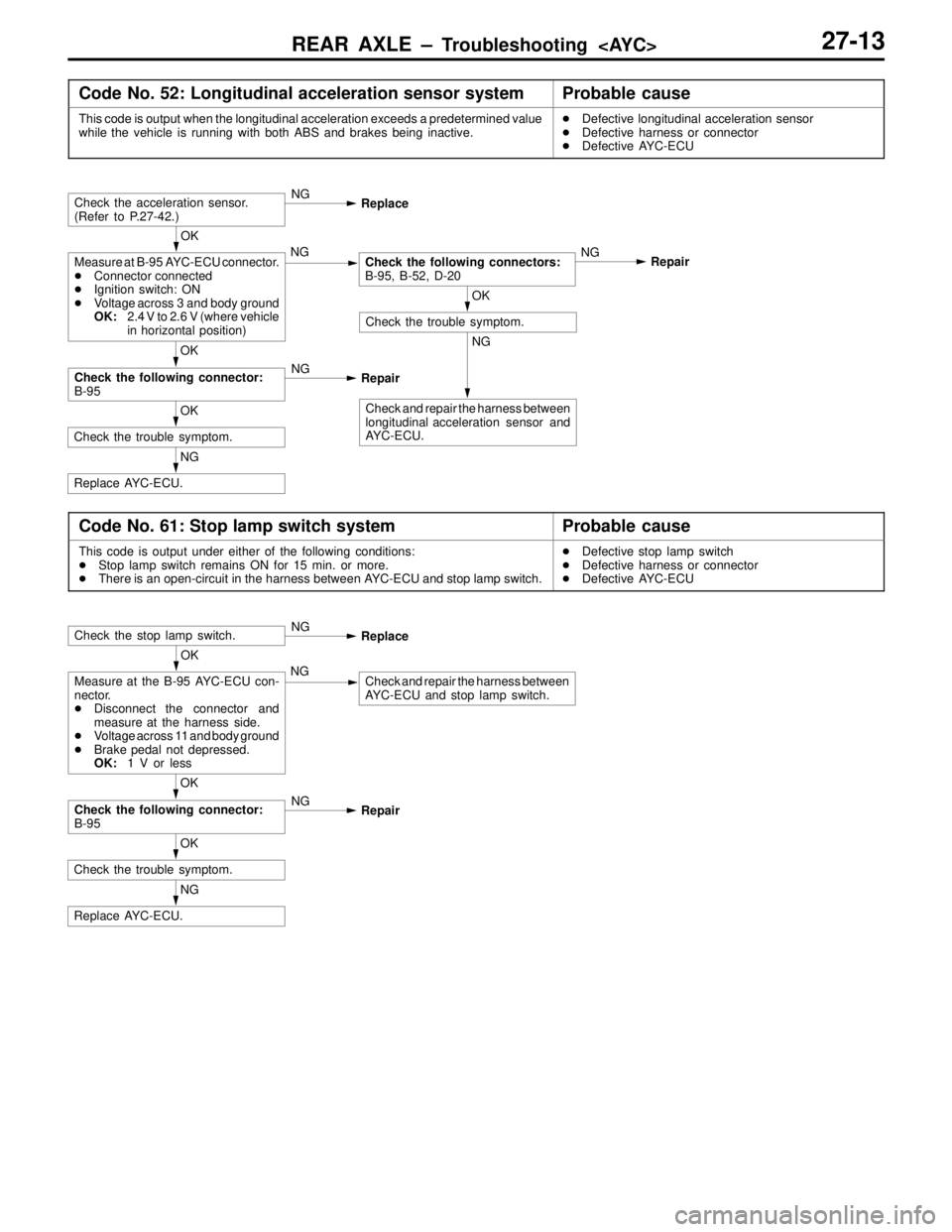

REAR AXLE – Troubleshooting 27-13
Code No. 52: Longitudinal acceleration sensor systemProbable cause
This code is output when the longitudinal acceleration exceeds a predetermined value
while the vehicle is running with both ABS and brakes being inactive.
Defective longitudinal acceleration sensor

Defective harness or connector

Defective AYC-ECU
NG
Check and repair the harness between
longitudinal acceleration sensor and
AYC-ECU.
OK
Check the trouble symptom.
NG
Replace AYC-ECU.
OK
Check the trouble symptom.
OK
Check the following connector:
B-95NG
Repair
OK
Measure at B-95 AYC-ECU connector.

Connector connected

Ignition switch: ON

Voltage across 3 and body ground
OK:2.4 V to 2.6 V (where vehicle
in horizontal position)NGCheck the following connectors:
B-95, B-52, D-20
Check the acceleration sensor.
(Refer to P.27-42.)NG
Replace
NG
Repair
Code No. 61: Stop lamp switch systemProbable cause
This code is output under either of the following conditions:

Stop lamp switch remains ON for 15 min. or more.

There is an open-circuit in the harness between AYC-ECU and stop lamp switch.
Defective stop lamp switch

Defective harness or connector

Defective AYC-ECU
NG
Replace AYC-ECU.
OK
Check the trouble symptom.
OK
Check the following connector:
B-95NG
Repair
OK
Measure at the B-95 AYC-ECU con-
nector.

Disconnect the connector and
measure at the harness side.

Voltage across 11 and body ground

Brake pedal not depressed.
OK:1 V or lessNGCheck and repair the harness between
AYC-ECU and stop lamp switch.
Check the stop lamp switch.NG
Replace

REAR AXLE – Troubleshooting 27-25
DATA LIST REFERENCE TABLE
The following items can be read by t01he MUT-

from the ECU input data.
Item No.
Check itemChecking requirementsNormal value
01Front-right wheel speedPerform a test run.Vehicle speeds
displayed on the
02Front-left wheel speed
displayed on the
speedometer and
MUTIIare identi03Rear-right wheel speedMUT-II are identi-
cal.
04Rear-left wheel speed
05Front-right wheel speed
(0.2 km/h)
06Front-left wheel speed (0.2
km/h)
07Rear-right wheel speed
(0.2 km/h)
08Rear-left wheel speed (0.2
km/h)
10Vehicle speed
11System voltageIgnition switch: ONBattery voltage
15TPS openingAccelerator pedal position/Igni-
tion switch: ON
Fully closed300 – 1000mV
tion switch: ON
Partially openGradually increases
from the above val-
ue.
Fully open4500 – 5000mV
19Longitudinal acceleration
sensor
Vehicle stands on level ground2.4 – 2.6V
sensor
Perform a test run.Reading fluctuates
up or down with 2.5V
as its center.
20Lateral acceleration sensorVehicle stands on level ground2.4 – 2.6V
Perform a test run.Reading fluctuates
up or down with 2.5V
as its center.
22Steering wheel operationSteering wheel turning direction
Ignition switch: ON90 deg. clock-
wiseR90 deg
90 deg counter-
clockwiseL90 deg
23Steering wheel turning
angular velocity
Steering wheel position
Ignition switch: ON
Not turned0 deg/s
angular velocityIgnition switch: ON
TurnedReading varies ac-
cording to turning
speeds.
45Idle position switchAccelerator pedal position
Ignition position: ON
Not depressedON
Ignition position: ON
DepressedOFF

REAR AXLE – Troubleshooting 27-26
Item No.Normal value Checking requirements Check item
46Steer sensor (ST-N)Steering wheel position
Ignition switch: ON
Neutral positionON
Ignition switch: ON
90 deg. turned
from neutral
positionOFF
47Steer sensor (ST-1)Steering wheel position: Turn slowly counterclock-
wise.
Ignition switch: ONON and OFF are
indicated alternate-
ly.
48Steer sensor (ST-2)Steering wheel position: Turn slowly clockwise.
Ignition switch: ONON and OFF are
indicated alternate-
ly.
50Stop lamp switchAccelerator pedal position
Ignition switch: ON
DepressedON
Ignition switch: ON
ReleasedOFF
56Pressure switchForced activation No.13 or
No.14 is being executed.Electric pump in
operationLow
Electric pump
not in operationHigh
59ABS monitorABS monitorON
ABS not in operationOFF

REAR AXLE – Troubleshooting 27-27
ACTUATOR TEST REFERENCE TABLE
The following items can be tested by driving the corresponding actuator forcibly using the MUT-II.
Item No.Check itemChecking requirementsNormal value
10Air bleedingSupply current to proportioning
valve in accordance with steering
angle to operate directional valve.No air is to be bled from the
bleeder plug on the torque transfer
differential.
11Oil level checkLet the directional valve operate to
left and right 20 times.To be checked by oil level in
reservoir tank.
12Electric pump operationLet the electric pump operate for 5
seconds.Operation sounds of the electric
pump are to be heard.
13Clutch operation (left)Let the directional valve operate to
supply the maximum pressure to the
left clutch.The operation conditions are to be
checked by the speed difference
between left and right rear wheels
with the wheels raised. For details,
refer to AYC Operation Check on
P.27-34.
14Clutch operation (right)Let the directional valve operate to
supply the maximum pressure to the
right clutch.The operation conditions are to be
checked by the speed difference
between left and right rear wheels
with the wheels raised. For details,
refer to AYC Operation Check on
P.27-34.
15Control OFFTurn off the electric pump relay to
deactivate AYC control.During the test run, some
differences are to be recognized in
running behaviors between when
the system is ON and when it is
OFF.
NOTE
(1) The actuator test is feasible only when the following requirements are all satisfied.

All of inputs from four wheel speed sensors show 20 km/h or lower.

No system failure is registered.

The steering angle is within ±30 deg. from the neutral position.
(2) The actuator test comes to an end when either of the following conditions is met since the forced
actuation is canceled.

Either of inputs from four wheel sensors shows higher than 20 km/h (with exception of Item
No.15 “Control OFF”).

Some trouble with the system is registered.

Forced activation time expires.

MUT-II is removed.

The clear key of MUT-II is operated.

REAR AXLE – Troubleshooting 27-28
CHECK AT AYC-ECU TERMINALS
TERMINAL VOLTAGE LISTING

The voltage is to be measured across each terminal and ground terminal.

Fig. below shows the arrangement of the terminals.
Terminal
No.Check itemCheck requirementNormally
1Lateral acceleration sensorIgnition switch: ON2.4 – 2.6 V
(horizontal position)
2Longitudinal acceleration
sensor ground
Lateral acceleration sensor
groundAt all times0 V
3Longitudinal acceleration
sensorIgnition switch: ON2.4 – 2.6 V
(horizontal position)
4Steer sensor (ST-2)Engine: Idle speed
Turn steering wheel slowly.0 V ↔ approx. 3 V
flashing
5Steer sensor (ST-1)Engine: Idle speed
Turn steering wheel slowly.0 V ↔ approx. 3 V
flashing
6*1FR wheel speedVehicle stationary1 V or less
Forward vehicle slowly.0 – 5 V
7*1FL wheel speedVehicle stationary1 V or less
Forward vehicle slowly.0 – 5 V
8*1RR wheel speedVehicle stationary1 V or less
Forward vehicle slowly.0 – 5 V
9*1FL wheel speedVehicle stationary1 V or less
Forward vehicle slowly.0 – 5 V
10Diagnosis selection inputWhen MUT-II is connected1 V or less
When MUT-II is disconnectedSystem voltage
11Stop lamp switchIgnition switch:
ON
Stop lamp switch: ONSystem voltage
ON
Stop lamp switch: OFF1 V or less
12*1ABS monitorWhen ABS monitor is activatedSystem voltage
When ABS monitor is deactivated1 V or less

REAR AXLE – Troubleshooting 27-29
Terminal
No.Normally Check requirement Check item
17Steer sensor (ST-N)Engine:
Idle speed
Steering wheel: Neutral position0.5 V or less
Idle speed
Steering wheel: Turned 90 from
neutral position2.5 – 3.5 V
18TPSIgnition switch:
ON
Accelerator pedal: Fully closed0.3 – 1.0 V
ON
Accelerator pedal: Fully open4.5 – 5.0 V
23Diagnosis data input/outputWhen MUT-II is connectedSerial communica-
tion with MUT-II
When MUT-II is disconnected1 V or less
24Idle position switchIgnition switch:
ON
Accelerator pedal: Fully closed2 V or less
ON
Accelerator pedal: Fully open4.5 – 5.0 V
25Accumulator pressure
switchIgnition switch:
ONAccumulator internal pressure:
Low2 V or less
Accumulator internal pressure:
HighSystem voltage
26ECU groundAt all times0 V
31AYC-ECU power supplyIgnition switch: ONSystem voltage
Ignition switch: OFF0 V
35AYC motor relayIgnition switch:
ON
When motor is energizedSystem voltage
ON
When motor is deenergized2 V or less
36AYC warning lampIgnition switch:
ON
When lamp is OFFSystem voltage
ON
When lamp is ON2 V or less
37Directional control valve
(right)
Ignition switch:
ON
Right clutch: ONSystem voltage
(right)ON
Right clutch: OFF0 V
38Proportioning valveIgnition switch:
ONAYC-ON0 V to system volt-
age
AYC-OFF0 V
39ECU backup power supplyAt all timesSystem voltage
45Directional control valve
(left)
Ignition switch:
ON
Left clutch: ONSystem voltage
(left)ON
Left clutch: OFF0 V
46ECU groundAt all times0 V
NOTE
*1: Indicates the vehicles with ABS.

REAR AXLE – Troubleshooting 27-30
LISTING OF RESISTANCE AND CONTINUITY ACROSS CONNECTOR TERMINALS ON HARNESS
SIDE

Measure the resistance and check for continuity with the ignition switch in the “OFF” position and
AYC-ECU connector disconnected.

Measure the resistance and check for continuity across terminals listed below.

Fig. below shows the arrangement of terminals.
Terminal No.Signal nameNormally
2 – body groundLongitudinal acceleration sensor ground, lateral acceleration sensor groundConducting
26 – body groundECU groundConducting
35 – body groundAYC motor relayConducting
37 – body groundDirectional control valve (right)15.4 – 16.4 Ω
38 – body groundProportioning valve3.4 – 4.0 Ω
45 – body groundDirectional control valve (left)15.4 – 16.4 Ω
46 – body groundECU groundConducting
6 – 19*2Speed sensor (front, RH)1.4 – 1.8 kΩ
7 – 20*2Speed sensor (front, LH)1.4 – 1.8 kΩ
8 – 21*2Speed sensor (rear, RH)1.4 – 1.8 kΩ
9 – 22*2Speed sensor (rear, LH)1.4 – 1.8 kΩ
NOTE
*2: Indicates the vehicles without ABS.

REAR AXLE – On-vehicle Service 27-37
WHEEL SPEED SENSOR OUTPUT VOLTAGE
MEASUREMENT
1. Lift up the vehicle and release the parking brake.
2. Disconnect the AYC-ECU harness connector and take
measurements on the harness side connector.
Caution
Insert the probe from the harness side with the double
lock of the connector unlocked. Inserting it to the
terminal side could result in poor contact.
3. Turn the wheel to be tested at about 1/2 to one
revolution/sec. and check for the output voltage using
a circuit tester (AC mV range) or oscilloscope.
Terminal nos.
Front LHFront RHRear LHRear RH
7698
20192221
Output voltage:
When circuit tester is used: 70 mV or more
When oscilloscope is used: 200 mVp-p or more
(4) If the output voltage is lower than the above value, it
is probably attributable to the following faults. Check or
replace the wheel speed sensor as necessary.

Excessive clearance between the pole piece and rotor
of the wheel speed sensor

Defective wheel speed sensor
Waveform Check Using Oscilloscope
Check the harness and connector of the wheel speed sensor
for connection. Then, use an oscilloscope to check for output
voltage waveform of each sensor as follows.
Start the engine and monitor the sensor by turning the wheel;
for a driving wheel, let it turn by shifting into the 1st gear
and for a driven wheel turn it manually at a constant speed.
NOTE
(1) Waveform may be observed by actually running the
vehicle.
(2) The output voltage is low when the wheel speed remains
low and builds up as the wheel speed increases.
AYC-ECU connector harness side
When turned manually
At idle (5 to 6 km/h)
1st gear
