MPI – Troubleshooting13-49

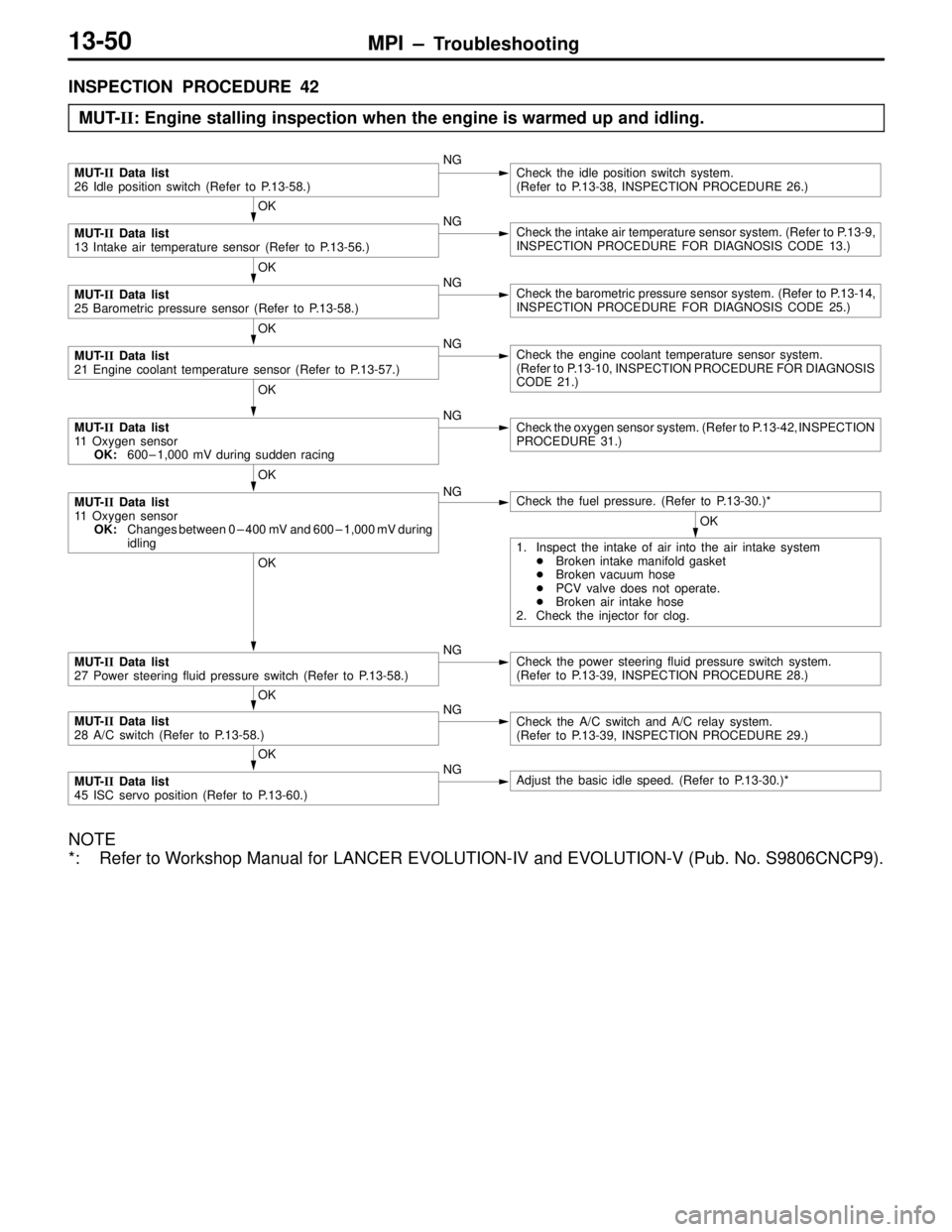

INSPECTION PROCEDURE 41
MUT-II: Check if idling speed is unstable.
OK
MUT-II Data list
45 ISC servo position (Refer to P.13-60.)NGAdjust the basic idle speed. (Refer to P.13-30.)*
MUT-II Data list
28 A/C switch (Refer to P.13-58.)NGCheck the A/C switch and A/C relay system.
(Refer to P.13-39. INSPECTION PROCEDURE 29.)
OK
OK
MUT-II Data list
27 Power steering fluid pressure switch (Refer to P.13-58)NGCheck the power steering fluid pressure switch system.
(Refer to P.13-39, INSPECTION PROCEDURE 28.)
1. Inspect the intake of air into the air intake system.

Broken intake manifold gasket

Broken vacuum hose

PCV valve does not operate.

Broken air intake hose
2. Check the injector for clog.
OK
OK
MUT-II Data list
11 Oxygen sensor
OK:Changes between 0–400 mV and 600–1,000 mV during
idlingNGCheck the fuel pressure. (Refer to P.13-30.)*
OK
MUT-II Data list
11 Oxygen sensor
OK:600–1,000 mV during sudden racingNGCheck the oxygen sensor system. (Refer to P.13-42, INSPECTION
PROCEDURE 31.)
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13-21.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13-10, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
25 Barometric pressure sensor (Refer to P.13-58.)NGCheck the barometric pressure sensor system. (Refer to P.13-14,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 25.)
OK
MUT-II Data list
13 Intake air temperature sensor (Refer to P.13-56.)NGCheck the intake air temperature sensor system. (Refer to P.13-9,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 13.)
MUT-II Data list
26 Idle position switch (Refer to P.13-58.)NGCheck the idle position switch system.
(Refer to P.13-38, INSPECTION PROCEDURE 26.)
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-50
INSPECTION PROCEDURE 42
MUT-II: Engine stalling inspection when the engine is warmed up and idling.
OK
MUT-II Data list
26 Idle position switch (Refer to P.13-58.)NGCheck the idle position switch system.
(Refer to P.13-38, INSPECTION PROCEDURE 26.)
OK
MUT-II Data list
13 Intake air temperature sensor (Refer to P.13-56.)NGCheck the intake air temperature sensor system. (Refer to P.13-9,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 13.)
OK
MUT-II Data list
25 Barometric pressure sensor (Refer to P.13-58.)NGCheck the barometric pressure sensor system. (Refer to P.13-14,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 25.)
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13-10, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
11 Oxygen sensor
OK:600–1,000 mV during sudden racingNGCheck the oxygen sensor system. (Refer to P.13-42, INSPECTION
PROCEDURE 31.)
OK
MUT-II Data list
11 Oxygen sensor
OK:Changes between 0–400 mV and 600–1,000 mV during
idlingNGCheck the fuel pressure. (Refer to P.13-30.)*
OK
MUT-II Data list
27 Power steering fluid pressure switch (Refer to P.13-58.)NGCheck the power steering fluid pressure switch system.
(Refer to P.13-39, INSPECTION PROCEDURE 28.)
OK
MUT-II Data list
28 A/C switch (Refer to P.13-58.)NGCheck the A/C switch and A/C relay system.
(Refer to P.13-39, INSPECTION PROCEDURE 29.)
OK
MUT-II Data list
45 ISC servo position (Refer to P.13-60.)NGAdjust the basic idle speed. (Refer to P.13-30.)*
1. Inspect the intake of air into the air intake system

Broken intake manifold gasket

Broken vacuum hose

PCV valve does not operate.

Broken air intake hose
2. Check the injector for clog.
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-51

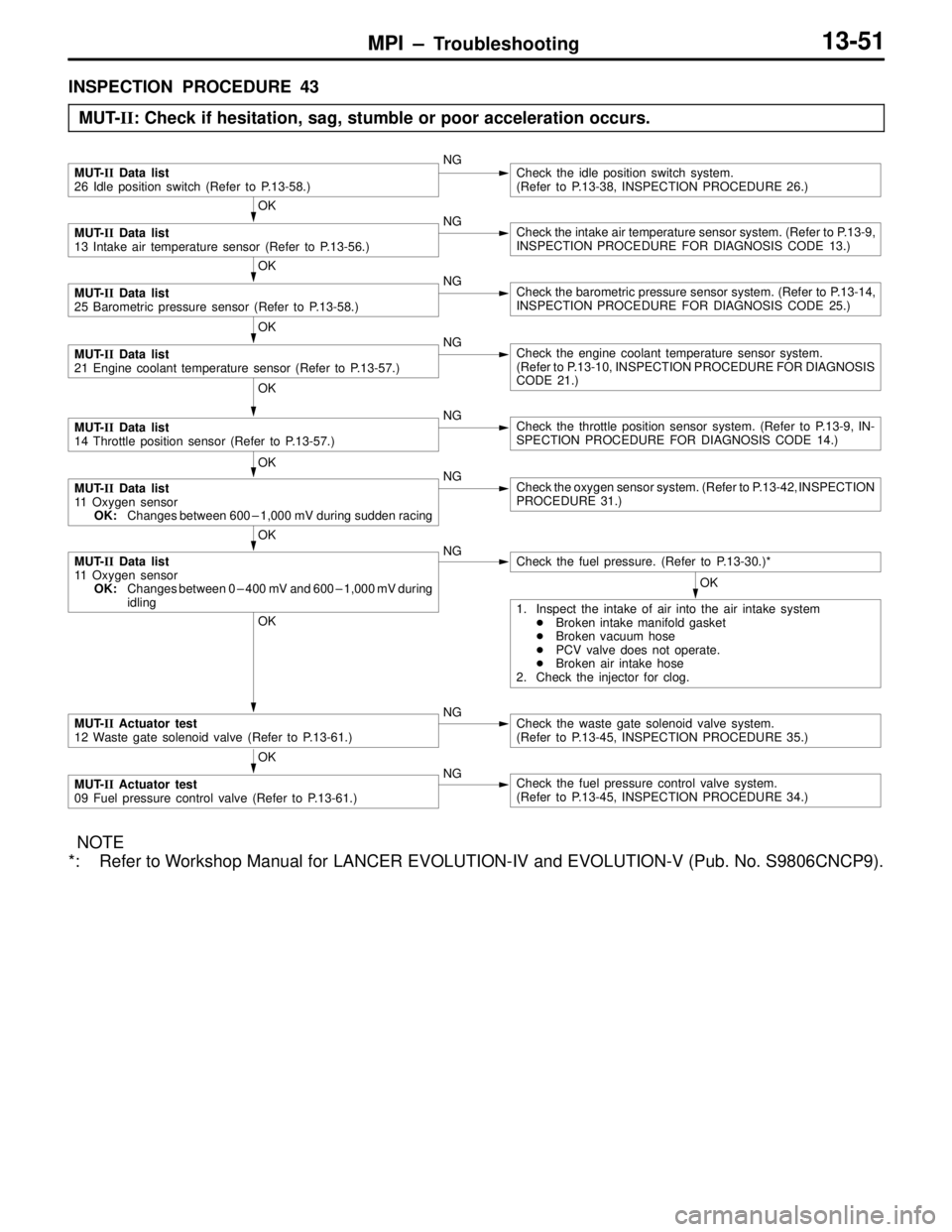

INSPECTION PROCEDURE 43
MUT-II: Check if hesitation, sag, stumble or poor acceleration occurs.
OK
MUT-II Data list
26 Idle position switch (Refer to P.13-58.)NGCheck the idle position switch system.
(Refer to P.13-38, INSPECTION PROCEDURE 26.)
OK
MUT-II Data list
13 Intake air temperature sensor (Refer to P.13-56.)NGCheck the intake air temperature sensor system. (Refer to P.13-9,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 13.)
OK
MUT-II Data list
25 Barometric pressure sensor (Refer to P.13-58.)NGCheck the barometric pressure sensor system. (Refer to P.13-14,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 25.)
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13-10, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
14 Throttle position sensor (Refer to P.13-57.)NGCheck the throttle position sensor system. (Refer to P.13-9, IN-
SPECTION PROCEDURE FOR DIAGNOSIS CODE 14.)
OK
MUT-II Actuator test
12 Waste gate solenoid valve (Refer to P.13-61.)NGCheck the waste gate solenoid valve system.
(Refer to P.13-45, INSPECTION PROCEDURE 35.)
OK
MUT-II Data list
11 Oxygen sensor
OK:Changes between 600–1,000 mV during sudden racingNGCheck the oxygen sensor system. (Refer to P.13-42, INSPECTION
PROCEDURE 31.)
OK
MUT-II Data list
11 Oxygen sensor
OK:Changes between 0–400 mV and 600–1,000 mV during
idlingNGCheck the fuel pressure. (Refer to P.13-30.)*
OK
MUT-II Actuator test
09 Fuel pressure control valve (Refer to P.13-61.)NGCheck the fuel pressure control valve system.
(Refer to P.13-45, INSPECTION PROCEDURE 34.)
1. Inspect the intake of air into the air intake system

Broken intake manifold gasket

Broken vacuum hose

PCV valve does not operate.

Broken air intake hose
2. Check the injector for clog.
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – Troubleshooting13-52

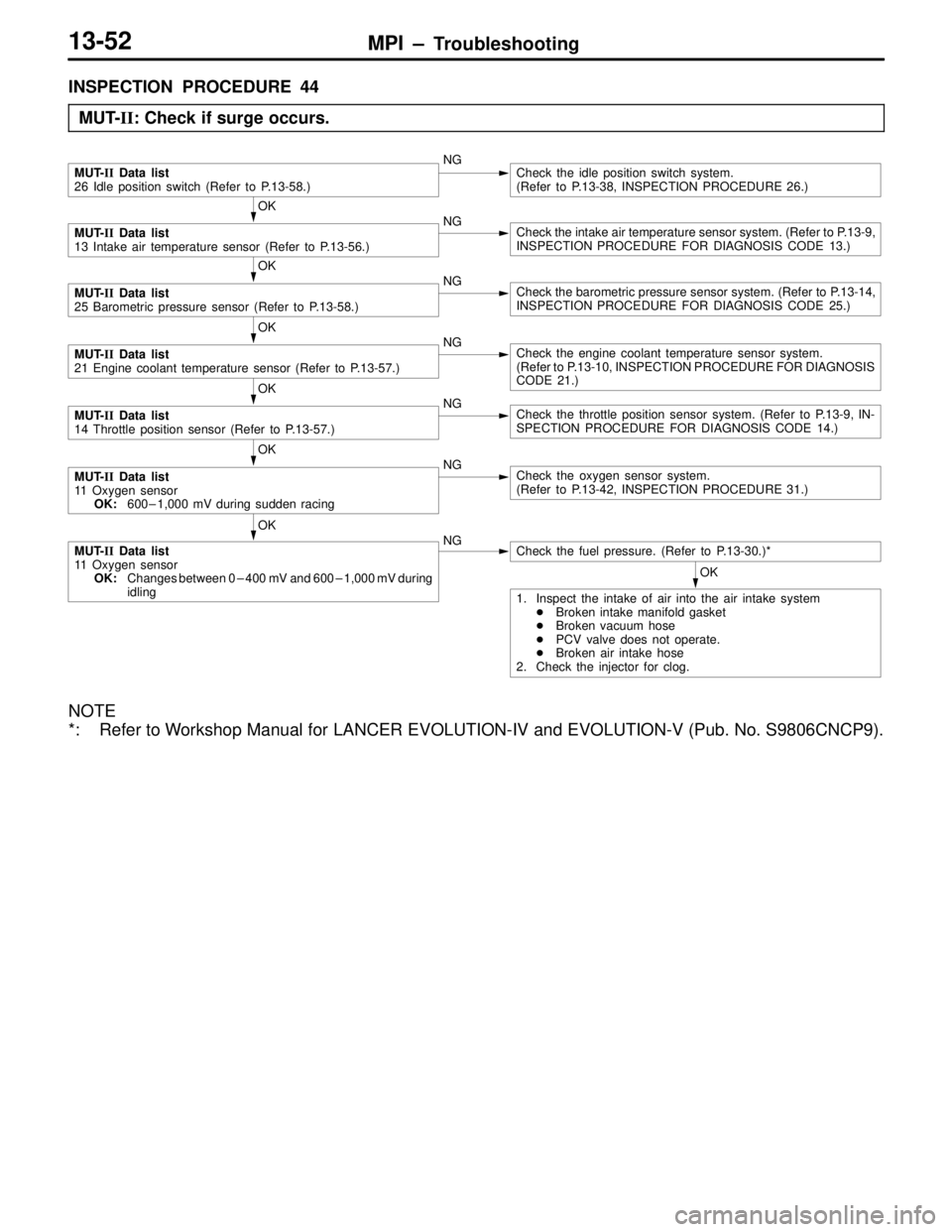

INSPECTION PROCEDURE 44
MUT-II: Check if surge occurs.
MUT-II Data list
26 Idle position switch (Refer to P.13-58.)NGCheck the idle position switch system.
(Refer to P.13-38, INSPECTION PROCEDURE 26.)
OK
MUT-II Data list
13 Intake air temperature sensor (Refer to P.13-56.)NGCheck the intake air temperature sensor system. (Refer to P.13-9,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 13.)
OK
MUT-II Data list
25 Barometric pressure sensor (Refer to P.13-58.)NGCheck the barometric pressure sensor system. (Refer to P.13-14,
INSPECTION PROCEDURE FOR DIAGNOSIS CODE 25.)
OK
MUT-II Data list
21 Engine coolant temperature sensor (Refer to P.13-57.)NGCheck the engine coolant temperature sensor system.
(Refer to P.13-10, INSPECTION PROCEDURE FOR DIAGNOSIS
CODE 21.)
OK
MUT-II Data list
14 Throttle position sensor (Refer to P.13-57.)NGCheck the throttle position sensor system. (Refer to P.13-9, IN-
SPECTION PROCEDURE FOR DIAGNOSIS CODE 14.)
OK
MUT-II Data list
11 Oxygen sensor
OK:600–1,000 mV during sudden racingNGCheck the oxygen sensor system.
(Refer to P.13-42, INSPECTION PROCEDURE 31.)
OK
MUT-II Data list
11 Oxygen sensor
OK:Changes between 0–400 mV and 600–1,000 mV during
idlingNGCheck the fuel pressure. (Refer to P.13-30.)*
1. Inspect the intake of air into the air intake system

Broken intake manifold gasket

Broken vacuum hose

PCV valve does not operate.

Broken air intake hose
2. Check the injector for clog.OK
NOTE
*: Refer to Workshop Manual for LANCER EVOLUTION-IV and EVOLUTION-V (Pub. No. S9806CNCP9).

MPI – TroubleshootingMPI – Troubleshooting13-55

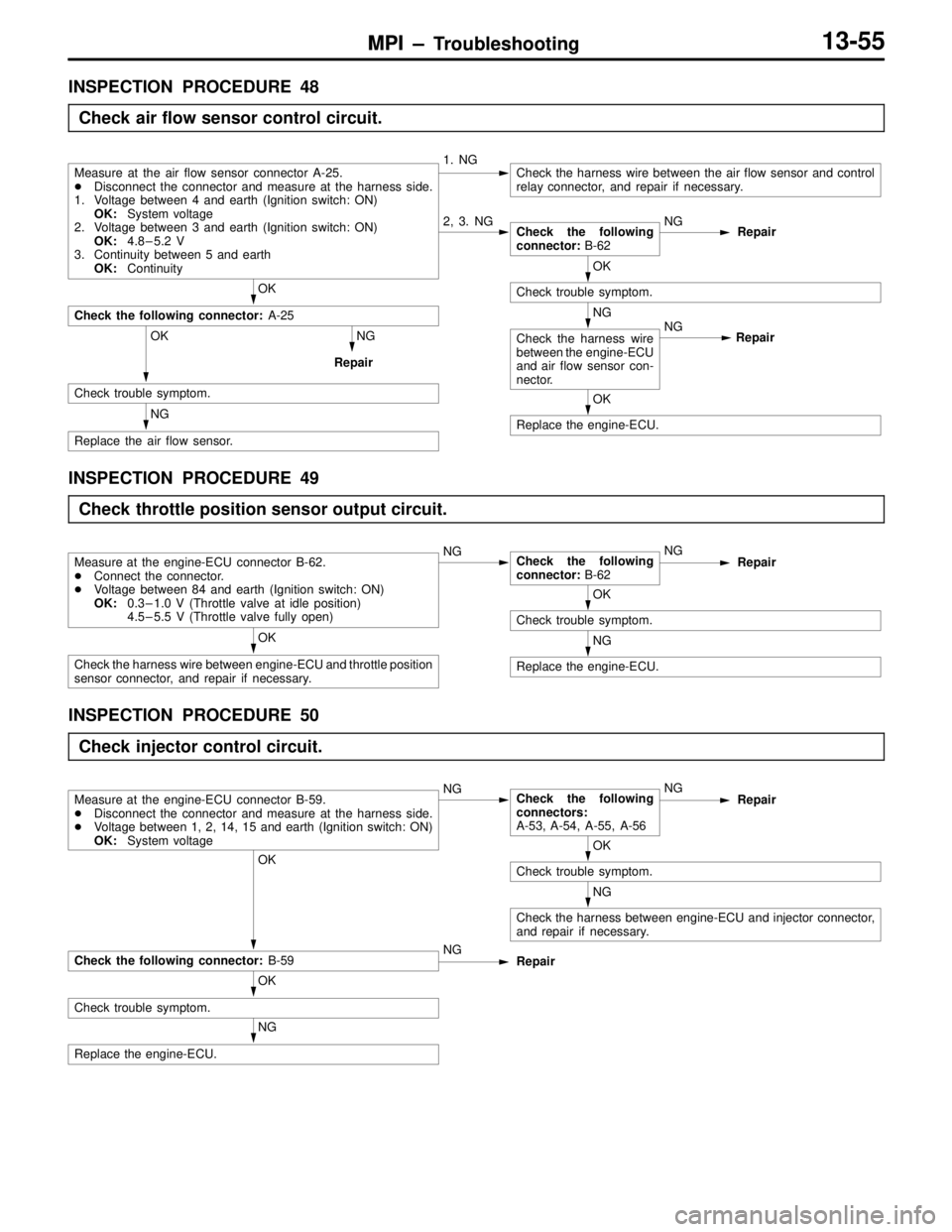

INSPECTION PROCEDURE 48
Check air flow sensor control circuit.
2, 3. NGCheck the following
connector: B-62NG
Repair
OK
Check trouble symptom.
NG
Check the harness wire
between the engine-ECU
and air flow sensor con-
nector.NG
Repair
OK
Replace the engine-ECU.
OK
Check trouble symptom.
NG
Replace the air flow sensor.
NG
Repair
OK
Check the following connector: A-25
Measure at the air flow sensor connector A-25.

Disconnect the connector and measure at the harness side.
1. Voltage between 4 and earth (Ignition switch: ON)
OK:System voltage
2. Voltage between 3 and earth (Ignition switch: ON)
OK:4.8–5.2 V
3. Continuity between 5 and earth
OK:Continuity1. NGCheck the harness wire between the air flow sensor and control
relay connector, and repair if necessary.
INSPECTION PROCEDURE 49
Check throttle position sensor output circuit.
Measure at the engine-ECU connector B-62.

Connect the connector.

Voltage between 84 and earth (Ignition switch: ON)
OK:0.3–1.0 V (Throttle valve at idle position)
4.5–5.5 V (Throttle valve fully open)NGCheck the following
connector: B-62NG
Repair
OK
Check trouble symptom.
NG
Replace the engine-ECU.
OK
Check the harness wire between engine-ECU and throttle position
sensor connector, and repair if necessary.
INSPECTION PROCEDURE 50
Check injector control circuit.
Measure at the engine-ECU connector B-59.

Disconnect the connector and measure at the harness side.

Voltage between 1, 2, 14, 15 and earth (Ignition switch: ON)
OK:System voltageNGCheck the following
connectors:
A-53, A-54, A-55, A-56NG
Repair
OK
Check trouble symptom.
NG
Check the harness between engine-ECU and injector connector,
and repair if necessary.
OK
Check the following connector: B-59
OK
Check trouble symptom.
NG
Replace the engine-ECU.NG
Repair
