MITSUBISHI LANCER EVOLUTION VIII 2004 Repair Manual

SECTION 22
MANUAL TRANSMISSION
CONTENTS

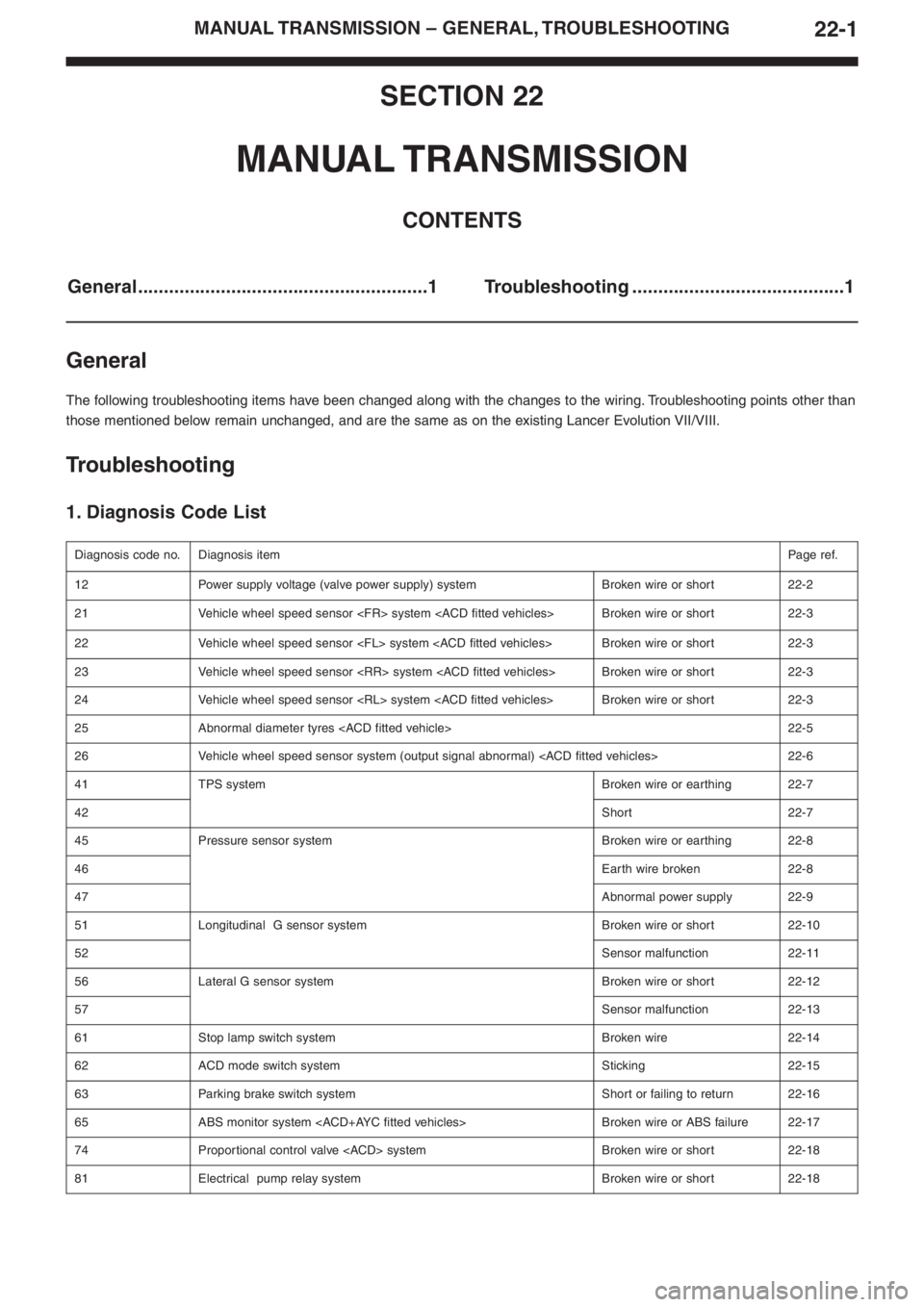

General........................................................1 Troubleshooting .........................................1
General
The following troubleshooting items have been changed along with the changes to the wiring. Troubleshooting points other than
those mentioned below remain unchanged, and are the same as on the existing Lancer Evolution VII/VIII.
Troubleshooting
1. Diagnosis Code ListMANUAL TRANSMISSION – GENERAL, TROUBLESHOOTING
221
Diagnosis code no.Diagnosis itemPage ref.
12Power supply voltage (valve power supply) systemBroken wire or short222
21Vehicle wheel speed sensor system Broken wire or short223
22Vehicle wheel speed sensor system Broken wire or short223
23Vehicle wheel speed sensor system Broken wire or short223
24Vehicle wheel speed sensor system Broken wire or short223
25Abnormal diameter tyres 225
26Vehicle wheel speed sensor system (output signal abnormal) 226
41TPS systemBroken wire or earthing227
42Short227
45Pressure sensor systemBroken wire or earthing228
46Earth wire broken228
47Abnormal power supply229
51Longitudinal G sensor systemBroken wire or short2210
52Sensor malfunction2211
56Lateral G sensor systemBroken wire or short2212
57Sensor malfunction2213
61Stop lamp switch systemBroken wire2214
62ACD mode switch systemSticking2215
63Parking brake switch systemShort or failing to return2216
65ABS monitor system Broken wire or ABS failure2217
74Proportional control valve systemBroken wire or short2218
81Electrical pump relay systemBroken wire or short2218

MANUAL TRANSMISSION TROUBLESHOOTING222
2. Check procedures by diagnosis code
Remarks
In cases where other diagnosis codes are output, please refer to the relevant item.
Code No.12 Power supply voltage (valve power supply) systemAssumed cause of concern
If the 4WDECU power supply voltage drops below 9V or rises
above 18V, Code No.12 is output, indicating either a broken wire in
the power supply circuit, a short, or a drop in the battery voltage.• battery malfunction
• harness, connector malfunction
• 4WDECU malfunction
Battery inspection
NG > replace
MUTII/III Service data
• No.10 Battery voltage
OK:battery voltage
OK > Intermittent malfunction
Measurement at C38 4WDECU connector
•ECU terminal voltage measurement
• Ignition switch: ON
OK:battery voltage
Connector check: C38
NG > repair
MUTII/III Service data
•No.10 battery voltage
OK:battery voltage
NG > replace 4WDECU
OK > intermittent malfunction
Connector check:C38, C133, C212, C210
NG > repair
Check harness between ignition switch – 4WDECU
• Check to see if power supply wire broken, short, or
damage
NG > repair
OK
OK
OK
OK
NG
NG

MANUAL TRANSMISSION TROUBLESHOOTING223
Vehicle speed sensor fitting check
NG > repair
MUTII/III Service Data
• No.01 Vehicle speed sensor
•No.02 Vehicle speed sensor
• No.03 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III agree
OK > Intermittent malfunction
Measurement at C38 4WDECU connector
• Undo connector and take measurement on harness
side
(1) Resistance between 9 – 22 (vehicle speed sensor )
(2) Resistance between 6 19 (vehicle speed sensor )
(3) Resistance between 7 20 (vehicle speed sensor )
(4) Resistance between 8 – 21 (vehicle speed sensor )
OK:1.2 – 1.6 kΩ
To next pageVehicle wheel speed sensor check
(Refer to Group 35B – Vehicle wheel speed sensor)
*1
NG > Replace
Connector checks:C38, A05, A31, D11, D05,
D12, C131, C20, C115, C34
NG > Repair
Harness check between 4WDECU – each vehicle
wheel speed sensor
MUTII/III Service data
•No.1 Vehicle speed sensor
•No.2 Vehicle speed sensor
• No.3 Vehicle speed sensor
• No.4 Vehicle speed sensor
OK: Speed shown on speedometer and MUTII/III agreeNG > Replace 4WDECU
OK > Intermittent malfunction
Code No.21 Vehicle wheel speed sensor systems
Code No.22 Vehicle wheel speed sensor systems
Code No.23 Vehicle wheel speed sensor systems
Code No.24 Vehicle wheel speed sensor systemsAssumed cause of concern
When one of the vehicle wheel speed sensors detects a
vehicle speed of 15kph or more, and when even one of the
remaining 3 sensors cannot detect vehicle speed, the
diagnosis code for wheel speed sensor broken wire or short is
output.• Wheel speed sensor malfunction
• Rotor malfunction
•Wheel bearing malfunction
• Harness, connector malfunction
• 4WDECU malfunction

Remarks*1: refer to ’005 Lancer Sedia Service Manual (No.1036K00)*2: refer to ’011 Lancer Evolution VII Service Manual (No.1036K02)
OK
OK
OK
OK
OK
NG
NG

MANUAL TRANSMISSION TROUBLESHOOTING224
From previous page
Check vehicle wheel speed sensor output voltage (ref.
p.2241)
*2
Check connector: C38
NG > Repair
MUTII/III Service data
• No.1 Vehicle speed sensor
•No.2 Vehicle speed sensor
• No.3 Vehicle speed sensor
• No.4 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III
agree
NG > Replace 4WDECU
OK > Intermittent malfunctionVehicle speed sensor and rotor check
(Refer to Group 35B – Vehicle wheel speed sensor)
*1
NG > Repair
Wheel bearing check (Refer to Group 26 – Vehicle
Servicing, Group 27B – Rear Hub Assembly)
*2
NG > Repair
NG
OK
OK
OK

Vehicle speed sensor fitting check
NG > repair
MUTII/III Service Data
• No.01 Vehicle speed sensor
• No.02 Vehicle speed sensor
• No.03 Vehicle speed sensor
• No.04 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III agree
OK > Intermittent malfunction
Measurement at C38 4WDECU connector
•Undo connector and take measurement on harness
side
(1) Resistance between 9 – 22 (vehicle speed sensor
)
(2) Resistance between 6 19 (vehicle speed sensor
)
(3) Resistance between 7 20 (vehicle speed sensor
)
(4) Resistance between 8 – 21 (vehicle speed sensor
)
OK:1.2 – 1.6kΩ
Check vehicle wheel speed sensor output voltage (ref.
p.2241)
*2
Check connector:C38
NG > repair
MUTII/III Service data
• No.1 Vehicle speed sensor
• No.2 Vehicle speed sensor
• No.3 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III
agree
NG > Replace 4WDECU
OK > Intermittent malfunctionVehicle wheel speed sensor
(Refer to Group 35B – Vehicle wheel speed sensor)
*1
NG > Repair
Connector checks:C38, A05, A31, D11, D05,
D12, C131, C20, C115, C34
NG: Repair
Harness check between 4WDECU – each vehicle
wheel speed sensor
• Check output wire for broken wire, earthing, short
• Check earth wire to see if broken or damaged
NG:repair
MUTII/III Service data
•No.1 Vehicle speed sensor
•No.2 Vehicle speed sensor
• No.3 Vehicle speed sensor
• No.4 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III
agree
NG > Replace 4WDECU
OK > Intermittent malfunction
Vehicle wheel speed sensor and rotor check
(Refer to Group 35B – Vehicle Wheel Speed Sensor)
*1
NG > Repair
Wheel bearing check (Refer to Group 26 – Vehicle
Servicing, Group 27B – Rear Hub Assembly)
*2
NG > Repair
MANUAL TRANSMISSION TROUBLESHOOTING225
Code No.25 Abnormal tyre diameterAssumed cause of concern
Abnormal tyre Code No. 25 is output in cases where, when
the steering wheel is in a central position, and vehicle speed
is 20kph or more, there is a discrepancy between one of the
vehicle wheel speed sensors and the average of the 4 wheel
speed sensors, in that it is outside the specified range.However, the warning lamp does not come on.• Tyre malfunction
•Vehicle speed sensor malfunction
• Rotor malfunction
• Wheel bearing malfunction
• Harness, connector malfunction

Remarks*1: refer to ’005 Lancer Sedia Service Manual (No.1036K00)*2: refer to ’011 Lancer Evolution VII Service Manual (No.1036K02)
OK
OK
OK
OK NG
NG
OK
NG
OK
OK
OK

MANUAL TRANSMISSION TROUBLESHOOTING226
Vehicle speed sensor fitting check
NG > repair
MUTII/III Service Data
• No.01 Vehicle speed sensor
• No.02 Vehicle speed sensor
•No.03 Vehicle speed sensor
•No.04 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III agree
OK > Intermittent malfunction
Measurement at C38 4WDECU connector
• Undo connector and take measurement on harness
side
(1) Resistance between 9 – 22 (vehicle speed sensor
)
(2) Resistance between 6 19 (vehicle speed sensor
)
(3) Resistance between 7 20 (vehicle speed sensor
)
(4) Resistance between 8 – 21 (vehicle speed sensor
)
OK:1.2 – 1.6kΩ
Check vehicle wheel speed sensor output voltage (ref.
p.2241)
*2
Check connector:C38
NG > repair
MUTII/III Service data
• No.1 Vehicle speed sensor
• No.2 Vehicle speed sensor
• No.3 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III
agree
NG > Replace 4WDECU
OK > Intermittent malfunctionVehicle wheel speed sensor
(Refer to Group 35B – Vehicle wheel speed sensor)
*1
NG > Repair
Connector checks:C38, A05, A31, D11, D05,
D12, C131, C20, C115, C34
NG > Repair
Harness check between 4WDECU – each vehicle
wheel speed sensor
• Check output wire for broken wire, earthing, short
• Check earth wire to see if broken or damaged
NG > repair
MUTII/III Service data
•No.1 Vehicle speed sensor
• No.2 Vehicle speed sensor
• No.3 Vehicle speed sensor
• No.4 Vehicle speed sensor
OK:Speed shown on speedometer and MUTII/III
agree
NG > Replace 4WDECU
OK > Intermittent malfunction
Vehicle wheel speed sensor and rotor check
(Refer to Group 35B – Vehicle Wheel Speed Sensor)
*1
NG > Repair
Wheel bearing check (Refer to Group 26 – Vehicle
Servicing, Group 27B – Rear Hub Assembly)
*2
NG > Repair
Code No.26 Vehicle wheel speed sensor system (output
signal abnormal)Assumed cause of concern
Abnormal vehicle wheel speed sensor Code No. 26 is output
in cases where, when the vehicle speed is 20kph or more,
one of the vehicle wheel speed sensors is outside the
specified range. However, the warning lamp does come on.•Tyre malfunction
• Vehicle speed sensor malfunction
•Rotor malfunction
• Wheel bearing malfunction
•Harness, connector malfunction
• 4WDECU malfunction

Remarks*1: refer to ’005 Lancer Sedia Service Manual (No.1036K00)*2: refer to ’011 Lancer Evolution VII Service Manual (No.1036K02)
OK
OK
OK
OK NG
NG
OK
NG
OK
OK
OK

MANUAL TRANSMISSION TROUBLESHOOTING227
MUTII/III Diagnosis code
• Has MPI diagnosis code No.P0120 been output?
MUTII/III Service Data
• No.13 TPS voltage
OK:P.2232 (Refer to Service Data List)*2
OK > Intermittent malfunction
Measurement at C37 4WDECU connector
• Measure ECU terminal voltage
• Ignition switch: ON
• Voltage between 39 – earth
(1)Throttle pedal fully open
OK:535 – 735 mV
(2)Throttle pedal fully open
OK:4500 – 5500 mV
Check connector:C37
NG > Repair
MUTII/III Service data
• No.13 TPS voltage
OK:P.2232 (Refer to Service Data List)*2
NG > replace 4WDECU
OK > intermittent malfunctionRefer to Group 13D – Troubleshooting
*2
TPS adjustment (Refer to Group 13D – Vehicle
Servicing)*2
Connector check:C37, B06, C23
NG > repair
Check harness between TPS – 4WDECU
• Check to see if output wire is broken, short, or
damaged
NG > repair
Code No.41,42 TPS systemAssumed cause of concern
If, when idling, TPS output is 0.2V or less, code No.41 is
output, indicating that output is too low.
If, at 10kph or less, TPS output is 4.8V or more for a period
of 2 minutes or more, code No.42 is output, indicating output
is too high.• TPS malfunction
•Harness, connector malfunction
• 4WDECU malfunction
Remarks*2: refer to ’011 Lancer Evolution VII Service Manual (No.1036K02)
NO
NG
OK
OK
OK
OKYES
NG

MANUAL TRANSMISSION TROUBLESHOOTING228
Code No.45 Pressure sensor system (broken wire or earth)Assumed cause of concern
Code No.45 is output when output signal from pressure sensor
is 0.2V or less.• Harness, connector malfunction
• Pressure sensor malfunction
• 4WDECU malfunction
Remarks*2: refer to ’011 Lancer Evolution VII Service Manual (No.1036K02)
MUTII/III Service data
• No.18 pressure sensor
OK:P.2232 (Refer to Service Data List)*2
OK > Intermittent malfunction
Measurement at C37 4WDECU connector
•Measure ECU terminal voltage
•Ignition switch: ON
• Voltage between 32 – earth
OK:0.5V – 1.5V
Check connector:C37
NG > Repair
MUTII/III Service data
• No.18 Pressure sensor
OK:P.2232 (Refer to Service Data List)*2
NG > replace 4WDECU
OK > intermittent malfunction
Measurement at F27 pressure sensor connector
•Undo connector, take measurement on harness side
• Resistance between 3 – earth
OK:2Ω or less
Check connector:F27
NG: repair
Replace pressure sensor
Check connector:C37, C20, C30, F22, F27
NG > Repair
Chec
k harness between pressure sensor – 4WD ECU
• Check to see if power supply line is broken, earth, or
damaged.
• Check for broken output wire, earth, or damage
NG > Repair
Replace pressure sensor
Connector check:C37, C20, F22, F27
NG > repair
Check harness between pressure sensor – 4WDECU
•Check to see if earth wire is broken or damaged
NG > repair
Replace 4WDECU
Code No.46 Pressure sensor system (earth wire broken)Assumed cause of concern
Code No.46 is output when output signal from pressure
sensor is 2.0V or more.• Harness, connector malfunction
• Pressure sensor malfunction
• 4WDECU malfunction
NG
OK
OK
OKNG
OK
OK
OKNG
OK
OK

MANUAL TRANSMISSION TROUBLESHOOTING229
Code No.47 Pressure sensor system (abnormal power supply)Assumed cause of concern
Code No.47 is output when, with pressure sensor power supply OFF, the pressure
sensor power supply voltage is 4.0V or more, and when pressure sensor power supply
is ON, the pressure sensor power supply voltage is 4.0V or less.• Harness, connector malfunction
• Pressure sensor malfunction
• 4WDECU malfunction
MUTII/III Service data
•
No.19 pressure sensor power supply
OK:5V
OK > Intermittent malfunction
Measurement at C37 4WDECU connector
•Measure ECU terminal voltage
•Ignition switch: ON
•Voltage between 43 – earth
OK:4.9V – 5.1V
Check connector:C37
NG > Repair
MUTII/III Service data
•
No.19 Pressure sensor
OK:5V
NG > replace 4WDECUOK > intermittent malfunction
Connector check:C37, C20, C30, F22, F27
NG > repair
Check harness between pressure sensor – 4WDECU
•Check to see if power supply wire is broken, earth, or
damaged
NG > repair
Replace pressure sensor
NG
NG
OK
OK
OK
OK
