MITSUBISHI LANCER EVOLUTION VIII 2004 Workshop Manual

WIRING DIAGRAMS - ENGINE TRANSMISSION1-2
ENGINE TRANSMISSION
M3010000400494

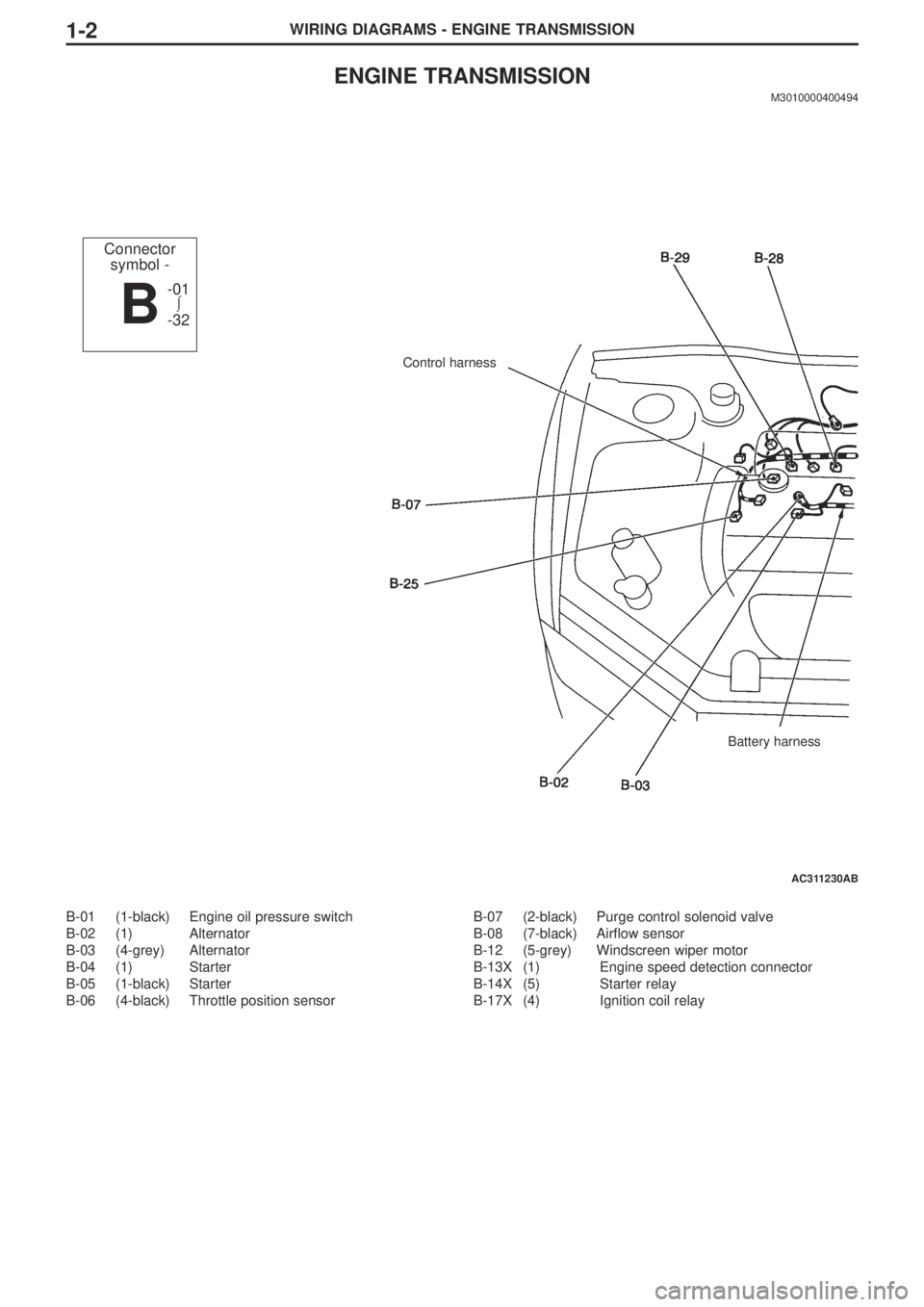

B-01 (1-black) Engine oil pressure switch
B-02 (1) Alternator
B-03 (4-grey) Alternator
B-04 (1) Starter
B-05 (1-black) Starter
B-06 (4-black) Throttle position sensorB-07 (2-black) Purge control solenoid valve
B-08 (7-black) Airflow sensor
B-12 (5-grey) Windscreen wiper motor
B-13X (1) Engine speed detection connector
B-14X (5) Starter relay
B-17X (4) Ignition coil relay
Connector
symbol -
B
-01
∫
-32
AC311230AB
Control harness
Battery harness

WIRING DIAGRAMS - ENGINE TRANSMISSION1-3

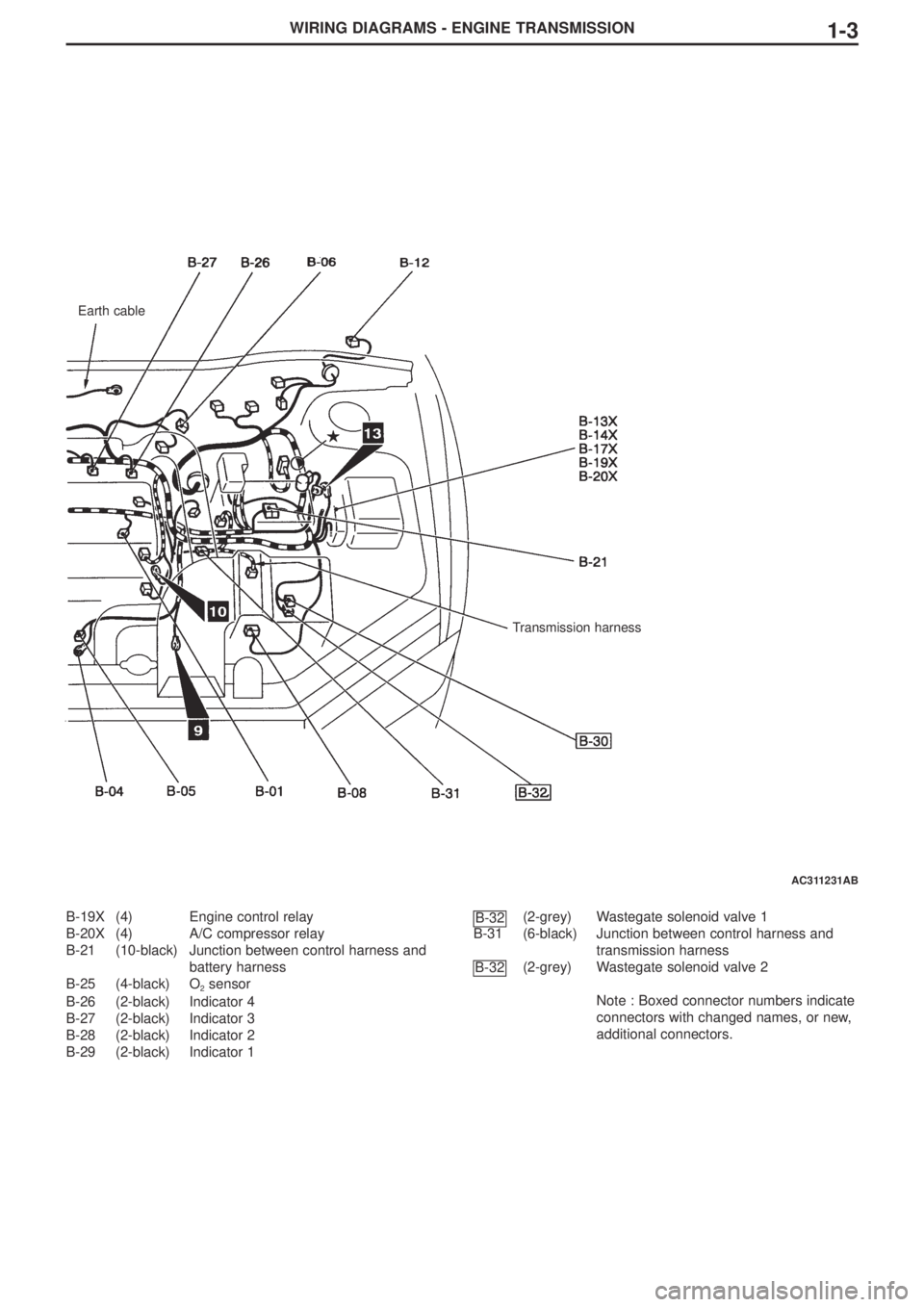

B-19X (4) Engine control relay
B-20X (4) A/C compressor relay
B-21 (10-black) Junction between control harness and
battery harness
B-25 (4-black) O
2sensor
B-26 (2-black) Indicator 4
B-27 (2-black) Indicator 3
B-28 (2-black) Indicator 2
B-29 (2-black) Indicator 1(2-grey) Wastegate solenoid valve 1
B-31 (6-black) Junction between control harness and
transmission harness
(2-grey) Wastegate solenoid valve 2
Note : Boxed connector numbers indicate
connectors with changed names, or new,
additional connectors.
B-32
B-32
Earth cable
Transmission harness
AC311231AB

WIRING DIAGRAMS - INSTRUMENT PANEL1-4
INSTRUMENT PANEL

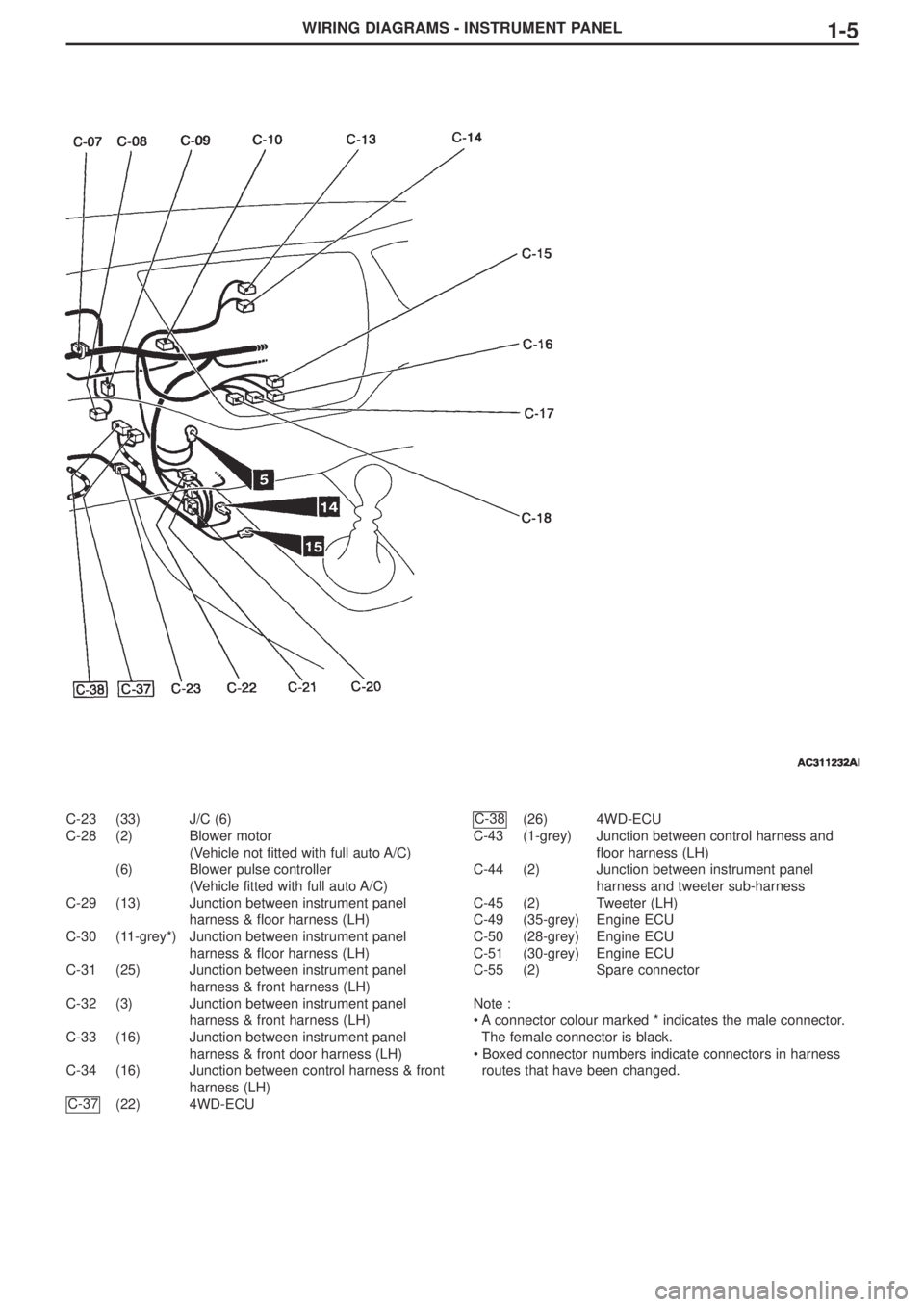

C-01 (4) Register (vehicle not fitted with full auto
A/C)
C-02 (2-red) Front pass. seat airbag module (squib)
C-03 (7) Internal / external air changeover damper
motor
C-04 (7) Junction between instrument panel
harness and A/C harness (vehicle not
fitted with full auto A/C)
(13) Junction between instrument panel
harness and A/C harness (vehicle fitted
with full auto A/C)
C-05 (2) Air thermo sensor (vehicle fitted with full
auto A/C)
C-06 (13) J/C (5)
C-07 (22-grey) J/C (1)
C-08 (6) Air mix door motor and potentiometer
(vehicle with full auto A/C)
C-09 (2) Heater water temperature sensor (vehicle
with full auto A/C)
C-10 (5) Blower outlet changeover damper motor
& potentiometer (vehicle with full auto
A/C)C-13 (4) Clock
C-14 (4) Hazard switch
C-15 (6) Blower switch
(vehicle not fitted with full auto A/C)
C-16 (12-black) Heater control unit
(vehicle with heater) or A/C-ECU
(vehicle with manual A/C)
C-17 (20-black) A/C-ECU (vehicle with full auto A/C)
C-18 (16-black) A/C-ECU (vehicle with full auto A/C)
C-20 (22-blue) Junction between instrument panel
harness and control harness
C-21 (10-grey) Junction between instrument panel
harness and control harness
C-22 (25) Junction between instrument panel
harness and control harness
Connector
symbolFront passenger’s side
Instrument panel harness
Tweeter sub-harness
Front
harness (LH)
Front door
harness (LH)
Floor
harness (LH)
A/C harness
Control
harness

WIRING DIAGRAMS - INSTRUMENT PANEL1-5
C-23 (33) J/C (6)
C-28 (2) Blower motor
(Vehicle not fitted with full auto A/C)
(6) Blower pulse controller
(Vehicle fitted with full auto A/C)
C-29 (13) Junction between instrument panel
harness & floor harness (LH)
C-30 (11-grey*) Junction between instrument panel
harness & floor harness (LH)
C-31 (25) Junction between instrument panel
harness & front harness (LH)
C-32 (3) Junction between instrument panel
harness & front harness (LH)
C-33 (16) Junction between instrument panel
harness & front door harness (LH)
C-34 (16) Junction between control harness & front
harness (LH)
(22) 4WD-ECU(26) 4WD-ECU
C-43 (1-grey) Junction between control harness and
floor harness (LH)
C-44 (2) Junction between instrument panel
harness and tweeter sub-harness
C-45 (2) Tweeter (LH)
C-49 (35-grey) Engine ECU
C-50 (28-grey) Engine ECU
C-51 (30-grey) Engine ECU
C-55 (2) Spare connector
Note :
• A connector colour marked * indicates the male connector.
The female connector is black.
• Boxed connector numbers indicate connectors in harness
routes that have been changed.C-38
C-37

WIRING DIAGRAMS - BOOT INTERIOR1-6
BOOT INTERIOR
F-01 (2) Boot interior light
F-02 (2-grey) High-mount stop light
F-05 (4) Rear wiper motor
F-06 (2) Rear speaker (RH)
F-07 (1) Demister (+)
F-10 (6-black) Rear combination light (RH)
F-11 (1) Book interior light switch
F-12 (2-grey) Licence plate light (RH)
F-13 (2-grey) Licence plate light (LH)
F-14 (2-grey) Junction between floor harness (LH) &
bumper harness
F-15 (6-black) Rear combination light (LH)
F-16 (2) Rear speaker (LH)
F-18 (1-black) Demister (-)
F-19 (2) Windscreen washer motorF-20 (2-green) Rear washer motor
F-21 (2-black) Electrical pump
F-22 (8-grey) Junction between floor harness (LH) and
4WD harness (vehicle with AYC)
F-23 (2-black) Directional valve (left) (vehicle with AYC)
F-24 (2-black) Directional valve (right) (vehicle with AYC)
F-25 (3-black) Proportional valve (for ACD)
F-26 (3-black) Proportional valve (for AYC) (vehicle with
AYC)
F-27 (3-black) Pressure sensor
(2) Spare connector
• Boxed connector numbers indicate newly added connectors.
F-28
Demister earth
Floor
harness (LH)
4WD
harnessBumper
harness
Floor harness
(RH)
Connector
symbol

2-1
SECTION 2
COMPONENT INSTALLATION
POSITIONS
CONTENTS
ECU ..........................................................2-2 Solenoid Valves ......................................2-2

COMPONENT INSTALLATION POSITIONS - ECU2-2

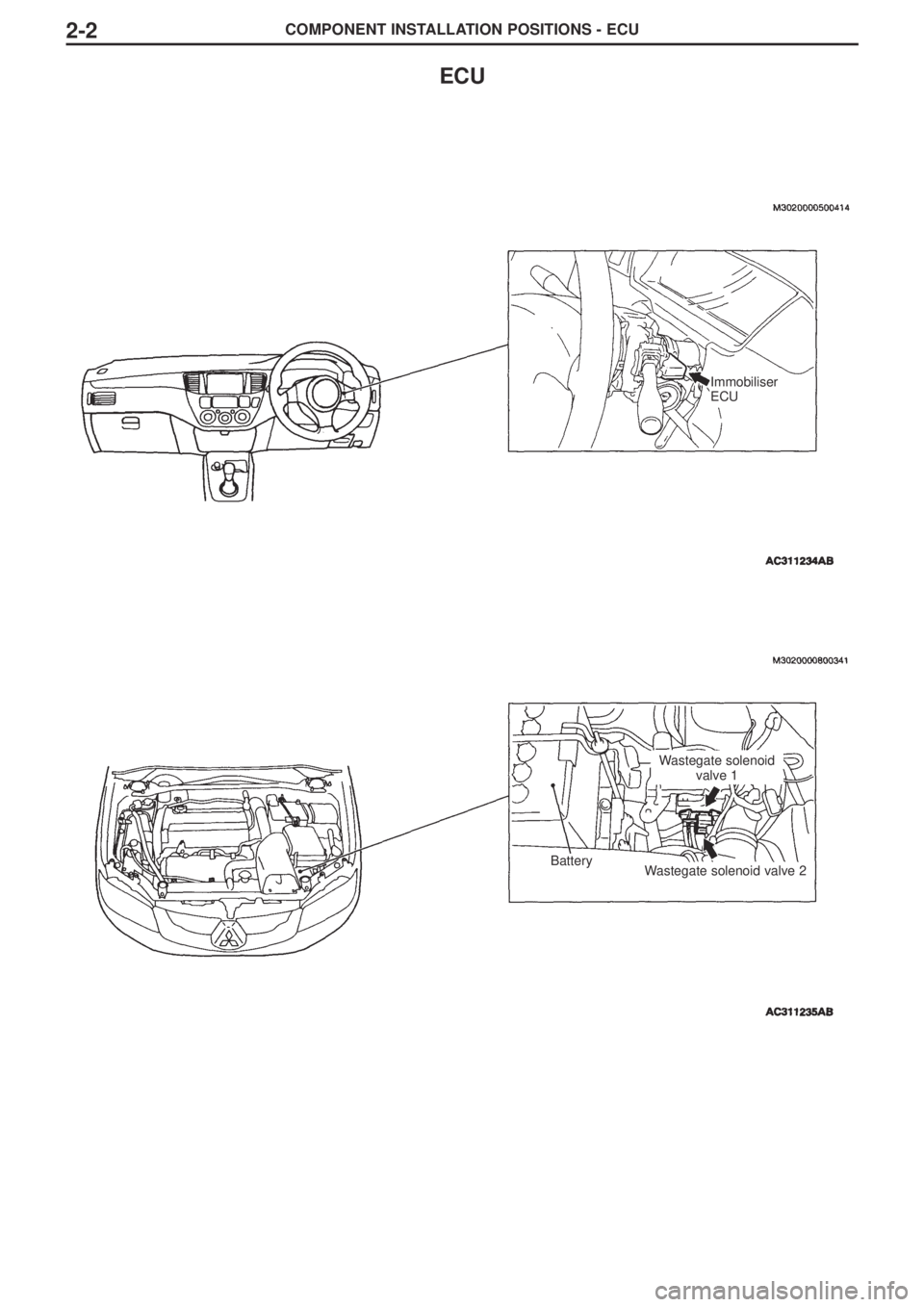

ECU
Immobiliser
ECU
Wastegate solenoid
valve 1
BatteryWastegate solenoid valve 2

3-1
SECTION 3

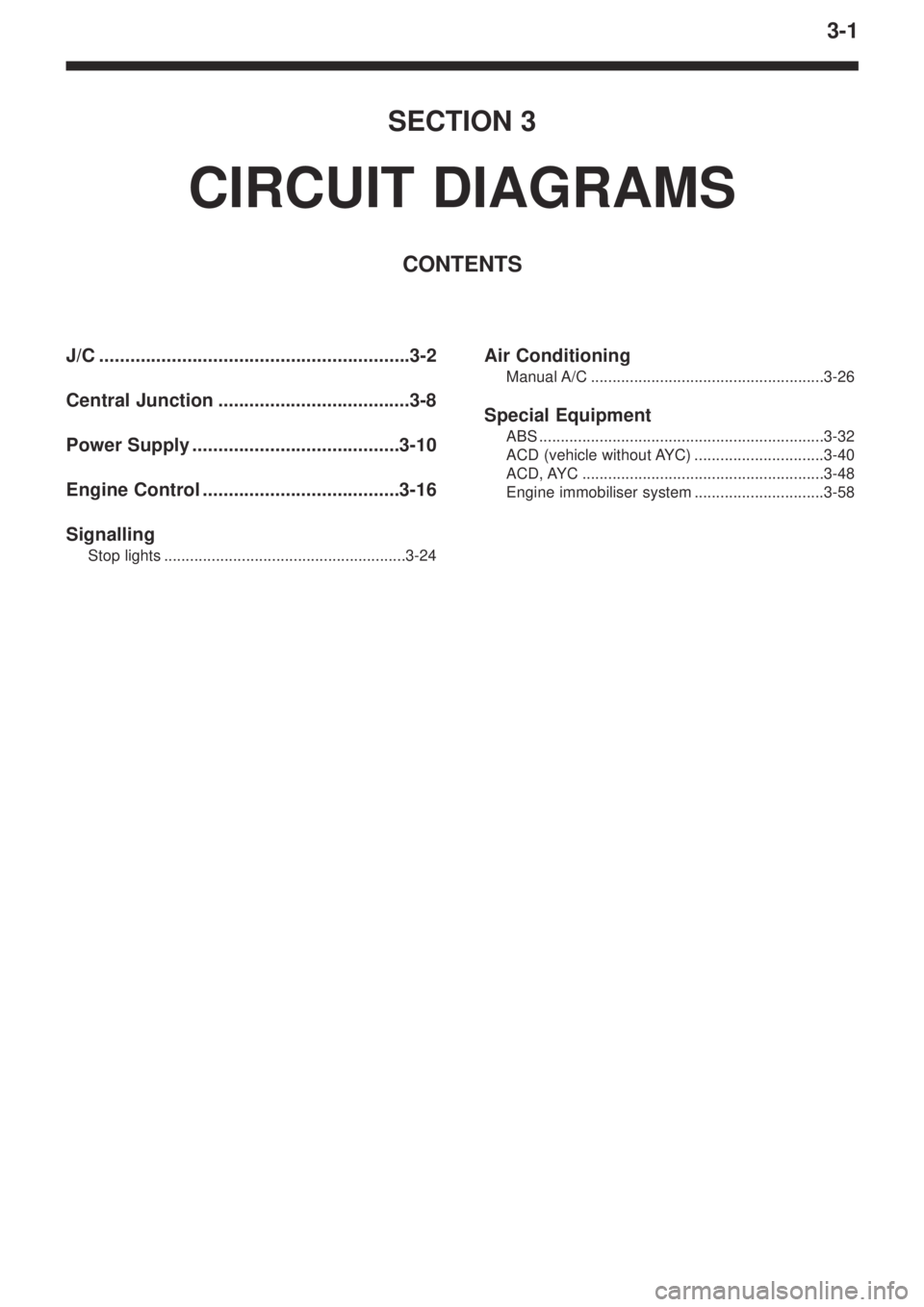

CIRCUIT DIAGRAMS
CONTENTS
J/C ............................................................3-2
Central Junction .....................................3-8
Power Supply ........................................3-10
Engine Control ......................................3-16
Signalling
Stop lights ........................................................3-24
Air Conditioning
Manual A/C ......................................................3-26
Special Equipment
ABS ..................................................................3-32
ACD (vehicle without AYC) ..............................3-40
ACD, AYC ........................................................3-48
Engine immobiliser system ..............................3-58

COMPONENT INSTALLATION POSITIONS - J/C3-2
J/C
Note :
In an actual vehicle, any of the terminals connected in the J/C
may be used. Therefore, the terminal numbers given in the
circuit diagrams may not coincide with the terminal arrangement
in the actual vehicle.
• Windscreen wiper
& washer
• Indicator lights,
hazard warning
lights
• Tail lights, side
lights, licence
plate lights,
lightning monitor
warning buzzer• Fog lights
• Headlights
• Headlight levelling
system
• Rear wiper /
washer
Full auto
A/C
General
spare
connector
Clock
Spare audio
connector
• Warning
lights
• Meter
gauge
• ACD
• Engine
control
J/B
General fuse
()18
General
spare
connector
Fog light
Spare audio
connector
• Demister (Vehicle
w/out full auto A/C)
• Demister, door
mirror heating
element (vehicle
with full auto A/C)
• Heater
• Full auto A/C
• Manual A/C
Cigar lighter
Ashtray
illumination
light
Clock
ACD
Headlight
levelling
system
Indicator light
Hazard
warning lights
Intercooler
water spray
General fuse15
• Meter gauge
• Tail lights, side
lights, licence
plate lights,
lighting monitor
warning buzzer

COMPONENT INSTALLATION POSITIONS - J/C3-3
•Windscreen wiper
& washer
•Indicator lights,
hazard warning
lights
•Tail lights, side
lights, licence
plate lights,
lighting monitor
warning buzzer•Fog lights
•Full auto A/C
•Headlights
•Headlight levelling
system
•Manual A/C
•Cooling•Windscreen wiper
& washer
•Electric retractable
remote control
door mirror
•Cabin lights, boot
interior light,
ignition key
cylinder
illumination light,
door not properly
closed indictor light
•Heater
•Full auto A/C
•Manual A/C
•ABS
•ACD
Meter
gauge
Diagnosis
meterVehicle
speed
sensor
General
spare
connector
Power
window
•Windscreen
wiper
& washer
•Indicator lights,
hazard warning
lights•Tail lights, side
lights, licence
plate lights,
lighting monitor
warning buzzer
•Fog lights
•Headlights•Ignition key
reminder buzzer
•Windscreen wiper
& washer
•Indicator lights,
hazard warning
lights
•Tail lights, side
lights, licence
plate lights,
lighting monitor
warning buzzer•Electric windows
•Fog lights
•Headlights
•Rear wiper /
washer
•Windscreen
wiper &
washer
•Indicator
lights, hazard
warning lights
•Tail lights, side
lights, licence
plate lights,
lighting
monitor
warning
buzzer
•Fog lights
•Headlights
•Rear wiper /
washer
•Reversing light
•Rear wiper /
washer
Rear wiper /
washer
Reversing
lightDiagnosis
connector
J/B
General fuse
()5
