display MITSUBISHI LANCER RALLIART 2011 8.G MMCS Manual

System Settings 11-6 Keyboard Layout
Changing the layout of the keyboard.
[Alphabet]
eng_a169[PC]
eng_a170
Color SchemeSet the color scheme for the menu screen, etc.[Red] The menu is displayed using a red color scheme.
[Blue] The menu is displayed using a blue
color scheme.
A/V Icons on MapIt is possible to set whether or not to display on screen
icons displaying the audio status.
[On] Display.
[Off] Do not display.
Sensor CalibrationThe level of the vehicle speed sensor and gyro sensor
can be checked and the learning levels can be reset.
eng_a206
NOTE touching [Clear].
The learning levels can be reset.
A/C Cut inSetting whether or not to use an interrupt display
during air conditioning operations.
[On] Interrupt is displayed.
[Off] Interrupt is not displayed.
\b \b
\f \



 \b \b
\f

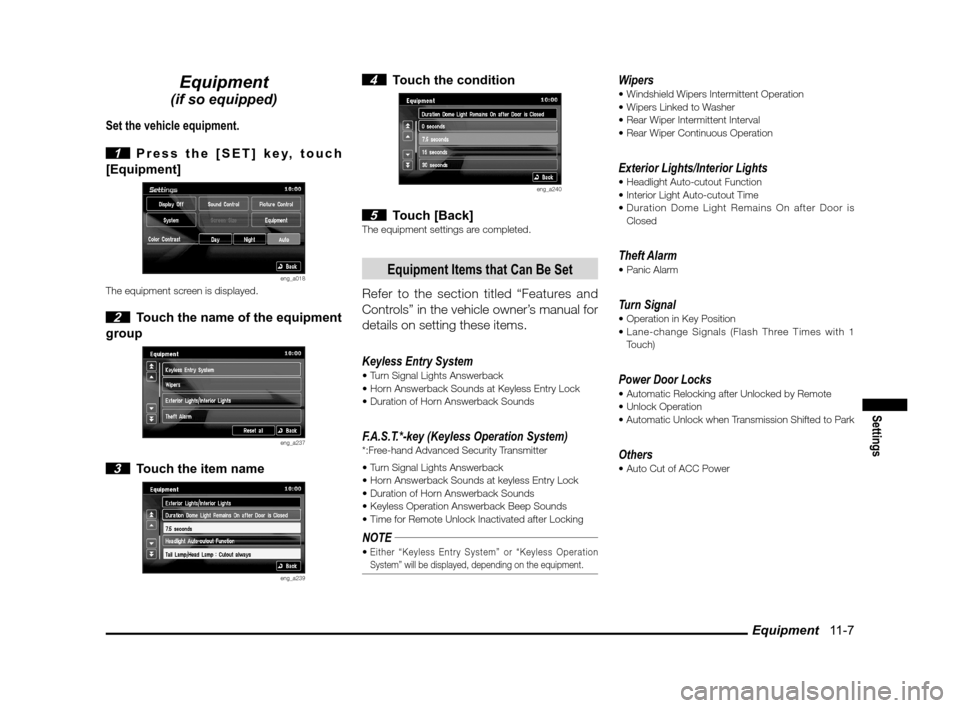

Equipment 11-7
Settings
Equipment
(if so equipped)
Set the vehicle equipment.

1 Press the [SET] key, touch
[Equipment]
eng_a018The equipment screen is displayed.
2 Touch the name of the equipment
group
eng_a237
3 Touch the item name
eng_a239
4 Touch the condition
eng_a240
5 Touch [Back]The equipment settings are completed.
Equipment Items that Can Be Set
Refer to the section titled “Features and
Controls” in the vehicle owner’s manual for
details on setting these items.
Keyless Entry System



F.A.S.T.*-key (Keyless Operation System)*:Free-hand Advanced Security Transmitter





NOTEEither “Keyless Entry System” or “Keyless Operation
System” will be displayed, depending on the equipment.
Wipers



Exterior Lights/Interior Lights


Closed
Theft Alarm
Turn Signal
Touch)
Power Door Locks


Others
\b \b
\f \



 \b \b
\f

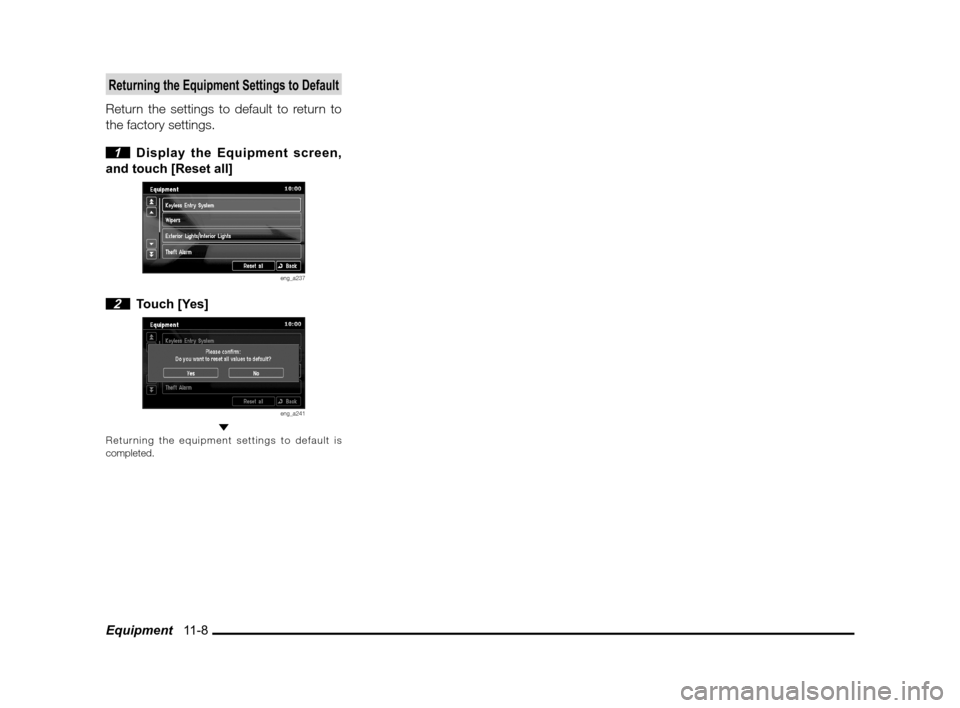

Equipment 11-8
Returning the Equipment Settings to Default
Return the settings to default to return to
the factory settings.

1 Display the Equipment screen,
and touch [Reset all]
eng_a237
2 Touch [Yes]
eng_a241
Returning the equipment settings to default is
completed.
\b \b
\f \



 \b \b
\f

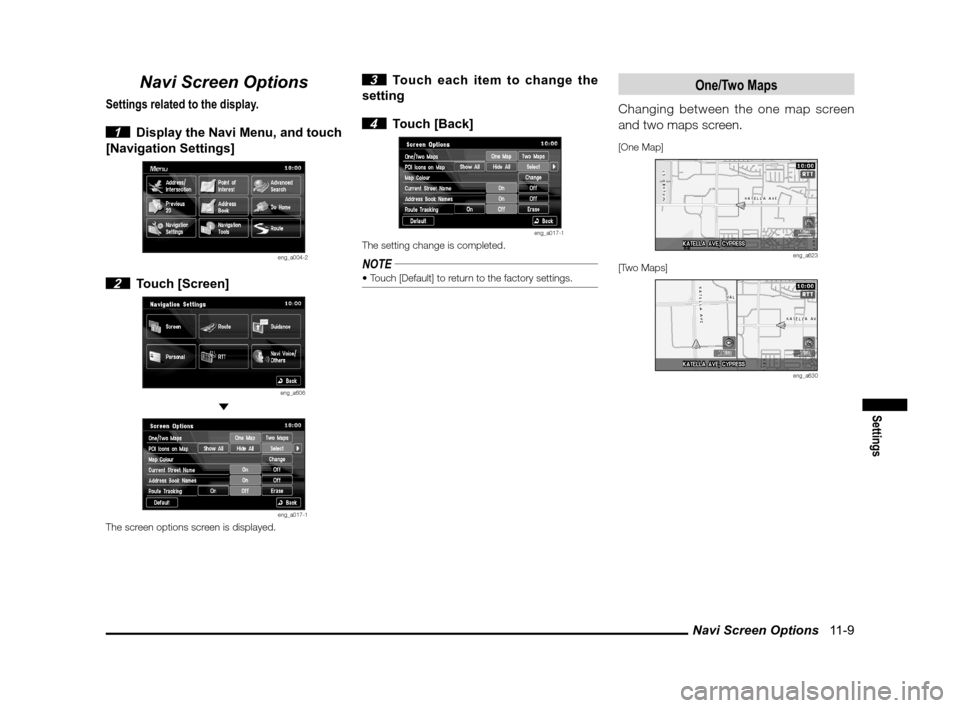

Navi Screen Options 11-9
Settings
Navi Screen Options
Settings related to the display.

1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a004-2
2 Touch [Screen]
eng_a606
eng_a017-1The screen options screen is displayed.
3 Touch each item to change the
setting

4 Touch [Back]
eng_a017-1The setting change is completed.
NOTE
One/Two Maps
Changing between the one map screen
and two maps screen.
[One Map]
eng_a623[Two Maps]
eng_a630
\b \b
\f \



 \b \b
\f

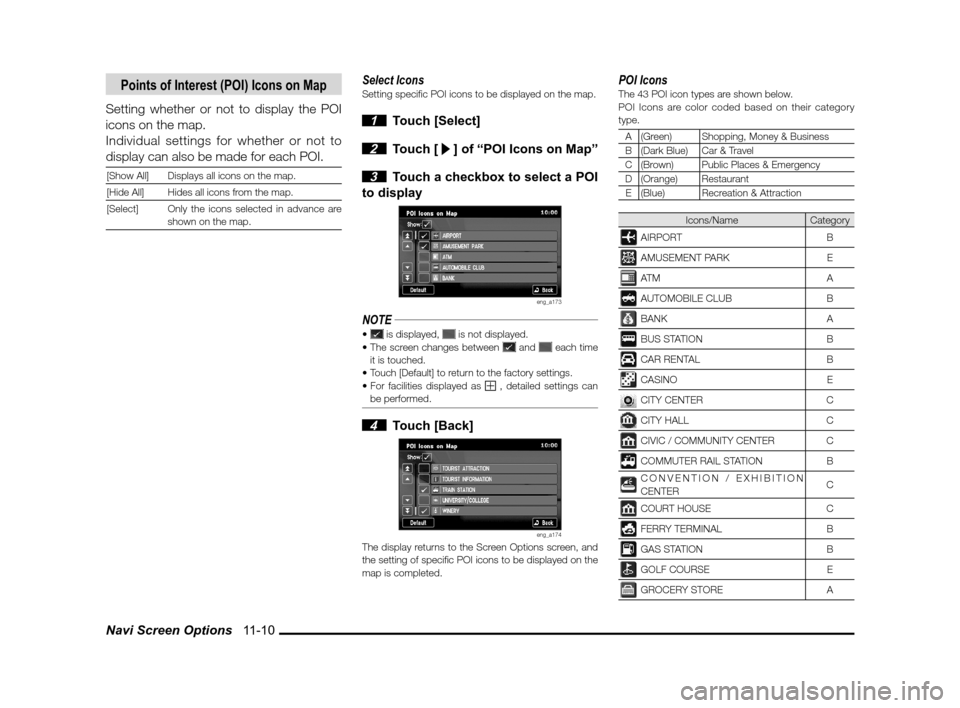

Navi Screen Options 11-10
Points of Interest (POI) Icons on Map
Setting whether or not to display the POI
icons on the map.
Individual settings for whether or not to
display can also be made for each POI.
[Show All] Displays all icons on the map.
[Hide All] Hides all icons from the map.
[Select] Only the icons selected in advance are
shown on the map.
Select IconsSetting speci c POI icons to be displayed on the map.
1 Touch [Select]

2 Touch [ ] of “POI Icons on Map”

3 Touch a checkbox to select a POI
to display
eng_a173
NOTE is displayed, is not displayed.
and each time
it is touched.

, detailed settings can be performed.
4 Touch [Back]
eng_a174The display returns to the Screen Options screen, and
the setting of speci c POI icons to be displayed on the
map is completed.
POI IconsThe 43 POI icon types are shown below.
POI Icons are color coded based on their category
type.
A (Green) Shopping, Money & Business
B (Dark Blue) Car & Travel
C (Brown) Public Places & Emergency D (Orange) Restaurant E (Blue) Recreation & Attraction
Icons/Name Category
AIRPORT B
AMUSEMENT PARK E
AT MA
AUTOMOBILE CLUBB
BANK A
BUS STATIONB
CAR RENTALB
CASINO E
CITY CENTERC
CITY HALLC
CIVIC / COMMUNITY CENTERC
COMMUTER RAIL STATION B
CONVENTION / EXHIBITION
CENTERC
COURT HOUSE
C
FERRY TERMINAL B
GAS STATIONB
GOLF COURSE E
GROCERY STOREA
\b \b
\f \




 \b \b
\f

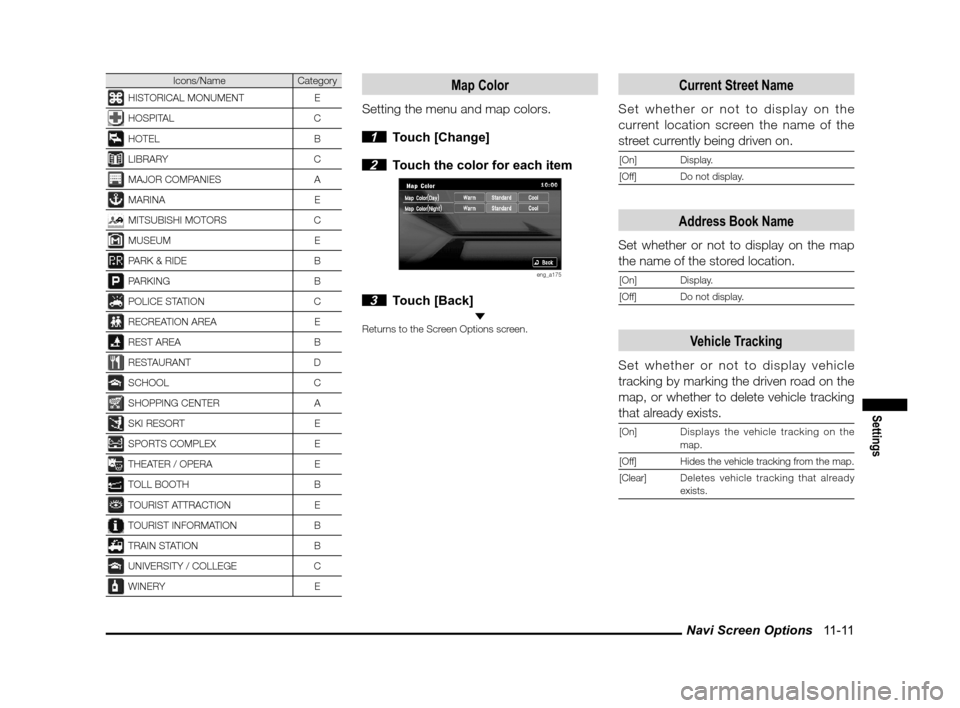

Navi Screen Options 11-11
Settings
Icons/NameCategory
HISTORICAL MONUMENT E
HOSPITALC
HOTEL B
LIBRARYC
MAJOR COMPANIES A
MARINA E
MITSUBISHI MOTORSC
MUSEUM E
PARK & RIDEB
PARKING B
POLICE STATIONC
RECREATION AREA E
REST AREAB
RESTAURANTD
SCHOOLC
SHOPPING CENTER A
SKI RESORT E
SPORTS COMPLEXE
THEATER / OPERAE
TOLL BOOTHB
TOURIST ATTRACTION E
TOURIST INFORMATIONB
TRAIN STATION B
UNIVERSITY / COLLEGEC
WINERY E
Map Color
Setting the menu and map colors.

1 Touch [Change]

2 Touch the color for each item
eng_a175
3 Touch [Back] Returns to the Screen Options screen.
Current Street Name
Set whether or not to display on the
current location screen the name of the
street currently being driven on.
[On] Display.
[Off] Do not display.
Address Book Name
Set whether or not to display on the map
the name of the stored location.
[On] Display.
[Off] Do not display.
Vehicle Tracking
Set whether or not to display vehicle
tracking by marking the driven road on the
map, or whether to delete vehicle tracking
that already exists.
[On] Displays the vehicle tracking on the
map.
[Off] Hides the vehicle tracking from the map.
[Clear] Deletes vehicle tracking that already
exists.
\b \b
\f \





 \b \b


Route Options 11-12
Route Options
Setting the route search conditions.

1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Route]
eng_a606
eng_a604
eng_a605The route options screen is displayed.
3 Touch each item to change the
setting

4 Touch [Back]
eng_a610The setting change is completed.
NOTE
Route Priority
Setting the route search priority.
[Fast]Searches for a short route in terms of
time (arriving quickly at the destination),
using freeways and major roads.
[Short] Searches for the route on the map with
the shortest distance.
[Easy] Search for a route that is easy to drive, with few left or right turns (in particular
left turns).
Minimize Freeways
Setting the conditions for using freeways.
[Yes] Calculates a route that uses freeways as little as possible.
[No] Calculates a route that uses freeways.
Minimize Toll Roads
Setting the conditions for using toll roads.
[Yes] Calculates a route that uses toll roads as little as possible.
[No] Calculates a route that uses toll roads.
\b \b
\f \




 \b \b


Guidance 11-14
Guidance
Setting the route guidance, and the display for
the route search results.

1 Display the Navi Menu, and touch
[Navigation Settings]
eng_a502-2
2 Touch [Guidance]
eng_a606
eng_a177-2The guidance screen is displayed.
3 Touch each item to change the
setting

4 Touch [Back]
eng_a178-2The setting change is completed.
NOTE
Guidance Mode
Setting the guidance mode.

1 Touch [Change] The guidance mode setting screen is displayed.
2 Touch one of the modes
eng_a180Refer to “Intersection Guidance” (page 2-10) for details
on each mode.
3 Touch [Back]
eng_a181
\b \b
\f \




\b \b \b


Guidance 11-15
Settings
Travel Time
Setting the display method for the travel
time at the destination.
[Arrival Time] The arrival time is displayed.
[Remaining Driving
Time]The remaining time required
to drive to the destination is
displayed.
Time/Distance remaining
Setting whether to display the travel time
and direction (direction icon) of both the
destination and the way point.
[Destination] Displays the time and direction
to the destination.
[Next Dest.] Displays the time and
direction to the next location
to be reached (way point or
destination).
[Off] Does not display the travel time. The direction icon
displays the direction to the
destination.
POI Icons on Guidance Map
Setting whether or not to display POI
icons on the intersection guidance map.
[On] Displays POI icons.
[Off] Does not display POI icons.
List Orientation
Changing the list orientation.
[Down]The list is displayed with the current
location at the top.
[Up] The list is displayed with the destination at the top.
NOTEChanges to the list orientation apply to the following
screens.

(page 2-10)(page 3-11)(page 4-2)(page 4-3)
\b \b
\f \




 \b \b
\f

Personal Settings 11-16
Personal Settings
Individual user settings such as the address
book, home location, and avoid areas can be
stored and edited.

1 Display the Navi Menu, and touch
[Navigation Setting]
eng_a502-2
2 Touch [Personal]
eng_a606
eng_a190-1The personal settings screen is displayed.
3 Touch each item to change the
setting
Address Book
If frequently visited locations are stored in
advance in the address book, the route to
the stored location can be calculated. The
locations can be stored or edited in the
address book. A maximum of 99 items
can be stored.
[New] A new location can be stored. Touch
[New], and then use the same
operations as
“Storing a New Location”
(page 5-1)
[Edit] Editing information about a stored
location. >>> “Editing a Location” (page
5-4)
[Delete] Deleting a stored location.>>> “Deleting” (page 5-5)
Home Location
Storing the home location and editing the
information.
[New] Storing the home location. When a
home location has already been stored,
a new one cannot be stored until the old
location is deleted with [Delete].
>>> “When Storing Your Home” (page
5-2)
[Edit] E diting the home information. The
operations are the same as from step 3
of
“Editing” (page 5-4)
[Delete] Deleting the home location. The
operations are the same as from step 4
of
“Deleting” (page 5-5)
Avoid Areas
Areas to be avoided in a route search can
be stored and edited. A maximum of 5
items can be stored.
Registering
Storing a new avoid area.
1 Touch [New]

2 Touch one of the [Empty] displays
eng_a182
3 Touch [Near Current Area] or [Jump
to Other Area]
eng_a183
NOTE“Destination” (page 3-1) to search for the location of
the avoid area.
\b \b
\f \




 \b \b
\f
