display MITSUBISHI LANCER RALLIART 2011 8.G MMCS Manual

Listening to MP3/WMA Disks 7-27
Audio
Listening to MP3/WMA Disks
If an MP3/WMA disk is inserted into the device,
the display is switched automatically to the CD
screen, and track playback is started.
NOTE

playback, however, is a similar operation.
music server.
album title, etc., the ID3 Tag or WMA Tag information
must be included in the MP3/WMA le on the disk.
>>> “MP3/WMA Files” (page 7-7)
Display Contents
eng_a327
1) Album Name (Folder Name)
The name of the album (name of the folder) for the track currently being played is displayed.
2) MP3/WMA symbol
Describes the type of media currently being played.
3) Track Number and Track Name
The number and name of the track currently being played is displayed.
4) [HOME]
Touch this button to move the cursor to the track currently being played.
5) [ ]
Touch this button to display the Sub Menu.
6) Folder Number/Folder Name
With track lists, the track number and le name (excluding the extension) is displayed.
7) [
Folder] and [ Folder ]
T
ouch these buttons to move down and up the
folders.
8) [
Track] and [Track ]
T
ouch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
9) Cursor
Displays the item currently selected.
10) Folder Layer Button
Touch this button to display the list of upper layer folders.
11) Cursor Position
Shows cursor position and total number of folders or tracks at current level.
12) Playback Mode

The currently selected playback mode is displayed.
13) Playback Time
The playback time for the track currently being played is displayed.
14) Artist Name
The name of the artist whose track (folder) is currently being played is displayed.
Basic Operations
Playback

1 Insert an MP3/WMA disk into the
device
>>> “Inserting and Removing Disks” (page 7-4)
>>> “Switching to Audio Screen” (page 7-3)
Playback is started automatically.
eng_a328
1)
4)
5) 3)6)8)
9)
12)13)14)
2)
7)
10)11 )
\b \b
\f \

  \b \b


Listening to MP3/WMA Disks 7-28
Moving FoldersFolders can be moved by one layer at a time.
1 Touch the folder name
eng_a329Each time a folder name is touched, the lower layer
folder list is displayed, and the folder layer mark is
increased.
2 Touch the folder layer button
eng_a330Folder layer button

eng_a328The selected folder list is displayed.
Track Selection

1 Touch either [ Folder] and [ Folder ],
or [
Track] and [Track ]
eng_a330
[ Folder] Selects the previous folder
[Folder ] Selects the next folder
[
Track] Use to select the previous track or the
start of the track currently being played.
T
ouch and hold to rewind. Play resumes
when the button is released.
[Track
] Use to select the next track. Touch and hold to fast-forward. Play resumes when
the button is released.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the MP3/WMA disk playback screen.
Repeat Playback
The track currently being played can be listened to
repeatedly.
1 Touch [ ]
eng_a328
2 Touch [Repeat]
eng_a331The track currently being played is played repeatedly.
\b \b
\f \

  \b \b


To play tracks from iPod or USB device 7-31
Audio
To play tracks from
iPod or USB device
(if so equipped)
“iPod” is a registered trademark of Apple Inc.
in the United States and other countries.
To play from an iPod
1 Press the [MODE] key, and touch [iPod]
eng_a676
NOTE
displayed.
iPod.

The display screen may differ depending on the file
composition of the iPod or the vehicle installation type.
iPod ScreenDisplay example (Category)
eng_a651
Display example (Track)
eng_a652
Display example (Sub Menu)
eng_a653
1) Title
[iPod] is displayed while an iPod is playing.
2) [ Home ]
Touch this button to move the cursor to the track currently being played.
3) [
Track], [Track ]
[
Track]Use to select the previous track or
the start of the track currently being
played. Touch and hold to rewind. Play
resumes when the button is released.
[Track ]Use to select the next track. Touch
and hold to fast-forward. Play
resumes when the button is released.
4) Category Button
Changes to display each of the categories.

: ROOT
: Playlists
: Artists
: Albums
: Songs
: Genres
5) Playback Mode
The currently selected playback mode is displayed.
6) Album Name (Folder name)
The name of the album (name of the folder) for the track currently being played is displayed.
7) Cursor
Displays the item currently selected.
8) Track Number and Track Name
The number and name of the track currently being played is displayed.
9) [ ]
Touch this button to display the Sub Menu.
10) Playback Time
The playback time for the track currently being played is displayed.
11) Artist Name
The name of the artist whose track is currently being played is displayed.
12) [Repeat]
Each time [Repeat] is touched, the playback mode changes.
REPEAT T h e t r a c k c u r re n tly being played
plays repeatedly.
(OFF) Cancels the repeat playback.
13) [Back]
Deletes the Sub Menu.
14) [Random]
Each time [Random] is touched, the playback mode changes.
RANDOM Performs random playback on all
tracks.
Album
RANDOM Performs random playback on all
Albums.
(OFF) Cancels the random playback.
12)
14)
13)
1)
2)
3)
5)
4)
8)
10)
11 )
6)
7)
9)
4)
\b \b
\f \


 \b \b


To play tracks from iPod or USB device 7-32
To play from a USB memory device
1 Press the [MODE] key, and touch [USB]
eng_a677
NOTE
iPod] or [iPod] is displayed.
If [USB] is not displayed, check the connection of the
USB memory device.
device being connected.
USB memory device ScreenDisplay example
eng_a654
Display example (Sub Menu)
eng_a655
1) Media type
Displays the le format during playback. [MP3], [WMA], [AAC], [WAV]
2) Title

[USB] is displayed while a USB memory device is playing.
3) Track Number and Track Name
The number and name of the track currently being played is displayed.
4) [ Home ]
Touch this button to move the cursor to the track currently being played.
5) Cursor
Displays the item currently selected.
6) [ ]
Touch this button to display the Sub Menu.
7) [
Folder] and [ Folder ]
[ Folder] Selects the previous folder
[Folder ] Selects the next folder
8) Playlist Button
Changes to playlist mode.
9) [
Track] and [Track ]
[ Track]Use to select the previous track or
the start of the track currently being
played. Touch and hold to rewind. Play
resumes when the button is released.
[Track ]Use to select the next track. Touch
and hold to fast-forward. Play
resumes when the button is released.
10) Layer Operation Button
Touch this button to display the list of upper layer folders.
11) Playback Mode

The currently selected playback mode is displayed.
12) Artist Name
The name of the artist whose track is currently being played is displayed. 13) Album Name (Folder name)
The name of the album (name of the folder) for the
track currently being played is displayed.
14) [SCAN]

Each time [Scan] is touched, the playback mode changes.
SCANPerforms scan playback on all the tracks
in the folder currently being played.
FOLDER-
SCANPerforms scan playback on the rst
track in all the folders on the USB
memory device.
(OFF) Cancels the scan playback.
15) [Repeat]
Each time [Repeat] is touched, the playback mode changes.
REPEAT The track currently being played plays repeatedly.
FOLDER-
REPEAT All tracks in the folder currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
16) [Database]
Displays the Gracenote version.
17) [Help]
Displays the VR Command List.
18) [Back]
Deletes the Sub Menu.
19) [Random]

Each time [Random] is touched, the playback mode changes.
RANDOMPerforms random playback on all the
tracks in the folder currently being played.
ALL-RANDOMPerforms random playback on all the
tracks on the USB memory device.
(OFF) Cancels the random playback.
20) Playback Time
The playback time for the track currently being played is displayed.
2)
4)
8)6)
12) 13)1)
3)
5)
7) 9)
10)
11 )
14)
15)
16)17) 19)18)
20)
\b \b
\f \

  \b \b
\f

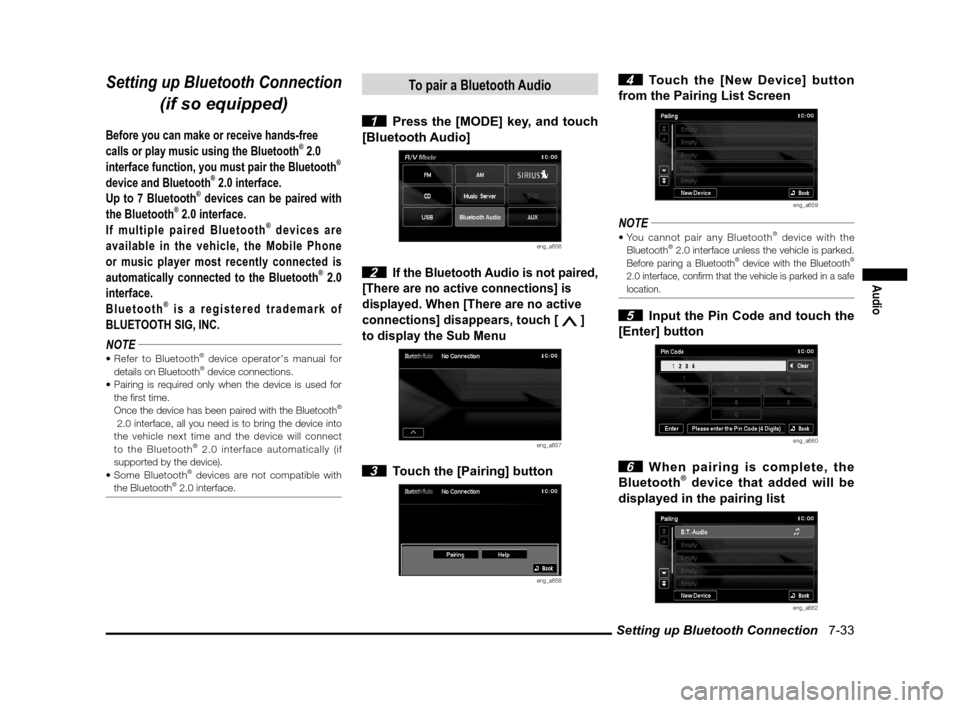

Setting up Bluetooth Connection 7-33
Audio
Setting up Bluetooth Connection
(if so equipped)
Before you can make or receive hands-free
calls or play music using the Bluetooth® 2.0
interface function, you must pair the Bluetooth®
device and Bluetooth® 2.0 interface.
Up to 7 Bluetooth® devices can be paired with
the Bluetooth® 2.0 interface.
If multiple paired Bluetooth® devices are
available in the vehicle, the Mobile Phone
or music player most recently connected is
automatically connected to the Bluetooth
® 2.0
interface.
Bluetooth
® is a registered trademark of
BLUETOOTH SIG, INC.
NOTE
® device operator's manual for
details on Bluetooth® device connections.
the rst time.

Once the device has been paired with the Bluetooth®
2.0 interface, all you need is to bring the device into
the vehicle next time and the device will connect
to the Bluetooth
® 2.0 interface automatically (if
supported by the device).
Bluetooth® devices are not compatible with
the Bluetooth® 2.0 interface.
To pair a Bluetooth Audio
1 Press the [MODE] key, and touch
[Bluetooth Audio]
eng_a656
2 If the Bluetooth Audio is not paired,
[There are no active connections] is
displayed.
When [There are no active
connections] disappears, touch [
]
to display the Sub Menu
eng_a657
3 Touch the [Pairing] button
eng_a658
4 Touch the [New Device] button
from the Pairing List Screen
eng_a659
NOTE® device with the
Bluetooth® 2.0 interface unless the vehicle is parked. Before paring a Bluetooth® device with the Bluetooth®
2.0 interface, con rm that the vehicle is parked in a safe
location.
5 Input the Pin Code and touch the
[Enter] button
eng_a660
6 When pairing is complete, the
Bluetooth® device that added will be
displayed in the pairing list
eng_a662
\b \b
\f \

  \b \b
\f

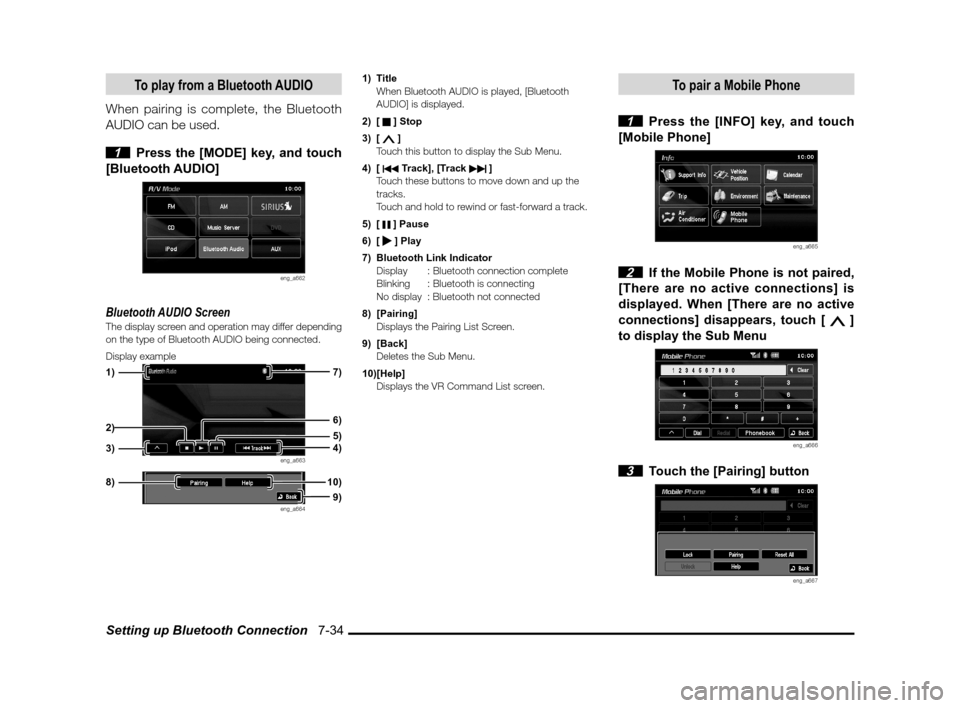

Setting up Bluetooth Connection 7-34
To play from a Bluetooth AUDIO
When pairing is complete, the Bluetooth
AUDIO can be used.

1 Press the [MODE] key, and touch
[Bluetooth AUDIO]
eng_a662
Bluetooth AUDIO ScreenThe display screen and operation may differ depending
on the type of Bluetooth AUDIO being connected.
Display example
eng_a663
eng_a664
1) Title
When Bluetooth AUDIO is played, [Bluetooth
AUDIO] is displayed.
2) [ ] Stop
3) [ ]
Touch this button to display the Sub Menu.
4) [
Track], [Track ]
Touch these buttons to move down and up the
tracks.
Touch and hold to rewind or fast-forward a track.
5) [ ] Pause
6) [
] Play
7) Bluetooth Link Indicator
Display : Bluetooth connection complete
Blinking : Bluetooth is connecting
No display : Bluetooth not connected
8) [Pairing]
Displays the Pairing List Screen.
9) [Back]
Deletes the Sub Menu.
10) [Help]
Displays the VR Command List screen.
To pair a Mobile Phone
1 Press the [INFO] key, and touch
[Mobile Phone]
eng_a665
2 If the Mobile Phone is not paired,
[There are no active connections] is
displayed. When [There are no active
connections] disappears, touch [
]
to display the Sub Menu
eng_a666
3 Touch the [Pairing] button
eng_a667
7)
1)
3) 6)
2)5)
4)
8)
9)
10)
\b \b
\f \

 \b \b \b
\f

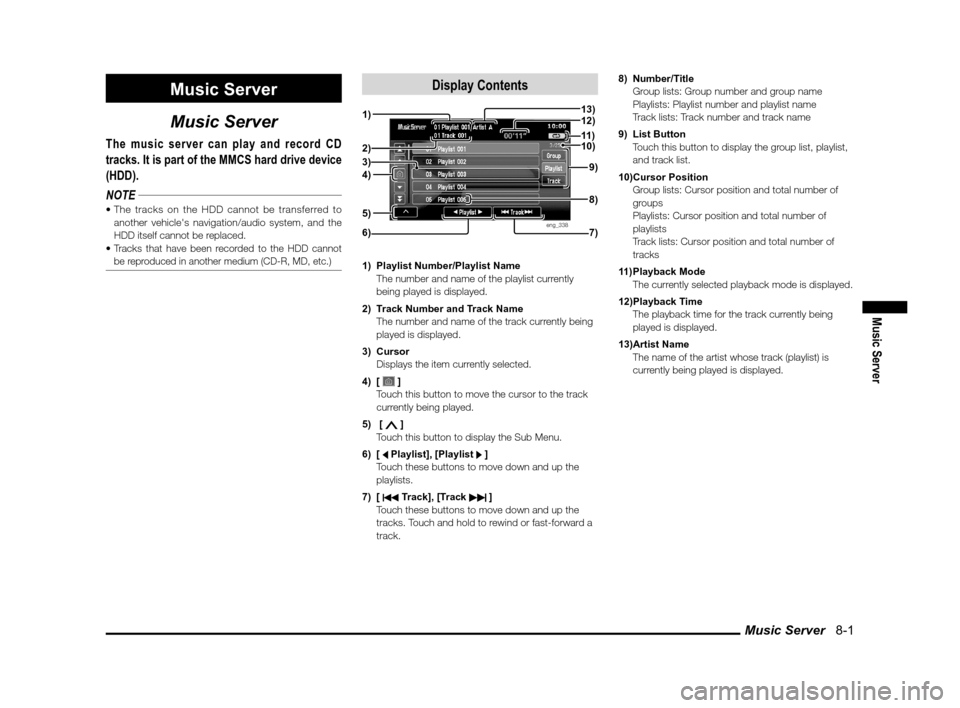

Music Server 8-1
Music Server
Music Server
Music Server
The music server can play and record CD
tracks. It is part of the MMCS hard drive device
(HDD).
NOTE
another vehicle's navigation/audio system, and the
HDD itself cannot be replaced.

Tracks that have been recorded to the HDD cannot
be reproduced in another medium (CD-R, MD, etc.)
Display Contents
eng_338
1) Playlist Number/Playlist Name
The number and name of the playlist currently being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being played is displayed.
3) Cursor
Displays the item currently selected.
4) [
]
T
ouch this button to move the cursor to the track
currently being played.
5) [
]
Touch this button to display the Sub Menu.
6) [ Playlist], [Playlist ]
Touch these buttons to move down and up the
playlists.
7) [
Track], [Track ]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track. 8) Number/Title
Group lists: Group number and group name
Playlists: Playlist number and playlist name
Track lists: Track number and track name
9) List Button
Touch this button to display the group list, playlist,
and track list.
10) Cursor Position
Group lists: Cursor position and total number of groups
Playlists: Cursor position and total number of playlists
Track lists: Cursor position and total number of tracks
11) Playback Mode
The currently selected playback mode is displayed.
12) Playback Time
The playback time for the track currently being played is displayed.
13) Artist Name
The name of the artist whose track (playlist) is currently being played is displayed.
4) 2)
1)
3)
6) 7) 8) 9)
10) 11 ) 13)
12)
5)
\b \b
\f \


 \b \b

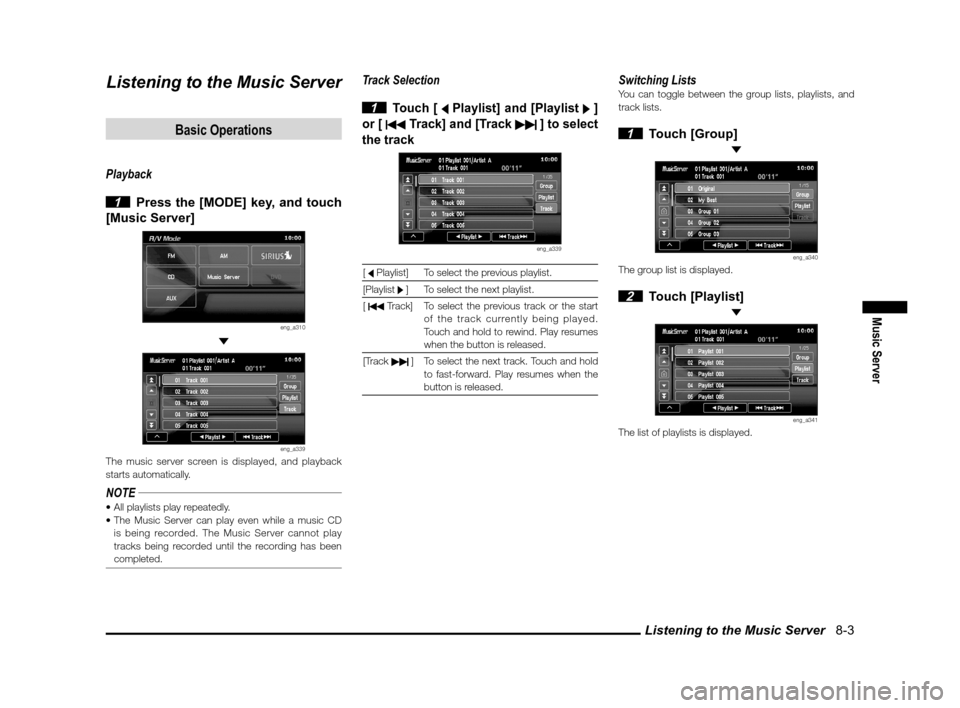

Listening to the Music Server 8-3
Music Server
Listening to the Music Server
Basic Operations
Playback

1 Press the [MODE] key, and touch
[Music Server]
eng_a310
eng_a339The music server screen is displayed, and playback
starts automatically.
NOTE

is being recorded. The Music Server cannot play
tracks being recorded until the recording has been
completed.
Track Selection

1 Touch [ Playlist] and [Playlist ]
or [
Track] and [Track ] to select
the track
eng_a339
[ Playlist] To select the previous playlist.
[Playlist ] To select the next playlist.
[
Track] To select the previous track or the start
of the track currently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] To select the next track. Touch and hold to fast-forward. Play resumes when the
button is released.
Switching ListsYou can toggle between the group lists, playlists, and
track lists.
1 Touch [Group]
eng_a340The group list is displayed.
2 Touch [Playlist]
eng_a341The list of playlists is displayed.
\b \b
\f \

  \b \b

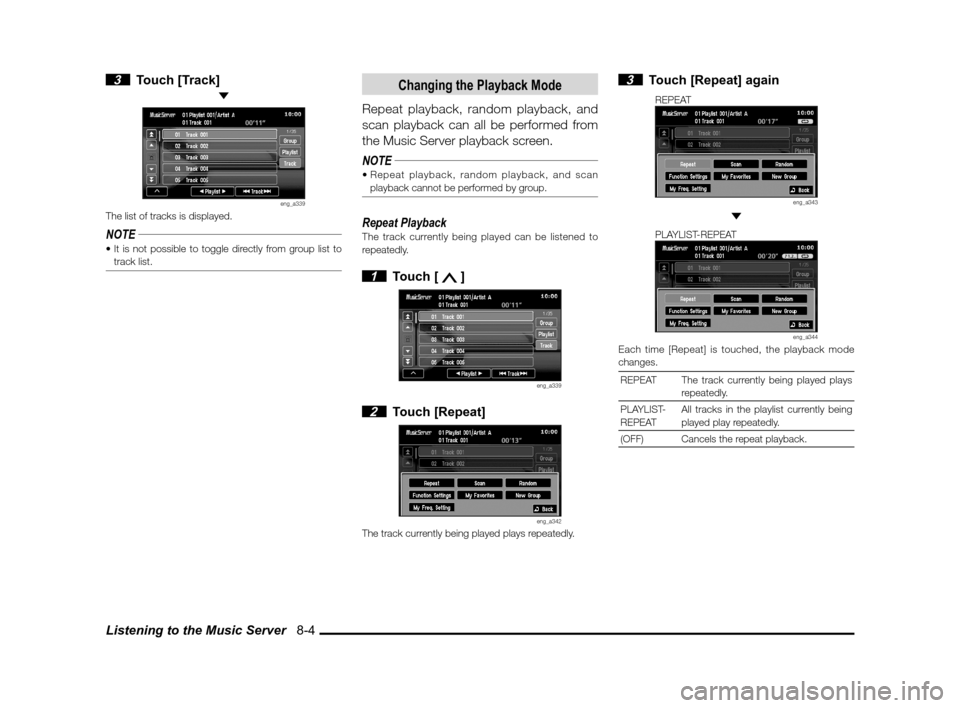

Listening to the Music Server 8-4
3 Touch [Track]
eng_a339The list of tracks is displayed.
NOTE
track list.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the Music Server playback screen.
NOTE
playback cannot be performed by group.
Repeat PlaybackThe track currently being played can be listened to
repeatedly.
1 Touch [ ]
eng_a339
2 Touch [Repeat]
eng_a342The track currently being played plays repeatedly.
3 Touch [Repeat] again
REPEAT
eng_a343
PLAYLIST-REPEAT
eng_a344Each time [Repeat] is touched, the playback mode
changes.REPEAT The track currently being played plays
repeatedly.
PLAYLIST-
REPEAT All tracks in the playlist currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
\b \b
\f \

 \b \b \b

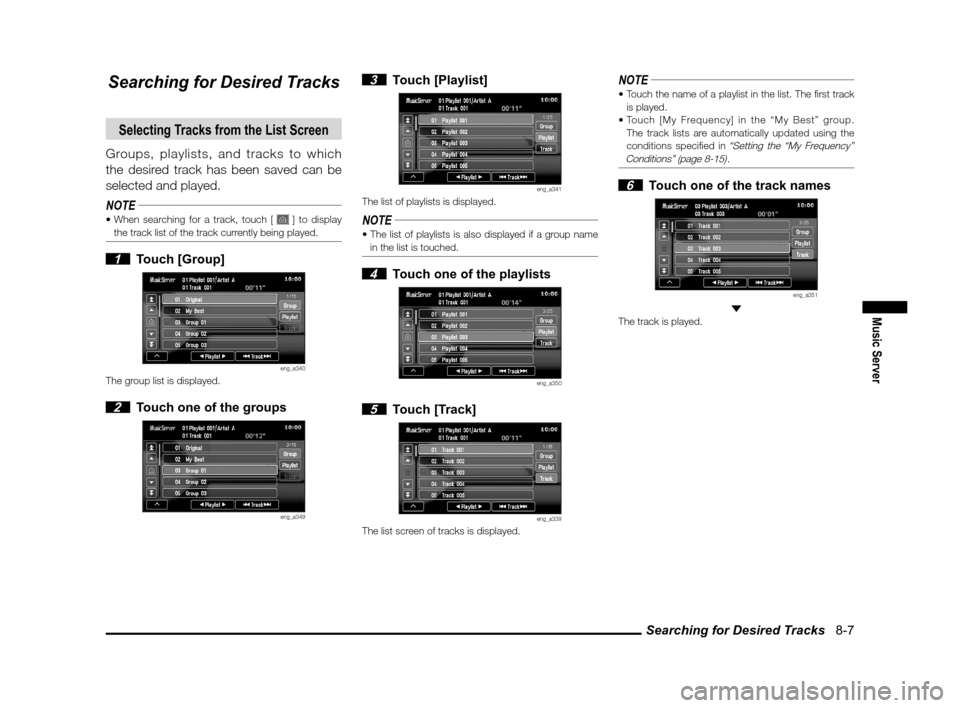

Searching for Desired Tracks 8-7
Music Server
Searching for Desired Tracks
Selecting Tracks from the List Screen
Groups, playlists, and tracks to which
the desired track has been saved can be
selected and played.
NOTE
] to display
the track list of the track currently being played.
1 Touch [Group]
eng_a340The group list is displayed.
2 Touch one of the groups
eng_a349
3 Touch [Playlist]
eng_a341The list of playlists is displayed.
NOTE
in the list is touched.
4 Touch one of the playlists
eng_a350
5 Touch [Track]
eng_a339The list screen of tracks is displayed.
NOTEis played.
The track lists are automatically updated using the
conditions speci ed in
“Setting the “My Frequency”
Conditions” (page 8-15).
6 Touch one of the track names
eng_a351
The track is played.
\b \b
\f \

  \b \b
\f
