MITSUBISHI LANCER RALLIART 2011 8.G MMCS Manual

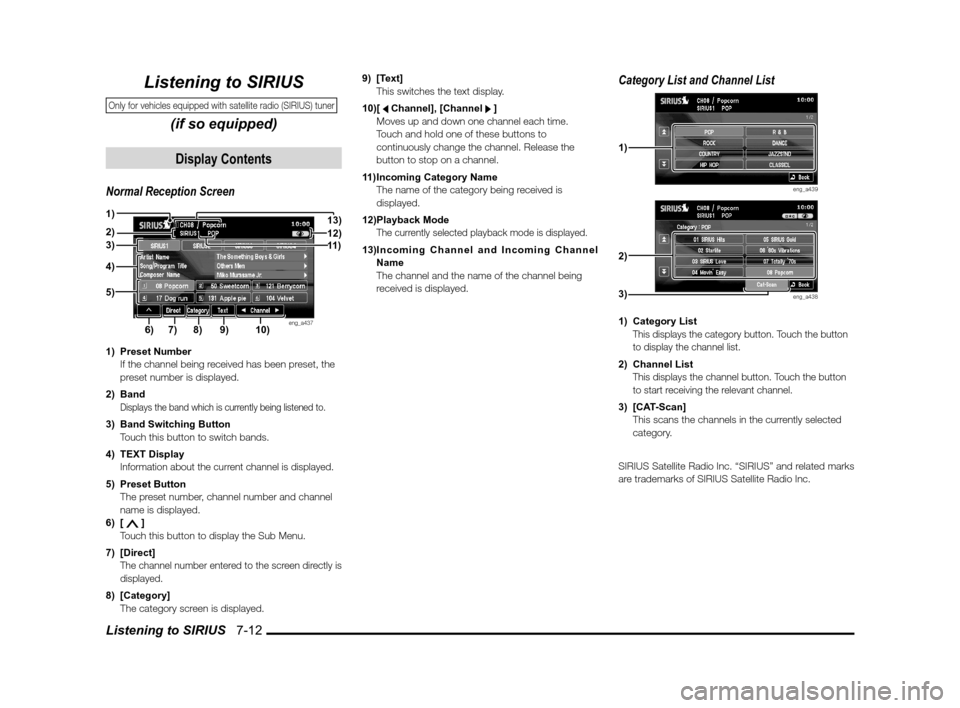

Listening to SIRIUS 7-12
9) [Text]
This switches the text display.
10) [
Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is displayed.
12) Playback Mode

The currently selected playback mode is displayed.
13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439
eng_a438
1) Category List This displays the category button. Touch the button to display the channel list.
2) Channel List This displays the channel button. Touch the button to start receiving the relevant channel.
3) [CAT-Scan]
This scans the channels in the currently selected category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
1)
2)
3)
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
(if so equipped) Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the preset number is displayed.
2) Band

Displays the band which is currently being listened to.
3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display

Information about the current channel is displayed.
5) Preset Button
The preset number, channel number and channel name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct]
The channel number entered to the screen directly is displayed.
8) [Category]
The category screen is displayed.
2)
3)
4)
5)
6) 7) 8) 9) 10)
12) 13)
1)
11 )
\b \b
\f \


 \b
\b
 \f

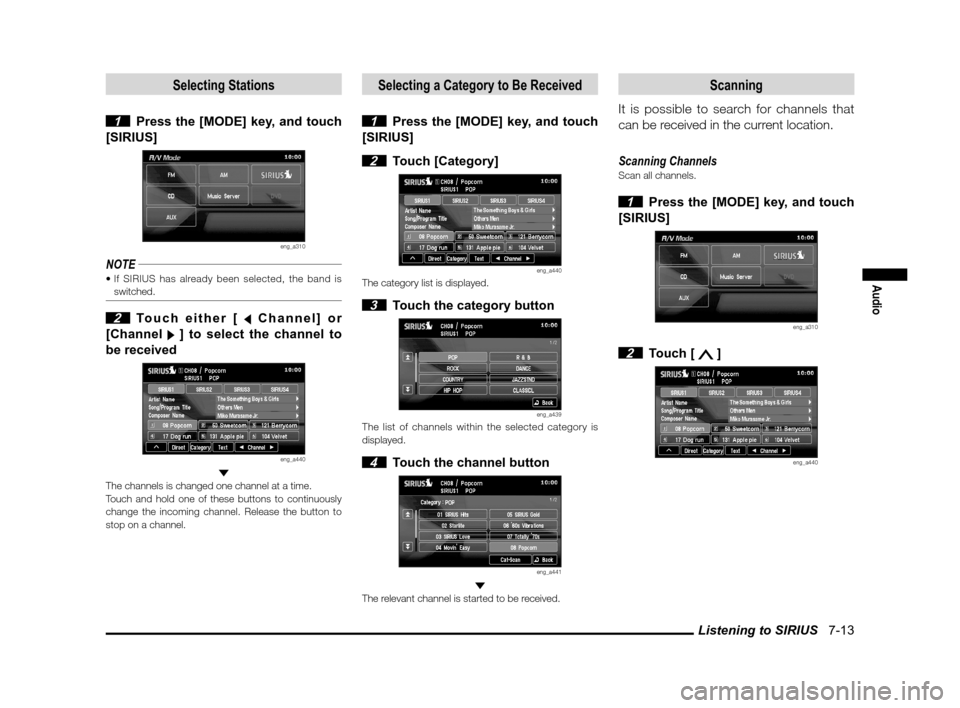

Listening to SIRIUS 7-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE
switched.
2 Touch either [ Channel] or
[Channel
] to select the channel to
be received
eng_a440
The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]

2 Touch [Category]
eng_a440The category list is displayed.
3 Touch the category button
eng_a439The list of channels within the selected category is
displayed.
4 Touch the channel button
eng_a441
The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning Channels
Scan all channels.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [ ]
eng_a440
\b \b
\f \


 \b
\b
 \f

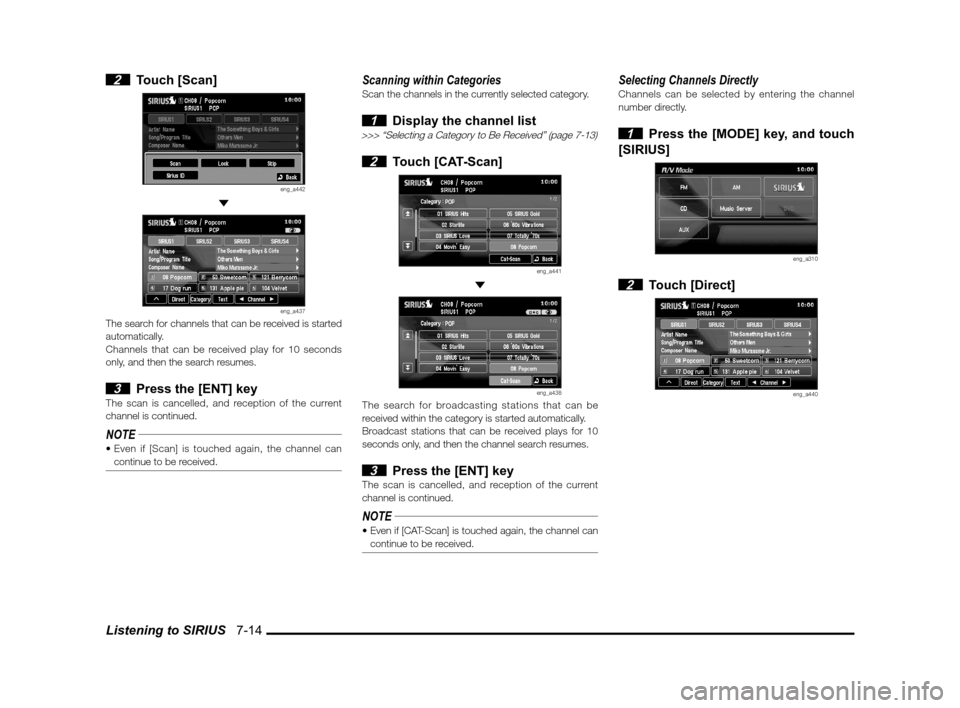

Listening to SIRIUS 7-14
2 Touch [Scan]
eng_a442
eng_a437The search for channels that can be received is started
automatically.
Channels that can be received play for 10 seconds
only, and then the search resumes.
3 Press the [ENT] keyThe scan is cancelled, and reception of the current
channel is continued.
NOTE
continue to be received.
Scanning within CategoriesScan the channels in the currently selected category.
1 Display the channel list>>> “Selecting a Category to Be Received” (page 7-13)
2 Touch [CAT-Scan]
eng_a441
eng_a438The search for broadcasting stations that can be
received within the category is started automatically.
Broadcast stations that can be received plays for 10
seconds only, and then the channel search resumes.
3 Press the [ENT] keyThe scan is cancelled, and reception of the current
channel is continued.
NOTEcontinue to be received.
Selecting Channels DirectlyChannels can be selected by entering the channel
number directly.
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [Direct]
eng_a440
\b \b
\f \


\b \b
\b
 \f

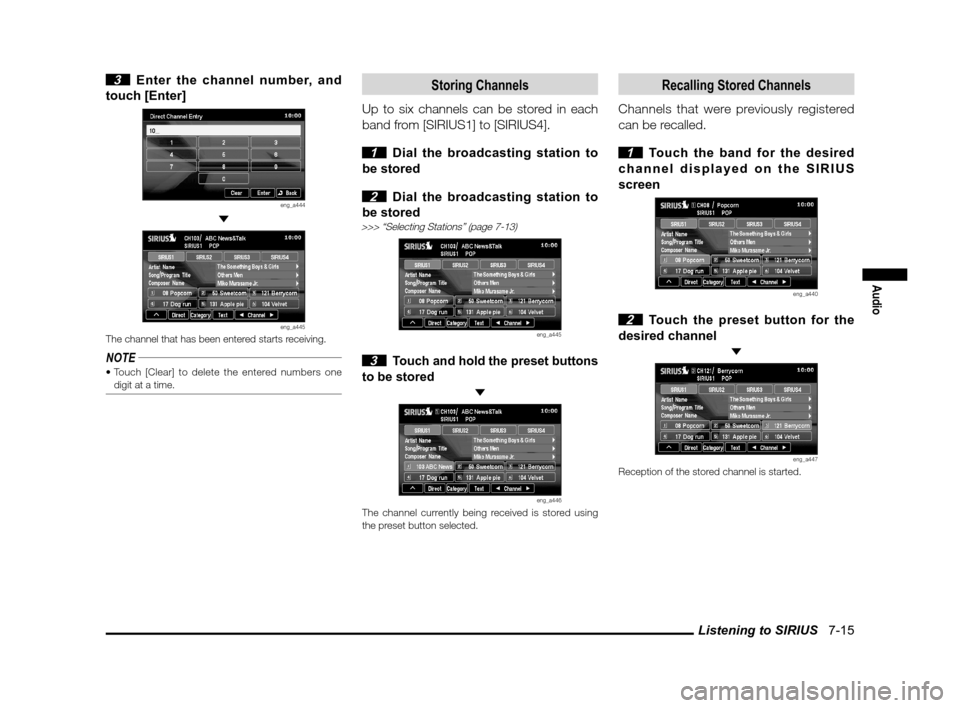

Listening to SIRIUS 7-15
Audio
3 Enter the channel number, and
touch [Enter]
eng_a444
eng_a445The channel that has been entered starts receiving.
NOTE
digit at a time.
Storing Channels
Up to six channels can be stored in each
band from [SIRIUS1] to [SIRIUS4].

1 Dial the broadcasting station to
be stored

2 Dial the broadcasting station to
be stored
>>> “Selecting Stations” (page 7-13)
eng_a445
3 Touch and hold the preset buttons
to be stored

eng_a446The channel currently being received is stored using
the preset button selected.
Recalling Stored Channels
Channels that were previously registered
can be recalled.

1 Touch the band for the desired
channel displayed on the SIRIUS
screen
eng_a440
2 Touch the preset button for the
desired channel

eng_a447Reception of the stored channel is started.
\b \b
\f \


 \b
\b
 \f

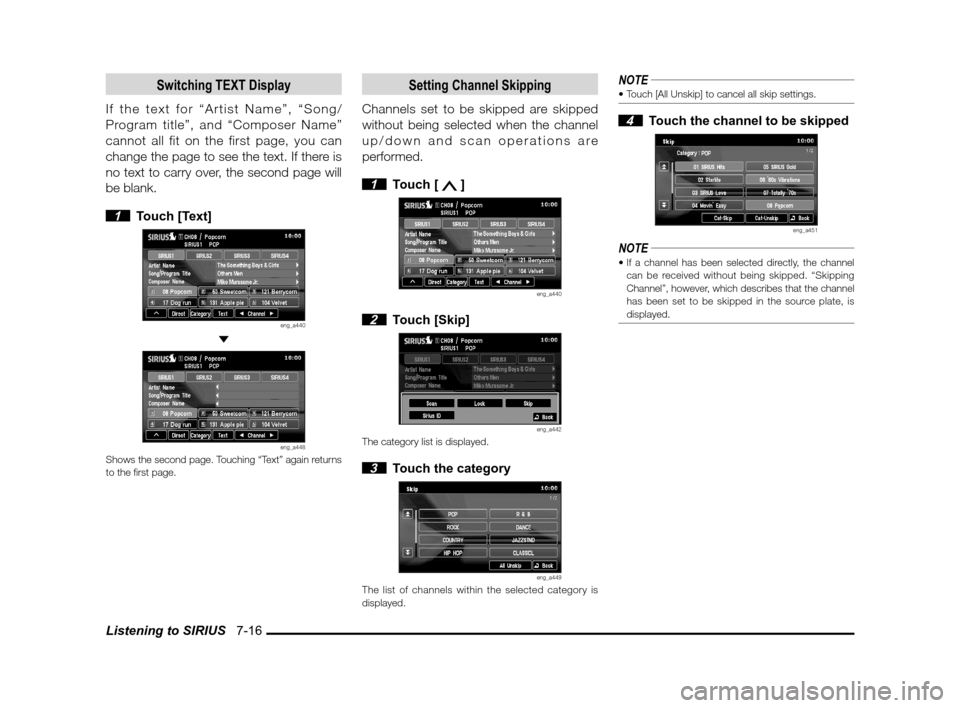

Listening to SIRIUS 7-16
Switching TEXT Display
If the text for “Artist Name”, “Song/
Program title”, and “Composer Name”
cannot all fit on the first page, you can
change the page to see the text. If there is
no text to carry over, the second page will
be blank.

1 Touch [Text]
eng_a440
eng_a448Shows the second page. Touching “Text” again returns
to the rst page.
Setting Channel Skipping
Channels set to be skipped are skipped
without being selected when the channel
up/down and scan operations are
performed.

1 Touch [ ]
eng_a440
2 Touch [Skip]
eng_a442The category list is displayed.
3 Touch the category
eng_a449The list of channels within the selected category is
displayed.
NOTE
4 Touch the channel to be skipped
eng_a451
NOTE
can be received without being skipped. “Skipping
Channel”, however, which describes that the channel
has been set to be skipped in the source plate, is
displayed.
\b \b
\f \


 \b
\b
 \f

Listening to SIRIUS 7-17
Audio

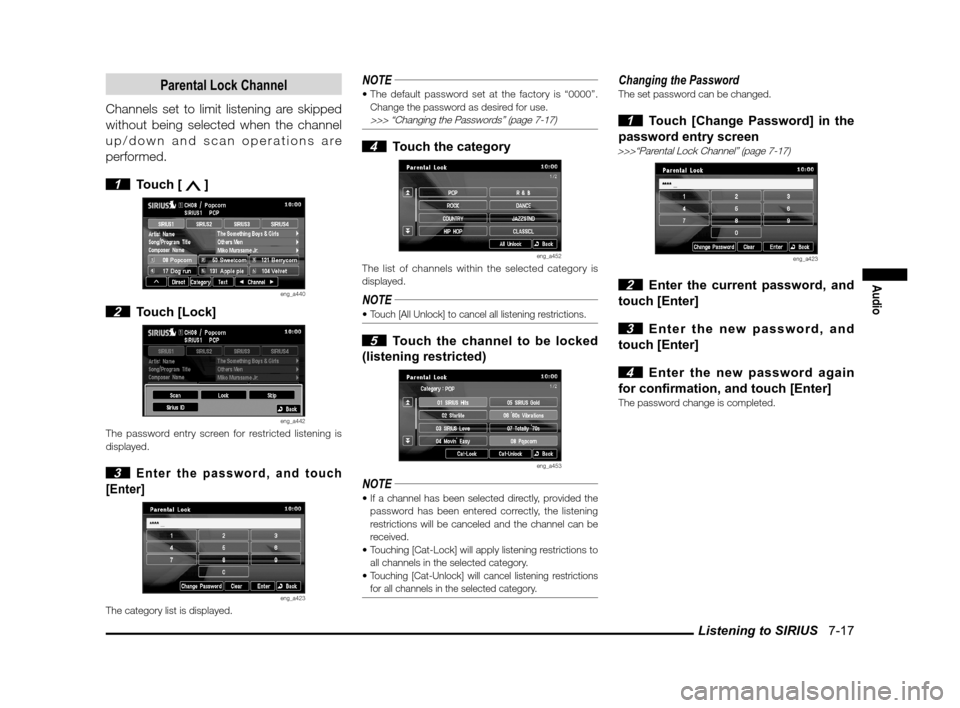

Parental Lock Channel
Channels set to limit listening are skipped
without being selected when the channel
up/down and scan operations are
performed.

1 Touch [ ]
eng_a440
2 Touch [Lock]
eng_a442The password entry screen for restricted listening is
displayed.
3 Enter the password, and touch
[Enter]
eng_a423The category list is displayed.
NOTE
Change the password as desired for use.

>>> “Changing the Passwords” (page 7-17)
4 Touch the category
eng_a452The list of channels within the selected category is
displayed.
NOTETouch [All Unlock] to cancel all listening restrictions.
5 Touch the channel to be locked
(listening restricted)
eng_a453
NOTE
password has been entered correctly, the listening
restrictions will be canceled and the channel can be
received.
all channels in the selected category.

Touching [Cat-Unlock] will cancel listening restrictions
for all channels in the selected category.
Changing the PasswordThe set password can be changed.
1 Touch [Change Password] in the
password entry screen
>>>“Parental Lock Channel” (page 7-17)
eng_a423
2 Enter the current password, and
touch [Enter]

3 Enter the new password, and
touch [Enter]

4 Enter the new password again
for confi rmation, and touch [Enter]
The password change is completed.
\b \b
\f \


 \b
\b
 \f

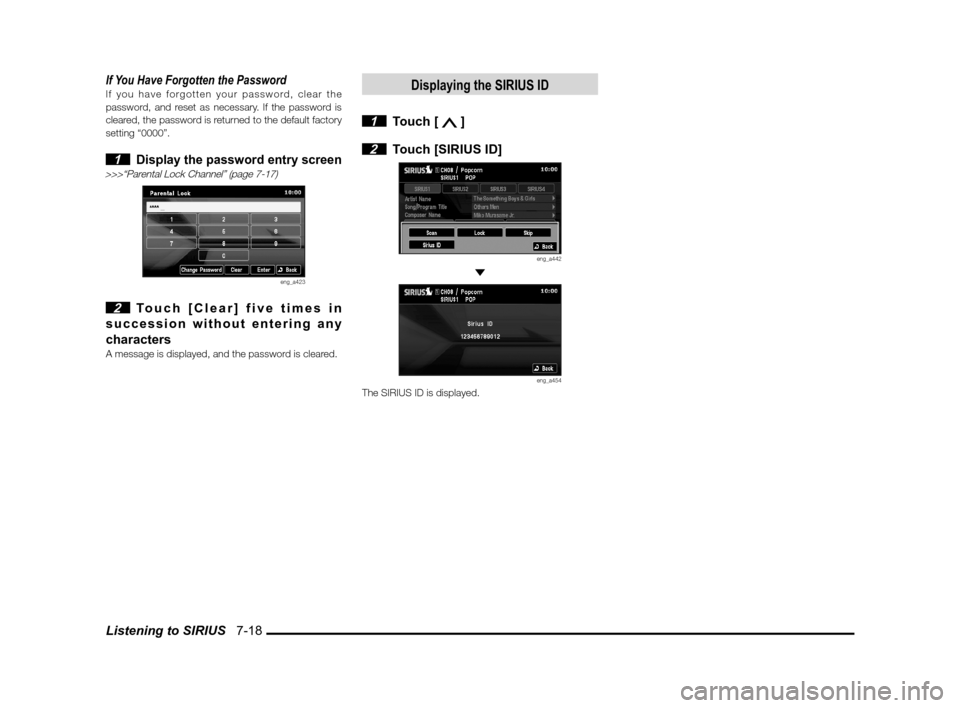

Listening to SIRIUS 7-18
If You Have Forgotten the PasswordIf you have forgotten your password, clear the
password, and reset as necessary. If the password is
cleared, the password is returned to the default factory
setting “0000”.
1 Display the password entry screen>>>“Parental Lock Channel” (page 7-17)
eng_a423
2 Touch [Clear] five times in
succession without entering any
characters
A message is displayed, and the password is cleared.
Displaying the SIRIUS ID
1 Touch [ ]

2 Touch [SIRIUS ID]
eng_a442
eng_a454The SIRIUS ID is displayed.
\b \b
\f \


 \b
\b
 \f

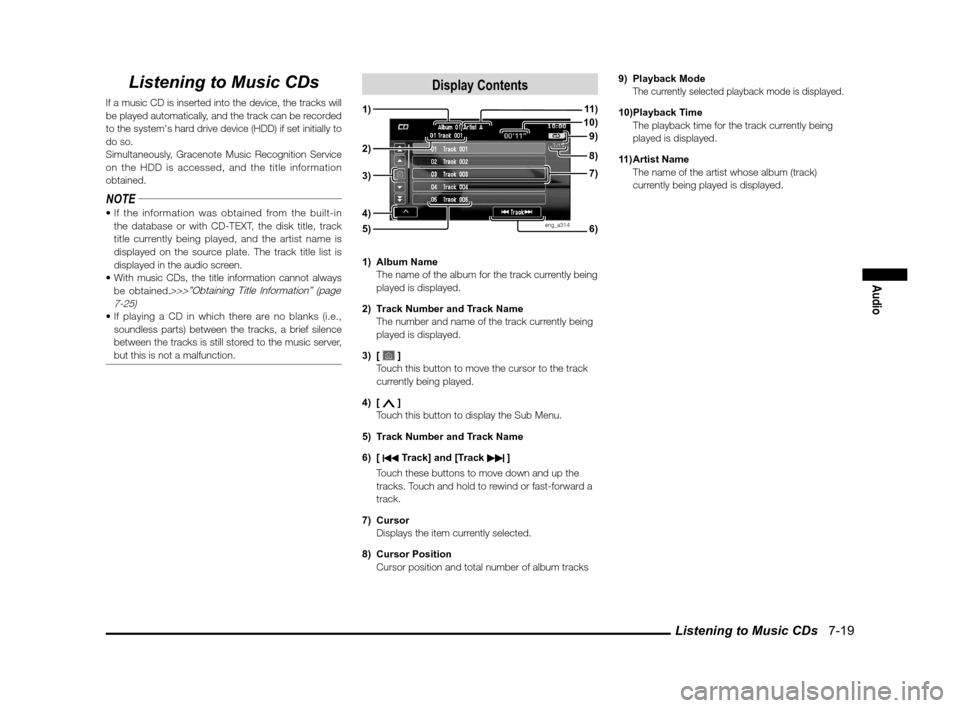

Listening to Music CDs 7-19
Audio
Listening to Music CDs
If a music CD is inserted into the device, the tracks will
be played automatically, and the track can be recorded
to the system's hard drive device (HDD) if set initially to
do so.
Simultaneously, Gracenote Music Recognition Service
on the HDD is accessed, and the title information
obtained.
NOTE
the database or with CD-TEXT, the disk title, track
title currently being played, and the artist name is
displayed on the source plate. The track title list is
displayed in the audio screen.
be obtained.
>>>”Obtaining Title Information” (page
7-25)
soundless parts) between the tracks, a brief silence
between the tracks is still stored to the music server,
but this is not a malfunction.
Display Contents
eng_a314
1) Album Name
The name of the album for the track currently being played is displayed.
2) Track Number and Track Name
The number and name of the track currently being played is displayed.
3) [
]
T
ouch this button to move the cursor to the track
currently being played.
4) [
]
Touch this button to display the Sub Menu.
5) Track Number and Track Name
6) [
Track] and [Track ]
T
ouch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
7) Cursor
Displays the item currently selected.
8) Cursor Position
Cursor position and total number of album tracks 9) Playback Mode

The currently selected playback mode is displayed.
10) Playback Time
The playback time for the track currently being
played is displayed.
11) Artist Name
The name of the artist whose album (track) currently being played is displayed.
1)
3)
4) 2)
5)6)
7)
8)
9)10)11 )
\b \b
\f \


 \b \b


Listening to Music CDs 7-20
Basic Operations
Playback

1 Insert a CD into the device>>> “Inserting and Removing Disks” (page 7-4)
>>> “Switching to Audio Screen” (page 7-3)
Playback or recording is started automatically.
eng_a315
Track Selection

1 Touch either [ Track] or [Track ]
to select the track
eng_a313
[ Track] Use to select the previous track or the
start of the track curr
ently being played.
Touch and hold to rewind. Play resumes
when the button is released.
[Track
] Use to select the next track. Touch and hold to fast-forward. Play resumes when
the button is released.
Changing the Playback Mode
Repeat playback, random playback, and
scan playback can all be performed from
the CD playback screen.
Repeat Playback
The track currently being played can be listened to
repeatedly.
1 Touch [ ]
eng_a313
2 Touch [Repeat]
eng_a316
eng_a317The track currently being played is played repeatedly.
NOTE

Scan PlaybackThe start of each track is played for approximately 10
seconds each. Use to nd a desired track.
1 Touch [ ]
eng_a313
2 Touch [Scan]
eng_a316
eng_a318Scan playback will be performed from the track after
the track currently being played.
The tracks on a CD are scanned for 10 seconds each.
\b \b
\f \

  \b \b

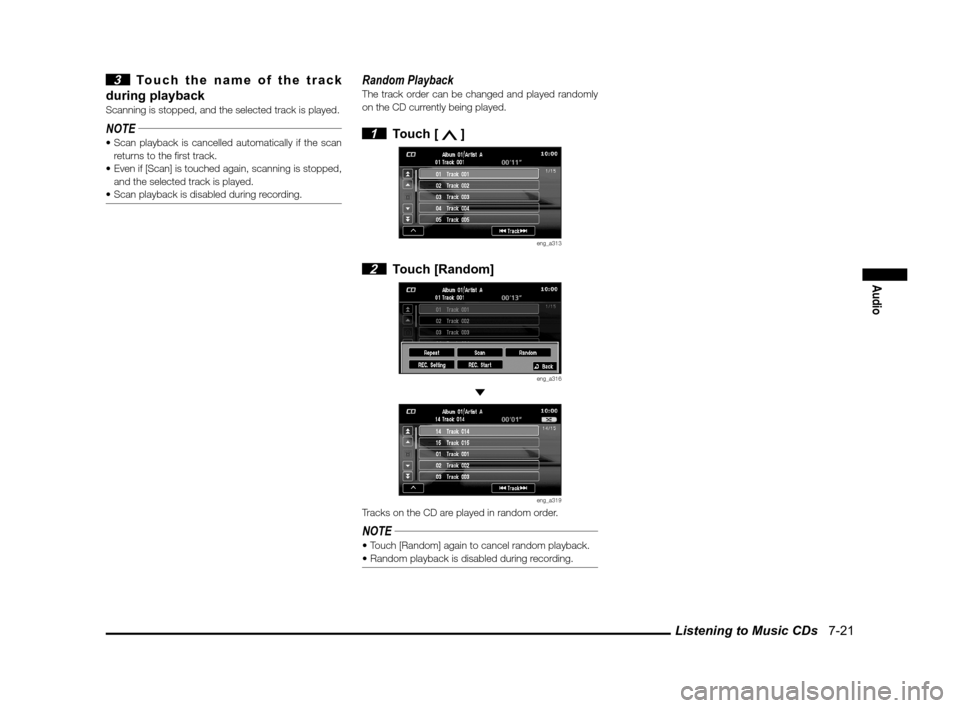

Listening to Music CDs 7-21
Audio
3 Touch the name of the track
during playback
Scanning is stopped, and the selected track is played.
NOTE
returns to the rst track.
and the selected track is played.

Random PlaybackThe track order can be changed and played randomly
on the CD currently being played.
1 Touch [ ]
eng_a313
2 Touch [Random]
eng_a316
eng_a319Tracks on the CD are played in random order.
NOTE

\b \b
\f \


 \b \b
