USB MITSUBISHI LANCER RALLIART 2011 8.G MMCS Manual

Table of Contents 1-3
IntroductionAddress Book
Storing a New Location ----------------------- 5-1
From the Navi Menu ------------------------------------ 5-1
From the Scroll Menu ---------------------------------- 5-1
To Customize/Modify Address ----------------------- 5-2
When Storing Your Home ----------------------------- 5-2
Icons -------------------------------------------------------- 5-3
Editing a Location ------------------------------ 5-4
Editing ------------------------------------------------------ 5-4
Deleting ---------------------------------------------------- 5-5
RTT(Real Time Traffi c)
RTT(Real Time Traffi c) ------------------------- 6-1
Viewing the Traffi c Information ----------------------- 6-1
Dynamic Route Guidance ----------------------------- 6-2
Storing from the RTT Traffi c Information Screen ------ 6-2
Storing from the Map Scroll Screen ---------------- 6-3
Recalling Stored Screens ----------------------------- 6-3
RTT Options ---------------------------------------------- 6-4
Audio
Audio Functions --------------------------------- 7-1
Displaying during Navi Functions ------------------- 7-1
Source Plate ---------------------------------------------- 7-1
A/V Icon ---------------------------------------------------- 7-2
Operation Limits while Driving ----------------------- 7-2
Switching to Audio Screen ---------------------------- 7-3
Ending Audio --------------------------------------------- 7-3
Adjusting the Volume ----------------------------------- 7-3
Displaying the Navi Screen --------------------------- 7-3
Disk Handling ------------------------------------7-4
Inserting and Removing Disks ----------------------- 7-4
Correct Disk Handling ---------------------------------- 7-5
Types of Playable Disks -----------------------7-6
Non-Standard CDs -------------------------------------- 7-6
Meaning of the Logos on DVDs --------------------- 7-6
MP3/WMA Files ------------------------------------------ 7-7
Folder Con fi gurations ---------------------------------- 7-7
MP3s ------------------------------------------------------- 7-7
WMA -------------------------------------------------------- 7-8
Listening to Radio ------------------------------7-9
Selecting Stations --------------------------------------- 7-9
Scanning Broadcasting Stations -------------------- 7-9
Storing Broadcast Stations ------------------------- 7-10
Recalling Stored Stations --------------------------- 7-11
Listening to SIRIUS --------------------------- 7-12
Display Contents -------------------------------------- 7-12
Selecting Stations ------------------------------------- 7-13
Selecting a Category to Be Received ------------ 7-13
Scanning ------------------------------------------------ 7-13
Storing Channels -------------------------------------- 7-15
Recalling Stored Channels ------------------------- 7-15
Switching TEXT Display ----------------------------- 7-16
Setting Channel Skipping --------------------------- 7-16
Parental Lock Channel ------------------------------- 7-17
Displaying the SIRIUS ID --------------------------- 7-18
Listening to Music CDs --------------------- 7-19
Display Contents -------------------------------------- 7-19
Basic Operations -------------------------------------- 7-20
Changing the Playback Mode ---------------------- 7-20
Recording to the Music Server ----------- 7-22
Displaying during Recording ----------------------- 7-22
Recording ----------------------------------------------- 7-22
Stopping Recording ----------------------------------- 7-24
Obtaining Title Information ---------------- 7-25
Gracenote Service ------------------------------------ 7-25
Obtaining Title Information -------------------------- 7-25
Listening to MP3/WMA Disks ------------- 7-27
Display Contents -------------------------------------- 7-27
Basic Operations -------------------------------------- 7-27
Changing the Playback Mode ---------------------- 7-28
To play tracks from iPod or USB device ---- 7-31
To play from an iPod ---------------------------------- 7-31
To play from a USB memory device -------------- 7-32
Setting up Bluetooth Connection -------- 7-33
To pair a Bluetooth Audio ---------------------------- 7-33
To play from a Bluetooth AUDIO ------------------ 7-34
To pair a Mobile Phone ------------------------------ 7-34
\b \b
\f \


 \b
\b
\f

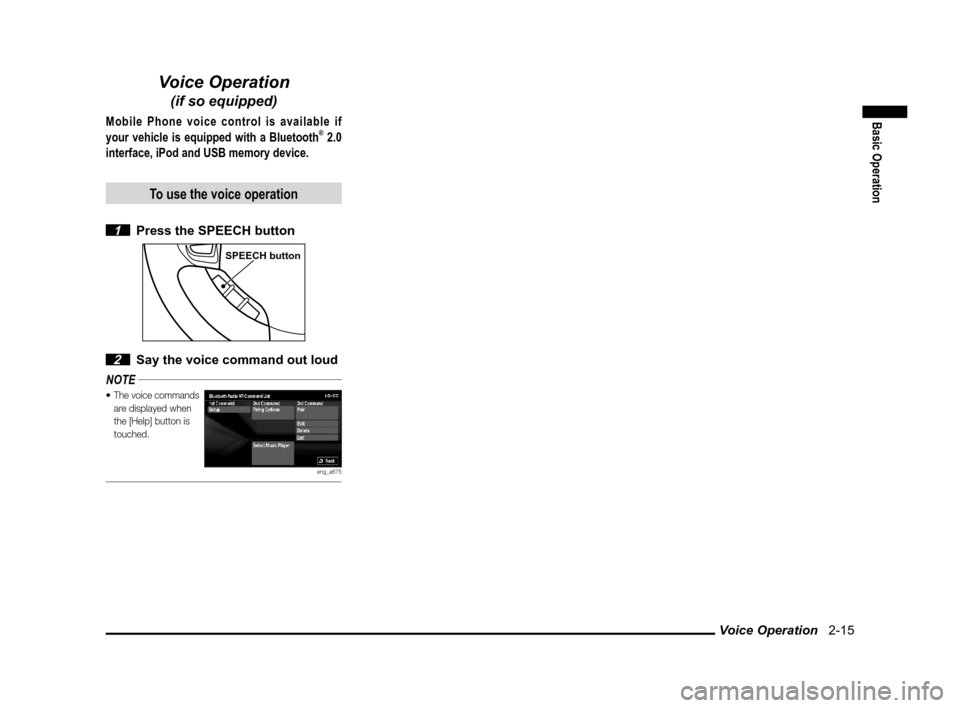

Voice Operation 2-15
Basic Operation
Voice Operation
(if so equipped)
Mobile Phone voice control is available if
your vehicle is equipped with a Bluetooth® 2.0
interface, iPod and USB memory device.
To use the voice operation
1 Press the SPEECH button
SPEECH button
2 Say the voice command out loud
NOTE
The voice commands
are displayed when
the [Help] button is
touched.
eng_a675
\b \b
\f \


 \b
\b \f

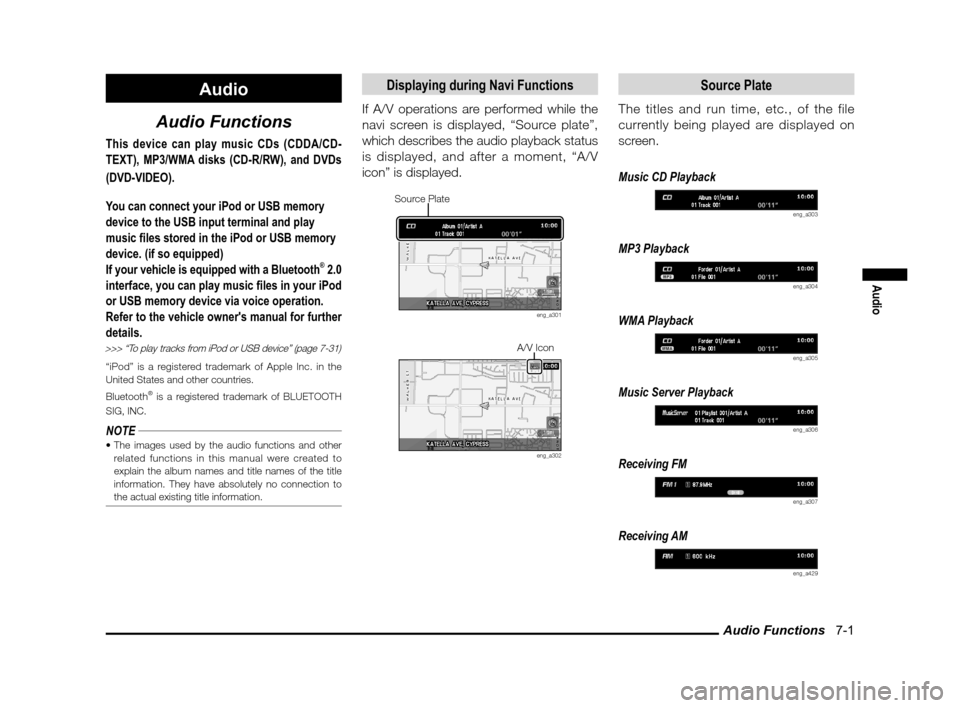

Audio Functions 7-1
Audio
Audio
Audio Functions
This device can play music CDs (CDDA/CD-
TEXT), MP3/WMA disks (CD-R/RW), and DVDs
(DVD-VIDEO).
You can connect your iPod or USB memory
device to the USB input terminal and play
music files stored in the iPod or USB memory
device. (if so equipped)
If your vehicle is equipped with a Bluetooth
® 2.0
interface, you can play music files in your iPod
or USB memory device via voice operation.
Refer to the vehicle owner's manual for further
details.
>>> “To play tracks from iPod or USB device” (page 7-31)
“iPod” is a registered trademark of Apple Inc. in the
United States and other countries.
Bluetooth
® is a registered trademark of BLUETOOTH
SIG, INC.
NOTE related functions in this manual were created to
explain the album names and title names of the title
information. They have absolutely no connection to
the actual existing title information.
Displaying during Navi Functions
If A/V operations are performed while the
navi screen is displayed, “Source plate”,
which describes the audio playback status
is displayed, and after a moment, “A/V
icon” is displayed.
Source Plate
eng_a301
A/V Icon
eng_a302
Source Plate
The titles and run time, etc., of the file
currently being played are displayed on
screen.
Music CD Playback
eng_a303
MP3 Playback
eng_a304
WMA Playback
eng_a305
Music Server Playback
eng_a306
Receiving FM
eng_a307
Receiving AM
eng_a429
\b \b
\f \


 \b
\b
 \f

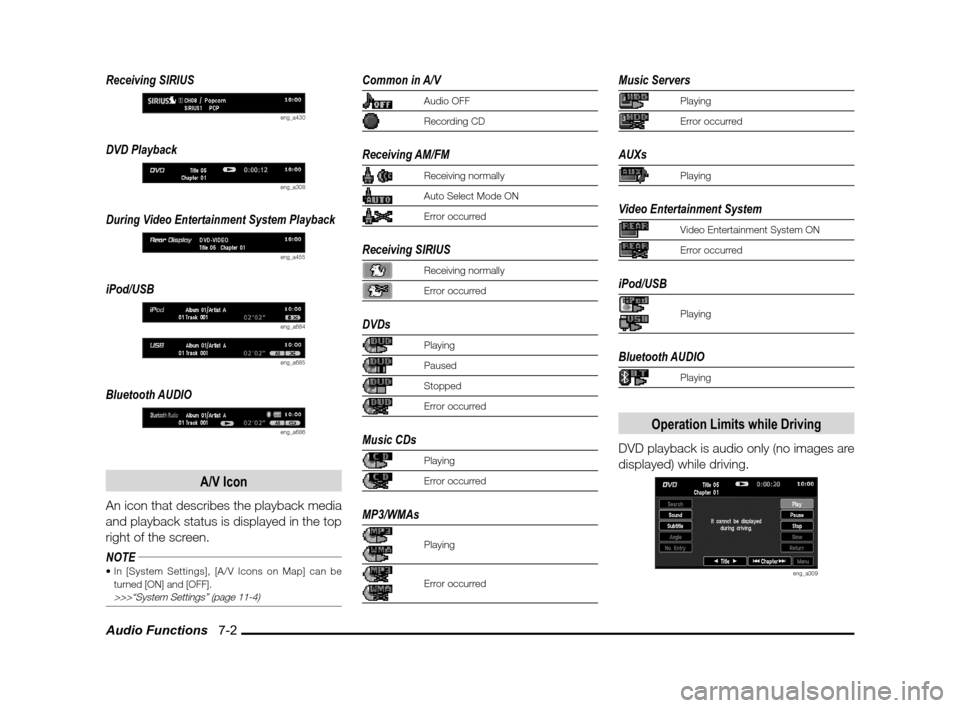

Audio Functions 7-2
Receiving SIRIUS
eng_a430
DVD Playback
eng_a308
During Video Entertainment System Playback
eng_a455
iPod/USB
eng_a684
eng_a685
Bluetooth AUDIO
eng_a686
A/V Icon
An icon that describes the playback media
and playback status is displayed in the top
right of the screen.
NOTE

turned [ON] and [OFF].

>>>“System Settings” (page 11-4)
Common in A/V
Audio OFF
Recording CD
Receiving AM/FM
Receiving normally
Auto Select Mode ON
Error occurred
Receiving SIRIUS
Receiving normally
Error occurred
DVDs
Playing
Paused
Stopped
Error occurred
Music CDs
Playing
Error occurred
MP3/WMAs
Playing
Error occurred
Music Servers
Playing
Error occurred
AUXs
Playing
Video Entertainment System
Video Entertainment System ON
Error occurred
iPod/USB
Playing
Bluetooth AUDIO
Playing
Operation Limits while Driving
DVD playback is audio only (no images are
displayed) while driving.
eng_a309
\b \b
\f \

  \b
\b
 \f

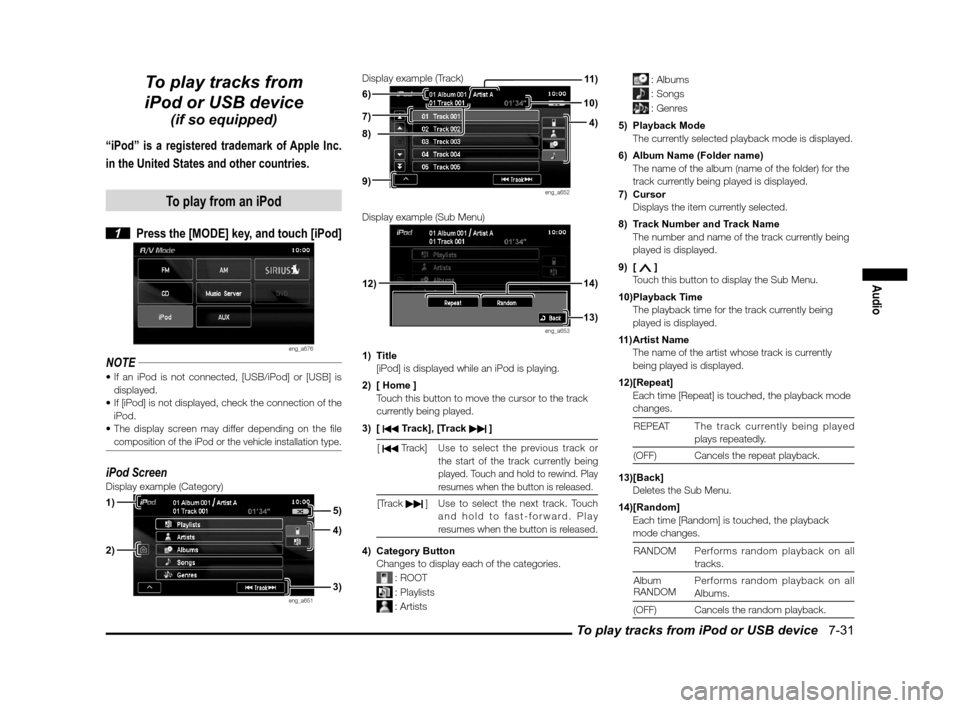

To play tracks from iPod or USB device 7-31
Audio
To play tracks from
iPod or USB device
(if so equipped)
“iPod” is a registered trademark of Apple Inc.
in the United States and other countries.
To play from an iPod
1 Press the [MODE] key, and touch [iPod]
eng_a676
NOTE
displayed.
iPod.

The display screen may differ depending on the file
composition of the iPod or the vehicle installation type.
iPod ScreenDisplay example (Category)
eng_a651
Display example (Track)
eng_a652
Display example (Sub Menu)
eng_a653
1) Title
[iPod] is displayed while an iPod is playing.
2) [ Home ]
Touch this button to move the cursor to the track currently being played.
3) [
Track], [Track ]
[
Track]Use to select the previous track or
the start of the track currently being
played. Touch and hold to rewind. Play
resumes when the button is released.
[Track ]Use to select the next track. Touch
and hold to fast-forward. Play
resumes when the button is released.
4) Category Button
Changes to display each of the categories.

: ROOT
: Playlists
: Artists
: Albums
: Songs
: Genres
5) Playback Mode
The currently selected playback mode is displayed.
6) Album Name (Folder name)
The name of the album (name of the folder) for the track currently being played is displayed.
7) Cursor
Displays the item currently selected.
8) Track Number and Track Name
The number and name of the track currently being played is displayed.
9) [ ]
Touch this button to display the Sub Menu.
10) Playback Time
The playback time for the track currently being played is displayed.
11) Artist Name
The name of the artist whose track is currently being played is displayed.
12) [Repeat]
Each time [Repeat] is touched, the playback mode changes.
REPEAT T h e t r a c k c u r re n tly being played
plays repeatedly.
(OFF) Cancels the repeat playback.
13) [Back]
Deletes the Sub Menu.
14) [Random]
Each time [Random] is touched, the playback mode changes.
RANDOM Performs random playback on all
tracks.
Album
RANDOM Performs random playback on all
Albums.
(OFF) Cancels the random playback.
12)
14)
13)
1)
2)
3)
5)
4)
8)
10)
11 )
6)
7)
9)
4)
\b \b
\f \


 \b \b

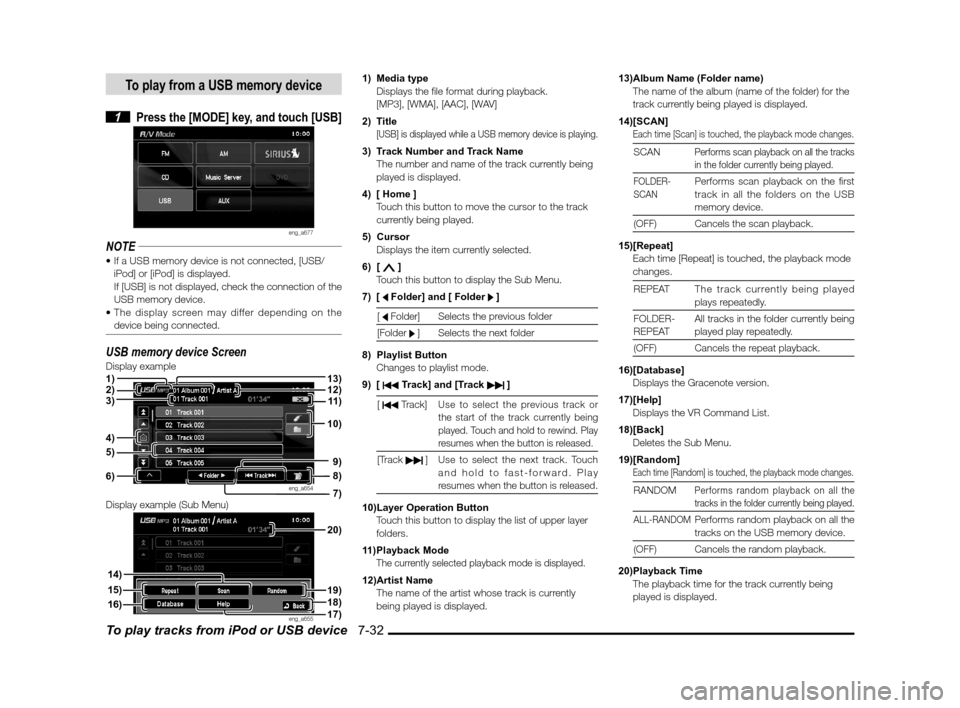

To play tracks from iPod or USB device 7-32
To play from a USB memory device
1 Press the [MODE] key, and touch [USB]
eng_a677
NOTE
iPod] or [iPod] is displayed.
If [USB] is not displayed, check the connection of the
USB memory device.
device being connected.
USB memory device ScreenDisplay example
eng_a654
Display example (Sub Menu)
eng_a655
1) Media type
Displays the le format during playback. [MP3], [WMA], [AAC], [WAV]
2) Title

[USB] is displayed while a USB memory device is playing.
3) Track Number and Track Name
The number and name of the track currently being played is displayed.
4) [ Home ]
Touch this button to move the cursor to the track currently being played.
5) Cursor
Displays the item currently selected.
6) [ ]
Touch this button to display the Sub Menu.
7) [
Folder] and [ Folder ]
[ Folder] Selects the previous folder
[Folder ] Selects the next folder
8) Playlist Button
Changes to playlist mode.
9) [
Track] and [Track ]
[ Track]Use to select the previous track or
the start of the track currently being
played. Touch and hold to rewind. Play
resumes when the button is released.
[Track ]Use to select the next track. Touch
and hold to fast-forward. Play
resumes when the button is released.
10) Layer Operation Button
Touch this button to display the list of upper layer folders.
11) Playback Mode

The currently selected playback mode is displayed.
12) Artist Name
The name of the artist whose track is currently being played is displayed. 13) Album Name (Folder name)
The name of the album (name of the folder) for the
track currently being played is displayed.
14) [SCAN]

Each time [Scan] is touched, the playback mode changes.
SCANPerforms scan playback on all the tracks
in the folder currently being played.
FOLDER-
SCANPerforms scan playback on the rst
track in all the folders on the USB
memory device.
(OFF) Cancels the scan playback.
15) [Repeat]
Each time [Repeat] is touched, the playback mode changes.
REPEAT The track currently being played plays repeatedly.
FOLDER-
REPEAT All tracks in the folder currently being
played play repeatedly.
(OFF) Cancels the repeat playback.
16) [Database]
Displays the Gracenote version.
17) [Help]
Displays the VR Command List.
18) [Back]
Deletes the Sub Menu.
19) [Random]

Each time [Random] is touched, the playback mode changes.
RANDOMPerforms random playback on all the
tracks in the folder currently being played.
ALL-RANDOMPerforms random playback on all the
tracks on the USB memory device.
(OFF) Cancels the random playback.
20) Playback Time
The playback time for the track currently being played is displayed.
2)
4)
8)6)
12) 13)1)
3)
5)
7) 9)
10)
11 )
14)
15)
16)17) 19)18)
20)
\b \b
\f \

  \b \b
\f
