3-246 Features and controls
3

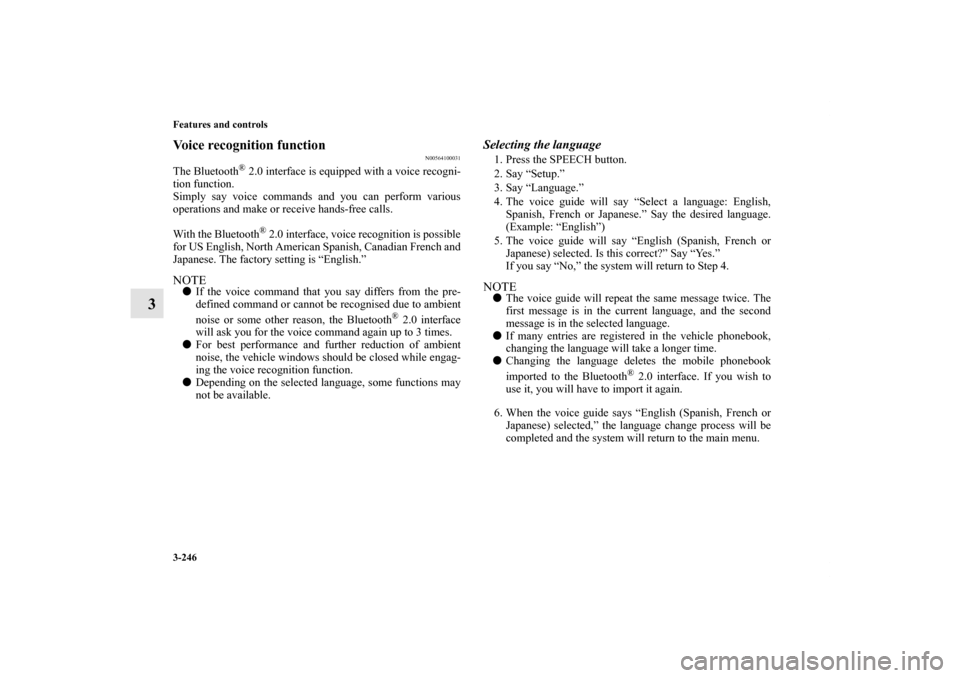

Voice recognition function
N00564100031
The Bluetooth
® 2.0 interface is equipped with a voice recogni-
tion function.
Simply say voice commands and you can perform various
operations and make or receive hands-free calls.
With the Bluetooth
® 2.0 interface, voice recognition is possible
for US English, North American Spanish, Canadian French and
Japanese. The factory setting is “English.”
NOTE
If the voice command that you say differs from the pre-
defined command or cannot be recognised due to ambient
noise or some other reason, the Bluetooth
® 2.0 interface
will ask you for the voice command again up to 3 times.

For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.

Depending on the selected language, some functions may
not be available.
Selecting the language1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish, French or Japanese.” Say the desired language.
(Example: “English”)
5. The voice guide will say “English (Spanish, French or
Japanese) selected. Is this correct?” Say “Yes.”
If you say “No,” the system will return to Step 4.NOTE
The voice guide will repeat the same message twice. The
first message is in the current language, and the second
message is in the selected language.

If many entries are registered in the vehicle phonebook,
changing the language will take a longer time.

Changing the language deletes the mobile phonebook
imported to the Bluetooth
® 2.0 interface. If you wish to
use it, you will have to import it again.
6. When the voice guide says “English (Spanish, French or
Japanese) selected,” the language change process will be
completed and the system will return to the main menu.
BK0119300US.book 246 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-247
3

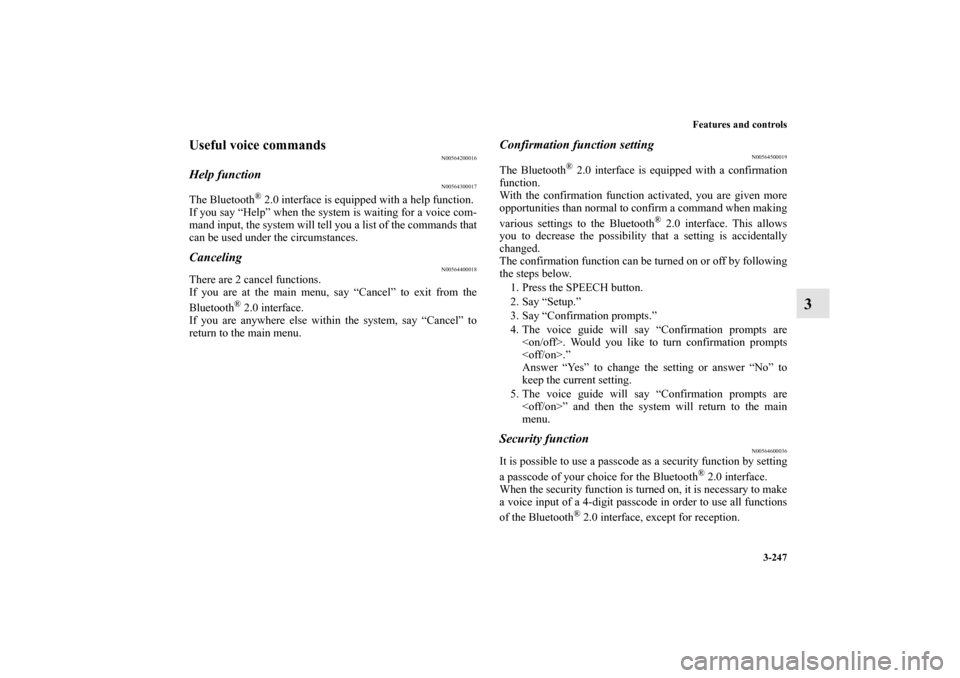

Useful voice commands
N00564200016
Help function
N00564300017
The Bluetooth
® 2.0 interface is equipped with a help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00564400018
There are 2 cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Bluetooth
® 2.0 interface.
If you are anywhere else within the system, say “Cancel” to
return to the main menu.
Confirmation function setting
N00564500019
The Bluetooth
® 2.0 interface is equipped with a confirmation
function.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Bluetooth
® 2.0 interface. This allows
you to decrease the possibility that a setting is accidentally
changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00564600036
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Bluetooth
® 2.0 interface.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Bluetooth
® 2.0 interface, except for reception.
BK0119300US.book 247 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-248 Features and controls
3

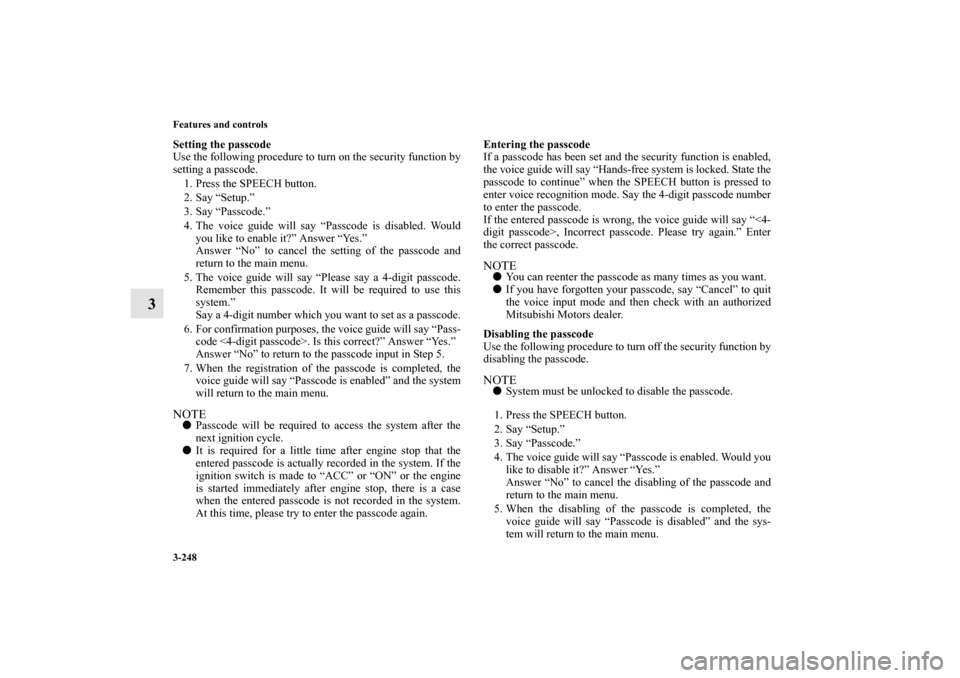

Setting the passcode
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.”
Say a 4-digit number which you want to set as a passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct?” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled” and the system
will return to the main menu. NOTE
Passcode will be required to access the system after the
next ignition cycle.

It is required for a little time after engine stop that the
entered passcode is actually recorded in the system. If the
ignition switch is made to “ACC” or “ON” or the engine
is started immediately after engine stop, there is a case
when the entered passcode is not recorded in the system.
At this time, please try to enter the passcode again.Entering the passcode
If a passcode has been set and the security function is enabled,
the voice guide will say “Hands-free system is locked. State the
passcode to continue” when the SPEECH button is pressed to
enter voice recognition mode. Say the 4-digit passcode number
to enter the passcode.
If the entered passcode is wrong, the voice guide will say “<4-
digit passcode>, Incorrect passcode. Please try again.” Enter
the correct passcode.
NOTE
You can reenter the passcode as many times as you want.

If you have forgotten your passcode, say “Cancel” to quit
the voice input mode and then check with an authorized
Mitsubishi Motors dealer.
Disabling the passcode
Use the following procedure to turn off the security function by
disabling the passcode. NOTE
System must be unlocked to disable the passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is enabled. Would you
like to disable it?” Answer “Yes.”
Answer “No” to cancel the disabling of the passcode and
return to the main menu.
5. When the disabling of the passcode is completed, the
voice guide will say “Passcode is disabled” and the sys-
tem will return to the main menu.
BK0119300US.book 248 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-249
3

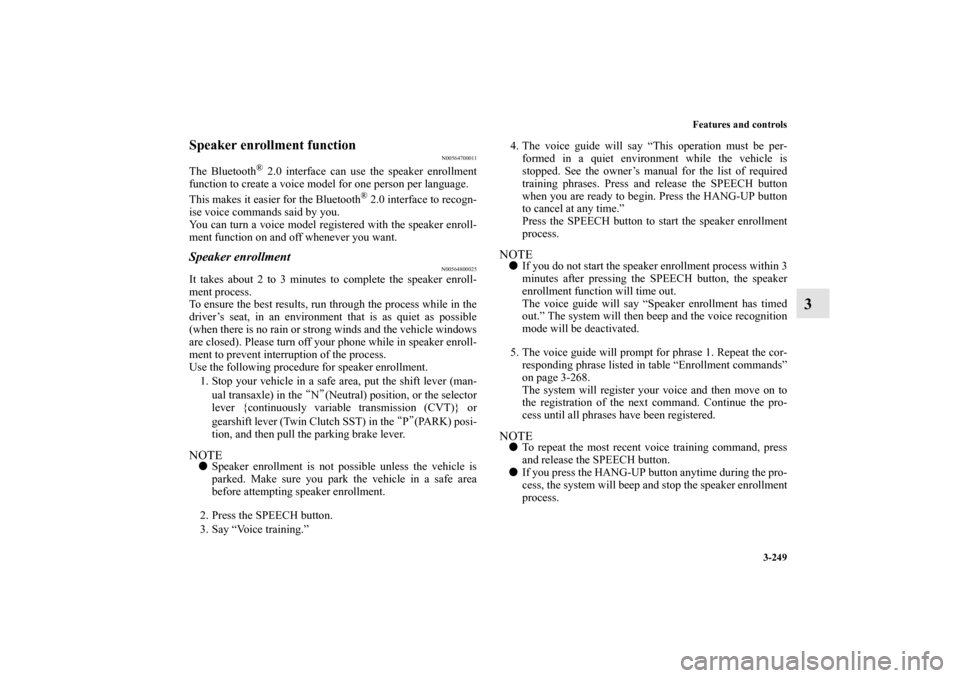

Speaker enrollment function
N00564700011
The Bluetooth
® 2.0 interface can use the speaker enrollment
function to create a voice model for one person per language.
This makes it easier for the Bluetooth
® 2.0 interface to recogn-
ise voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
Speaker enrollment
N00564800025
It takes about 2 to 3 minutes to complete the speaker enroll-
ment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed). Please turn off your phone while in speaker enroll-
ment to prevent interruption of the process.
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the shift lever (man-
ual transaxle) in the “N”(Neutral) position, or the selector
lever {continuously variable transmission (CVT)} or
gearshift lever (Twin Clutch SST) in the “P”(PARK) posi-
tion, and then pull the parking brake lever.NOTE
Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.
2. Press the SPEECH button.
3. Say “Voice training.”4. The voice guide will say “This operation must be per-
formed in a quiet environment while the vehicle is
stopped. See the owner’s manual for the list of required
training phrases. Press and release the SPEECH button
when you are ready to begin. Press the HANG-UP button
to cancel at any time.”
Press the SPEECH button to start the speaker enrollment
process.
NOTE
If you do not start the speaker enrollment process within 3
minutes after pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker enrollment has timed
out.” The system will then beep and the voice recognition
mode will be deactivated.
5. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment commands”
on page 3-268.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.NOTE
To repeat the most recent voice training command, press
and release the SPEECH button.

If you press the HANG-UP button anytime during the pro-
cess, the system will beep and stop the speaker enrollment
process.
BK0119300US.book 249 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-250 Features and controls
3

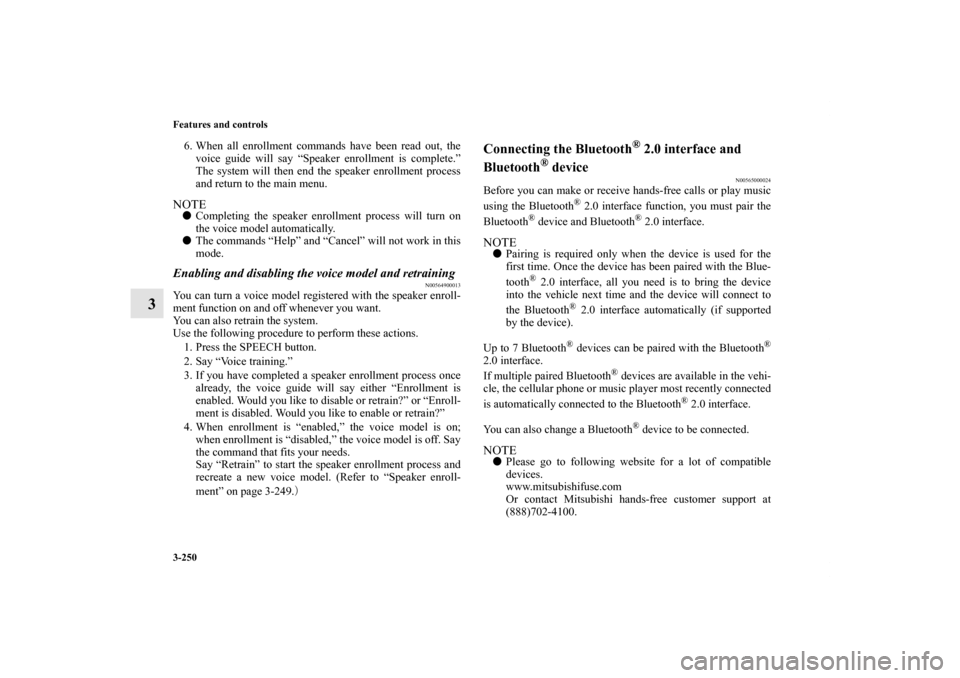

6. When all enrollment commands have been read out, the
voice guide will say “Speaker enrollment is complete.”
The system will then end the speaker enrollment process
and return to the main menu.NOTE
Completing the speaker enrollment process will turn on
the voice model automatically.

The commands “Help” and “Cancel” will not work in this
mode.Enabling and disabling the voice model and retraining
N00564900013
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training.”
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable or retrain?” or “Enroll-
ment is disabled. Would you like to enable or retrain?”
4. When enrollment is “enabled,” the voice model is on;
when enrollment is “disabled,” the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker enroll-
ment” on page 3-249.）
Connecting the Bluetooth
® 2.0 interface and
Bluetooth
® device
N00565000024
Before you can make or receive hands-free calls or play music
using the Bluetooth
® 2.0 interface function, you must pair the
Bluetooth
® device and Bluetooth
® 2.0 interface.
NOTE
Pairing is required only when the device is used for the
first time. Once the device has been paired with the Blue-
tooth
® 2.0 interface, all you need is to bring the device
into the vehicle next time and the device will connect to
the Bluetooth
® 2.0 interface automatically (if supported
by the device).
Up to 7 Bluetooth® devices can be paired with the Bluetooth
®
2.0 interface.
If multiple paired Bluetooth
® devices are available in the vehi-
cle, the cellular phone or music player most recently connected
is automatically connected to the Bluetooth
® 2.0 interface.
You can also change a Bluetooth
® device to be connected.
NOTE
Please go to following website for a lot of compatible
devices.
www.mitsubishifuse.com
Or contact Mitsubishi hands-free customer support at
(888)702-4100.
BK0119300US.book 250 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

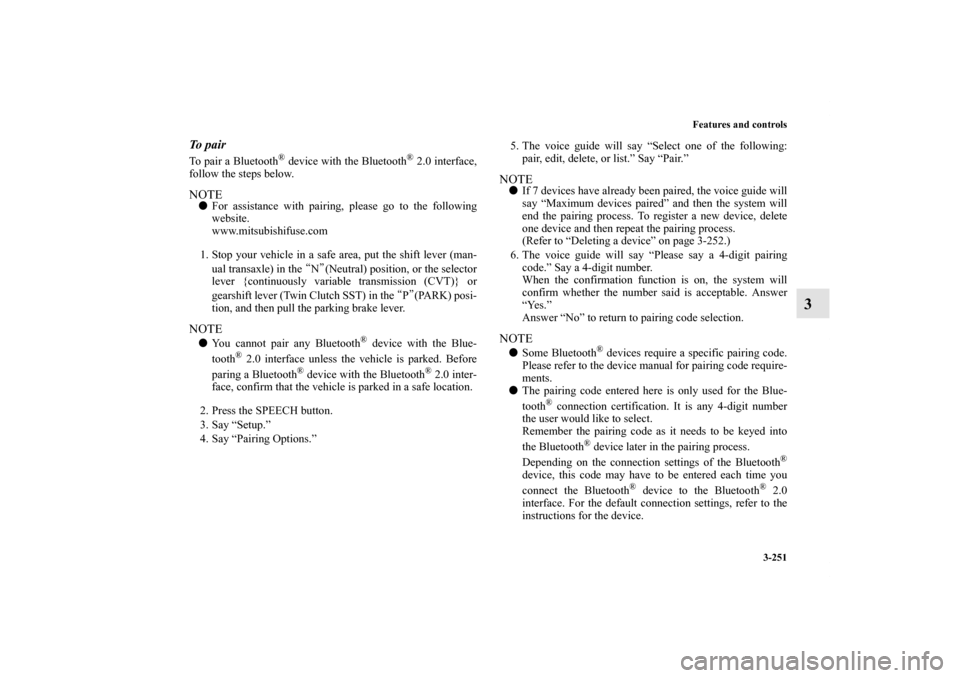

Features and controls
3-251
3
To pairTo pair a Bluetooth
® device with the Bluetooth
® 2.0 interface,
follow the steps below.
NOTE
For assistance with pairing, please go to the following
website.
www.mitsubishifuse.com
1. Stop your vehicle in a safe area, put the shift lever (man-
ual transaxle) in the “N”(Neutral) position, or the selector
lever {continuously variable transmission (CVT)} or
gearshift lever (Twin Clutch SST) in the “P”(PARK) posi-
tion, and then pull the parking brake lever. NOTE
You cannot pair any Bluetooth
® device with the Blue-
tooth
® 2.0 interface unless the vehicle is parked. Before
paring a Bluetooth
® device with the Bluetooth
® 2.0 inter-
face, confirm that the vehicle is parked in a safe location.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”5. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “Pair.”
NOTE
If 7 devices have already been paired, the voice guide will
say “Maximum devices paired” and then the system will
end the pairing process. To register a new device, delete
one device and then repeat the pairing process.
(Refer to “Deleting a device” on page 3-252.)
6. The voice guide will say “Please say a 4-digit pairing
code.” Say a 4-digit number.
When the confirmation function is on, the system will
confirm whether the number said is acceptable. Answer
“Yes.”
Answer “No” to return to pairing code selection.NOTE
Some Bluetooth
® devices require a specific pairing code.
Please refer to the device manual for pairing code require-
ments.

The pairing code entered here is only used for the Blue-
tooth
® connection certification. It is any 4-digit number
the user would like to select.
Remember the pairing code as it needs to be keyed into
the Bluetooth
® device later in the pairing process.
Depending on the connection settings of the Bluetooth
®
device, this code may have to be entered each time you
connect the Bluetooth
® device to the Bluetooth
® 2.0
interface. For the default connection settings, refer to the
instructions for the device.
BK0119300US.book 251 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

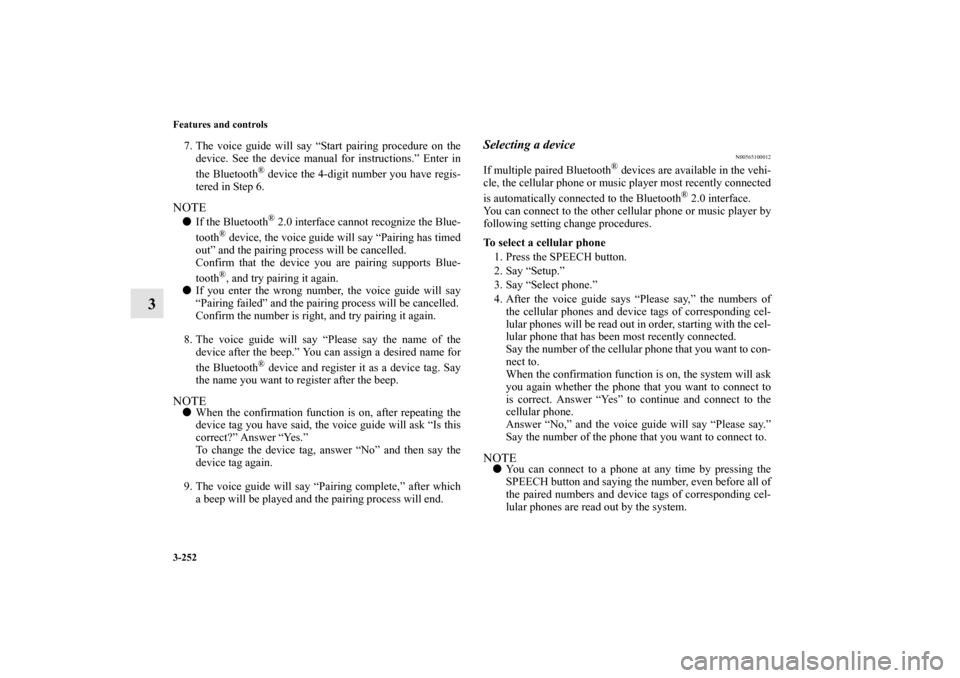

3-252 Features and controls
3
7. The voice guide will say “Start pairing procedure on the
device. See the device manual for instructions.” Enter in
the Bluetooth
® device the 4-digit number you have regis-
tered in Step 6.
NOTE
If the Bluetooth
® 2.0 interface cannot recognize the Blue-
tooth
® device, the voice guide will say “Pairing has timed
out” and the pairing process will be cancelled.
Confirm that the device you are pairing supports Blue-
tooth®, and try pairing it again.

If you enter the wrong number, the voice guide will say
“Pairing failed” and the pairing process will be cancelled.
Confirm the number is right, and try pairing it again.
8. The voice guide will say “Please say the name of the
device after the beep.” You can assign a desired name for
the Bluetooth
® device and register it as a device tag. Say
the name you want to register after the beep.
NOTE
When the confirmation function is on, after repeating the
device tag you have said, the voice guide will ask “Is this
correct?” Answer “Yes.”
To change the device tag, answer “No” and then say the
device tag again.
9. The voice guide will say “Pairing complete,” after which
a beep will be played and the pairing process will end.
Selecting a device
N00565100012
If multiple paired Bluetooth
® devices are available in the vehi-
cle, the cellular phone or music player most recently connected
is automatically connected to the Bluetooth
® 2.0 interface.
You can connect to the other cellular phone or music player by
following setting change procedures.
To select a cellular phone
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”
4. After the voice guide says “Please say,” the numbers of
the cellular phones and device tags of corresponding cel-
lular phones will be read out in order, starting with the cel-
lular phone that has been most recently connected.
Say the number of the cellular phone that you want to con-
nect to.
When the confirmation function is on, the system will ask
you again whether the phone that you want to connect to
is correct. Answer “Yes” to continue and connect to the
cellular phone.
Answer “No,” and the voice guide will say “Please say.”
Say the number of the phone that you want to connect to.
NOTE
You can connect to a phone at any time by pressing the
SPEECH button and saying the number, even before all of
the paired numbers and device tags of corresponding cel-
lular phones are read out by the system.
BK0119300US.book 252 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

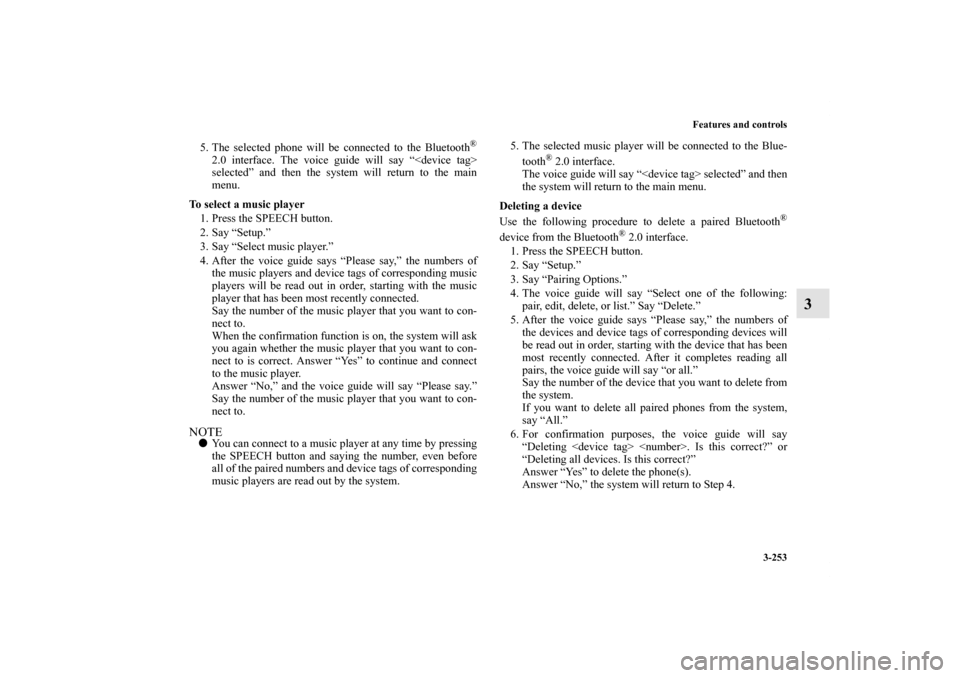

Features and controls
3-253
3
5. The selected phone will be connected to the Bluetooth
®
2.0 interface. The voice guide will say “
selected” and then the system will return to the main
menu.
To select a music player
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select music player.”
4. After the voice guide says “Please say,” the numbers of
the music players and device tags of corresponding music
players will be read out in order, starting with the music
player that has been most recently connected.
Say the number of the music player that you want to con-
nect to.
When the confirmation function is on, the system will ask
you again whether the music player that you want to con-
nect to is correct. Answer “Yes” to continue and connect
to the music player.
Answer “No,” and the voice guide will say “Please say.”
Say the number of the music player that you want to con-
nect to.
NOTE
You can connect to a music player at any time by pressing
the SPEECH button and saying the number, even before
all of the paired numbers and device tags of corresponding
music players are read out by the system.5. The selected music player will be connected to the Blue-
tooth
® 2.0 interface.
The voice guide will say “ selected” and then
the system will return to the main menu.
Deleting a device
Use the following procedure to delete a paired Bluetooth
®
device from the Bluetooth
® 2.0 interface.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “Delete.”
5. After the voice guide says “Please say,” the numbers of
the devices and device tags of corresponding devices will
be read out in order, starting with the device that has been
most recently connected. After it completes reading all
pairs, the voice guide will say “or all.”
Say the number of the device that you want to delete from
the system.
If you want to delete all paired phones from the system,
say “All.”
6. For confirmation purposes, the voice guide will say
“Deleting . Is this correct?” or
“Deleting all devices. Is this correct?”
Answer “Yes” to delete the phone(s).
Answer “No,” the system will return to Step 4.
BK0119300US.book 253 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

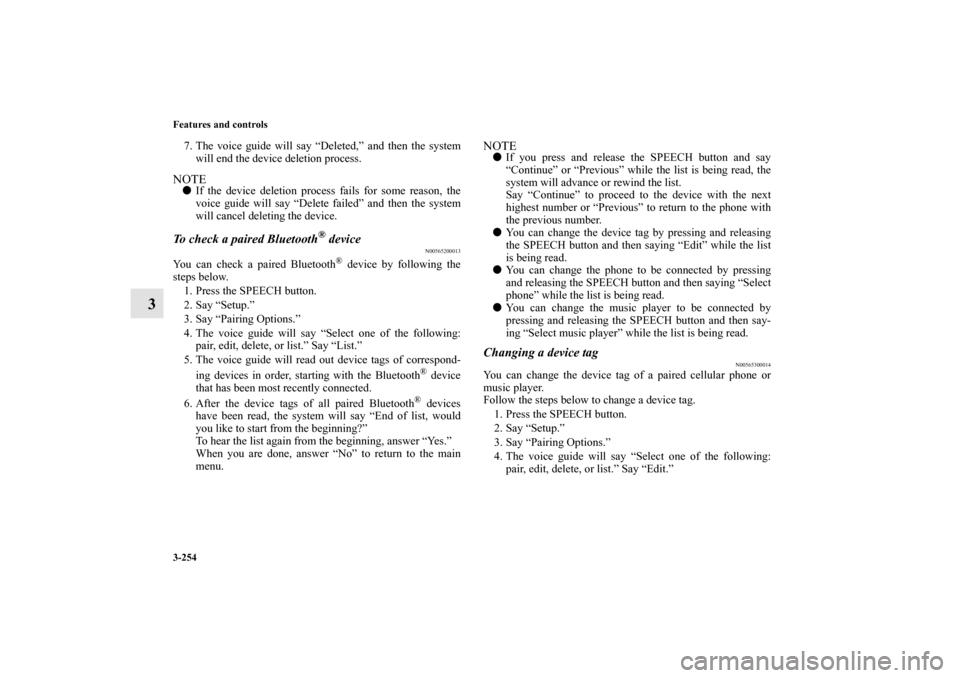

3-254 Features and controls
3
7. The voice guide will say “Deleted,” and then the system
will end the device deletion process.NOTE
If the device deletion process fails for some reason, the
voice guide will say “Delete failed” and then the system
will cancel deleting the device.To check a paired Bluetooth
® device
N00565200013
You can check a paired Bluetooth
® device by following the
steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “List.”
5. The voice guide will read out device tags of correspond-
ing devices in order, starting with the Bluetooth
® device
that has been most recently connected.
6. After the device tags of all paired Bluetooth
® devices
have been read, the system will say “End of list, would
you like to start from the beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTE
If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list.
Say “Continue” to proceed to the device with the next
highest number or “Previous” to return to the phone with
the previous number.

You can change the device tag by pressing and releasing
the SPEECH button and then saying “Edit” while the list
is being read.

You can change the phone to be connected by pressing
and releasing the SPEECH button and then saying “Select
phone” while the list is being read.

You can change the music player to be connected by
pressing and releasing the SPEECH button and then say-
ing “Select music player” while the list is being read.Changing a device tag
N00565300014
You can change the device tag of a paired cellular phone or
music player.
Follow the steps below to change a device tag.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Select one of the following:
pair, edit, delete, or list.” Say “Edit.”
BK0119300US.book 254 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

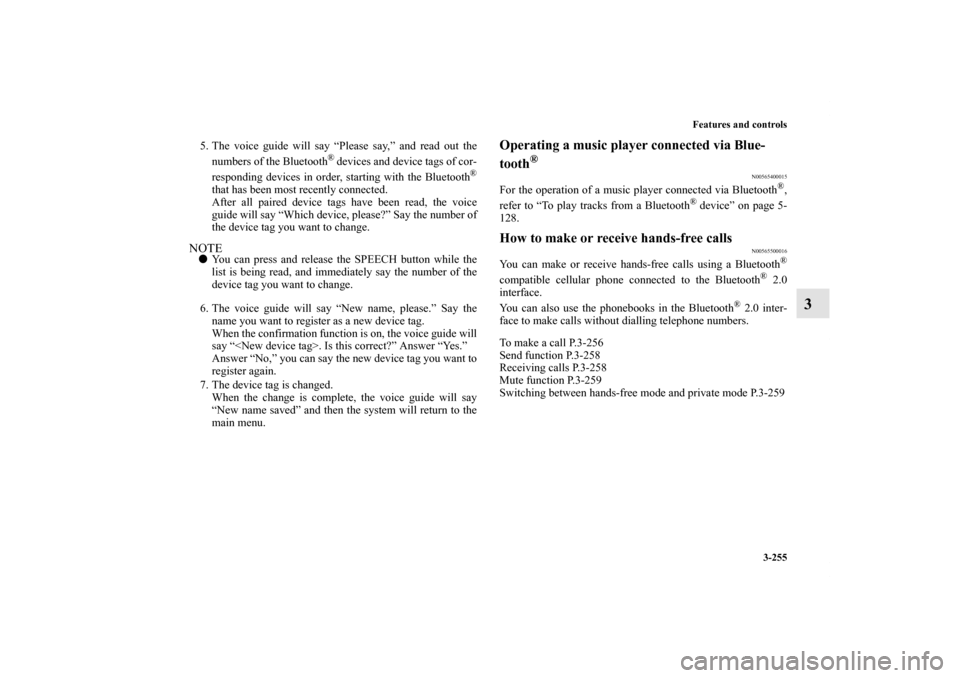

Features and controls
3-255
3
5. The voice guide will say “Please say,” and read out the
numbers of the Bluetooth
® devices and device tags of cor-
responding devices in order, starting with the Bluetooth
®
that has been most recently connected.
After all paired device tags have been read, the voice
guide will say “Which device, please?” Say the number of
the device tag you want to change.
NOTE
You can press and release the SPEECH button while the
list is being read, and immediately say the number of the
device tag you want to change.
6. The voice guide will say “New name, please.” Say the
name you want to register as a new device tag.
When the confirmation function is on, the voice guide will
say “. Is this correct?” Answer “Yes.”
Answer “No,” you can say the new device tag you want to
register again.
7. The device tag is changed.
When the change is complete, the voice guide will say
“New name saved” and then the system will return to the
main menu.
Operating a music player connected via Blue-
tooth
®
N00565400015
For the operation of a music player connected via Bluetooth
®,
refer to “To play tracks from a Bluetooth
® device” on page 5-
128.
How to make or receive hands-free calls
N00565500016
You can make or receive hands-free calls using a Bluetooth
®
compatible cellular phone connected to the Bluetooth
® 2.0
interface.
You can also use the phonebooks in the Bluetooth
® 2.0 inter-
face to make calls without dialling telephone numbers.
To make a call P.3-256
Send function P.3-258
Receiving calls P.3-258
Mute function P.3-259
Switching between hands-free mode and private mode P.3-259
BK0119300US.book 255 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
