MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual

3-266 Features and controls
3

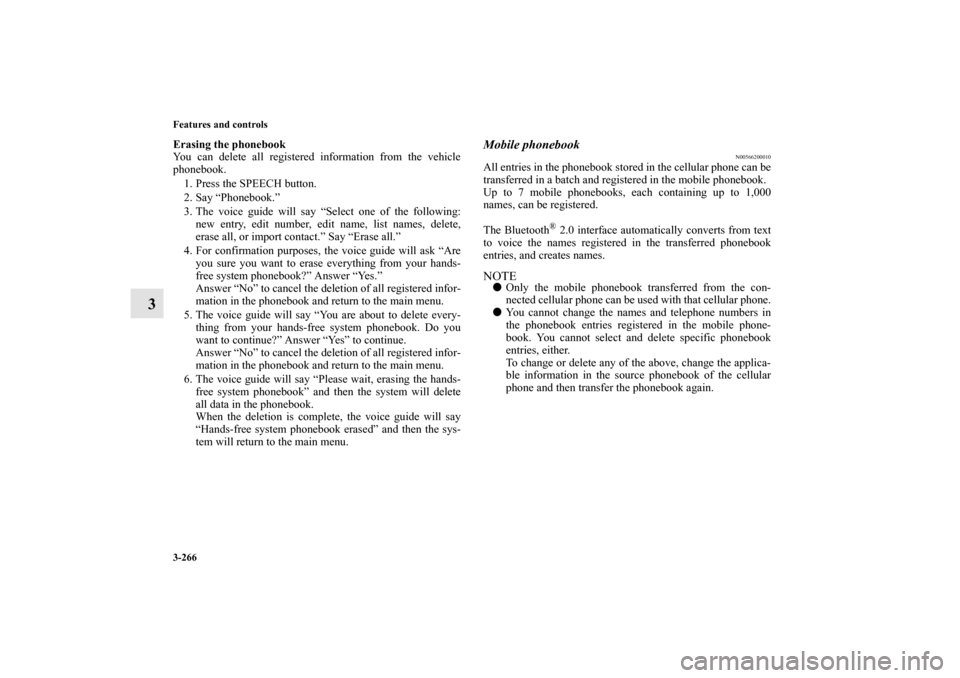

Erasing the phonebook
You can delete all registered information from the vehicle
phonebook.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Erase all.”
4. For confirmation purposes, the voice guide will ask “Are
you sure you want to erase everything from your hands-
free system phonebook?” Answer “Yes.”
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
5. The voice guide will say “You are about to delete every-
thing from your hands-free system phonebook. Do you
want to continue?” Answer “Yes” to continue.
Answer “No” to cancel the deletion of all registered infor-
mation in the phonebook and return to the main menu.
6. The voice guide will say “Please wait, erasing the hands-
free system phonebook” and then the system will delete
all data in the phonebook.
When the deletion is complete, the voice guide will say
“Hands-free system phonebook erased” and then the sys-
tem will return to the main menu.
Mobile phonebook
N00566200010
All entries in the phonebook stored in the cellular phone can be
transferred in a batch and registered in the mobile phonebook.
Up to 7 mobile phonebooks, each containing up to 1,000
names, can be registered.
The Bluetooth
® 2.0 interface automatically converts from text
to voice the names registered in the transferred phonebook
entries, and creates names.
NOTE
Only the mobile phonebook transferred from the con-
nected cellular phone can be used with that cellular phone.

You cannot change the names and telephone numbers in
the phonebook entries registered in the mobile phone-
book. You cannot select and delete specific phonebook
entries, either.
To change or delete any of the above, change the applica-
ble information in the source phonebook of the cellular
phone and then transfer the phonebook again.
BK0119300US.book 266 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-267
3

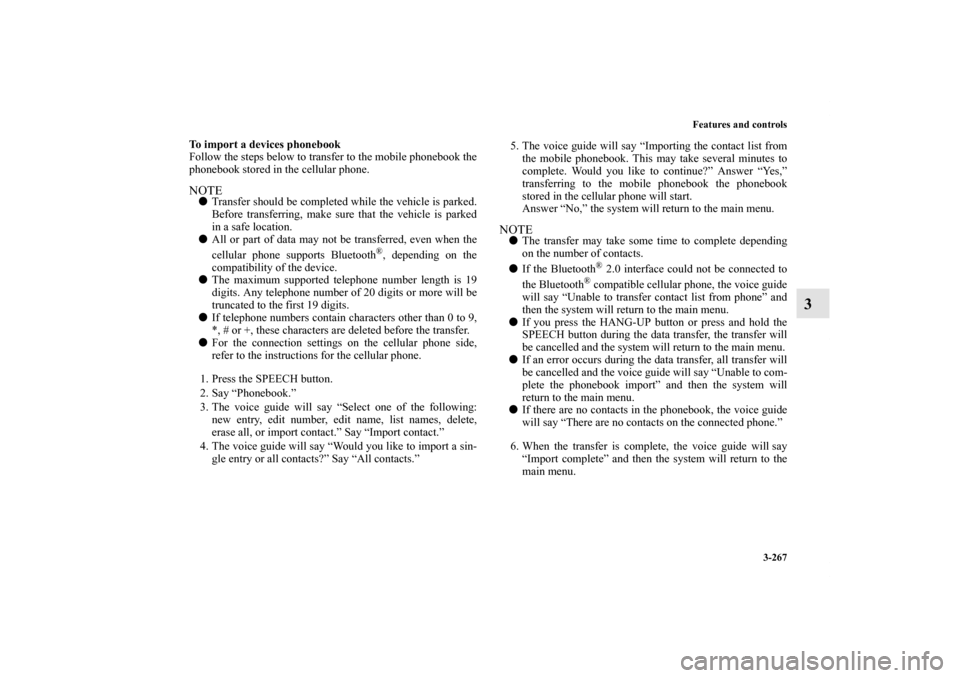

To import a devices phonebook
Follow the steps below to transfer to the mobile phonebook the
phonebook stored in the cellular phone.NOTE
Transfer should be completed while the vehicle is parked.
Before transferring, make sure that the vehicle is parked
in a safe location.

All or part of data may not be transferred, even when the
cellular phone supports Bluetooth
®, depending on the
compatibility of the device.

The maximum supported telephone number length is 19
digits. Any telephone number of 20 digits or more will be
truncated to the first 19 digits.

If telephone numbers contain characters other than 0 to 9,
*, # or +, these characters are deleted before the transfer.

For the connection settings on the cellular phone side,
refer to the instructions for the cellular phone.
1. Press the SPEECH button.
2. Say “Phonebook.”
3. The voice guide will say “Select one of the following:
new entry, edit number, edit name, list names, delete,
erase all, or import contact.” Say “Import contact.”
4. The voice guide will say “Would you like to import a sin-
gle entry or all contacts?” Say “All contacts.”5. The voice guide will say “Importing the contact list from
the mobile phonebook. This may take several minutes to
complete. Would you like to continue?” Answer “Yes,”
transferring to the mobile phonebook the phonebook
stored in the cellular phone will start.
Answer “No,” the system will return to the main menu.
NOTE
The transfer may take some time to complete depending
on the number of contacts.

If the Bluetooth
® 2.0 interface could not be connected to
the Bluetooth
® compatible cellular phone, the voice guide
will say “Unable to transfer contact list from phone” and
then the system will return to the main menu.

If you press the HANG-UP button or press and hold the
SPEECH button during the data transfer, the transfer will
be cancelled and the system will return to the main menu.

If an error occurs during the data transfer, all transfer will
be cancelled and the voice guide will say “Unable to com-
plete the phonebook import” and then the system will
return to the main menu.

If there are no contacts in the phonebook, the voice guide
will say “There are no contacts on the connected phone.”
6. When the transfer is complete, the voice guide will say
“Import complete” and then the system will return to the
main menu.
BK0119300US.book 267 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-268 Features and controls
3
General information
N00566300040
MODEL: MMC FCC ID: CB2MDGMY10 IC: 279B-
MDGMY10
Your Bluetooth
® 2.0 interface operates on a radio frequency
subject to Federal Communications Commission (FCC) Rules
(For vehicles sold in U.S.A.) and Industry Canada Rules (For
vehicles sold in Canada). This device complies with Part 15 of
the FCC Rules and RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:

This device may not cause harmful interference.

This device must accept any interference received, includ-
ing interference that may cause undesired operation.
The term “IC:” before the radio certification number only sig-
nifies that Industry Canada technical specifications were met.
The antenna used for this transmitter must not be co-located or
operating in conjunction with any other antenna or transmitter.
End-users and installers must be provided with installation
instructions and transmitter operating conditions for satisfying
RF exposure compliance.
Enrollment commands
N00566400038
CAUTION
!
Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0119300US.book 268 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-269

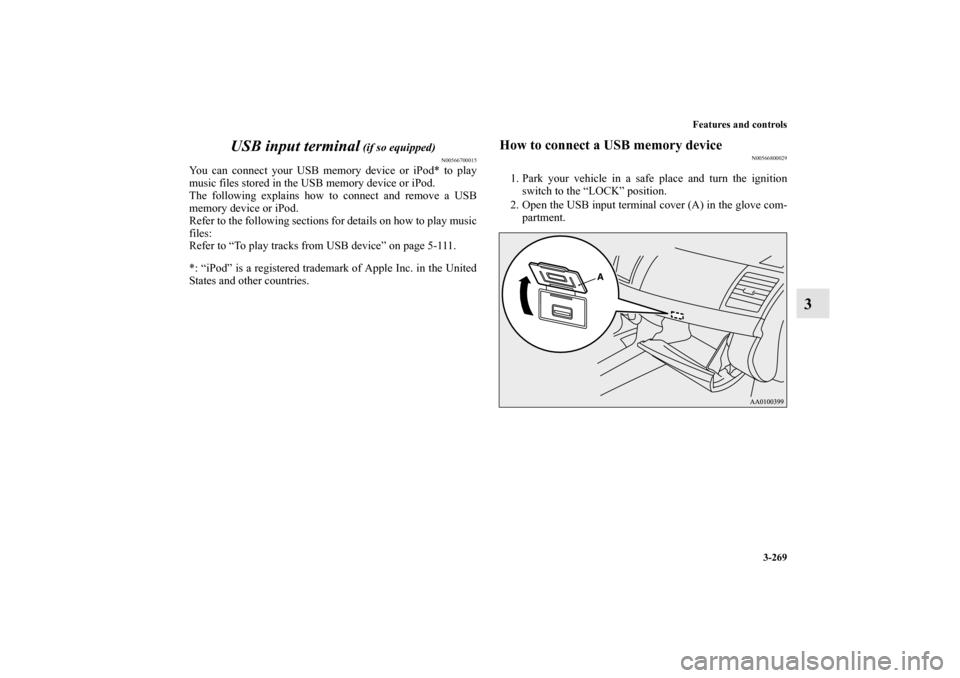

3 USB input terminal
(if so equipped)
N00566700015
You can connect your USB memory device or iPod* to play
music files stored in the USB memory device or iPod.
The following explains how to connect and remove a USB
memory device or iPod.
Refer to the following sections for details on how to play music
files:
Refer to “To play tracks from USB device” on page 5-111.
*: “iPod” is a registered trademark of Apple Inc. in the United
States and other countries.
How to connect a USB memory device
N00566800029
1. Park your vehicle in a safe place and turn the ignition
switch to the “LOCK” position.
2. Open the USB input terminal cover (A) in the glove com-
partment.
BK0119300US.book 269 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-270 Features and controls
3
3. Connect the connector cable (C) to the USB memory
device (B).4. Connect the connector cable (C) to the USB input termi-
nal (D).
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0119300US.book 270 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-271
3
NOTE
Do not connect the USB memory device to the USB input
terminal directly.
The USB memory device may be damaged.

When closing the glove compartment, be careful not to
trap the connector cable.
5. To remove the connector cable, turn the ignition switch to
the “LOCK” position first and perform the installation
steps in reverse.

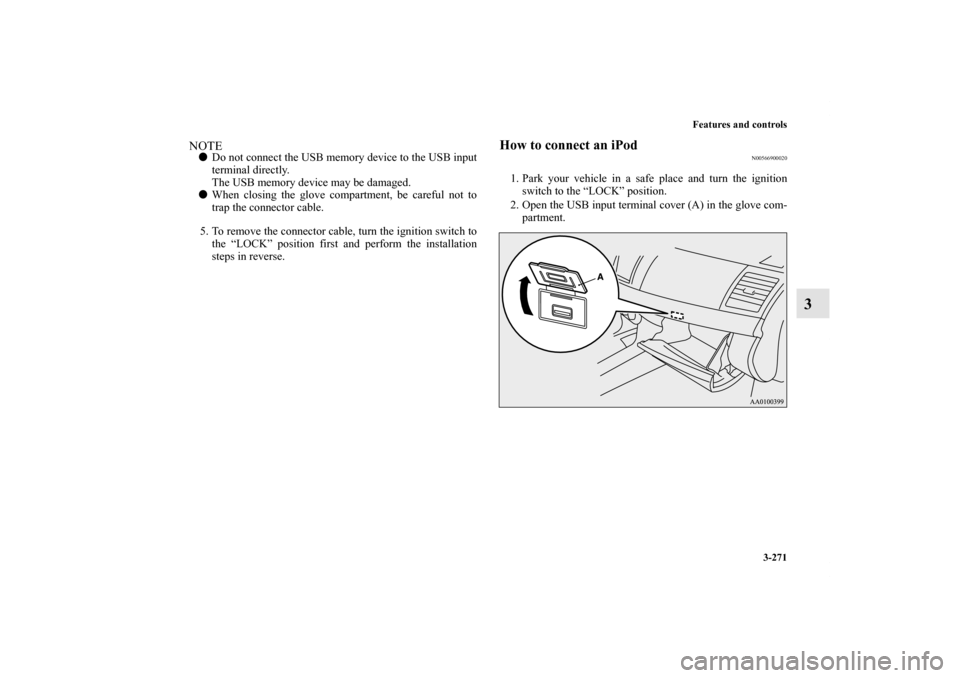

How to connect an iPod
N00566900020
1. Park your vehicle in a safe place and turn the ignition
switch to the “LOCK” position.
2. Open the USB input terminal cover (A) in the glove com-
partment.
BK0119300US.book 271 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-272 Features and controls
3

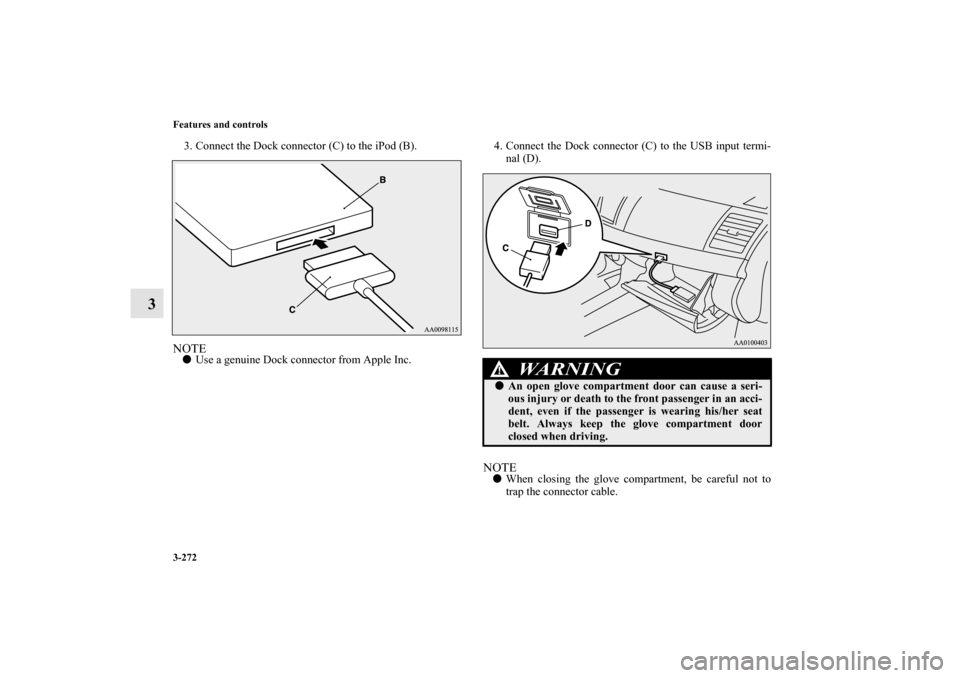

3. Connect the Dock connector (C) to the iPod (B).NOTE
Use a genuine Dock connector from Apple Inc.4. Connect the Dock connector (C) to the USB input termi-
nal (D).
NOTE
When closing the glove compartment, be careful not to
trap the connector cable.
WA R N I N G
!
An open glove compartment door can cause a seri-
ous injury or death to the front passenger in an acci-
dent, even if the passenger is wearing his/her seat
belt. Always keep the glove compartment door
closed when driving.
BK0119300US.book 272 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-273
3

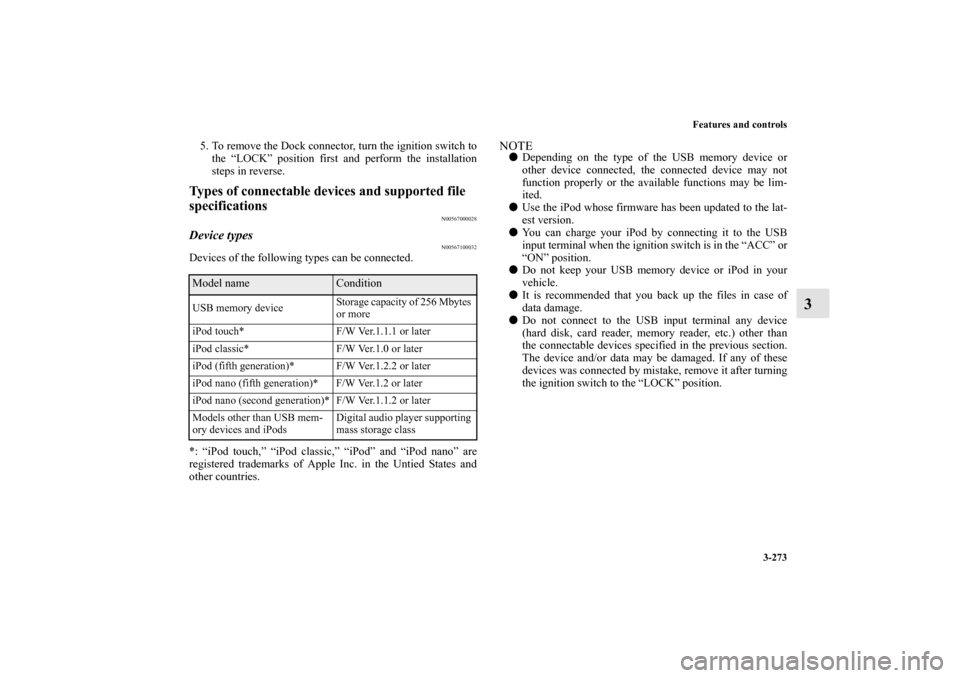

5. To remove the Dock connector, turn the ignition switch to
the “LOCK” position first and perform the installation
steps in reverse.Types of connectable devices and supported file
specifications
N00567000028
Device types
N00567100032
Devices of the following types can be connected.
*: “iPod touch,” “iPod classic,” “iPod” and “iPod nano” are
registered trademarks of Apple Inc. in the Untied States and
other countries.
NOTE
Depending on the type of the USB memory device or
other device connected, the connected device may not
function properly or the available functions may be lim-
ited.

Use the iPod whose firmware has been updated to the lat-
est version.

You can charge your iPod by connecting it to the USB
input terminal when the ignition switch is in the “ACC” or
“ON” position.

Do not keep your USB memory device or iPod in your
vehicle.

It is recommended that you back up the files in case of
data damage.

Do not connect to the USB input terminal any device
(hard disk, card reader, memory reader, etc.) other than
the connectable devices specified in the previous section.
The device and/or data may be damaged. If any of these
devices was connected by mistake, remove it after turning
the ignition switch to the “LOCK” position.
Model name
Condition
USB memory deviceStorage capacity of 256 Mbytes
or more
iPod touch* F/W Ver.1.1.1 or later
iPod classic* F/W Ver.1.0 or later
iPod (fifth generation)* F/W Ver.1.2.2 or later
iPod nano (fifth generation)* F/W Ver.1.2 or later
iPod nano (second generation)* F/W Ver.1.1.2 or later
Models other than USB mem-
ory devices and iPodsDigital audio player supporting
mass storage class
BK0119300US.book 273 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-274 Features and controls
3

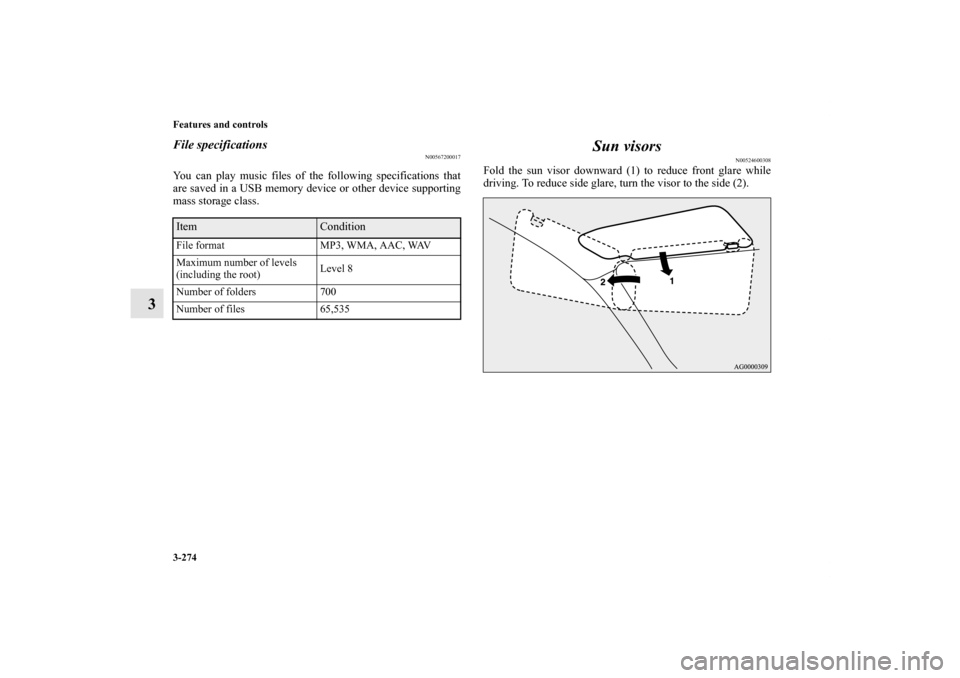

File specifications
N00567200017
You can play music files of the following specifications that
are saved in a USB memory device or other device supporting
mass storage class.
Sun visors
N00524600308
Fold the sun visor downward (1) to reduce front glare while
driving. To reduce side glare, turn the visor to the side (2).
Item
Condition
File format MP3, WMA, AAC, WAV
Maximum number of levels
(including the root)Level 8
Number of folders 700
Number of files 65,535BK0119300US.book 274 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-275
3

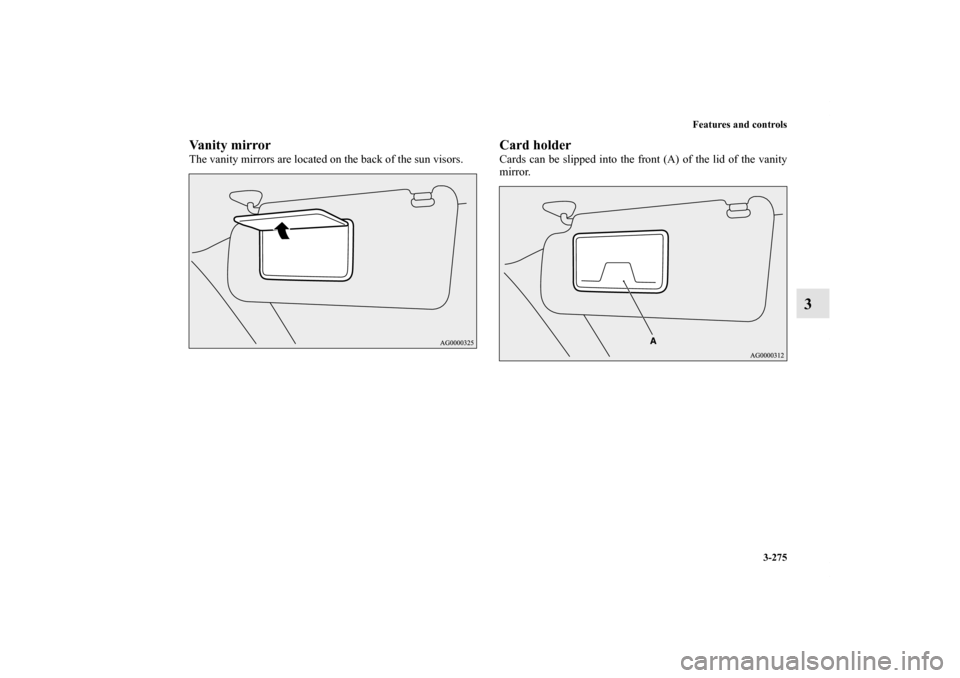

Vanity mirrorThe vanity mirrors are located on the back of the sun visors.
Card holderCards can be slipped into the front (A) of the lid of the vanity
mirror.
BK0119300US.book 275 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
