Page 561 of 700

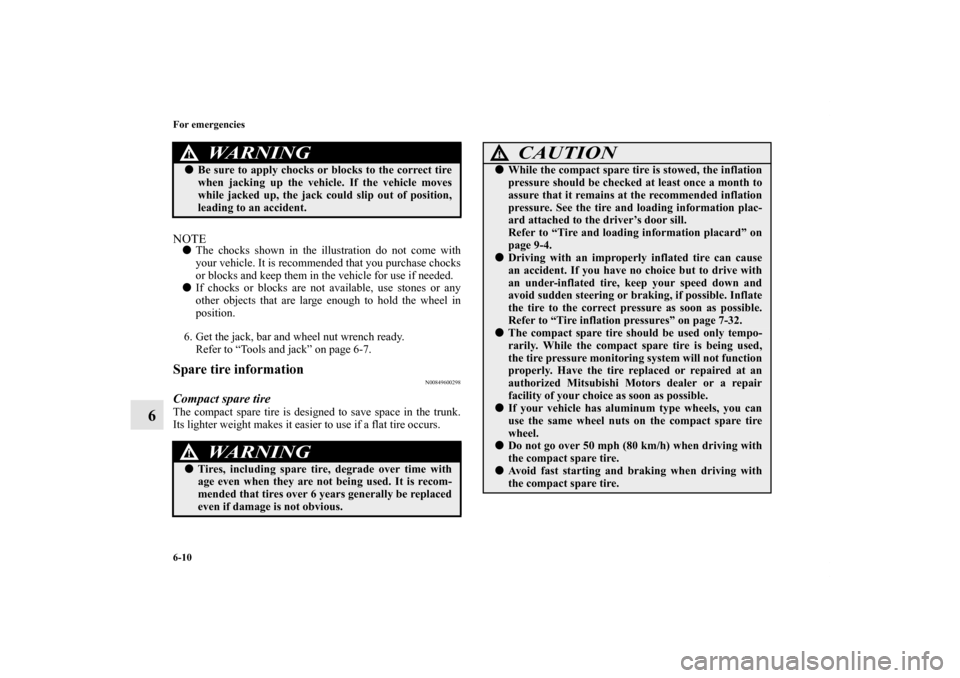

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual 6-10 For emergencies
6
NOTEThe chocks shown in the illustration do not come with
your vehicle. It is recommended that you purchase chocks
or blocks and keep them in the vehicle for use if needed.
I

Page 562 of 700

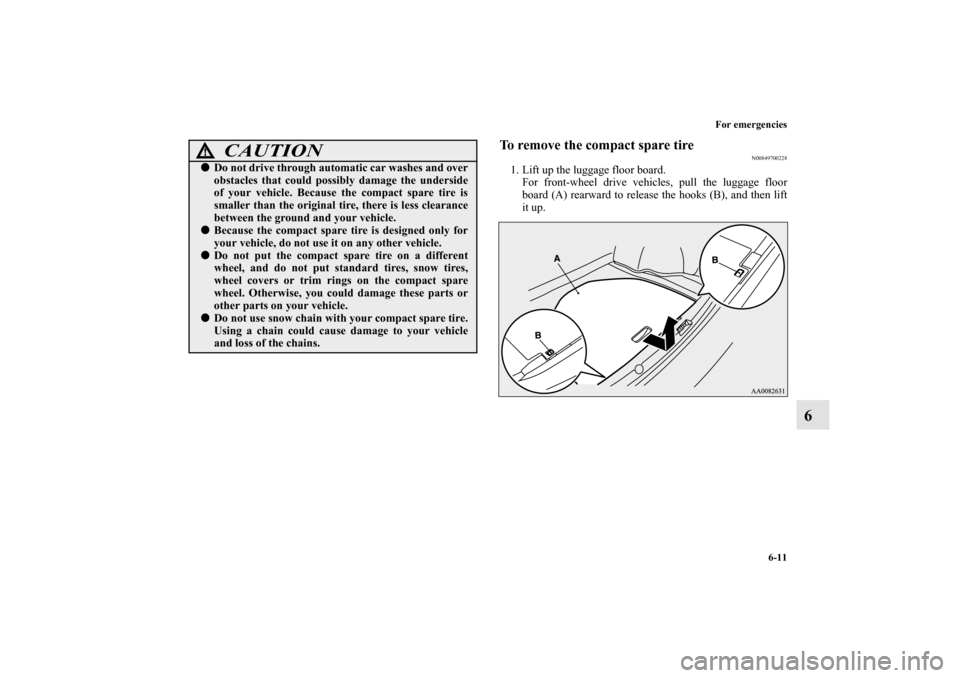

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual For emergencies
6-11
6
To remove the compact spare tire
N00849700228
1. Lift up the luggage floor board.
For front-wheel drive vehicles, pull the luggage floor
board (A) rearward to release the hooks

Page 563 of 700

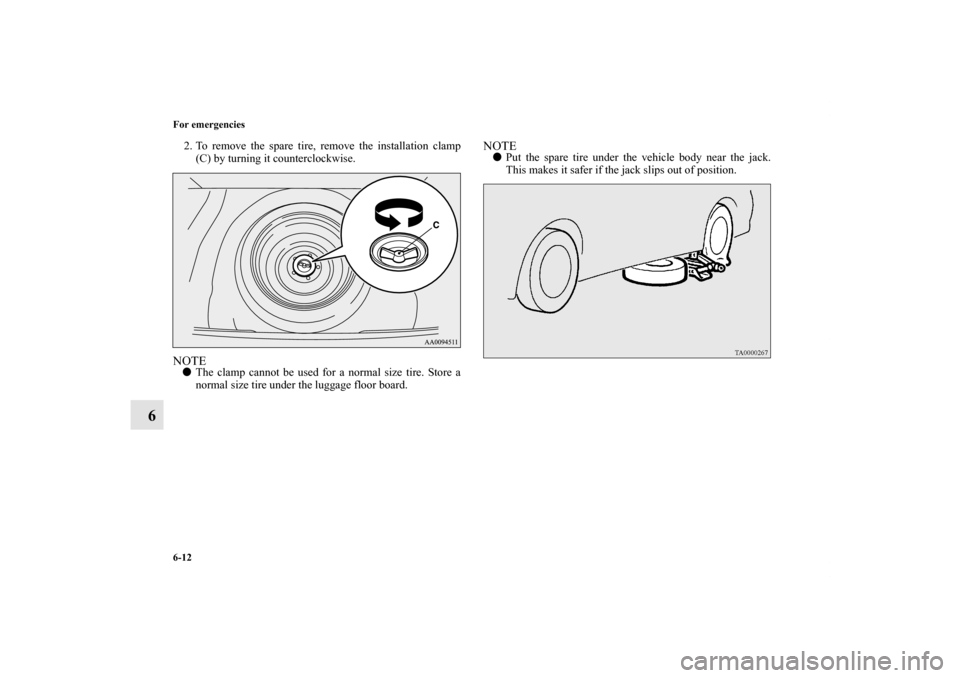

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual 6-12 For emergencies
6
2. To remove the spare tire, remove the installation clamp
(C) by turning it counterclockwise.NOTEThe clamp cannot be used for a normal size tire. Store a
normal size tire unde

Page 564 of 700

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual For emergencies
6-13
6
To change a tire
N00849800388
1. On vehicles with wheel covers, first remove the covers
(refer to “Wheel covers” on page 6-20). Then loosen the
wheel nuts with the wheel nut

Page 565 of 700

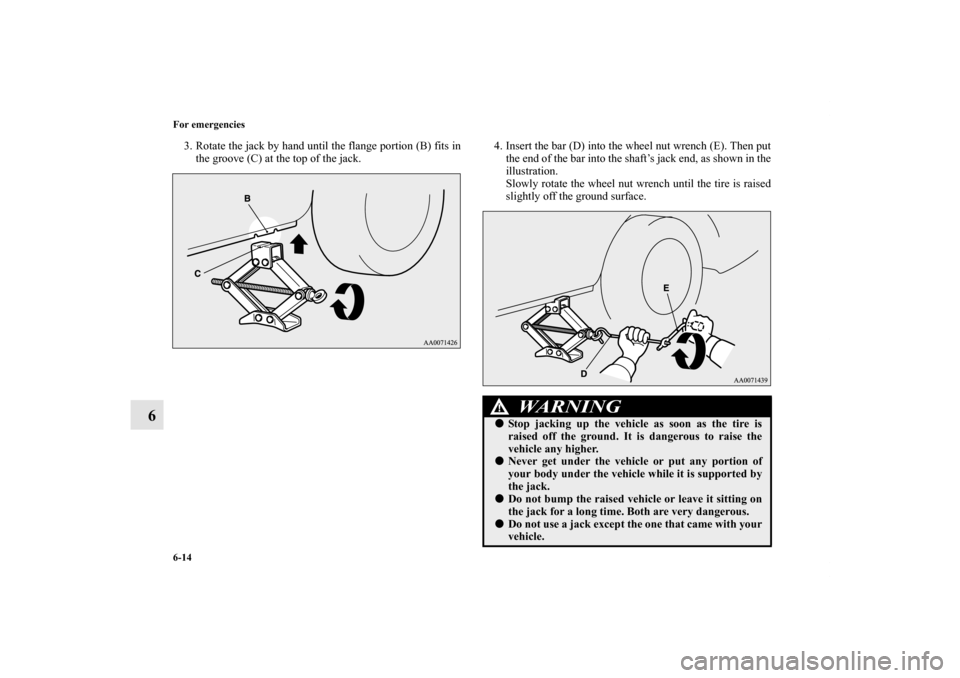

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual 6-14 For emergencies
6
3. Rotate the jack by hand until the flange portion (B) fits in
the groove (C) at the top of the jack. 4. Insert the bar (D) into the wheel nut wrench (E). Then put
the end of t

Page 566 of 700

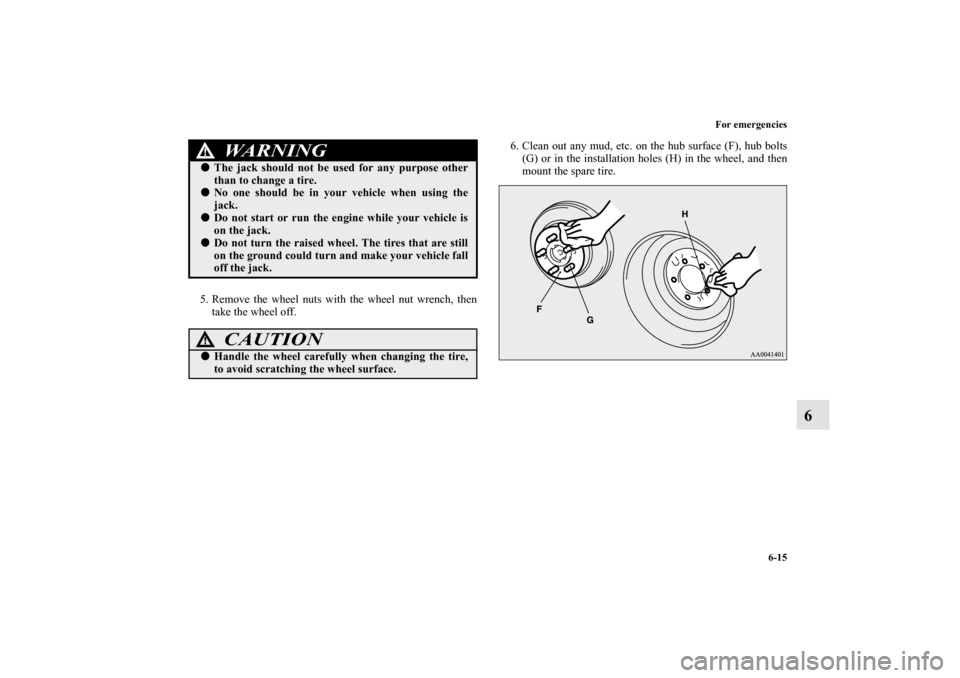

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual For emergencies
6-15
6
5. Remove the wheel nuts with the wheel nut wrench, then
take the wheel off. 6. Clean out any mud, etc. on the hub surface (F), hub bolts
(G) or in the installation holes (H) in

Page 567 of 700

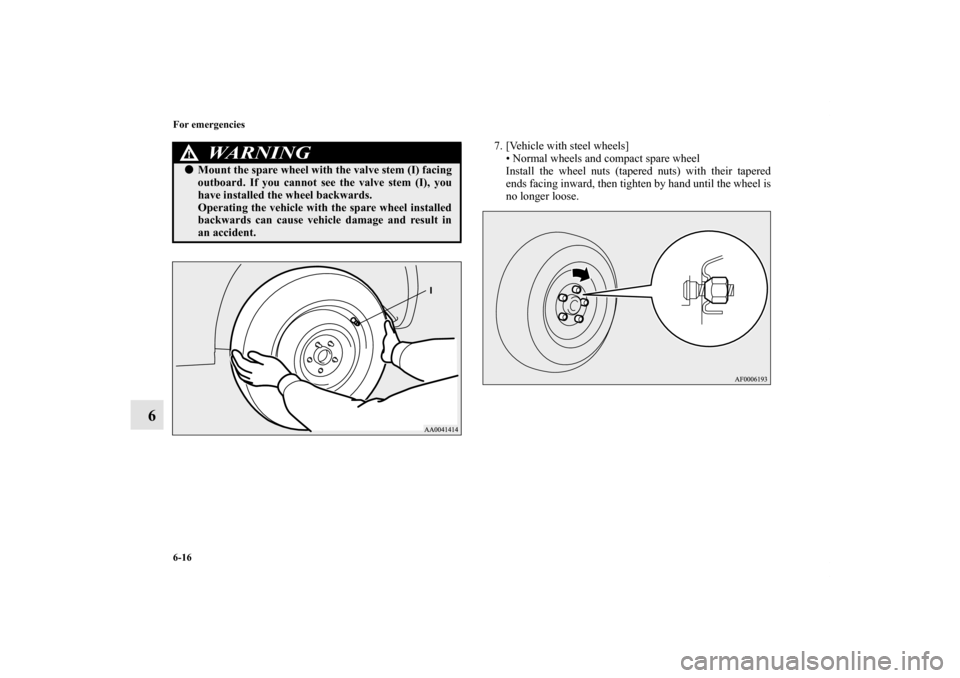

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual 6-16 For emergencies
6
7. [Vehicle with steel wheels]
• Normal wheels and compact spare wheel
Install the wheel nuts (tapered nuts) with their tapered
ends facing inward, then tighten by hand until

Page 568 of 700

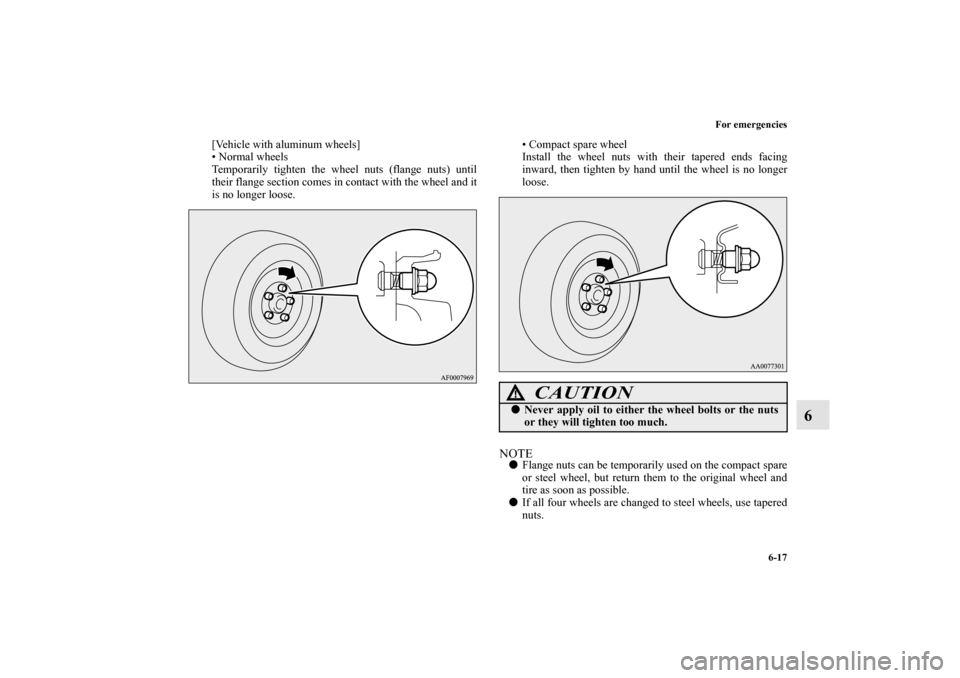

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual For emergencies
6-17
6
[Vehicle with aluminum wheels]
• Normal wheels
Temporarily tighten the wheel nuts (flange nuts) until
their flange section comes in contact with the wheel and it
is no longer

Page 569 of 700

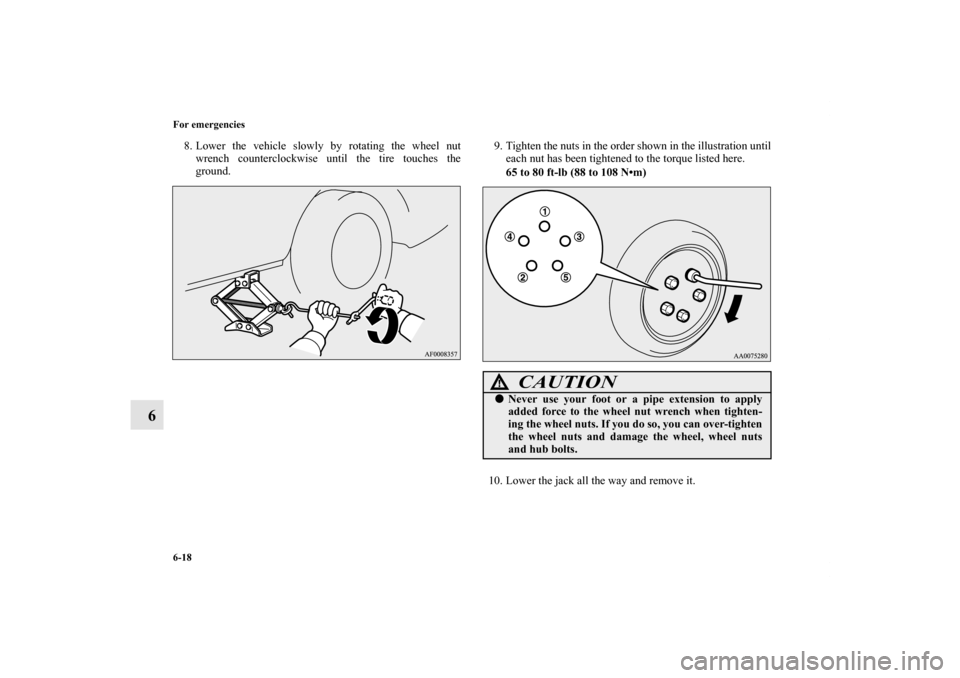

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual 6-18 For emergencies
6
8. Lower the vehicle slowly by rotating the wheel nut
wrench counterclockwise until the tire touches the
ground.9. Tighten the nuts in the order shown in the illustration until

Page 570 of 700

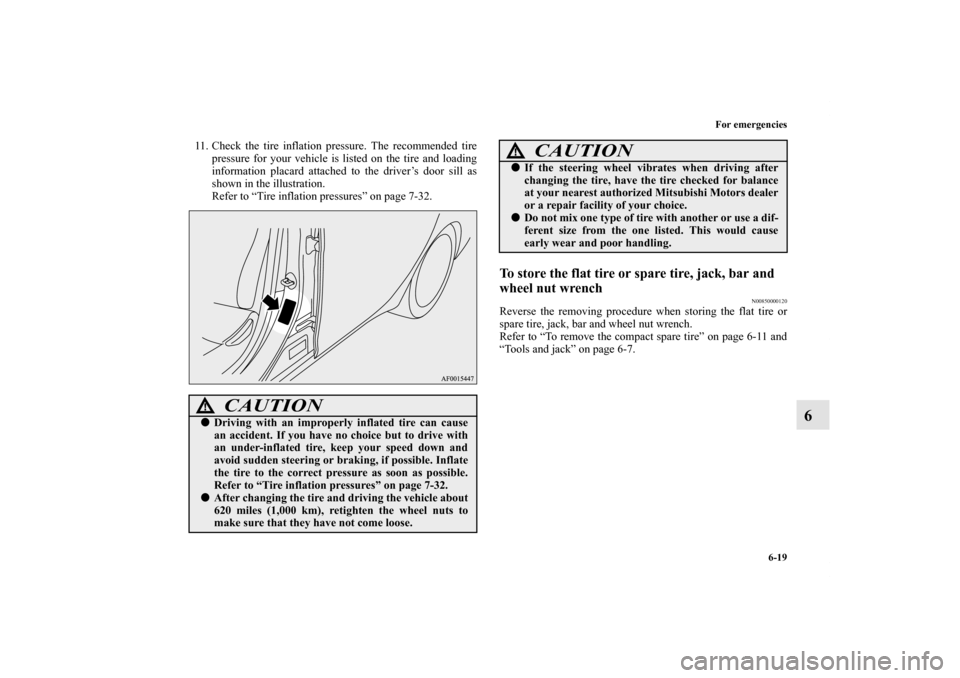

MITSUBISHI LANCER RALLIART 2011 8.G Owners Manual For emergencies
6-19
6
11. Check the tire inflation pressure. The recommended tire
pressure for your vehicle is listed on the tire and loading
information placard attached to the driver’s door sill
