7-64 Vehicle care and maintenance
7
Daytime running lights (for vehicles with high
intensity discharge headlights)
N00900300060

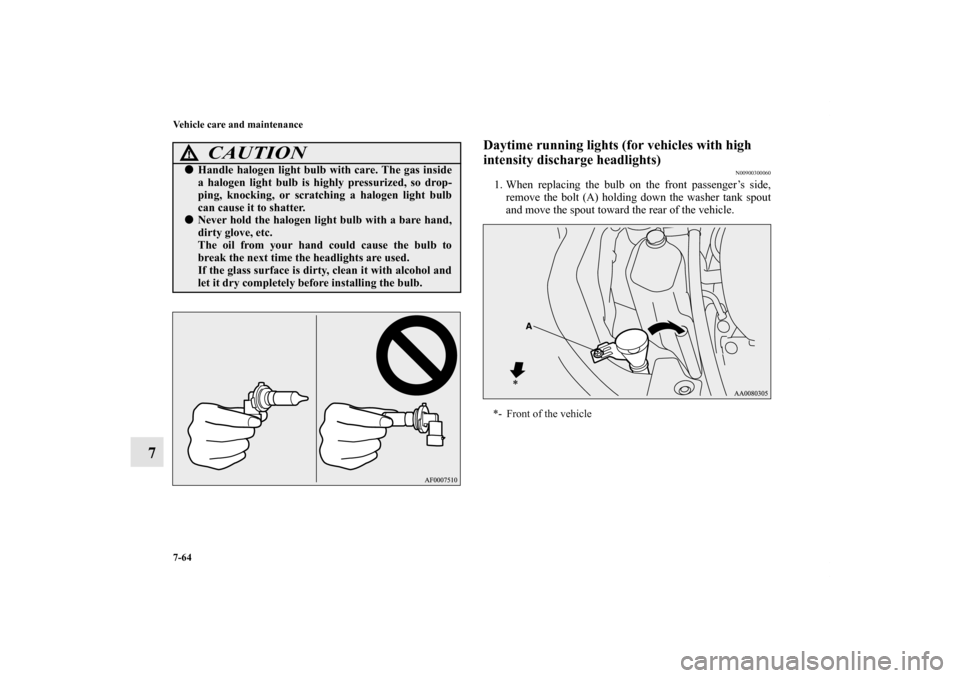

1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.
CAUTION
!
Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0119300US.book 64 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-65
7

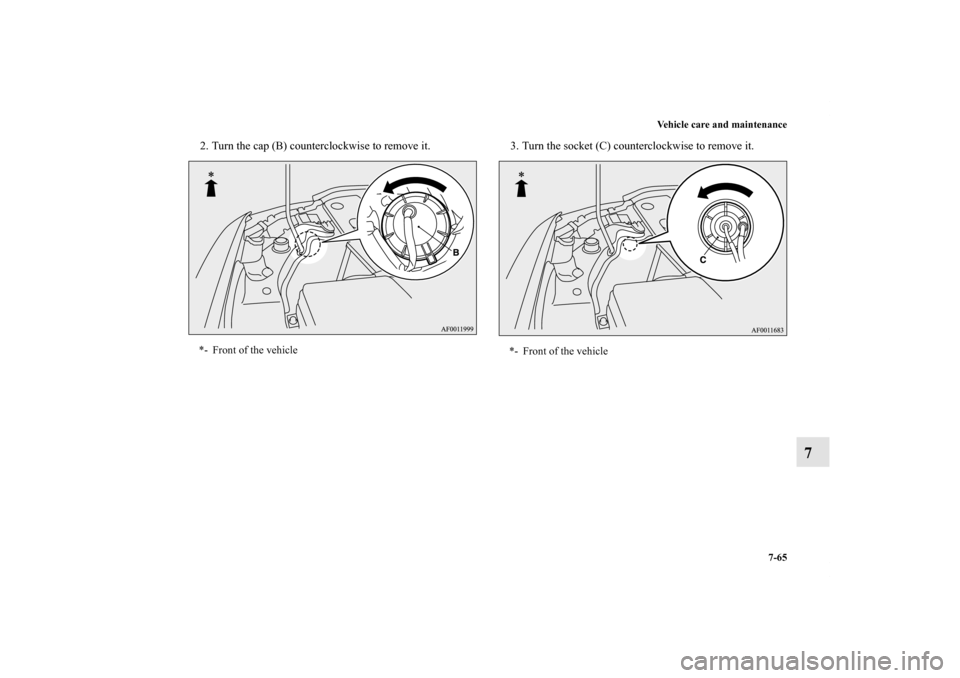

2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0119300US.book 65 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

7-66 Vehicle care and maintenance
7

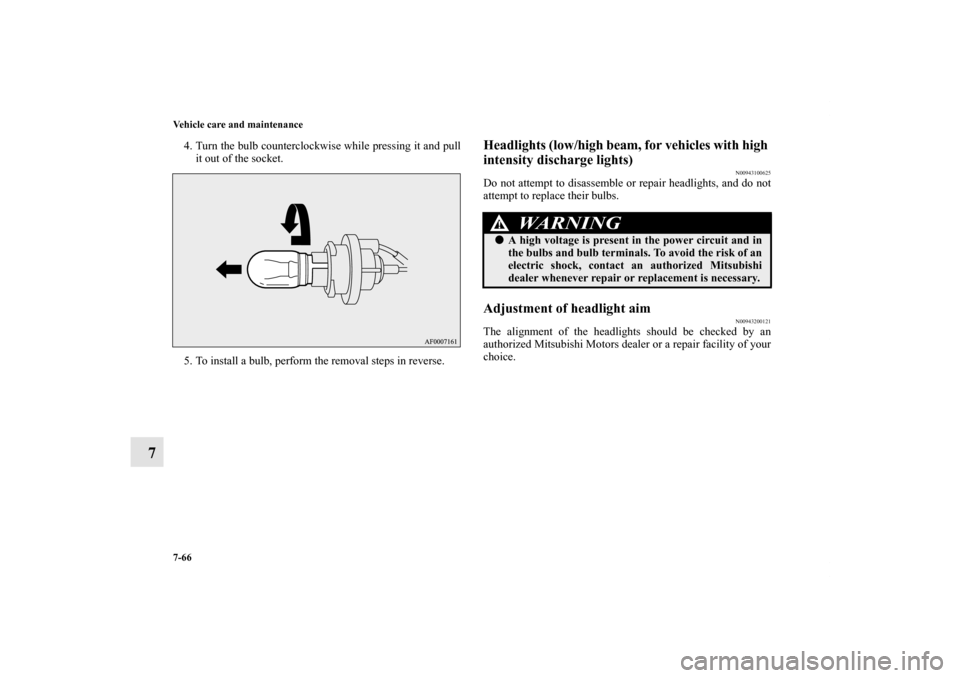

4. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
5. To install a bulb, perform the removal steps in reverse.
Headlights (low/high beam, for vehicles with high
intensity discharge lights)
N00943100625
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!
A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
BK0119300US.book 66 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-67
7
Parking and side-marker lights (except for vehi-
cles with high intensity discharge headlights)
N00917300512
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).*- Front of the vehicle
*- Front of the vehicle
BK0119300US.book 67 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

7-68 Vehicle care and maintenance
7

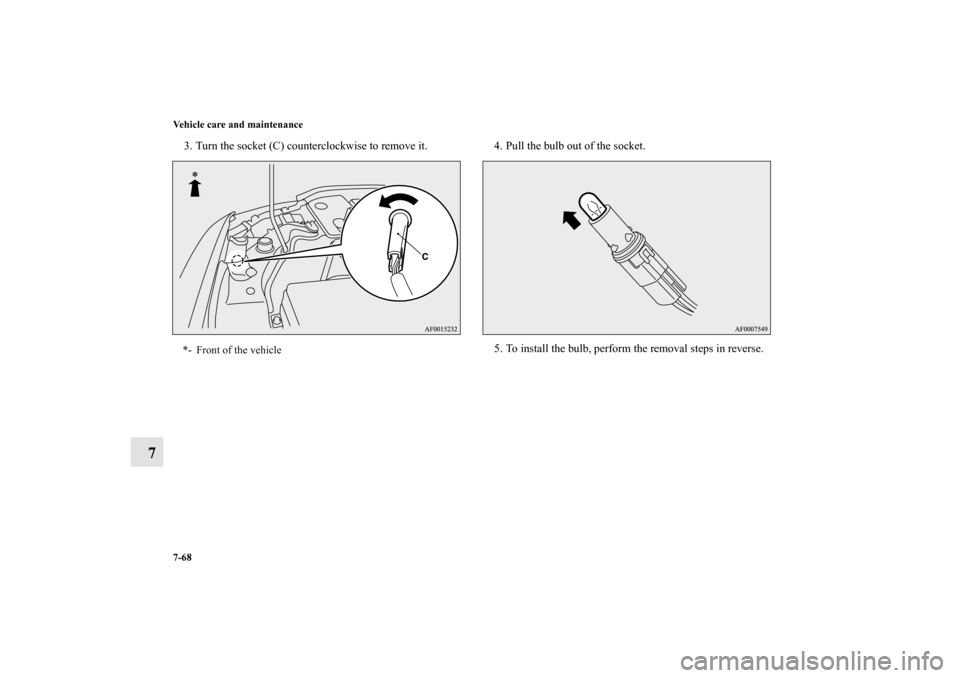

3. Turn the socket (C) counterclockwise to remove it. 4. Pull the bulb out of the socket.
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0119300US.book 68 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-69
7
Parking and side-marker lights (for vehicles with
high intensity discharge headlights)
N00917300509
1. To create enough work space, turn the steering wheel all
the way in the direction opposite to the side you wish to
replace.

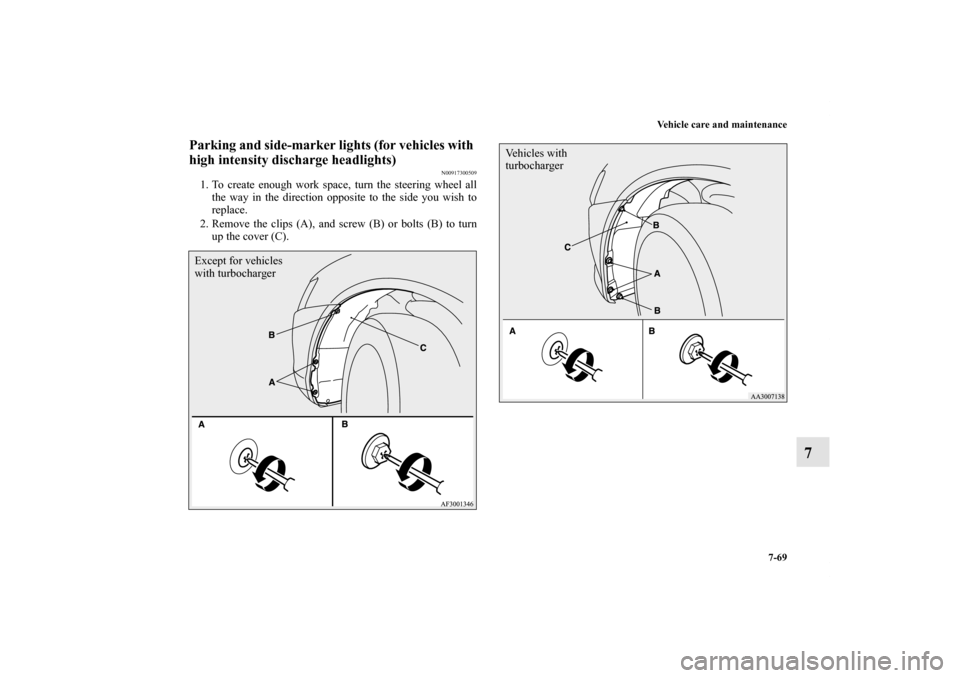

2. Remove the clips (A), and screw (B) or bolts (B) to turn
up the cover (C).Except for vehicles
with turbocharger
Vehicles with
turbocharger
BK0119300US.book 69 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

7-70 Vehicle care and maintenance
7

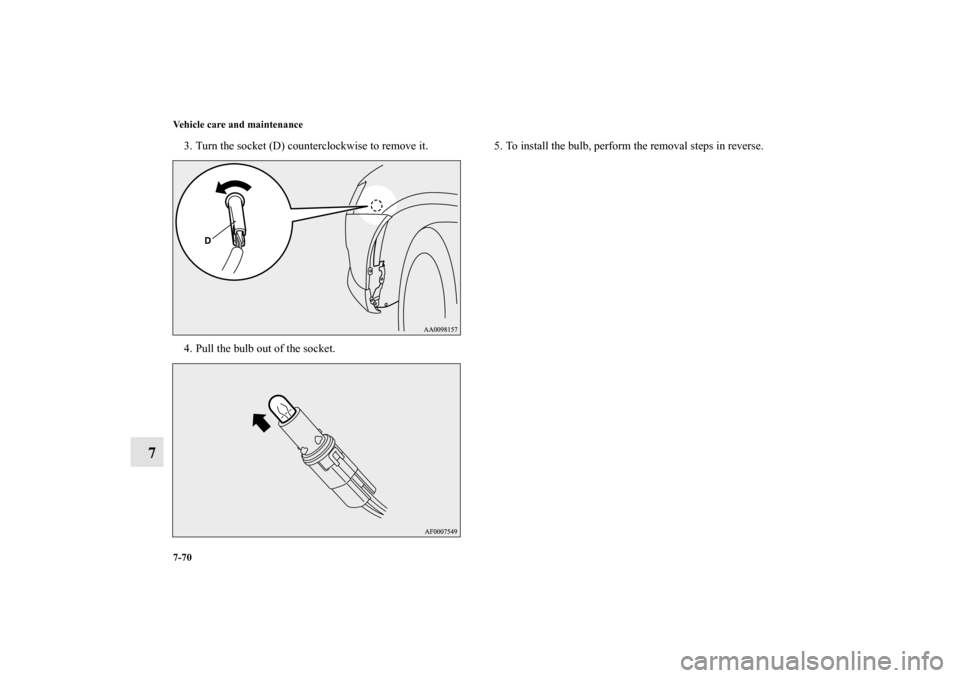

3. Turn the socket (D) counterclockwise to remove it.
4. Pull the bulb out of the socket.5. To install the bulb, perform the removal steps in reverse.
BK0119300US.book 70 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-71
7
Front turn signal lights
N00943400237

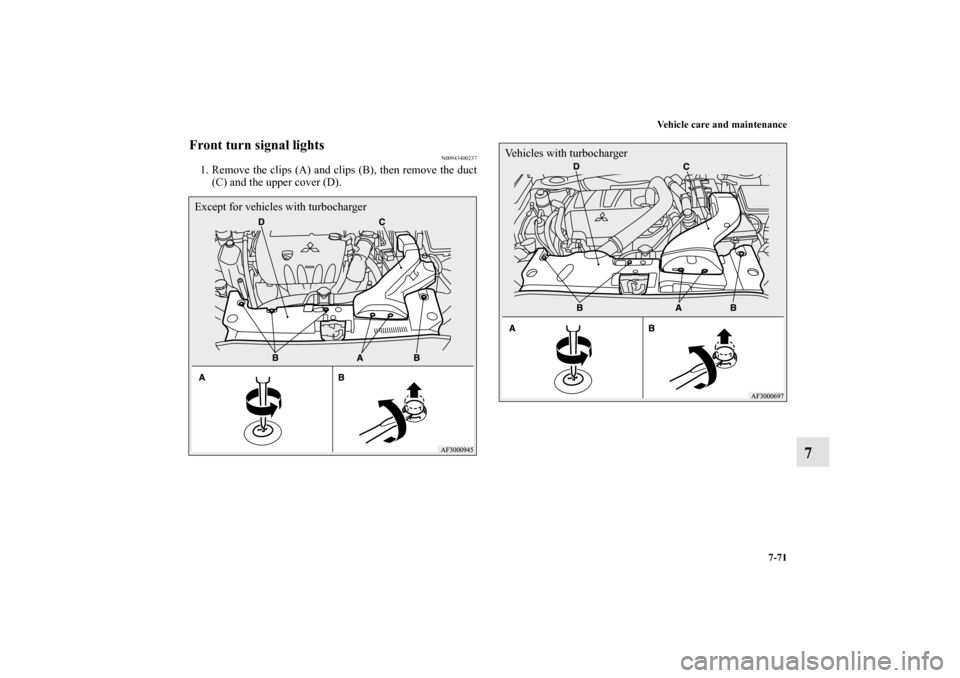

1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).Except for vehicles with turbocharger
Vehicles with turbocharger
BK0119300US.book 71 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

7-72 Vehicle care and maintenance
7

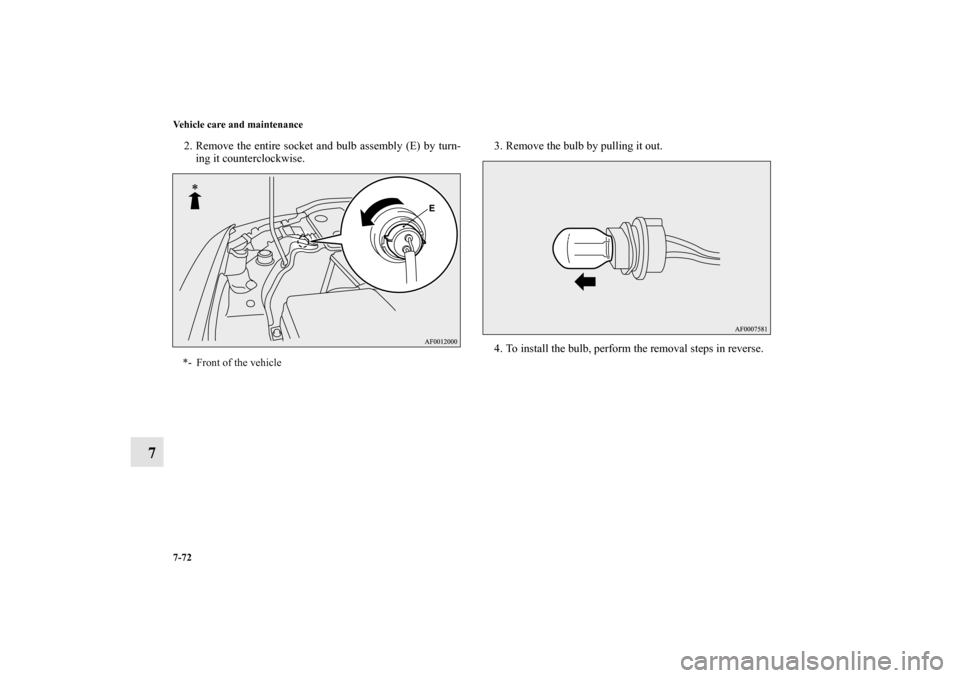

2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0119300US.book 72 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-73
7

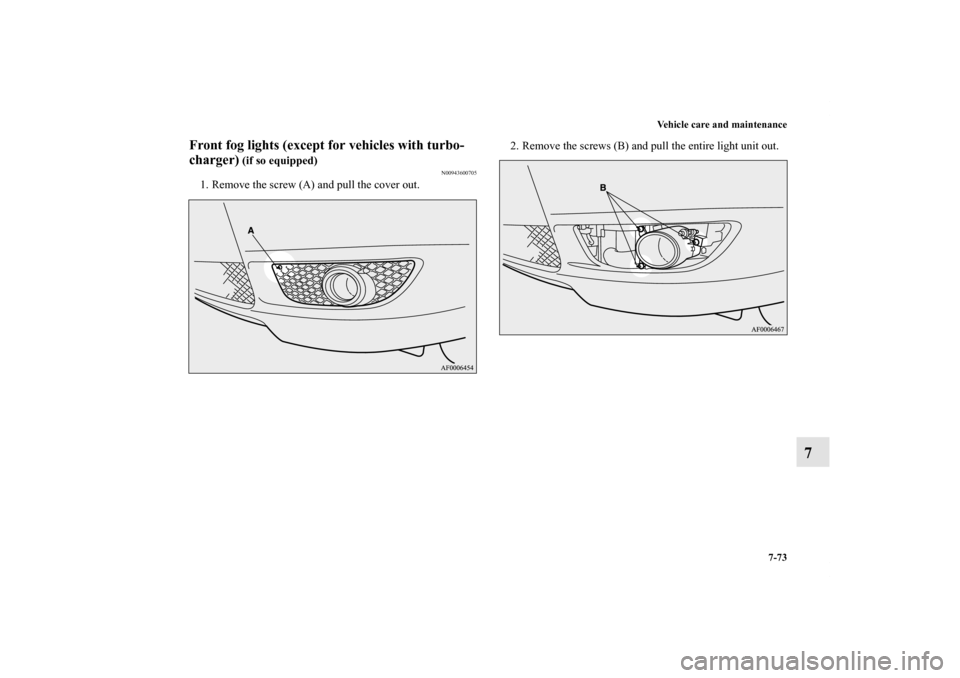

Front fog lights (except for vehicles with turbo-
charger)
(if so equipped)
N00943600705
1. Remove the screw (A) and pull the cover out.2. Remove the screws (B) and pull the entire light unit out.
