9-2 Specifications

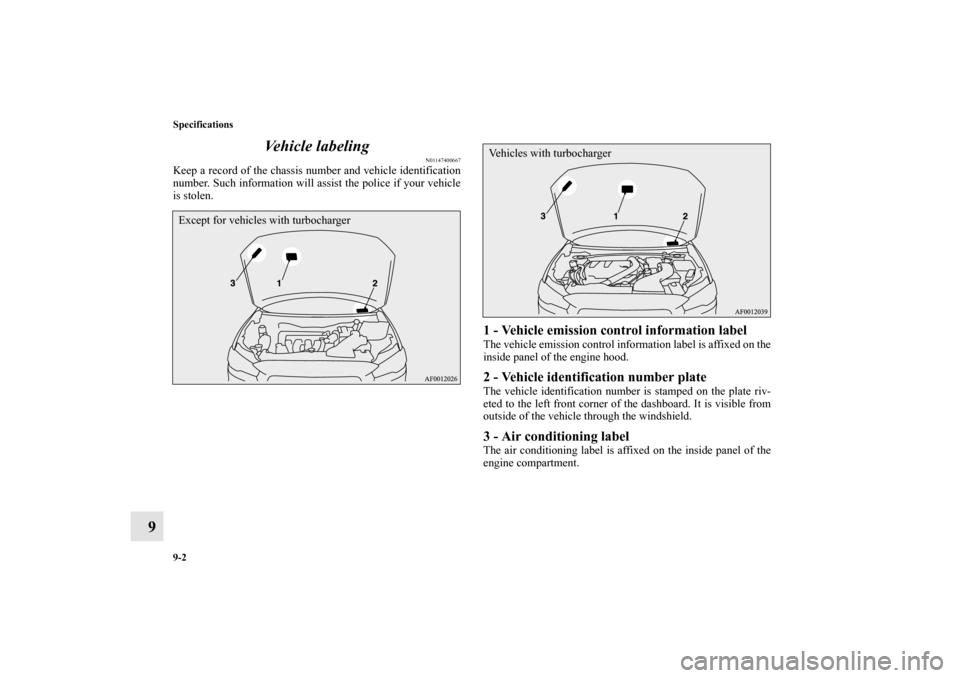

9Vehicle labeling
N01147400667
Keep a record of the chassis number and vehicle identification
number. Such information will assist the police if your vehicle
is stolen.
1 - Vehicle emission control information labelThe vehicle emission control information label is affixed on the
inside panel of the engine hood.2 - Vehicle identification number plateThe vehicle identification number is stamped on the plate riv-
eted to the left front corner of the dashboard. It is visible from
outside of the vehicle through the windshield.3 - Air conditioning labelThe air conditioning label is affixed on the inside panel of the
engine compartment.
Except for vehicles with turbocharger
Vehicles with turbocharger
BK0119300US.book 2 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Specifications
9-3
9

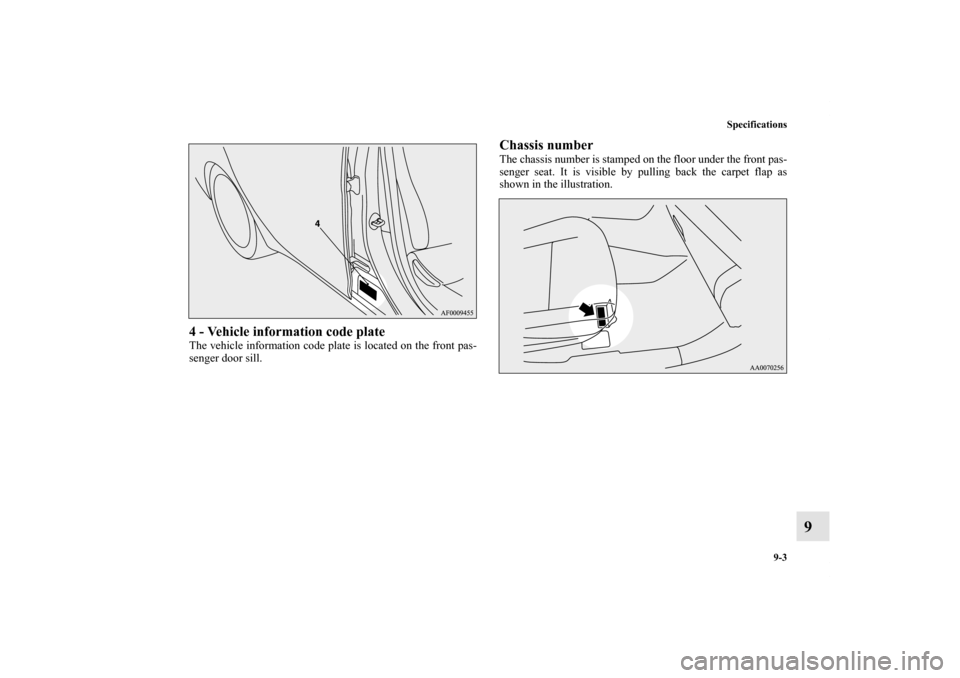

4 - Vehicle information code plateThe vehicle information code plate is located on the front pas-
senger door sill.
Chassis numberThe chassis number is stamped on the floor under the front pas-
senger seat. It is visible by pulling back the carpet flap as
shown in the illustration.
BK0119300US.book 3 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-4 Specifications
9

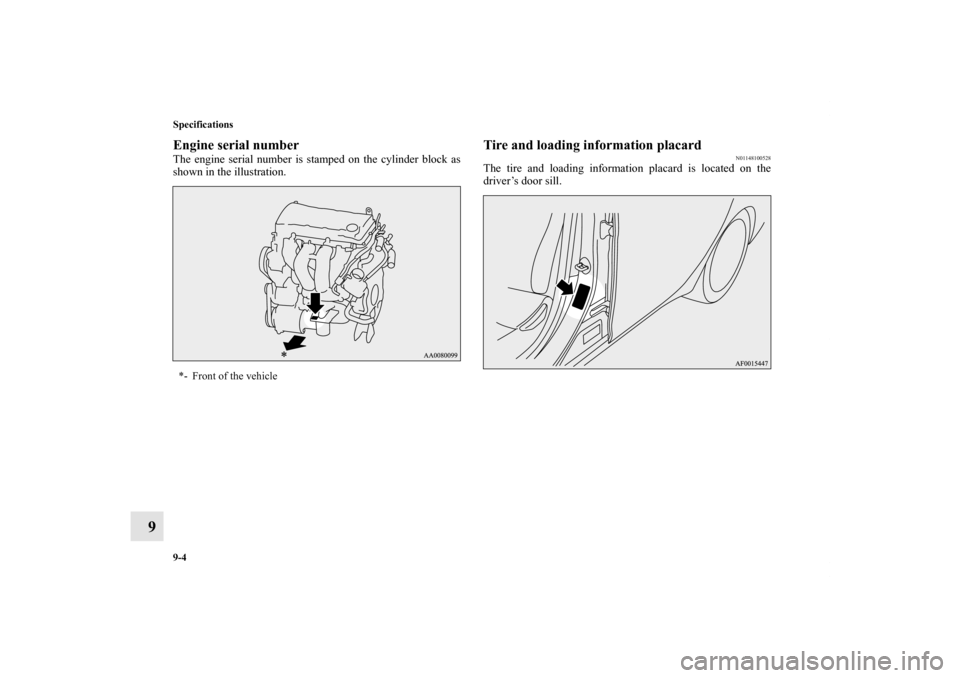

Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.
Tire and loading information placard
N01148100528
The tire and loading information placard is located on the
driver’s door sill.
*- Front of the vehicleBK0119300US.book 4 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Specifications
9-5
9

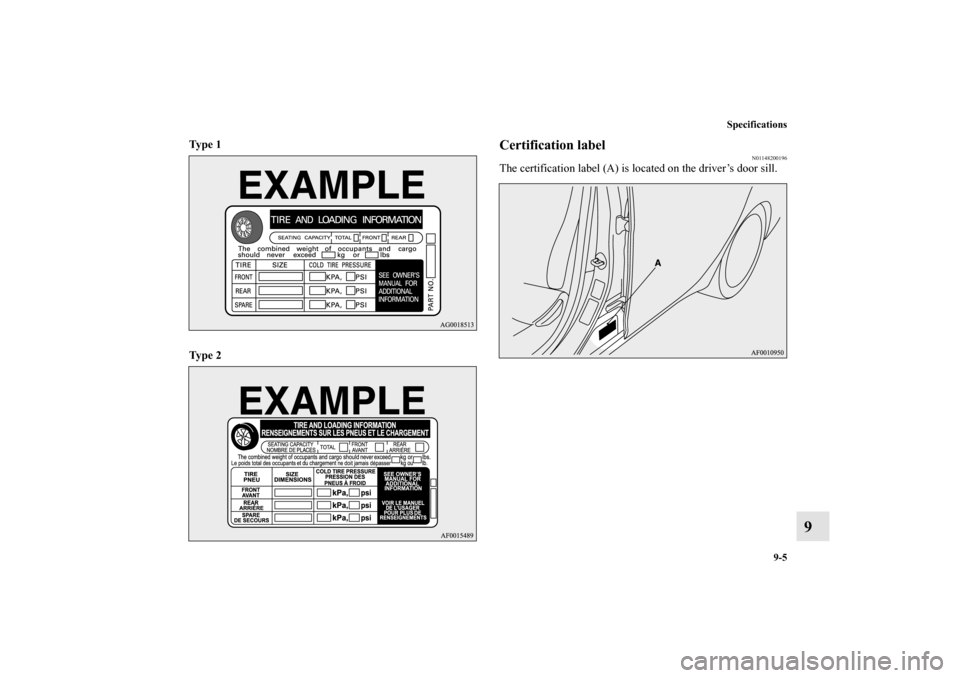

Ty p e 1

Ty p e 2

Certification label
N01148200196
The certification label (A) is located on the driver’s door sill.
BK0119300US.book 5 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-6 Specifications

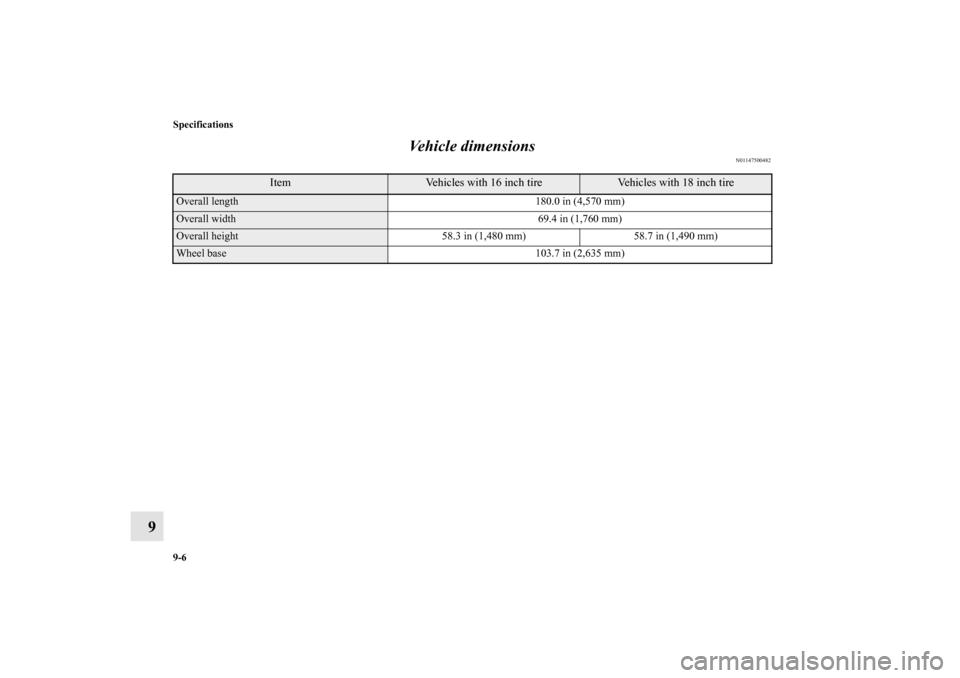

9Vehicle dimensions
N01147500482
Item
Vehicles with 16 inch tire
Vehicles with 18 inch tire
Overall length 180.0 in (4,570 mm) Overall width 69.4 in (1,760 mm) Overall height 58.3 in (1,480 mm) 58.7 in (1,490 mm)Wheel base 103.7 in (2,635 mm) BK0119300US.book 6 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Specifications
9-7

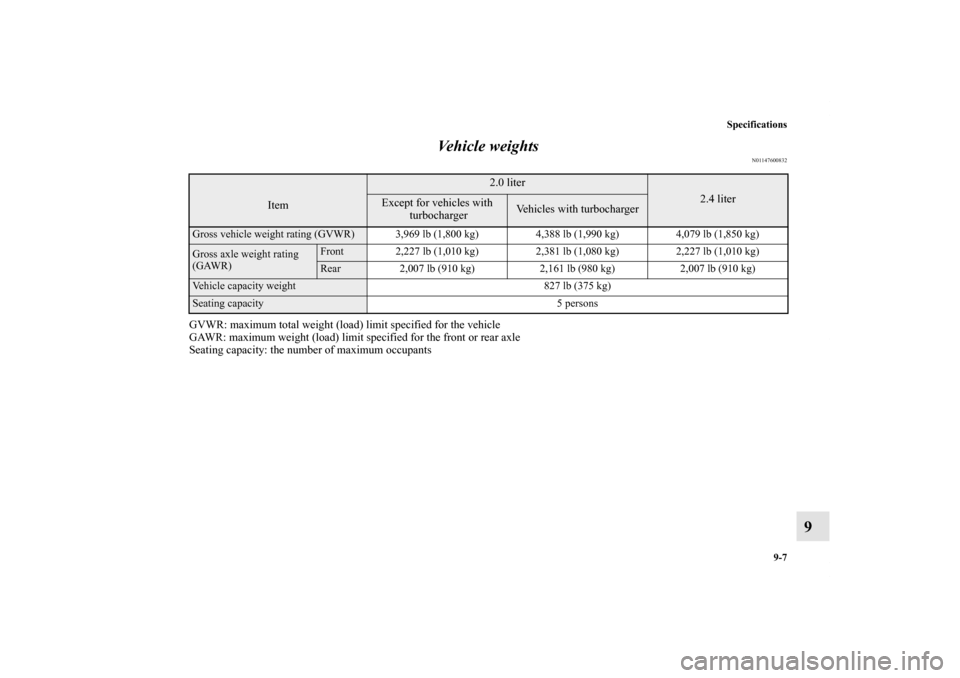

9 Vehicle weights
N01147600832
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
2.0 liter
2.4 liter
Except for vehicles with
turbocharger
Vehicles with turbocharger
Gross vehicle weight rating (GVWR) 3,969 lb (1,800 kg) 4,388 lb (1,990 kg) 4,079 lb (1,850 kg)Gross axle weight rating
(GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg) 2,227 lb (1,010 kg)Rear 2,007 lb (910 kg) 2,161 lb (980 kg) 2,007 lb (910 kg)
Vehicle capacity weight 827 lb (375 kg)Seating capacity 5 persons
BK0119300US.book 7 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-8 Specifications
9Engine specifications
N01147700439
Item
2.0 liter
2.4 liter
Except for vehicles with tur-
bocharger
Vehicles with turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrange-
ment4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87 °C) 180 °F (82 °C) 189 °F (87 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap.040 to .043 in
(1.0 to 1.1 mm).020 to .023 in
(0.5 to 0.6 mm).040 to .043 in
(1.0 to 1.1 mm)Firing order 1-3-4-2BK0119300US.book 8 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Specifications
9-9
9 Battery
N01147800182
Battery is a 12 volt type.
75D23L
BK0119300US.book 9 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

9-10 Specifications

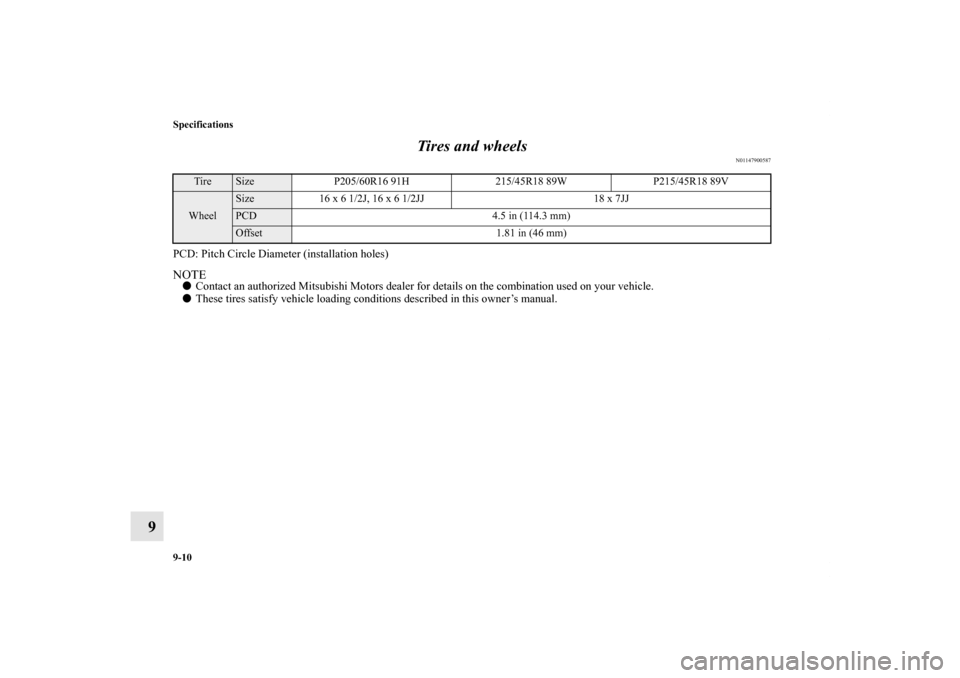

9Tires and wheels
N01147900587
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in this owner’s manual.
Tire
Size P205/60R16 91H 215/45R18 89W P215/45R18 89V
Wheel
Size 16 x 6 1/2J, 16 x 6 1/2JJ 18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0119300US.book 10 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Specifications
9-11
9 Refill capacities
N01148000905
Item
Capacity
Lubricants
Fuel (approxi-
mate)
Except for RALLIART 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.RALLIART 14.5 gal (55.0 L)
Engine oil
2.0 liter
Except for vehi-
cles with turbo-
charger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)
Vehicles with
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL API classifica-
tion GL-3 SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Twin Clutch SST8.0 qt (7.6 L)
{includes .53 qt
(0.5 L) in oil
cooler}DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid.95 qt (0.9 L)
{Includes
hydraulic piping}DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oil
