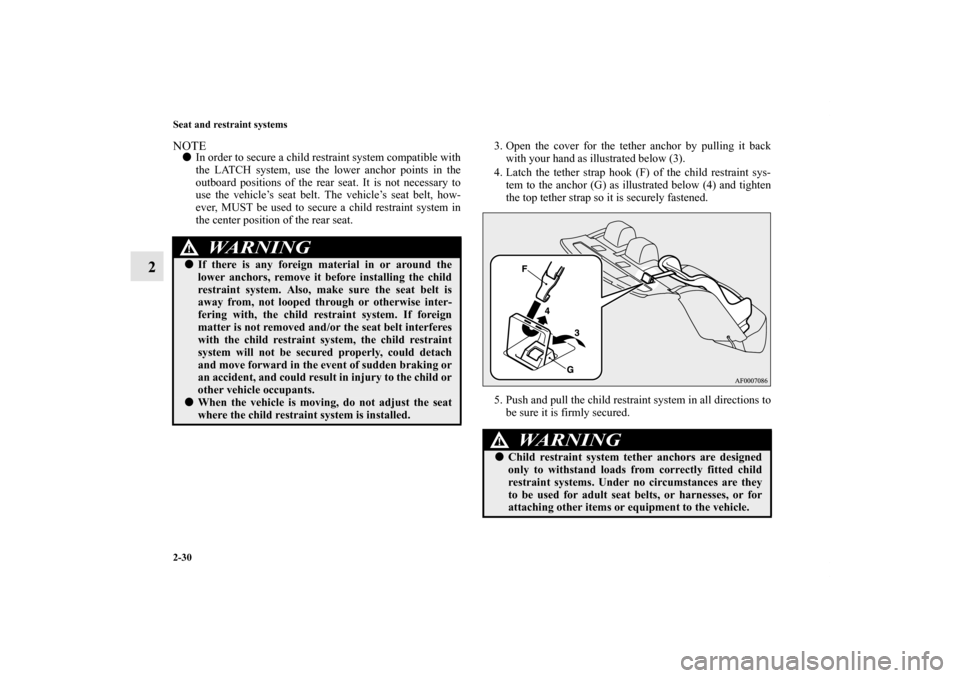

2-30 Seat and restraint systems
2
NOTE
In order to secure a child restraint system compatible with
the LATCH system, use the lower anchor points in the
outboard positions of the rear seat. It is not necessary to
use the vehicle’s seat belt. The vehicle’s seat belt, how-
ever, MUST be used to secure a child restraint system in
the center position of the rear seat.3. Open the cover for the tether anchor by pulling it back
with your hand as illustrated below (3).
4. Latch the tether strap hook (F) of the child restraint sys-
tem to the anchor (G) as illustrated below (4) and tighten
the top tether strap so it is securely fastened.
5. Push and pull the child restraint system in all directions to
be sure it is firmly secured.
WA R N I N G
!
If there is any foreign material in or around the
lower anchors, remove it before installing the child
restraint system. Also, make sure the seat belt is
away from, not looped through or otherwise inter-
fering with, the child restraint system. If foreign
matter is not removed and/or the seat belt interferes
with the child restraint system, the child restraint
system will not be secured properly, could detach
and move forward in the event of sudden braking or
an accident, and could result in injury to the child or
other vehicle occupants.
When the vehicle is moving, do not adjust the seat
where the child restraint system is installed.
WA R N I N G
!
Child restraint system tether anchors are designed
only to withstand loads from correctly fitted child
restraint systems. Under no circumstances are they
to be used for adult seat belts, or harnesses, or for
attaching other items or equipment to the vehicle.
BK0119300US.book 30 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Seat and restraint systems
2-31
2

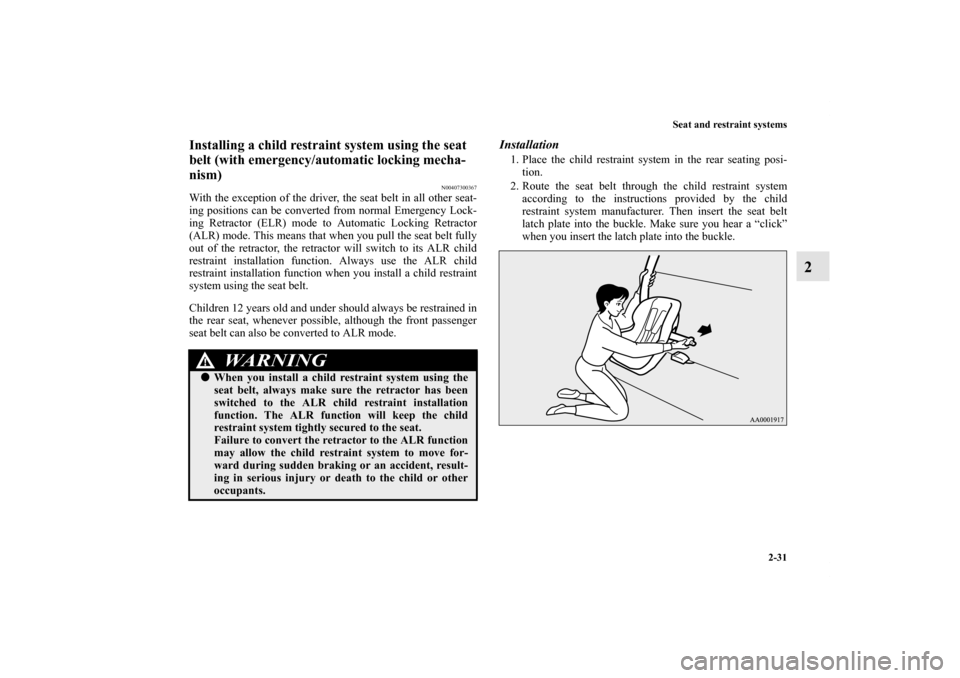

Installing a child restraint system using the seat
belt (with emergency/automatic locking mecha-
nism)
N00407300367
With the exception of the driver, the seat belt in all other seat-
ing positions can be converted from normal Emergency Lock-
ing Retractor (ELR) mode to Automatic Locking Retractor
(ALR) mode. This means that when you pull the seat belt fully
out of the retractor, the retractor will switch to its ALR child
restraint installation function. Always use the ALR child
restraint installation function when you install a child restraint
system using the seat belt.
Children 12 years old and under should always be restrained in
the rear seat, whenever possible, although the front passenger
seat belt can also be converted to ALR mode.
Installation1. Place the child restraint system in the rear seating posi-
tion.
2. Route the seat belt through the child restraint system
according to the instructions provided by the child
restraint system manufacturer. Then insert the seat belt
latch plate into the buckle. Make sure you hear a “click”
when you insert the latch plate into the buckle.
WA R N I N G
!
When you install a child restraint system using the
seat belt, always make sure the retractor has been
switched to the ALR child restraint installation
function. The ALR function will keep the child
restraint system tightly secured to the seat.
Failure to convert the retractor to the ALR function
may allow the child restraint system to move for-
ward during sudden braking or an accident, result-
ing in serious injury or death to the child or other
occupants.
BK0119300US.book 31 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

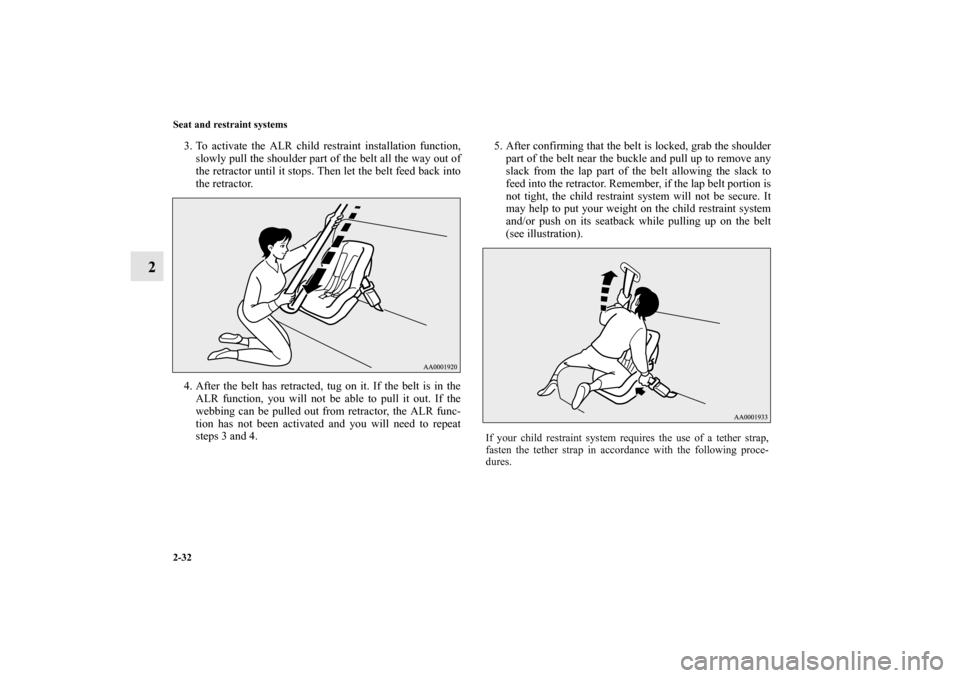

2-32 Seat and restraint systems
2
3. To activate the ALR child restraint installation function,
slowly pull the shoulder part of the belt all the way out of
the retractor until it stops. Then let the belt feed back into
the retractor.
4. After the belt has retracted, tug on it. If the belt is in the
ALR function, you will not be able to pull it out. If the
webbing can be pulled out from retractor, the ALR func-
tion has not been activated and you will need to repeat
steps 3 and 4.5. After confirming that the belt is locked, grab the shoulder
part of the belt near the buckle and pull up to remove any
slack from the lap part of the belt allowing the slack to
feed into the retractor. Remember, if the lap belt portion is
not tight, the child restraint system will not be secure. It
may help to put your weight on the child restraint system
and/or push on its seatback while pulling up on the belt
(see illustration).
If your child restraint system requires the use of a tether strap,
fasten the tether strap in accordance with the following proce-
dures.
BK0119300US.book 32 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

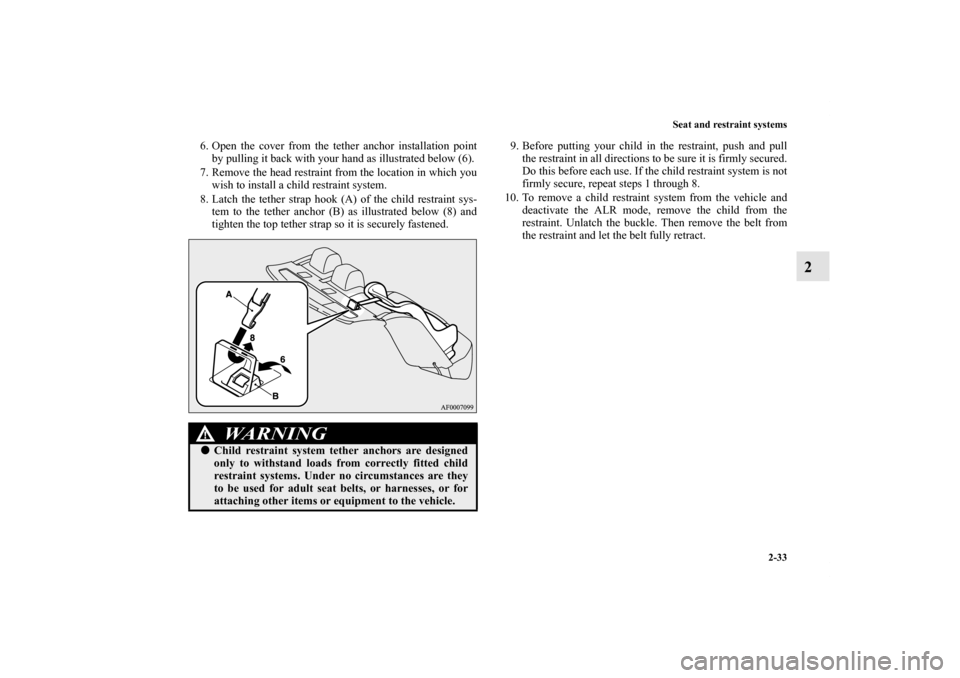

Seat and restraint systems
2-33
2
6. Open the cover from the tether anchor installation point
by pulling it back with your hand as illustrated below (6).
7. Remove the head restraint from the location in which you
wish to install a child restraint system.
8. Latch the tether strap hook (A) of the child restraint sys-
tem to the tether anchor (B) as illustrated below (8) and
tighten the top tether strap so it is securely fastened.9. Before putting your child in the restraint, push and pull
the restraint in all directions to be sure it is firmly secured.
Do this before each use. If the child restraint system is not
firmly secure, repeat steps 1 through 8.
10. To remove a child restraint system from the vehicle and
deactivate the ALR mode, remove the child from the
restraint. Unlatch the buckle. Then remove the belt from
the restraint and let the belt fully retract.
WA R N I N G
!
Child restraint system tether anchors are designed
only to withstand loads from correctly fitted child
restraint systems. Under no circumstances are they
to be used for adult seat belts, or harnesses, or for
attaching other items or equipment to the vehicle.
BK0119300US.book 33 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

2-34 Seat and restraint systems
2
Children who have outgrown child restraint sys-
tems
N00407600504
Children who have outgrown a child restraint system should be
seated in the rear seat and wear the seat belt. If the shoulder
belt crosses their face or neck, and/or the lap belt crosses their
stomach, a commercially available booster seat (including a
booster cushion) must be used, to raise the child so that the
shoulder belt crosses their shoulder and the lap belt remains
positioned low across their hips. The booster seat (including a
booster cushion) should fit the vehicle seat and have a label
certifying compliance with Federal Motor Vehicle Safety Stan-
dards or Motor Vehicle Restraint Systems and Booster Cush-
ions Safety Regulations.
Maintenance and inspection of seat belts
N00407000221
The seat belt webbing may be cleaned with mild soap or deter-
gent solution. Do not use an organic solvent. Allow the belts to
dry in the shade. Do not allow them to retract until completely
dry. Do not attempt to bleach or re-dye the belts. The color may
rub off and the webbing strength may be affected.
Regularly check your seat belt buckles and their release mech-
anisms for positive engagement and release of the latch plate.
Check the retractors for automatic locking when in the Auto-
matic Locking Retractor function.
The entire seat belt assembly should be replaced if the webbing
shows any obvious cuts, tears, increase in thickness in any sec-
tion of the webbing from broken fibers, or severe fading from
sunlight. All of these conditions indicate a weakening of the
belt, which may adversely affect seat belt performance in an
accident.
WA R N I N G
!
Any child who is too small to properly wear a seat
belt must be properly restrained in an appropriate
child restraint system, to reduce their risk of serious
injury or death in an accident.
A child should never be left unattended in, or unsu-
pervised, around your vehicle. When you leave the
vehicle always take the child out as well.
Children can die from heat stroke if left or trapped
inside the vehicle, especially on hot days.
Keep your vehicle locked and the trunk lid closed
when not in use. Keep your vehicle keys away from
children.
Never allow children to play in the trunk of your
vehicle.
WA R N I N G
!
Do not attempt to repair or replace any part of the
seat belt assemblies. This work should be done by an
authorized Mitsubishi Motors dealer. Failure to
have an authorized Mitsubishi Motors dealer per-
form the work could reduce the effectiveness of the
belts and could result in a serious injury or death in
an accident.
BK0119300US.book 34 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

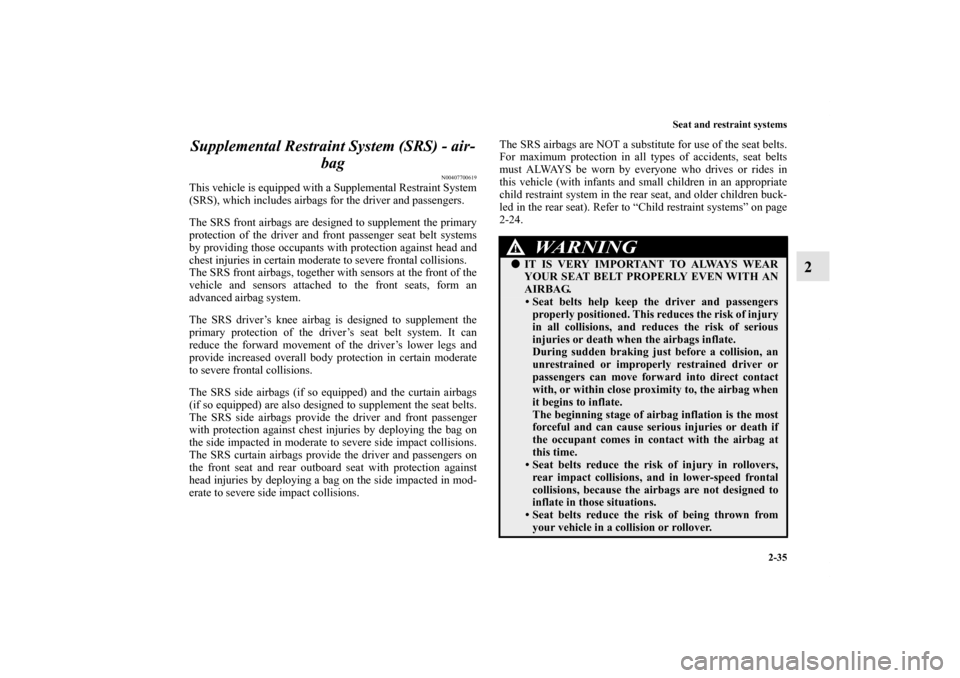

Seat and restraint systems
2-35
2 Supplemental Restraint System (SRS) - air-
bag
N00407700619
This vehicle is equipped with a Supplemental Restraint System
(SRS), which includes airbags for the driver and passengers.
The SRS front airbags are designed to supplement the primary
protection of the driver and front passenger seat belt systems
by providing those occupants with protection against head and
chest injuries in certain moderate to severe frontal collisions.
The SRS front airbags, together with sensors at the front of the
vehicle and sensors attached to the front seats, form an
advanced airbag system.
The SRS driver’s knee airbag is designed to supplement the
primary protection of the driver’s seat belt system. It can
reduce the forward movement of the driver’s lower legs and
provide increased overall body protection in certain moderate
to severe frontal collisions.
The SRS side airbags (if so equipped) and the curtain airbags
(if so equipped) are also designed to supplement the seat belts.
The SRS side airbags provide the driver and front passenger
with protection against chest injuries by deploying the bag on
the side impacted in moderate to severe side impact collisions.
The SRS curtain airbags provide the driver and passengers on
the front seat and rear outboard seat with protection against
head injuries by deploying a bag on the side impacted in mod-
erate to severe side impact collisions.The SRS airbags are NOT a substitute for use of the seat belts.
For maximum protection in all types of accidents, seat belts
must ALWAYS be worn by everyone who drives or rides in
this vehicle (with infants and small children in an appropriate
child restraint system in the rear seat, and older children buck-
led in the rear seat). Refer to “Child restraint systems” on page
2-24.
WA R N I N G
!
IT IS VERY IMPORTANT TO ALWAYS WEAR
YOUR SEAT BELT PROPERLY EVEN WITH AN
AIRBAG.
• Seat belts help keep the driver and passengers
properly positioned. This reduces the risk of injury
in all collisions, and reduces the risk of serious
injuries or death when the airbags inflate.
During sudden braking just before a collision, an
unrestrained or improperly restrained driver or
passengers can move forward into direct contact
with, or within close proximity to, the airbag when
it begins to inflate.
The beginning stage of airbag inflation is the most
forceful and can cause serious injuries or death if
the occupant comes in contact with the airbag at
this time.
• Seat belts reduce the risk of injury in rollovers,
rear impact collisions, and in lower-speed frontal
collisions, because the airbags are not designed to
inflate in those situations.
• Seat belts reduce the risk of being thrown from
your vehicle in a collision or rollover.
BK0119300US.book 35 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

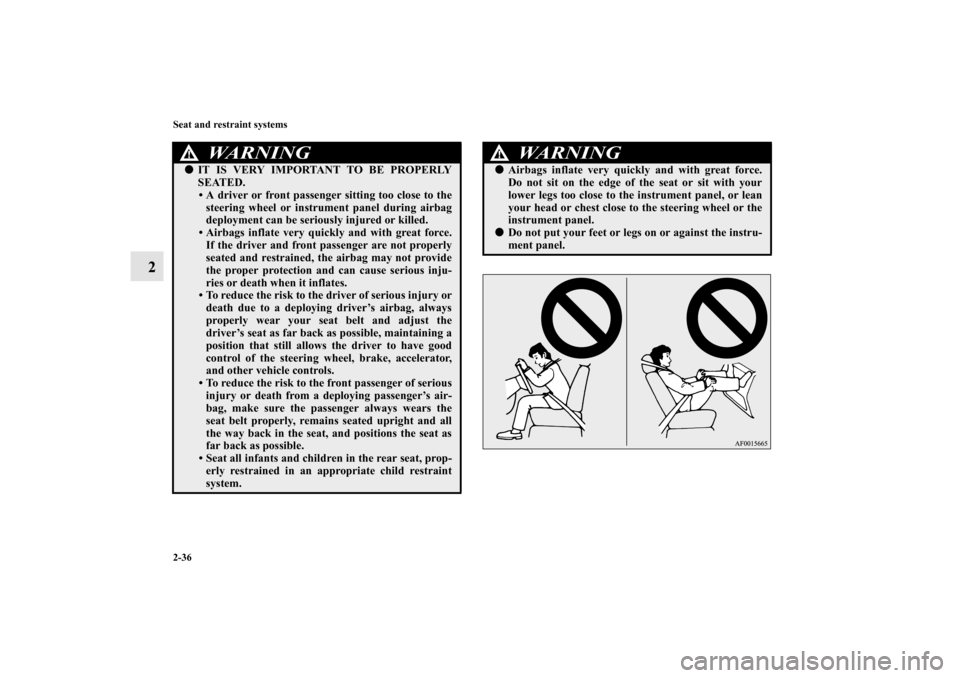

2-36 Seat and restraint systems
2
WA R N I N G
!
IT IS VERY IMPORTANT TO BE PROPERLY
SEATED.
• A driver or front passenger sitting too close to the
steering wheel or instrument panel during airbag
deployment can be seriously injured or killed.
• Airbags inflate very quickly and with great force.
If the driver and front passenger are not properly
seated and restrained, the airbag may not provide
the proper protection and can cause serious inju-
ries or death when it inflates.
• To reduce the risk to the driver of serious injury or
death due to a deploying driver’s airbag, always
properly wear your seat belt and adjust the
driver’s seat as far back as possible, maintaining a
position that still allows the driver to have good
control of the steering wheel, brake, accelerator,
and other vehicle controls.
• To reduce the risk to the front passenger of serious
injury or death from a deploying passenger’s air-
bag, make sure the passenger always wears the
seat belt properly, remains seated upright and all
the way back in the seat, and positions the seat as
far back as possible.
• Seat all infants and children in the rear seat, prop-
erly restrained in an appropriate child restraint
system.
WA R N I N G
!
Airbags inflate very quickly and with great force.
Do not sit on the edge of the seat or sit with your
lower legs too close to the instrument panel, or lean
your head or chest close to the steering wheel or the
instrument panel.
Do not put your feet or legs on or against the instru-
ment panel.
BK0119300US.book 36 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Seat and restraint systems
2-37
2

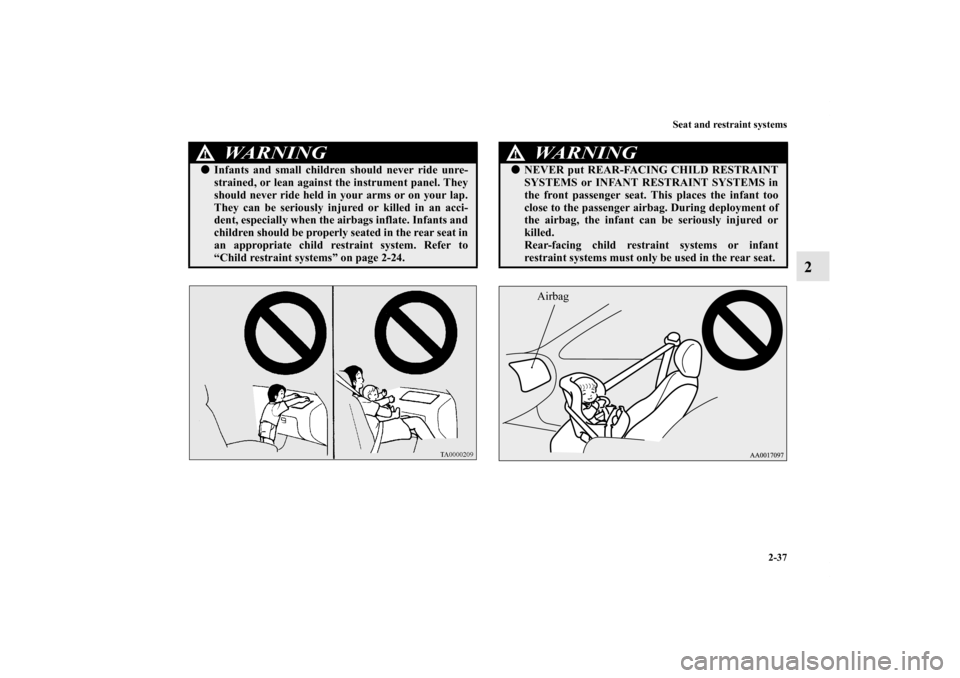

WA R N I N G
!
Infants and small children should never ride unre-
strained, or lean against the instrument panel. They
should never ride held in your arms or on your lap.
They can be seriously injured or killed in an acci-
dent, especially when the airbags inflate. Infants and
children should be properly seated in the rear seat in
an appropriate child restraint system. Refer to
“Child restraint systems” on page 2-24.
WA R N I N G
!
NEVER put REAR-FACING CHILD RESTRAINT
SYSTEMS or INFANT RESTRAINT SYSTEMS in
the front passenger seat. This places the infant too
close to the passenger airbag. During deployment of
the airbag, the infant can be seriously injured or
killed.
Rear-facing child restraint systems or infant
restraint systems must only be used in the rear seat.
Airbag
BK0119300US.book 37 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

2-38 Seat and restraint systems
2

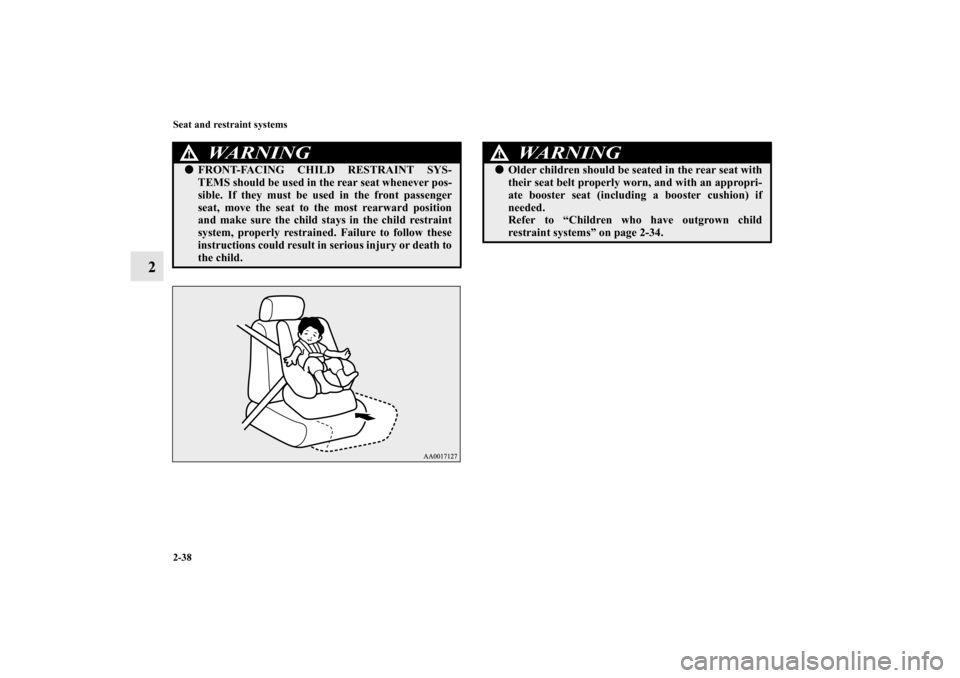

WA R N I N G
!
FRONT-FACING CHILD RESTRAINT SYS-
TEMS should be used in the rear seat whenever pos-
sible. If they must be used in the front passenger
seat, move the seat to the most rearward position
and make sure the child stays in the child restraint
system, properly restrained. Failure to follow these
instructions could result in serious injury or death to
the child.
WA R N I N G
!
Older children should be seated in the rear seat with
their seat belt properly worn, and with an appropri-
ate booster seat (including a booster cushion) if
needed.
Refer to “Children who have outgrown child
restraint systems” on page 2-34.
BK0119300US.book 38 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Seat and restraint systems
2-39
2

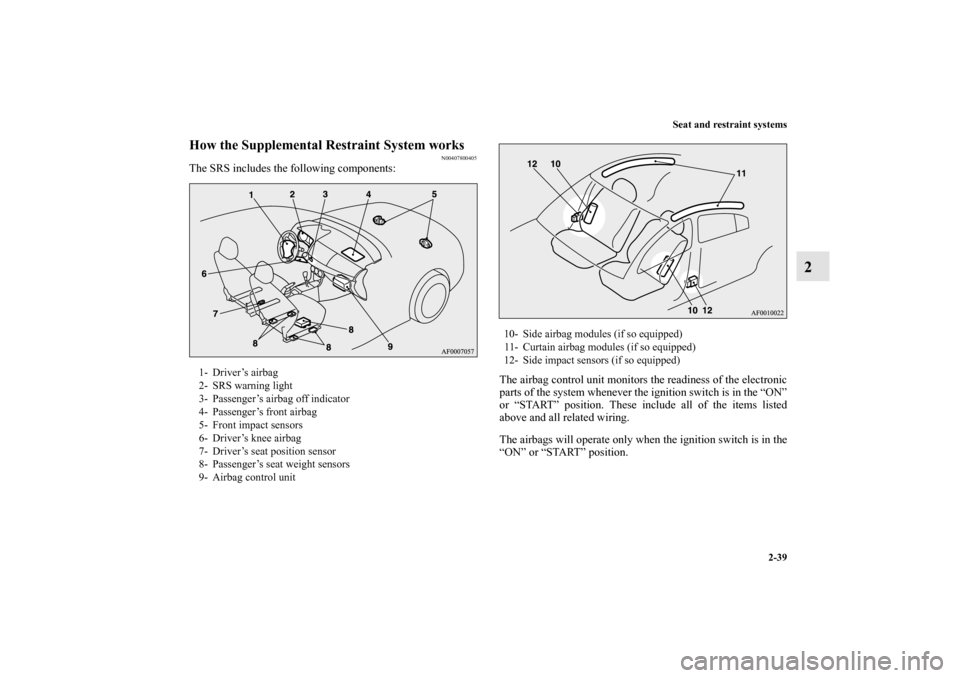

How the Supplemental Restraint System works
N00407800405
The SRS includes the following components:
The airbag control unit monitors the readiness of the electronic
parts of the system whenever the ignition switch is in the “ON”
or “START” position. These include all of the items listed
above and all related wiring.
The airbags will operate only when the ignition switch is in the
“ON” or “START” position. 1- Driver’s airbag
2- SRS warning light
3- Passenger’s airbag off indicator
4- Passenger’s front airbag
5- Front impact sensors
6- Driver’s knee airbag
7- Driver’s seat position sensor
8- Passenger’s seat weight sensors
9- Airbag control unit
10- Side airbag modules (if so equipped)
11- Curtain airbag modules (if so equipped)
12- Side impact sensors (if so equipped)
BK0119300US.book 39 ページ ２０１０年５月２１日　金曜日　午前１０時１３分
