3-232 Features and controls
3Wiper and washer switch
N00523000552
Windshield wipersExcept for vehicle with rain sensorThe windshield wiper and washer can be operated with the
ignition switch in the “ON” or “ACC” position.
If the blades are frozen to the windshield, do not operate the
wipers until the ice has melted and the blades are freed, other-
wise the wiper motor may be damaged.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed against the glass may freeze, which
may hinder visibility. Warm the glass with the
defroster before using the washer.
MIST- Misting function
The wipers will operate once.
OFF- Off
INT- Intermittent (Speed sensitive)
LO- Slow
HI- Fast
BK0119300US.book 232 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

3-238 Features and controls
3

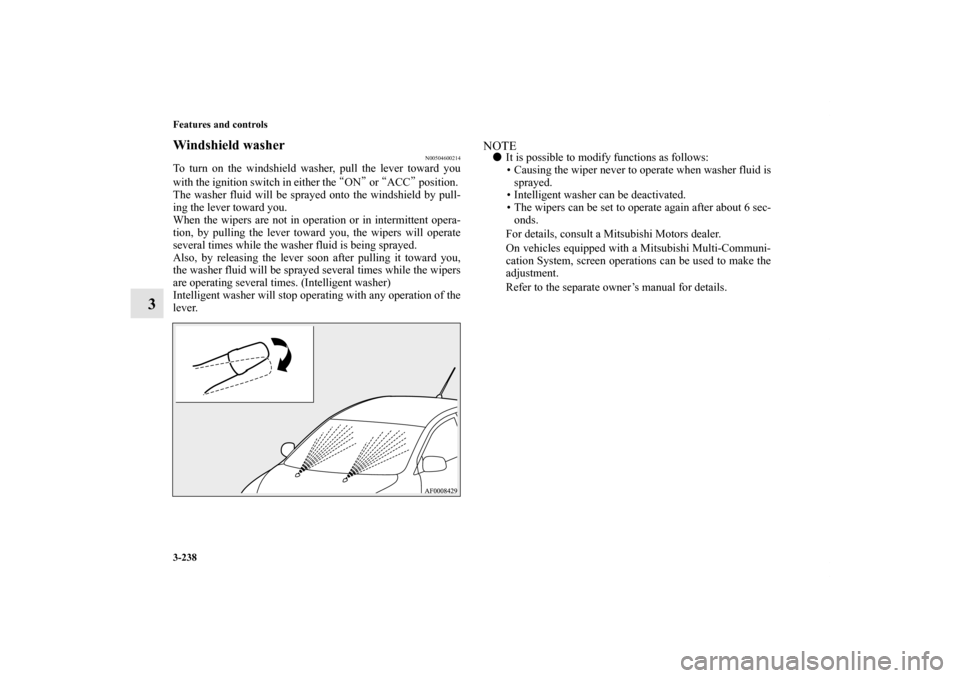

Windshield washer
N00504600214
To turn on the windshield washer, pull the lever toward you
with the ignition switch in either the “ON” or “ACC” position.
The washer fluid will be sprayed onto the windshield by pull-
ing the lever toward you.
When the wipers are not in operation or in intermittent opera-
tion, by pulling the lever toward you, the wipers will operate
several times while the washer fluid is being sprayed.
Also, by releasing the lever soon after pulling it toward you,
the washer fluid will be sprayed several times while the wipers
are operating several times. (Intelligent washer)
Intelligent washer will stop operating with any operation of the
lever.
NOTE
It is possible to modify functions as follows:
• Causing the wiper never to operate when washer fluid is
sprayed.
• Intelligent washer can be deactivated.
• The wipers can be set to operate again after about 6 sec-
onds.
For details, consult a Mitsubishi Motors dealer.
On vehicles equipped with a Mitsubishi Multi-Communi-
cation System, screen operations can be used to make the
adjustment.
Refer to the separate owner’s manual for details.
BK0119300US.book 238 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Features and controls
3-239
3

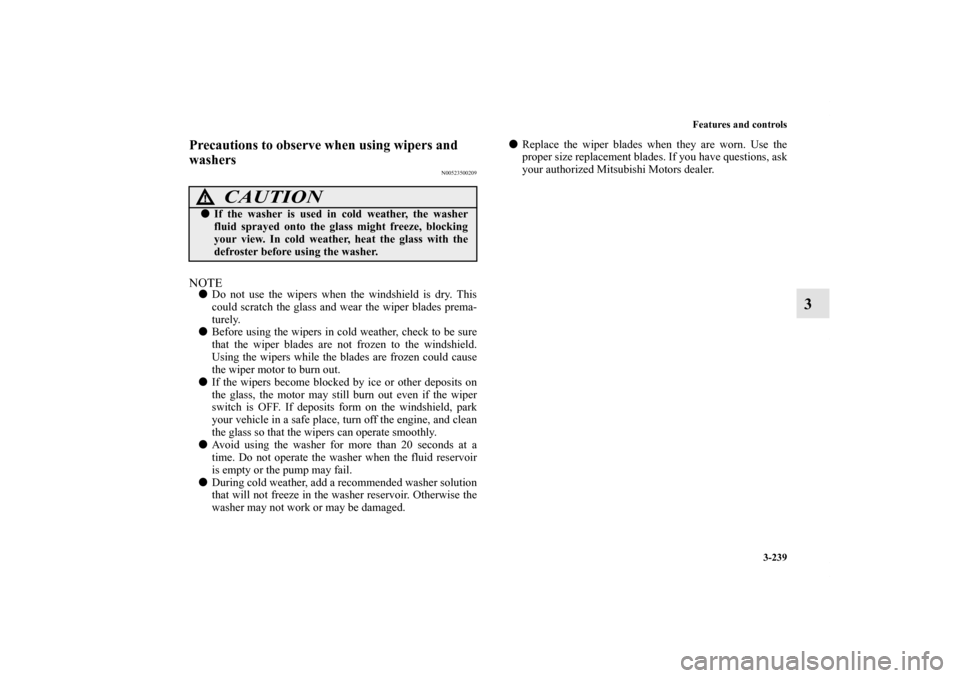

Precautions to observe when using wipers and
washers
N00523500209
NOTE
Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.

Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield.
Using the wipers while the blades are frozen could cause
the wiper motor to burn out.

If the wipers become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.

Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the fluid reservoir
is empty or the pump may fail.

During cold weather, add a recommended washer solution
that will not freeze in the washer reservoir. Otherwise the
washer may not work or may be damaged.
Replace the wiper blades when they are worn. Use the
proper size replacement blades. If you have questions, ask
your authorized Mitsubishi Motors dealer.
CAUTION
!
If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. In cold weather, heat the glass with the
defroster before using the washer.
BK0119300US.book 239 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

7

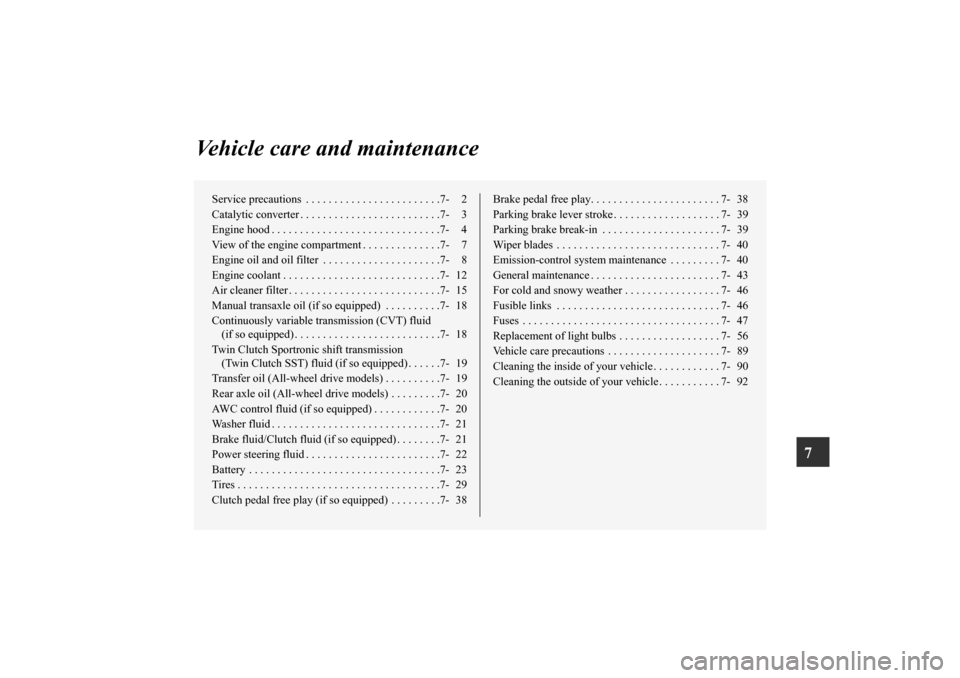

Vehicle care and maintenance
Service precautions . . . . . . . . . . . . . . . . . . . . . . . .7- 2
Catalytic converter . . . . . . . . . . . . . . . . . . . . . . . . .7- 3
Engine hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 4
View of the engine compartment . . . . . . . . . . . . . .7- 7
Engine oil and oil filter . . . . . . . . . . . . . . . . . . . . .7- 8
Engine coolant . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 12
Air cleaner filter . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 15
Manual transaxle oil (if so equipped) . . . . . . . . . .7- 18
Continuously variable transmission (CVT) fluid
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .7- 18
Twin Clutch Sportronic shift transmission
(Twin Clutch SST) fluid (if so equipped) . . . . . .7- 19
Transfer oil (All-wheel drive models) . . . . . . . . . .7- 19
Rear axle oil (All-wheel drive models) . . . . . . . . .7- 20
AWC control fluid (if so equipped) . . . . . . . . . . . .7- 20
Washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 21
Brake fluid/Clutch fluid (if so equipped) . . . . . . . .7- 21
Power steering fluid . . . . . . . . . . . . . . . . . . . . . . . .7- 22
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 23
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7- 29
Clutch pedal free play (if so equipped) . . . . . . . . .7- 38Brake pedal free play. . . . . . . . . . . . . . . . . . . . . . . 7- 38
Parking brake lever stroke . . . . . . . . . . . . . . . . . . . 7- 39
Parking brake break-in . . . . . . . . . . . . . . . . . . . . . 7- 39
Wiper blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 40
Emission-control system maintenance . . . . . . . . . 7- 40
General maintenance . . . . . . . . . . . . . . . . . . . . . . . 7- 43
For cold and snowy weather . . . . . . . . . . . . . . . . . 7- 46
Fusible links . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 46
Fuses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7- 47
Replacement of light bulbs . . . . . . . . . . . . . . . . . . 7- 56
Vehicle care precautions . . . . . . . . . . . . . . . . . . . . 7- 89
Cleaning the inside of your vehicle . . . . . . . . . . . . 7- 90
Cleaning the outside of your vehicle . . . . . . . . . . . 7- 92
BK0119300US.book 1 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-7

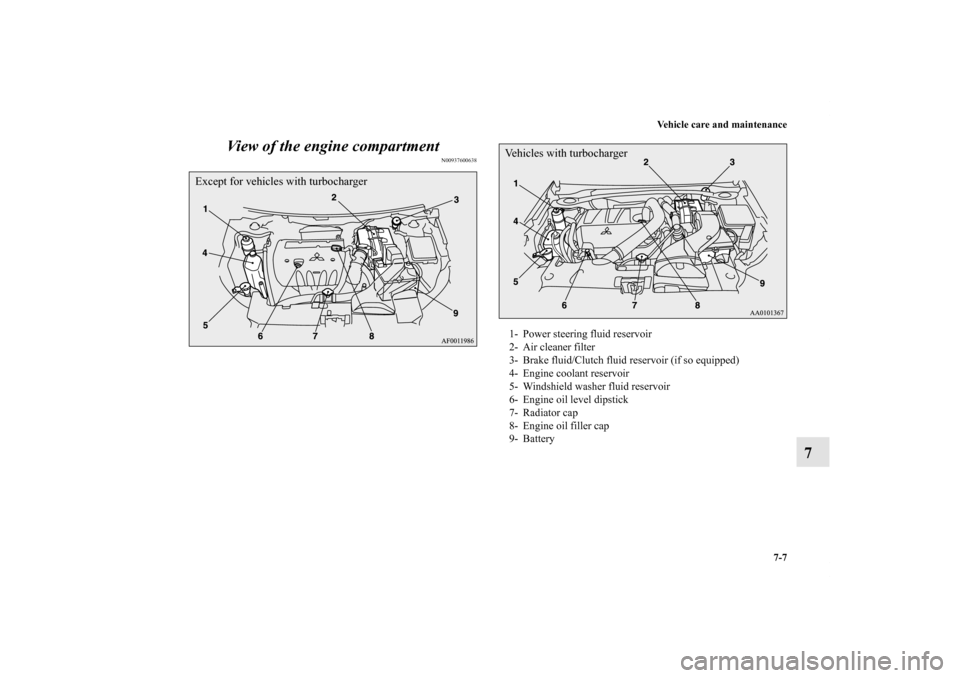

7 View of the engine compartment
N00937600638
Except for vehicles with turbocharger
1- Power steering fluid reservoir
2- Air cleaner filter
3- Brake fluid/Clutch fluid reservoir (if so equipped)
4- Engine coolant reservoir
5- Windshield washer fluid reservoir
6- Engine oil level dipstick
7- Radiator cap
8- Engine oil filler cap
9- Battery Vehicles with turbocharger
BK0119300US.book 7 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Vehicle care and maintenance
7-21

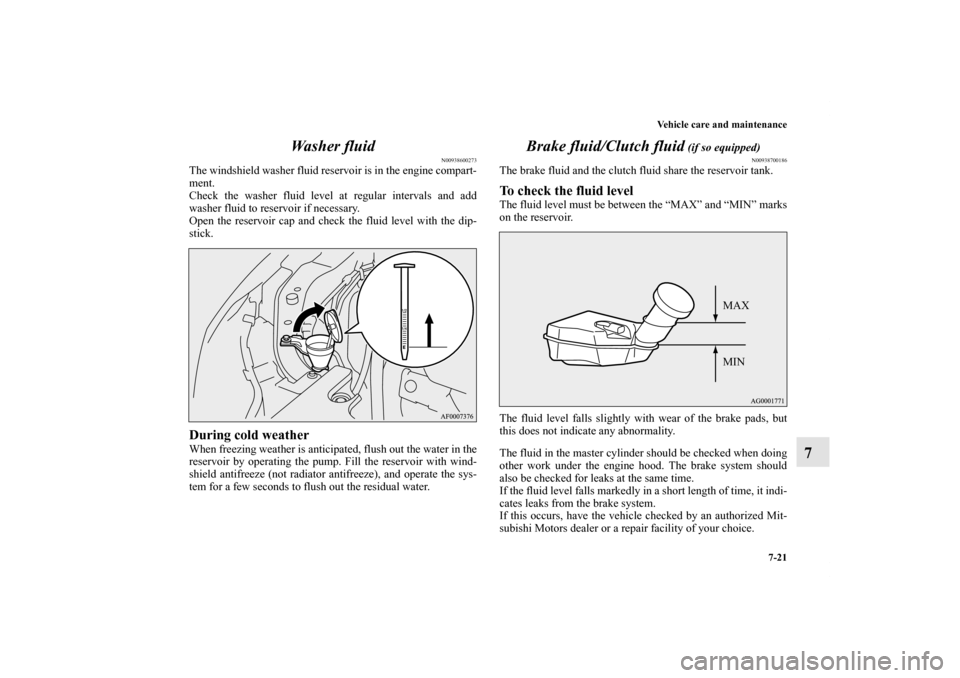

7 Wa s h e r f l u i d
N00938600273
The windshield washer fluid reservoir is in the engine compart-
ment.
Check the washer fluid level at regular intervals and add
washer fluid to reservoir if necessary.
Open the reservoir cap and check the fluid level with the dip-
stick.During cold weatherWhen freezing weather is anticipated, flush out the water in the
reservoir by operating the pump. Fill the reservoir with wind-
shield antifreeze (not radiator antifreeze), and operate the sys-
tem for a few seconds to flush out the residual water.
Brake fluid/Clutch fluid
(if so equipped)
N00938700186
The brake fluid and the clutch fluid share the reservoir tank.To check the fluid levelThe fluid level must be between the “MAX” and “MIN” marks
on the reservoir.
The fluid level falls slightly with wear of the brake pads, but
this does not indicate any abnormality.
The fluid in the master cylinder should be checked when doing
other work under the engine hood. The brake system should
also be checked for leaks at the same time.
If the fluid level falls markedly in a short length of time, it indi-
cates leaks from the brake system.
If this occurs, have the vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
MAX
MIN
BK0119300US.book 21 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

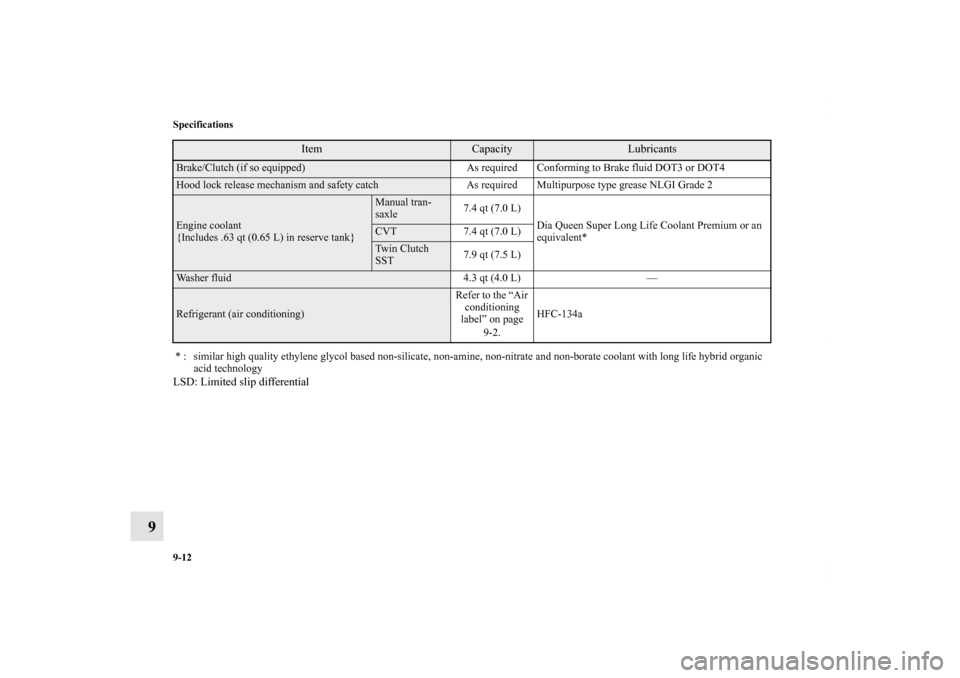

9-12 Specifications
9
LSD: Limited slip differentialBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{Includes .63 qt (0.65 L) in reserve tank}
Manual tran-
saxle7.4 qt (7.0 L)
Dia Queen Super Long Life Coolant Premium or an
equivalent*CVT 7.4 qt (7.0 L)Tw i n C l u t c h
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to the “Air
conditioning
label” on page
9-2.HFC-134a
* : similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid organic
acid technology
Item
Capacity
Lubricants
BK0119300US.book 12 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Alphabetical index
3
Lock 3-52
Power door locks 3-56
Drive belt 7-44
Driving during cold weather 4-5
Driving, alcohol and drugs 4-2
E
Electric rear window defogger switch 3-241
Electronic immobilizer (Anti-theft starting system) 3-6
,3-42
Emission-control system maintenance 7-40
Engine
Compartment 7-7
Coolant 7-12
,9-11
Hood 7-4
Oil and oil filter 7-8
,9-11
Overheating 6-5
Serial number 9-4
Specifications 9-8
Engine coolant temperature display 3-178
Exhaust system 7-45
External audio input connector 5-132
F
Filling the fuel tank 1-4
Floor console box 3-288
Fluid 9-11
AWC control fluid 7-20
Brake fluid 7-21
,9-11
Clutch fluid 7-21,9-11Continuously variable transmission (CVT) fluid 7-18
,9-11
Engine coolant 7-12
,9-11
Power steering fluid 7-22
,9-11
Twin Clutch Sportronic shift transmission (Twin Clutch SST)
fluid 7-19
,9-11
Washer fluid 9-11
Fluid capacities and lubricants 9-11
Fog lights
Bulb capacity 7-56
Indicator 3-215
Replacement 7-73
,7-76
Switch 3-232
Free-hand advanced security transmitter (F.A.S.T.-key) 3-18
Front console boxes 3-287
Front seats 2-3
Front turn signal, parking and side-marker lights
Bulb capacity 7-56
Replacement 7-67,7-69
Fuel
Fuel economy 4-2
Fuel hoses 7-42
Modification/alterations to the electrical or fuel systems 1-9
Tank capacity 1-5,9-11
Fuel selection 1-2
Fuses 7-47
Fusible links 7-46
G
General maintenance 7-43
BK0119300US.book 3 ページ ２０１０年５月２１日　金曜日　午前１０時１３分

Alphabetical index
7
Replacement 7-89
Trunk lid 3-60
Turbocharger operation 3-93
Turn signal light
Indicators 3-215
Turn signal lights
Bulb capacity 7-56
Lever 3-230
Replacement 7-71
Twin Clutch SST (Sportronic Shift Transmission) 3-110
Fluid 7-19
,9-11
Gearshift lever operation 3-110
Gearshift lever position display 3-112
Manual shift 3-120
Manual shift display 3-126
Twin Clutch SST control mode display 3-120
Twin Clutch SST control mode switch 3-119
Warning display 3-114
U
USB input terminal 3-270
How to connect an iPod 3-272
USB input terminal device
How to connect a USB memory 3-270
V
Vanity mirror 3-276
Vehicle care precautions 7-89
Vehicle dimensions 9-6Vehicle labeling 9-2
Vehicle preparation before driving 4-3
Vehicle weights 9-7
Vents 5-2
W
Warning lights 3-215
Washer
Fluid 7-21
,9-11
Switch 3-239
Windshield washer 3-239
Waxing 7-93
Weights 9-7
Welcome light 3-227
Wheel
Covers 6-20
Specification 9-10
Wiper
Rain sensor 3-235
Windshield 3-233
Wiper blades 7-40
