MITSUBISHI LANCER SPORTBACK 2010 8.G MMCS Manual

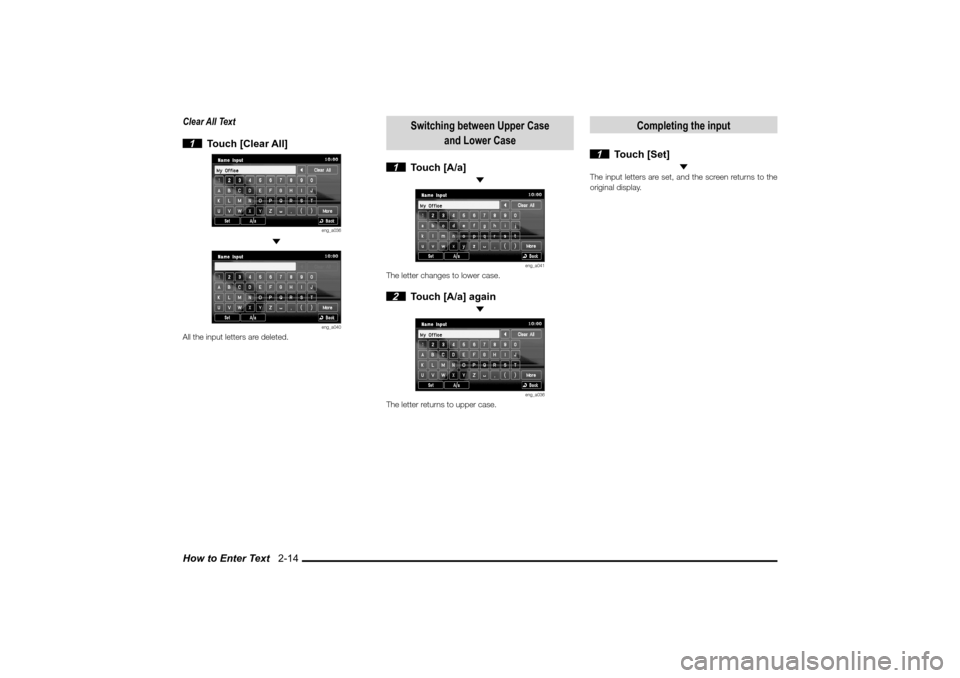

How to Enter Text 2-14Clear All Text
1 Touch [Clear All]
eng_a036

eng_a040
All the input letters are deleted.
Switching between Upper Case
and Lower Case
1 Touch [A/a]

eng_a041
The letter changes to lower case. 2 Touch [A/a] again

eng_a036
The letter returns to upper case.
Completing the input
1 Touch [Set]
The input letters are set, and the screen returns to the
original display.





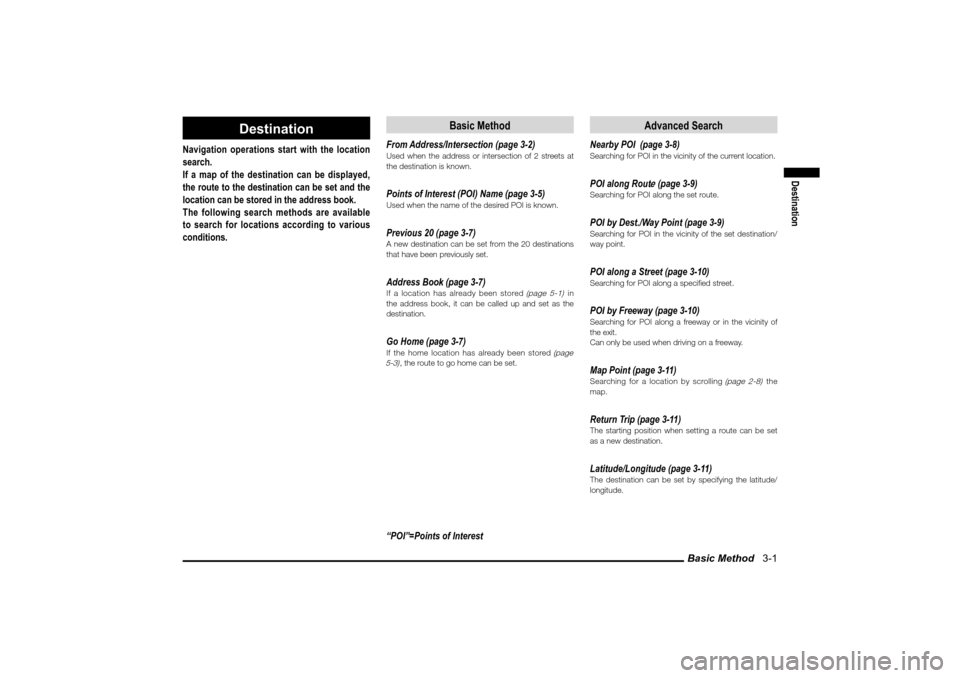

Basic Method 3-1
Destination
Destination
Navigation operations start with the location
search.
If a map of the destination can be displayed,
the route to the destination can be set and the
location can be stored in the address book.
The following search methods are available
to search for locations according to various
conditions.
Basic Method
From Address/Intersection (page 3-2)Used when the address or intersection of 2 streets at
the destination is known.Points of Interest (POI) Name (page 3-5)Used when the name of the desired POI is known.Previous 20 (page 3-7)A new destination can be set from the 20 destinations
that have been previously set.Address Book (page 3-7)If a location has already been stored
(page 5-1)
in
the address book, it can be called up and set as the
destination.
Go Home (page 3-7)If the home location has already been stored
(page
5-3)
, the route to go home can be set.
“POI”=Points of Interest
Advanced Search
Nearby POI
(page 3-8)
Searching for POI in the vicinity of the current location.POI along Rout
e (page 3-9)
Searching for POI along the set route.POI by Dest./Way Point (page 3-9)Searching for POI in the vicinity of the set destination/
way point.POI along a Street (page 3-10)Searching for POI along a speci ed street.POI by Freeway (page 3-10)Searching for POI along a freeway or in the vicinity of
the exit.
Can only be used when driving on a freeway.Map Point (page 3-11)Searching for a location by scrolling
(page 2-8)
the
map.
Return Trip (page 3-11)The starting position when setting a route can be set
as a new destination.Latitude/Longitude (page 3-11)The destination can be set by specifying the latitude/
longitude.









Basic Method 3-2
Basic Method
The basic method of searching for a location. 1
Press the [Menu] key
eng_a007

eng_a502-2
The navi menu is displayed.
From Address/Intersection
Used when the address or street name of
the destination is known.
1 Display the Navi Menu and touch
[Address/Intersection]
2 Touch the “State” button
eng_a043
NOTE The name of the state that was previously set is
displayed in the “State” button.
 One of the five
most recently
selected states
can be selected by
touching [Last 5] of
“State”.
eng_a044
3 Input the state name
>>> “How to Enter Text” (page 2-13)
eng_a045
NOTE If there is only one candidate when a character is
input for the state name, go to step 4.
 If there are ve candidates or less when a character
is input for the state name, a list is displayed and a
state can be selected from the list.
 Touch [List] to select
a state from the list.
eng_a046
4 Touch the “City” button
eng_a043









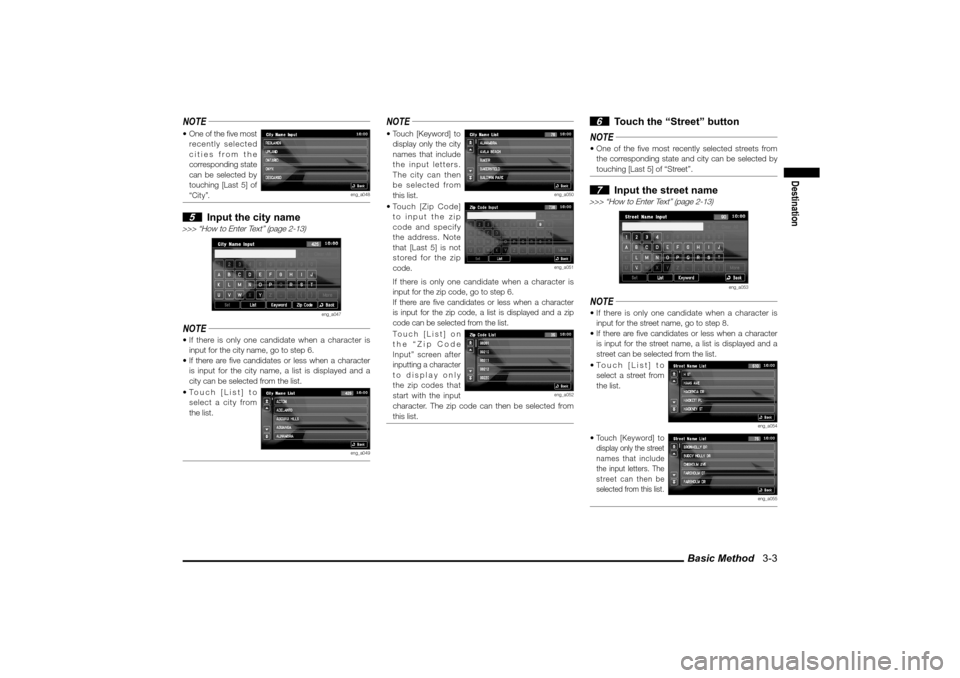

Basic Method 3-3
Destination
NOTE One of the ve most
recently selected
cities from the
corresponding state
can be selected by
touching [Last 5] of “City”.
eng_a048
5 Input the city name
>>> “How to Enter Text” (page 2-13)
eng_a047
NOTE If there is only one candidate when a character is
input for the city name, go to step 6.
 If there are ve candidates or less when a character
is input for the city name, a list is displayed and a
city can be selected from the list.
 Touch [List] to
select a city from
the list.
eng_a049
NOTE Touch [Keyword] to
display only the city
names that include
the input letters.
The city can then
be selected from
this list.
eng_a050
 Touch [Zip Code]
to input the zip
code and specify
the address. Note
that [Last 5] is not
stored for the zip
code.
eng_a051
If there is only one candidate when a character is
input for the zip code, go to step 6.
If there are ve candidates or less when a character
is input for the zip code, a list is displayed and a zip
code can be selected from the list. Touch [List] on
the “Zip Code
Input” screen after
inputting a character
to display only
the zip codes that
start with the input
eng_a052
character. The zip code can then be selected from
this list.
6 Touch the “Street” button
NOTE
 One of the ve most recently selected streets from
the corresponding state and city can be selected by
touching [Last 5] of “Street”. 7 Input the street name
>>> “How to Enter Text” (page 2-13)
eng_a053
NOTE If there is only one candidate when a character is
input for the street name, go to step 8.
 If there are ve candidates or less when a character
is input for the street name, a list is displayed and a
street can be selected from the list.
 Touch [List] to
select a street from
the list.
eng_a054
 Touch [Keyword] to
display only the street
names that include
the input letters. The
street can then be
selected from this list.
eng_a055





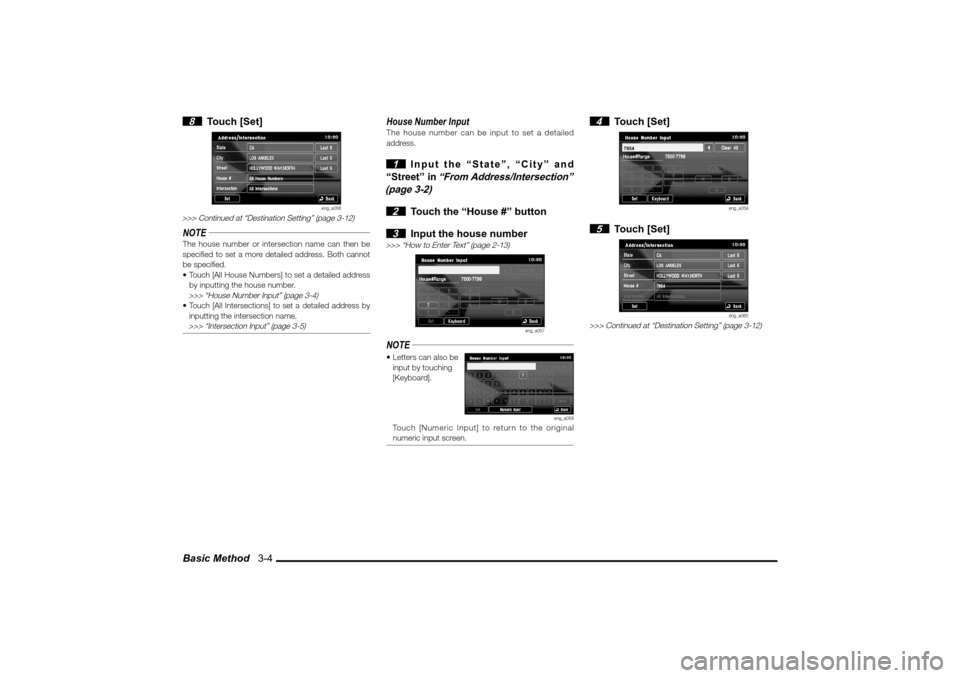

Basic Method 3-4 8 Touch [Set]
eng_a056
>>> Continued at “Destination Setting” (page 3-12)NOTEThe house number or intersection name can then be
speci ed to set a more detailed address. Both cannot
be speci ed.
 Touch [All House Numbers] to set a detailed address
by inputting the house number.
>>> “House Number Input” (page 3-4) Touch [All Intersections] to set a detailed address by
inputting the intersection name.
>>> “Intersection Input” (page 3-5)
House Number InputThe house number can be input to set a detailed
address. 1
Input the “State”, “City” and
“Street” in
“From Address/Intersection”
(page 3-2)
2 Touch the “House #” button
3 Input the house number
>>> “How to Enter Text” (page 2-13)
eng_a057
NOTE Letters can also be
input by touching
[Keyboard].
eng_a058
Touch [Numeric Input] to return to the original
numeric input screen.
4 Touch [Set]
eng_a059
5 Touch [Set]
eng_a060
>>> Continued at “Destination Setting” (page 3-12)









Basic Method 3-5
Destination

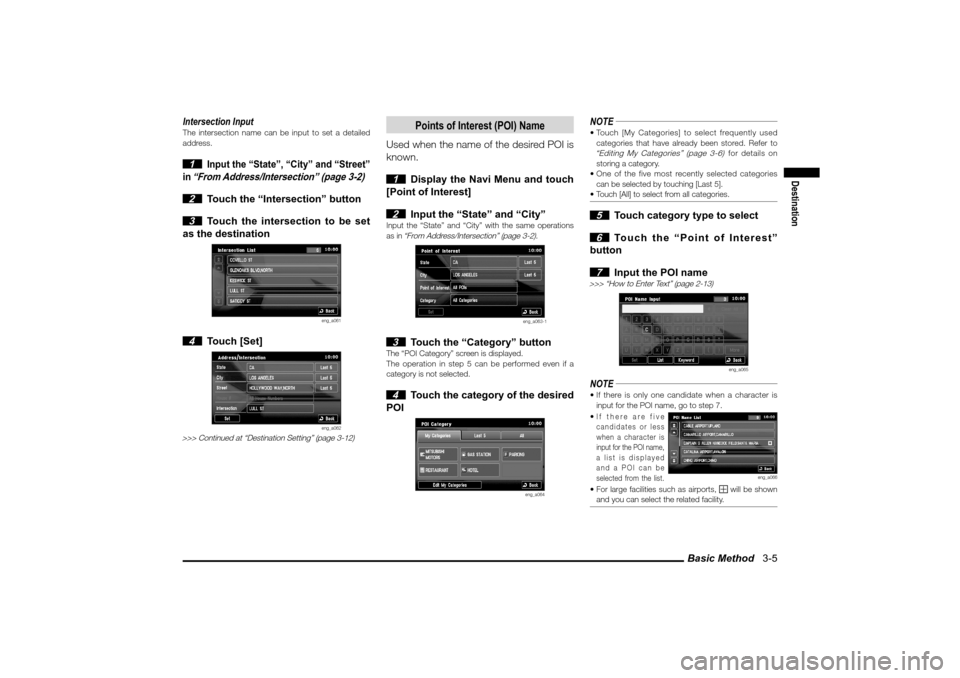

Intersection InputThe intersection name can be input to set a detailed
address. 1
Input the “State”, “City” and “Street”
in
“From Address/Intersection” (page 3-2) 2 Touch the “Intersection” button
3 Touch the intersection to be set
as the destination
eng_a061
4 Touch [Set]
eng_a062
>>> Continued at “Destination Setting” (page 3-12)
Points of Interest (POI) Name
Used when the name of the desired POI is
known.
1 Display the Navi Menu and touch
[Point of Interest]
2 Input the “State” and “City”
Input the “State” and “City” with the same operations
as in
“From Address/Intersection” (page 3-2).
eng_a063-1
3 Touch the “Category” button
The “POI Category” screen is displayed.
The operation in step 5 can be performed even if a
category is not selected. 4 Touch the category of the desired
POI
eng_a064
NOTE Touch [My Categories] to select frequently used
categories that have already been stored. Refer to “Editing My Categories” (page 3-6)
for details on
storing a category.
 One of the five most recently selected categories
can be selected by touching [Last 5].
 Touch [All] to select from all categories.
5 Touch category type to select
6 Touch the “Point of Interest”
button
7 Input the POI name
>>> “How to Enter Text” (page 2-13)
eng_a065
NOTE If there is only one candidate when a character is
input for the POI name, go to step 7.
 If there are five
candidates or less
when a character is
input for the POI name,
a list is displayed
and a POI can be
selected from the list.
eng_a066
 For large facilities such as airports, will be shown
and you can select the related facility.









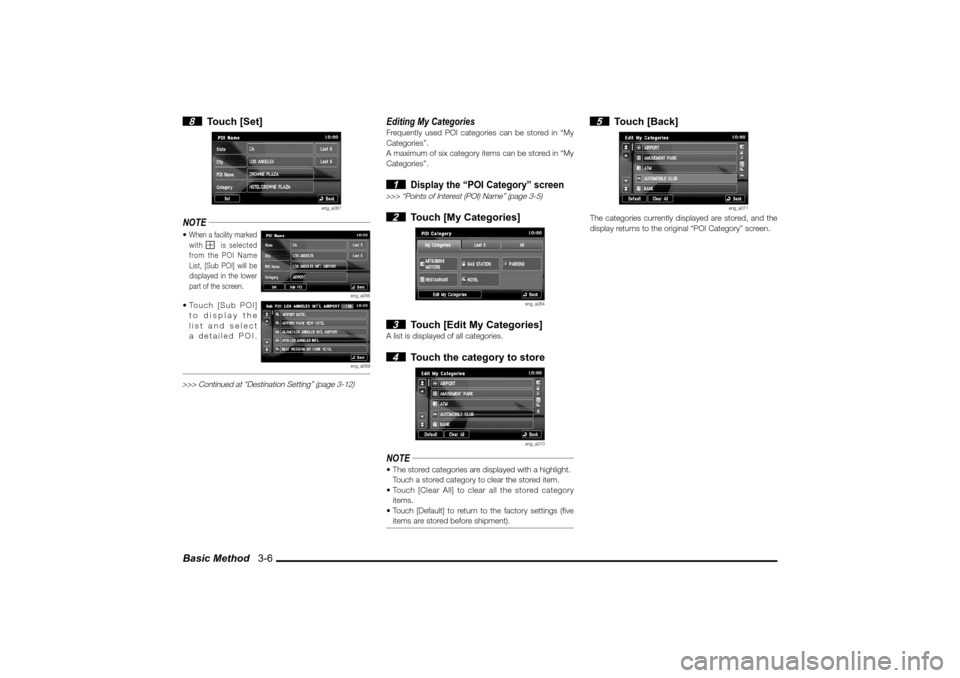

Basic Method 3-6 8 Touch [Set]
eng_a067
NOTE When a facility marked
with is selected
from the POI Name
List, [Sub POI] will be
displayed in the lower
part of the screen.
eng_a068
 Touch [Sub POI]
to display the
list and select
a detailed POI.
eng_a069
>>> Continued at “Destination Setting” (page 3-12)
Editing My CategoriesFrequently used POI categories can be stored in “My
Categories”.
A maximum of six category items can be stored in “My
Categories”. 1
Display the “POI Category” screen
>>> “Points of Interest (POI) Name” (page 3-5) 2 Touch [My Categories]
eng_a064
3 Touch [Edit My Categories]
A list is displayed of all categories. 4 Touch the category to store
eng_a070
NOTE The stored categories are displayed with a highlight.
Touch a stored category to clear the stored item.
 Touch [Clear All] to clear all the stored category
items.
 Touch [Default] to return to the factory settings ( ve
items are stored before shipment).
5 Touch [Back]
eng_a071
The categories currently displayed are stored, and the
display returns to the original “POI Category” screen.





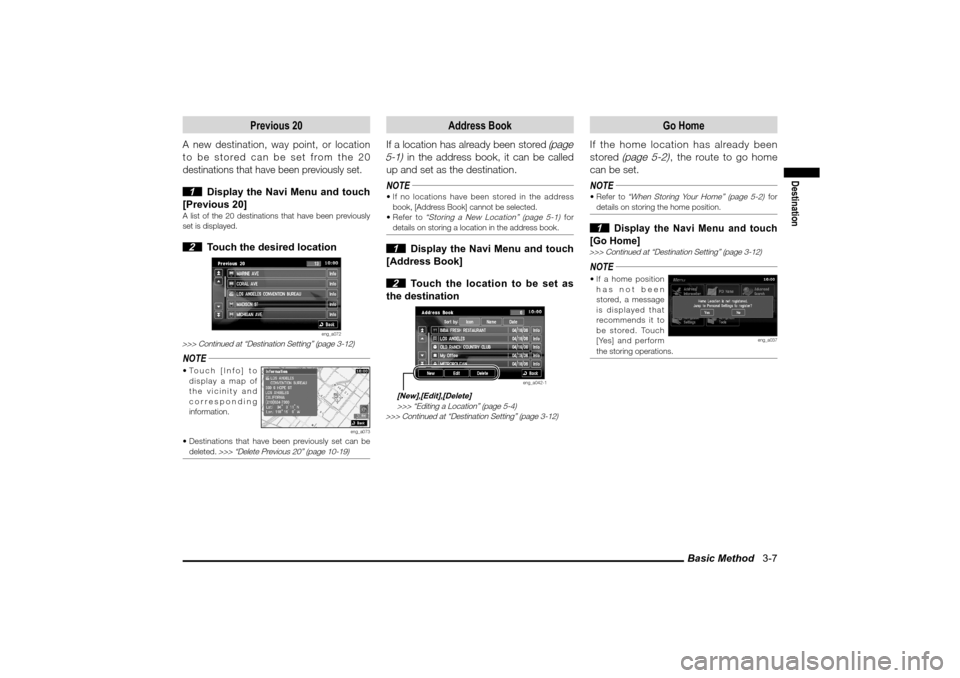

Basic Method 3-7
Destination
Previous 20
A new destination, way point, or location
to be stored can be set from the 20
destinations that have been previously set. 1 Display the Navi Menu and touch
[Previous 20]
A list of the 20 destinations that have been previously
set is displayed. 2 Touch the desired location
eng_a072
>>> Continued at “Destination Setting” (page 3-12)NOTE Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_a073
 Destinations that have been previously set can be
deleted.
>>> “Delete Previous 20” (page 10-19)
Address Book
If a location has already been stored
(page
5-1)
in the address book, it can be called
up and set as the destination.
NOTE
 If no locations have been stored in the address
book, [Address Book] cannot be selected.
 Refer to
“Storing a New Location” (page 5-1)
for
details on storing a location in the address book.
1 Display the Navi Menu and touch
[Address Book]
2 Touch the location to be set as
the destination
eng_a042-1
[New],[Edit],[Delete]
>>> “Editing a Location” (page 5-4)
>>> Continued at “Destination Setting” (page 3-12)
Go Home
If the home location has already been
stored
(page 5-2)
, the route to go home
can be set.
NOTE
 Refer to
“When Storing Your Home” (page 5-2)
for
details on storing the home position.
1
Display the Navi Menu and touch
[Go Home]
>>> Continued at “Destination Setting” (page 3-12)NOTE If a home position
has not been
stored, a message
is displayed that
recommends it to
be stored. Touch
[Yes] and perform
eng_a037
the storing operations.





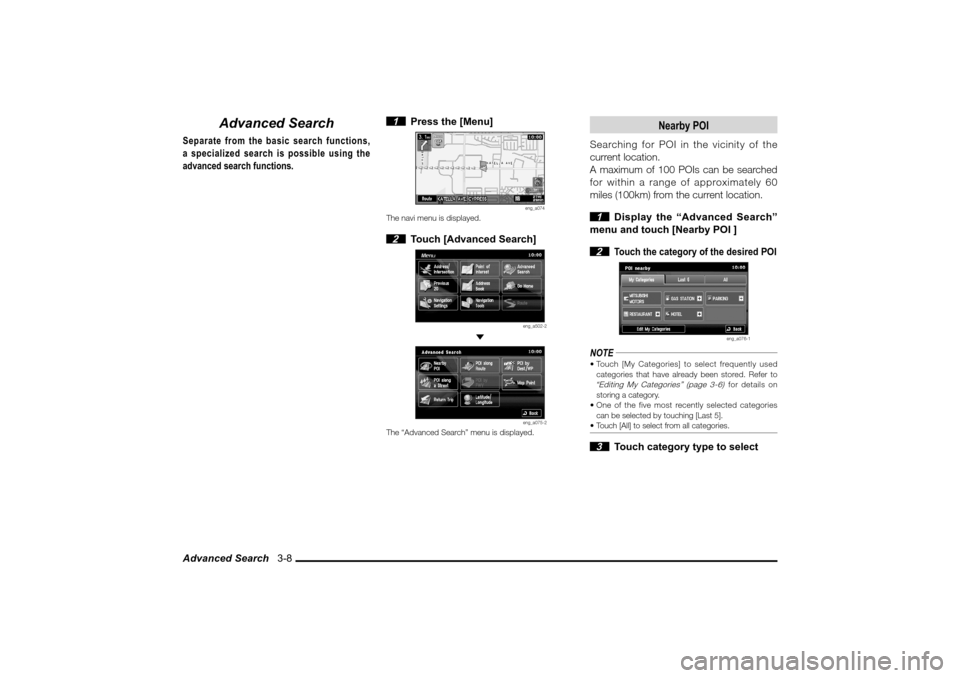

Advanced Search 3-8
Advanced Search
Separate from the basic search functions,
a specialized search is possible using the
advanced search functions.
1 Press the [Menu]
eng_a074
The navi menu is displayed. 2 Touch [Advanced Search]
eng_a502-2

eng_a075-2
The “Advanced Search” menu is displayed.
Nearby POI
Searching for POI in the vicinity of the
current location.
A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the current location. 1 Display the “Advanced Search”
menu and touch [Nearby POI ]
2
Touch the category of the desired POI
eng_a076-1
NOTE Touch [My Categories] to select frequently used
categories that have already been stored. Refer to “Editing My Categories” (page 3-6)
for details on
storing a category.
 One of the five most recently selected categories
can be selected by touching [Last 5].
 Touch [All] to select from all categories.
3 Touch category type to select





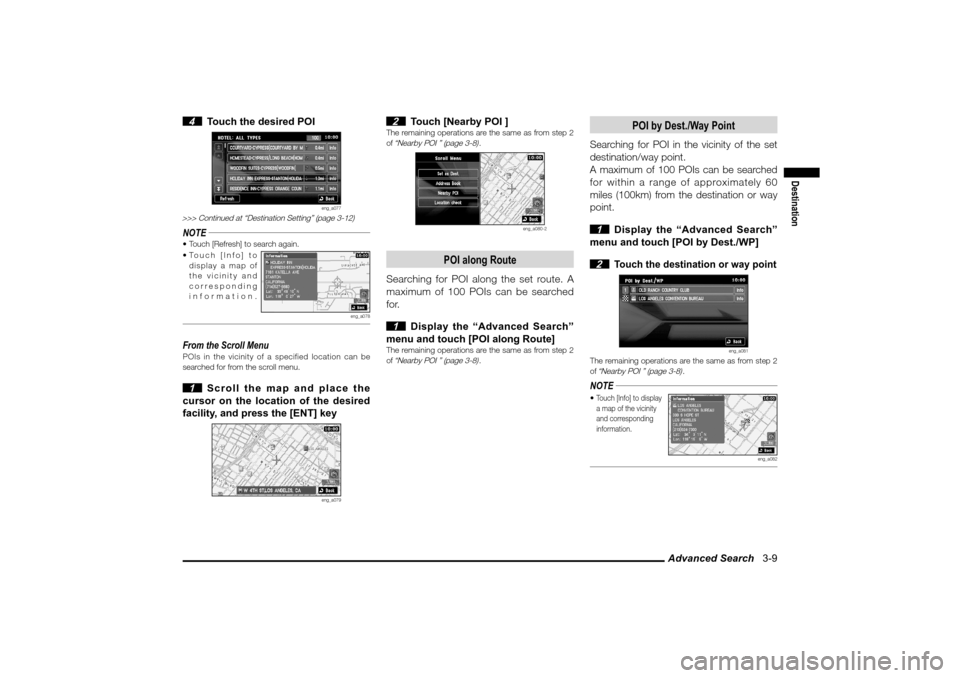

Advanced Search 3-9
Destination
4 Touch the desired POI
eng_a077
>>> Continued at “Destination Setting” (page 3-12)NOTE Touch [Refresh] to search again.
 Touch [Info] to
display a map of
the vicinity and
corresponding
information.
eng_a078
From the Scroll MenuPOIs in the vicinity of a specified location can be
searched for from the scroll menu. 1 Scroll the map and place the
cursor on the location of the desired
facility, and press the [ENT] key
eng_a079
2 Touch [Nearby POI ]
The remaining operations are the same as from step 2
of “Nearby POI
” (page 3-8)
.
eng_a080-2
POI along Route
Searching for POI along the set route. A
maximum of 100 POIs can be searched
for.
1 Display the “Advanced Search”
menu and touch [POI along Route]
The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8)
.
POI by Dest./Way Point
Searching for POI in the vicinity of the set
destination/way point.
A maximum of 100 POIs can be searched
for within a range of approximately 60
miles (100km) from the destination or way
point. 1 Display the “Advanced Search”
menu and touch [POI by Dest./WP]
2 Touch the destination or way point
eng_a081
The remaining operations are the same as from step 2
of “Nearby POI ” (page 3-8)
.
NOTE Touch [Info] to display
a map of the vicinity
and corresponding
information.
eng_a082
