MITSUBISHI LANCER SPORTBACK 2010 8.G MMCS Manual

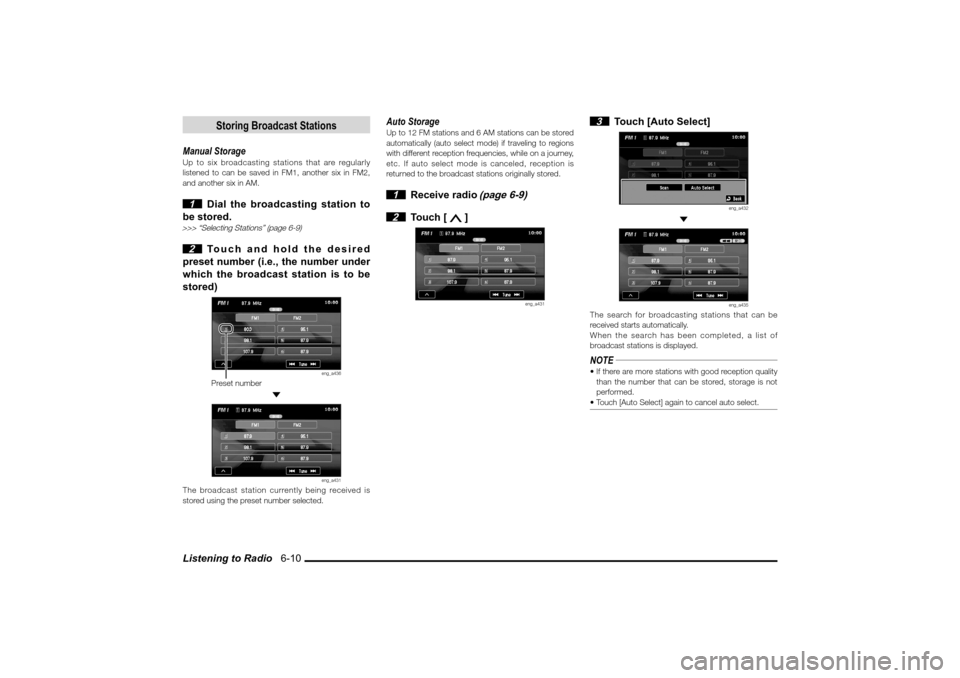

Listening to Radio 6-10
Storing Broadcast Stations
Manual StorageUp to six broadcasting stations that are regularly
listened to can be saved in FM1, another six in FM2,
and another six in AM. 1 Dial the broadcasting station to
be stored.
>>> “Selecting Stations” (page 6-9) 2 Touch and hold the desired
preset number (i.e., the number under
which the broadcast station is to be
stored)
eng_a436
Preset number

eng_a431
The broadcast station currently being received is
stored using the preset number selected.
Auto StorageUp to 12 FM stations and 6 AM stations can be stored
automatically (auto select mode) if traveling to regions
with different reception frequencies, while on a journey,
etc. If auto select mode is canceled, reception is
returned to the broadcast stations originally stored. 1 Receive radio
(page 6-9)
2 Touch [
]
eng_a431
3 Touch [Auto Select]
eng_a432

eng_a435
The search for broadcasting stations that can be
received starts automatically.
When the search has been completed, a list of
broadcast stations is displayed.NOTE If there are more stations with good reception quality
than the number that can be stored, storage is not
performed.
 Touch [Auto Select] again to cancel auto select.

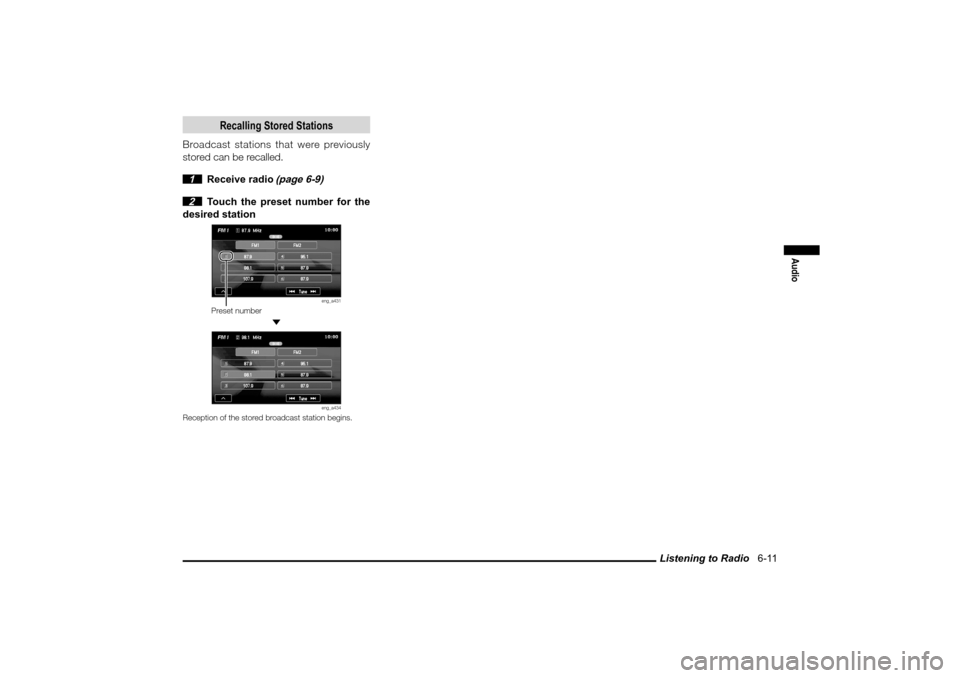

Listening to Radio 6-11
Audio
Recalling Stored Stations
Broadcast stations that were previously
stored can be recalled.
1 Receive radio
(page 6-9)
2 Touch the preset number for the
desired station
eng_a431
Preset number

eng_a434
Reception of the stored broadcast station begins.

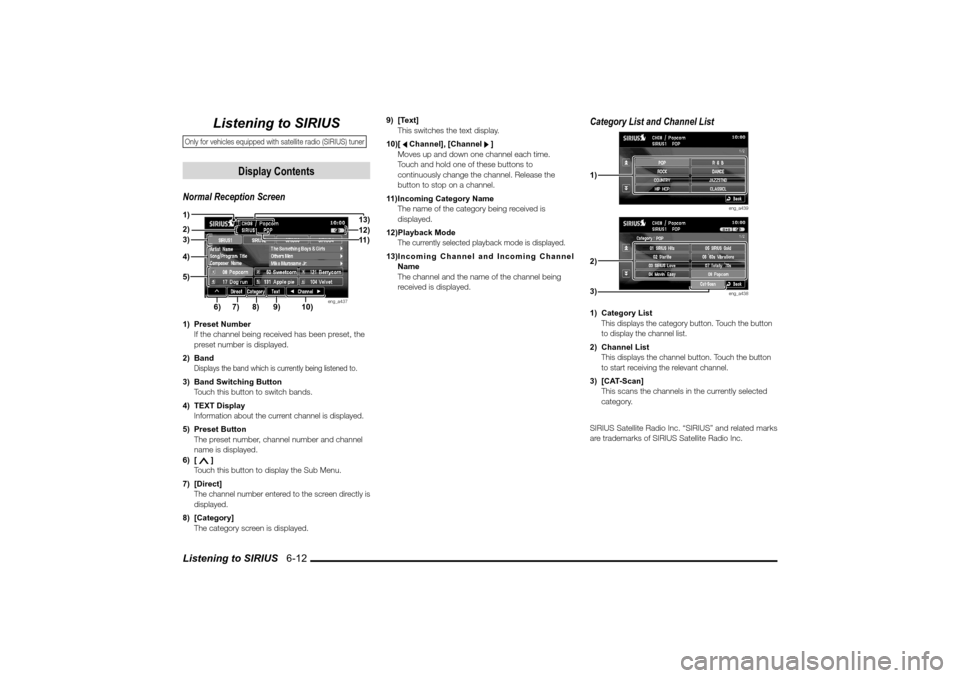

Listening to SIRIUS 6-12
Listening to SIRIUS
Only for vehicles equipped with satellite radio (SIRIUS) tuner
Display Contents
Normal Reception Screen
eng_a437
1) Preset Number
If the channel being received has been preset, the
preset number is displayed.
2) Band
Displays the band which is currently being listened to.3) Band Switching Button
Touch this button to switch bands.
4) TEXT Display
Information about the current channel is displayed.5) Preset Button
The preset number, channel number and channel
name is displayed.
6) [ ]
Touch this button to display the Sub Menu.
7) [Direct] The channel number entered to the screen directly is
displayed.8) [Category]
The category screen is displayed.9) [Text]
This switches the text display.
10) [ Channel], [Channel ]
Moves up and down one channel each time.
Touch and hold one of these buttons to
continuously change the channel. Release the
button to stop on a channel.
11) Incoming Category Name
The name of the category being received is
displayed.
12) Playback Mode

The currently selected playback mode is displayed.13) Incoming Channel and Incoming Channel
Name
The channel and the name of the channel being
received is displayed.
Category List and Channel List
eng_a439eng_a438
1) Category List This displays the category button. Touch the button
to display the channel list.2) Channel List This displays the channel button. Touch the button
to start receiving the relevant channel.3) [CAT-Scan]
This scans the channels in the currently selected
category.
SIRIUS Satellite Radio Inc. “SIRIUS” and related marks
are trademarks of SIRIUS Satellite Radio Inc.
2)
3)4)5)
6) 7) 8) 9) 10)
12) 13)
1)
1)2)3)
11 )

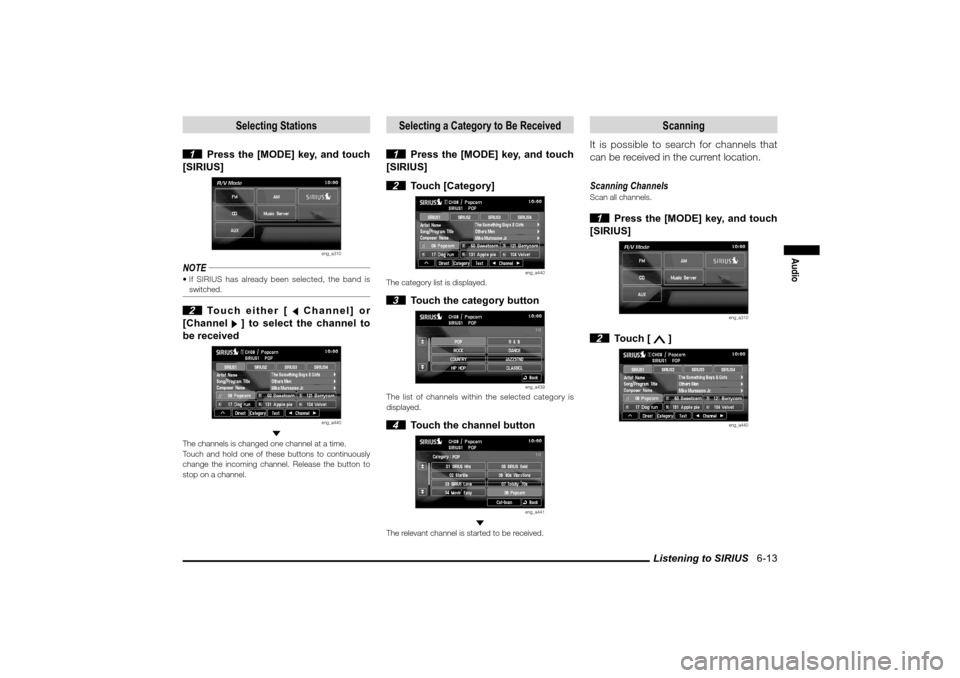

Listening to SIRIUS 6-13
Audio
Selecting Stations
1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
NOTE If SIRIUS has already been selected, the band is
switched. 2 Touch either [
Channel] or
[Channel
] to select the channel to
be received
eng_a440

The channels is changed one channel at a time.
Touch and hold one of these buttons to continuously
change the incoming channel. Release the button to
stop on a channel.
Selecting a Category to Be Received
1 Press the [MODE] key, and touch
[SIRIUS]
2 Touch [Category]
eng_a440
The category list is displayed. 3 Touch the category button
eng_a439
The list of channels within the selected category is
displayed. 4 Touch the channel button
eng_a441

The relevant channel is started to be received.
Scanning
It is possible to search for channels that
can be received in the current location.
Scanning ChannelsScan all channels. 1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [
]
eng_a440

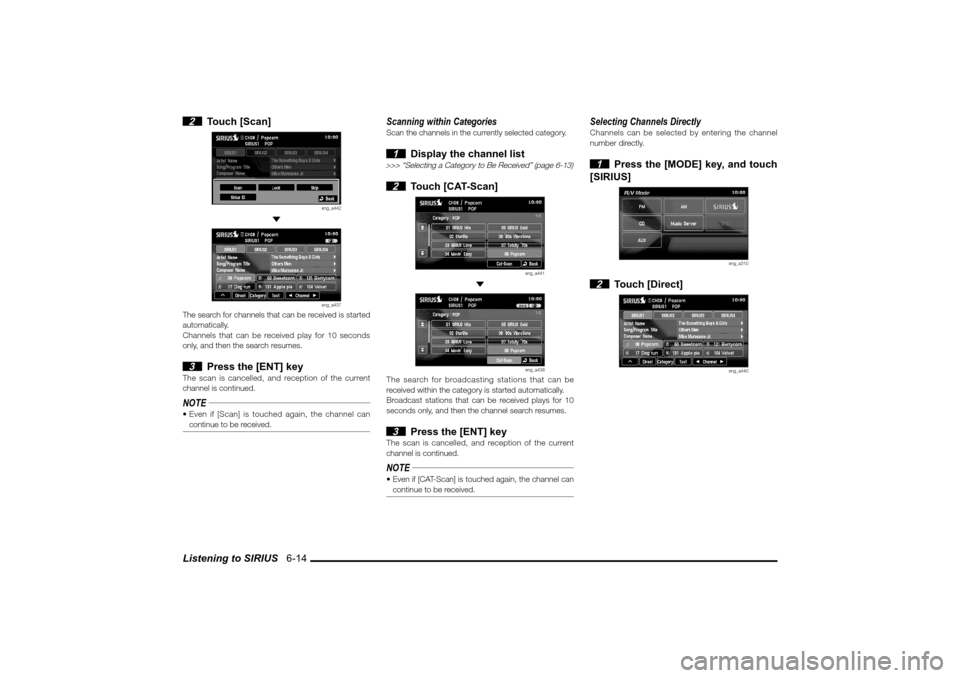

Listening to SIRIUS 6-14 2 Touch [Scan]
eng_a442

eng_a437
The search for channels that can be received is started
automatically.
Channels that can be received play for 10 seconds
only, and then the search resumes. 3 Press the [ENT] key
The scan is cancelled, and reception of the current
channel is continued.NOTE Even if [Scan] is touched again, the channel can
continue to be received.
Scanning within CategoriesScan the channels in the currently selected category. 1 Display the channel list
>>> “Selecting a Category to Be Received” (page 6-13) 2 Touch [CAT-Scan]
eng_a441

eng_a438
The search for broadcasting stations that can be
received within the category is started automatically.
Broadcast stations that can be received plays for 10
seconds only, and then the channel search resumes. 3 Press the [ENT] key
The scan is cancelled, and reception of the current
channel is continued.NOTE Even if [CAT-Scan] is touched again, the channel can
continue to be received.
Selecting Channels DirectlyChannels can be selected by entering the channel
number directly. 1 Press the [MODE] key, and touch
[SIRIUS]
eng_a310
2 Touch [Direct]
eng_a440

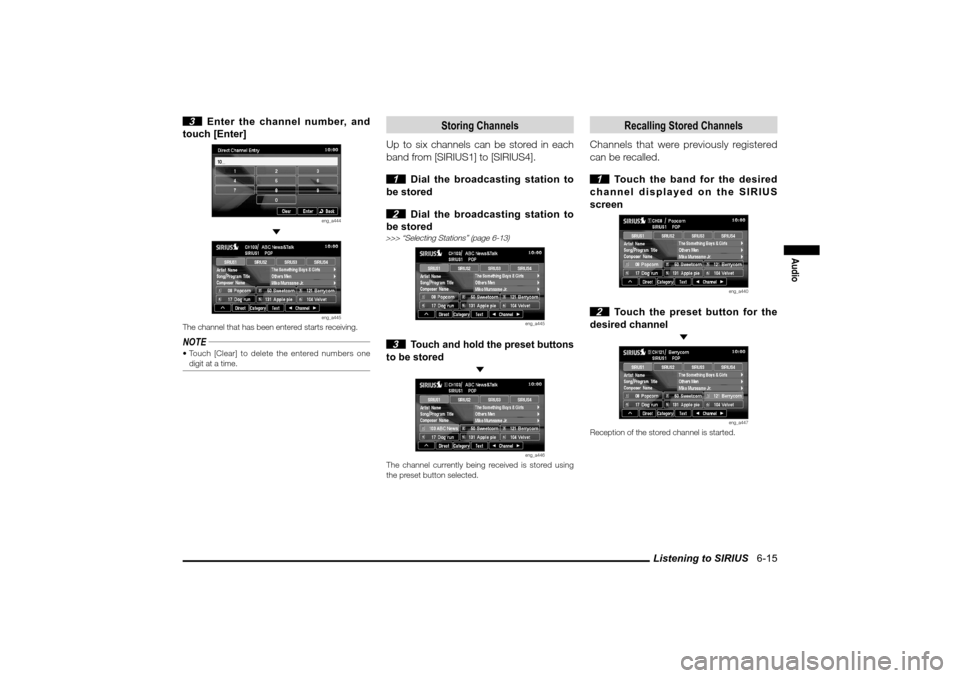

Listening to SIRIUS 6-15
Audio
3 Enter the channel number, and
touch [Enter]
eng_a444

eng_a445
The channel that has been entered starts receiving.NOTE Touch [Clear] to delete the entered numbers one
digit at a time.
Storing Channels
Up to six channels can be stored in each
band from [SIRIUS1] to [SIRIUS4].
1 Dial the broadcasting station to
be stored
2 Dial the broadcasting station to
be stored
>>> “Selecting Stations” (page 6-13)
eng_a445
3
Touch and hold the preset buttons
to be stored

eng_a446
The channel currently being received is stored using
the preset button selected.
Recalling Stored Channels
Channels that were previously registered
can be recalled.
1 Touch the band for the desired
channel displayed on the SIRIUS
screen
eng_a440
2 Touch the preset button for the
desired channel

eng_a447
Reception of the stored channel is started.

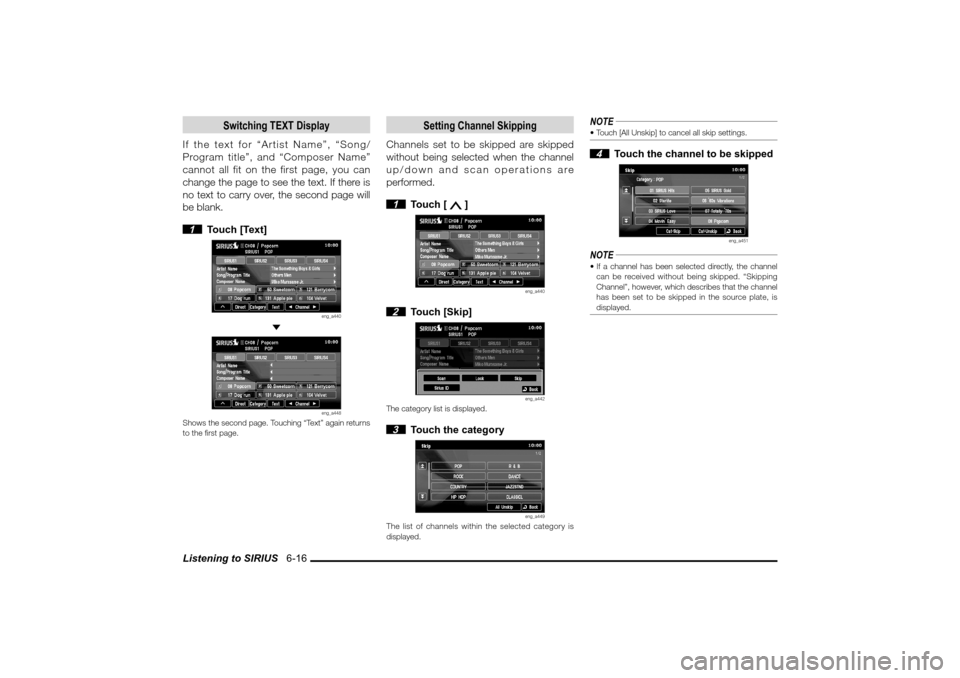

Listening to SIRIUS 6-16
Switching TEXT Display
If the text for “Artist Name”, “Song/
Program title”, and “Composer Name”
cannot all fit on the first page, you can
change the page to see the text. If there is
no text to carry over, the second page will
be blank.
1 Touch [Text]
eng_a440

eng_a448
Shows the second page. Touching “Text” again returns
to the rst page.
Setting Channel Skipping
Channels set to be skipped are skipped
without being selected when the channel
up/down and scan operations are
performed.
1 Touch [
]
eng_a440
2 Touch [Skip]
eng_a442
The category list is displayed. 3 Touch the category
eng_a449
The list of channels within the selected category is
displayed.
NOTE Touch [All Unskip] to cancel all skip settings. 4 Touch the channel to be skipped
eng_a451
NOTE If a channel has been selected directly, the channel
can be received without being skipped. “Skipping
Channel”, however, which describes that the channel
has been set to be skipped in the source plate, is
displayed.

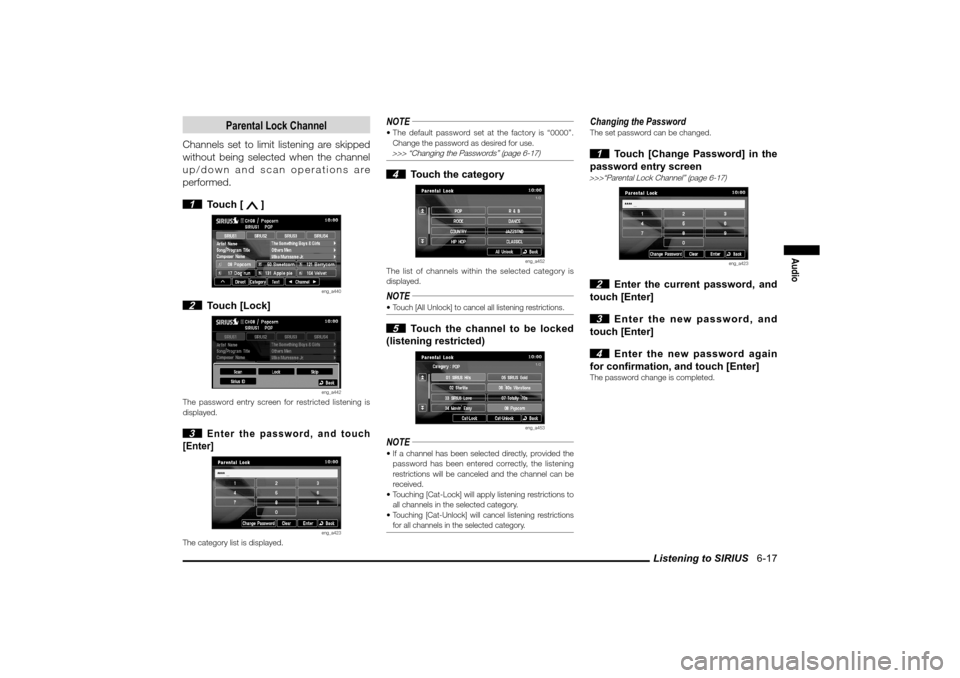

Listening to SIRIUS 6-17
Audio
Parental Lock Channel
Channels set to limit listening are skipped
without being selected when the channel
up/down and scan operations are
performed.
1 Touch [
]
eng_a440
2 Touch [Lock]
eng_a442
The password entry screen for restricted listening is
displayed. 3
Enter the password, and touch
[Enter]
eng_a423
The category list is displayed.
NOTE The default password set at the factory is “0000”.
Change the password as desired for use.
>>> “Changing the Passwords” (page 6-17) 4
Touch the category
eng_a452
The list of channels within the selected category is
displayed.NOTE Touch [All Unlock] to cancel all listening restrictions. 5 Touch the channel to be locked
(listening restricted)
eng_a453
NOTE If a channel has been selected directly, provided the
password has been entered correctly, the listening
restrictions will be canceled and the channel can be
received.
 Touching [Cat-Lock] will apply listening restrictions to
all channels in the selected category.
 Touching [Cat-Unlock] will cancel listening restrictions
for all channels in the selected category.
Changing the PasswordThe set password can be changed. 1
Touch [Change Password] in the
password entry screen
>>>“Parental Lock Channel” (page 6-17)
eng_a423
2 Enter the current password, and
touch [Enter]
3 Enter the new password, and
touch [Enter]
4 Enter the new password again
for confi rmation, and touch [Enter]
The password change is completed.

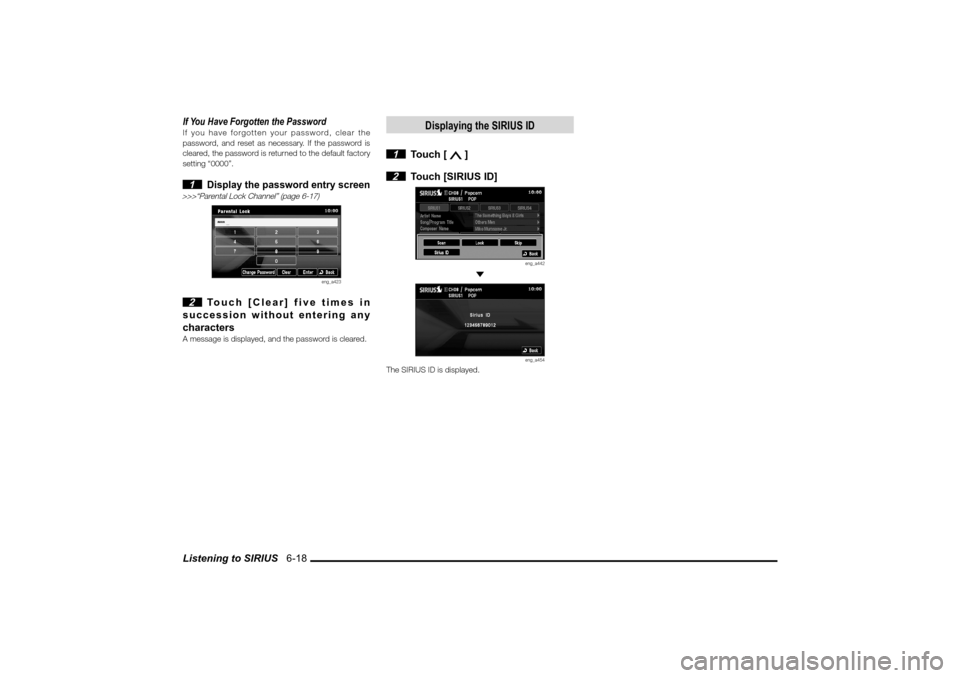

Listening to SIRIUS 6-18If You Have Forgotten the PasswordIf you have forgotten your password, clear the
password, and reset as necessary. If the password is
cleared, the password is returned to the default factory
setting “0000”. 1
Display the password entry screen
>>>“Parental Lock Channel” (page 6-17)
eng_a423
2 Touch [Clear] five times in
succession without entering any
characters
A message is displayed, and the password is cleared.
Displaying the SIRIUS ID
1 Touch [
]

2 Touch [SIRIUS ID]
eng_a442

eng_a454
The SIRIUS ID is displayed.

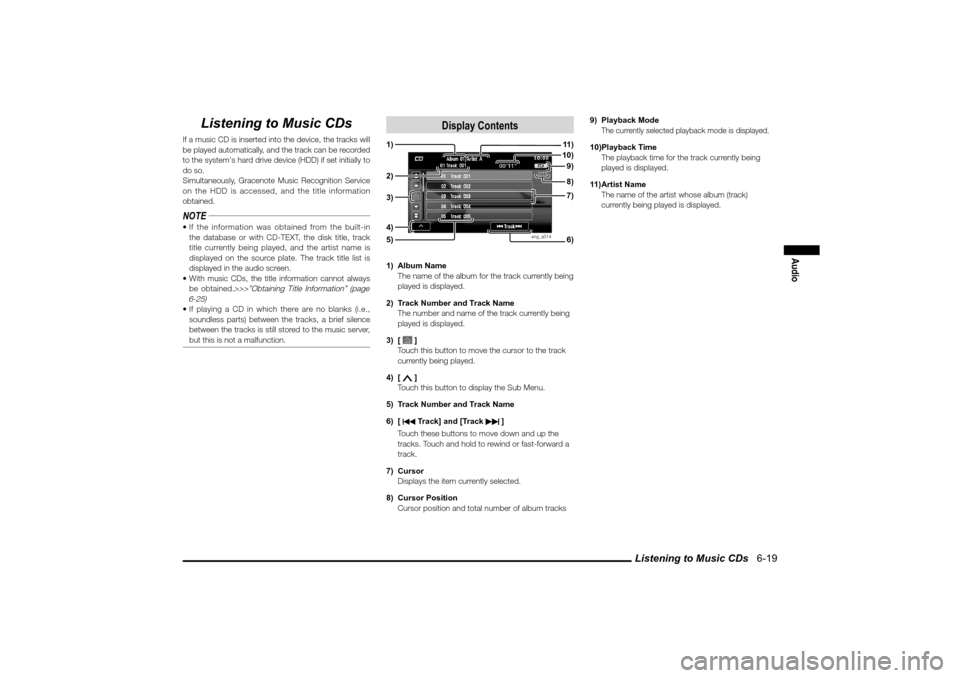

Listening to Music CDs 6-19
Audio
Listening to Music CDs
If a music CD is inserted into the device, the tracks will
be played automatically, and the track can be recorded
to the system's hard drive device (HDD) if set initially to
do so.
Simultaneously, Gracenote Music Recognition Service
on the HDD is accessed, and the title information
obtained.NOTE If the information was obtained from the built-in
the database or with CD-TEXT, the disk title, track
title currently being played, and the artist name is
displayed on the source plate. The track title list is
displayed in the audio screen.
 With music CDs, the title information cannot always
be obtained.
>>>”Obtaining Title Information” (page
6-25)
 If playing a CD in which there are no blanks (i.e.,
soundless parts) between the tracks, a brief silence
between the tracks is still stored to the music server,
but this is not a malfunction.
Display Contents
eng_a314
1) Album Name
The name of the album for the track currently being
played is displayed.
2) Track Number and Track Name
The number and name of the track currently being
played is displayed.
3) [
]
Touch this button to move the cursor to the track
currently being played.
4) [ ]
Touch this button to display the Sub Menu.
5) Track Number and Track Name
6) [ Track] and [Track
]
Touch these buttons to move down and up the
tracks. Touch and hold to rewind or fast-forward a
track.
7) Cursor
Displays the item currently selected.
8) Cursor Position
Cursor position and total number of album tracks9) Playback Mode

The currently selected playback mode is displayed.10) Playback Time
The playback time for the track currently being
played is displayed.
11) Artist Name
The name of the artist whose album (track)
currently being played is displayed. 1)
3)4) 2)5)
6)7)8)9)10)11 )
