3-96 Features and controls
3

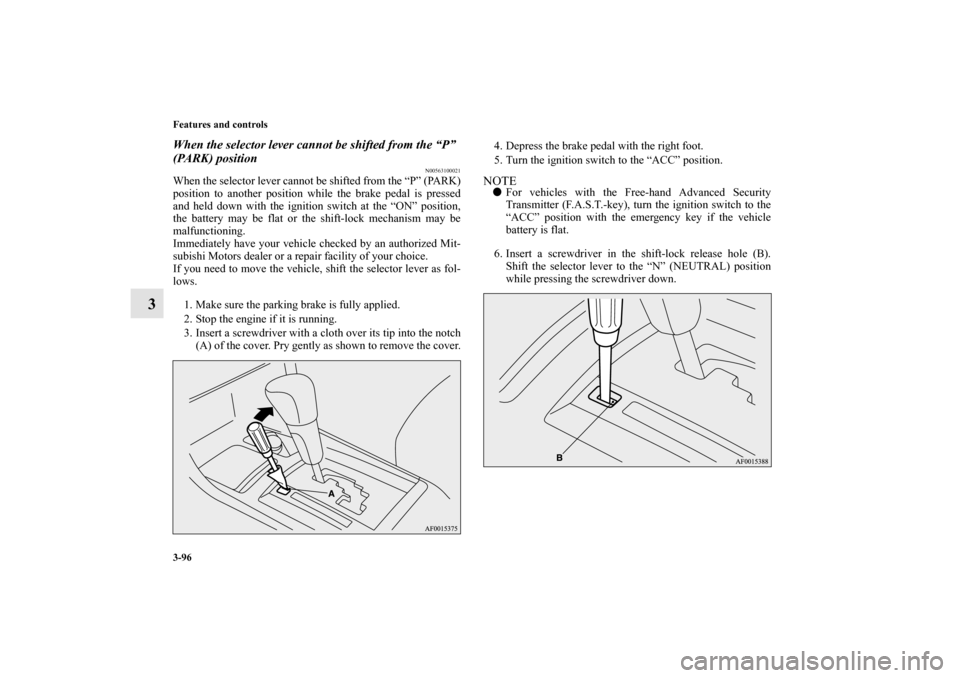

When the selector lever cannot be shifted from the “P”
(PARK) position
N00563100021
When the selector lever cannot be shifted from the “P” (PARK)
position to another position while the brake pedal is pressed
and held down with the ignition switch at the “ON” position,
the battery may be flat or the shift-lock mechanism may be
malfunctioning.
Immediately have your vehicle checked by an authorized Mit-
subishi Motors dealer or a repair facility of your choice.
If you need to move the vehicle, shift the selector lever as fol-
lows.
1. Make sure the parking brake is fully applied.
2. Stop the engine if it is running.
3. Insert a screwdriver with a cloth over its tip into the notch
(A) of the cover. Pry gently as shown to remove the cover.4. Depress the brake pedal with the right foot.
5. Turn the ignition switch to the “ACC” position.
NOTE

For vehicles with the Free-hand Advanced Security
Transmitter (F.A.S.T.-key), turn the ignition switch to the
“ACC” position with the emergency key if the vehicle
battery is flat.
6. Insert a screwdriver in the shift-lock release hole (B).
Shift the selector lever to the “N” (NEUTRAL) position
while pressing the screwdriver down.
BK0103001US.book 96 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-97
3

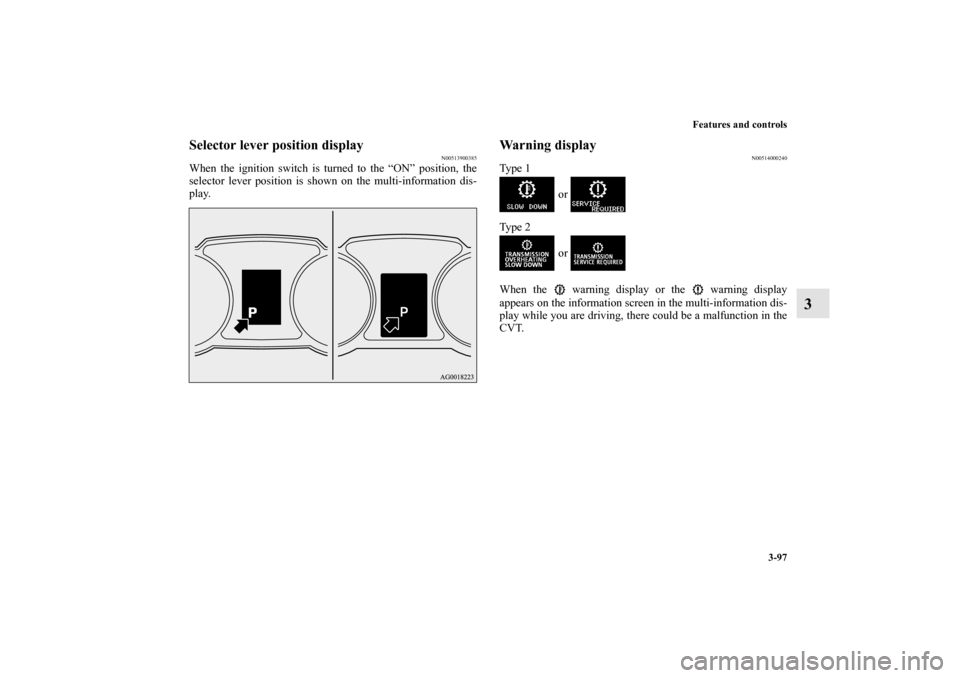

Selector lever position display
N00513900385
When the ignition switch is turned to the “ON” position, the
selector lever position is shown on the multi-information dis-
play.
Warning display
N00514000240
Ty p e 1
or
Ty p e 2
or
When the warning display or the warning display
appears on the information screen in the multi-information dis-
play while you are driving, there could be a malfunction in the
CVT.
BK0103001US.book 97 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-98 Features and controls
3
Selector lever positions
N00514200327
“P” PARKThis position locks the transmission to prevent the vehicle
from moving. The engine can be started from the “PARK”
position.“R” REVERSEMove the lever to this position only after the vehicle has come
to a complete stop.
CAUTION
!

If a malfunction occurs in the CVT while driving,
the warning display or the warning display
will appear on the information screen in the multi-
information display.
In this case, immediately park your vehicle in a safe
place and follow these procedures:
[When warning display is showing]
The continuously variable transmission (CVT) fluid
is overheating. The engine control may activate to
lower the CVT fluid temperature, causing the
engine revolutions and vehicle speed to decrease. In
this case, take one of the following procedures: Slow down your vehicle.
 Stop your vehicle in a safe place, put the selector
lever in the “P” (PARK) position, and open the
engine hood with the engine running to allow the
engine to cool down.After a while, confirm that the warning display is
no longer showing. It is safe to continue driving if
the display is no longer showing. If the warning dis-
play remains or flashes frequently, have your vehicle
inspected by an authorized Mitsubishi Motors
dealer or a repair facility of your choice.
[When warning display is showing]
It may be that there is something unusual happening
in the CVT, causing a safety device to activate. Have
your vehicle inspected by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible. CAUTION
!

Never shift into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion.
If the lever is shifted into the “P” (PARK) or “R”
(REVERSE) position while the vehicle is in motion,
the transmission may be damaged. CAUTION
!
BK0103001US.book 98 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-99
3

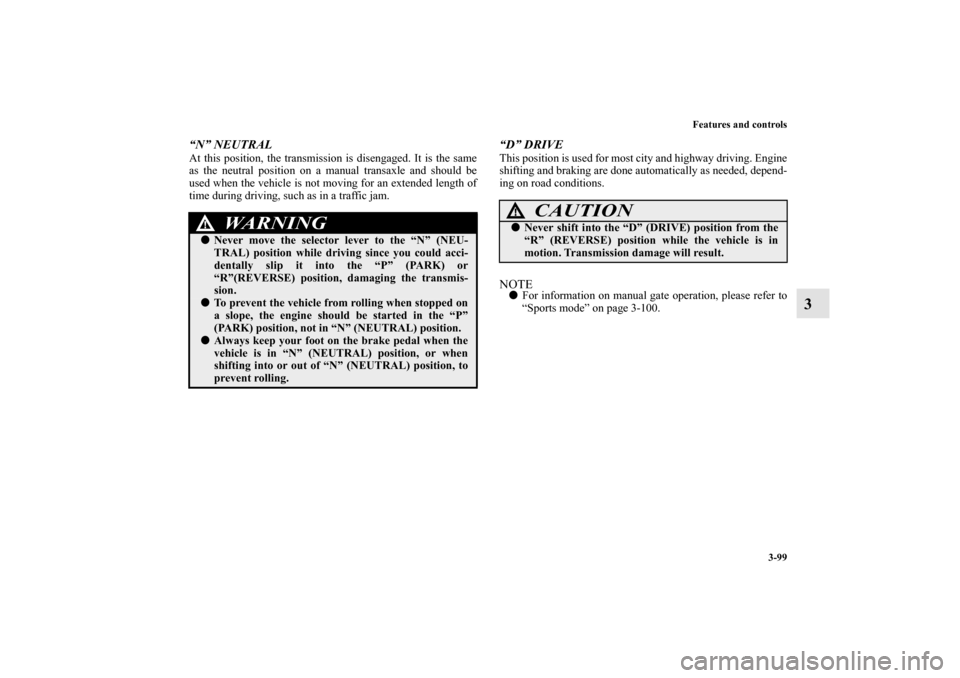

“N” NEUTRALAt this position, the transmission is disengaged. It is the same
as the neutral position on a manual transaxle and should be
used when the vehicle is not moving for an extended length of
time during driving, such as in a traffic jam.
“D” DRIVEThis position is used for most city and highway driving. Engine
shifting and braking are done automatically as needed, depend-
ing on road conditions.NOTE

For information on manual gate operation, please refer to
“Sports mode” on page 3-100.
WA R N I N G
!

Never move the selector lever to the “N” (NEU-
TRAL) position while driving since you could acci-
dentally slip it into the “P” (PARK) or
“R”(REVERSE) position, damaging the transmis-
sion.


To prevent the vehicle from rolling when stopped on
a slope, the engine should be started in the “P”
(PARK) position, not in “N” (NEUTRAL) position.


Always keep your foot on the brake pedal when the
vehicle is in “N” (NEUTRAL) position, or when
shifting into or out of “N” (NEUTRAL) position, to
prevent rolling.
CAUTION
!

Never shift into the “D” (DRIVE) position from the
“R” (REVERSE) position while the vehicle is in
motion. Transmission damage will result.
BK0103001US.book 99 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-100 Features and controls
3

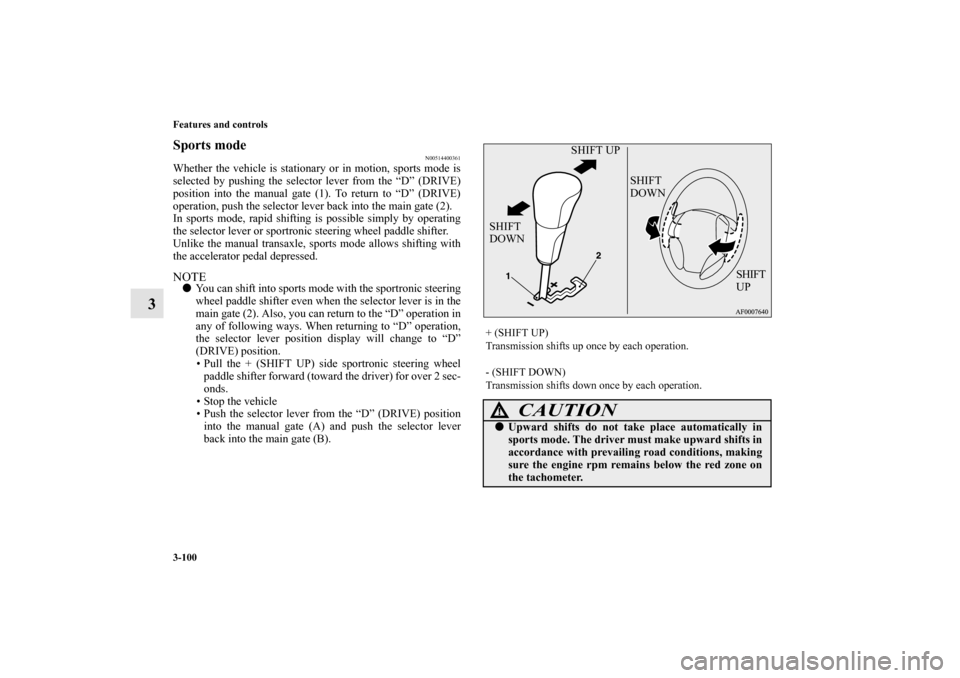

Sports mode
N00514400361
Whether the vehicle is stationary or in motion, sports mode is
selected by pushing the selector lever from the “D” (DRIVE)
position into the manual gate (1). To return to “D” (DRIVE)
operation, push the selector lever back into the main gate (2).
In sports mode, rapid shifting is possible simply by operating
the selector lever or sportronic steering wheel paddle shifter.
Unlike the manual transaxle, sports mode allows shifting with
the accelerator pedal depressed.NOTE

You can shift into sports mode with the sportronic steering
wheel paddle shifter even when the selector lever is in the
main gate (2). Also, you can return to the “D” operation in
any of following ways. When returning to “D” operation,
the selector lever position display will change to “D”
(DRIVE) position.
 Pull the + (SHIFT UP) side sportronic steering wheel
paddle shifter forward (toward the driver) for over 2 sec-
onds.
 Stop the vehicle
 Push the selector lever from the “D” (DRIVE) position
into the manual gate (A) and push the selector lever
back into the main gate (B).
+ (SHIFT UP)
Transmission shifts up once by each operation.
- (SHIFT DOWN)
Transmission shifts down once by each operation.
CAUTION
!

Upward shifts do not take place automatically in
sports mode. The driver must make upward shifts in
accordance with prevailing road conditions, making
sure the engine rpm remains below the red zone on
the tachometer.
SHIFT UP
SHIFT
DOWN
SHIFT
UP SHIFT
DOWN
BK0103001US.book 100 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-101
3
NOTE

Shift ranges can only be selected in a forward direction
from 1st to 6th. To reverse or park the vehicle, move the
selector lever to the “R” (REVERSE) or “P” (PARK)
position.


To maintain good running performance, the transmission
may refuse to perform an upshift when the selector lever
or sportronic steering wheel paddle shifter is moved to the
“+ (SHIFT UP)” position at certain vehicle speeds. Also,
to prevent over-revving of the engine, the transmission
may refuse to perform a downshift when the shift lever or
sportronic steering wheel paddle shifter is moved to the “-
(SHIFT DOWN)” position at certain vehicle speeds.
When this happens, a buzzer sounds to indicate that a
downshift is not going to take place.


Move the selector lever gently between the manual and
main gates and between positions in the manual gate. And
do not operate sportronic steering wheel paddle shifter
violently. Excessive force could damage the selector lever
or sportronic steering wheel paddle shifter.

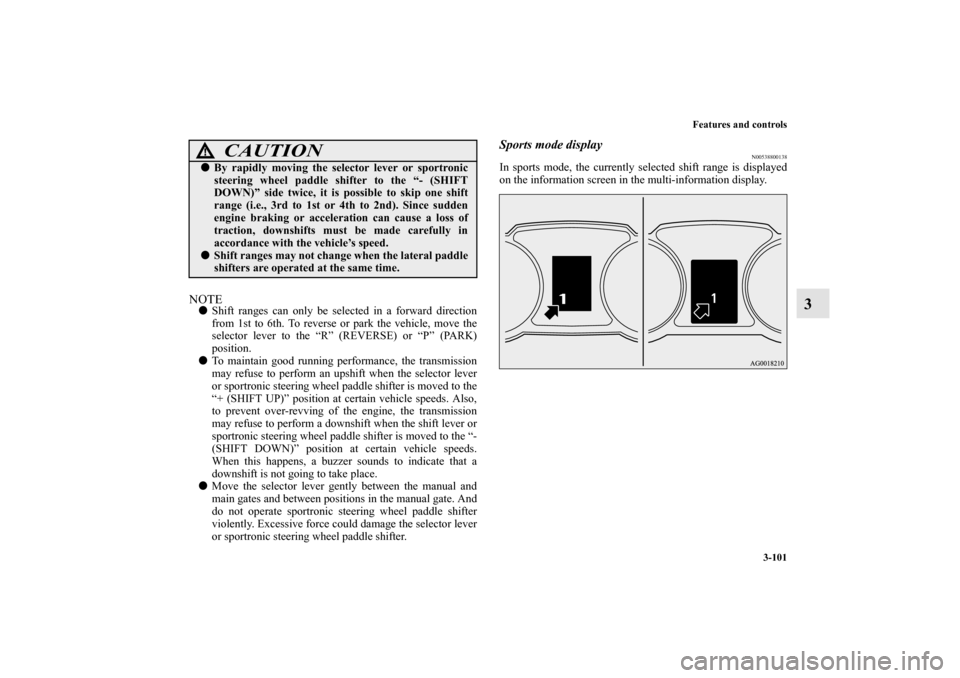

Sports mode display
N00538800138
In sports mode, the currently selected shift range is displayed
on the information screen in the multi-information display.


By rapidly moving the selector lever or sportronic
steering wheel paddle shifter to the “- (SHIFT
DOWN)” side twice, it is possible to skip one shift
range (i.e., 3rd to 1st or 4th to 2nd). Since sudden
engine braking or acceleration can cause a loss of
traction, downshifts must be made carefully in
accordance with the vehicle’s speed.


Shift ranges may not change when the lateral paddle
shifters are operated at the same time.CAUTION
!
BK0103001US.book 101 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-102 Features and controls
3

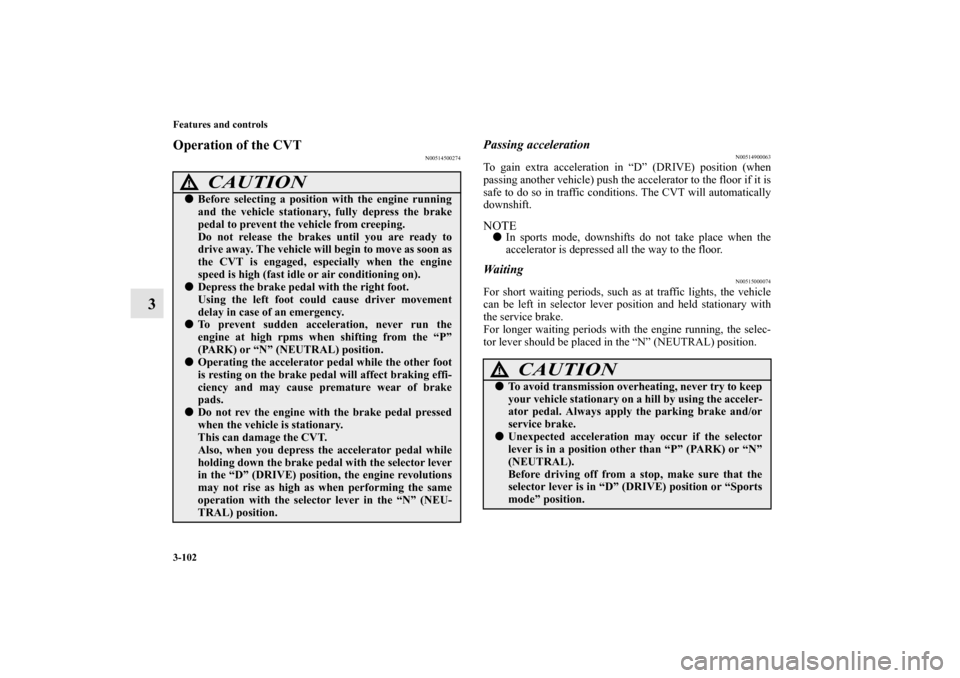

Operation of the CVT
N00514500274
Passing acceleration
N00514900063
To gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor if it is
safe to do so in traffic conditions. The CVT will automatically
downshift.NOTE

In sports mode, downshifts do not take place when the
accelerator is depressed all the way to the floor.
Waiting
N00515000074
For short waiting periods, such as at traffic lights, the vehicle
can be left in selector lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, the selec-
tor lever should be placed in the “N” (NEUTRAL) position.
CAUTION
!

Before selecting a position with the engine running
and the vehicle stationary, fully depress the brake
pedal to prevent the vehicle from creeping.
Do not release the brakes until you are ready to
drive away. The vehicle will begin to move as soon as
the CVT is engaged, especially when the engine
speed is high (fast idle or air conditioning on).


Depress the brake pedal with the right foot.
Using the left foot could cause driver movement
delay in case of an emergency.


To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL) position.


Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency and may cause premature wear of brake
pads.


Do not rev the engine with the brake pedal pressed
when the vehicle is stationary.
This can damage the CVT.
Also, when you depress the accelerator pedal while
holding down the brake pedal with the selector lever
in the “D” (DRIVE) position, the engine revolutions
may not rise as high as when performing the same
operation with the selector lever in the “N” (NEU-
TRAL) position.
CAUTION
!

To avoid transmission overheating, never try to keep
your vehicle stationary on a hill by using the acceler-
ator pedal. Always apply the parking brake and/or
service brake.


Unexpected acceleration may occur if the selector
lever is in a position other than “P” (PARK) or “N”
(NEUTRAL).
Before driving off from a stop, make sure that the
selector lever is in “D” (DRIVE) position or “Sports
mode” position.
BK0103001US.book 102 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-103
3

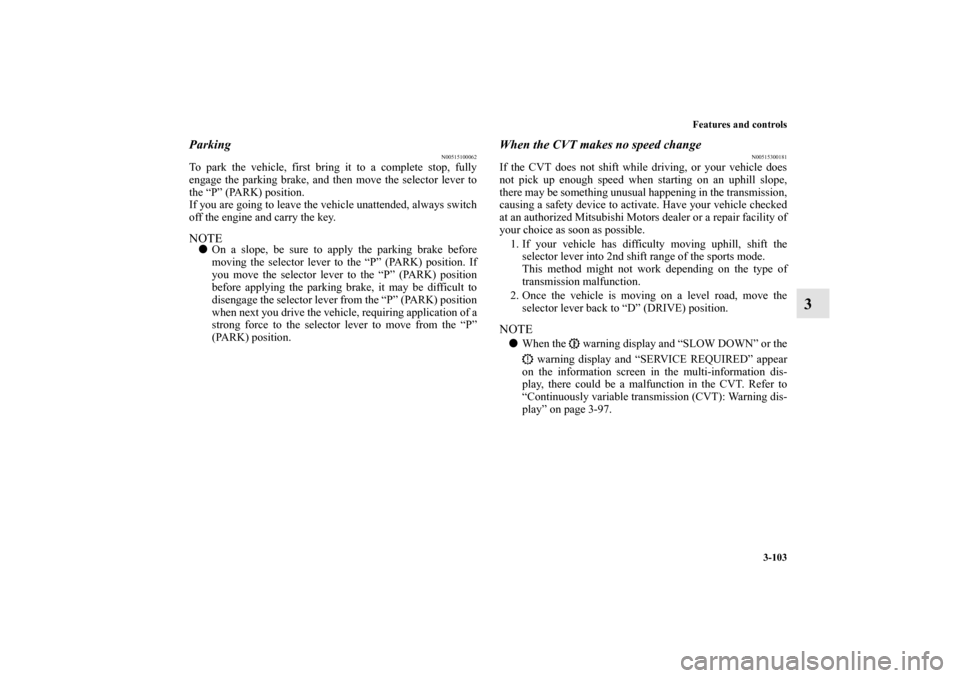

Parking
N00515100062
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.
If you are going to leave the vehicle unattended, always switch
off the engine and carry the key.NOTE

On a slope, be sure to apply the parking brake before
moving the selector lever to the “P” (PARK) position. If
you move the selector lever to the “P” (PARK) position
before applying the parking brake, it may be difficult to
disengage the selector lever from the “P” (PARK) position
when next you drive the vehicle, requiring application of a
strong force to the selector lever to move from the “P”
(PARK) position.
When the CVT makes no speed change
N00515300181
If the CVT does not shift while driving, or your vehicle does
not pick up enough speed when starting on an uphill slope,
there may be something unusual happening in the transmission,
causing a safety device to activate. Have your vehicle checked
at an authorized Mitsubishi Motors dealer or a repair facility of
your choice as soon as possible.
1. If your vehicle has difficulty moving uphill, shift the
selector lever into 2nd shift range of the sports mode.
This method might not work depending on the type of
transmission malfunction.
2. Once the vehicle is moving on a level road, move the
selector lever back to “D” (DRIVE) position.NOTE

When the warning display and “SLOW DOWN” or the
warning display and “SERVICE REQUIRED” appear
on the information screen in the multi-information dis-
play, there could be a malfunction in the CVT. Refer to
“Continuously variable transmission (CVT): Warning dis-
play” on page 3-97.
BK0103001US.book 103 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-104 Features and controls

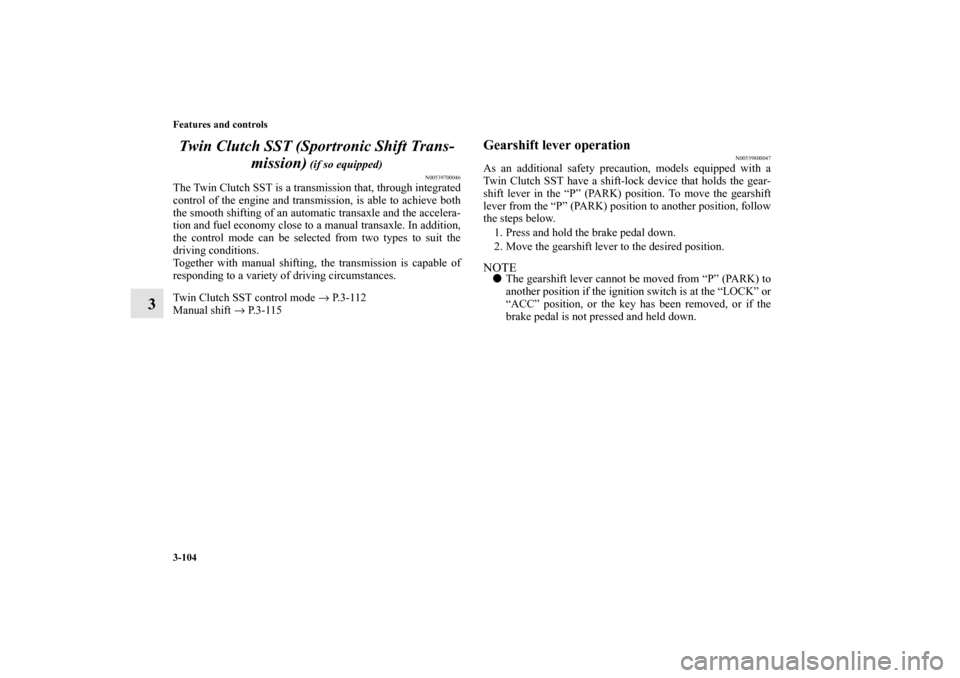

3Twin Clutch SST (Sportronic Shift Trans-
mission)
(if so equipped)
N00539700046
The Twin Clutch SST is a transmission that, through integrated
control of the engine and transmission, is able to achieve both
the smooth shifting of an automatic transaxle and the accelera-
tion and fuel economy close to a manual transaxle. In addition,
the control mode can be selected from two types to suit the
driving conditions.
Together with manual shifting, the transmission is capable of
responding to a variety of driving circumstances.
Twin Clutch SST control mode → P. 3 - 1 1 2
Manual shift → P. 3 - 1 1 5
Gearshift lever operation
N00539800047
As an additional safety precaution, models equipped with a
Twin Clutch SST have a shift-lock device that holds the gear-
shift lever in the “P” (PARK) position. To move the gearshift
lever from the “P” (PARK) position to another position, follow
the steps below.
1. Press and hold the brake pedal down.
2. Move the gearshift lever to the desired position.NOTE

The gearshift lever cannot be moved from “P” (PARK) to
another position if the ignition switch is at the “LOCK” or
“ACC” position, or the key has been removed, or if the
brake pedal is not pressed and held down.
BK0103001US.book 104 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-105
3

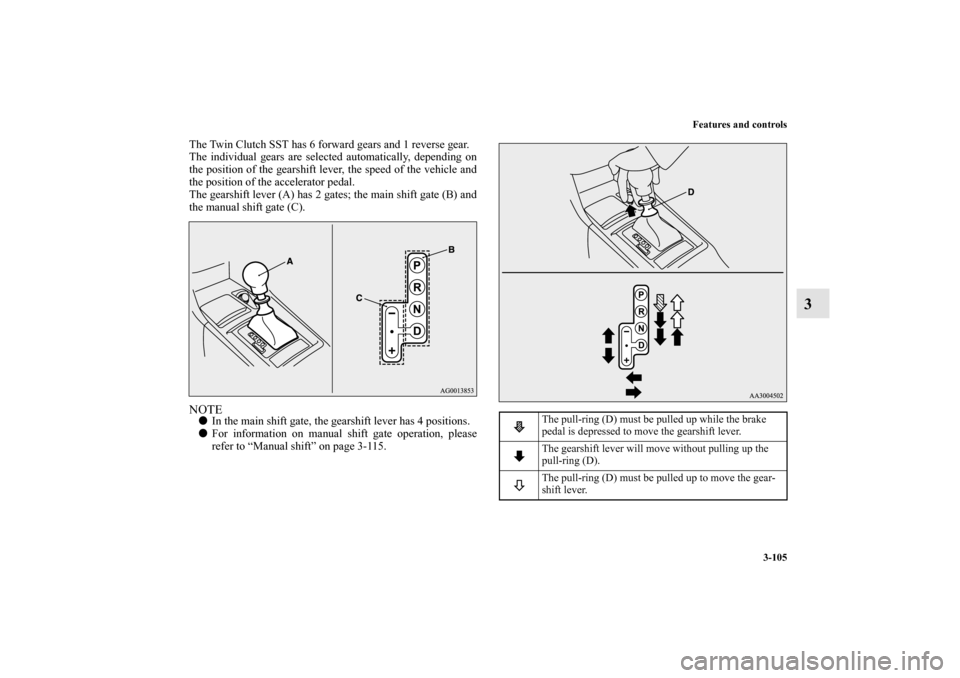

The Twin Clutch SST has 6 forward gears and 1 reverse gear.
The individual gears are selected automatically, depending on
the position of the gearshift lever, the speed of the vehicle and
the position of the accelerator pedal.
The gearshift lever (A) has 2 gates; the main shift gate (B) and
the manual shift gate (C).NOTE

In the main shift gate, the gearshift lever has 4 positions.


For information on manual shift gate operation, please
refer to “Manual shift” on page 3-115.
The pull-ring (D) must be pulled up while the brake
pedal is depressed to move the gearshift lever.
The gearshift lever will move without pulling up the
pull-ring (D).
The pull-ring (D) must be pulled up to move the gear-
shift lever.
BK0103001US.book 105 ページ ２００９年８月２０日　木曜日　午前１０時４５分
