MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

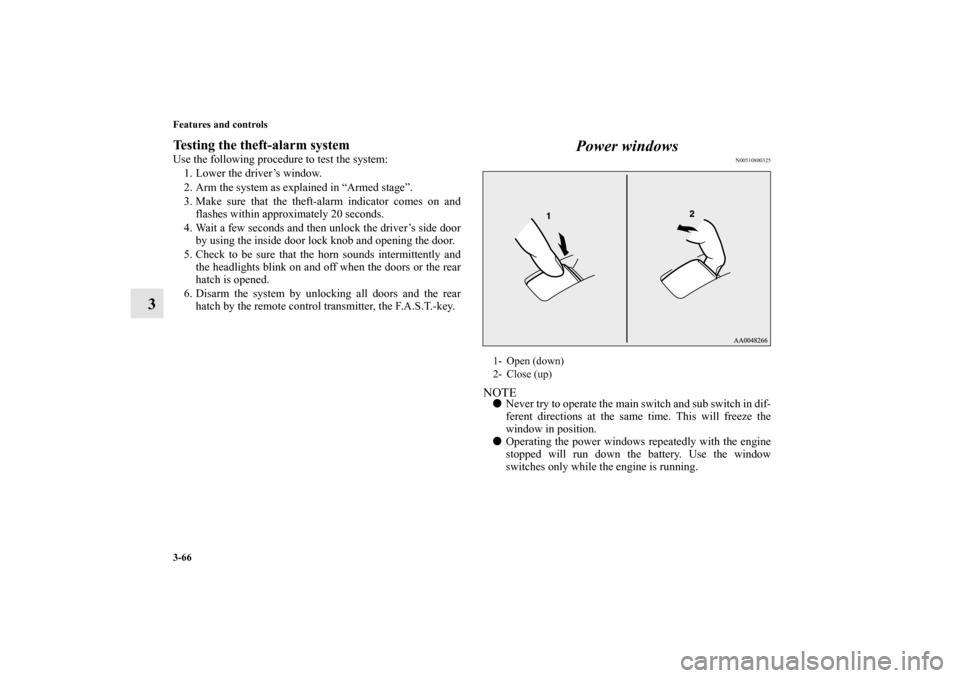

3-66 Features and controls
3
Testing the theft-alarm systemUse the following procedure to test the system:
1. Lower the driver’s window.
2. Arm the system as explained in “Armed stage”.
3. Make sure that the theft-alarm indicator comes on and
flashes within approximately 20 seconds.
4. Wait a few seconds and then unlock the driver’s side door
by using the inside door lock knob and opening the door.
5. Check to be sure that the horn sounds intermittently and
the headlights blink on and off when the doors or the rear
hatch is opened.
6. Disarm the system by unlocking all doors and the rear
hatch by the remote control transmitter, the F.A.S.T.-key.
Power windows
N00510800325
NOTE

Never try to operate the main switch and sub switch in dif-
ferent directions at the same time. This will freeze the
window in position.


Operating the power windows repeatedly with the engine
stopped will run down the battery. Use the window
switches only while the engine is running.
1- Open (down)
2- Close (up)
BK0103001US.book 66 ページ ２００９年８月２０日　木曜日　午前１０時４５分

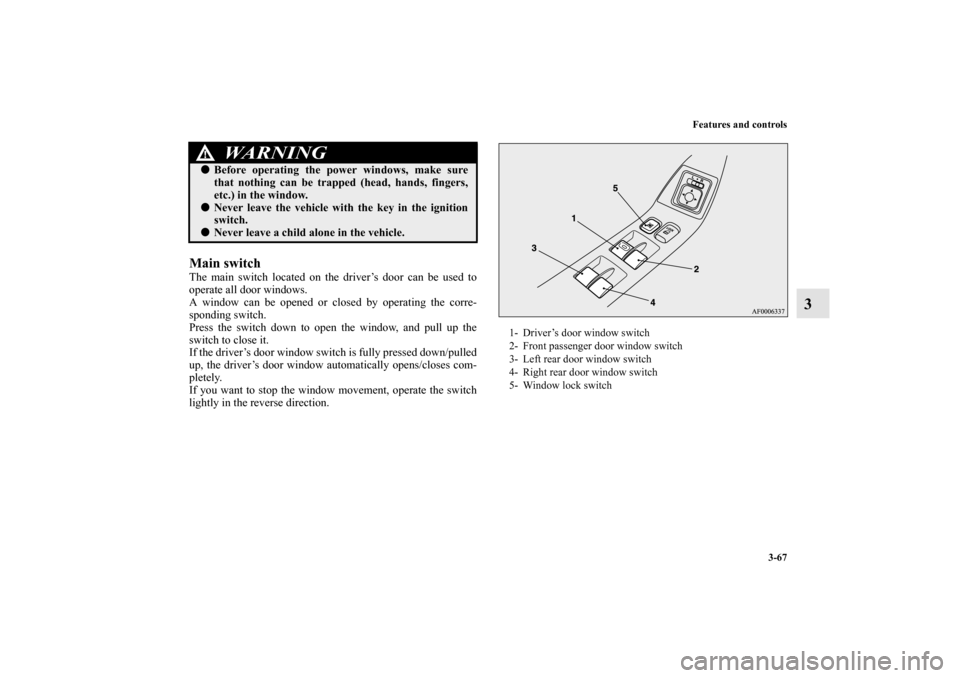

Features and controls
3-67
3
Main switchThe main switch located on the driver’s door can be used to
operate all door windows.
A window can be opened or closed by operating the corre-
sponding switch.
Press the switch down to open the window, and pull up the
switch to close it.
If the driver’s door window switch is fully pressed down/pulled
up, the driver’s door window automatically opens/closes com-
pletely.
If you want to stop the window movement, operate the switch
lightly in the reverse direction.
WA R N I N G
!

Before operating the power windows, make sure
that nothing can be trapped (head, hands, fingers,
etc.) in the window.


Never leave the vehicle with the key in the ignition
switch.


Never leave a child alone in the vehicle.
1- Driver’s door window switch
2- Front passenger door window switch
3- Left rear door window switch
4- Right rear door window switch
5- Window lock switch
BK0103001US.book 67 ページ ２００９年８月２０日　木曜日　午前１０時４５分

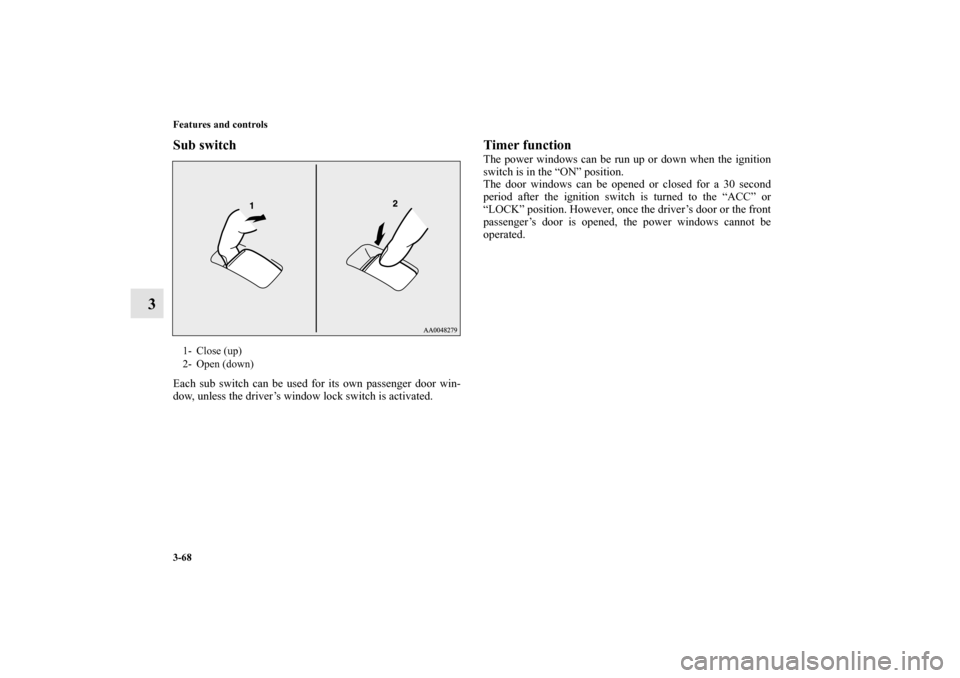

3-68 Features and controls
3
Sub switchEach sub switch can be used for its own passenger door win-
dow, unless the driver’s window lock switch is activated.
Timer functionThe power windows can be run up or down when the ignition
switch is in the “ON” position.
The door windows can be opened or closed for a 30 second
period after the ignition switch is turned to the “ACC” or
“LOCK” position. However, once the driver’s door or the front
passenger’s door is opened, the power windows cannot be
operated.
1- Close (up)
2- Open (down)
BK0103001US.book 68 ページ ２００９年８月２０日　木曜日　午前１０時４５分

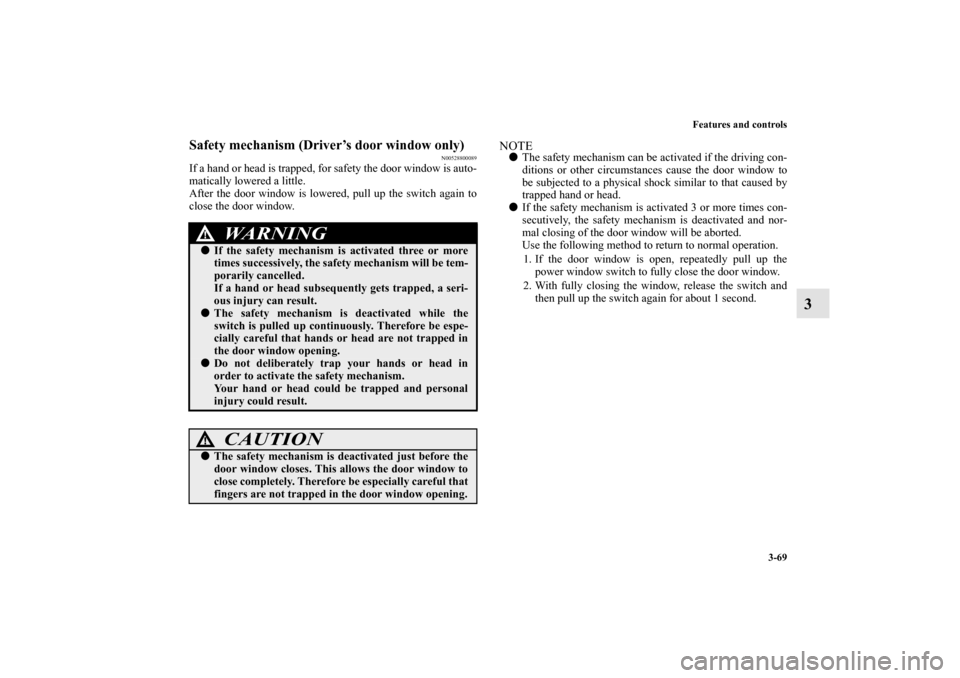

Features and controls
3-69
3
Safety mechanism (Driver’s door window only)
N00528800089
If a hand or head is trapped, for safety the door window is auto-
matically lowered a little.
After the door window is lowered, pull up the switch again to
close the door window.
NOTE

The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the door window to
be subjected to a physical shock similar to that caused by
trapped hand or head.


If the safety mechanism is activated 3 or more times con-
secutively, the safety mechanism is deactivated and nor-
mal closing of the door window will be aborted.
Use the following method to return to normal operation.
1. If the door window is open, repeatedly pull up the
power window switch to fully close the door window.
2. With fully closing the window, release the switch and
then pull up the switch again for about 1 second.
WA R N I N G
!

If the safety mechanism is activated three or more
times successively, the safety mechanism will be tem-
porarily cancelled.
If a hand or head subsequently gets trapped, a seri-
ous injury can result.


The safety mechanism is deactivated while the
switch is pulled up continuously. Therefore be espe-
cially careful that hands or head are not trapped in
the door window opening.


Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Your hand or head could be trapped and personal
injury could result.CAUTION
!

The safety mechanism is deactivated just before the
door window closes. This allows the door window to
close completely. Therefore be especially careful that
fingers are not trapped in the door window opening.
BK0103001US.book 69 ページ ２００９年８月２０日　木曜日　午前１０時４５分

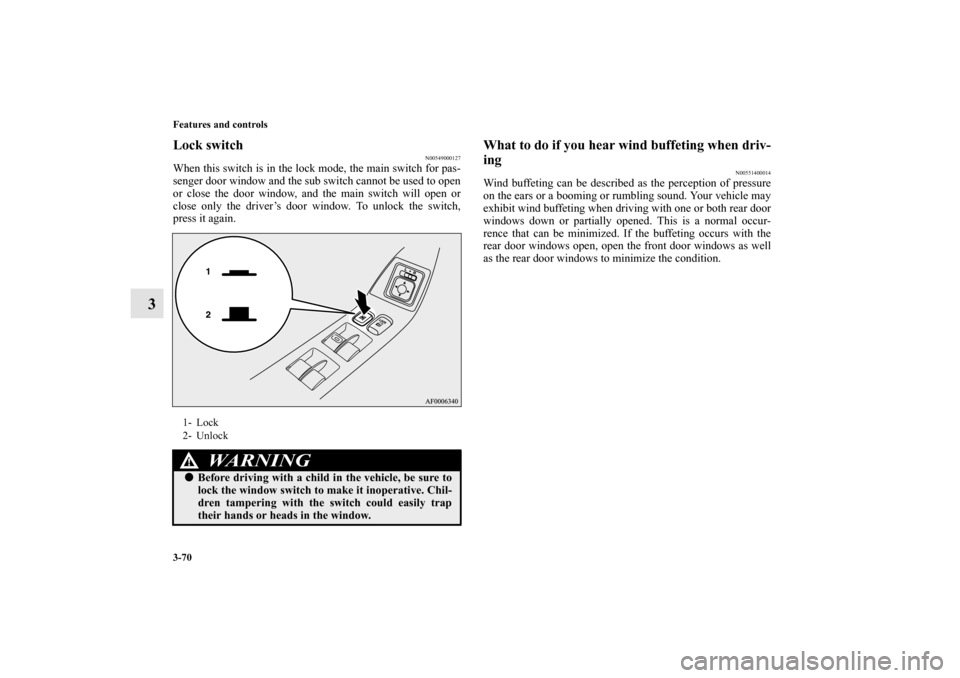

3-70 Features and controls
3
Lock switch
N00549000127
When this switch is in the lock mode, the main switch for pas-
senger door window and the sub switch cannot be used to open
or close the door window, and the main switch will open or
close only the driver’s door window. To unlock the switch,
press it again.
What to do if you hear wind buffeting when driv-
ing
N00551400014
Wind buffeting can be described as the perception of pressure
on the ears or a booming or rumbling sound. Your vehicle may
exhibit wind buffeting when driving with one or both rear door
windows down or partially opened. This is a normal occur-
rence that can be minimized. If the buffeting occurs with the
rear door windows open, open the front door windows as well
as the rear door windows to minimize the condition.
1- Lock
2- Unlock
WA R N I N G
!

Before driving with a child in the vehicle, be sure to
lock the window switch to make it inoperative. Chil-
dren tampering with the switch could easily trap
their hands or heads in the window.
BK0103001US.book 70 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-71

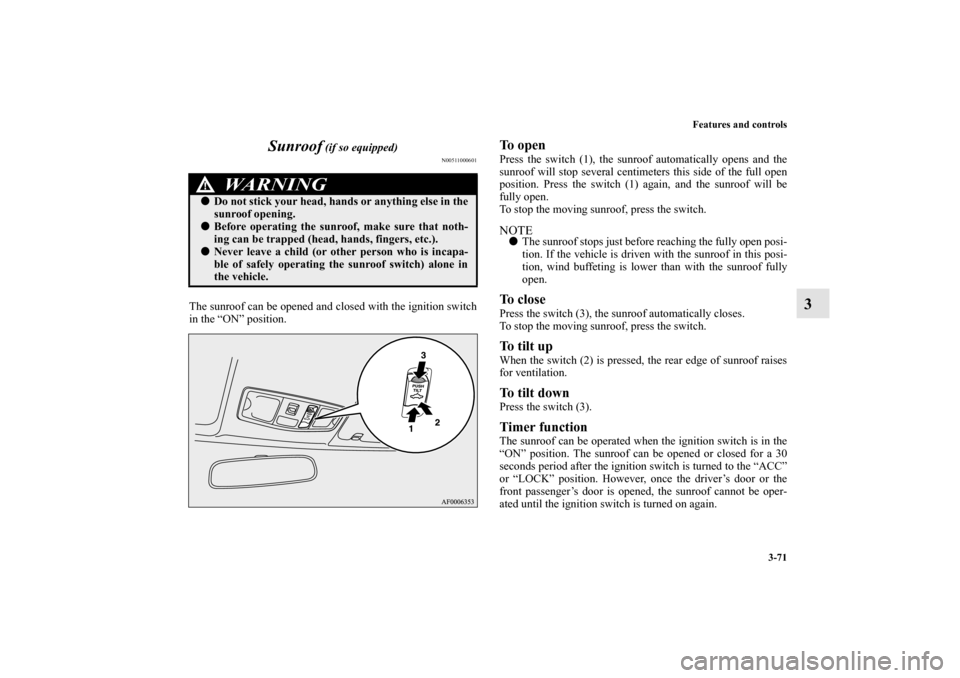

3 Sunroof
(if so equipped)
N00511000601
The sunroof can be opened and closed with the ignition switch
in the “ON” position.
To open Press the switch (1), the sunroof automatically opens and the
sunroof will stop several centimeters this side of the full open
position. Press the switch (1) again, and the sunroof will be
fully open.
To stop the moving sunroof, press the switch. NOTE

The sunroof stops just before reaching the fully open posi-
tion. If the vehicle is driven with the sunroof in this posi-
tion, wind buffeting is lower than with the sunroof fully
open.
To closePress the switch (3), the sunroof automatically closes.
To stop the moving sunroof, press the switch.To tilt up When the switch (2) is pressed, the rear edge of sunroof raises
for ventilation. To tilt down Press the switch (3). Timer functionThe sunroof can be operated when the ignition switch is in the
“ON” position. The sunroof can be opened or closed for a 30
seconds period after the ignition switch is turned to the “ACC”
or “LOCK” position. However, once the driver’s door or the
front passenger’s door is opened, the sunroof cannot be oper-
ated until the ignition switch is turned on again.
WA R N I N G
!

Do not stick your head, hands or anything else in the
sunroof opening.


Before operating the sunroof, make sure that noth-
ing can be trapped (head, hands, fingers, etc.).


Never leave a child (or other person who is incapa-
ble of safely operating the sunroof switch) alone in
the vehicle.
BK0103001US.book 71 ページ ２００９年８月２０日　木曜日　午前１０時４５分

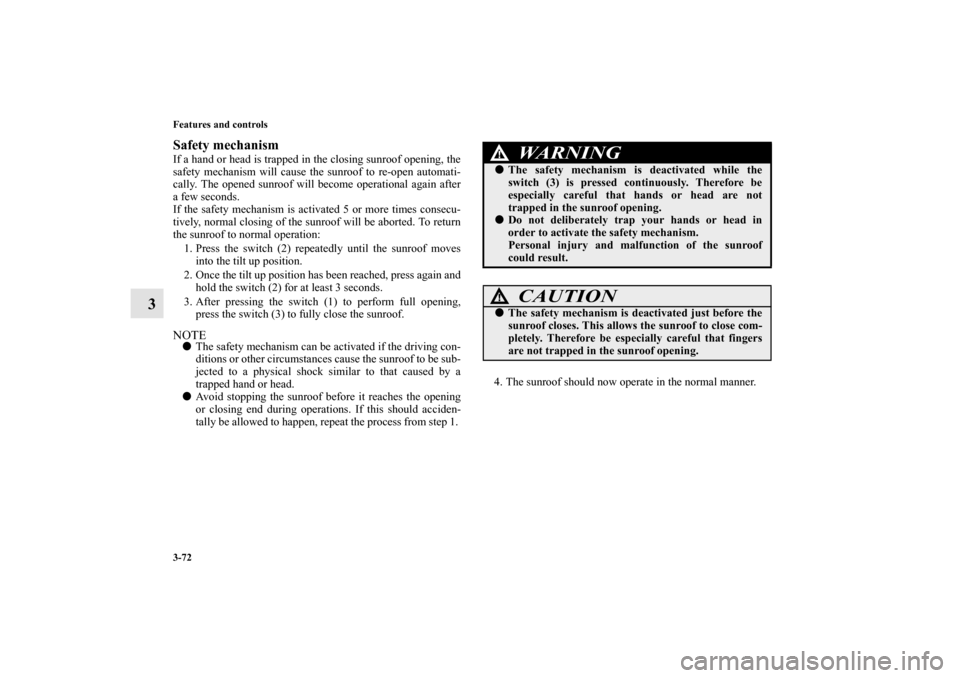

3-72 Features and controls
3
Safety mechanism If a hand or head is trapped in the closing sunroof opening, the
safety mechanism will cause the sunroof to re-open automati-
cally. The opened sunroof will become operational again after
a few seconds.
If the safety mechanism is activated 5 or more times consecu-
tively, normal closing of the sunroof will be aborted. To return
the sunroof to normal operation:
1. Press the switch (2) repeatedly until the sunroof moves
into the tilt up position.
2. Once the tilt up position has been reached, press again and
hold the switch (2) for at least 3 seconds.
3. After pressing the switch (1) to perform full opening,
press the switch (3) to fully close the sunroof.NOTE

The safety mechanism can be activated if the driving con-
ditions or other circumstances cause the sunroof to be sub-
jected to a physical shock similar to that caused by a
trapped hand or head.


Avoid stopping the sunroof before it reaches the opening
or closing end during operations. If this should acciden-
tally be allowed to happen, repeat the process from step 1. 4. The sunroof should now operate in the normal manner.
WA R N I N G
!

The safety mechanism is deactivated while the
switch (3) is pressed continuously. Therefore be
especially careful that hands or head are not
trapped in the sunroof opening.


Do not deliberately trap your hands or head in
order to activate the safety mechanism.
Personal injury and malfunction of the sunroof
could result.CAUTION
!

The safety mechanism is deactivated just before the
sunroof closes. This allows the sunroof to close com-
pletely. Therefore be especially careful that fingers
are not trapped in the sunroof opening.
BK0103001US.book 72 ページ ２００９年８月２０日　木曜日　午前１０時４５分

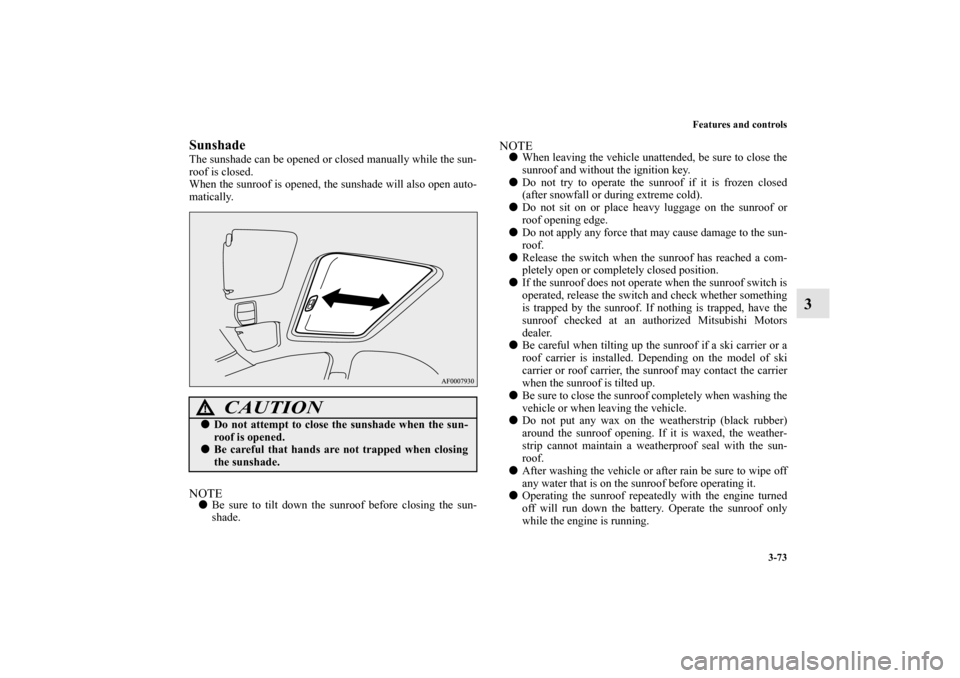

Features and controls
3-73
3
SunshadeThe sunshade can be opened or closed manually while the sun-
roof is closed.
When the sunroof is opened, the sunshade will also open auto-
matically.NOTE

Be sure to tilt down the sunroof before closing the sun-
shade.
NOTE

When leaving the vehicle unattended, be sure to close the
sunroof and without the ignition key.


Do not try to operate the sunroof if it is frozen closed
(after snowfall or during extreme cold).


Do not sit on or place heavy luggage on the sunroof or
roof opening edge.


Do not apply any force that may cause damage to the sun-
roof.


Release the switch when the sunroof has reached a com-
pletely open or completely closed position.


If the sunroof does not operate when the sunroof switch is
operated, release the switch and check whether something
is trapped by the sunroof. If nothing is trapped, have the
sunroof checked at an authorized Mitsubishi Motors
dealer.


Be careful when tilting up the sunroof if a ski carrier or a
roof carrier is installed. Depending on the model of ski
carrier or roof carrier, the sunroof may contact the carrier
when the sunroof is tilted up.


Be sure to close the sunroof completely when washing the
vehicle or when leaving the vehicle.


Do not put any wax on the weatherstrip (black rubber)
around the sunroof opening. If it is waxed, the weather-
strip cannot maintain a weatherproof seal with the sun-
roof.


After washing the vehicle or after rain be sure to wipe off
any water that is on the sunroof before operating it.


Operating the sunroof repeatedly with the engine turned
off will run down the battery. Operate the sunroof only
while the engine is running.
CAUTION
!

Do not attempt to close the sunshade when the sun-
roof is opened.


Be careful that hands are not trapped when closing
the sunshade.
BK0103001US.book 73 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-74 Features and controls

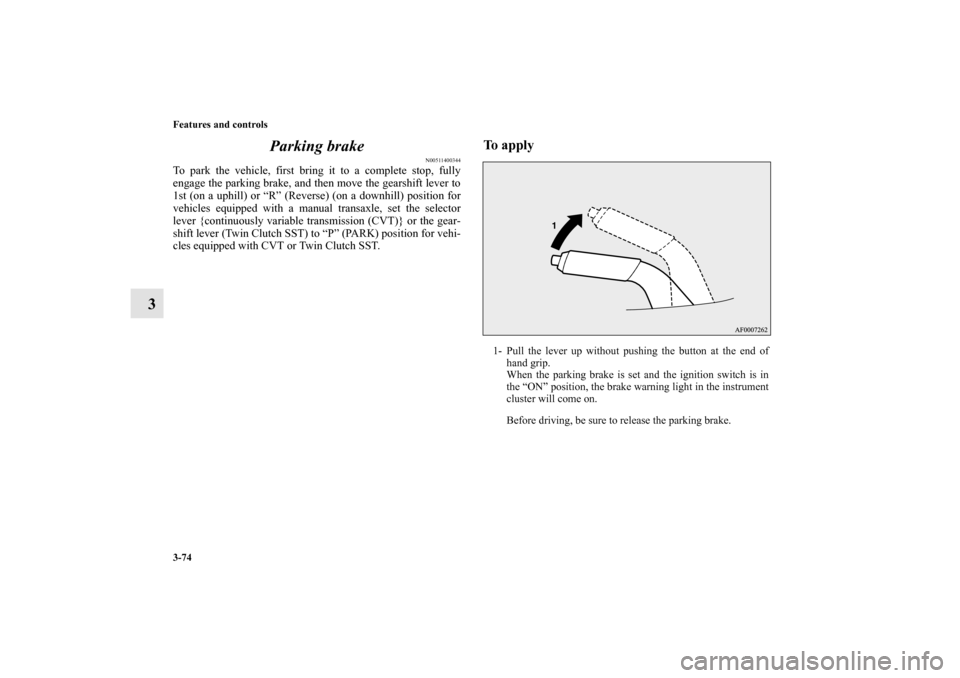

3Parking brake
N00511400344
To park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the gearshift lever to
1st (on a uphill) or “R” (Reverse) (on a downhill) position for
vehicles equipped with a manual transaxle, set the selector
lever {continuously variable transmission (CVT)} or the gear-
shift lever (Twin Clutch SST) to “P” (PARK) position for vehi-
cles equipped with CVT or Twin Clutch SST.
To apply 1- Pull the lever up without pushing the button at the end of
hand grip.
When the parking brake is set and the ignition switch is in
the “ON” position, the brake warning light in the instrument
cluster will come on.
Before driving, be sure to release the parking brake.
BK0103001US.book 74 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-75
3

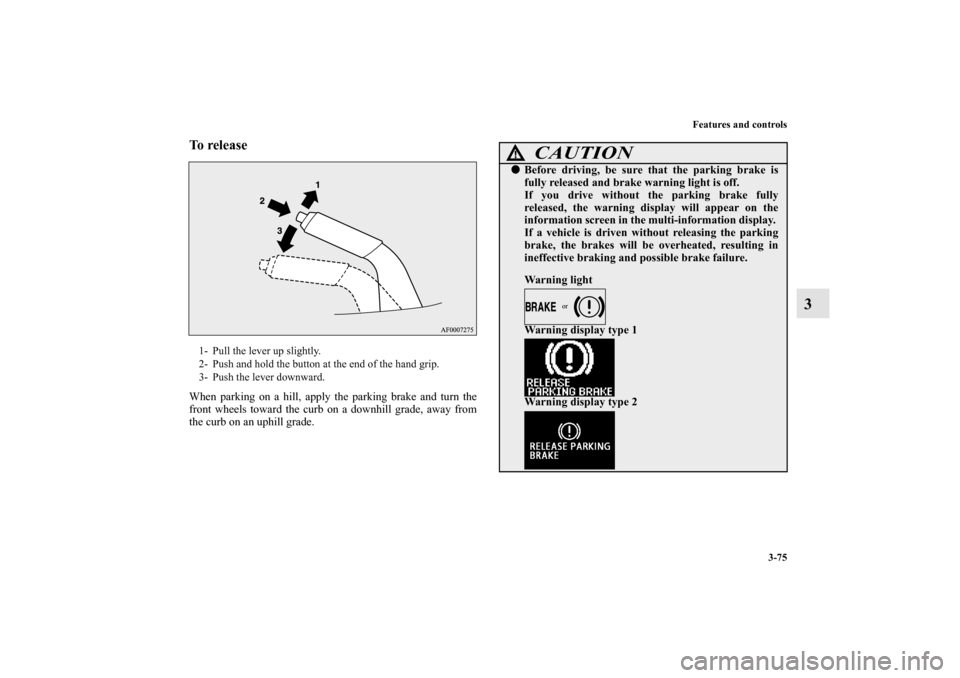

To release When parking on a hill, apply the parking brake and turn the
front wheels toward the curb on a downhill grade, away from
the curb on an uphill grade.1- Pull the lever up slightly.
2- Push and hold the button at the end of the hand grip.
3- Push the lever downward.
CAUTION
!

Before driving, be sure that the parking brake is
fully released and brake warning light is off.
If you drive without the parking brake fully
released, the warning display will appear on the
information screen in the multi-information display.
If a vehicle is driven without releasing the parking
brake, the brakes will be overheated, resulting in
ineffective braking and possible brake failure.
Warning light
Warning display type 1
Warning display type 2
BK0103001US.book 75 ページ ２００９年８月２０日　木曜日　午前１０時４５分
