MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

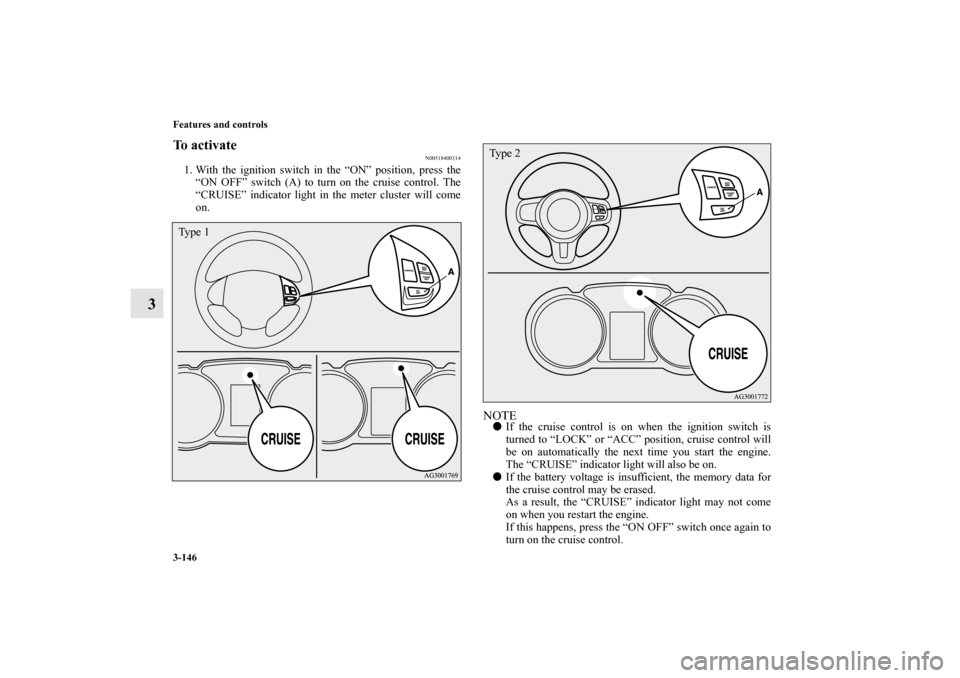

3-146 Features and controls
3
To activate
N00518400314
1. With the ignition switch in the “ON” position, press the
“ON OFF” switch (A) to turn on the cruise control. The
“CRUISE” indicator light in the meter cluster will come
on.
NOTE

If the cruise control is on when the ignition switch is
turned to “LOCK” or “ACC” position, cruise control will
be on automatically the next time you start the engine.
The “CRUISE” indicator light will also be on.


If the battery voltage is insufficient, the memory data for
the cruise control may be erased.
As a result, the “CRUISE” indicator light may not come
on when you restart the engine.
If this happens, press the “ON OFF” switch once again to
turn on the cruise control.
Ty p e 1
Ty p e 2
BK0103001US.book 146 ページ ２００９年８月２０日　木曜日　午前１０時４５分

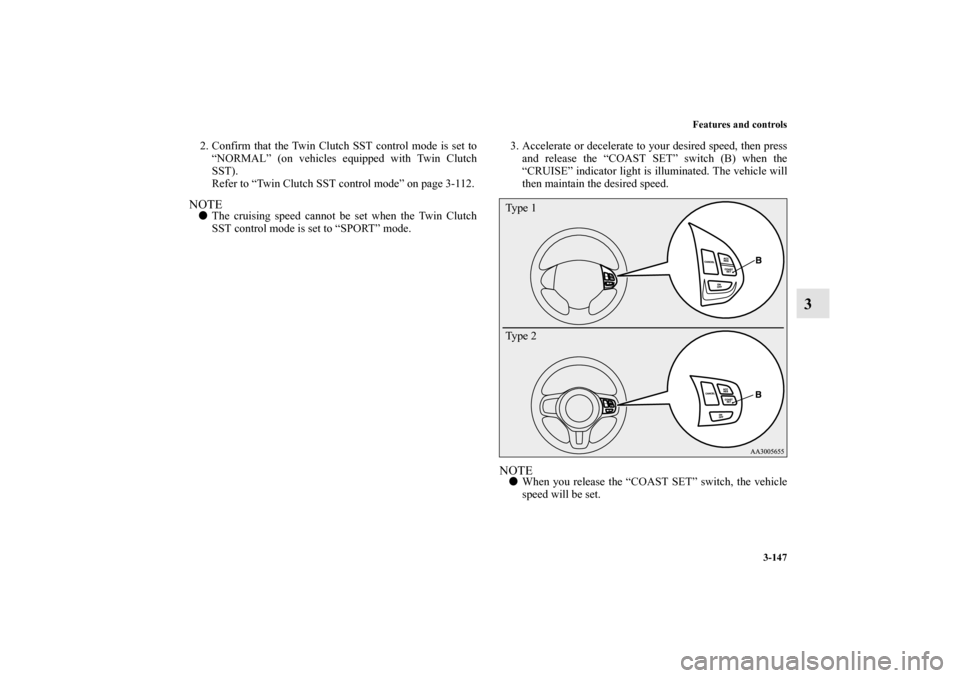

Features and controls
3-147
3
2. Confirm that the Twin Clutch SST control mode is set to
“NORMAL” (on vehicles equipped with Twin Clutch
SST).
Refer to “Twin Clutch SST control mode” on page 3-112.NOTE

The cruising speed cannot be set when the Twin Clutch
SST control mode is set to “SPORT” mode.3. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.
NOTE

When you release the “COAST SET” switch, the vehicle
speed will be set.
Ty p e 1
Ty p e 2
BK0103001US.book 147 ページ ２００９年８月２０日　木曜日　午前１０時４５分

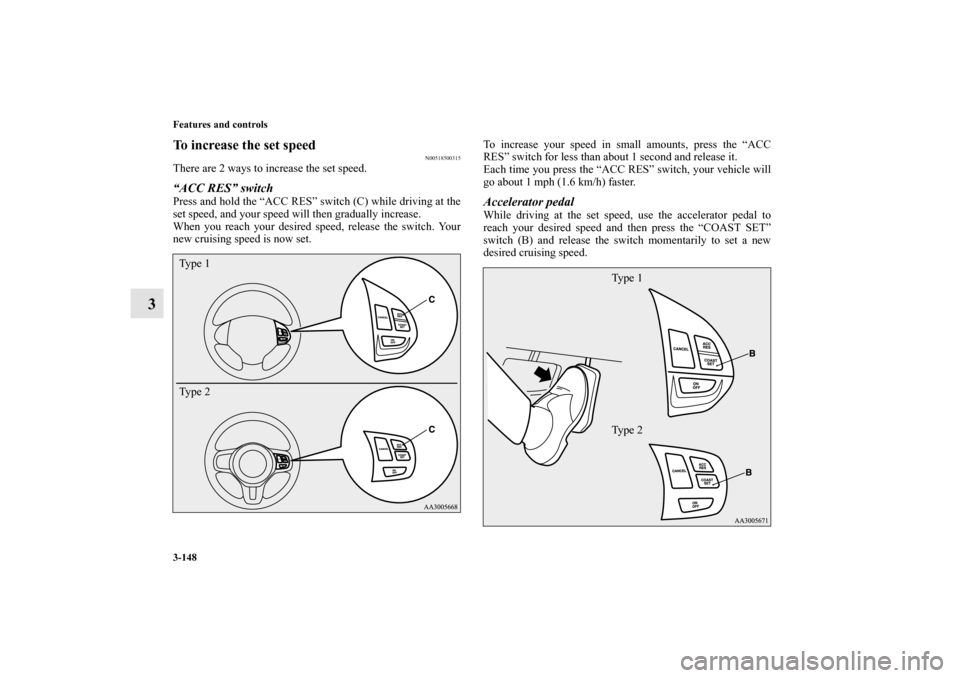

3-148 Features and controls
3
To increase the set speed
N00518500315
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.
Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0103001US.book 148 ページ ２００９年８月２０日　木曜日　午前１０時４５分

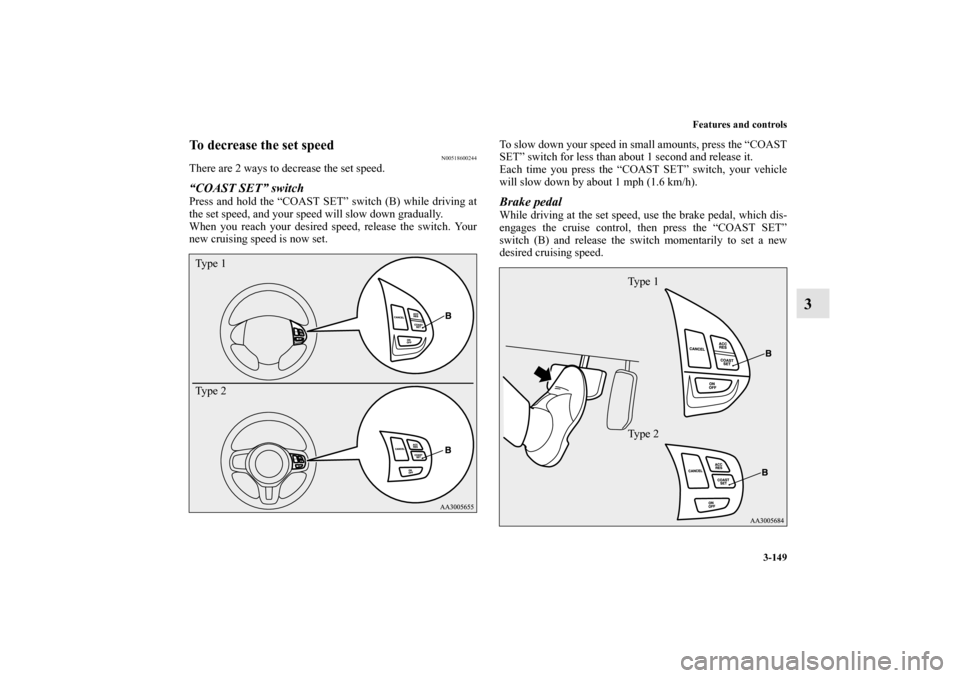

Features and controls
3-149
3
To decrease the set speed
N00518600244
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).
Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
Ty p e 1
Ty p e 2
Ty p e 1
Ty p e 2
BK0103001US.book 149 ページ ２００９年８月２０日　木曜日　午前１０時４５分

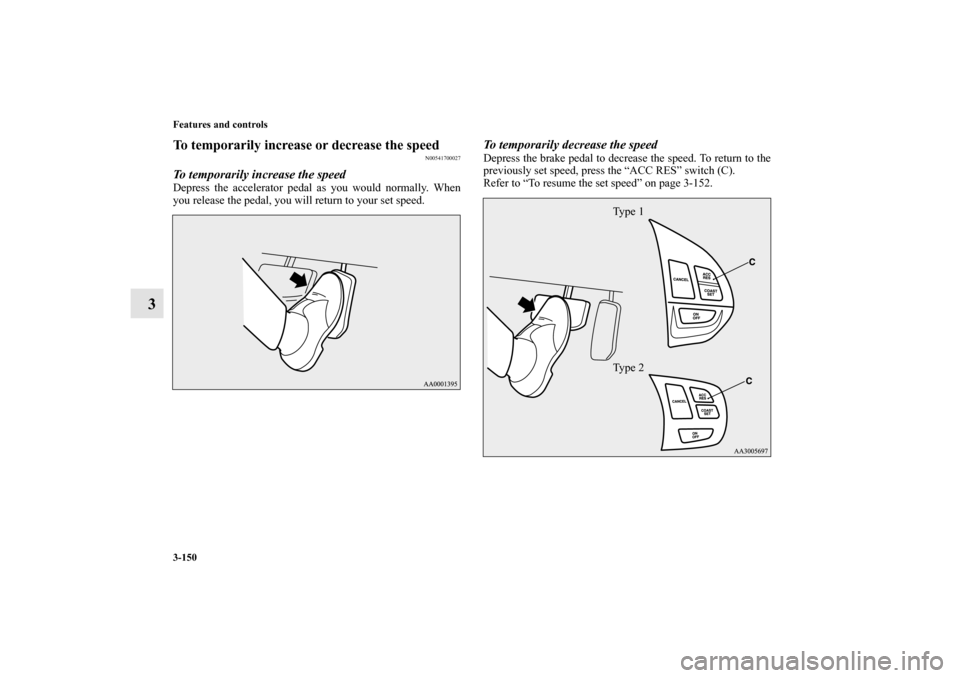

3-150 Features and controls
3
To temporarily increase or decrease the speed
N00541700027
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the “ACC RES” switch (C).
Refer to “To resume the set speed” on page 3-152.
Type 1
Type 2
BK0103001US.book 150 ページ ２００９年８月２０日　木曜日　午前１０時４５分

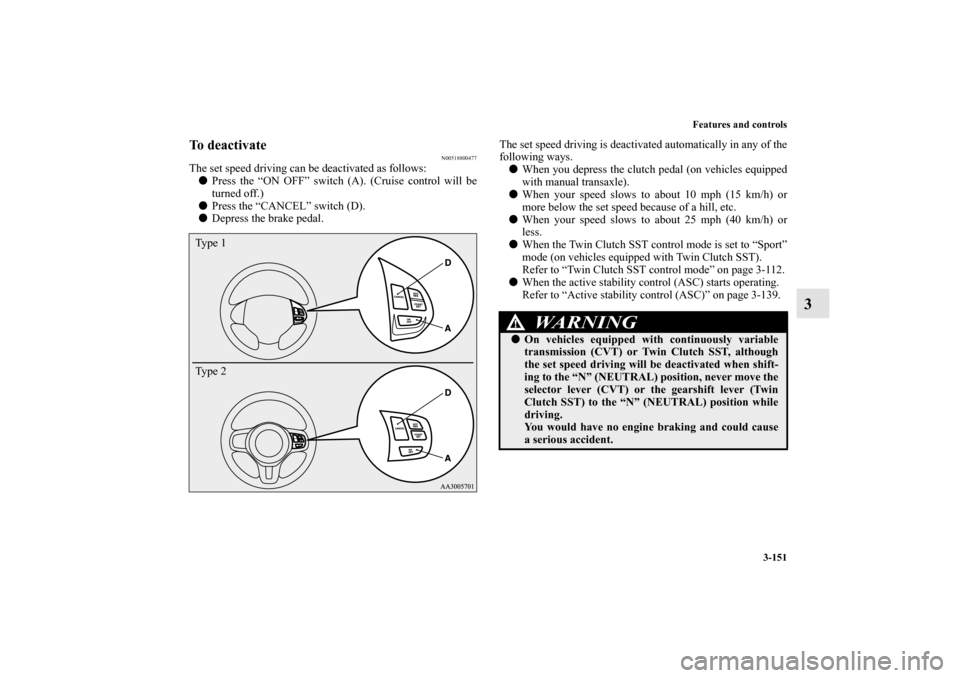

Features and controls
3-151
3
To deactivate
N00518800477
The set speed driving can be deactivated as follows:

Press the “ON OFF” switch (A). (Cruise control will be
turned off.)


Press the “CANCEL” switch (D).


Depress the brake pedal.The set speed driving is deactivated automatically in any of the
following ways.


When you depress the clutch pedal (on vehicles equipped
with manual transaxle).


When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.


When your speed slows to about 25 mph (40 km/h) or
less.


When the Twin Clutch SST control mode is set to “Sport”
mode (on vehicles equipped with Twin Clutch SST).
Refer to “Twin Clutch SST control mode” on page 3-112.


When the active stability control (ASC) starts operating.
Refer to “Active stability control (ASC)” on page 3-139.
Ty p e 1
Ty p e 2
WA R N I N G
!

On vehicles equipped with continuously variable
transmission (CVT) or Twin Clutch SST, although
the set speed driving will be deactivated when shift-
ing to the “N” (NEUTRAL) position, never move the
selector lever (CVT) or the gearshift lever (Twin
Clutch SST) to the “N” (NEUTRAL) position while
driving.
You would have no engine braking and could cause
a serious accident.
BK0103001US.book 151 ページ ２００９年８月２０日　木曜日　午前１０時４５分

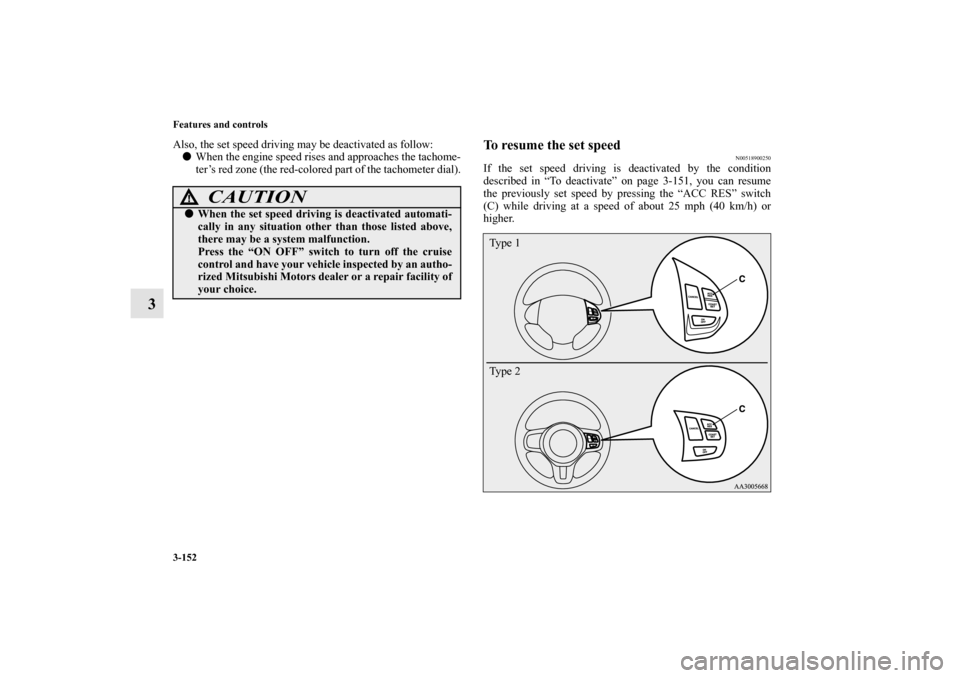

3-152 Features and controls
3
Also, the set speed driving may be deactivated as follow:

When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
To resume the set speed
N00518900250
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-151, you can resume
the previously set speed by pressing the “ACC RES” switch
(C) while driving at a speed of about 25 mph (40 km/h) or
higher.
CAUTION
!

When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the “ON OFF” switch to turn off the cruise
control and have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer or a repair facility of
your choice.
Ty p e 1
Ty p e 2
BK0103001US.book 152 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-153
3
Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:

The “ON OFF” switch is pressed.


The ignition switch is turned OFF.


“CRUISE” indicator light is turned OFF.
Tire pressure monitoring system
N00530200309
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
WA R N I N G
!

The spare wheel does not have a tire inflation pres-
sure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
BK0103001US.book 153 ページ ２００９年８月２０日　木曜日　午前１０時４５分

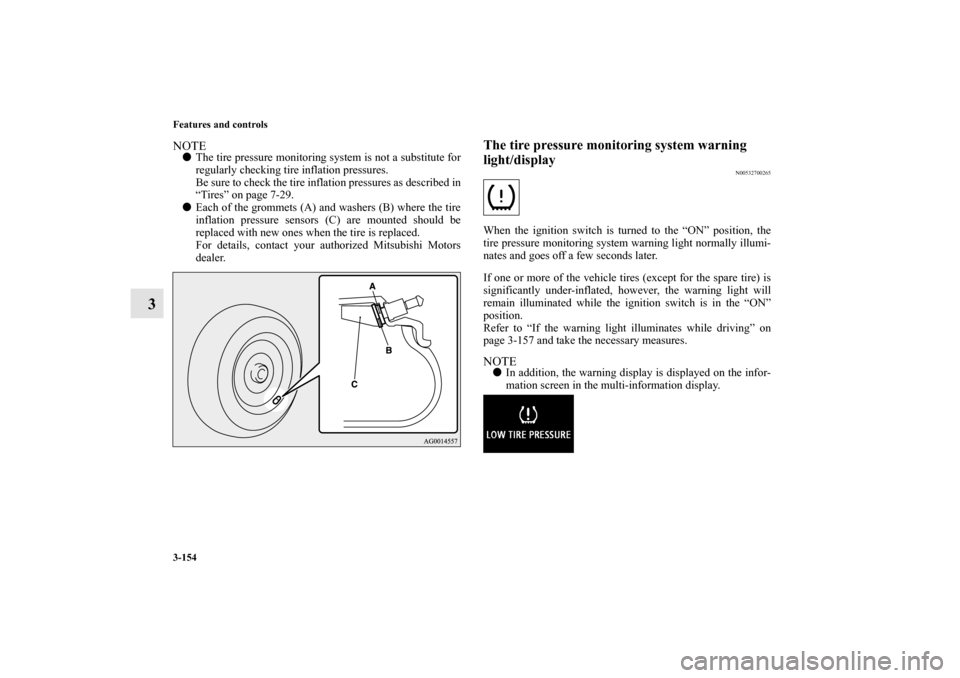

3-154 Features and controls
3
NOTE

The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-29.


Each of the grommets (A) and washers (B) where the tire
inflation pressure sensors (C) are mounted should be
replaced with new ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
The tire pressure monitoring system warning
light/display
N00532700265
When the ignition switch is turned to the “ON” position, the
tire pressure monitoring system warning light normally illumi-
nates and goes off a few seconds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, however, the warning light will
remain illuminated while the ignition switch is in the “ON”
position.
Refer to “If the warning light illuminates while driving” on
page 3-157 and take the necessary measures.NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
BK0103001US.book 154 ページ ２００９年８月２０日　木曜日　午前１０時４５分

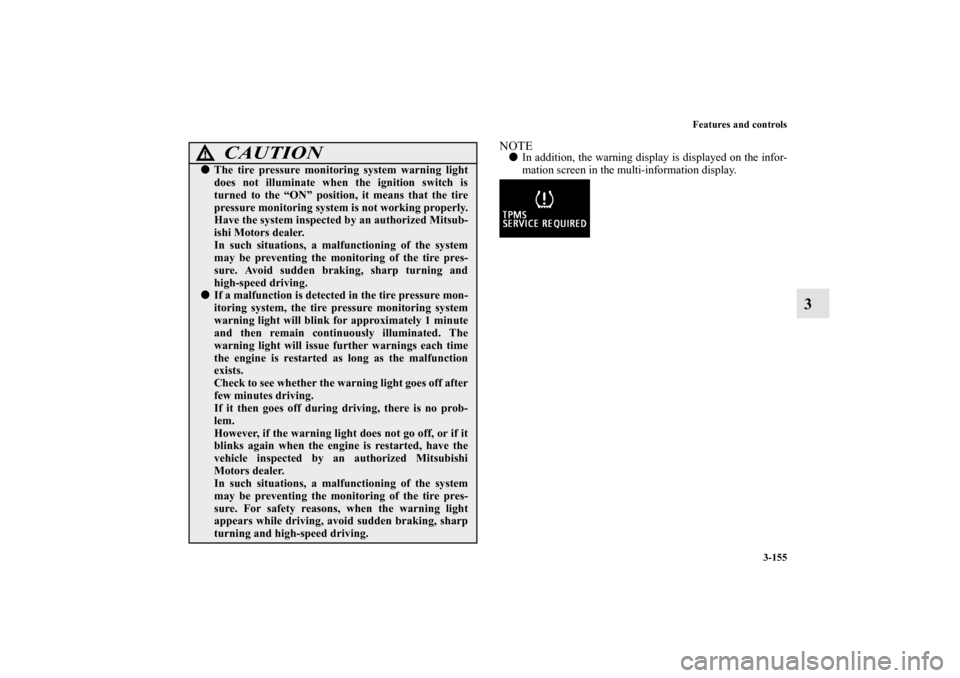

Features and controls
3-155
3
NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
CAUTION
!

The tire pressure monitoring system warning light
does not illuminate when the ignition switch is
turned to the “ON” position, it means that the tire
pressure monitoring system is not working properly.
Have the system inspected by an authorized Mitsub-
ishi Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.


If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
