MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

3-166 Features and controls
3

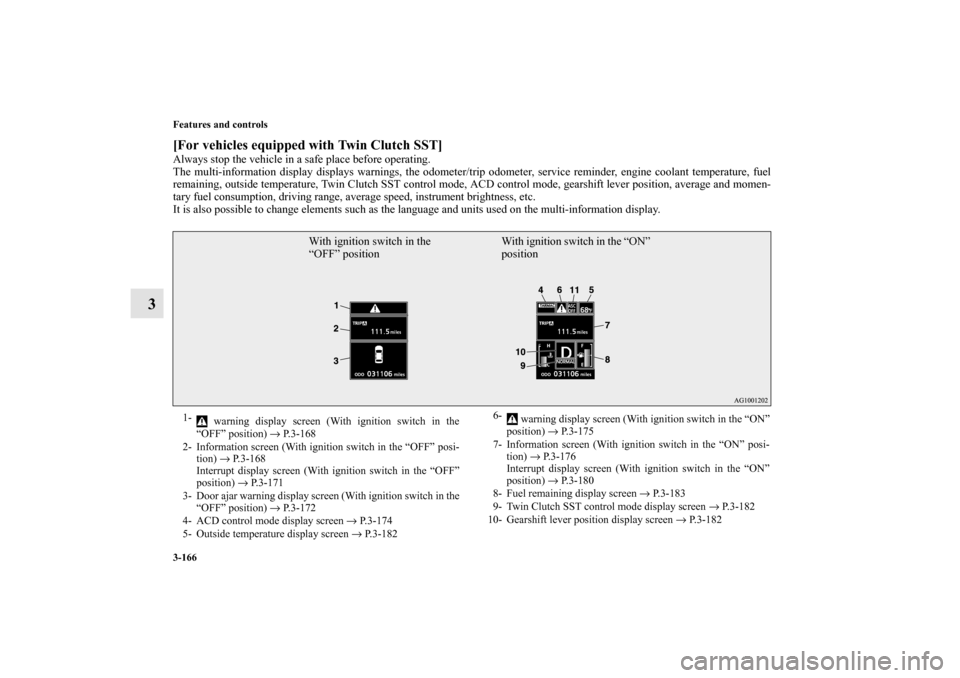

[For vehicles equipped with Twin Clutch SST]Always stop the vehicle in a safe place before operating.
The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, Twin Clutch SST control mode, ACD control mode, gearshift lever position, average and momen-
tary fuel consumption, driving range, average speed, instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch in the
“OFF” positionWith ignition switch in the “ON”
position
1-
warning display screen (With ignition switch in the
“OFF” position) → P.3-168
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-168
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-171
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P.3-172
4- ACD control mode display screen → P.3-174
5- Outside temperature display screen → P.3-182
6-
warning display screen (With ignition switch in the “ON”
position) → P.3-175
7- Information screen (With ignition switch in the “ON” posi-
tion) → P. 3 - 1 7 6
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-180
8- Fuel remaining display screen → P.3-183
9- Twin Clutch SST control mode display screen → P.3-182
10- Gearshift lever position display screen → P.3-182
BK0103001US.book 166 ページ ２００９年８月２０日　木曜日　午前１０時４５分

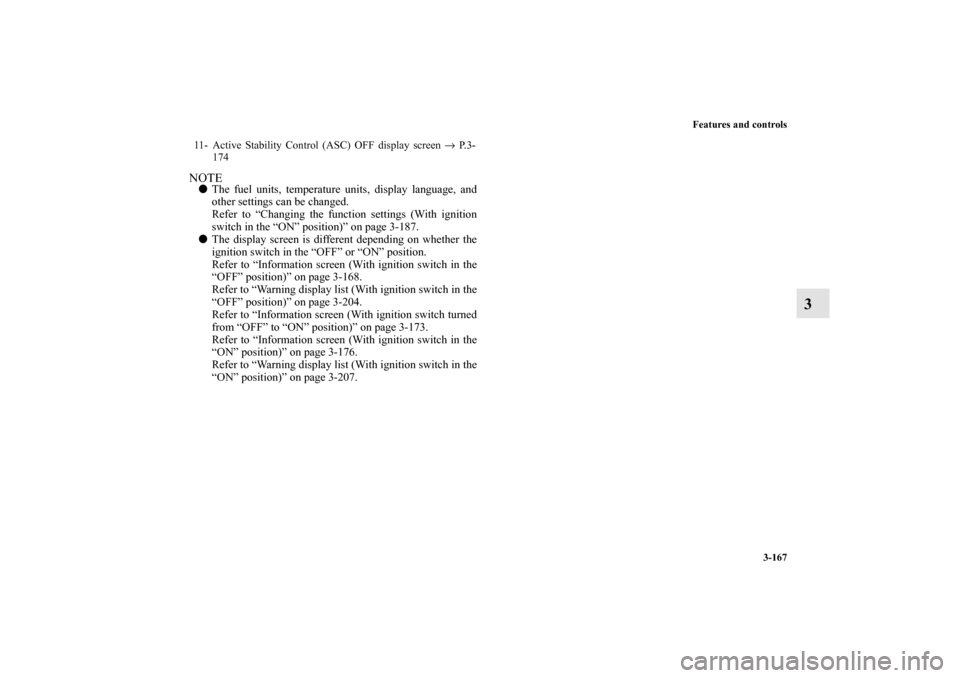

Features and controls
3-167
3
NOTE

The fuel units, temperature units, display language, and
other settings can be changed.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-187.


The display screen is different depending on whether the
ignition switch in the “OFF” or “ON” position.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-204.
Refer to “Information screen (With ignition switch turned
from “OFF” to “ON” position)” on page 3-173.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.
Refer to “Warning display list (With ignition switch in the
“ON” position)” on page 3-207.
11- Active Stability Control (ASC) OFF display screen → P. 3 -
174
BK0103001US.book 167 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-168 Features and controls
3

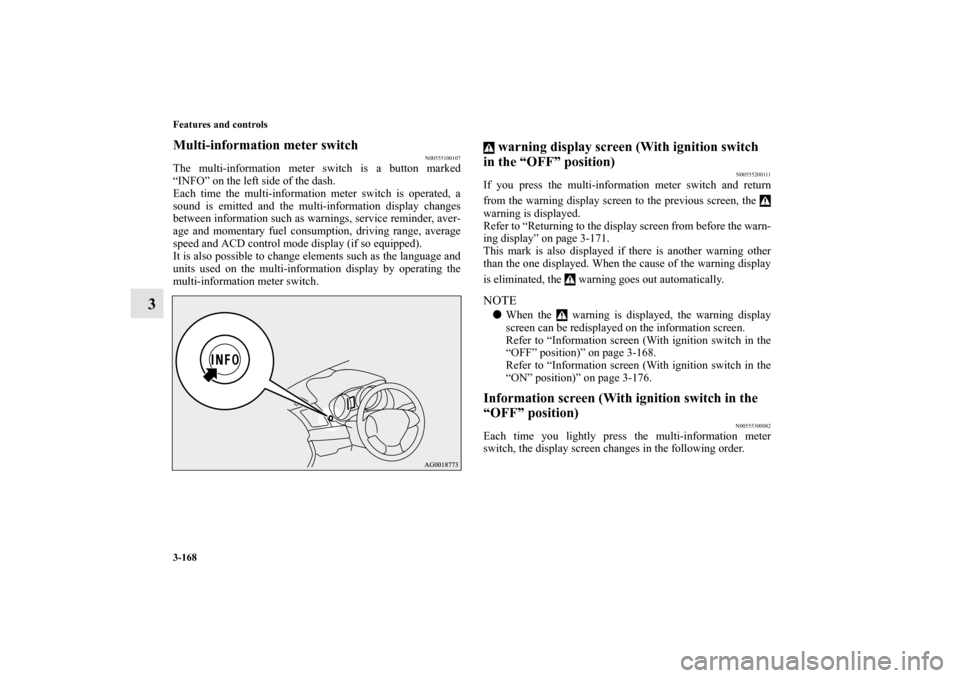

Multi-information meter switch
N00555100107
The multi-information meter switch is a button marked
“INFO” on the left side of the dash.
Each time the multi-information meter switch is operated, a
sound is emitted and the multi-information display changes
between information such as warnings, service reminder, aver-
age and momentary fuel consumption, driving range, average
speed and ACD control mode display (if so equipped).
It is also possible to change elements such as the language and
units used on the multi-information display by operating the
multi-information meter switch.
warning display screen (With ignition switch
in the “OFF” position)
N00555200111
If you press the multi-information meter switch and return
from the warning display screen to the previous screen, the
warning is displayed.
Refer to “Returning to the display screen from before the warn-
ing display” on page 3-171.
This mark is also displayed if there is another warning other
than the one displayed. When the cause of the warning display
is eliminated, the warning goes out automatically.NOTE

When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168.
Refer to “Information screen (With ignition switch in the
“ON” position)” on page 3-176.
Information screen (With ignition switch in the
“OFF” position)
N00555300082
Each time you lightly press the multi-information meter
switch, the display screen changes in the following order.
BK0103001US.book 168 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-169
3

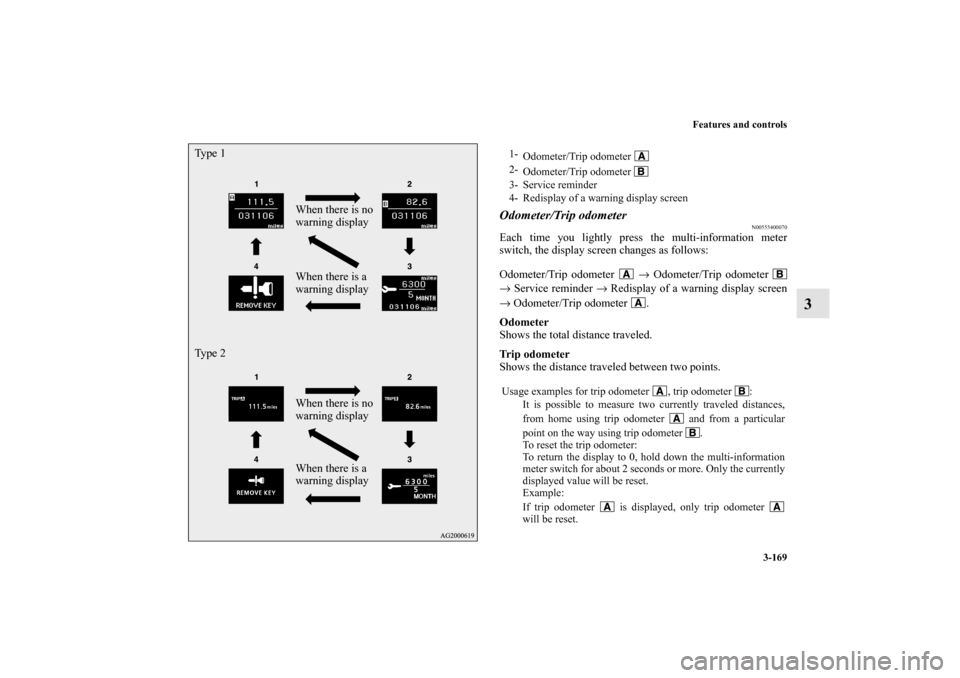

Odometer/Trip odometer
N00555400070
Each time you lightly press the multi-information meter
switch, the display screen changes as follows:
Odometer/Trip odometer → Odometer/Trip odometer
→ Service reminder → Redisplay of a warning display screen
→ Odometer/Trip odometer .
Odometer
Shows the total distance traveled.
Trip odometer
Shows the distance traveled between two points.
When there is no
warning display
When there is a
warning display Ty p e 1
When there is no
warning display
When there is a
warning display Ty p e 2
1-
Odometer/Trip odometer
2-
Odometer/Trip odometer
3- Service reminder
4- Redisplay of a warning display screen
Usage examples for trip odometer , trip odometer :
It is possible to measure two currently traveled distances,
from home using trip odometer and from a particular
point on the way using trip odometer .
To reset the trip odometer:
To return the display to 0, hold down the multi-information
meter switch for about 2 seconds or more. Only the currently
displayed value will be reset.
Example:
If trip odometer is displayed, only trip odometer
will be reset.
BK0103001US.book 169 ページ ２００９年８月２０日　木曜日　午前１０時４５分

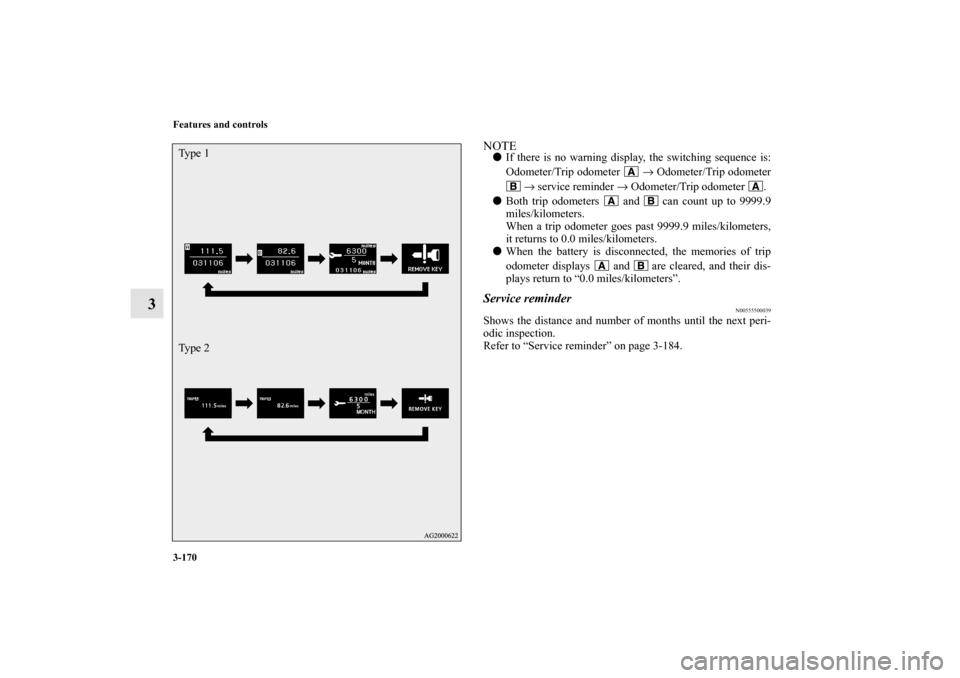

3-170 Features and controls
3
NOTE

If there is no warning display, the switching sequence is:
Odometer/Trip odometer → Odometer/Trip odometer
→ service reminder → Odometer/Trip odometer .


Both trip odometers and can count up to 9999.9
miles/kilometers.
When a trip odometer goes past 9999.9 miles/kilometers,
it returns to 0.0 miles/kilometers.


When the battery is disconnected, the memories of trip
odometer displays and are cleared, and their dis-
plays return to “0.0 miles/kilometers”.
Service reminder
N00555500039
Shows the distance and number of months until the next peri-
odic inspection.
Refer to “Service reminder” on page 3-184.
Ty p e 1
Ty p e 2BK0103001US.book 170 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-171
3

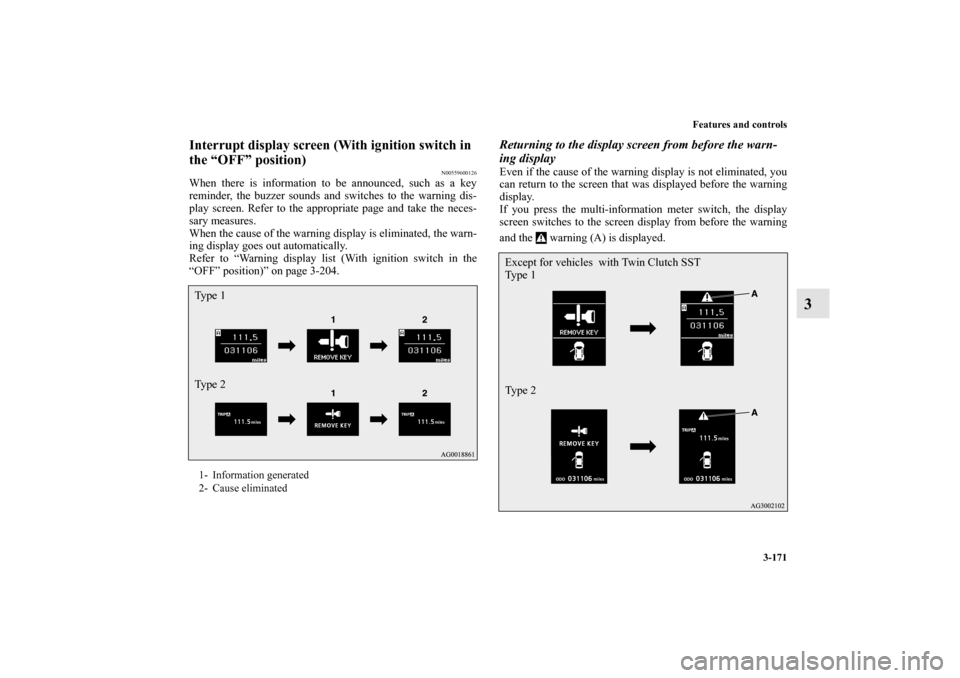

Interrupt display screen (With ignition switch in
the “OFF” position)
N00559600126
When there is information to be announced, such as a key
reminder, the buzzer sounds and switches to the warning dis-
play screen. Refer to the appropriate page and take the neces-
sary measures.
When the cause of the warning display is eliminated, the warn-
ing display goes out automatically.
Refer to “Warning display list (With ignition switch in the
“OFF” position)” on page 3-204.
Returning to the display screen from before the warn-
ing displayEven if the cause of the warning display is not eliminated, you
can return to the screen that was displayed before the warning
display.
If you press the multi-information meter switch, the display
screen switches to the screen display from before the warning
and the warning (A) is displayed.
1- Information generated
2- Cause eliminatedTy p e 1
Ty p e 2
Except for vehicles with Twin Clutch SST
Ty p e 1
Ty p e 2
BK0103001US.book 171 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-172 Features and controls
3
NOTE

Warning display screens with a “ ” or “ ” mark dis-
played in the upper right of the screen can be switched. If
you want to switch the display, press the multi-informa-
tion meter switch as follows.
“ ”: Press lightly.
“ ”: Press for about 2 seconds or more.
Redisplay of a warning display screen
When the warning is displayed, if you lightly press the
multi-information meter switch a few times, the warning dis-
play screen you switched from is redisplayed.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168.
Door ajar warning display (With ignition switch
in the “OFF” position)
N00559700101
If any of the doors or the rear hatch is not completely closed,
the open door or rear hatch warning is displayed.
Vehicles with Twin Clutch SST
1- Doors and rear hatch are closed
2- Doors or rear hatch is open (driver’s door is open in this
example)Ty p e 1
Ty p e 2
BK0103001US.book 172 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-173
3

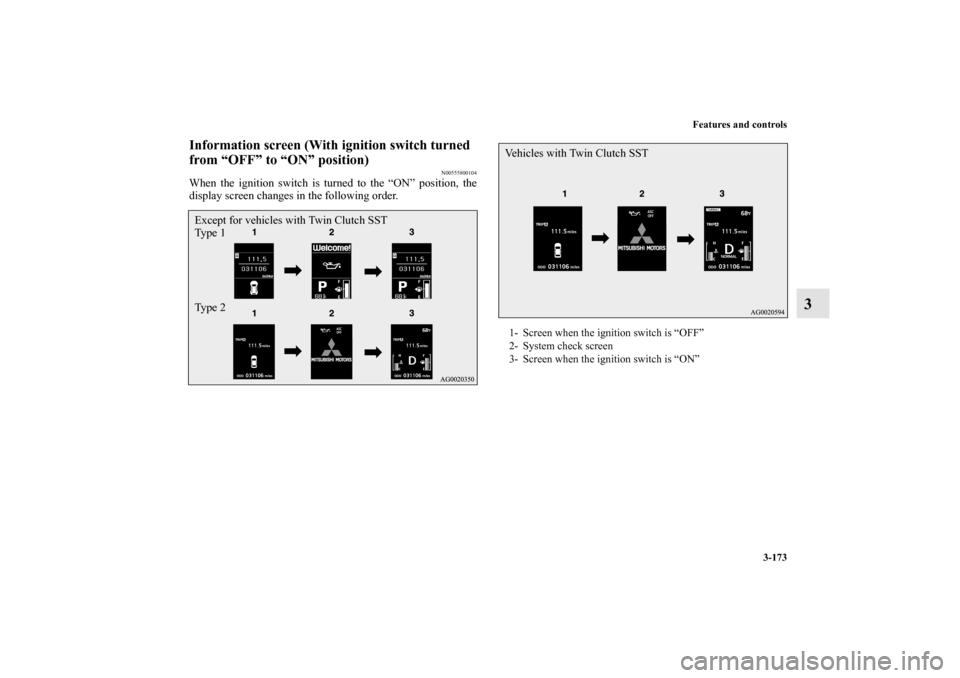

Information screen (With ignition switch turned
from “OFF” to “ON” position)
N00555800104
When the ignition switch is turned to the “ON” position, the
display screen changes in the following order.Except for vehicles with Twin Clutch SST
Ty p e 1
Ty p e 2
1- Screen when the ignition switch is “OFF”
2- System check screen
3- Screen when the ignition switch is “ON”Vehicles with Twin Clutch SST
BK0103001US.book 173 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-174 Features and controls
3

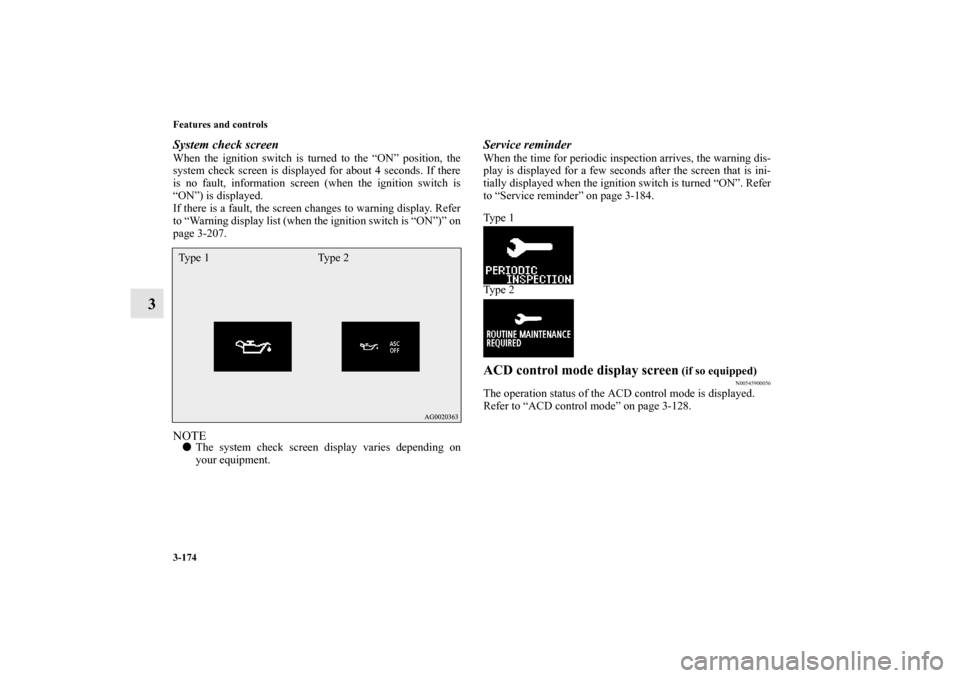

System check screenWhen the ignition switch is turned to the “ON” position, the
system check screen is displayed for about 4 seconds. If there
is no fault, information screen (when the ignition switch is
“ON”) is displayed.
If there is a fault, the screen changes to warning display. Refer
to “Warning display list (when the ignition switch is “ON”)” on
page 3-207.NOTE

The system check screen display varies depending on
your equipment.
Service reminderWhen the time for periodic inspection arrives, the warning dis-
play is displayed for a few seconds after the screen that is ini-
tially displayed when the ignition switch is turned “ON”. Refer
to “Service reminder” on page 3-184.
Ty p e 1
Ty p e 2ACD control mode display screen
(if so equipped)
N00545900056
The operation status of the ACD control mode is displayed.
Refer to “ACD control mode” on page 3-128.
Ty p e 1 Ty p e 2BK0103001US.book 174 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-175
3

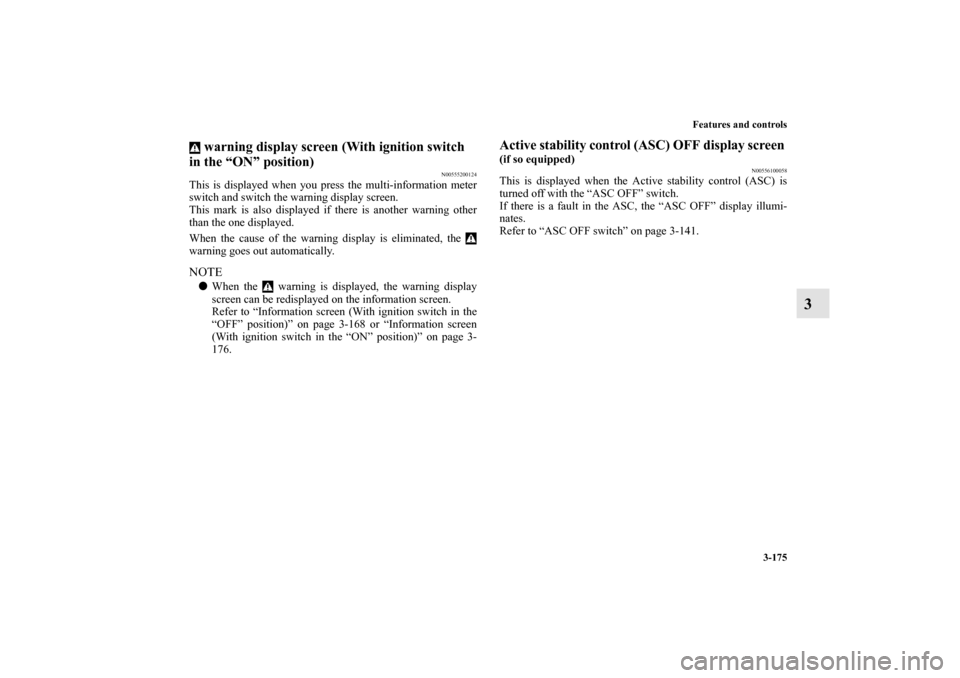

warning display screen (With ignition switch
in the “ON” position)
N00555200124
This is displayed when you press the multi-information meter
switch and switch the warning display screen.
This mark is also displayed if there is another warning other
than the one displayed.
When the cause of the warning display is eliminated, the
warning goes out automatically.NOTE

When the warning is displayed, the warning display
screen can be redisplayed on the information screen.
Refer to “Information screen (With ignition switch in the
“OFF” position)” on page 3-168 or “Information screen
(With ignition switch in the “ON” position)” on page 3-
176.
Active stability control (ASC) OFF display screen

(if so equipped)
N00556100058
This is displayed when the Active stability control (ASC) is
turned off with the “ASC OFF” switch.
If there is a fault in the ASC, the “ASC OFF” display illumi-
nates.
Refer to “ASC OFF switch” on page 3-141.
BK0103001US.book 175 ページ ２００９年８月２０日　木曜日　午前１０時４５分
