MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

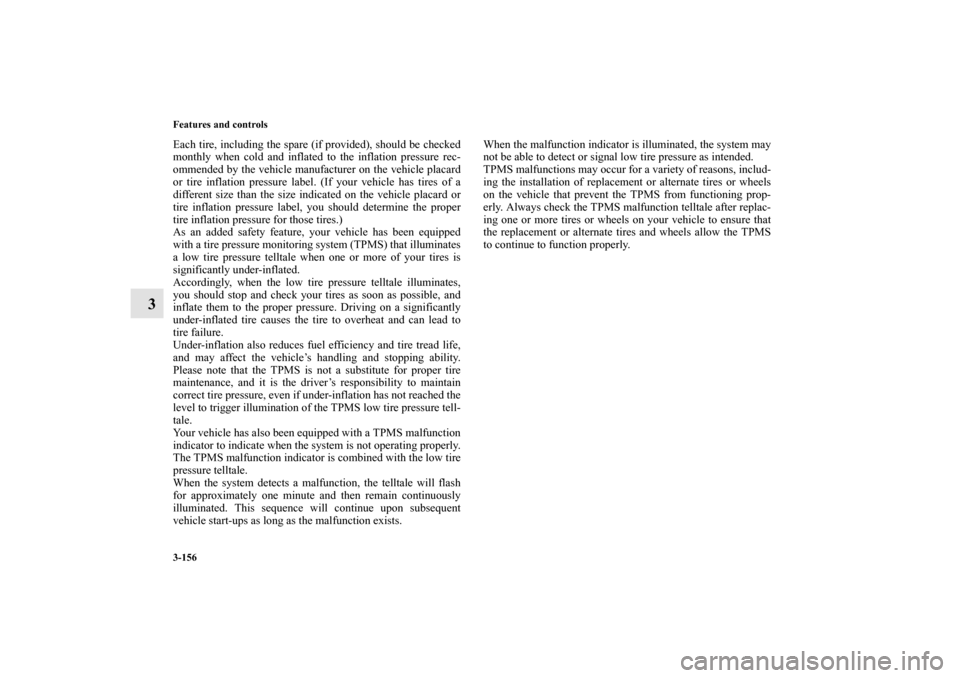

3-156 Features and controls
3
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or
tire inflation pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat and can lead to
tire failure.
Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.BK0103001US.book 156 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-157
3

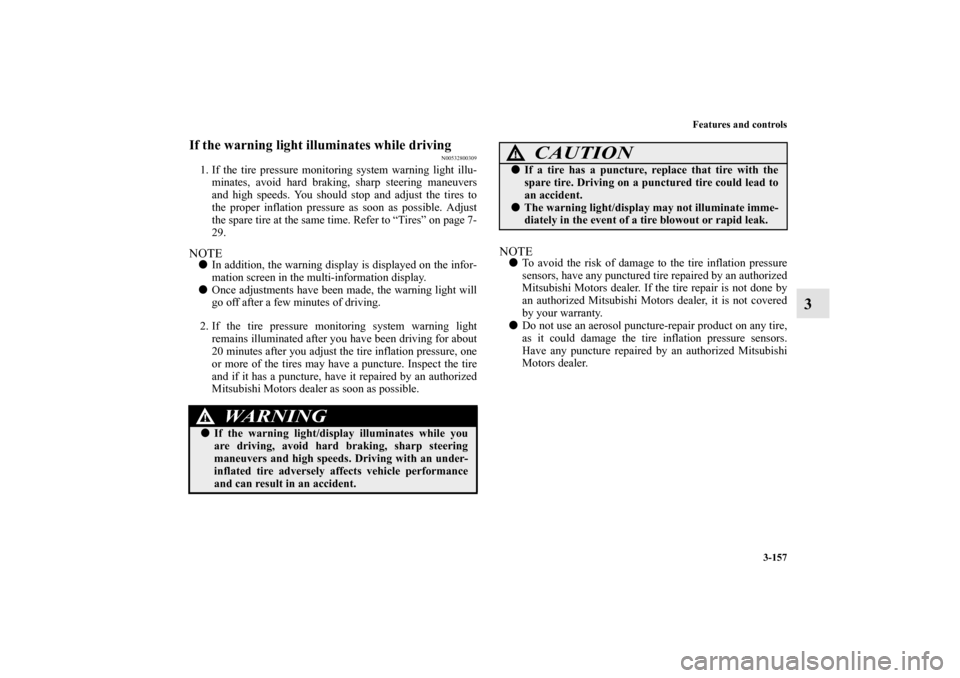

If the warning light illuminates while driving
N00532800309
1. If the tire pressure monitoring system warning light illu-
minates, avoid hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Adjust
the spare tire at the same time. Refer to “Tires” on page 7-
29.NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.


Once adjustments have been made, the warning light will
go off after a few minutes of driving.
2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
NOTE

To avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.


Do not use an aerosol puncture-repair product on any tire,
as it could damage the tire inflation pressure sensors.
Have any puncture repaired by an authorized Mitsubishi
Motors dealer.
WA R N I N G
!

If the warning light/display illuminates while you
are driving, avoid hard braking, sharp steering
maneuvers and high speeds. Driving with an under-
inflated tire adversely affects vehicle performance
and can result in an accident.
CAUTION
!

If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.


The warning light/display may not illuminate imme-
diately in the event of a tire blowout or rapid leak.
BK0103001US.book 157 ページ ２００９年８月２０日　木曜日　午前１０時４５分

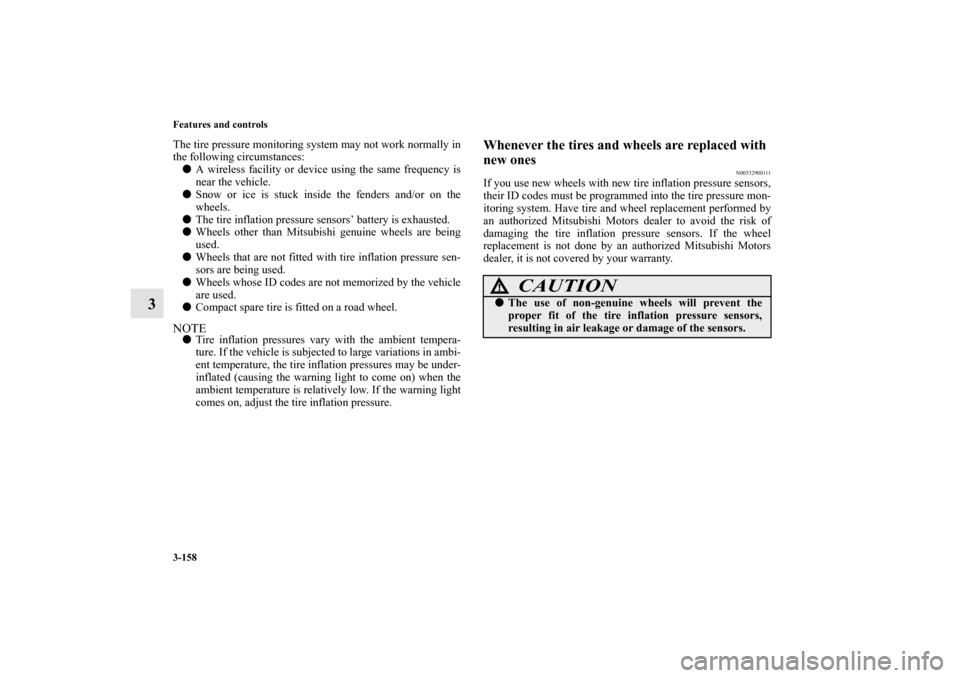

3-158 Features and controls
3
The tire pressure monitoring system may not work normally in
the following circumstances:

A wireless facility or device using the same frequency is
near the vehicle.


Snow or ice is stuck inside the fenders and/or on the
wheels.


The tire inflation pressure sensors’ battery is exhausted.


Wheels other than Mitsubishi genuine wheels are being
used.


Wheels that are not fitted with tire inflation pressure sen-
sors are being used.


Wheels whose ID codes are not memorized by the vehicle
are used.


Compact spare tire is fitted on a road wheel.
NOTE

Tire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light to come on) when the
ambient temperature is relatively low. If the warning light
comes on, adjust the tire inflation pressure.
Whenever the tires and wheels are replaced with
new ones
N00532900111
If you use new wheels with new tire inflation pressure sensors,
their ID codes must be programmed into the tire pressure mon-
itoring system. Have tire and wheel replacement performed by
an authorized Mitsubishi Motors dealer to avoid the risk of
damaging the tire inflation pressure sensors. If the wheel
replacement is not done by an authorized Mitsubishi Motors
dealer, it is not covered by your warranty.
CAUTION
!

The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting in air leakage or damage of the sensors.
BK0103001US.book 158 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-159
3

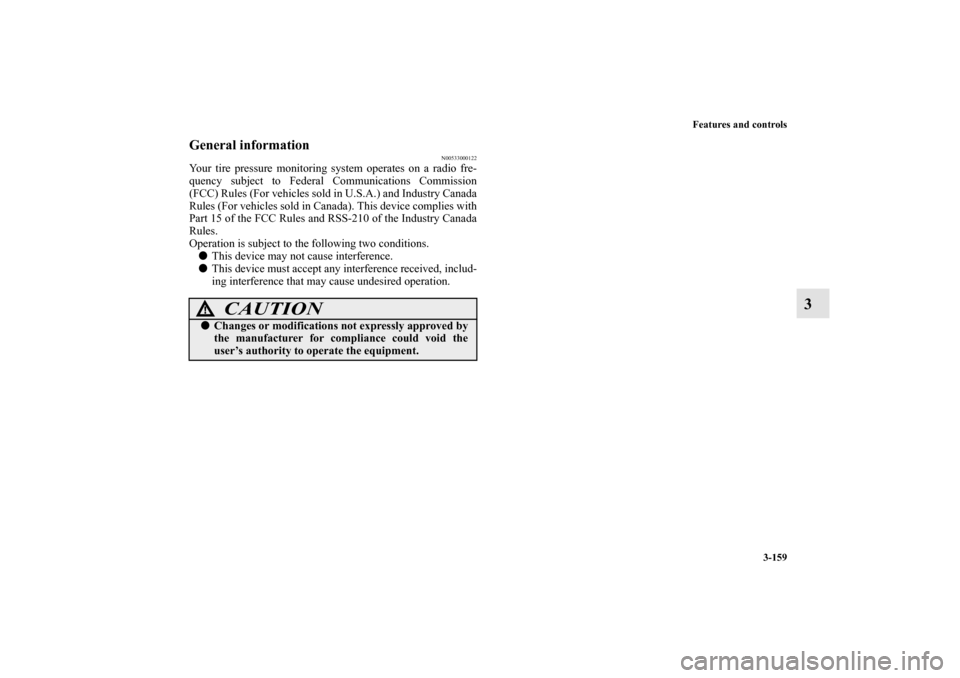

General information
N00533000122
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS-210 of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause interference.


This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!

Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0103001US.book 159 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-160 Features and controls

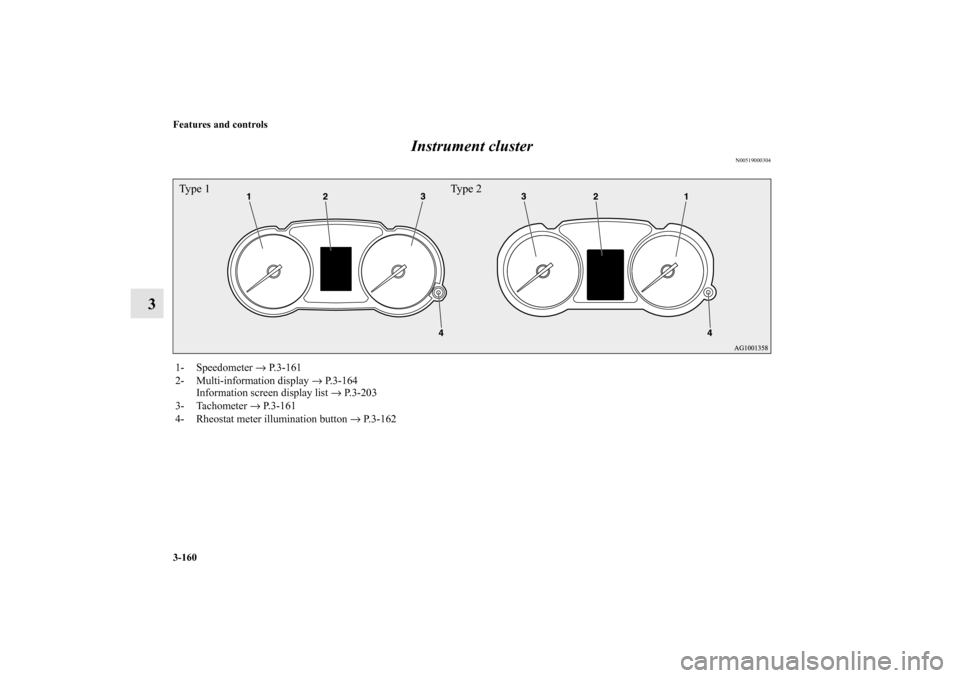

3Instrument cluster
N00519000304
1- Speedometer → P.3-161
2- Multi-information display → P.3-164
Information screen display list → P.3-203
3- Tachometer → P.3-161
4- Rheostat meter illumination button → P.3-162Type 1 Type 2BK0103001US.book 160 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-161
3

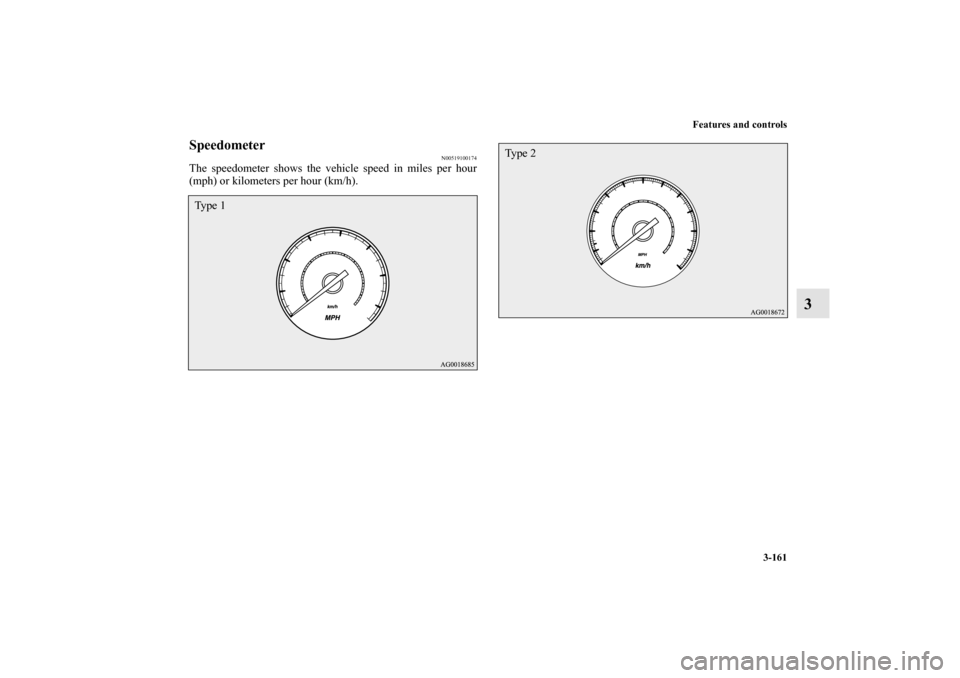

Speedometer
N00519100174
The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).Ty p e 1
Ty p e 2
BK0103001US.book 161 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-162 Features and controls
3

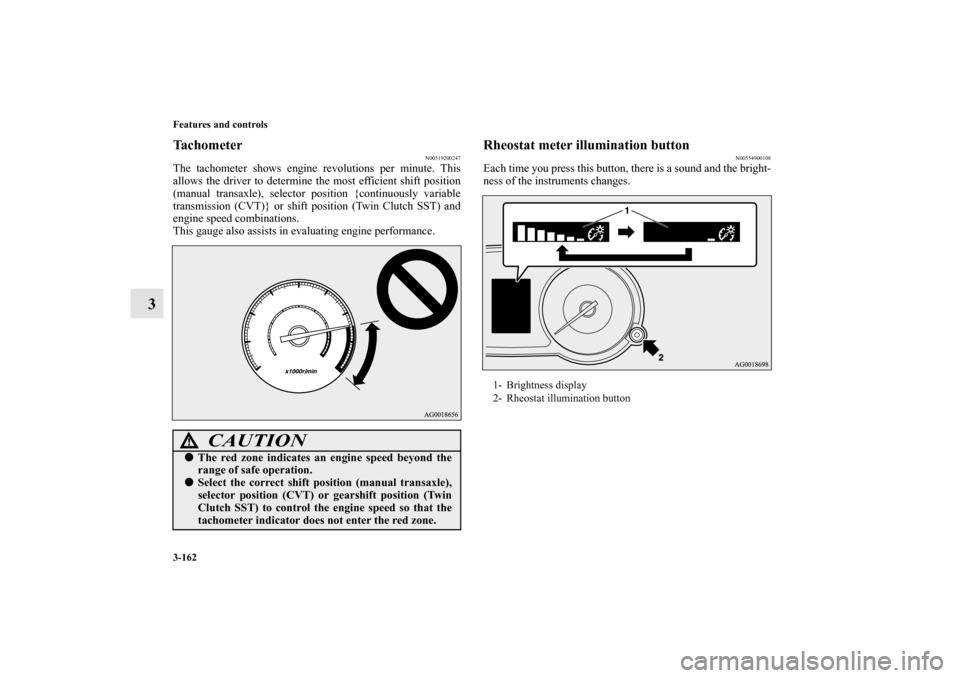

Tachometer
N00519200247
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient shift position
(manual transaxle), selector position {continuously variable
transmission (CVT)} or shift position (Twin Clutch SST) and
engine speed combinations.
This gauge also assists in evaluating engine performance.
Rheostat meter illumination button
N00554900108
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.
CAUTION
!

The red zone indicates an engine speed beyond the
range of safe operation.


Select the correct shift position (manual transaxle),
selector position (CVT) or gearshift position (Twin
Clutch SST) to control the engine speed so that the
tachometer indicator does not enter the red zone.
1- Brightness display
2- Rheostat illumination button
BK0103001US.book 162 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-163
3

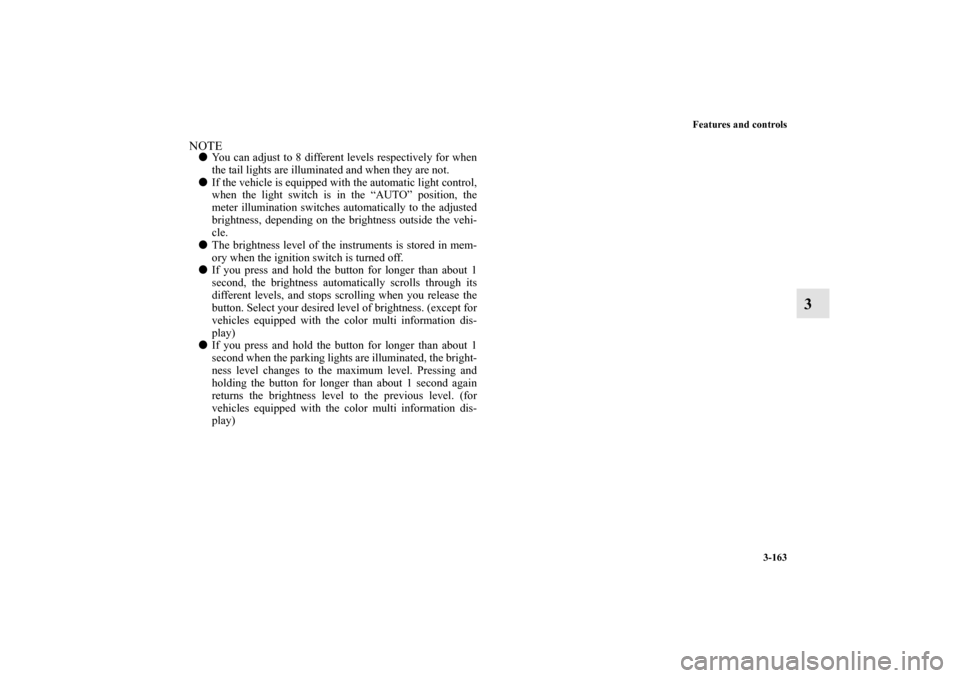

NOTE

You can adjust to 8 different levels respectively for when
the tail lights are illuminated and when they are not.


If the vehicle is equipped with the automatic light control,
when the light switch is in the “AUTO” position, the
meter illumination switches automatically to the adjusted
brightness, depending on the brightness outside the vehi-
cle.


The brightness level of the instruments is stored in mem-
ory when the ignition switch is turned off.


If you press and hold the button for longer than about 1
second, the brightness automatically scrolls through its
different levels, and stops scrolling when you release the
button. Select your desired level of brightness. (except for
vehicles equipped with the color multi information dis-
play)


If you press and hold the button for longer than about 1
second when the parking lights are illuminated, the bright-
ness level changes to the maximum level. Pressing and
holding the button for longer than about 1 second again
returns the brightness level to the previous level. (for
vehicles equipped with the color multi information dis-
play)
BK0103001US.book 163 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-164 Features and controls

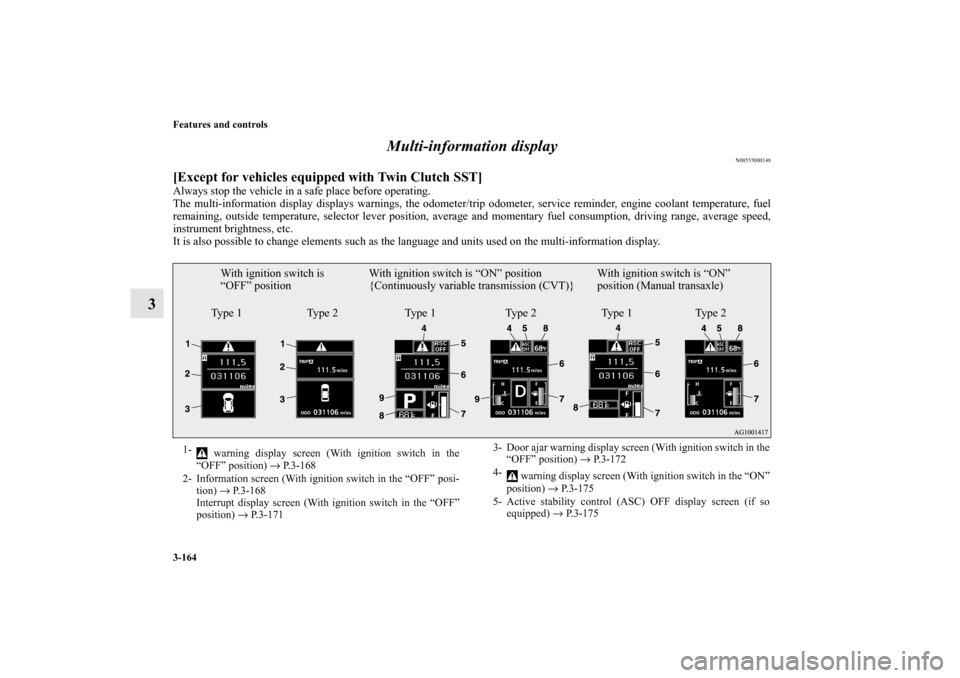

3Multi-information display
N00555000148
[Except for vehicles equipped with Twin Clutch SST]Always stop the vehicle in a safe place before operating.
The multi-information display displays warnings, the odometer/trip odometer, service reminder, engine coolant temperature, fuel
remaining, outside temperature, selector lever position, average and momentary fuel consumption, driving range, average speed,
instrument brightness, etc.
It is also possible to change elements such as the language and units used on the multi-information display.
With ignition switch is
“OFF” positionWith ignition switch is “ON” position
{Continuously variable transmission (CVT)}With ignition switch is “ON”
position (Manual transaxle)
Type 1 Type 2 Type 1 Type 1Type 2 Type 2
1-
warning display screen (With ignition switch in the
“OFF” position) → P.3-168
2- Information screen (With ignition switch in the “OFF” posi-
tion) → P.3-168
Interrupt display screen (With ignition switch in the “OFF”
position) → P.3-171
3- Door ajar warning display screen (With ignition switch in the
“OFF” position) → P. 3 - 1 7 2
4-
warning display screen (With ignition switch in the “ON”
position) → P.3-175
5- Active stability control (ASC) OFF display screen (if so
equipped) → P.3-175
BK0103001US.book 164 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-165
3

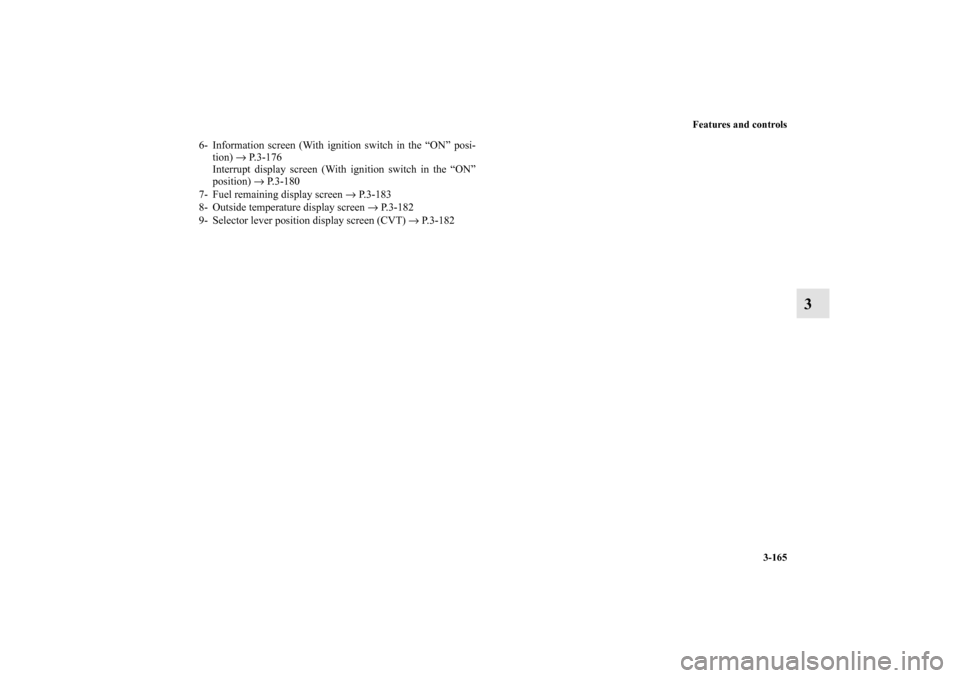

6- Information screen (With ignition switch in the “ON” posi-
tion) → P.3-176
Interrupt display screen (With ignition switch in the “ON”
position) → P.3-180
7- Fuel remaining display screen → P.3-183
8- Outside temperature display screen → P.3-182
9- Selector lever position display screen (CVT) → P.3-182
BK0103001US.book 165 ページ ２００９年８月２０日　木曜日　午前１０時４５分
