MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

3-236 Features and controls
3

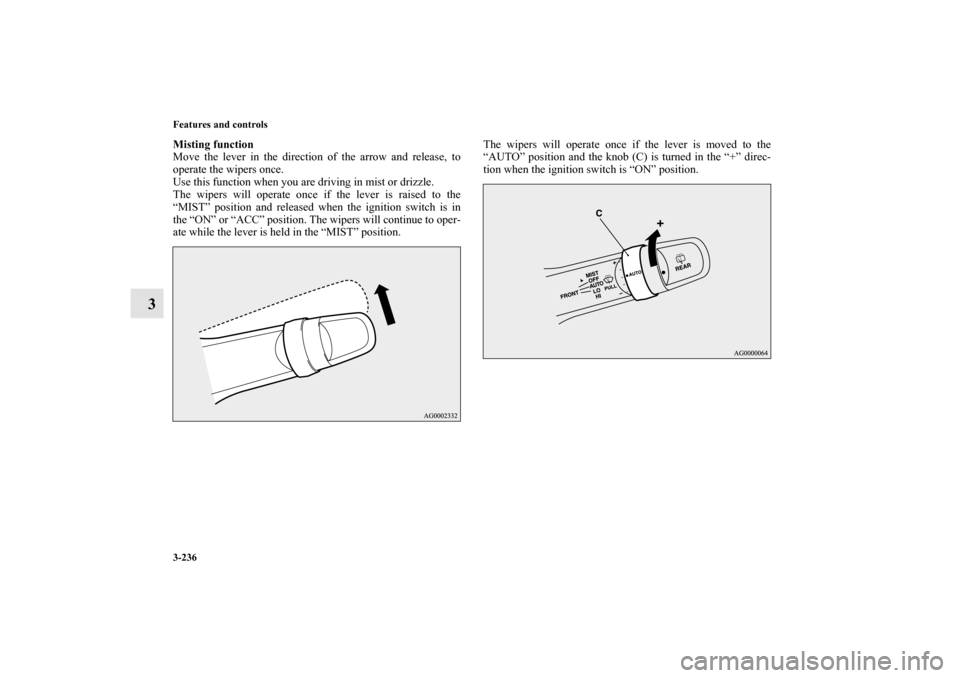

Misting function
Move the lever in the direction of the arrow and release, to
operate the wipers once.
Use this function when you are driving in mist or drizzle.
The wipers will operate once if the lever is raised to the
“MIST” position and released when the ignition switch is in
the “ON” or “ACC” position. The wipers will continue to oper-
ate while the lever is held in the “MIST” position.The wipers will operate once if the lever is moved to the
“AUTO” position and the knob (C) is turned in the “+” direc-
tion when the ignition switch is “ON” position.BK0103001US.book 236 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-237
3

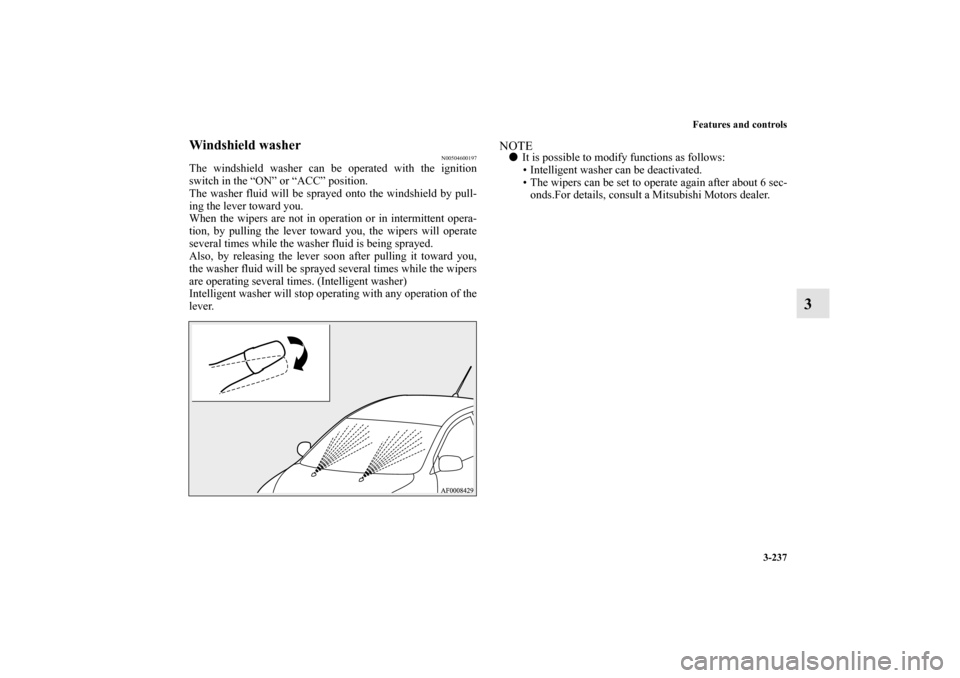

Windshield washer
N00504600197
The windshield washer can be operated with the ignition
switch in the “ON” or “ACC” position.
The washer fluid will be sprayed onto the windshield by pull-
ing the lever toward you.
When the wipers are not in operation or in intermittent opera-
tion, by pulling the lever toward you, the wipers will operate
several times while the washer fluid is being sprayed.
Also, by releasing the lever soon after pulling it toward you,
the washer fluid will be sprayed several times while the wipers
are operating several times. (Intelligent washer)
Intelligent washer will stop operating with any operation of the
lever.
NOTE

It is possible to modify functions as follows:
 Intelligent washer can be deactivated.
 The wipers can be set to operate again after about 6 sec-
onds.For details, consult a Mitsubishi Motors dealer.
BK0103001US.book 237 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-238 Features and controls
3

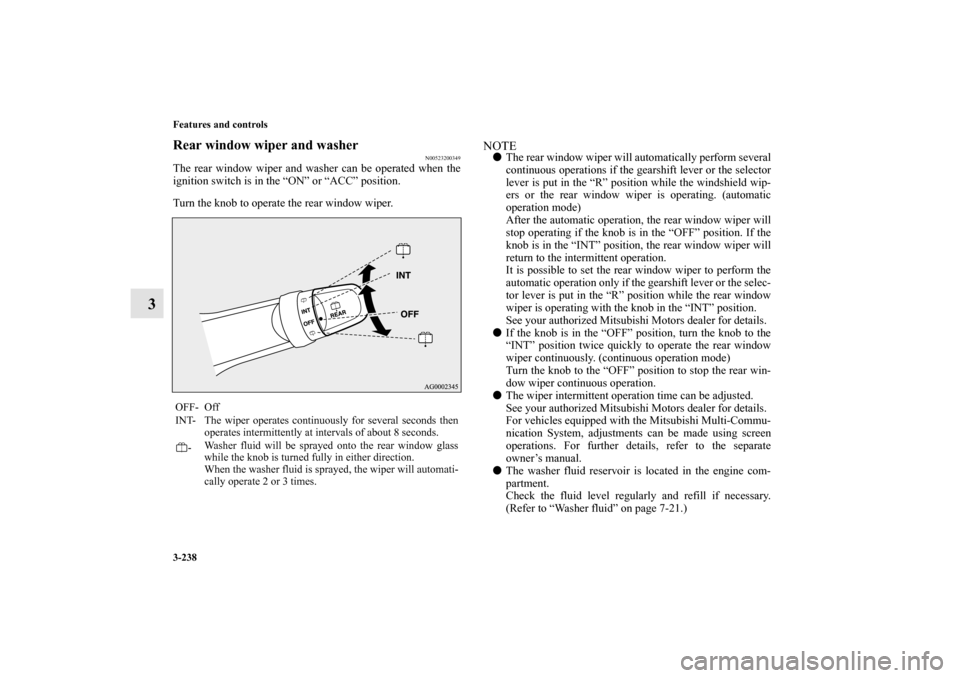

Rear window wiper and washer
N00523200349
The rear window wiper and washer can be operated when the
ignition switch is in the “ON” or “ACC” position.
Turn the knob to operate the rear window wiper.
NOTE

The rear window wiper will automatically perform several
continuous operations if the gearshift lever or the selector
lever is put in the “R” position while the windshield wip-
ers or the rear window wiper is operating. (automatic
operation mode)
After the automatic operation, the rear window wiper will
stop operating if the knob is in the “OFF” position. If the
knob is in the “INT” position, the rear window wiper will
return to the intermittent operation.
It is possible to set the rear window wiper to perform the
automatic operation only if the gearshift lever or the selec-
tor lever is put in the “R” position while the rear window
wiper is operating with the knob in the “INT” position.
See your authorized Mitsubishi Motors dealer for details.


If the knob is in the “OFF” position, turn the knob to the
“INT” position twice quickly to operate the rear window
wiper continuously. (continuous operation mode)
Turn the knob to the “OFF” position to stop the rear win-
dow wiper continuous operation.


The wiper intermittent operation time can be adjusted.
See your authorized Mitsubishi Motors dealer for details.
For vehicles equipped with the Mitsubishi Multi-Commu-
nication System, adjustments can be made using screen
operations. For further details, refer to the separate
owner’s manual.


The washer fluid reservoir is located in the engine com-
partment.
Check the fluid level regularly and refill if necessary.
(Refer to “Washer fluid” on page 7-21.)
OFF- Off
INT- The wiper operates continuously for several seconds then
operates intermittently at intervals of about 8 seconds.
-Washer fluid will be sprayed onto the rear window glass
while the knob is turned fully in either direction.
When the washer fluid is sprayed, the wiper will automati-
cally operate 2 or 3 times.BK0103001US.book 238 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-239
3

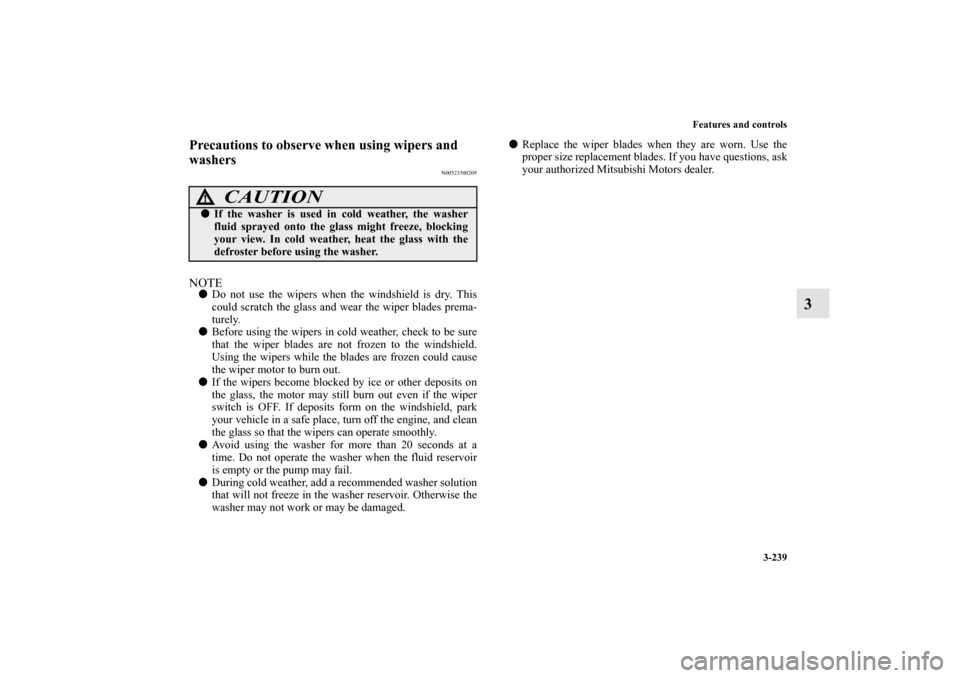

Precautions to observe when using wipers and
washers
N00523500209
NOTE

Do not use the wipers when the windshield is dry. This
could scratch the glass and wear the wiper blades prema-
turely.


Before using the wipers in cold weather, check to be sure
that the wiper blades are not frozen to the windshield.
Using the wipers while the blades are frozen could cause
the wiper motor to burn out.


If the wipers become blocked by ice or other deposits on
the glass, the motor may still burn out even if the wiper
switch is OFF. If deposits form on the windshield, park
your vehicle in a safe place, turn off the engine, and clean
the glass so that the wipers can operate smoothly.


Avoid using the washer for more than 20 seconds at a
time. Do not operate the washer when the fluid reservoir
is empty or the pump may fail.


During cold weather, add a recommended washer solution
that will not freeze in the washer reservoir. Otherwise the
washer may not work or may be damaged.


Replace the wiper blades when they are worn. Use the
proper size replacement blades. If you have questions, ask
your authorized Mitsubishi Motors dealer.
CAUTION
!

If the washer is used in cold weather, the washer
fluid sprayed onto the glass might freeze, blocking
your view. In cold weather, heat the glass with the
defroster before using the washer.
BK0103001US.book 239 ページ ２００９年８月２０日　木曜日　午前１０時４５分

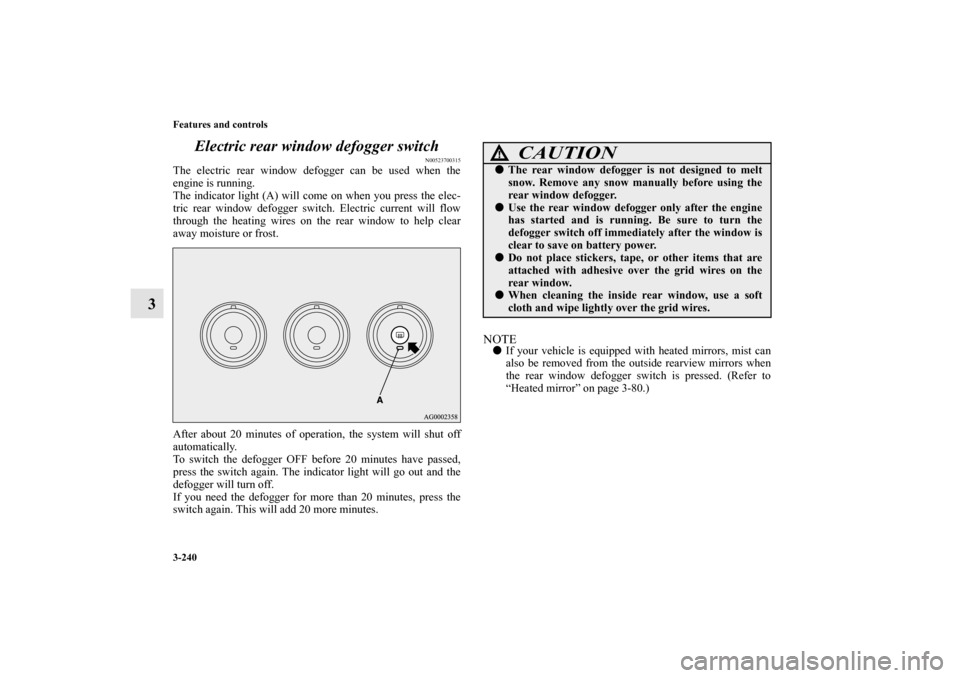

3-240 Features and controls
3Electric rear window defogger switch
N00523700315
The electric rear window defogger can be used when the
engine is running.
The indicator light (A) will come on when you press the elec-
tric rear window defogger switch. Electric current will flow
through the heating wires on the rear window to help clear
away moisture or frost.
After about 20 minutes of operation, the system will shut off
automatically.
To switch the defogger OFF before 20 minutes have passed,
press the switch again. The indicator light will go out and the
defogger will turn off.
If you need the defogger for more than 20 minutes, press the
switch again. This will add 20 more minutes.
NOTE

If your vehicle is equipped with heated mirrors, mist can
also be removed from the outside rearview mirrors when
the rear window defogger switch is pressed. (Refer to
“Heated mirror” on page 3-80.)
CAUTION
!

The rear window defogger is not designed to melt
snow. Remove any snow manually before using the
rear window defogger.


Use the rear window defogger only after the engine
has started and is running. Be sure to turn the
defogger switch off immediately after the window is
clear to save on battery power.


Do not place stickers, tape, or other items that are
attached with adhesive over the grid wires on the
rear window.


When cleaning the inside rear window, use a soft
cloth and wipe lightly over the grid wires.
BK0103001US.book 240 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-241

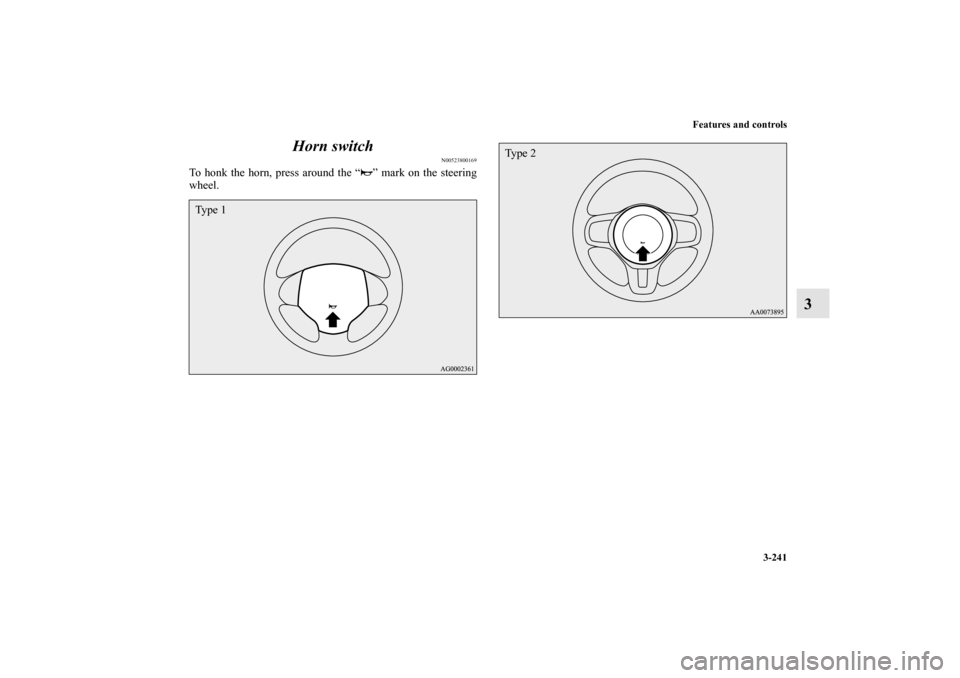

3 Horn switch
N00523800169
To honk the horn, press around the “ ” mark on the steering
wheel.Ty p e 1
Ty p e 2
BK0103001US.book 241 ページ ２００９年８月２０日　木曜日　午前１０時４５分

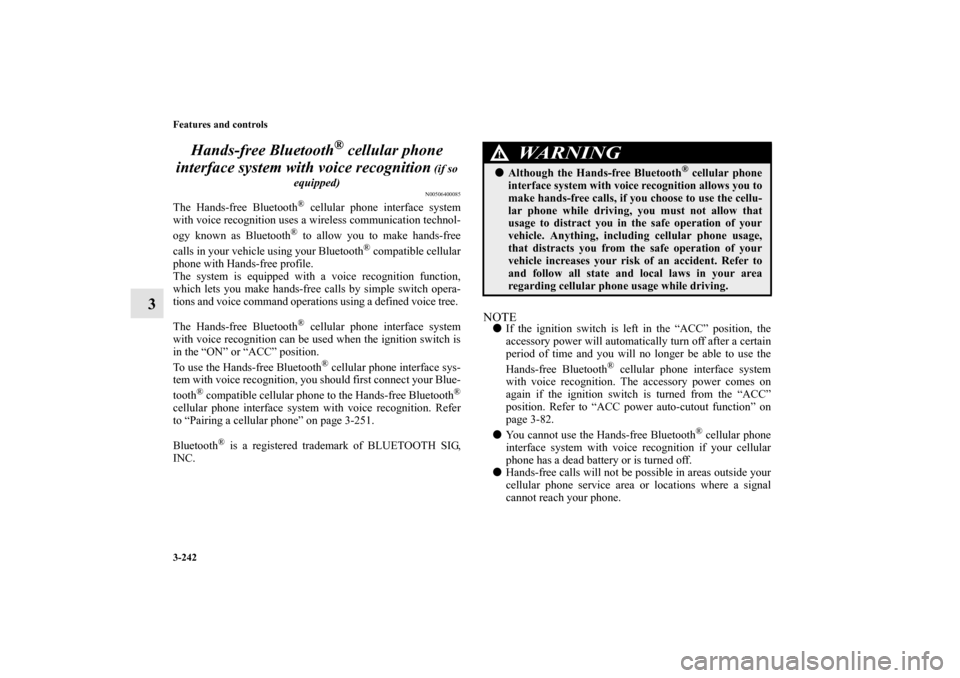

3-242 Features and controls
3Hands-free Bluetooth
® cellular phone
interface system with voice recognition
(if so
equipped)N00506400085
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition uses a wireless communication technol-
ogy known as Bluetooth
® to allow you to make hands-free
calls in your vehicle using your Bluetooth
® compatible cellular
phone with Hands-free profile.
The system is equipped with a voice recognition function,
which lets you make hands-free calls by simple switch opera-
tions and voice command operations using a defined voice tree.
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can be used when the ignition switch is
in the “ON” or “ACC” position.
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, you should first connect your Blue-
tooth
® compatible cellular phone to the Hands-free Bluetooth
®
cellular phone interface system with voice recognition. Refer
to “Pairing a cellular phone” on page 3-251.
Bluetooth
® is a registered trademark of BLUETOOTH SIG,
INC.
NOTE

If the ignition switch is left in the “ACC” position, the
accessory power will automatically turn off after a certain
period of time and you will no longer be able to use the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition. The accessory power comes on
again if the ignition switch is turned from the “ACC”
position. Refer to “ACC power auto-cutout function” on
page 3-82.


You cannot use the Hands-free Bluetooth
® cellular phone
interface system with voice recognition if your cellular
phone has a dead battery or is turned off.


Hands-free calls will not be possible in areas outside your
cellular phone service area or locations where a signal
cannot reach your phone.
WA R N I N G
!

Although the Hands-free Bluetooth
® cellular phone
interface system with voice recognition allows you to
make hands-free calls, if you choose to use the cellu-
lar phone while driving, you must not allow that
usage to distract you in the safe operation of your
vehicle. Anything, including cellular phone usage,
that distracts you from the safe operation of your
vehicle increases your risk of an accident. Refer to
and follow all state and local laws in your area
regarding cellular phone usage while driving.
BK0103001US.book 242 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-243
3

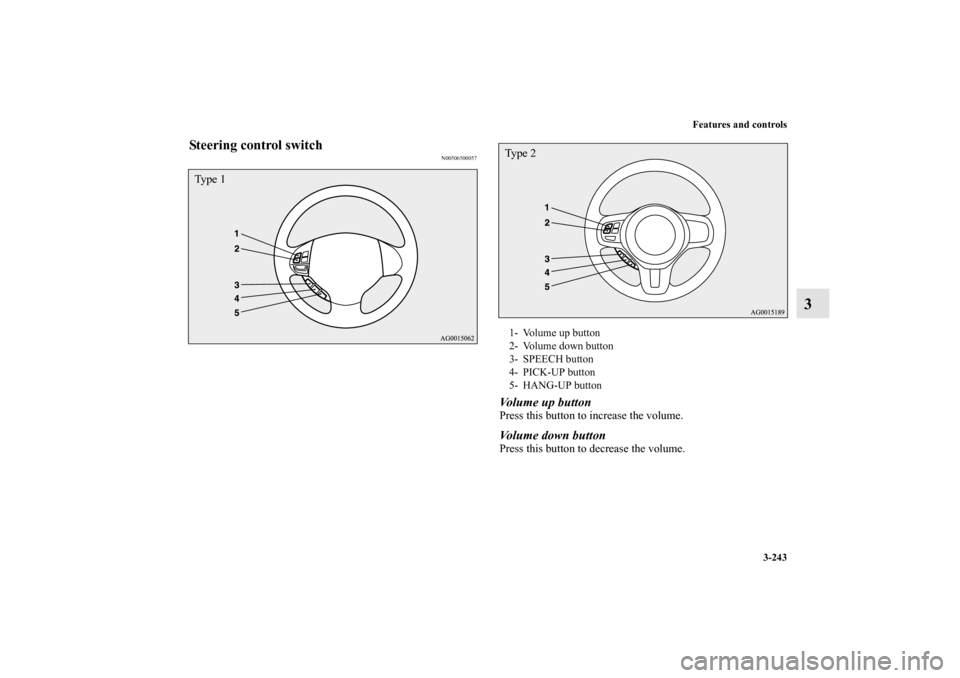

Steering control switch
N00506500057
Volume up buttonPress this button to increase the volume. Volume down buttonPress this button to decrease the volume.
Ty p e 1
1- Volume up button
2- Volume down button
3- SPEECH button
4- PICK-UP button
5- HANG-UP buttonTy p e 2
BK0103001US.book 243 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-244 Features and controls
3

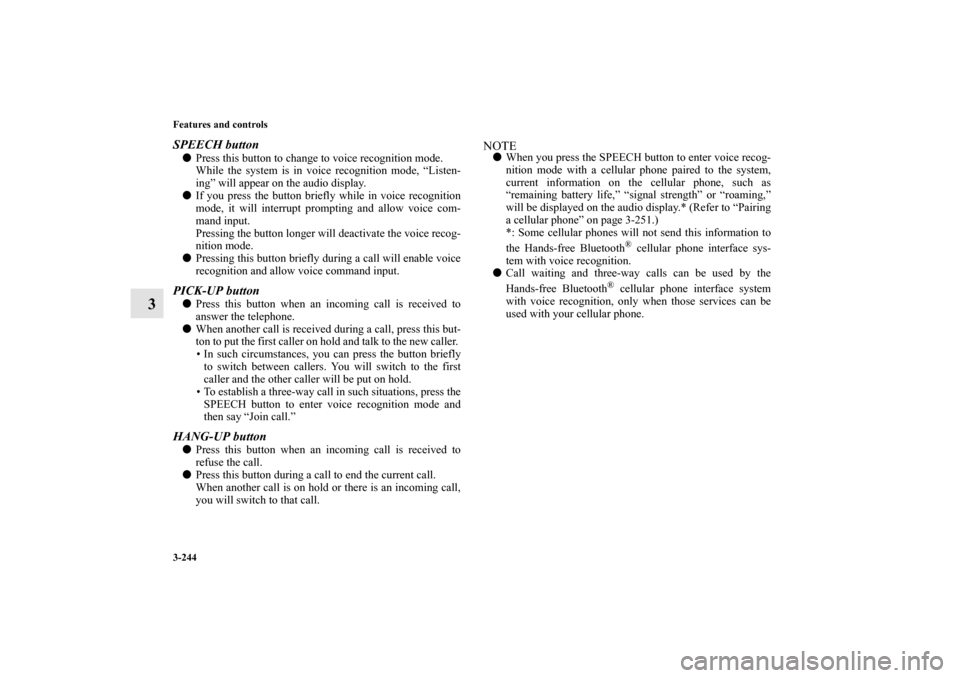

SPEECH button

Press this button to change to voice recognition mode.
While the system is in voice recognition mode, “Listen-
ing” will appear on the audio display.


If you press the button briefly while in voice recognition
mode, it will interrupt prompting and allow voice com-
mand input.
Pressing the button longer will deactivate the voice recog-
nition mode.


Pressing this button briefly during a call will enable voice
recognition and allow voice command input.
PICK-UP button

Press this button when an incoming call is received to
answer the telephone.


When another call is received during a call, press this but-
ton to put the first caller on hold and talk to the new caller.
 In such circumstances, you can press the button briefly
to switch between callers. You will switch to the first
caller and the other caller will be put on hold.
 To establish a three-way call in such situations, press the
SPEECH button to enter voice recognition mode and
then say “Join call.”
HANG-UP button

Press this button when an incoming call is received to
refuse the call.


Press this button during a call to end the current call.
When another call is on hold or there is an incoming call,
you will switch to that call.
NOTE

When you press the SPEECH button to enter voice recog-
nition mode with a cellular phone paired to the system,
current information on the cellular phone, such as
“remaining battery life,” “signal strength” or “roaming,”
will be displayed on the audio display.* (Refer to “Pairing
a cellular phone” on page 3-251.)
*: Some cellular phones will not send this information to
the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition.


Call waiting and three-way calls can be used by the
Hands-free Bluetooth
® cellular phone interface system
with voice recognition, only when those services can be
used with your cellular phone.
BK0103001US.book 244 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-245
3

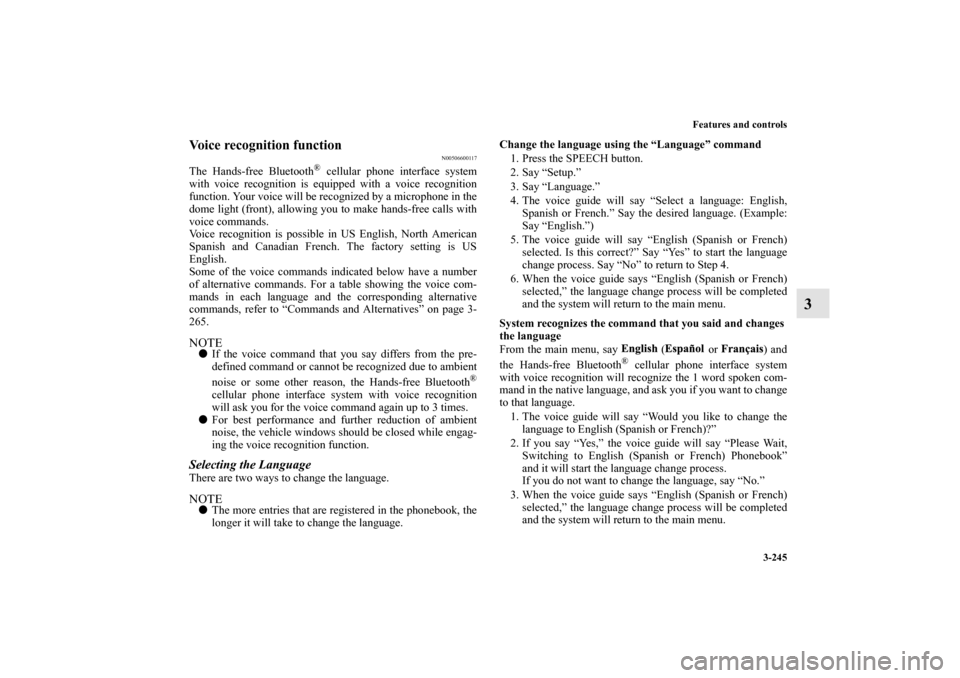

Voice recognition function
N00506600117
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a voice recognition
function. Your voice will be recognized by a microphone in the
dome light (front), allowing you to make hands-free calls with
voice commands.
Voice recognition is possible in US English, North American
Spanish and Canadian French. The factory setting is US
English.
Some of the voice commands indicated below have a number
of alternative commands. For a table showing the voice com-
mands in each language and the corresponding alternative
commands, refer to “Commands and Alternatives” on page 3-
265.
NOTE

If the voice command that you say differs from the pre-
defined command or cannot be recognized due to ambient
noise or some other reason, the Hands-free Bluetooth
®
cellular phone interface system with voice recognition
will ask you for the voice command again up to 3 times.


For best performance and further reduction of ambient
noise, the vehicle windows should be closed while engag-
ing the voice recognition function.
Selecting the LanguageThere are two ways to change the language. NOTE

The more entries that are registered in the phonebook, the
longer it will take to change the language.Change the language using the “Language” command
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Language.”
4. The voice guide will say “Select a language: English,
Spanish or French.” Say the desired language. (Example:
Say “English.”)
5. The voice guide will say “English (Spanish or French)
selected. Is this correct?” Say “Yes” to start the language
change process. Say “No” to return to Step 4.
6. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
System recognizes the command that you said and changes
the language
From the main menu, say ( or ) and
the Hands-free Bluetooth
® cellular phone interface system
with voice recognition will recognize the 1 word spoken com-
mand in the native language, and ask you if you want to change
to that language.
1. The voice guide will say “Would you like to change the
language to English (Spanish or French)?”
2. If you say “Yes,” the voice guide will say “Please Wait,
Switching to English (Spanish or French) Phonebook”
and it will start the language change process.
If you do not want to change the language, say “No.”
3. When the voice guide says “English (Spanish or French)
selected,” the language change process will be completed
and the system will return to the main menu.
BK0103001US.book 245 ページ ２００９年８月２０日　木曜日　午前１０時４５分
