3-246 Features and controls
3

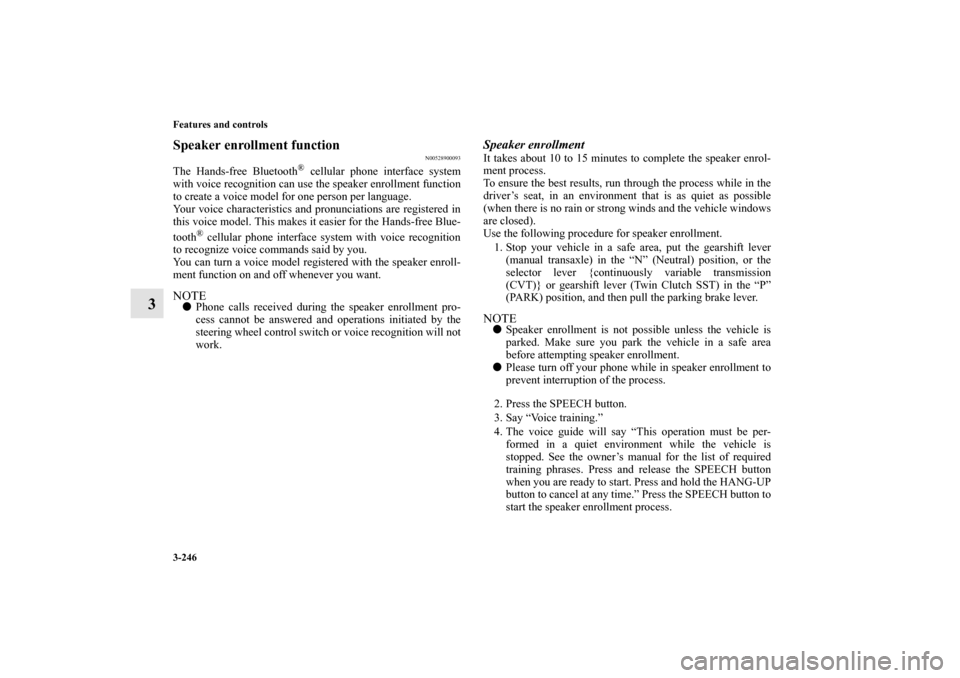

Speaker enrollment function
N00528900093
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can use the speaker enrollment function
to create a voice model for one person per language.
Your voice characteristics and pronunciations are registered in
this voice model. This makes it easier for the Hands-free Blue-
tooth
® cellular phone interface system with voice recognition
to recognize voice commands said by you.
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
NOTE

Phone calls received during the speaker enrollment pro-
cess cannot be answered and operations initiated by the
steering wheel control switch or voice recognition will not
work.
Speaker enrollmentIt takes about 10 to 15 minutes to complete the speaker enrol-
ment process.
To ensure the best results, run through the process while in the
driver’s seat, in an environment that is as quiet as possible
(when there is no rain or strong winds and the vehicle windows
are closed).
Use the following procedure for speaker enrollment.
1. Stop your vehicle in a safe area, put the gearshift lever
(manual transaxle) in the “N” (Neutral) position, or the
selector lever {continuously variable transmission
(CVT)} or gearshift lever (Twin Clutch SST) in the “P”
(PARK) position, and then pull the parking brake lever.NOTE

Speaker enrollment is not possible unless the vehicle is
parked. Make sure you park the vehicle in a safe area
before attempting speaker enrollment.


Please turn off your phone while in speaker enrollment to
prevent interruption of the process.
2. Press the SPEECH button.
3. Say “Voice training.”
4. The voice guide will say “This operation must be per-
formed in a quiet environment while the vehicle is
stopped. See the owner’s manual for the list of required
training phrases. Press and release the SPEECH button
when you are ready to start. Press and hold the HANG-UP
button to cancel at any time.” Press the SPEECH button to
start the speaker enrollment process.
BK0103001US.book 246 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-247
3
NOTE

If you do not start the speaker enrollment process within 3
minutes of pressing the SPEECH button, the speaker
enrollment function will time out.
The voice guide will say “Speaker Enrollment has timed
out.” The system will then beep and the voice recognition
mode will be deactivated.


Phone calls received during the speaker enrollment pro-
cess cannot be answered.
5. The voice guide will prompt for phrase 1. Repeat the cor-
responding phrase listed in table “Enrollment Commands”
on page 3-271.
The system will register your voice and then move on to
the registration of the next command. Continue the pro-
cess until all phrases have been registered.
NOTE

If you press the HANG-UP button within 5 seconds of the
reading of an enrollment phase number by the voice
guide, the registration of the same phase number will be
repeated. Continue the process until all phrases have been
registered.


If you press and hold down the HANG-UP button within 5
seconds of the reading of an enrollment phase number by
the voice guide, the system will beep and stop the speaker
enrollment process.6. When all enrollment commands have been read out, the
voice guide will say “Speaker Enrollment is complete.”
The system will then end the speaker enrollment process
and return to the main menu.
NOTE

Completing the speaker enrollment process will turn on
the voice model automatically.


The commands “Help” and “Cancel” will not work in this
mode.
Enabling and disabling the voice model and retraining
N00529100034
You can turn a voice model registered with the speaker enroll-
ment function on and off whenever you want.
You can also retrain the system.
Use the following procedure to perform these actions.
1. Press the SPEECH button.
2. Say “Voice training.”
3. If you have completed a speaker enrollment process once
already, the voice guide will say either “Enrollment is
enabled. Would you like to disable or retrain?” or “Enroll-
ment is disabled. Would you like to enable or retrain?”
BK0103001US.book 247 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-248 Features and controls
3

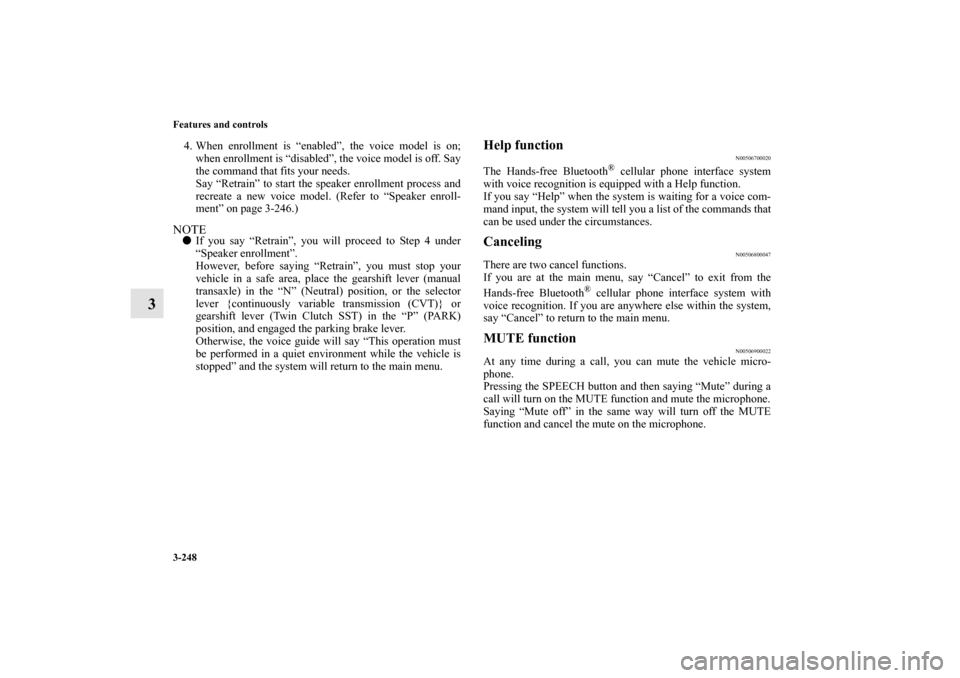

4. When enrollment is “enabled”, the voice model is on;
when enrollment is “disabled”, the voice model is off. Say
the command that fits your needs.
Say “Retrain” to start the speaker enrollment process and
recreate a new voice model. (Refer to “Speaker enroll-
ment” on page 3-246.)NOTE

If you say “Retrain”, you will proceed to Step 4 under
“Speaker enrollment”.
However, before saying “Retrain”, you must stop your
vehicle in a safe area, place the gearshift lever (manual
transaxle) in the “N” (Neutral) position, or the selector
lever {continuously variable transmission (CVT)} or
gearshift lever (Twin Clutch SST) in the “P” (PARK)
position, and engaged the parking brake lever.
Otherwise, the voice guide will say “This operation must
be performed in a quiet environment while the vehicle is
stopped” and the system will return to the main menu.
Help function
N00506700020
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a Help function.
If you say “Help” when the system is waiting for a voice com-
mand input, the system will tell you a list of the commands that
can be used under the circumstances.
Canceling
N00506800047
There are two cancel functions.
If you are at the main menu, say “Cancel” to exit from the
Hands-free Bluetooth
® cellular phone interface system with
voice recognition. If you are anywhere else within the system,
say “Cancel” to return to the main menu.
MUTE function
N00506900022
At any time during a call, you can mute the vehicle micro-
phone.
Pressing the SPEECH button and then saying “Mute” during a
call will turn on the MUTE function and mute the microphone.
Saying “Mute off” in the same way will turn off the MUTE
function and cancel the mute on the microphone.
BK0103001US.book 248 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-249
3

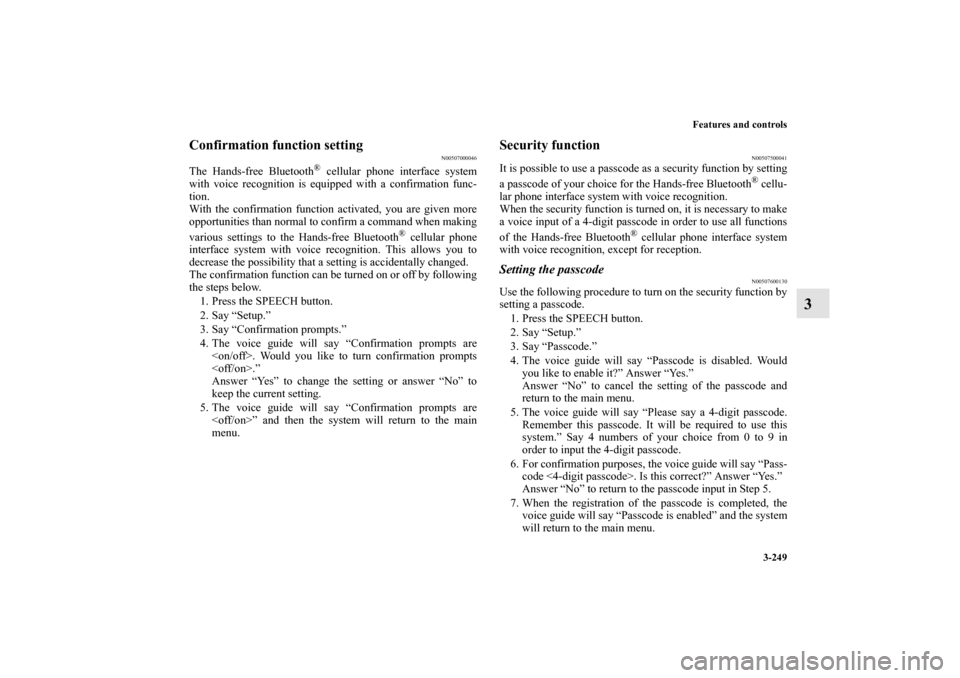

Confirmation function setting
N00507000046
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition is equipped with a confirmation func-
tion.
With the confirmation function activated, you are given more
opportunities than normal to confirm a command when making
various settings to the Hands-free Bluetooth
® cellular phone
interface system with voice recognition. This allows you to
decrease the possibility that a setting is accidentally changed.
The confirmation function can be turned on or off by following
the steps below.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Confirmation prompts.”
4. The voice guide will say “Confirmation prompts are
. Would you like to turn confirmation prompts
.”
Answer “Yes” to change the setting or answer “No” to
keep the current setting.
5. The voice guide will say “Confirmation prompts are
” and then the system will return to the main
menu.
Security function
N00507500041
It is possible to use a passcode as a security function by setting
a passcode of your choice for the Hands-free Bluetooth
® cellu-
lar phone interface system with voice recognition.
When the security function is turned on, it is necessary to make
a voice input of a 4-digit passcode in order to use all functions
of the Hands-free Bluetooth
® cellular phone interface system
with voice recognition, except for reception.
Setting the passcode
N00507600130
Use the following procedure to turn on the security function by
setting a passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is disabled. Would
you like to enable it?” Answer “Yes.”
Answer “No” to cancel the setting of the passcode and
return to the main menu.
5. The voice guide will say “Please say a 4-digit passcode.
Remember this passcode. It will be required to use this
system.” Say 4 numbers of your choice from 0 to 9 in
order to input the 4-digit passcode.
6. For confirmation purposes, the voice guide will say “Pass-
code <4-digit passcode>. Is this correct?” Answer “Yes.”
Answer “No” to return to the passcode input in Step 5.
7. When the registration of the passcode is completed, the
voice guide will say “Passcode is enabled” and the system
will return to the main menu.
BK0103001US.book 249 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-250 Features and controls
3

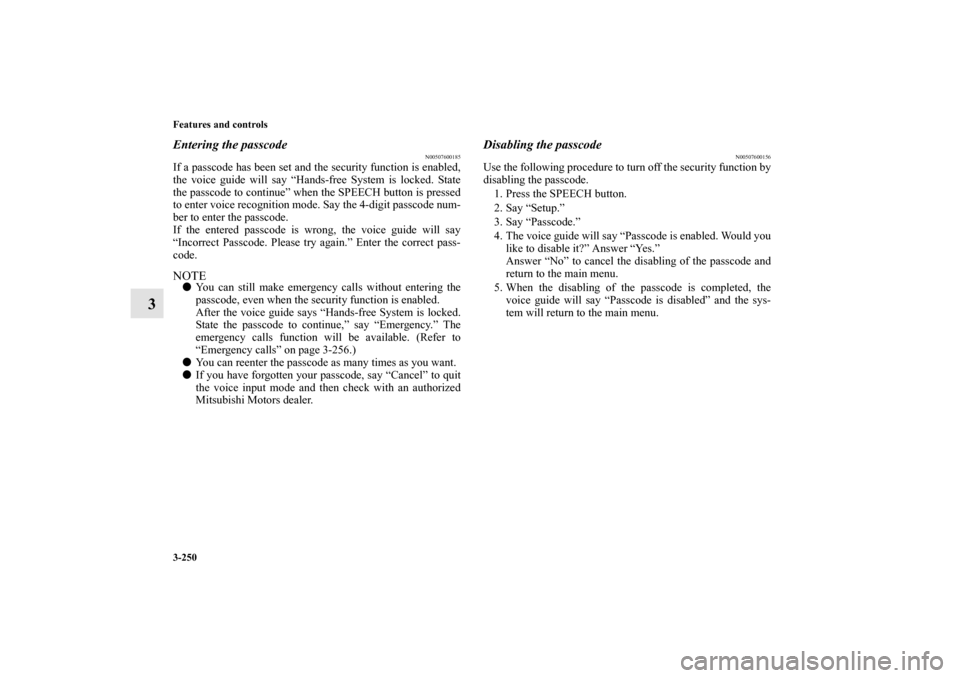

Entering the passcode
N00507600185
If a passcode has been set and the security function is enabled,
the voice guide will say “Hands-free System is locked. State
the passcode to continue” when the SPEECH button is pressed
to enter voice recognition mode. Say the 4-digit passcode num-
ber to enter the passcode.
If the entered passcode is wrong, the voice guide will say
“Incorrect Passcode. Please try again.” Enter the correct pass-
code. NOTE

You can still make emergency calls without entering the
passcode, even when the security function is enabled.
After the voice guide says “Hands-free System is locked.
State the passcode to continue,” say “Emergency.” The
emergency calls function will be available. (Refer to
“Emergency calls” on page 3-256.)


You can reenter the passcode as many times as you want.


If you have forgotten your passcode, say “Cancel” to quit
the voice input mode and then check with an authorized
Mitsubishi Motors dealer.
Disabling the passcode
N00507600156
Use the following procedure to turn off the security function by
disabling the passcode.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Passcode.”
4. The voice guide will say “Passcode is enabled. Would you
like to disable it?” Answer “Yes.”
Answer “No” to cancel the disabling of the passcode and
return to the main menu.
5. When the disabling of the passcode is completed, the
voice guide will say “Passcode is disabled” and the sys-
tem will return to the main menu.
BK0103001US.book 250 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Features and controls
3-251
3

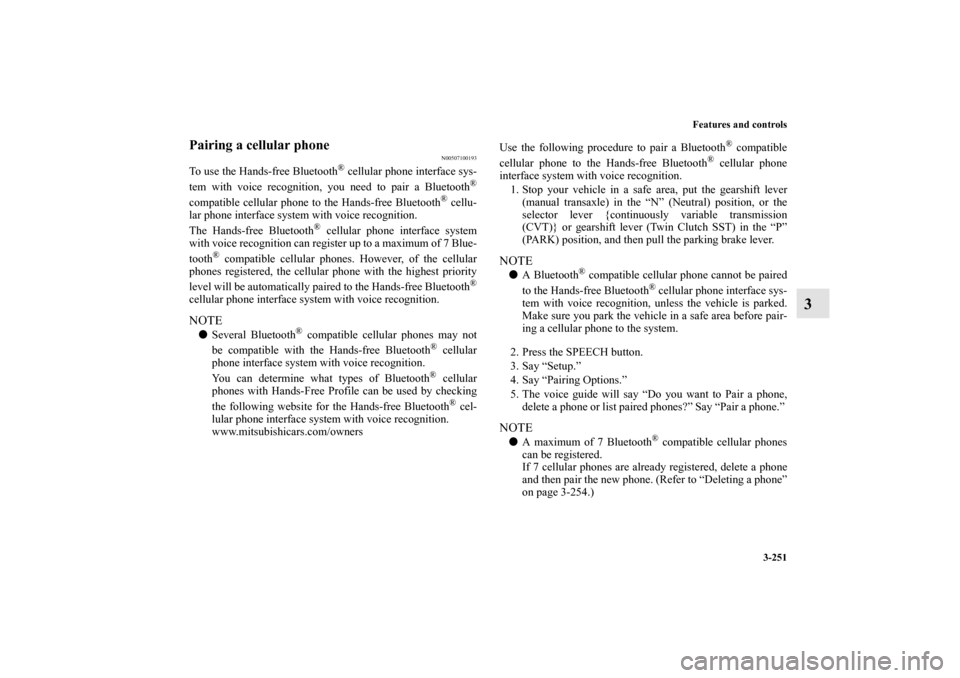

Pairing a cellular phone
N00507100193
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, you need to pair a Bluetooth
®
compatible cellular phone to the Hands-free Bluetooth
® cellu-
lar phone interface system with voice recognition.
The Hands-free Bluetooth
® cellular phone interface system
with voice recognition can register up to a maximum of 7 Blue-
tooth
® compatible cellular phones. However, of the cellular
phones registered, the cellular phone with the highest priority
level will be automatically paired to the Hands-free Bluetooth
®
cellular phone interface system with voice recognition.NOTE

Several Bluetooth
® compatible cellular phones may not
be compatible with the Hands-free Bluetooth
® cellular
phone interface system with voice recognition.
You can determine what types of Bluetooth® cellular
phones with Hands-Free Profile can be used by checking
the following website for the Hands-free Bluetooth
® cel-
lular phone interface system with voice recognition.
www.mitsubishicars.com/ownersUse the following procedure to pair a Bluetooth
® compatible
cellular phone to the Hands-free Bluetooth
® cellular phone
interface system with voice recognition.
1. Stop your vehicle in a safe area, put the gearshift lever
(manual transaxle) in the “N” (Neutral) position, or the
selector lever {continuously variable transmission
(CVT)} or gearshift lever (Twin Clutch SST) in the “P”
(PARK) position, and then pull the parking brake lever.
NOTE

A Bluetooth
® compatible cellular phone cannot be paired
to the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition, unless the vehicle is parked.
Make sure you park the vehicle in a safe area before pair-
ing a cellular phone to the system.
2. Press the SPEECH button.
3. Say “Setup.”
4. Say “Pairing Options.”
5. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Pair a phone.”
NOTE

A maximum of 7 Bluetooth
® compatible cellular phones
can be registered.
If 7 cellular phones are already registered, delete a phone
and then pair the new phone. (Refer to “Deleting a phone”
on page 3-254.)
BK0103001US.book 251 ページ ２００９年８月２０日　木曜日　午前１０時４５分

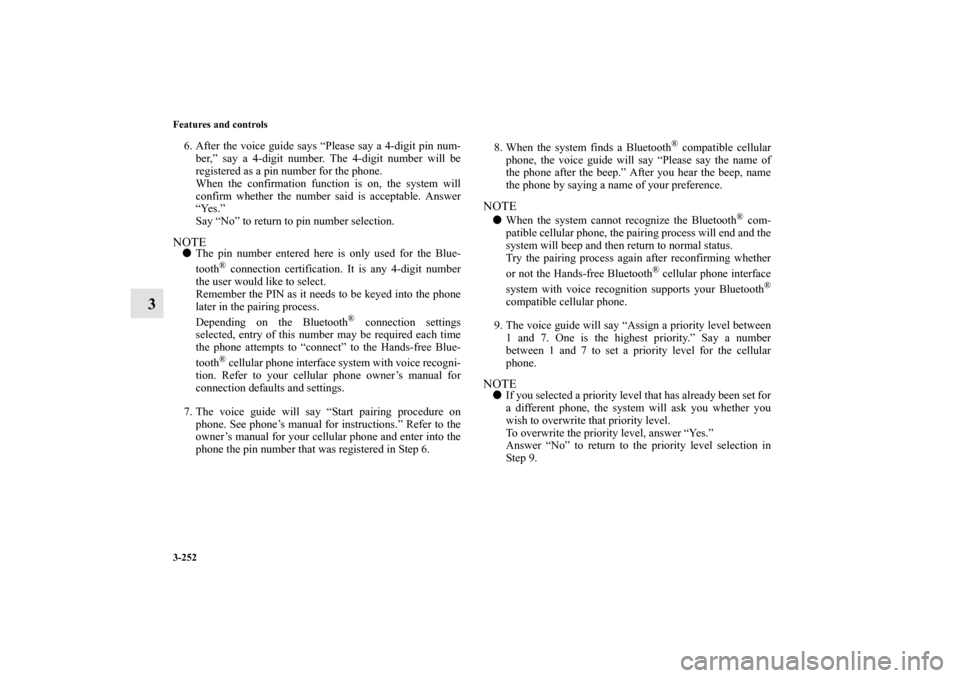

3-252 Features and controls
3
6. After the voice guide says “Please say a 4-digit pin num-
ber,” say a 4-digit number. The 4-digit number will be
registered as a pin number for the phone.
When the confirmation function is on, the system will
confirm whether the number said is acceptable. Answer
“Yes.”
Say “No” to return to pin number selection.NOTE

The pin number entered here is only used for the Blue-
tooth
® connection certification. It is any 4-digit number
the user would like to select.
Remember the PIN as it needs to be keyed into the phone
later in the pairing process.
Depending on the Bluetooth
® connection settings
selected, entry of this number may be required each time
the phone attempts to “connect” to the Hands-free Blue-
tooth
® cellular phone interface system with voice recogni-
tion. Refer to your cellular phone owner’s manual for
connection defaults and settings.
7. The voice guide will say “Start pairing procedure on
phone. See phone’s manual for instructions.” Refer to the
owner’s manual for your cellular phone and enter into the
phone the pin number that was registered in Step 6.8. When the system finds a Bluetooth
® compatible cellular
phone, the voice guide will say “Please say the name of
the phone after the beep.” After you hear the beep, name
the phone by saying a name of your preference.
NOTE

When the system cannot recognize the Bluetooth
® com-
patible cellular phone, the pairing process will end and the
system will beep and then return to normal status.
Try the pairing process again after reconfirming whether
or not the Hands-free Bluetooth
® cellular phone interface
system with voice recognition supports your Bluetooth
®
compatible cellular phone.
9. The voice guide will say “Assign a priority level between
1 and 7. One is the highest priority.” Say a number
between 1 and 7 to set a priority level for the cellular
phone.
NOTE

If you selected a priority level that has already been set for
a different phone, the system will ask you whether you
wish to overwrite that priority level.
To overwrite the priority level, answer “Yes.”
Answer “No” to return to the priority level selection in
Step 9.
BK0103001US.book 252 ページ ２００９年８月２０日　木曜日　午前１０時４５分

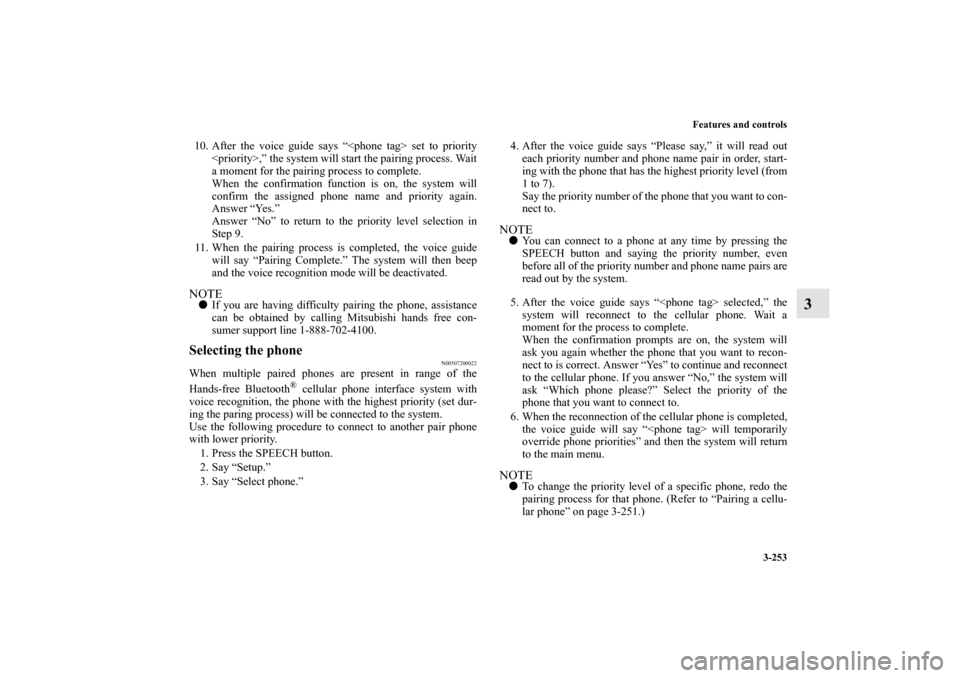

Features and controls
3-253
3
10. After the voice guide says “ set to priority
,” the system will start the pairing process. Wait
a moment for the pairing process to complete.
When the confirmation function is on, the system will
confirm the assigned phone name and priority again.
Answer “Yes.”
Answer “No” to return to the priority level selection in
Step 9.
11. When the pairing process is completed, the voice guide
will say “Pairing Complete.” The system will then beep
and the voice recognition mode will be deactivated.NOTE

If you are having difficulty pairing the phone, assistance
can be obtained by calling Mitsubishi hands free con-
sumer support line 1-888-702-4100.
Selecting the phone
N00507200022
When multiple paired phones are present in range of the
Hands-free Bluetooth
® cellular phone interface system with
voice recognition, the phone with the highest priority (set dur-
ing the paring process) will be connected to the system.
Use the following procedure to connect to another pair phone
with lower priority.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Select phone.”4. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7).
Say the priority number of the phone that you want to con-
nect to.
NOTE

You can connect to a phone at any time by pressing the
SPEECH button and saying the priority number, even
before all of the priority number and phone name pairs are
read out by the system.
5. After the voice guide says “ selected,” the
system will reconnect to the cellular phone. Wait a
moment for the process to complete.
When the confirmation prompts are on, the system will
ask you again whether the phone that you want to recon-
nect to is correct. Answer “Yes” to continue and reconnect
to the cellular phone. If you answer “No,” the system will
ask “Which phone please?” Select the priority of the
phone that you want to connect to.
6. When the reconnection of the cellular phone is completed,
the voice guide will say “ will temporarily
override phone priorities” and then the system will return
to the main menu.
NOTE

To change the priority level of a specific phone, redo the
pairing process for that phone. (Refer to “Pairing a cellu-
lar phone” on page 3-251.)
BK0103001US.book 253 ページ ２００９年８月２０日　木曜日　午前１０時４５分

3-254 Features and controls
3
Having the system tell you a list of the registered
cellular phones
N00507300049
You can use the following procedure to hear a list of the cellu-
lar phones that are currently registered.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “list paired
phones.”
5. The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will read out the paired phones
in order, starting with the phone with the highest priority
level.
6. When the voice guide is done reading all phone names, it
will say “End of List, would you like to start from the
beginning?”
To hear the list again from the beginning, answer “Yes.”
When you are done, answer “No” to return to the main
menu.
NOTE

If you press and release the SPEECH button and say
“Continue” or “Previous” while the list is being read, the
system will advance or rewind the list. Say “Continue” to
proceed to the phone with the next highest priority level or
“Previous” to return to the phone with the previous prior-
ity level.
Deleting a phone
N00507400040
Use the following procedure to delete a paired Bluetooth
®
compatible cellular phone from the Hands-free Bluetooth
® cel-
lular phone interface system with voice recognition.
1. Press the SPEECH button.
2. Say “Setup.”
3. Say “Pairing Options.”
4. The voice guide will say “Do you want to Pair a phone,
delete a phone or list paired phones?” Say “Delete a
phone.”
5. After the voice guide says “Please say,” it will read out
each priority number and phone name pair in order, start-
ing with the phone that has the highest priority level (from
1 to 7). After it completes reading all pairs, the voice
guide will say “or all.”
Say the priority number of the phone that you want to
delete from the system.
If you want to delete all paired phones from the system,
say “All.”
6. For confirmation purposes, the voice guide will say
“Removing (all) is this correct?”
Answer “Yes” to delete the phone(s). If you answer “No,”
the voice guide will ask “Which phone please?” Say again
the priority number of the phone that you want to delete
from the system.
BK0103001US.book 254 ページ ２００９年８月２０日　木曜日　午前１０時４５分

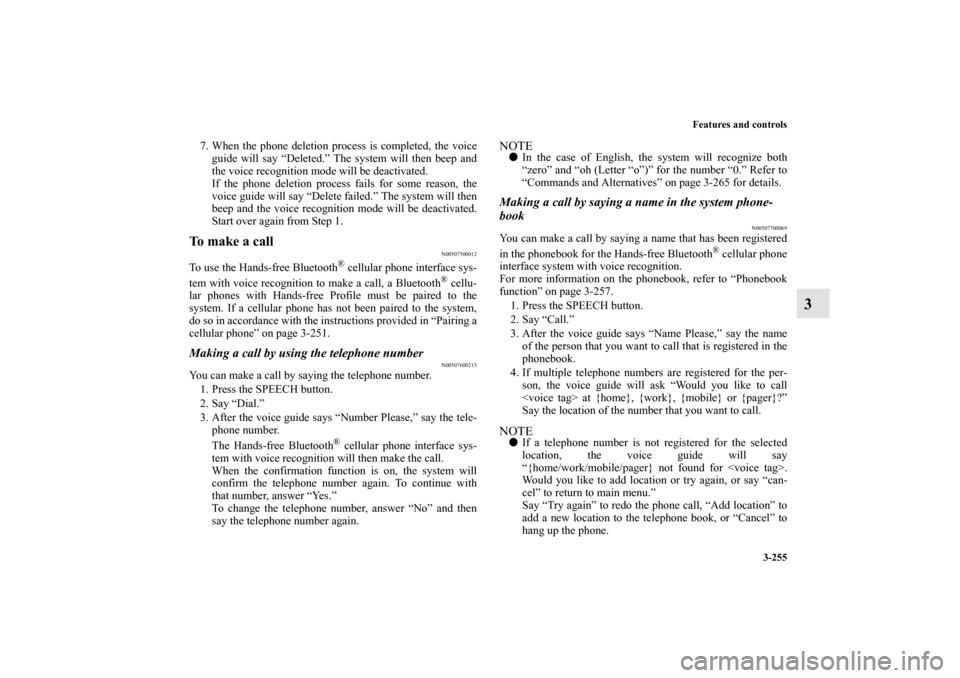

Features and controls
3-255
3
7. When the phone deletion process is completed, the voice
guide will say “Deleted.” The system will then beep and
the voice recognition mode will be deactivated.
If the phone deletion process fails for some reason, the
voice guide will say “Delete failed.” The system will then
beep and the voice recognition mode will be deactivated.
Start over again from Step 1. To make a call
N00507500012
To use the Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition to make a call, a Bluetooth
® cellu-
lar phones with Hands-free Profile must be paired to the
system. If a cellular phone has not been paired to the system,
do so in accordance with the instructions provided in “Pairing a
cellular phone” on page 3-251.
Making a call by using the telephone number
N00507600215
You can make a call by saying the telephone number.
1. Press the SPEECH button.
2. Say “Dial.”
3. After the voice guide says “Number Please,” say the tele-
phone number.
The Hands-free Bluetooth
® cellular phone interface sys-
tem with voice recognition will then make the call.
When the confirmation function is on, the system will
confirm the telephone number again. To continue with
that number, answer “Yes.”
To change the telephone number, answer “No” and then
say the telephone number again.
NOTE

In the case of English, the system will recognize both
“zero” and “oh (Letter “o”)” for the number “0.” Refer to
“Commands and Alternatives” on page 3-265 for details.
Making a call by saying a name in the system phone-
book
N00507700069
You can make a call by saying a name that has been registered
in the phonebook for the Hands-free Bluetooth
® cellular phone
interface system with voice recognition.
For more information on the phonebook, refer to “Phonebook
function” on page 3-257.
1. Press the SPEECH button.
2. Say “Call.”
3. After the voice guide says “Name Please,” say the name
of the person that you want to call that is registered in the
phonebook.
4. If multiple telephone numbers are registered for the per-
son, the voice guide will ask “Would you like to call
at {home}, {work}, {mobile} or {pager}?”
Say the location of the number that you want to call.
NOTE

If a telephone number is not registered for the selected
location, the voice guide will say
“{home/work/mobile/pager} not found for .
Would you like to add location or try again, or say “can-
cel” to return to main menu.”
Say “Try again” to redo the phone call, “Add location” to
add a new location to the telephone book, or “Cancel” to
hang up the phone.
BK0103001US.book 255 ページ ２００９年８月２０日　木曜日　午前１０時４５分
