MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

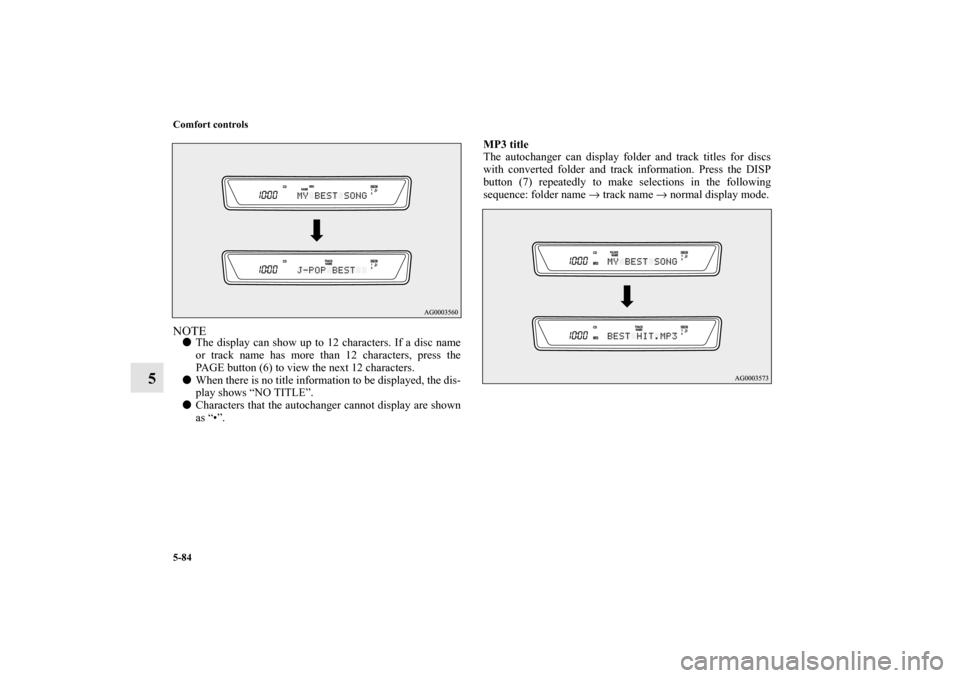

5-84 Comfort controls
5
NOTE

The display can show up to 12 characters. If a disc name
or track name has more than 12 characters, press the
PAGE button (6) to view the next 12 characters.


When there is no title information to be displayed, the dis-
play shows “NO TITLE”.


Characters that the autochanger cannot display are shown
as “”.MP3 title
The autochanger can display folder and track titles for discs
with converted folder and track information. Press the DISP
button (7) repeatedly to make selections in the following
sequence: folder name → track name → normal display mode.
BK0103001US.book 84 ページ ２００９年８月２０日　木曜日　午前１０時４５分

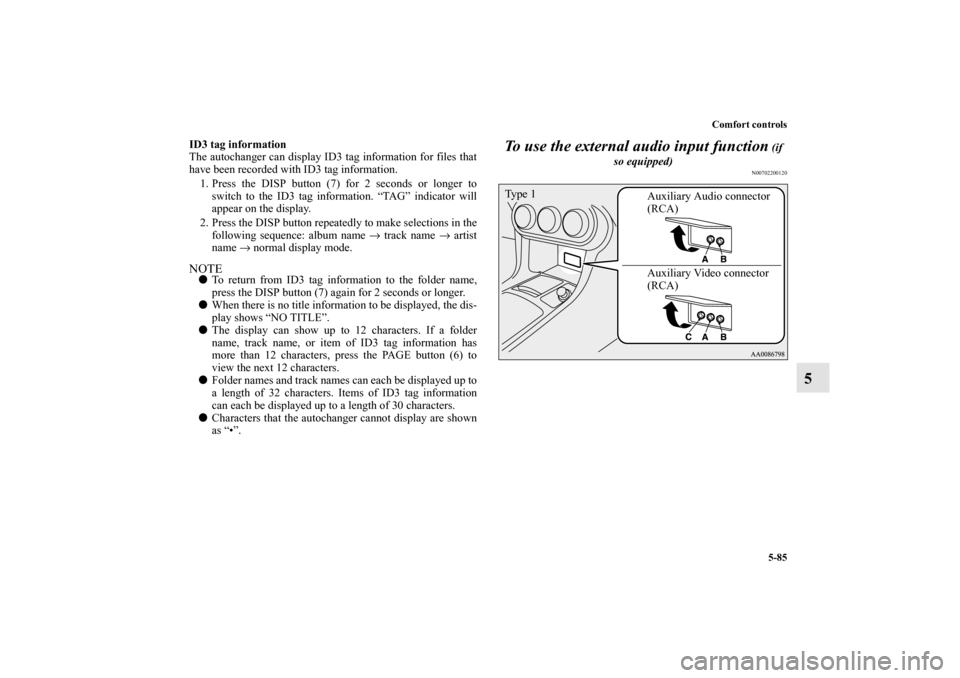

Comfort controls
5-85
5
ID3 tag information
The autochanger can display ID3 tag information for files that
have been recorded with ID3 tag information.
1. Press the DISP button (7) for 2 seconds or longer to
switch to the ID3 tag information. “TAG” indicator will
appear on the display.
2. Press the DISP button repeatedly to make selections in the
following sequence: album name → track name → artist
name → normal display mode.NOTE

To return from ID3 tag information to the folder name,
press the DISP button (7) again for 2 seconds or longer.


When there is no title information to be displayed, the dis-
play shows “NO TITLE”.


The display can show up to 12 characters. If a folder
name, track name, or item of ID3 tag information has
more than 12 characters, press the PAGE button (6) to
view the next 12 characters.


Folder names and track names can each be displayed up to
a length of 32 characters. Items of ID3 tag information
can each be displayed up to a length of 30 characters.


Characters that the autochanger cannot display are shown
as “”.
To use the external audio input function
(if
so equipped)
N00702200120
Auxiliary Audio connector
(RCA)
Auxiliary Video connector
(RCA) Ty p e 1
BK0103001US.book 85 ページ ２００９年８月２０日　木曜日　午前１０時４５分

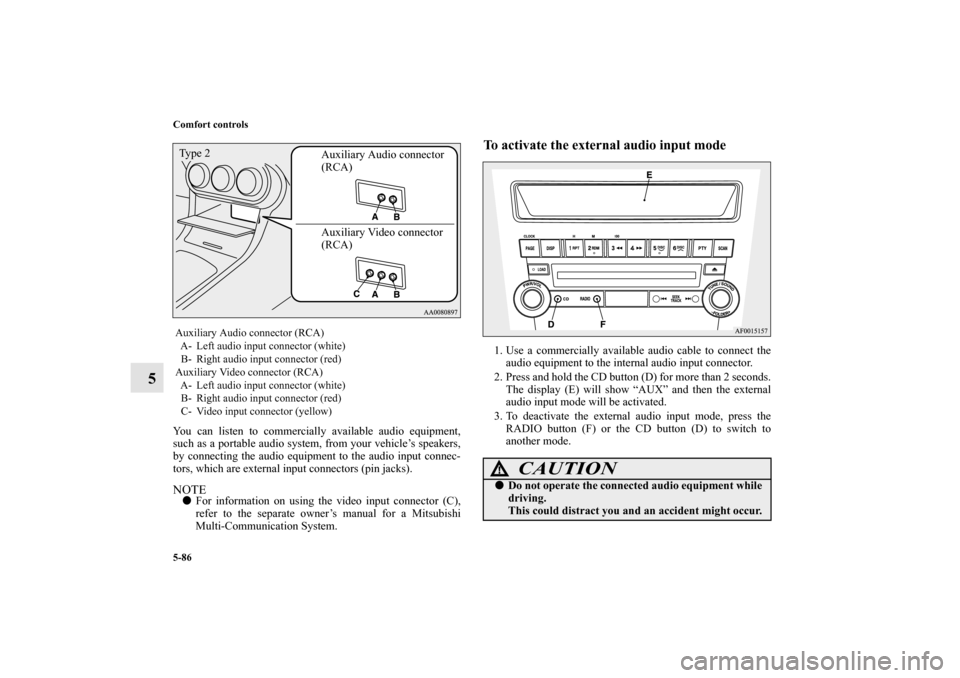

5-86 Comfort controls
5
You can listen to commercially available audio equipment,
such as a portable audio system, from your vehicle’s speakers,
by connecting the audio equipment to the audio input connec-
tors, which are external input connectors (pin jacks).NOTE

For information on using the video input connector (C),
refer to the separate owner’s manual for a Mitsubishi
Multi-Communication System.
To activate the external audio input mode1. Use a commercially available audio cable to connect the
audio equipment to the internal audio input connector.
2. Press and hold the CD button (D) for more than 2 seconds.
The display (E) will show “AUX” and then the external
audio input mode will be activated.
3. To deactivate the external audio input mode, press the
RADIO button (F) or the CD button (D) to switch to
another mode.
Auxiliary Audio connector (RCA)
A- Left audio input connector (white)
B- Right audio input connector (red)
Auxiliary Video connector (RCA)
A- Left audio input connector (white)
B- Right audio input connector (red)
C- Video input connector (yellow)
Auxiliary Audio connector
(RCA)
Auxiliary Video connector
(RCA) Ty p e 2
CAUTION
!

Do not operate the connected audio equipment while
driving.
This could distract you and an accident might occur.
BK0103001US.book 86 ページ ２００９年８月２０日　木曜日　午前１０時４５分

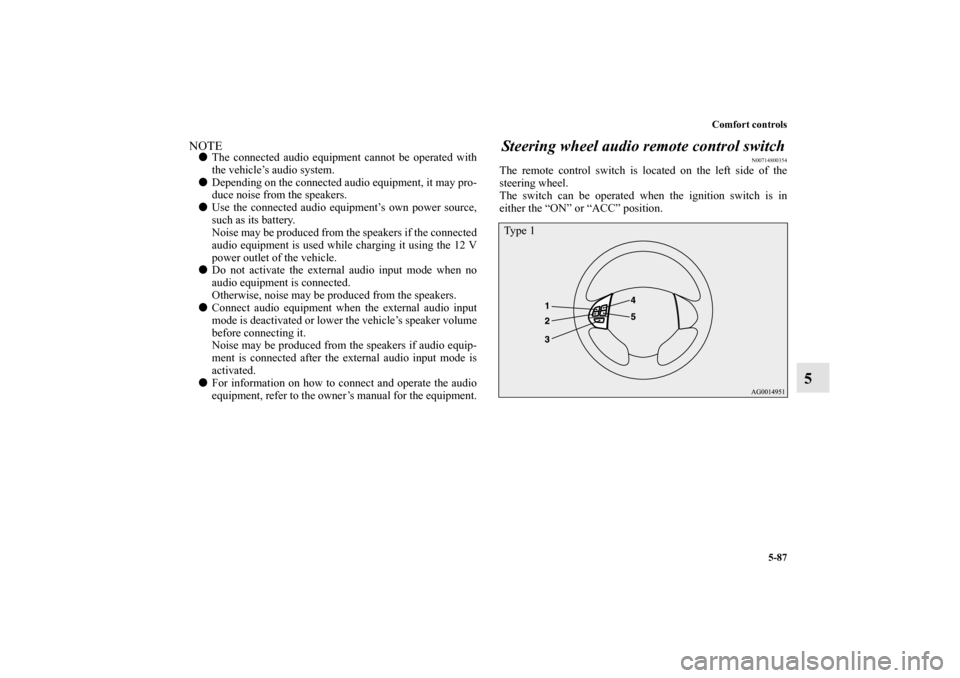

Comfort controls
5-87
5
NOTE

The connected audio equipment cannot be operated with
the vehicle’s audio system.


Depending on the connected audio equipment, it may pro-
duce noise from the speakers.


Use the connected audio equipment’s own power source,
such as its battery.
Noise may be produced from the speakers if the connected
audio equipment is used while charging it using the 12 V
power outlet of the vehicle.


Do not activate the external audio input mode when no
audio equipment is connected.
Otherwise, noise may be produced from the speakers.


Connect audio equipment when the external audio input
mode is deactivated or lower the vehicle’s speaker volume
before connecting it.
Noise may be produced from the speakers if audio equip-
ment is connected after the external audio input mode is
activated.


For information on how to connect and operate the audio
equipment, refer to the owner’s manual for the equipment.
Steering wheel audio remote control switch
N00714800354
The remote control switch is located on the left side of the
steering wheel.
The switch can be operated when the ignition switch is in
either the “ON” or “ACC” position.Type 1
BK0103001US.book 87 ページ ２００９年８月２０日　木曜日　午前１０時４５分

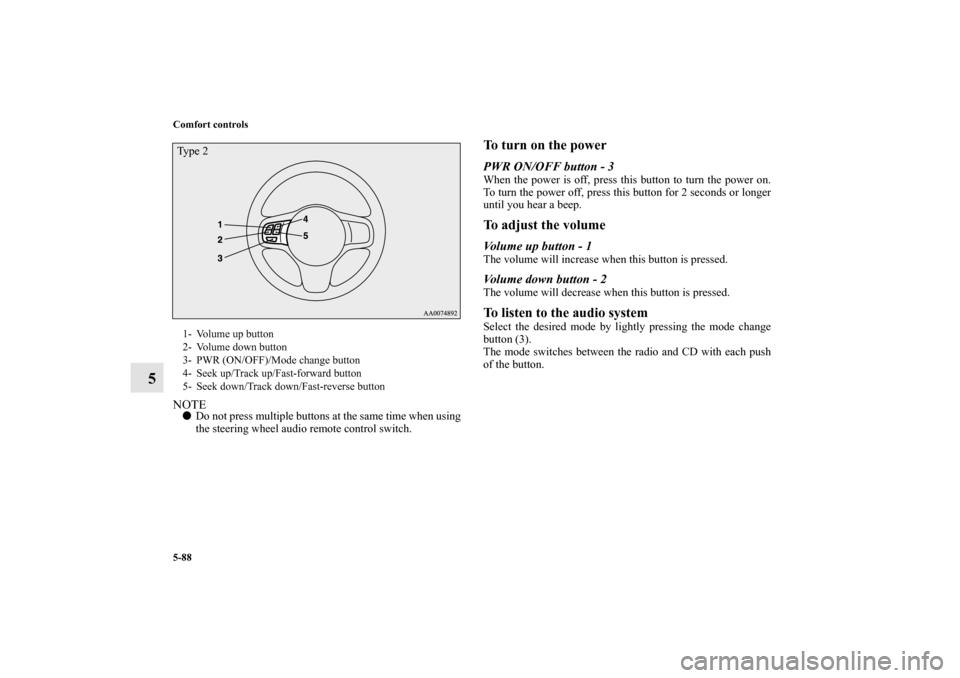

5-88 Comfort controls
5
NOTE

Do not press multiple buttons at the same time when using
the steering wheel audio remote control switch.
To turn on the powerPWR ON/OFF button - 3When the power is off, press this button to turn the power on.
To turn the power off, press this button for 2 seconds or longer
until you hear a beep.To adjust the volumeVolume up button - 1The volume will increase when this button is pressed.Volume down button - 2The volume will decrease when this button is pressed.To listen to the audio systemSelect the desired mode by lightly pressing the mode change
button (3).
The mode switches between the radio and CD with each push
of the button.
1- Volume up button
2- Volume down button
3- PWR (ON/OFF)/Mode change button
4- Seek up/Track up/Fast-forward button
5- Seek down/Track down/Fast-reverse buttonTy p e 2BK0103001US.book 88 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Comfort controls
5-89
5

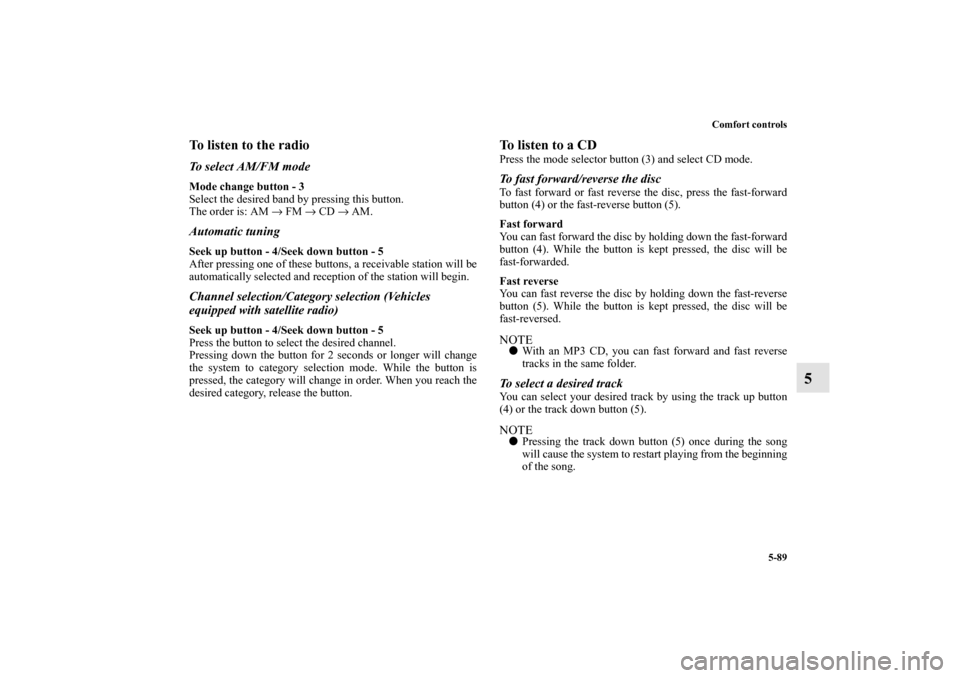

To listen to the radioTo select AM/FM modeMode change button - 3
Select the desired band by pressing this button.
The order is: AM → FM → CD → AM.Automatic tuningSeek up button - 4/Seek down button - 5
After pressing one of these buttons, a receivable station will be
automatically selected and reception of the station will begin.Channel selection/Category selection (Vehicles
equipped with satellite radio)Seek up button - 4/Seek down button - 5
Press the button to select the desired channel.
Pressing down the button for 2 seconds or longer will change
the system to category selection mode. While the button is
pressed, the category will change in order. When you reach the
desired category, release the button.
To listen to a CDPress the mode selector button (3) and select CD mode.To fast forward/reverse the discTo fast forward or fast reverse the disc, press the fast-forward
button (4) or the fast-reverse button (5).
Fast forward
You can fast forward the disc by holding down the fast-forward
button (4). While the button is kept pressed, the disc will be
fast-forwarded.
Fast reverse
You can fast reverse the disc by holding down the fast-reverse
button (5). While the button is kept pressed, the disc will be
fast-reversed.NOTE

With an MP3 CD, you can fast forward and fast reverse
tracks in the same folder.
To select a desired trackYou can select your desired track by using the track up button
(4) or the track down button (5).NOTE

Pressing the track down button (5) once during the song
will cause the system to restart playing from the beginning
of the song.
BK0103001US.book 89 ページ ２００９年８月２０日　木曜日　午前１０時４５分

5-90 Comfort controls

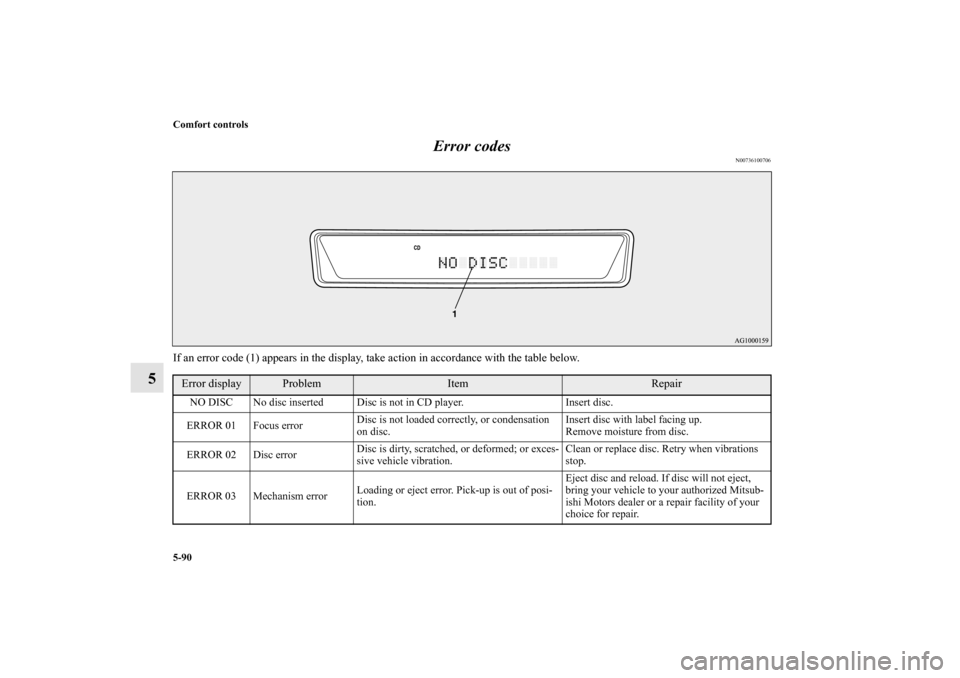

5Error codes
N00736100706
If an error code (1) appears in the display, take action in accordance with the table below.Error display
Problem
Item
Repair
NO DISC No disc inserted Disc is not in CD player. Insert disc.
ERROR 01 Focus errorDisc is not loaded correctly, or condensation
on disc.Insert disc with label facing up.
Remove moisture from disc.
ERROR 02 Disc errorDisc is dirty, scratched, or deformed; or exces-
sive vehicle vibration.Clean or replace disc. Retry when vibrations
stop.
ERROR 03 Mechanism errorLoading or eject error. Pick-up is out of posi-
tion.Eject disc and reload. If disc will not eject,
bring your vehicle to your authorized Mitsub-
ishi Motors dealer or a repair facility of your
choice for repair.
BK0103001US.book 90 ページ ２００９年８月２０日　木曜日　午前１０時４５分

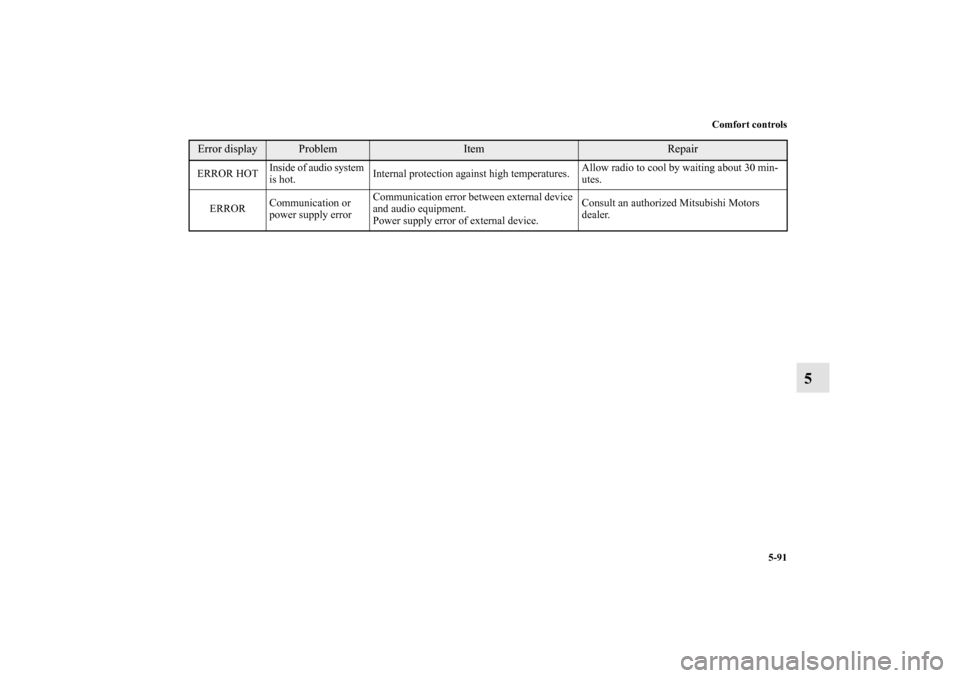

Comfort controls
5-91
5
ERROR HOTInside of audio system
is hot.Internal protection against high temperatures.Allow radio to cool by waiting about 30 min-
utes.
ERRORCommunication or
power supply errorCommunication error between external device
and audio equipment.
Power supply error of external device.Consult an authorized Mitsubishi Motors
dealer.Error display
Problem
Item
Repair
BK0103001US.book 91 ページ ２００９年８月２０日　木曜日　午前１０時４５分

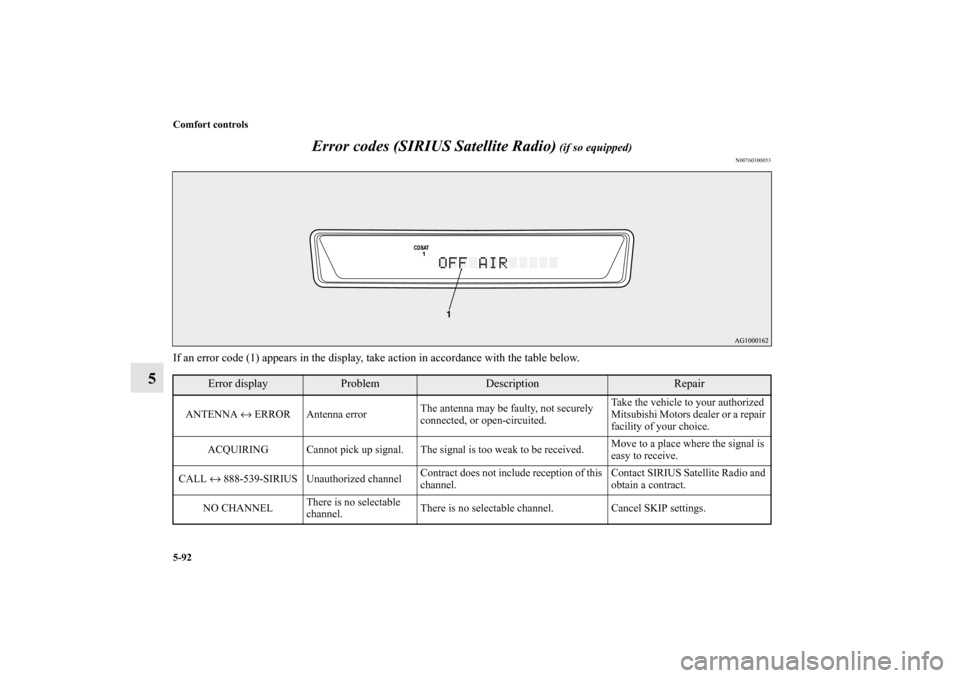

5-92 Comfort controls
5Error codes (SIRIUS Satellite Radio)
(if so equipped)
N00760300053
If an error code (1) appears in the display, take action in accordance with the table below.
Error display
Problem
Description
Repair
ANTENNA ↔ ERROR Antenna errorThe antenna may be faulty, not securely
connected, or open-circuited.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
ACQUIRING Cannot pick up signal. The signal is too weak to be received.Move to a place where the signal is
easy to receive.
CALL ↔ 888-539-SIRIUS Unauthorized channelContract does not include reception of this
channel.Contact SIRIUS Satellite Radio and
obtain a contract.
NO CHANNELThere is no selectable
channel.There is no selectable channel. Cancel SKIP settings.
BK0103001US.book 92 ページ ２００９年８月２０日　木曜日　午前１０時４５分

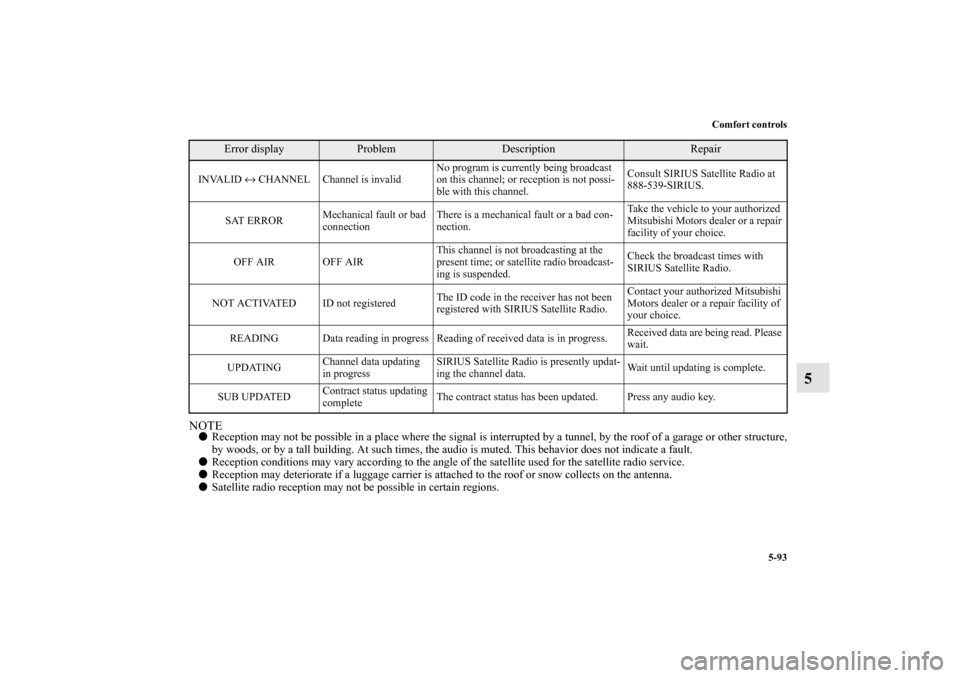

Comfort controls
5-93
5
NOTE

Reception may not be possible in a place where the signal is interrupted by a tunnel, by the roof of a garage or other structure,
by woods, or by a tall building. At such times, the audio is muted. This behavior does not indicate a fault.


Reception conditions may vary according to the angle of the satellite used for the satellite radio service.


Reception may deteriorate if a luggage carrier is attached to the roof or snow collects on the antenna.


Satellite radio reception may not be possible in certain regions.
INVALID ↔ CHANNEL Channel is invalidNo program is currently being broadcast
on this channel; or reception is not possi-
ble with this channel.Consult SIRIUS Satellite Radio at
888-539-SIRIUS.
SAT ERRORMechanical fault or bad
connectionThere is a mechanical fault or a bad con-
nection.Take the vehicle to your authorized
Mitsubishi Motors dealer or a repair
facility of your choice.
OFF AIR OFF AIRThis channel is not broadcasting at the
present time; or satellite radio broadcast-
ing is suspended.Check the broadcast times with
SIRIUS Satellite Radio.
NOT ACTIVATED ID not registeredThe ID code in the receiver has not been
registered with SIRIUS Satellite Radio.Contact your authorized Mitsubishi
Motors dealer or a repair facility of
your choice.
READING Data reading in progress Reading of received data is in progress.Received data are being read. Please
wait.
UPDATINGChannel data updating
in progressSIRIUS Satellite Radio is presently updat-
ing the channel data.Wait until updating is complete.
SUB UPDATEDContract status updating
completeThe contract status has been updated. Press any audio key.
Error display
Problem
Description
Repair
