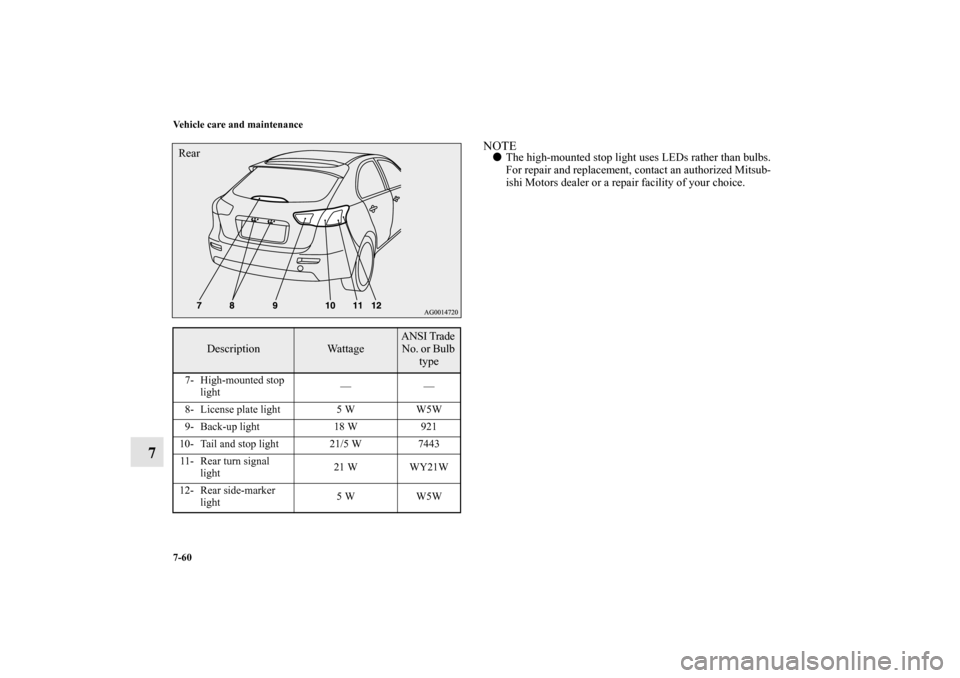

7-60 Vehicle care and maintenance
7
NOTE

The high-mounted stop light uses LEDs rather than bulbs.
For repair and replacement, contact an authorized Mitsub-
ishi Motors dealer or a repair facility of your choice.
Description
Wattage
ANSI Trade
No. or Bulb
type
7- High-mounted stop
light——
8- License plate light 5 W W5W
9- Back-up light 18 W 921
10- Tail and stop light 21/5 W 7443
11- Rear turn signal
light21 W WY21W
12- Rear side-marker
light5 W W5WRearBK0103001US.book 60 ページ ２００９年８月２０日　木曜日　午前１０時４５分

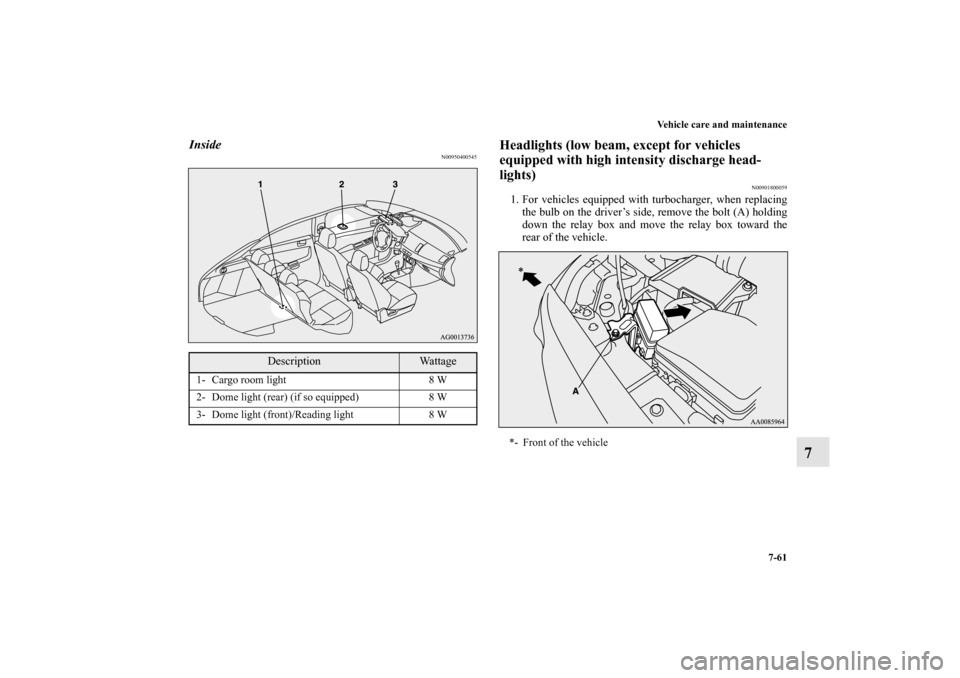

Vehicle care and maintenance
7-61
7
Inside
N00950400545
Headlights (low beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901800059
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.
Description
Wattage
1- Cargo room light 8 W
2- Dome light (rear) (if so equipped) 8 W
3- Dome light (front)/Reading light 8 W
*- Front of the vehicle
BK0103001US.book 61 ページ ２００９年８月２０日　木曜日　午前１０時４５分

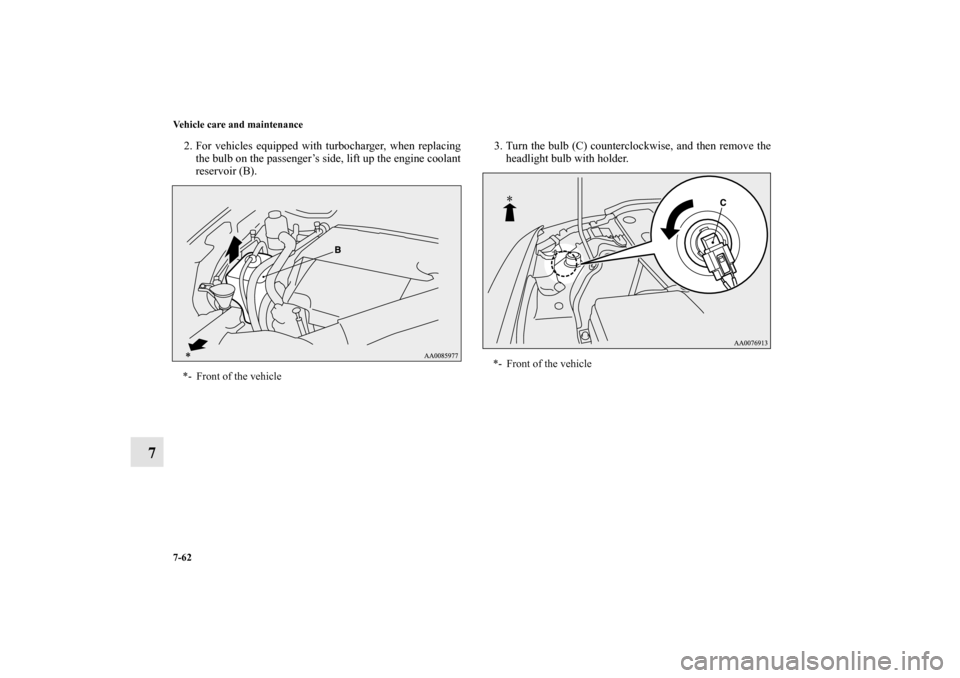

7-62 Vehicle care and maintenance
7
2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).3. Turn the bulb (C) counterclockwise, and then remove the
headlight bulb with holder.*- Front of the vehicle
*- Front of the vehicle
BK0103001US.book 62 ページ ２００９年８月２０日　木曜日　午前１０時４５分

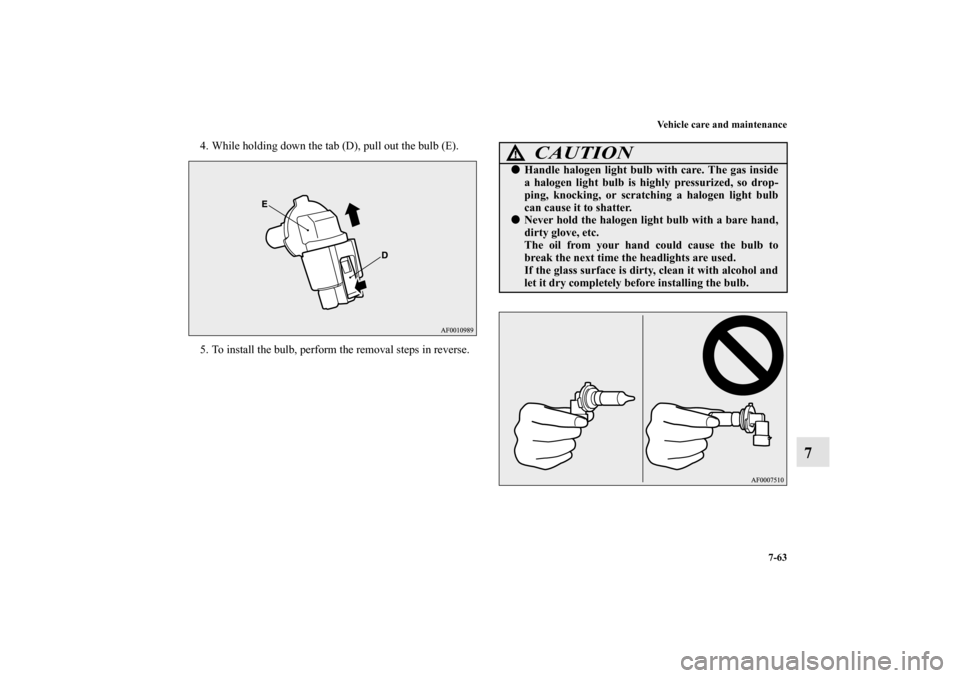

Vehicle care and maintenance
7-63
7
4. While holding down the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.
CAUTION
!

Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0103001US.book 63 ページ ２００９年８月２０日　木曜日　午前１０時４５分

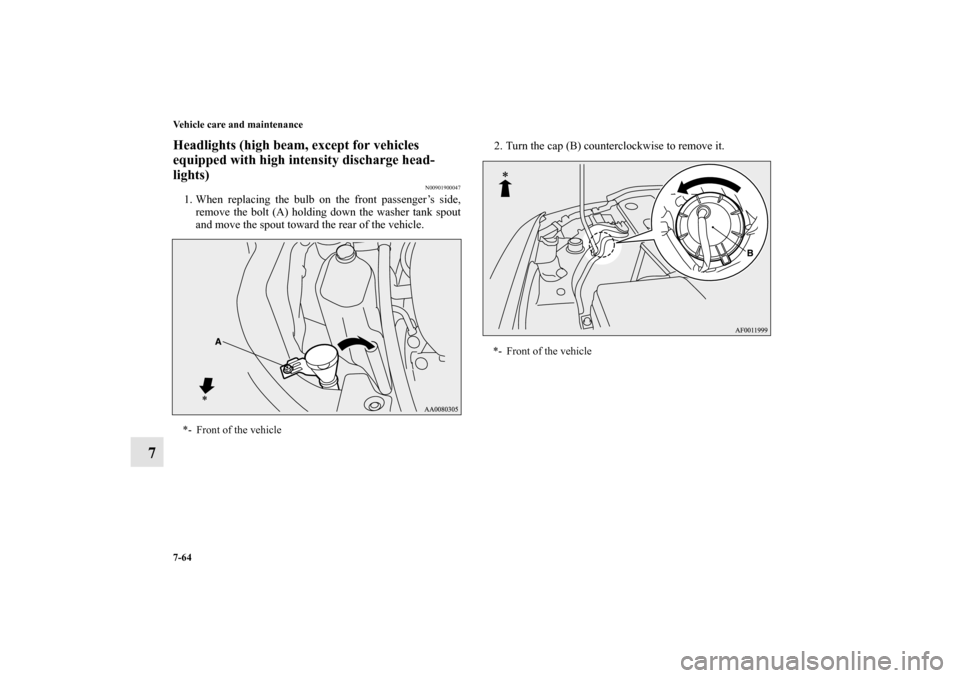

7-64 Vehicle care and maintenance
7
Headlights (high beam, except for vehicles
equipped with high intensity discharge head-
lights)
N00901900047
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.2. Turn the cap (B) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0103001US.book 64 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-65
7

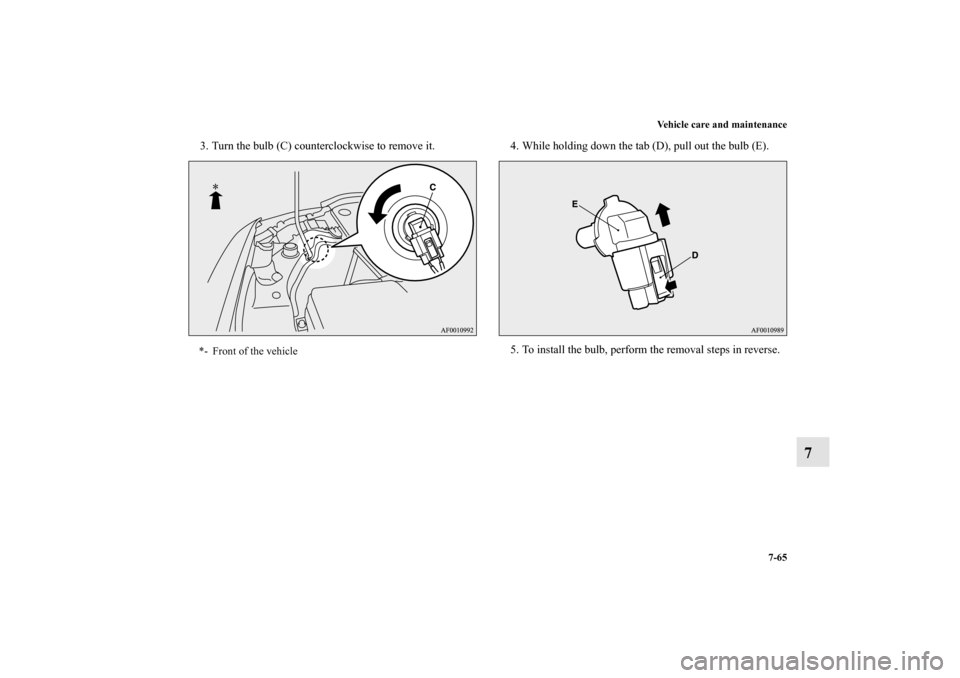

3. Turn the bulb (C) counterclockwise to remove it. 4. While holding down the tab (D), pull out the bulb (E).
5. To install the bulb, perform the removal steps in reverse.*- Front of the vehicle
BK0103001US.book 65 ページ ２００９年８月２０日　木曜日　午前１０時４５分

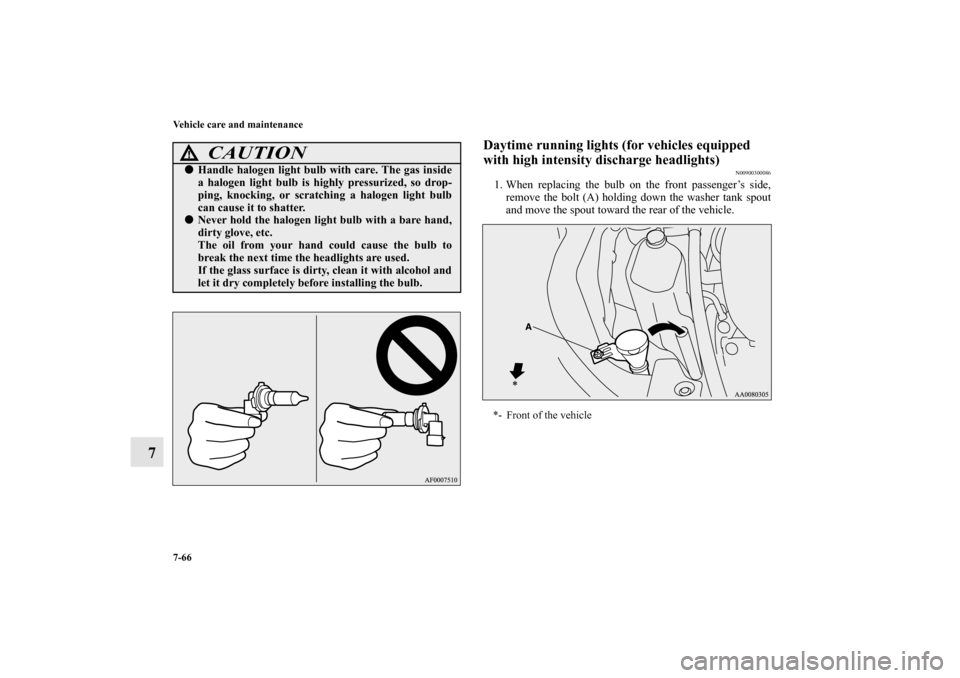

7-66 Vehicle care and maintenance
7
Daytime running lights (for vehicles equipped
with high intensity discharge headlights)
N00900300086
1. When replacing the bulb on the front passenger’s side,
remove the bolt (A) holding down the washer tank spout
and move the spout toward the rear of the vehicle.
CAUTION
!

Handle halogen light bulb with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.


Never hold the halogen light bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the headlights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
*- Front of the vehicle
BK0103001US.book 66 ページ ２００９年８月２０日　木曜日　午前１０時４５分

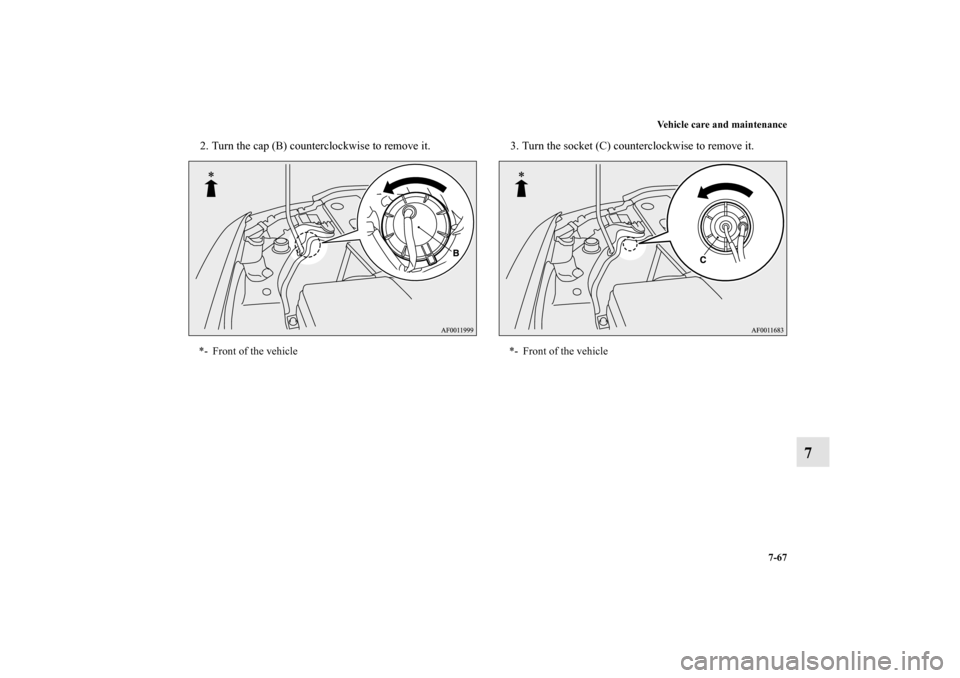

Vehicle care and maintenance
7-67
7
2. Turn the cap (B) counterclockwise to remove it. 3. Turn the socket (C) counterclockwise to remove it.*- Front of the vehicle
*- Front of the vehicle
BK0103001US.book 67 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-68 Vehicle care and maintenance
7

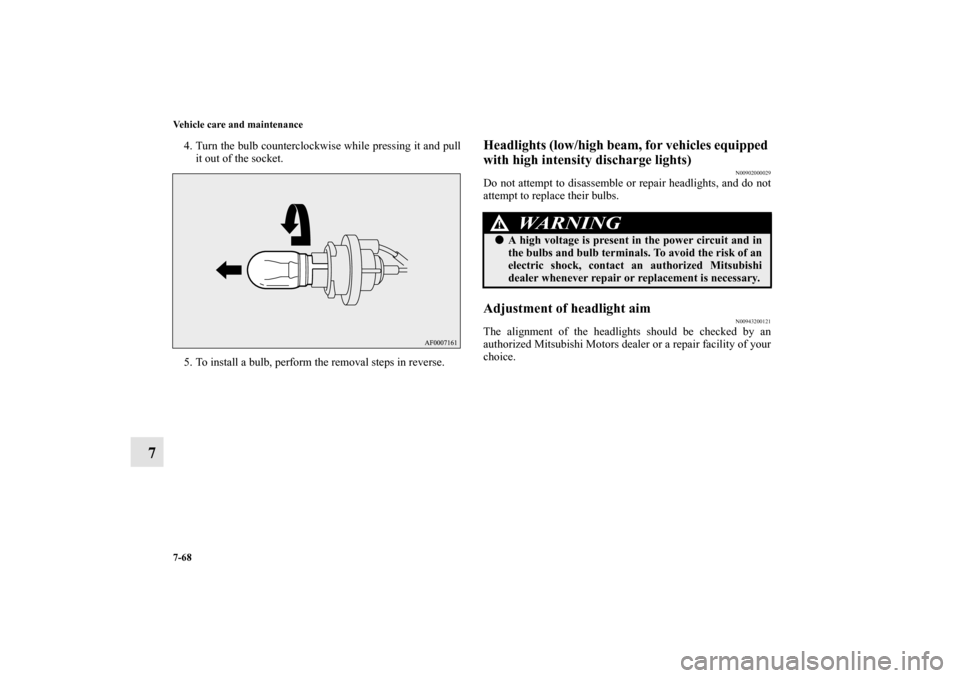

4. Turn the bulb counterclockwise while pressing it and pull
it out of the socket.
5. To install a bulb, perform the removal steps in reverse.
Headlights (low/high beam, for vehicles equipped
with high intensity discharge lights)
N00902000029
Do not attempt to disassemble or repair headlights, and do not
attempt to replace their bulbs.Adjustment of headlight aim
N00943200121
The alignment of the headlights should be checked by an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
WA R N I N G
!

A high voltage is present in the power circuit and in
the bulbs and bulb terminals. To avoid the risk of an
electric shock, contact an authorized Mitsubishi
dealer whenever repair or replacement is necessary.
BK0103001US.book 68 ページ ２００９年８月２０日　木曜日　午前１０時４５分

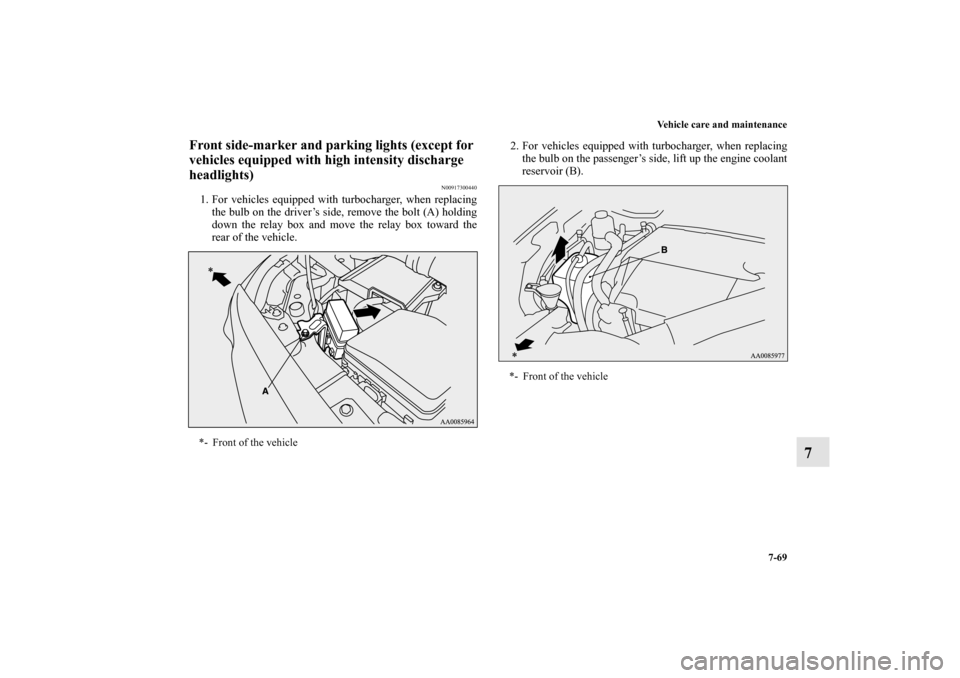

Vehicle care and maintenance
7-69
7
Front side-marker and parking lights (except for
vehicles equipped with high intensity discharge
headlights)
N00917300440
1. For vehicles equipped with turbocharger, when replacing
the bulb on the driver’s side, remove the bolt (A) holding
down the relay box and move the relay box toward the
rear of the vehicle.2. For vehicles equipped with turbocharger, when replacing
the bulb on the passenger’s side, lift up the engine coolant
reservoir (B).*- Front of the vehicle
*- Front of the vehicle
