MITSUBISHI LANCER SPORTBACK 2010 8.G Owners Manual

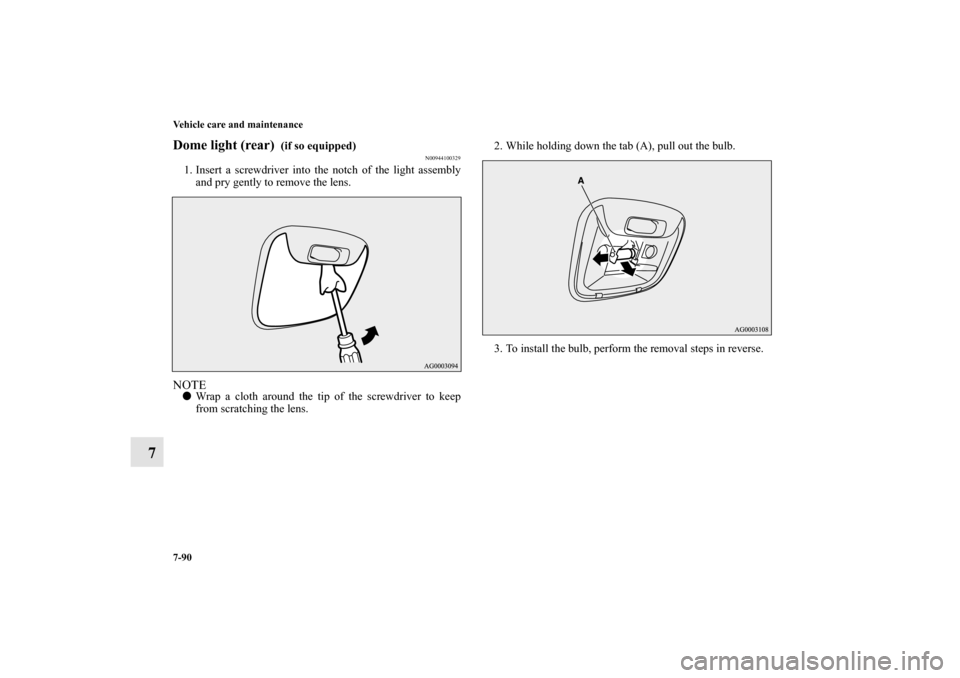

7-90 Vehicle care and maintenance
7
Dome light (rear)
(if so equipped)
N00944100329
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
BK0103001US.book 90 ページ ２００９年８月２０日　木曜日　午前１０時４５分

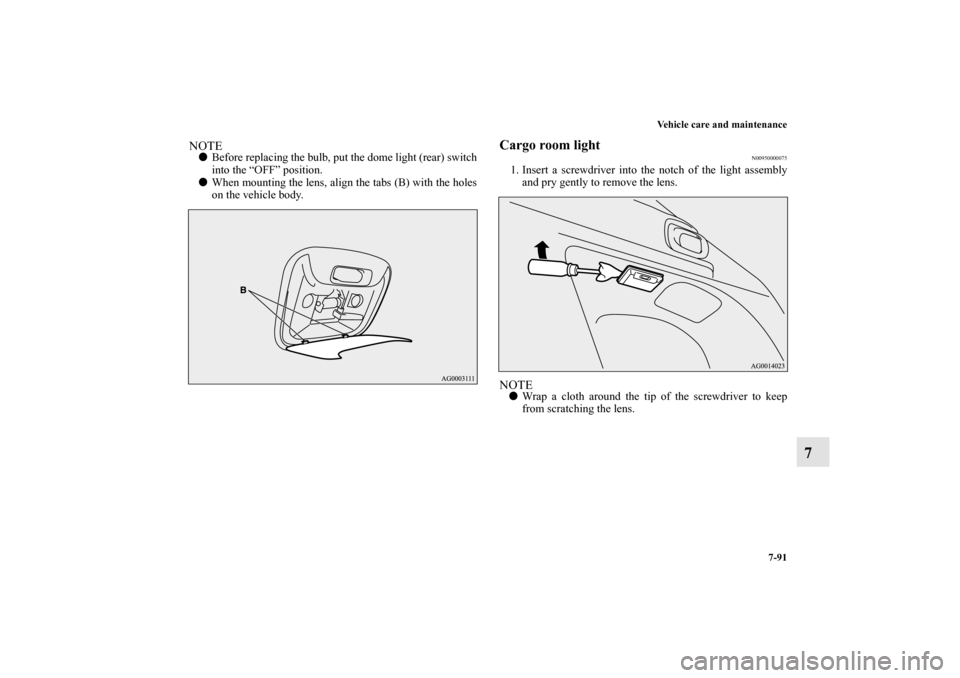

Vehicle care and maintenance
7-91
7
NOTE

Before replacing the bulb, put the dome light (rear) switch
into the “OFF” position.


When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
Cargo room light
N00950000075
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE

Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0103001US.book 91 ページ ２００９年８月２０日　木曜日　午前１０時４５分

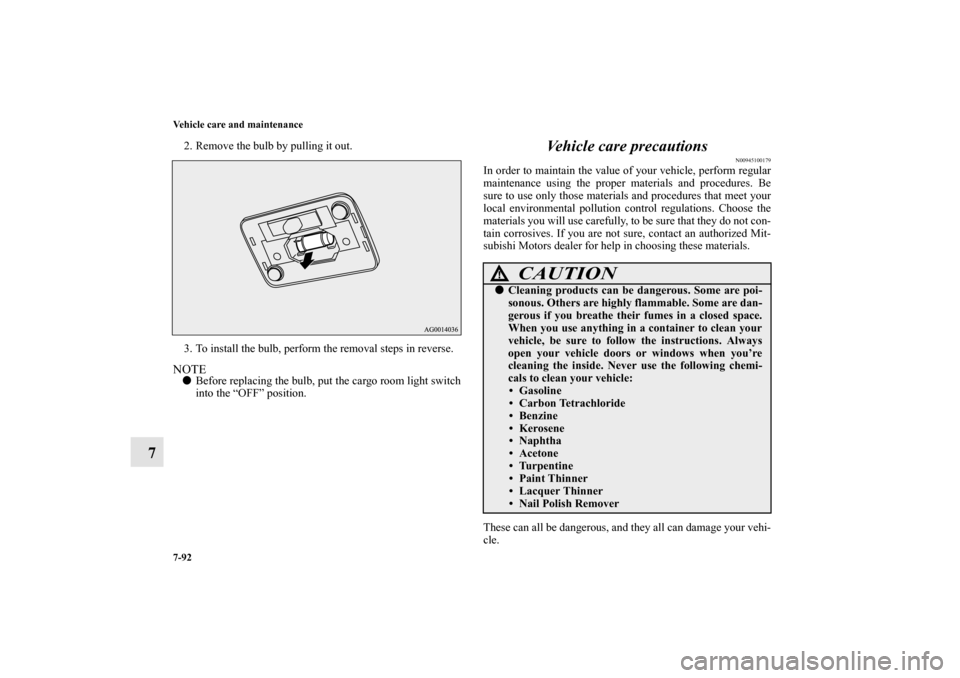

7-92 Vehicle care and maintenance
7
2. Remove the bulb by pulling it out.
3. To install the bulb, perform the removal steps in reverse.NOTE

Before replacing the bulb, put the cargo room light switch
into the “OFF” position.
Vehicle care precautions
N00945100179
In order to maintain the value of your vehicle, perform regular
maintenance using the proper materials and procedures. Be
sure to use only those materials and procedures that meet your
local environmental pollution control regulations. Choose the
materials you will use carefully, to be sure that they do not con-
tain corrosives. If you are not sure, contact an authorized Mit-
subishi Motors dealer for help in choosing these materials.
These can all be dangerous, and they all can damage your vehi-
cle.
CAUTION
!

Cleaning products can be dangerous. Some are poi-
sonous. Others are highly flammable. Some are dan-
gerous if you breathe their fumes in a closed space.
When you use anything in a container to clean your
vehicle, be sure to follow the instructions. Always
open your vehicle doors or windows when you’re
cleaning the inside. Never use the following chemi-
cals to clean your vehicle: Gasoline
 Carbon Tetrachloride
 Benzine
 Kerosene
 Naphtha
 Acetone
 Turpentine
 Paint Thinner
 Lacquer Thinner
 Nail Polish Remover
BK0103001US.book 92 ページ ２００９年８月２０日　木曜日　午前１０時４５分

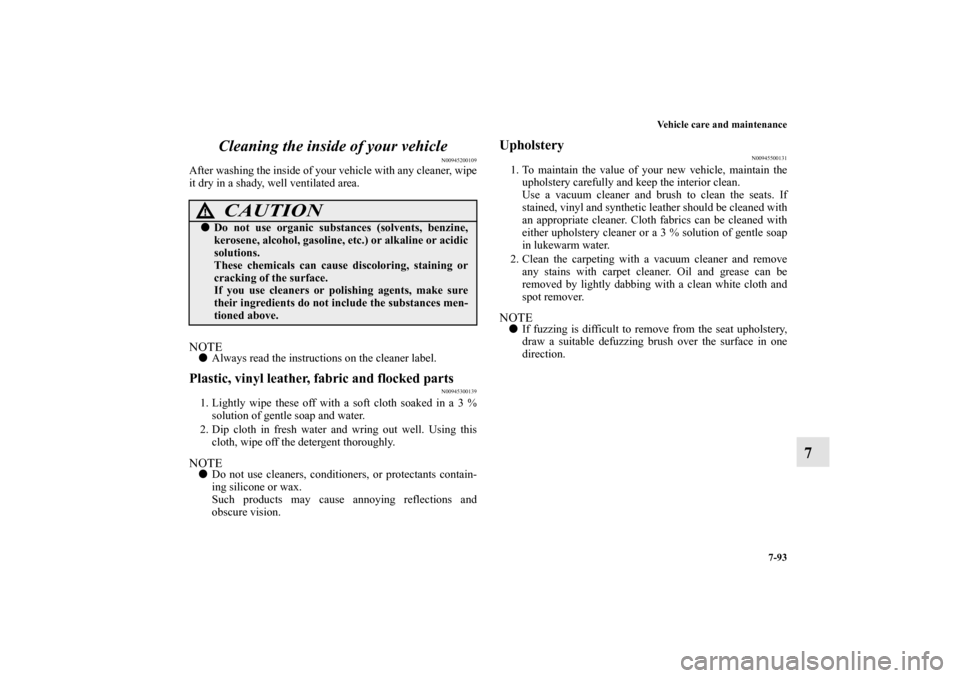

Vehicle care and maintenance
7-93
7 Cleaning the inside of your vehicle
N00945200109
After washing the inside of your vehicle with any cleaner, wipe
it dry in a shady, well ventilated area. NOTE

Always read the instructions on the cleaner label.
Plastic, vinyl leather, fabric and flocked parts
N00945300139
1. Lightly wipe these off with a soft cloth soaked in a 3 %
solution of gentle soap and water.
2. Dip cloth in fresh water and wring out well. Using this
cloth, wipe off the detergent thoroughly.NOTE

Do not use cleaners, conditioners, or protectants contain-
ing silicone or wax.
Such products may cause annoying reflections and
obscure vision.
Upholstery
N00945500131
1. To maintain the value of your new vehicle, maintain the
upholstery carefully and keep the interior clean.
Use a vacuum cleaner and brush to clean the seats. If
stained, vinyl and synthetic leather should be cleaned with
an appropriate cleaner. Cloth fabrics can be cleaned with
either upholstery cleaner or a 3 % solution of gentle soap
in lukewarm water.
2. Clean the carpeting with a vacuum cleaner and remove
any stains with carpet cleaner. Oil and grease can be
removed by lightly dabbing with a clean white cloth and
spot remover. NOTE

If fuzzing is difficult to remove from the seat upholstery,
draw a suitable defuzzing brush over the surface in one
direction.
CAUTION
!

Do not use organic substances (solvents, benzine,
kerosene, alcohol, gasoline, etc.) or alkaline or acidic
solutions.
These chemicals can cause discoloring, staining or
cracking of the surface.
If you use cleaners or polishing agents, make sure
their ingredients do not include the substances men-
tioned above.
BK0103001US.book 93 ページ ２００９年８月２０日　木曜日　午前１０時４５分

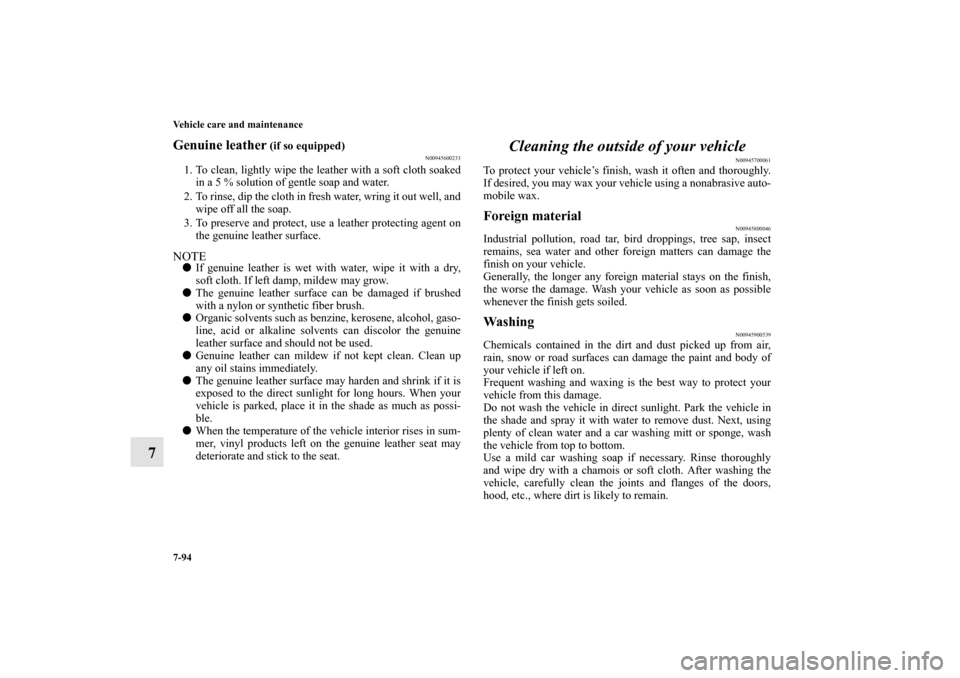

7-94 Vehicle care and maintenance
7
Genuine leather
(if so equipped)
N00945600233
1. To clean, lightly wipe the leather with a soft cloth soaked
in a 5 % solution of gentle soap and water.
2. To rinse, dip the cloth in fresh water, wring it out well, and
wipe off all the soap.
3. To preserve and protect, use a leather protecting agent on
the genuine leather surface. NOTE

If genuine leather is wet with water, wipe it with a dry,
soft cloth. If left damp, mildew may grow.


The genuine leather surface can be damaged if brushed
with a nylon or synthetic fiber brush.


Organic solvents such as benzine, kerosene, alcohol, gaso-
line, acid or alkaline solvents can discolor the genuine
leather surface and should not be used.


Genuine leather can mildew if not kept clean. Clean up
any oil stains immediately.


The genuine leather surface may harden and shrink if it is
exposed to the direct sunlight for long hours. When your
vehicle is parked, place it in the shade as much as possi-
ble.


When the temperature of the vehicle interior rises in sum-
mer, vinyl products left on the genuine leather seat may
deteriorate and stick to the seat.
Cleaning the outside of your vehicle
N00945700061
To protect your vehicle’s finish, wash it often and thoroughly.
If desired, you may wax your vehicle using a nonabrasive auto-
mobile wax. Foreign material
N00945800046
Industrial pollution, road tar, bird droppings, tree sap, insect
remains, sea water and other foreign matters can damage the
finish on your vehicle.
Generally, the longer any foreign material stays on the finish,
the worse the damage. Wash your vehicle as soon as possible
whenever the finish gets soiled.Wa s h i n g
N00945900539
Chemicals contained in the dirt and dust picked up from air,
rain, snow or road surfaces can damage the paint and body of
your vehicle if left on.
Frequent washing and waxing is the best way to protect your
vehicle from this damage.
Do not wash the vehicle in direct sunlight. Park the vehicle in
the shade and spray it with water to remove dust. Next, using
plenty of clean water and a car washing mitt or sponge, wash
the vehicle from top to bottom.
Use a mild car washing soap if necessary. Rinse thoroughly
and wipe dry with a chamois or soft cloth. After washing the
vehicle, carefully clean the joints and flanges of the doors,
hood, etc., where dirt is likely to remain.
BK0103001US.book 94 ページ ２００９年８月２０日　木曜日　午前１０時４５分

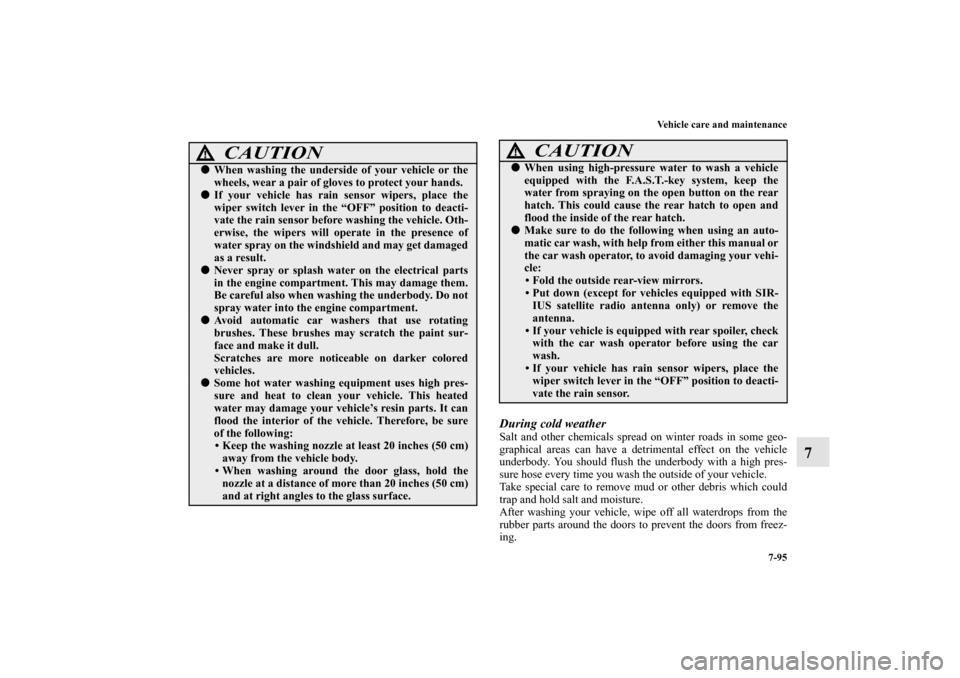

Vehicle care and maintenance
7-95
7
During cold weather Salt and other chemicals spread on winter roads in some geo-
graphical areas can have a detrimental effect on the vehicle
underbody. You should flush the underbody with a high pres-
sure hose every time you wash the outside of your vehicle.
Take special care to remove mud or other debris which could
trap and hold salt and moisture.
After washing your vehicle, wipe off all waterdrops from the
rubber parts around the doors to prevent the doors from freez-
ing.
CAUTION
!

When washing the underside of your vehicle or the
wheels, wear a pair of gloves to protect your hands.


If your vehicle has rain sensor wipers, place the
wiper switch lever in the “OFF” position to deacti-
vate the rain sensor before washing the vehicle. Oth-
erwise, the wipers will operate in the presence of
water spray on the windshield and may get damaged
as a result.


Never spray or splash water on the electrical parts
in the engine compartment. This may damage them.
Be careful also when washing the underbody. Do not
spray water into the engine compartment.


Avoid automatic car washers that use rotating
brushes. These brushes may scratch the paint sur-
face and make it dull.
Scratches are more noticeable on darker colored
vehicles.


Some hot water washing equipment uses high pres-
sure and heat to clean your vehicle. This heated
water may damage your vehicle’s resin parts. It can
flood the interior of the vehicle. Therefore, be sure
of the following: Keep the washing nozzle at least 20 inches (50 cm)
away from the vehicle body.
 When washing around the door glass, hold the
nozzle at a distance of more than 20 inches (50 cm)
and at right angles to the glass surface.


When using high-pressure water to wash a vehicle
equipped with the F.A.S.T.-key system, keep the
water from spraying on the open button on the rear
hatch. This could cause the rear hatch to open and
flood the inside of the rear hatch.


Make sure to do the following when using an auto-
matic car wash, with help from either this manual or
the car wash operator, to avoid damaging your vehi-
cle: Fold the outside rear-view mirrors.
 Put down (except for vehicles equipped with SIR-
IUS satellite radio antenna only) or remove the
antenna.
 If your vehicle is equipped with rear spoiler, check
with the car wash operator before using the car
wash.
 If your vehicle has rain sensor wipers, place the
wiper switch lever in the “OFF” position to deacti-
vate the rain sensor.CAUTION
!
BK0103001US.book 95 ページ ２００９年８月２０日　木曜日　午前１０時４５分

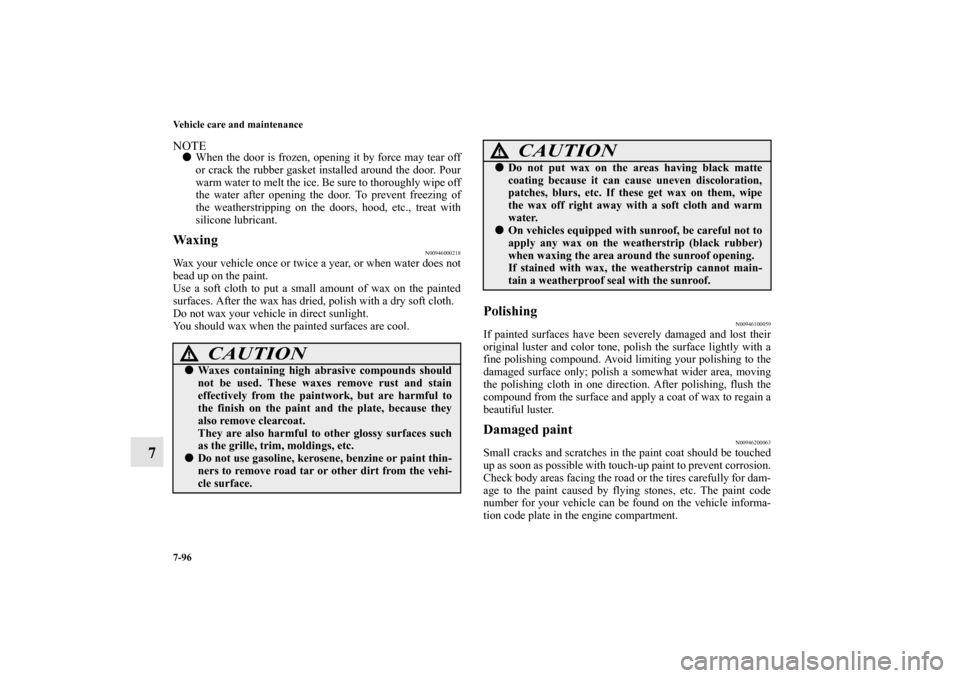

7-96 Vehicle care and maintenance
7
NOTE

When the door is frozen, opening it by force may tear off
or crack the rubber gasket installed around the door. Pour
warm water to melt the ice. Be sure to thoroughly wipe off
the water after opening the door. To prevent freezing of
the weatherstripping on the doors, hood, etc., treat with
silicone lubricant.
Waxing
N00946000218
Wax your vehicle once or twice a year, or when water does not
bead up on the paint.
Use a soft cloth to put a small amount of wax on the painted
surfaces. After the wax has dried, polish with a dry soft cloth.
Do not wax your vehicle in direct sunlight.
You should wax when the painted surfaces are cool.
Polishing
N00946100059
If painted surfaces have been severely damaged and lost their
original luster and color tone, polish the surface lightly with a
fine polishing compound. Avoid limiting your polishing to the
damaged surface only; polish a somewhat wider area, moving
the polishing cloth in one direction. After polishing, flush the
compound from the surface and apply a coat of wax to regain a
beautiful luster.Damaged paint
N00946200063
Small cracks and scratches in the paint coat should be touched
up as soon as possible with touch-up paint to prevent corrosion.
Check body areas facing the road or the tires carefully for dam-
age to the paint caused by flying stones, etc. The paint code
number for your vehicle can be found on the vehicle informa-
tion code plate in the engine compartment.
CAUTION
!

Waxes containing high abrasive compounds should
not be used. These waxes remove rust and stain
effectively from the paintwork, but are harmful to
the finish on the paint and the plate, because they
also remove clearcoat.
They are also harmful to other glossy surfaces such
as the grille, trim, moldings, etc.


Do not use gasoline, kerosene, benzine or paint thin-
ners to remove road tar or other dirt from the vehi-
cle surface.


Do not put wax on the areas having black matte
coating because it can cause uneven discoloration,
patches, blurs, etc. If these get wax on them, wipe
the wax off right away with a soft cloth and warm
water.


On vehicles equipped with sunroof, be careful not to
apply any wax on the weatherstrip (black rubber)
when waxing the area around the sunroof opening.
If stained with wax, the weatherstrip cannot main-
tain a weatherproof seal with the sunroof.CAUTION
!
BK0103001US.book 96 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Vehicle care and maintenance
7-97
7

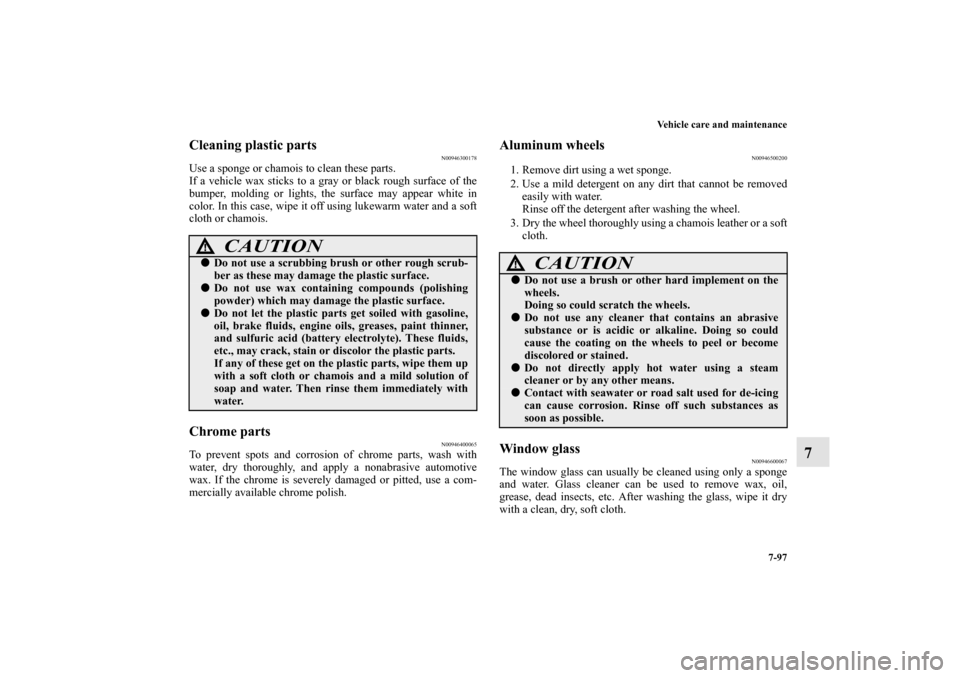

Cleaning plastic parts
N00946300178
Use a sponge or chamois to clean these parts.
If a vehicle wax sticks to a gray or black rough surface of the
bumper, molding or lights, the surface may appear white in
color. In this case, wipe it off using lukewarm water and a soft
cloth or chamois. Chrome parts
N00946400065
To prevent spots and corrosion of chrome parts, wash with
water, dry thoroughly, and apply a nonabrasive automotive
wax. If the chrome is severely damaged or pitted, use a com-
mercially available chrome polish.
Aluminum wheels
N00946500200
1. Remove dirt using a wet sponge.
2. Use a mild detergent on any dirt that cannot be removed
easily with water.
Rinse off the detergent after washing the wheel.
3. Dry the wheel thoroughly using a chamois leather or a soft
cloth.Window glass
N00946600067
The window glass can usually be cleaned using only a sponge
and water. Glass cleaner can be used to remove wax, oil,
grease, dead insects, etc. After washing the glass, wipe it dry
with a clean, dry, soft cloth.
CAUTION
!

Do not use a scrubbing brush or other rough scrub-
ber as these may damage the plastic surface.


Do not use wax containing compounds (polishing
powder) which may damage the plastic surface.


Do not let the plastic parts get soiled with gasoline,
oil, brake fluids, engine oils, greases, paint thinner,
and sulfuric acid (battery electrolyte). These fluids,
etc., may crack, stain or discolor the plastic parts.
If any of these get on the plastic parts, wipe them up
with a soft cloth or chamois and a mild solution of
soap and water. Then rinse them immediately with
water.
CAUTION
!

Do not use a brush or other hard implement on the
wheels.
Doing so could scratch the wheels.


Do not use any cleaner that contains an abrasive
substance or is acidic or alkaline. Doing so could
cause the coating on the wheels to peel or become
discolored or stained.


Do not directly apply hot water using a steam
cleaner or by any other means.


Contact with seawater or road salt used for de-icing
can cause corrosion. Rinse off such substances as
soon as possible.
BK0103001US.book 97 ページ ２００９年８月２０日　木曜日　午前１０時４５分

7-98 Vehicle care and maintenance
7

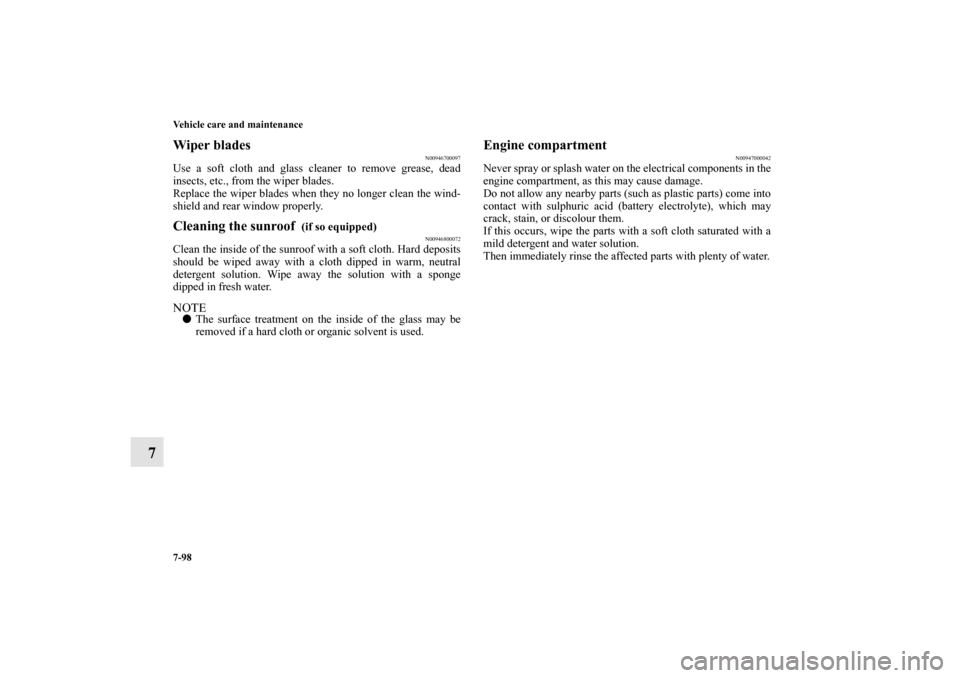

Wiper blades
N00946700097
Use a soft cloth and glass cleaner to remove grease, dead
insects, etc., from the wiper blades.
Replace the wiper blades when they no longer clean the wind-
shield and rear window properly.Cleaning the sunroof
(if so equipped)
N00946800072
Clean the inside of the sunroof with a soft cloth. Hard deposits
should be wiped away with a cloth dipped in warm, neutral
detergent solution. Wipe away the solution with a sponge
dipped in fresh water.NOTE

The surface treatment on the inside of the glass may be
removed if a hard cloth or organic solvent is used.
Engine compartment
N00947000042
Never spray or splash water on the electrical components in the
engine compartment, as this may cause damage.
Do not allow any nearby parts (such as plastic parts) come into
contact with sulphuric acid (battery electrolyte), which may
crack, stain, or discolour them.
If this occurs, wipe the parts with a soft cloth saturated with a
mild detergent and water solution.
Then immediately rinse the affected parts with plenty of water.
BK0103001US.book 98 ページ ２００９年８月２０日　木曜日　午前１０時４５分

BK0103001US.book 99 ページ ２００９年８月２０日　木曜日　午前１０時４５分
