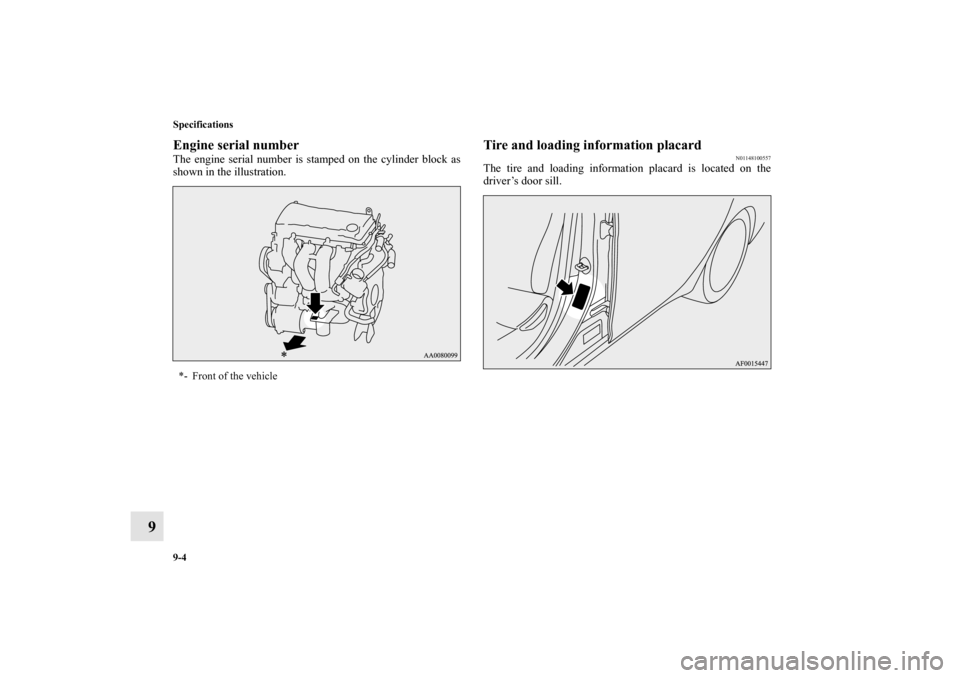

Engine serial numberThe engine serial number is stamped on the cylinder block as
shown in the illustration.
Tire and loading information placard
N01148100557
The tire and loading information placard is located on the
driver’s door sill.
*- Front of the vehicleBK0103001US.book 4 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Specifications
9-5
9
Ty p e 1

Ty p e 2

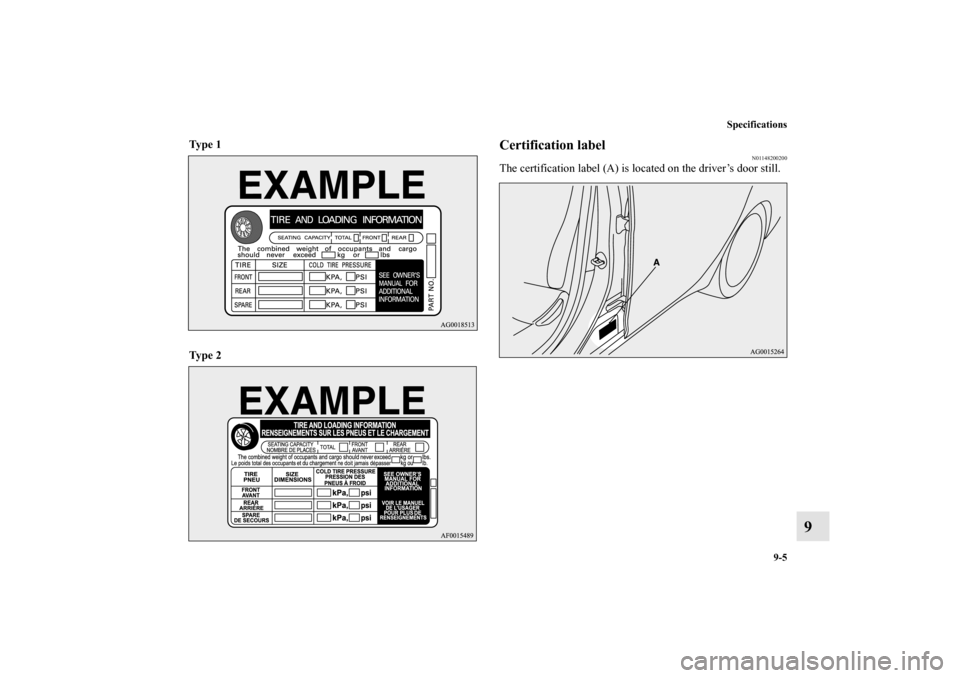

Certification label
N01148200200
The certification label (A) is located on the driver’s door still.
BK0103001US.book 5 ページ ２００９年８月２０日　木曜日　午前１０時４５分

9-6 Specifications

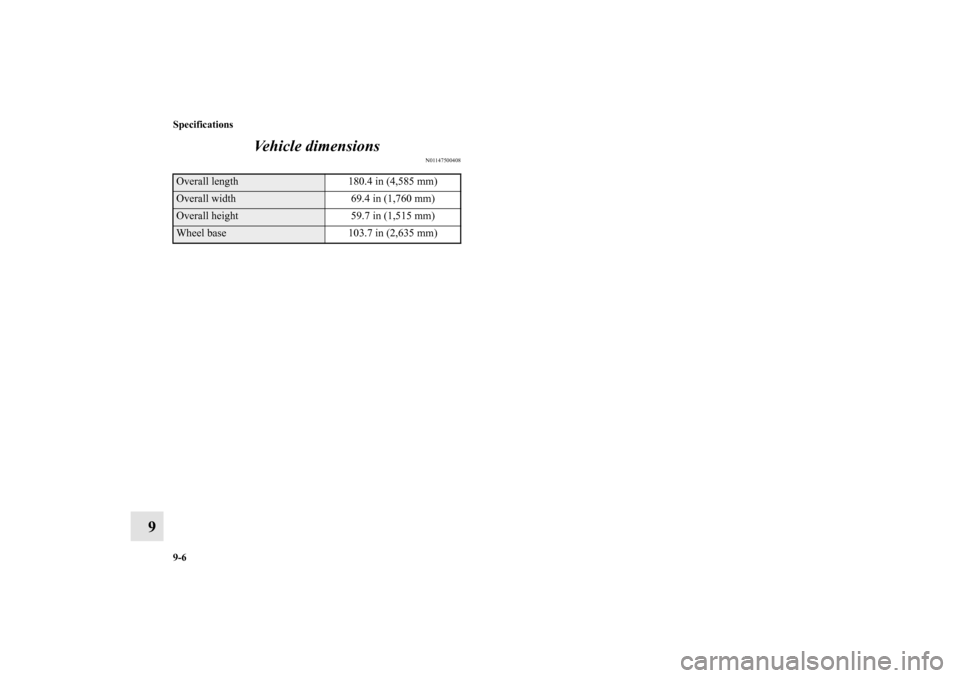

9Vehicle dimensions
N01147500408
Overall length 180.4 in (4,585 mm) Overall width 69.4 in (1,760 mm) Overall height 59.7 in (1,515 mm)Wheel base 103.7 in (2,635 mm) BK0103001US.book 6 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Specifications
9-7

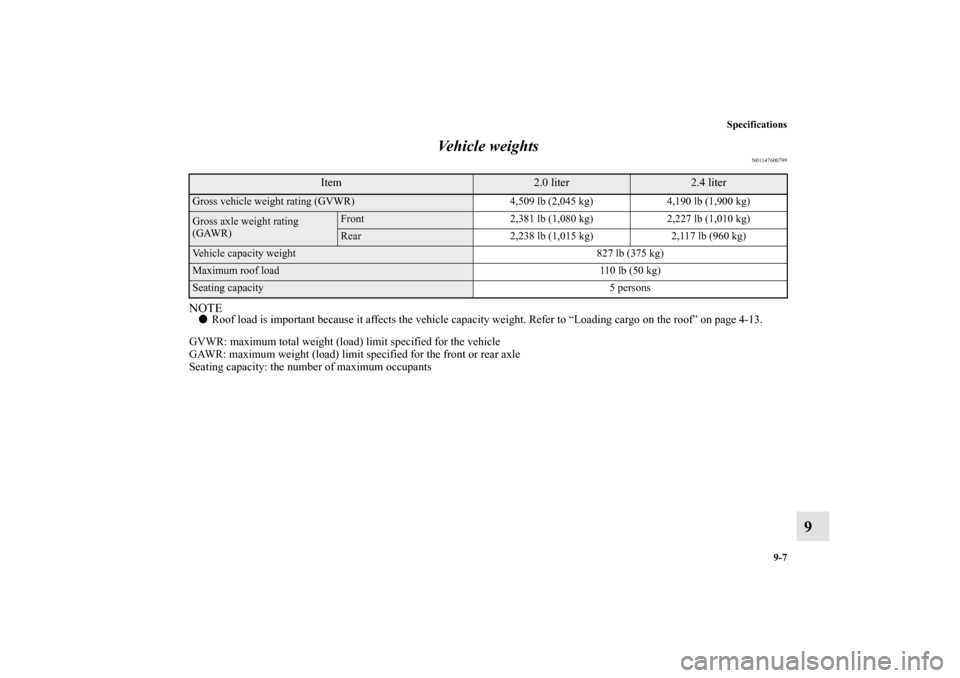

9 Vehicle weights
N01147600799
NOTE

Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-13.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
2.0 liter
2.4 liter
Gross vehicle weight rating (GVWR) 4,509 lb (2,045 kg) 4,190 lb (1,900 kg)Gross axle weight rating
(GAWR)
Front 2,381 lb (1,080 kg) 2,227 lb (1,010 kg)Rear 2,238 lb (1,015 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity5 persons
BK0103001US.book 7 ページ ２００９年８月２０日　木曜日　午前１０時４５分

9-8 Specifications
9Engine specifications
N01147700370
NOTE

At high altitude locations, the idle speed may be higher than the idle speed described in the vehicle emission control informa-
tion label. This is done in order to stabilize the idle speed when the power steering system and other systems operate. It does
not indicate a malfunction.
Item
2.0 liter
2.4 liter
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 9.0 10.5Thermostat valve opening temperature 170 °F (76.5 °C), 180 °F (82.0 °C) 180 °F (82.0 °C)Spark plugs
NGK ILKR7E6 FR5EIDENSO — K16PSR-B8
Spark plug gap .020 to .023 in (0.5 to 0.6 mm) .028 to .031 in (0.7 to 0.8 mm)Firing order 1-3-4-2Ignition timing, idle speed, mixture Refer to the “Vehicle emission control information label” inside panel of the engine hood.BK0103001US.book 8 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Specifications
9-9

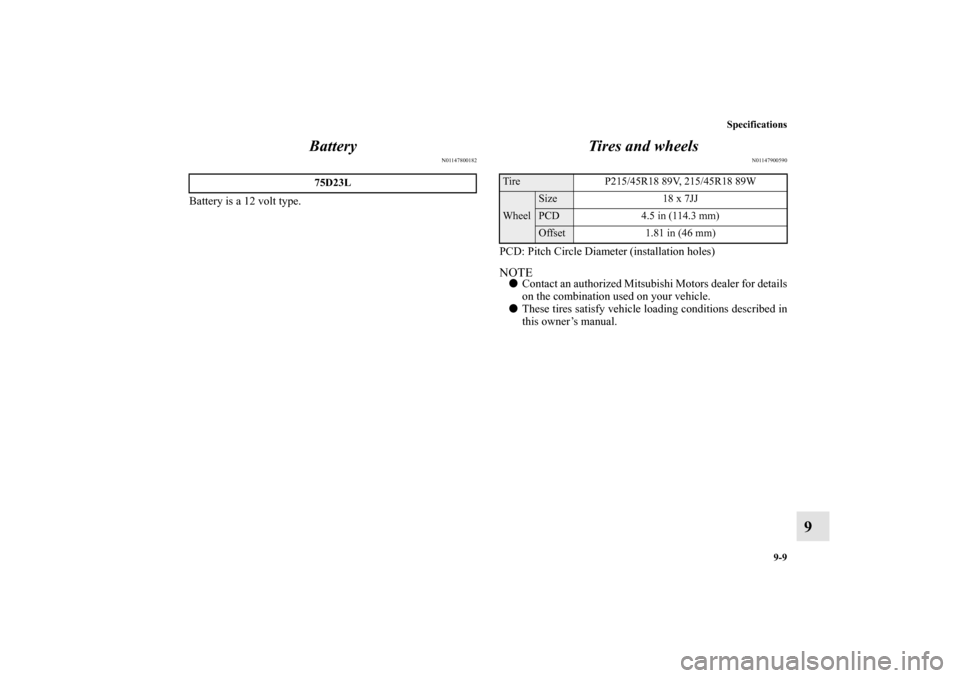

9 Battery
N01147800182
Battery is a 12 volt type.
Tires and wheels
N01147900590
PCD: Pitch Circle Diameter (installation holes)NOTE

Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.


These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P215/45R18 89V, 215/45R18 89WWheel
Size 18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0103001US.book 9 ページ ２００９年８月２０日　木曜日　午前１０時４５分

9-10 Specifications

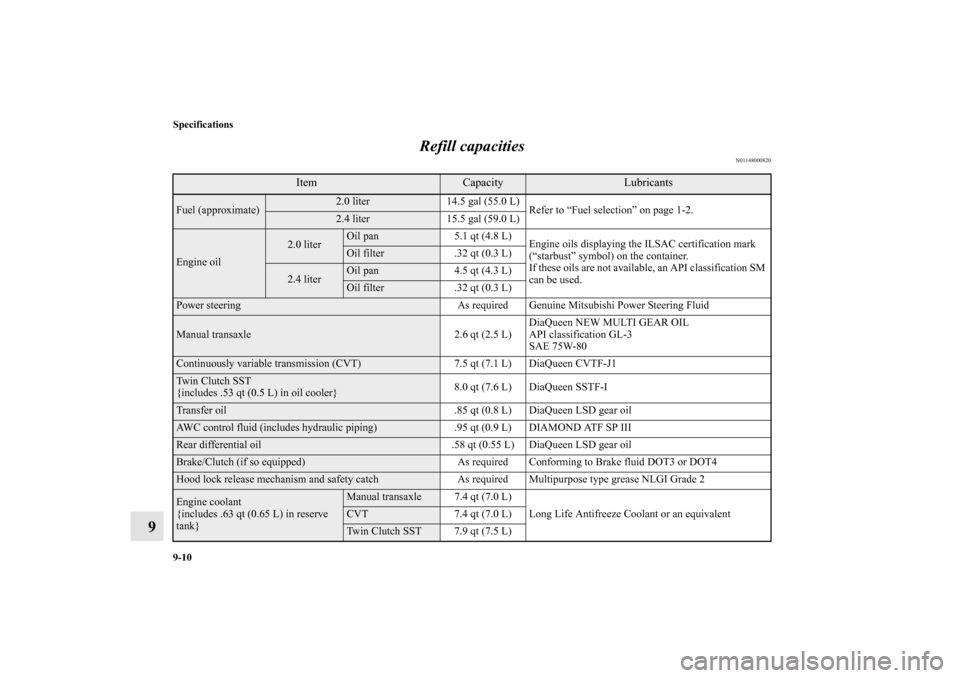

9Refill capacities
N01148000820
Item
Capacity
Lubricants
Fuel (approximate)
2.0 liter 14.5 gal (55.0 L)
Refer to “Fuel selection” on page 1-2.2.4 liter 15.5 gal (59.0 L)
Engine oil
2.0 liter
Oil pan 5.1 qt (4.8 L)
Engine oils displaying the ILSAC certification mark
(“starbust” symbol) on the container.
If these oils are not available, an API classification SM
can be used.Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL
API classification GL-3
SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Tw i n C l u t c h S S T
{includes .53 qt (0.5 L) in oil cooler}8.0 qt (7.6 L) DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid (includes hydraulic piping) .95 qt (0.9 L) DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oilBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 Engine coolant
{includes .63 qt (0.65 L) in reserve
tank}
Manual transaxle 7.4 qt (7.0 L)
Long Life Antifreeze Coolant or an equivalentCVT 7.4 qt (7.0 L)Twin Clutch SST 7.9 qt (7.5 L)
BK0103001US.book 10 ページ ２００９年８月２０日　木曜日　午前１０時４５分

Specifications
9-11
9

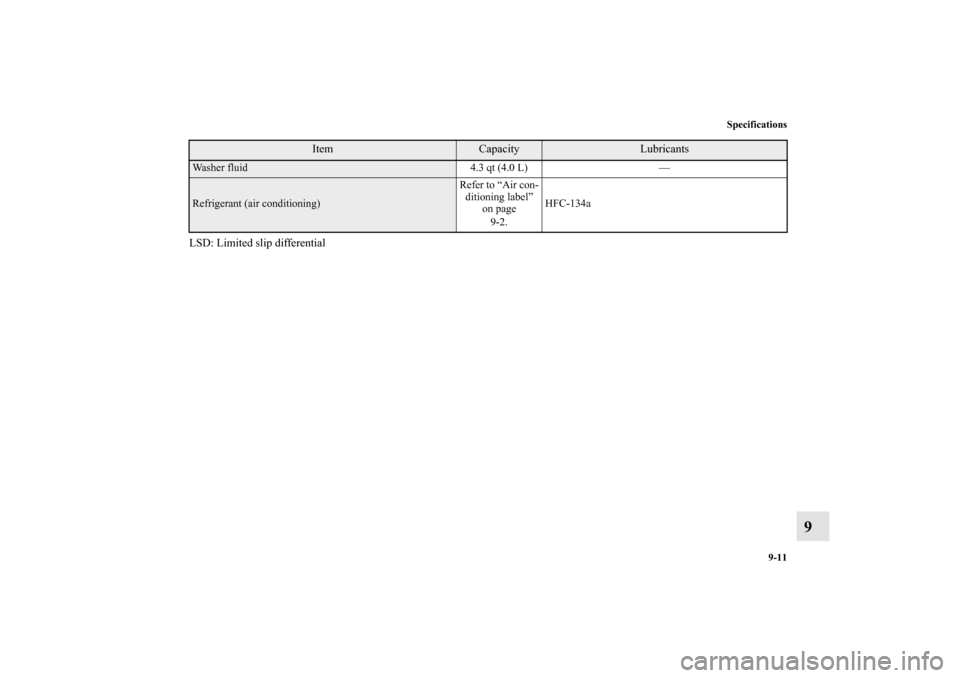

LSD: Limited slip differentialWasher fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to “Air con-
ditioning label”
on page
9-2.HFC-134a
Item
Capacity
Lubricants
BK0103001US.book 11 ページ ２００９年８月２０日　木曜日　午前１０時４５分

BK0103001US.book 12 ページ ２００９年８月２０日　木曜日　午前１０時４５分

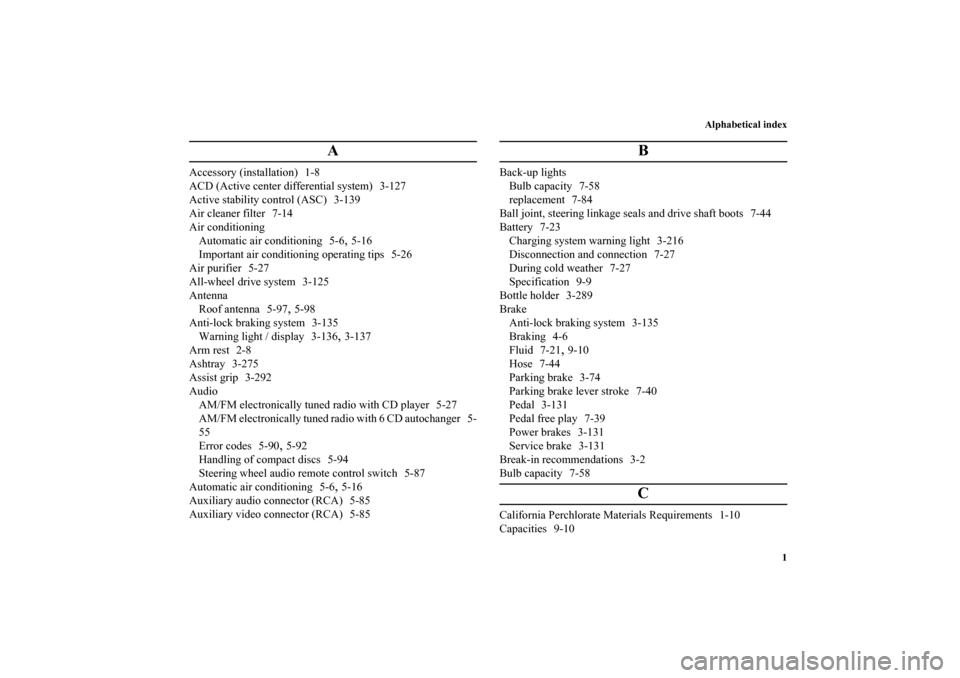

Alphabetical index
