5-22 Comfort controls
5
NOTE
If the outside air is dusty or contaminated in some way,
push the air selection switch (A) to set it to the recircula-
tion position. Let in some outside air from time to time for
good ventilation.

To cool the leg areas, set the mode selection dial to the
“ ” position.

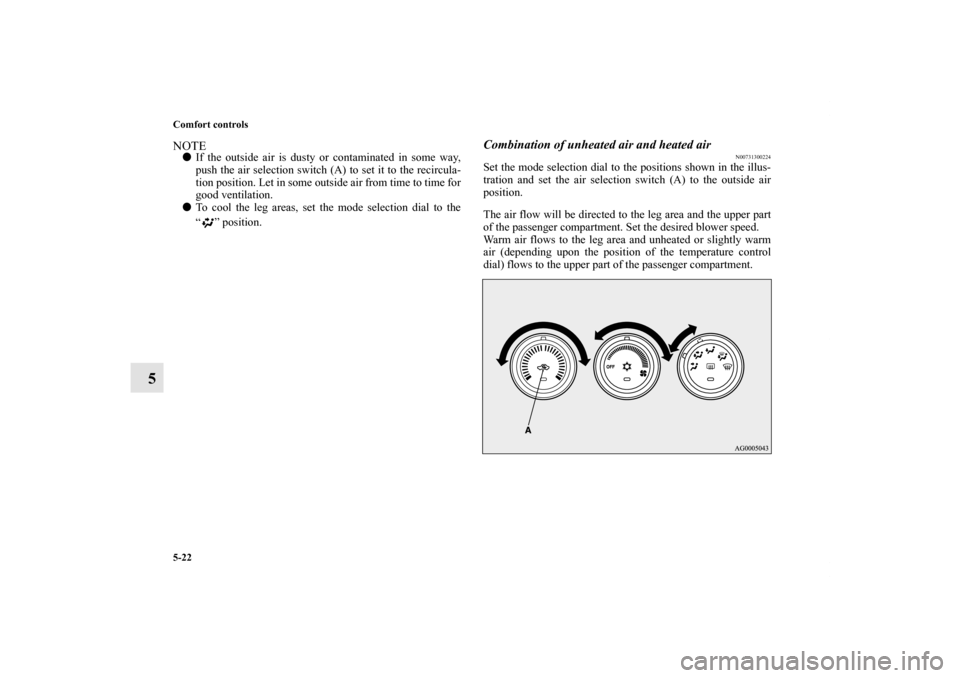

Combination of unheated air and heated air
N00731300224
Set the mode selection dial to the positions shown in the illus-
tration and set the air selection switch (A) to the outside air
position.
The air flow will be directed to the leg area and the upper part
of the passenger compartment. Set the desired blower speed.
Warm air flows to the leg area and unheated or slightly warm
air (depending upon the position of the temperature control
dial) flows to the upper part of the passenger compartment.
BK0125300US.book 22 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-23
5

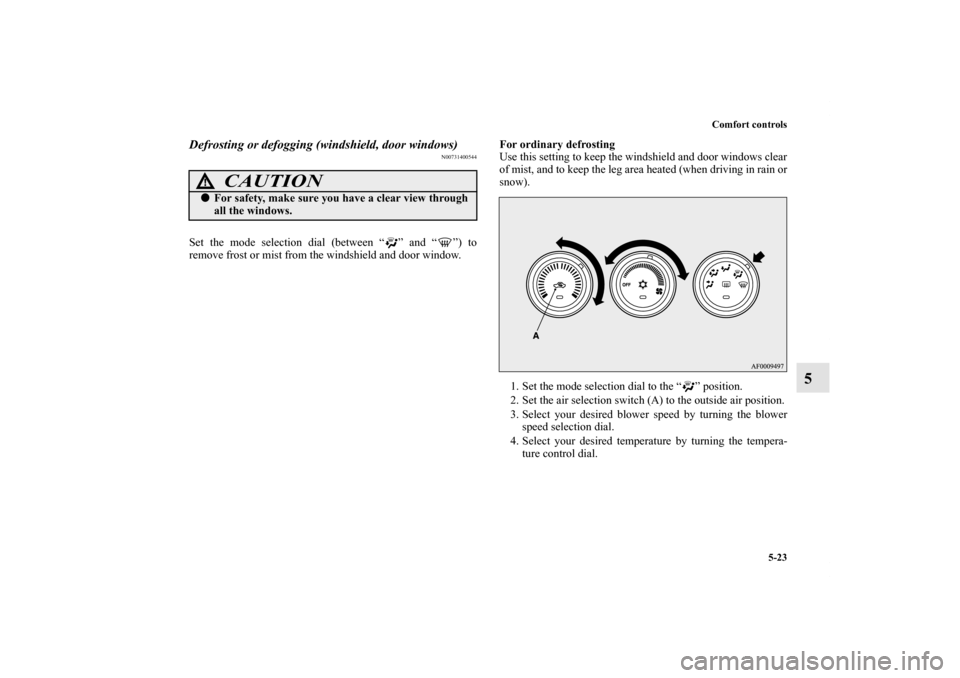

Defrosting or defogging (windshield, door windows)
N00731400544
Set the mode selection dial (between “ ” and “ ”) to
remove frost or mist from the windshield and door window.For ordinary defrosting
Use this setting to keep the windshield and door windows clear
of mist, and to keep the leg area heated (when driving in rain or
snow).
1. Set the mode selection dial to the “ ” position.
2. Set the air selection switch (A) to the outside air position.
3. Select your desired blower speed by turning the blower
speed selection dial.
4. Select your desired temperature by turning the tempera-
ture control dial.
CAUTION
!
For safety, make sure you have a clear view through
all the windows.
BK0125300US.book 23 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-24 Comfort controls
5

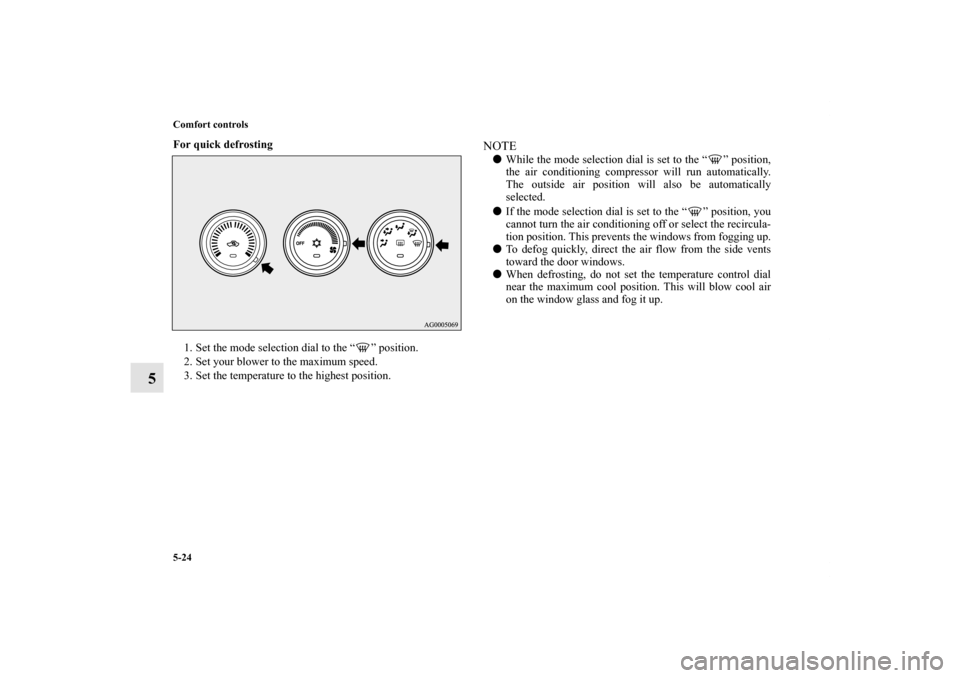

For quick defrosting

1. Set the mode selection dial to the “ ” position.
2. Set your blower to the maximum speed.
3. Set the temperature to the highest position.
NOTE
While the mode selection dial is set to the “ ” position,
the air conditioning compressor will run automatically.
The outside air position will also be automatically
selected.

If the mode selection dial is set to the “ ” position, you
cannot turn the air conditioning off or select the recircula-
tion position. This prevents the windows from fogging up.

To defog quickly, direct the air flow from the side vents
toward the door windows.

When defrosting, do not set the temperature control dial
near the maximum cool position. This will blow cool air
on the window glass and fog it up.
BK0125300US.book 24 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-25

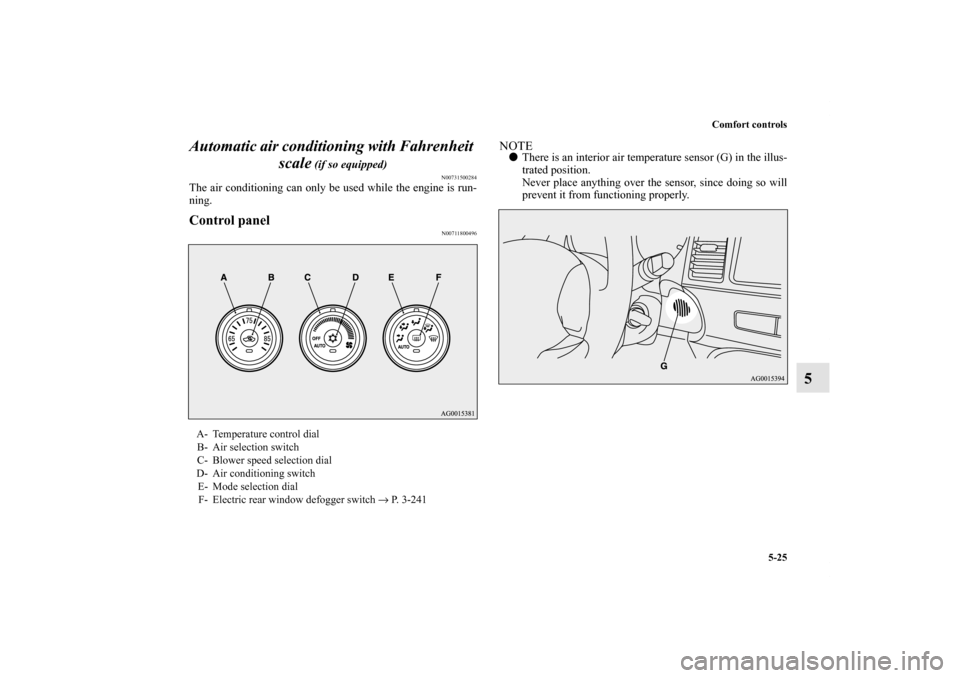

5 Automatic air conditioning with Fahrenheit
scale
(if so equipped)
N00731500284
The air conditioning can only be used while the engine is run-
ning.Control panel
N00711800496
NOTE
There is an interior air temperature sensor (G) in the illus-
trated position.
Never place anything over the sensor, since doing so will
prevent it from functioning properly.
A- Temperature control dial
B- Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch → P. 3-241
BK0125300US.book 25 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-26 Comfort controls
5

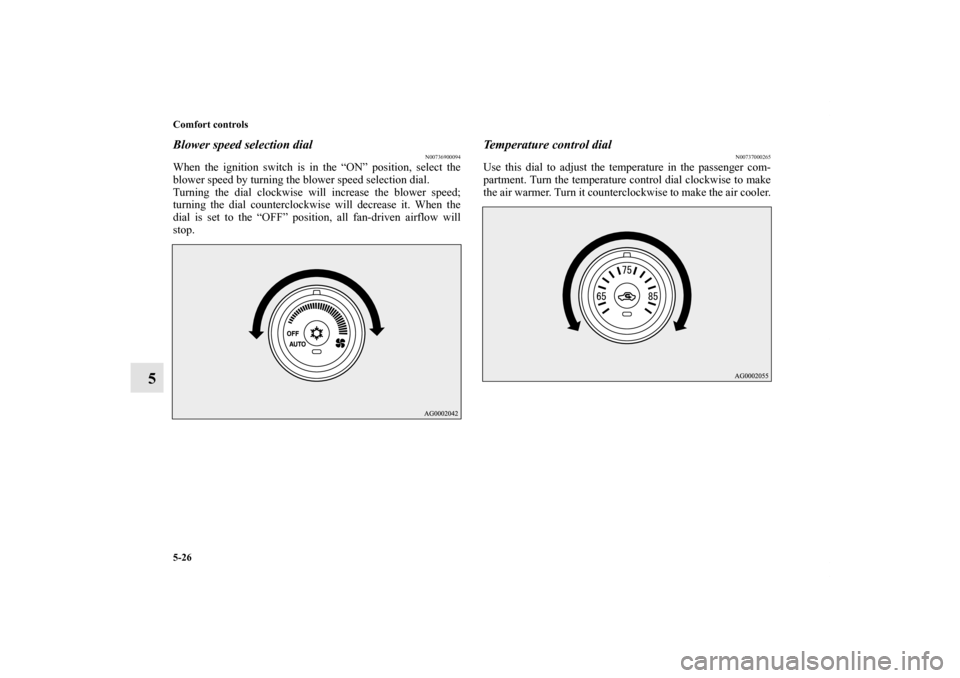

Blower speed selection dial
N00736900094
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
Temperature control dial
N00737000265
Use this dial to adjust the temperature in the passenger com-
partment. Turn the temperature control dial clockwise to make
the air warmer. Turn it counterclockwise to make the air cooler.
BK0125300US.book 26 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-27
5

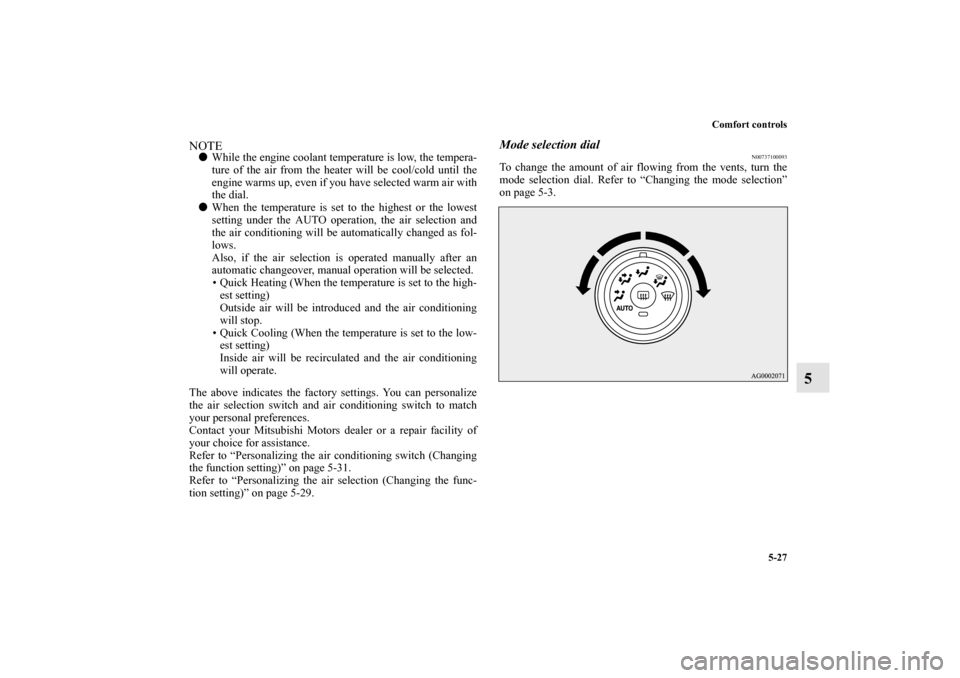

NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

When the temperature is set to the highest or the lowest
setting under the AUTO operation, the air selection and
the air conditioning will be automatically changed as fol-
lows.
Also, if the air selection is operated manually after an
automatic changeover, manual operation will be selected.
• Quick Heating (When the temperature is set to the high-
est setting)
Outside air will be introduced and the air conditioning
will stop.
• Quick Cooling (When the temperature is set to the low-
est setting)
Inside air will be recirculated and the air conditioning
will operate.
The above indicates the factory settings. You can personalize
the air selection switch and air conditioning switch to match
your personal preferences.
Contact your Mitsubishi Motors dealer or a repair facility of
your choice for assistance.
Refer to “Personalizing the air conditioning switch (Changing
the function setting)” on page 5-31.
Refer to “Personalizing the air selection (Changing the func-
tion setting)” on page 5-29.
Mode selection dial
N00737100093
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
BK0125300US.book 27 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-28 Comfort controls
5

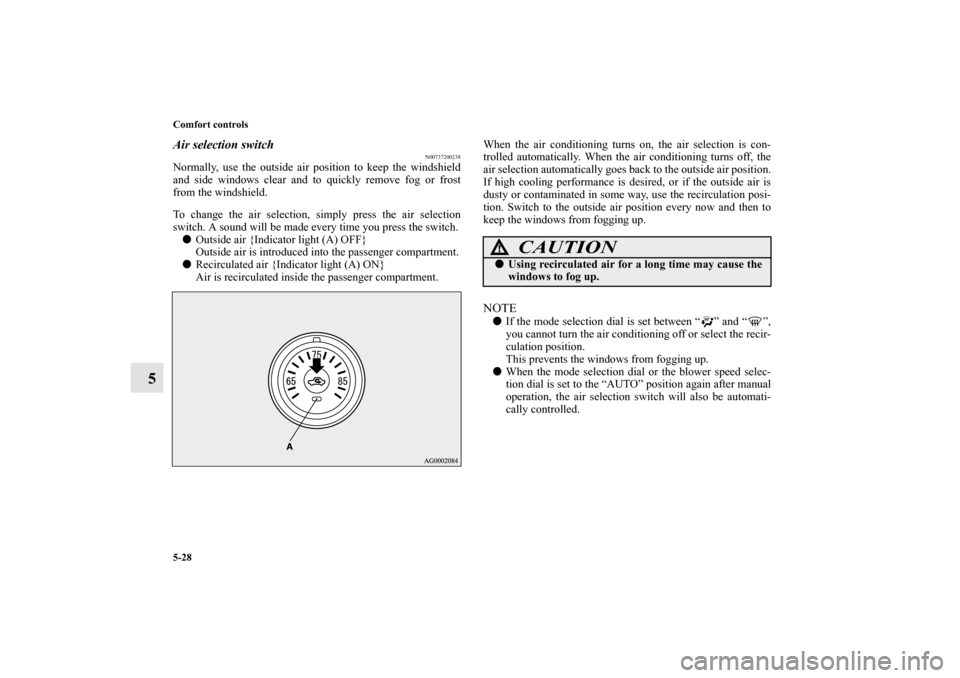

Air selection switch
N00737200238
Normally, use the outside air position to keep the windshield
and side windows clear and to quickly remove fog or frost
from the windshield.
To change the air selection, simply press the air selection
switch. A sound will be made every time you press the switch.

Outside air {Indicator light (A) OFF}
Outside air is introduced into the passenger compartment.

Recirculated air {Indicator light (A) ON}
Air is recirculated inside the passenger compartment.When the air conditioning turns on, the air selection is con-
trolled automatically. When the air conditioning turns off, the
air selection automatically goes back to the outside air position.
If high cooling performance is desired, or if the outside air is
dusty or contaminated in some way, use the recirculation posi-
tion. Switch to the outside air position every now and then to
keep the windows from fogging up.
NOTE
If the mode selection dial is set between “ ” and “ ”,
you cannot turn the air conditioning off or select the recir-
culation position.
This prevents the windows from fogging up.

When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position again after manual
operation, the air selection switch will also be automati-
cally controlled.
CAUTION
!
Using recirculated air for a long time may cause the
windows to fog up.
BK0125300US.book 28 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-29
5

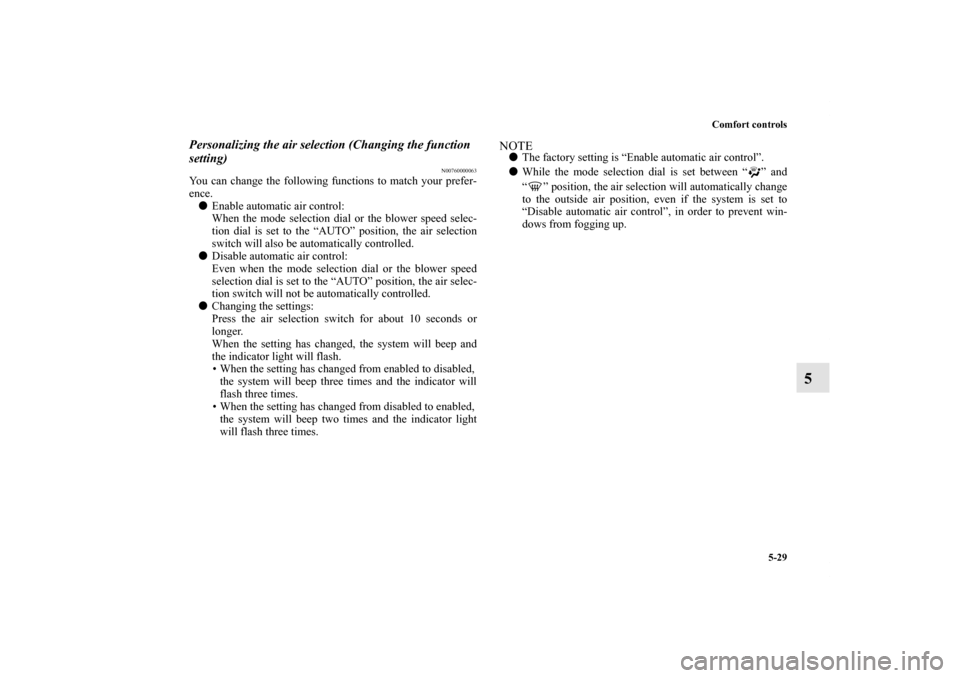

Personalizing the air selection (Changing the function
setting)
N00760000063
You can change the following functions to match your prefer-
ence.

Enable automatic air control:
When the mode selection dial or the blower speed selec-
tion dial is set to the “AUTO” position, the air selection
switch will also be automatically controlled.

Disable automatic air control:
Even when the mode selection dial or the blower speed
selection dial is set to the “AUTO” position, the air selec-
tion switch will not be automatically controlled.

Changing the settings:
Press the air selection switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
• When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
• When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE
The factory setting is “Enable automatic air control”.

While the mode selection dial is set between “ ” and
“ ” position, the air selection will automatically change
to the outside air position, even if the system is set to
“Disable automatic air control”, in order to prevent win-
dows from fogging up.
BK0125300US.book 29 ページ ２０１０年５月１８日　火曜日　午後１時５３分

5-30 Comfort controls
5

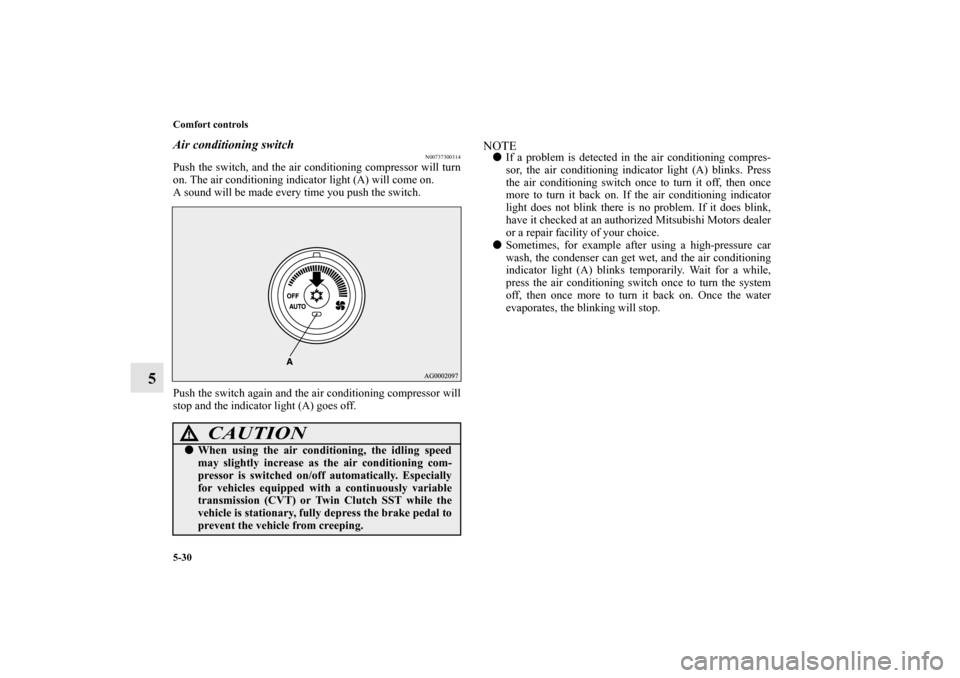

Air conditioning switch
N00737300314
Push the switch, and the air conditioning compressor will turn
on. The air conditioning indicator light (A) will come on.
A sound will be made every time you push the switch.
Push the switch again and the air conditioning compressor will
stop and the indicator light (A) goes off.
NOTE
If a problem is detected in the air conditioning compres-
sor, the air conditioning indicator light (A) blinks. Press
the air conditioning switch once to turn it off, then once
more to turn it back on. If the air conditioning indicator
light does not blink there is no problem. If it does blink,
have it checked at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.

Sometimes, for example after using a high-pressure car
wash, the condenser can get wet, and the air conditioning
indicator light (A) blinks temporarily. Wait for a while,
press the air conditioning switch once to turn the system
off, then once more to turn it back on. Once the water
evaporates, the blinking will stop.
CAUTION
!
When using the air conditioning, the idling speed
may slightly increase as the air conditioning com-
pressor is switched on/off automatically. Especially
for vehicles equipped with a continuously variable
transmission (CVT) or Twin Clutch SST while the
vehicle is stationary, fully depress the brake pedal to
prevent the vehicle from creeping.
BK0125300US.book 30 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Comfort controls
5-31
5

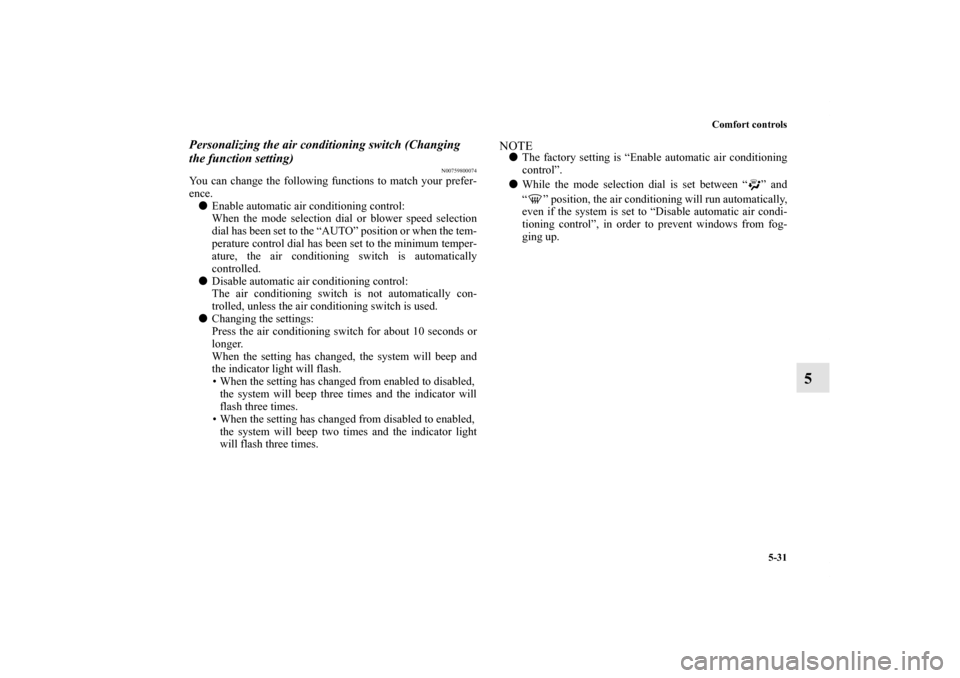

Personalizing the air conditioning switch (Changing
the function setting)
N00759800074
You can change the following functions to match your prefer-
ence.

Enable automatic air conditioning control:
When the mode selection dial or blower speed selection
dial has been set to the “AUTO” position or when the tem-
perature control dial has been set to the minimum temper-
ature, the air conditioning switch is automatically
controlled.

Disable automatic air conditioning control:
The air conditioning switch is not automatically con-
trolled, unless the air conditioning switch is used.

Changing the settings:
Press the air conditioning switch for about 10 seconds or
longer.
When the setting has changed, the system will beep and
the indicator light will flash.
• When the setting has changed from enabled to disabled,
the system will beep three times and the indicator will
flash three times.
• When the setting has changed from disabled to enabled,
the system will beep two times and the indicator light
will flash three times.
NOTE
The factory setting is “Enable automatic air conditioning
control”.

While the mode selection dial is set between “ ” and
“ ” position, the air conditioning will run automatically,
even if the system is set to “Disable automatic air condi-
tioning control”, in order to prevent windows from fog-
ging up.
