7-72 Vehicle care and maintenance
7

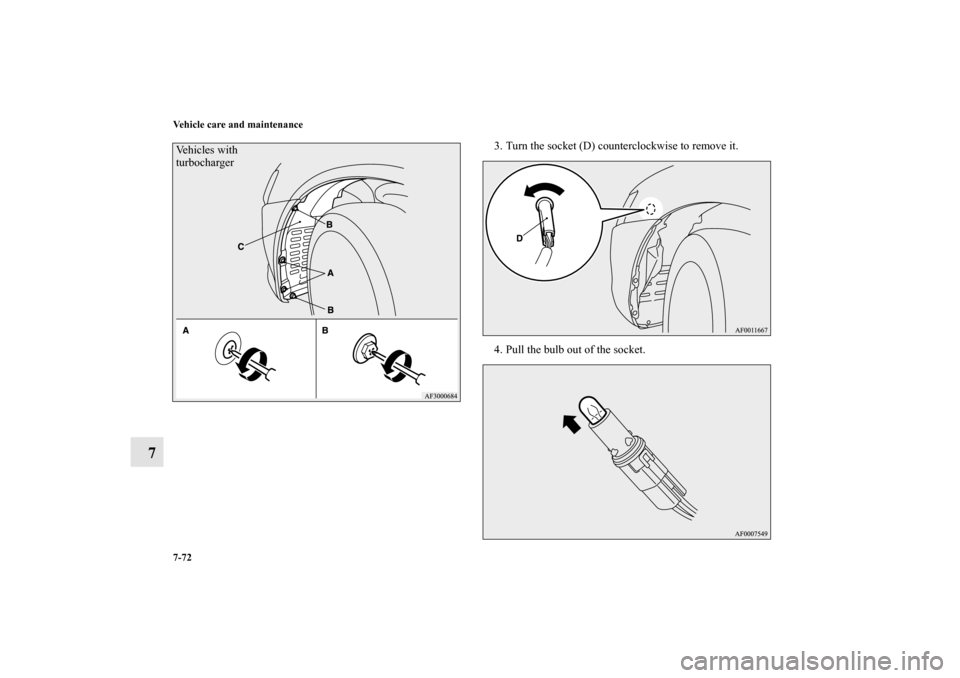

3. Turn the socket (D) counterclockwise to remove it.
4. Pull the bulb out of the socket.
Vehicles with
turbochargerBK0125300US.book 72 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-73
7
5. To install the bulb, perform the removal steps in reverse.
Front turn signal lights
N00943400295

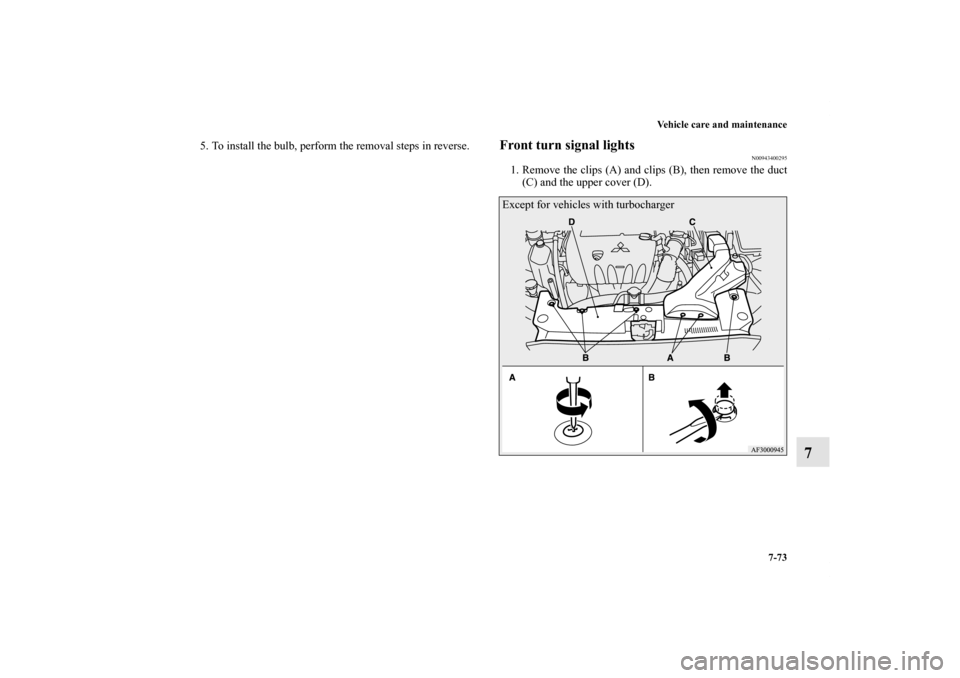

1. Remove the clips (A) and clips (B), then remove the duct
(C) and the upper cover (D).Except for vehicles with turbocharger
BK0125300US.book 73 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-74 Vehicle care and maintenance
7

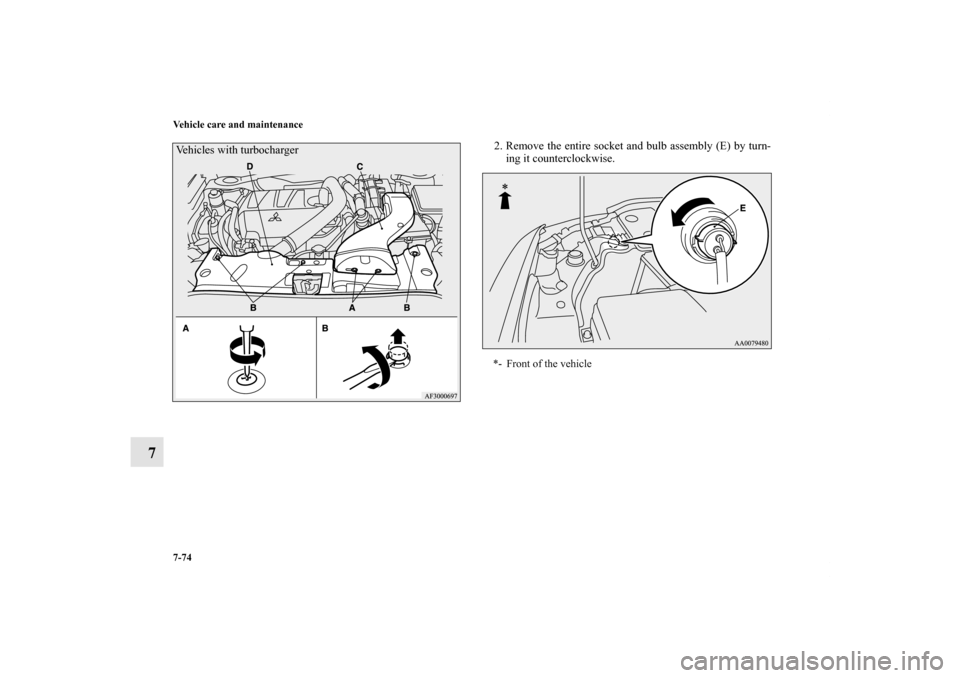

2. Remove the entire socket and bulb assembly (E) by turn-
ing it counterclockwise.
Vehicles with turbocharger
*- Front of the vehicle
BK0125300US.book 74 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-75
7

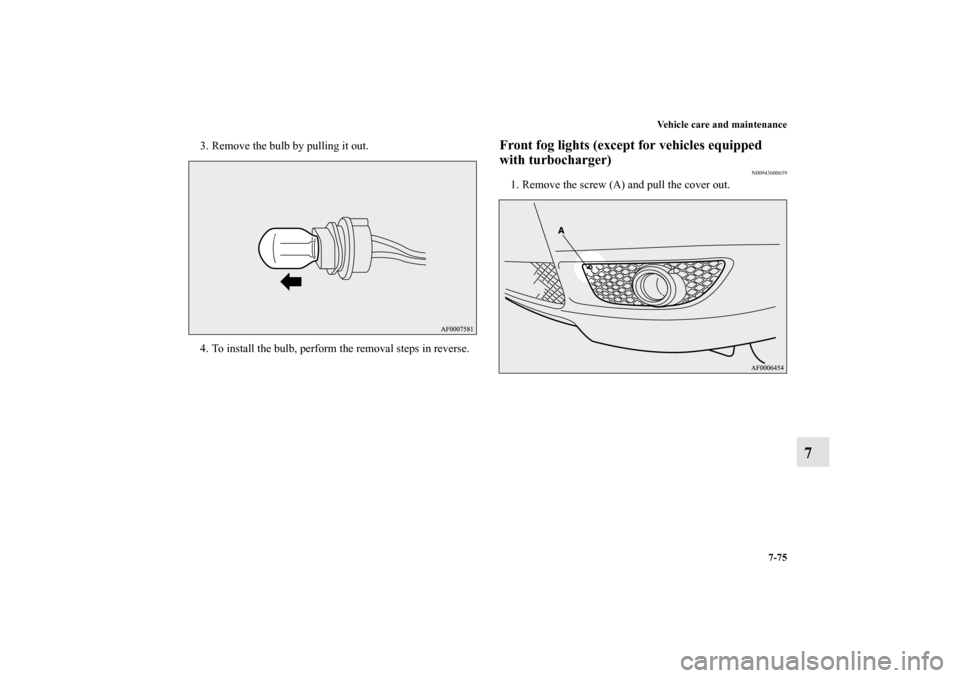

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
Front fog lights (except for vehicles equipped
with turbocharger)
N00943600659
1. Remove the screw (A) and pull the cover out.
BK0125300US.book 75 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-76 Vehicle care and maintenance
7

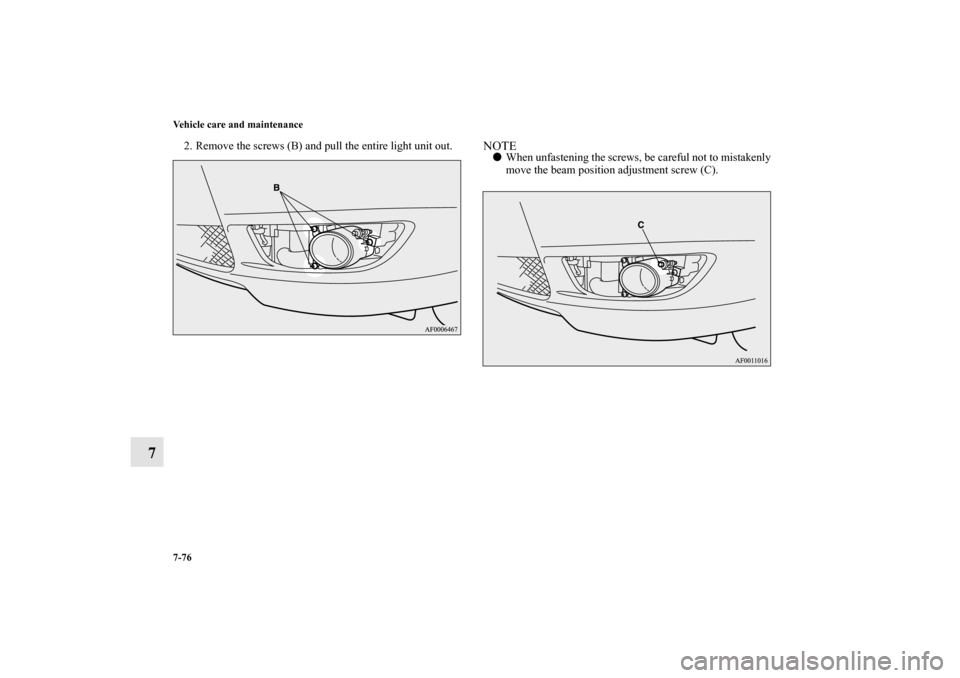

2. Remove the screws (B) and pull the entire light unit out.
NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).
BK0125300US.book 76 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-77
7

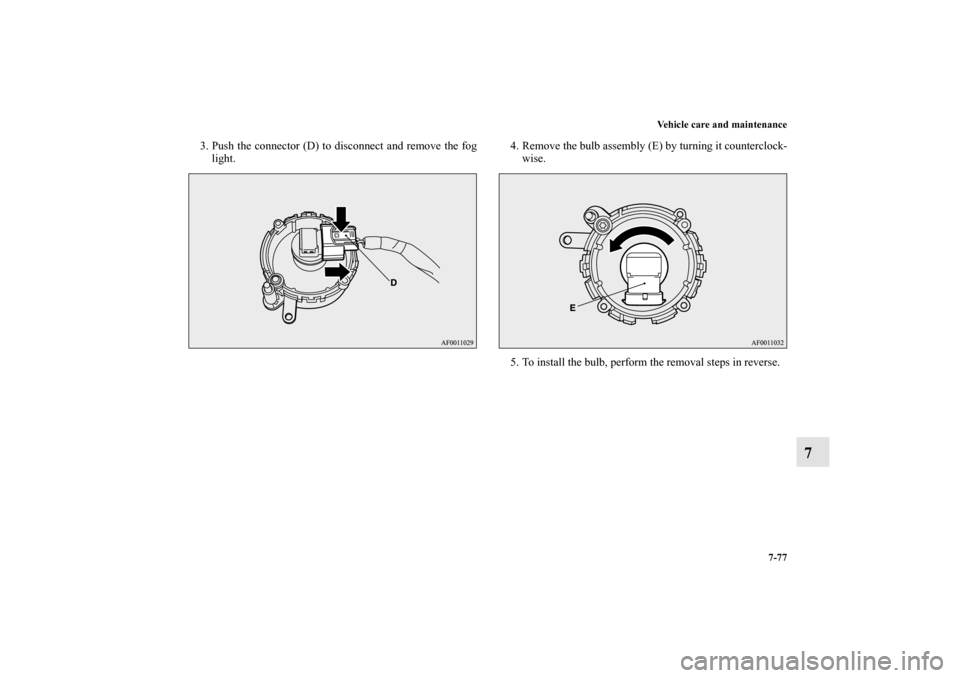

3. Push the connector (D) to disconnect and remove the fog
light. 4. Remove the bulb assembly (E) by turning it counterclock-
wise.
5. To install the bulb, perform the removal steps in reverse.
BK0125300US.book 77 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-78 Vehicle care and maintenance
7
NOTE

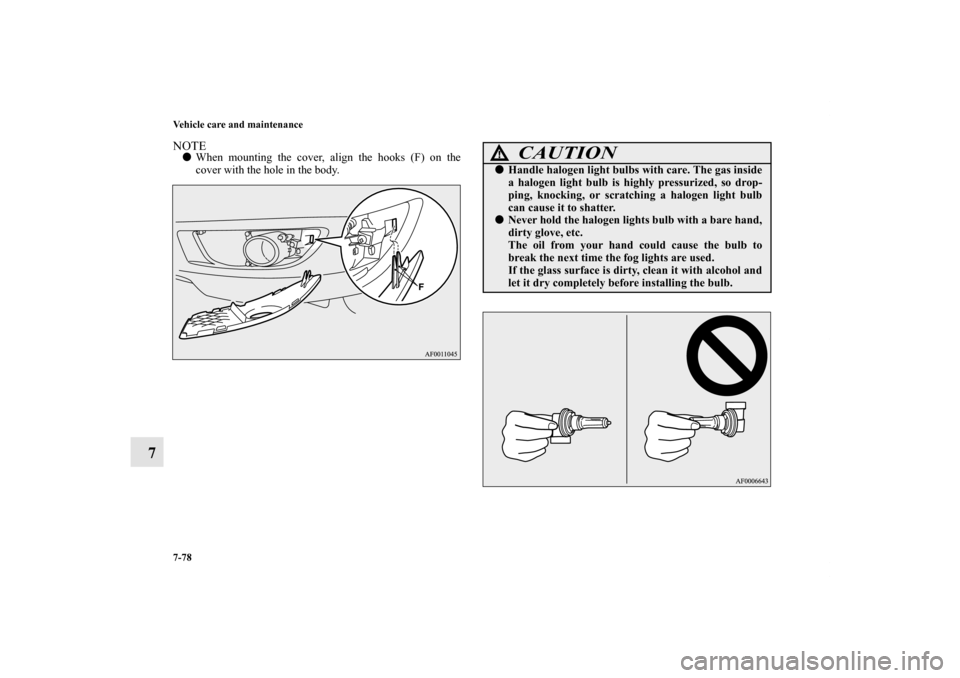

When mounting the cover, align the hooks (F) on the
cover with the hole in the body.
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0125300US.book 78 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-79
7
Front fog lights (for vehicles equipped with tur-
bocharger)
N00943600662

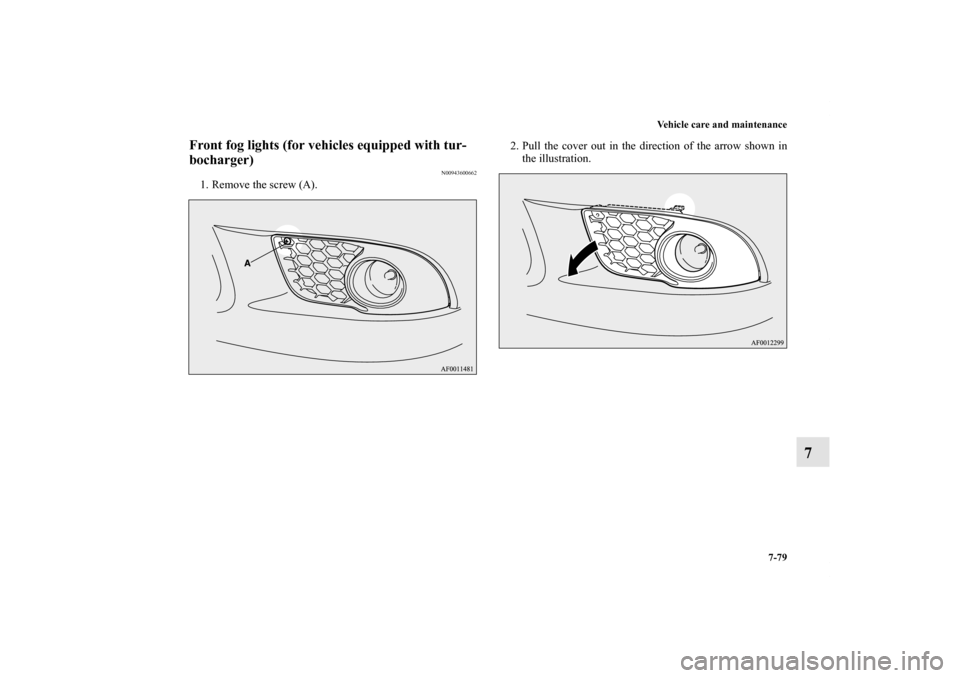

1. Remove the screw (A).2. Pull the cover out in the direction of the arrow shown in
the illustration.
BK0125300US.book 79 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-80 Vehicle care and maintenance
7
3. Remove the screws (B) and pull the entire light unit out.
NOTE
When unfastening the screws, be careful not to mistakenly
move the beam position adjustment screw (C).
Passenger’s side Driver’s sideBK0125300US.book 80 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-81
7

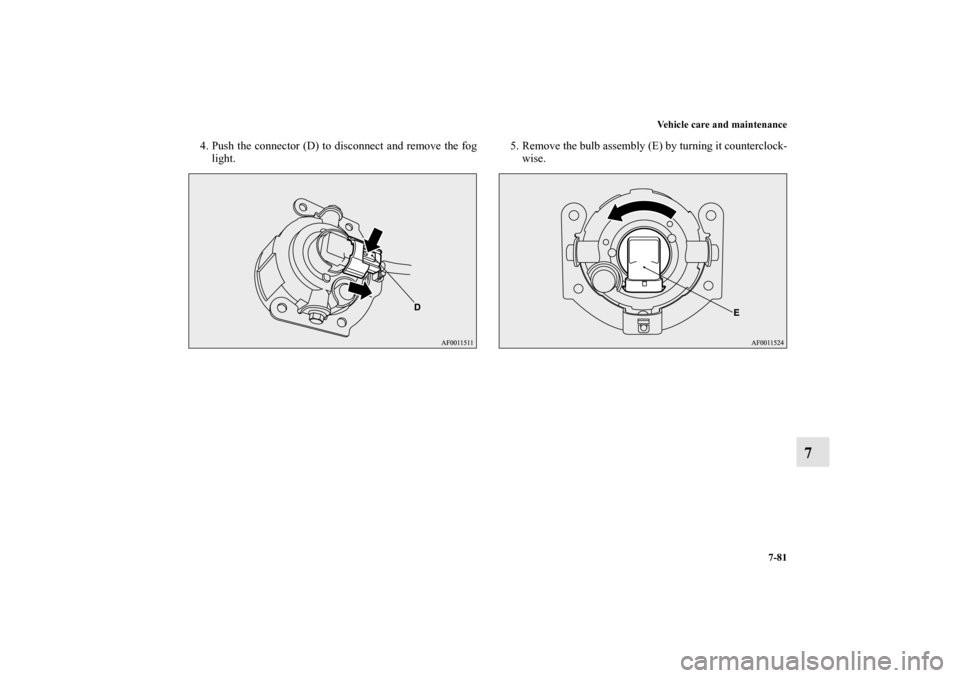

4. Push the connector (D) to disconnect and remove the fog
light.5. Remove the bulb assembly (E) by turning it counterclock-
wise.
