MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual

9-6 Specifications

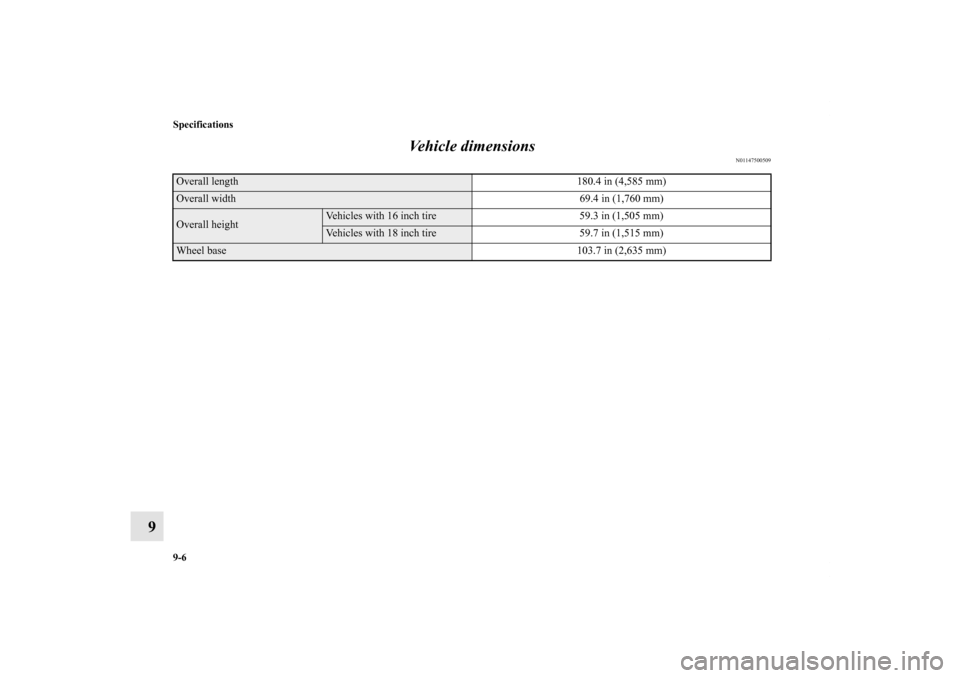

9Vehicle dimensions
N01147500509
Overall length 180.4 in (4,585 mm) Overall width 69.4 in (1,760 mm) Overall height
Vehicles with 16 inch tire 59.3 in (1,505 mm)Vehicles with 18 inch tire 59.7 in (1,515 mm)
Wheel base103.7 in (2,635 mm) BK0125300US.book 6 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Specifications
9-7

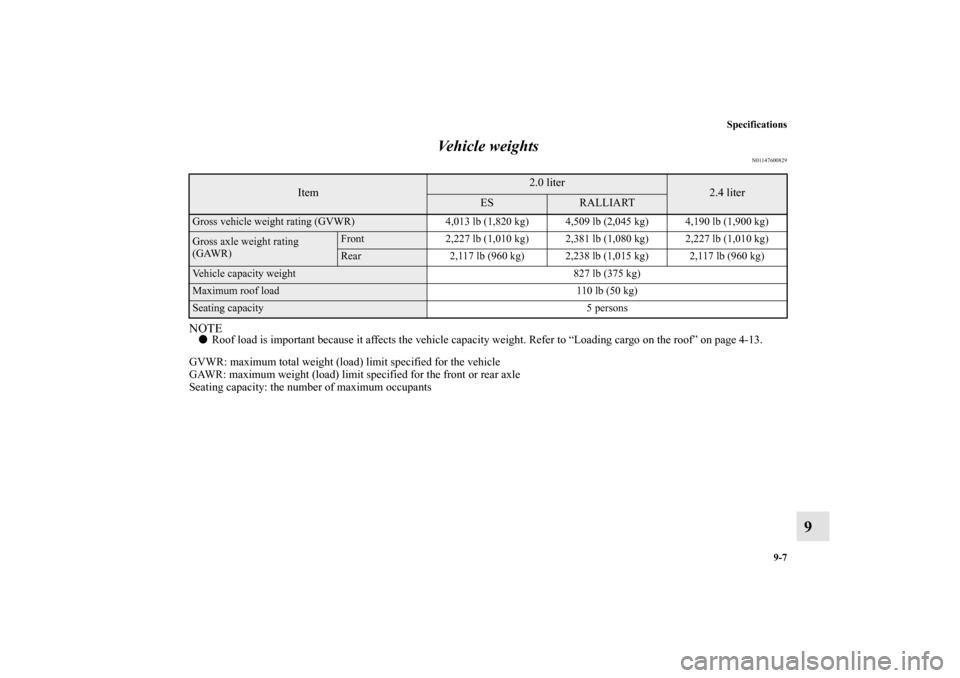

9 Vehicle weights
N01147600829
NOTE
Roof load is important because it affects the vehicle capacity weight. Refer to “Loading cargo on the roof” on page 4-13.
GVWR: maximum total weight (load) limit specified for the vehicle
GAWR: maximum weight (load) limit specified for the front or rear axle
Seating capacity: the number of maximum occupants
Item
2.0 liter
2.4 liter
ES
RALLIART
Gross vehicle weight rating (GVWR) 4,013 lb (1,820 kg) 4,509 lb (2,045 kg) 4,190 lb (1,900 kg)Gross axle weight rating
(GAWR)
Front 2,227 lb (1,010 kg) 2,381 lb (1,080 kg) 2,227 lb (1,010 kg)Rear 2,117 lb (960 kg) 2,238 lb (1,015 kg) 2,117 lb (960 kg)
Vehicle capacity weight 827 lb (375 kg)Maximum roof load 110 lb (50 kg)Seating capacity 5 persons
BK0125300US.book 7 ページ ２０１０年５月１８日　火曜日　午後１時５３分

9-8 Specifications

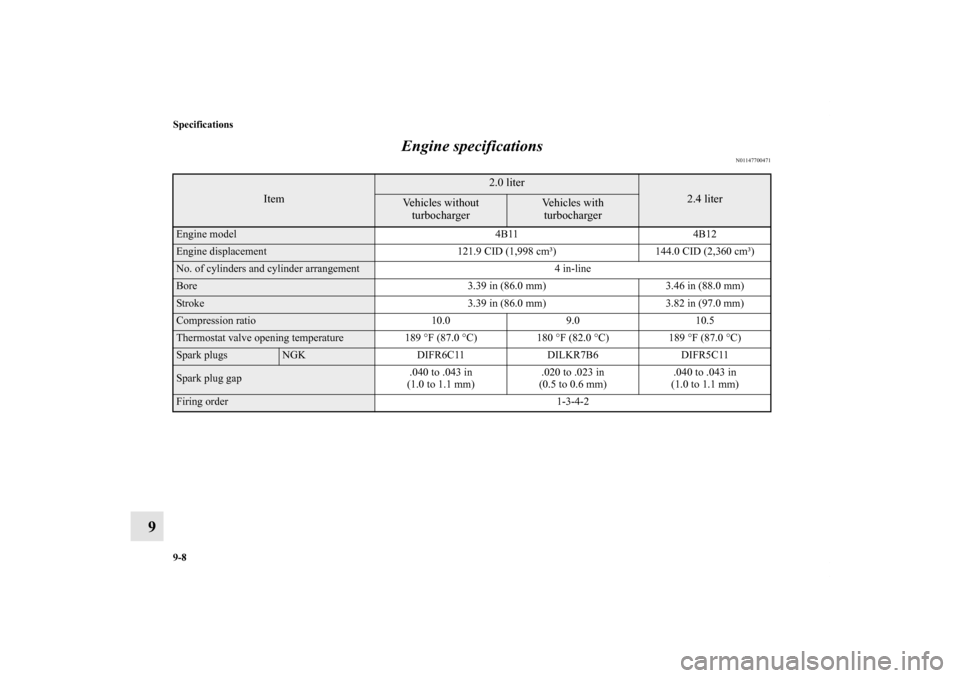

9Engine specifications
N01147700471
Item
2.0 liter
2.4 liter
Vehicles without
turbocharger
Vehicles with
turbocharger
Engine model 4B11 4B12Engine displacement 121.9 CID (1,998 cm³) 144.0 CID (2,360 cm³)No. of cylinders and cylinder arrangement 4 in-lineBore 3.39 in (86.0 mm) 3.46 in (88.0 mm)Stroke 3.39 in (86.0 mm) 3.82 in (97.0 mm)Compression ratio 10.0 9.0 10.5Thermostat valve opening temperature 189 °F (87.0 °C) 180 °F (82.0 °C) 189 °F (87.0 °C)Spark plugs
NGK DIFR6C11 DILKR7B6 DIFR5C11
Spark plug gap.040 to .043 in
(1.0 to 1.1 mm).020 to .023 in
(0.5 to 0.6 mm).040 to .043 in
(1.0 to 1.1 mm)Firing order 1-3-4-2BK0125300US.book 8 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Specifications
9-9
9 Battery
N01147800182
Battery is a 12 volt type.

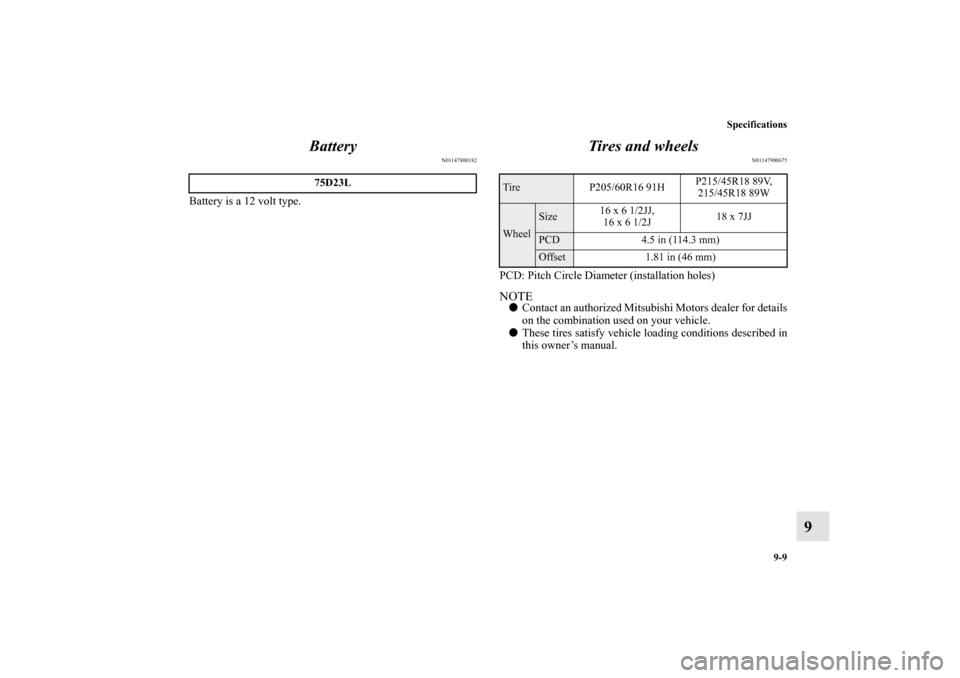

Tires and wheels
N01147900675
PCD: Pitch Circle Diameter (installation holes)NOTE
Contact an authorized Mitsubishi Motors dealer for details
on the combination used on your vehicle.

These tires satisfy vehicle loading conditions described in
this owner’s manual.
75D23L
Tire P205/60R16 91HP215/45R18 89V,
215/45R18 89WWheel
Size16 x 6 1/2JJ,
16 x 6 1/2J18 x 7JJPCD 4.5 in (114.3 mm)Offset 1.81 in (46 mm)
BK0125300US.book 9 ページ ２０１０年５月１８日　火曜日　午後１時５３分

9-10 Specifications

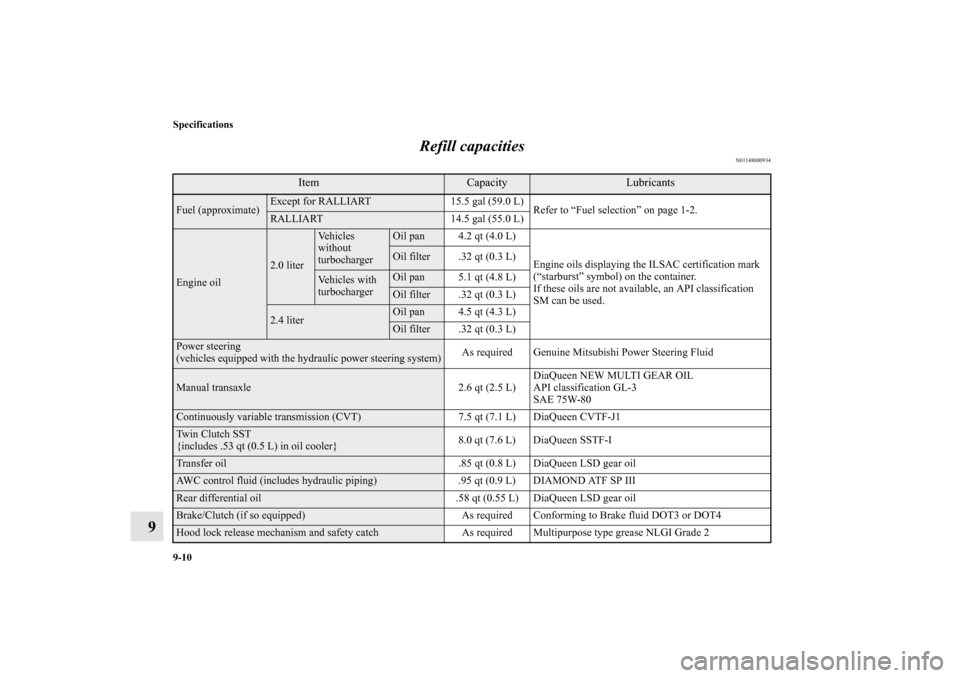

9Refill capacities
N01148000934
Item
Capacity
Lubricants
Fuel (approximate)
Except for RALLIART 15.5 gal (59.0 L)
Refer to “Fuel selection” on page 1-2.RALLIART 14.5 gal (55.0 L)
Engine oil
2.0 liter
Vehicles
without
turbocharger
Oil pan 4.2 qt (4.0 L)
Engine oils displaying the ILSAC certification mark
(“starburst” symbol) on the container.
If these oils are not available, an API classification
SM can be used.Oil filter .32 qt (0.3 L)
Vehicles with
turbocharger
Oil pan 5.1 qt (4.8 L)Oil filter .32 qt (0.3 L)
2.4 liter
Oil pan 4.5 qt (4.3 L)Oil filter .32 qt (0.3 L)
Power steering
(vehicles equipped with the hydraulic power steering system)As required Genuine Mitsubishi Power Steering Fluid Manual transaxle 2.6 qt (2.5 L)DiaQueen NEW MULTI GEAR OIL
API classification GL-3
SAE 75W-80Continuously variable transmission (CVT) 7.5 qt (7.1 L) DiaQueen CVTF-J1 Tw i n C l u t c h S S T
{includes .53 qt (0.5 L) in oil cooler}8.0 qt (7.6 L) DiaQueen SSTF-ITransfer oil .85 qt (0.8 L) DiaQueen LSD gear oilAWC control fluid (includes hydraulic piping) .95 qt (0.9 L) DIAMOND ATF SP IIIRear differential oil .58 qt (0.55 L) DiaQueen LSD gear oilBrake/Clutch (if so equipped) As required Conforming to Brake fluid DOT3 or DOT4 Hood lock release mechanism and safety catch As required Multipurpose type grease NLGI Grade 2 BK0125300US.book 10 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Specifications
9-11
9

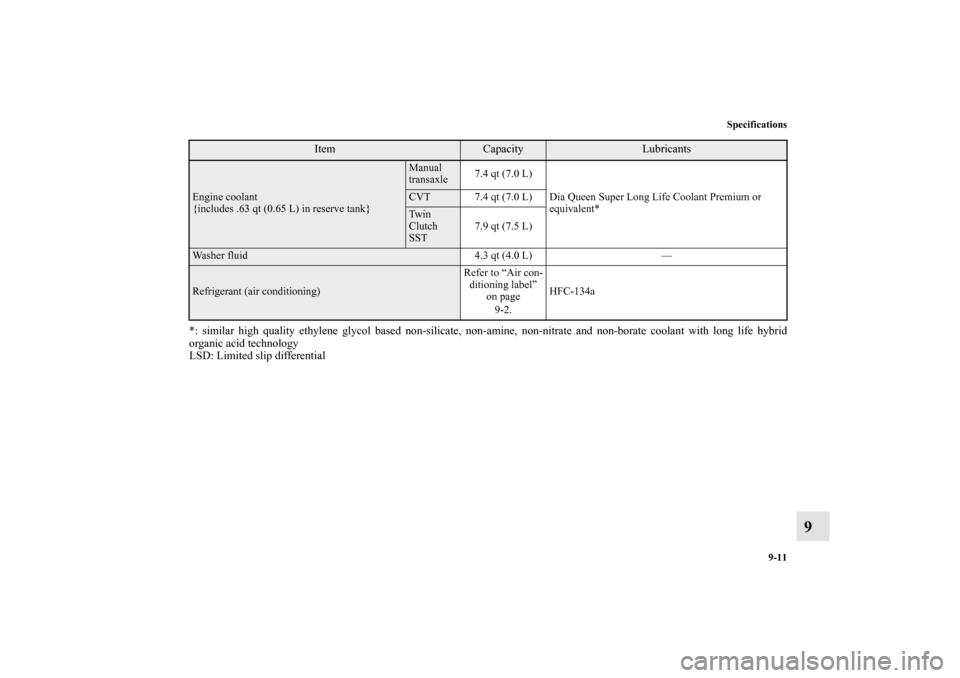

*: similar high quality ethylene glycol based non-silicate, non-amine, non-nitrate and non-borate coolant with long life hybrid
organic acid technology
LSD: Limited slip differentialEngine coolant
{includes .63 qt (0.65 L) in reserve tank}
Manual
transaxle7.4 qt (7.0 L)
Dia Queen Super Long Life Coolant Premium or
equivalent*CVT 7.4 qt (7.0 L)Tw i n
Clutch
SST7.9 qt (7.5 L)
Washer fluid 4.3 qt (4.0 L) — Refrigerant (air conditioning)Refer to “Air con-
ditioning label”
on page
9-2.HFC-134a
Item
Capacity
Lubricants
BK0125300US.book 11 ページ ２０１０年５月１８日　火曜日　午後１時５３分

BK0125300US.book 12 ページ ２０１０年５月１８日　火曜日　午後１時５３分

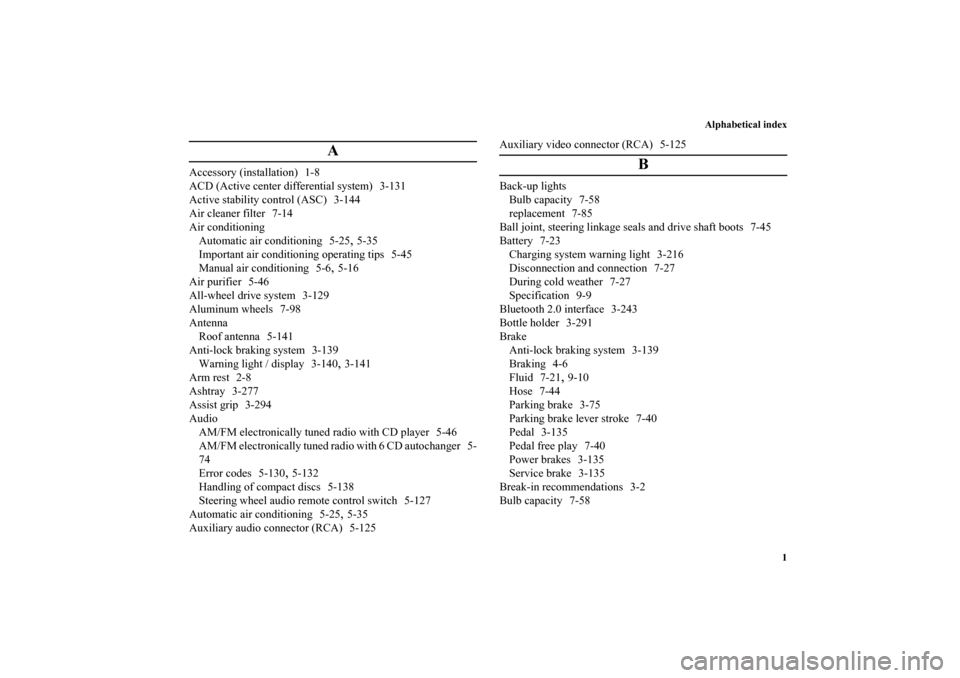

Alphabetical index
1
A
Accessory (installation) 1-8
ACD (Active center differential system) 3-131
Active stability control (ASC) 3-144
Air cleaner filter 7-14
Air conditioning
Automatic air conditioning 5-25
,5-35
Important air conditioning operating tips 5-45
Manual air conditioning 5-6
,5-16
Air purifier 5-46
All-wheel drive system 3-129
Aluminum wheels 7-98
Antenna
Roof antenna 5-141
Anti-lock braking system 3-139
Warning light / display 3-140,3-141
Arm rest 2-8
Ashtray 3-277
Assist grip 3-294
Audio
AM/FM electronically tuned radio with CD player 5-46
AM/FM electronically tuned radio with 6 CD autochanger 5-
74
Error codes 5-130
,5-132
Handling of compact discs 5-138
Steering wheel audio remote control switch 5-127
Automatic air conditioning 5-25
,5-35
Auxiliary audio connector (RCA) 5-125Auxiliary video connector (RCA) 5-125
B
Back-up lights
Bulb capacity 7-58
replacement 7-85
Ball joint, steering linkage seals and drive shaft boots 7-45
Battery 7-23
Charging system warning light 3-216
Disconnection and connection 7-27
During cold weather 7-27
Specification 9-9
Bluetooth 2.0 interface 3-243
Bottle holder 3-291
Brake
Anti-lock braking system 3-139
Braking 4-6
Fluid 7-21
,9-10
Hose 7-44
Parking brake 3-75
Parking brake lever stroke 7-40
Pedal 3-135
Pedal free play 7-40
Power brakes 3-135
Service brake 3-135
Break-in recommendations 3-2
Bulb capacity 7-58
BK0125300US.book 1 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Alphabetical index
2

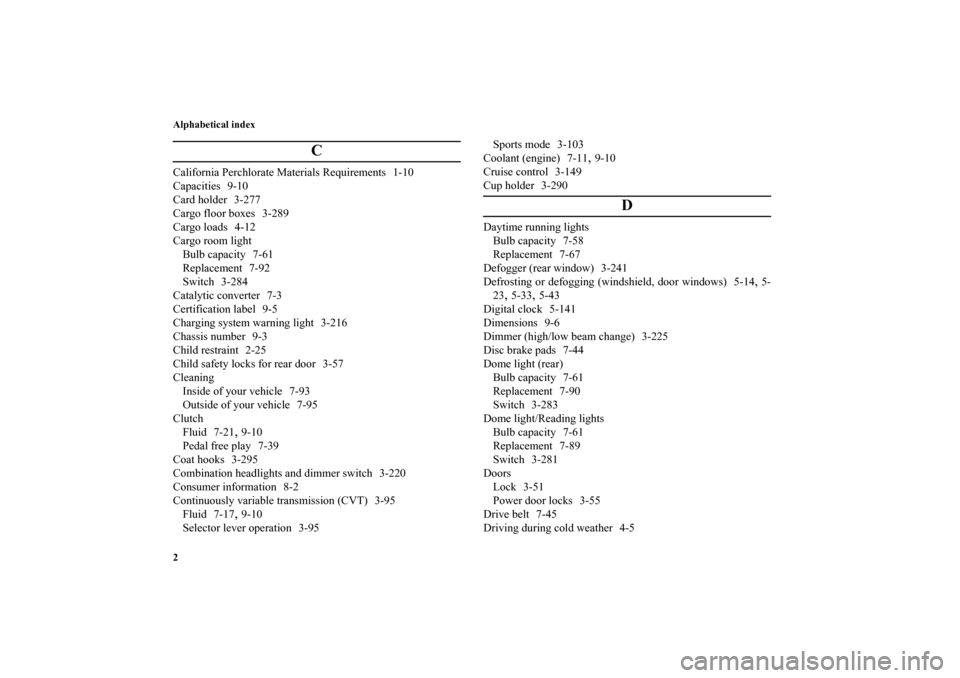

C
California Perchlorate Materials Requirements 1-10
Capacities 9-10
Card holder 3-277
Cargo floor boxes 3-289
Cargo loads 4-12
Cargo room light
Bulb capacity 7-61
Replacement 7-92
Switch 3-284
Catalytic converter 7-3
Certification label 9-5
Charging system warning light 3-216
Chassis number 9-3
Child restraint 2-25
Child safety locks for rear door 3-57
Cleaning
Inside of your vehicle 7-93
Outside of your vehicle 7-95
Clutch
Fluid 7-21
,9-10
Pedal free play 7-39
Coat hooks 3-295
Combination headlights and dimmer switch 3-220
Consumer information 8-2
Continuously variable transmission (CVT) 3-95
Fluid 7-17,9-10
Selector lever operation 3-95Sports mode 3-103
Coolant (engine) 7-11
,9-10
Cruise control 3-149
Cup holder 3-290
D
Daytime running lights
Bulb capacity 7-58
Replacement 7-67
Defogger (rear window) 3-241
Defrosting or defogging (windshield, door windows) 5-14
,5-
23
,5-33
,5-43
Digital clock 5-141
Dimensions 9-6
Dimmer (high/low beam change) 3-225
Disc brake pads 7-44
Dome light (rear)
Bulb capacity 7-61
Replacement 7-90
Switch 3-283
Dome light/Reading lights
Bulb capacity 7-61
Replacement 7-89
Switch 3-281
Doors
Lock 3-51
Power door locks 3-55
Drive belt 7-45
Driving during cold weather 4-5
BK0125300US.book 2 ページ ２０１０年５月１８日　火曜日　午後１時５３分

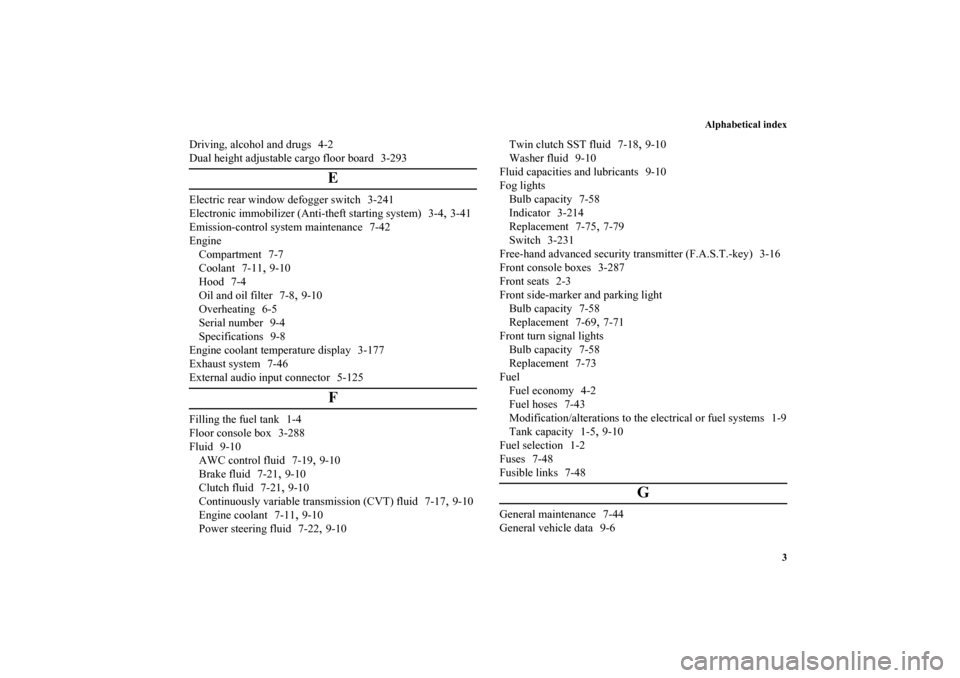

Alphabetical index
