MITSUBISHI LANCER SPORTBACK 2011 8.G Owners Manual

7-82 Vehicle care and maintenance
7

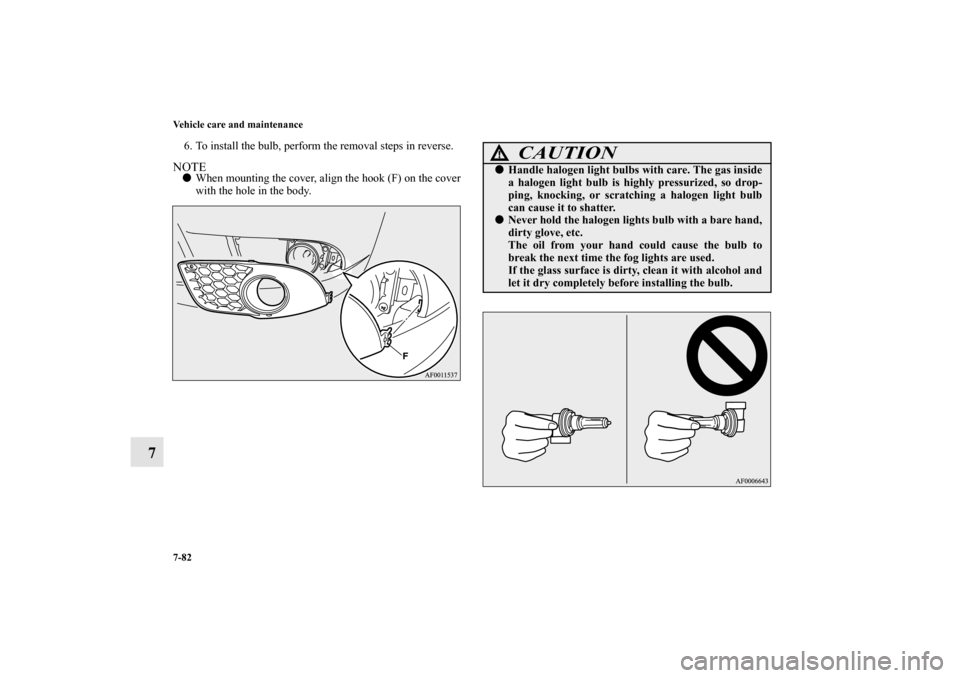

6. To install the bulb, perform the removal steps in reverse.NOTE
When mounting the cover, align the hook (F) on the cover
with the hole in the body.
CAUTION
!
Handle halogen light bulbs with care. The gas inside
a halogen light bulb is highly pressurized, so drop-
ping, knocking, or scratching a halogen light bulb
can cause it to shatter.
Never hold the halogen lights bulb with a bare hand,
dirty glove, etc.
The oil from your hand could cause the bulb to
break the next time the fog lights are used.
If the glass surface is dirty, clean it with alcohol and
let it dry completely before installing the bulb.
BK0125300US.book 82 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-83
7

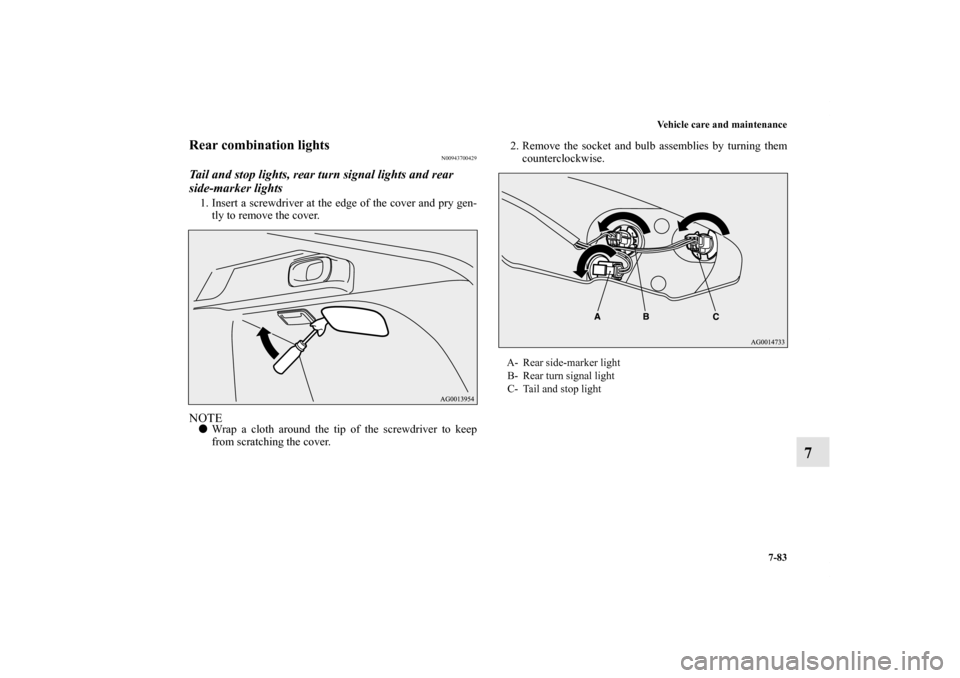

Rear combination lights
N00943700429
Tail and stop lights, rear turn signal lights and rear
side-marker lights1. Insert a screwdriver at the edge of the cover and pry gen-
tly to remove the cover. NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.2. Remove the socket and bulb assemblies by turning them
counterclockwise.
A- Rear side-marker light
B- Rear turn signal light
C- Tail and stop light
BK0125300US.book 83 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-84 Vehicle care and maintenance
7

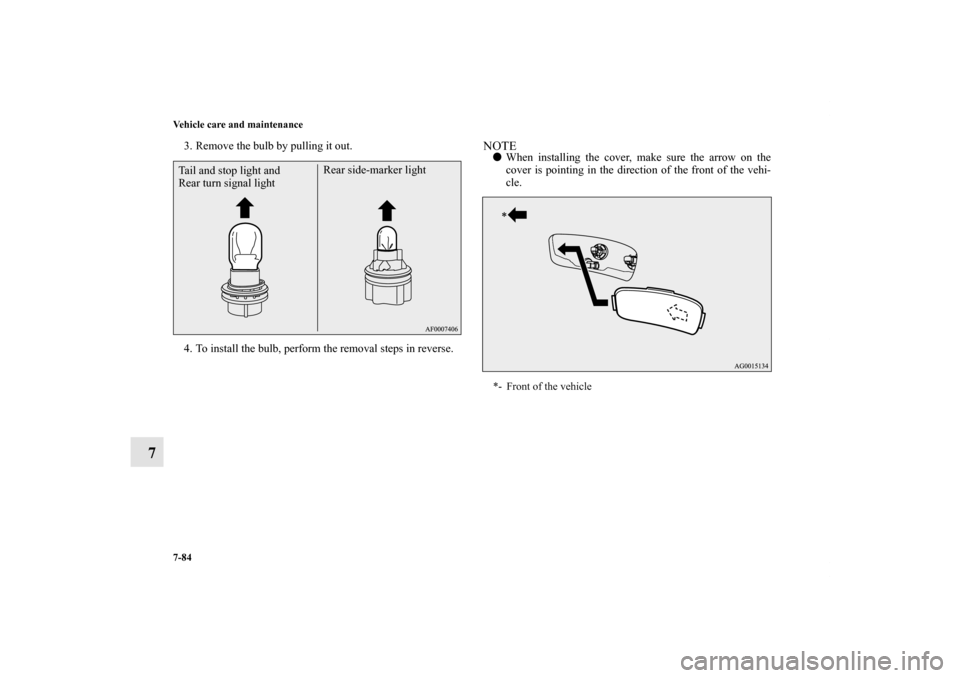

3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
NOTE
When installing the cover, make sure the arrow on the
cover is pointing in the direction of the front of the vehi-
cle.
Tail and stop light and
Rear turn signal lightRear side-marker light
*- Front of the vehicle
BK0125300US.book 84 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-85
7

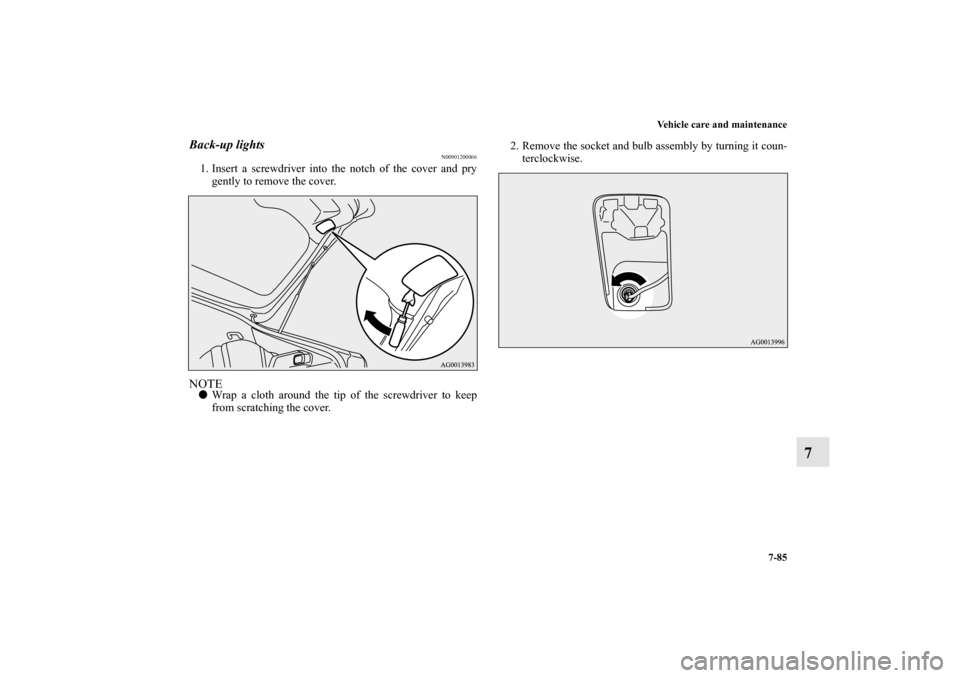

Back-up lights
N00901200066
1. Insert a screwdriver into the notch of the cover and pry
gently to remove the cover.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the cover.2. Remove the socket and bulb assembly by turning it coun-
terclockwise.
BK0125300US.book 85 ページ ２０１０年５月１８日　火曜日　午後１時５３分

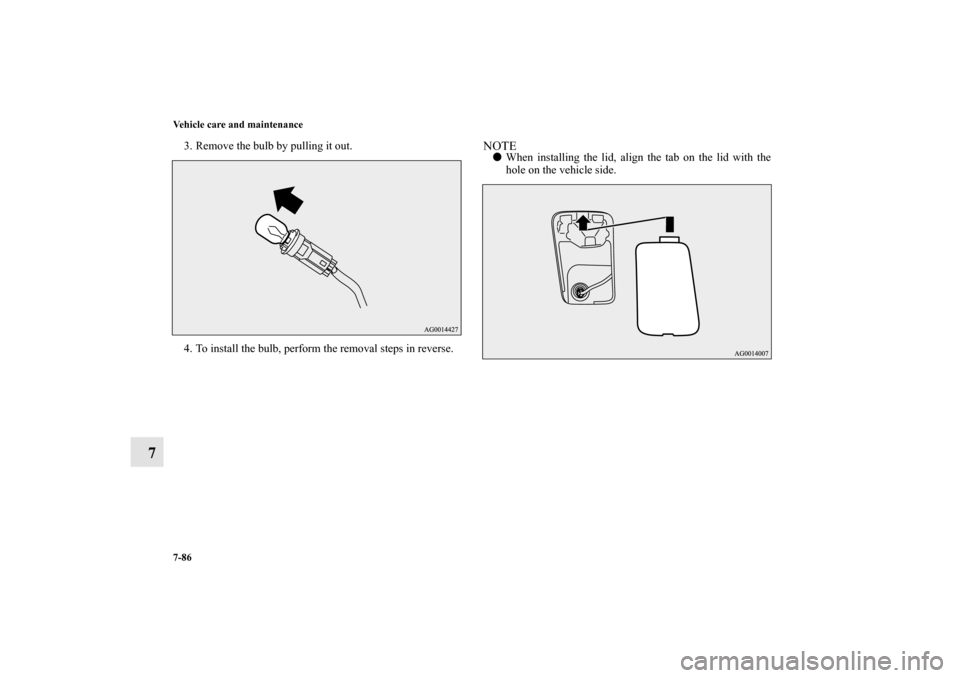

7-86 Vehicle care and maintenance
7
3. Remove the bulb by pulling it out.
4. To install the bulb, perform the removal steps in reverse.
NOTE
When installing the lid, align the tab on the lid with the
hole on the vehicle side.
BK0125300US.book 86 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-87
7

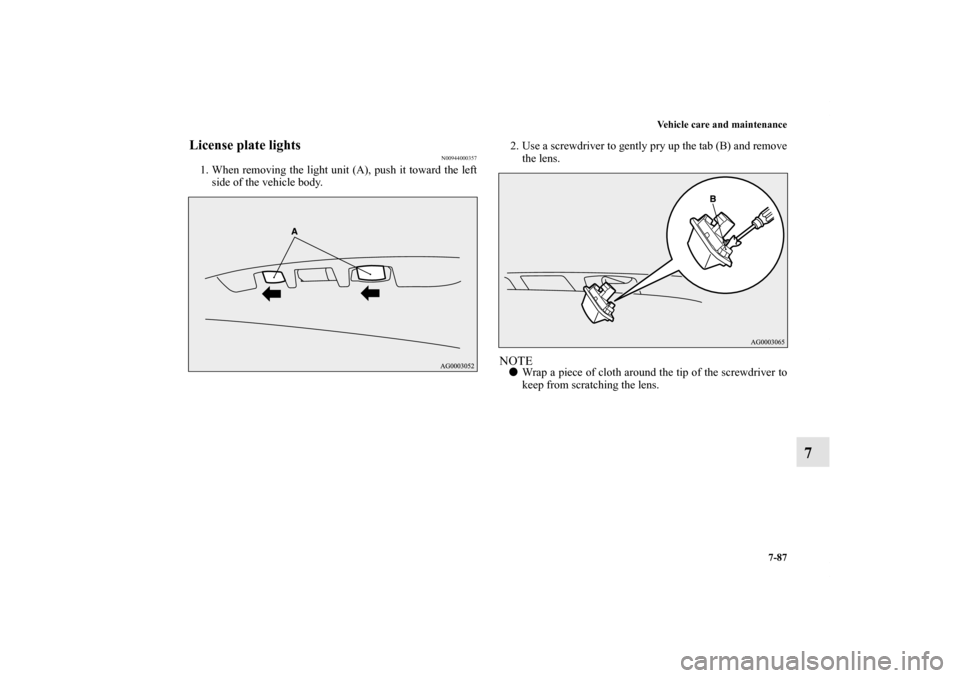

License plate lights
N00944000357
1. When removing the light unit (A), push it toward the left
side of the vehicle body.2. Use a screwdriver to gently pry up the tab (B) and remove
the lens.
NOTE
Wrap a piece of cloth around the tip of the screwdriver to
keep from scratching the lens.
BK0125300US.book 87 ページ ２０１０年５月１８日　火曜日　午後１時５３分

7-88 Vehicle care and maintenance
7

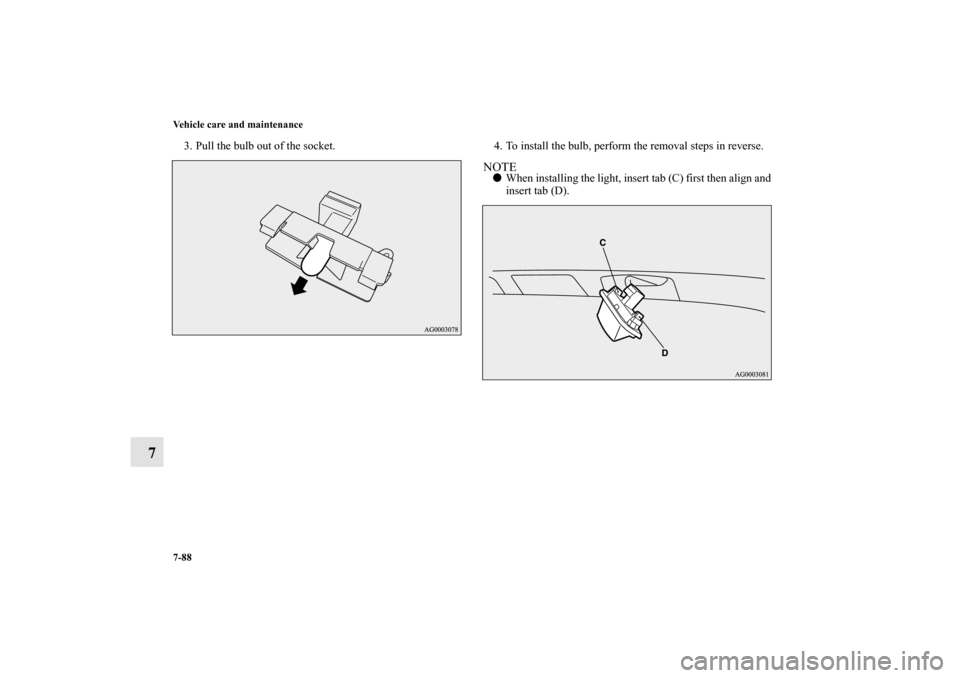

3. Pull the bulb out of the socket. 4. To install the bulb, perform the removal steps in reverse.
NOTE
When installing the light, insert tab (C) first then align and
insert tab (D).
BK0125300US.book 88 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-89
7

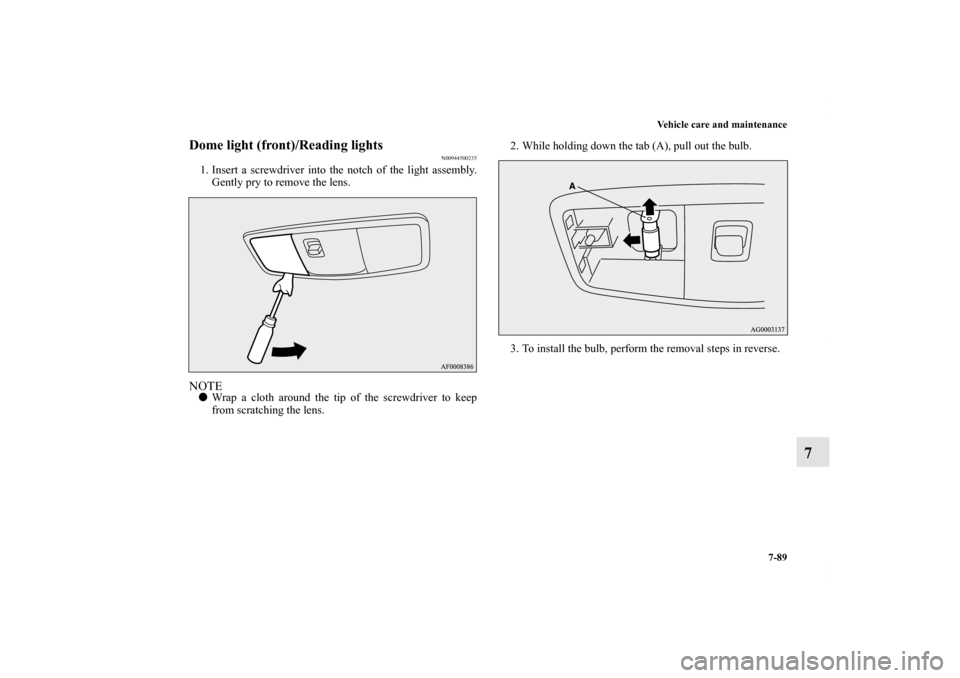

Dome light (front)/Reading lights
N00944500235
1. Insert a screwdriver into the notch of the light assembly.
Gently pry to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
BK0125300US.book 89 ページ ２０１０年５月１８日　火曜日　午後１時５３分

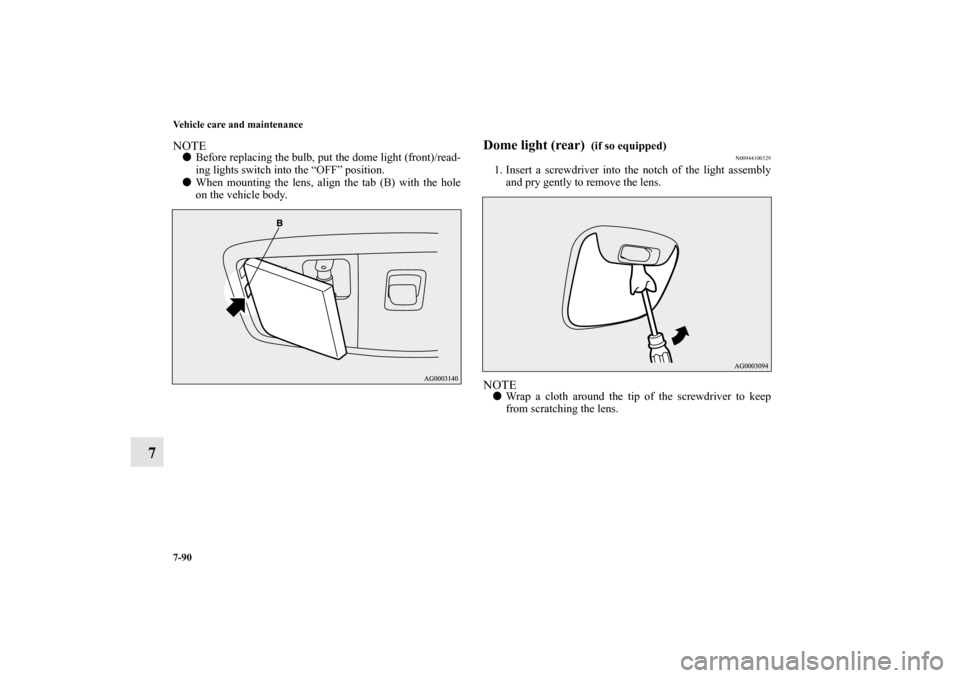

7-90 Vehicle care and maintenance
7
NOTE
Before replacing the bulb, put the dome light (front)/read-
ing lights switch into the “OFF” position.

When mounting the lens, align the tab (B) with the hole
on the vehicle body.
Dome light (rear)
(if so equipped)
N00944100329
1. Insert a screwdriver into the notch of the light assembly
and pry gently to remove the lens.NOTE
Wrap a cloth around the tip of the screwdriver to keep
from scratching the lens.
BK0125300US.book 90 ページ ２０１０年５月１８日　火曜日　午後１時５３分

Vehicle care and maintenance
7-91
7

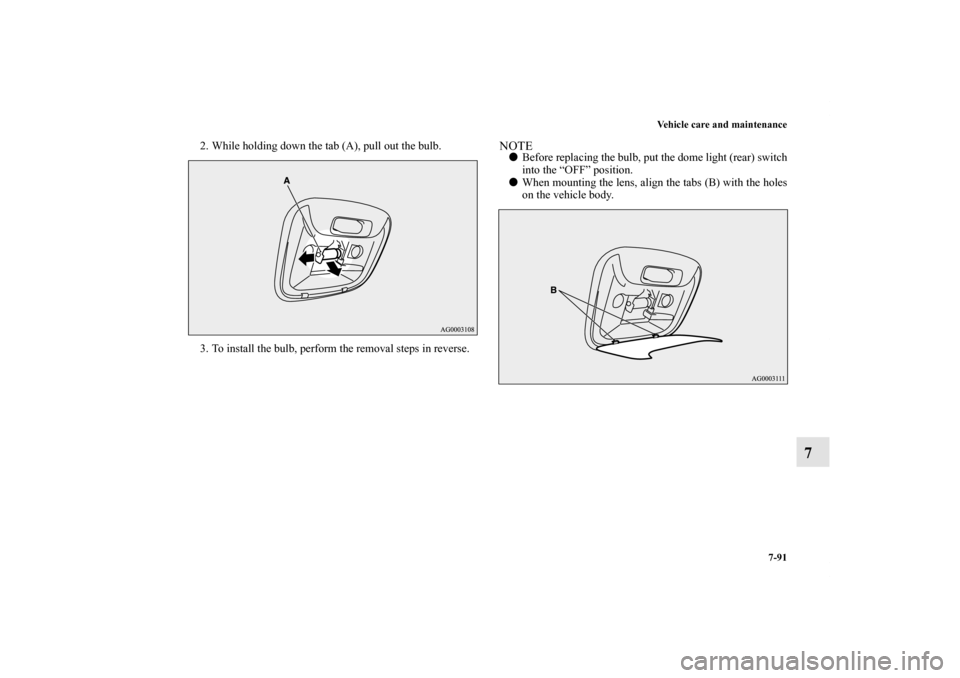

2. While holding down the tab (A), pull out the bulb.
3. To install the bulb, perform the removal steps in reverse.
NOTE
Before replacing the bulb, put the dome light (rear) switch
into the “OFF” position.

When mounting the lens, align the tabs (B) with the holes
on the vehicle body.
