MITSUBISHI LANCER SPORTBACK 2013 8.G Owners Manual

3-198 Features and controls
3

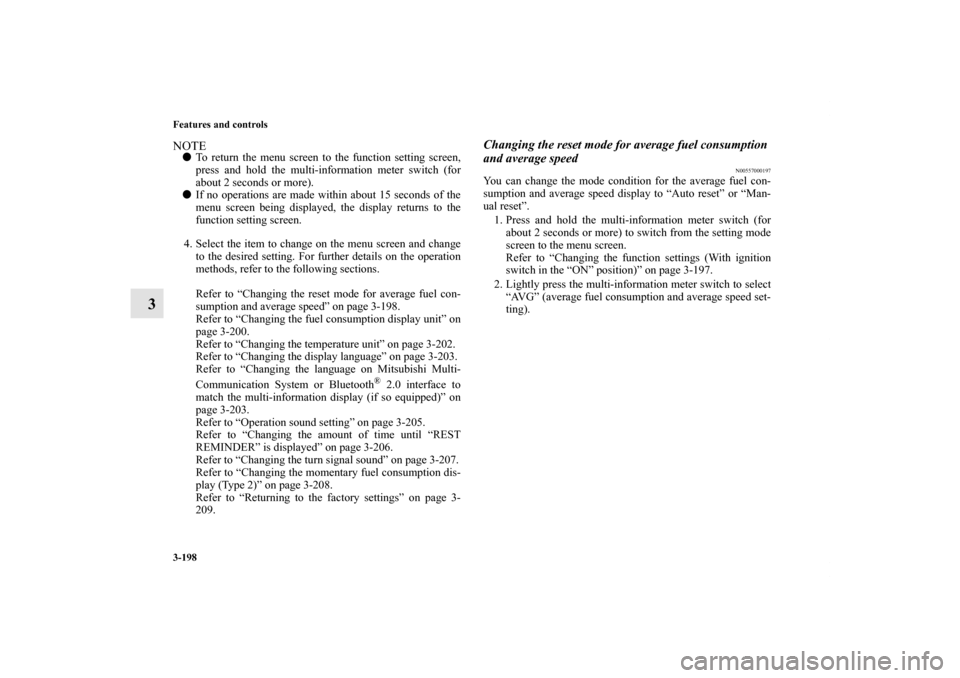

NOTE
To return the menu screen to the function setting screen,
press and hold the multi-information meter switch (for
about 2 seconds or more).

If no operations are made within about 15 seconds of the
menu screen being displayed, the display returns to the
function setting screen.
4. Select the item to change on the menu screen and change
to the desired setting. For further details on the operation
methods, refer to the following sections.
Refer to “Changing the reset mode for average fuel con-
sumption and average speed” on page 3-198.
Refer to “Changing the fuel consumption display unit” on
page 3-200.
Refer to “Changing the temperature unit” on page 3-202.
Refer to “Changing the display language” on page 3-203.
Refer to “Changing the language on Mitsubishi Multi-
Communication System or Bluetooth
® 2.0 interface to
match the multi-information display (if so equipped)” on
page 3-203.
Refer to “Operation sound setting” on page 3-205.
Refer to “Changing the amount of time until “REST
REMINDER” is displayed” on page 3-206.
Refer to “Changing the turn signal sound” on page 3-207.
Refer to “Changing the momentary fuel consumption dis-
play (Type 2)” on page 3-208.
Refer to “Returning to the factory settings” on page 3-
209.
Changing the reset mode for average fuel consumption
and average speed
N00557000197
You can change the mode condition for the average fuel con-
sumption and average speed display to “Auto reset” or “Man-
ual reset”.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“AVG” (average fuel consumption and average speed set-
ting).
BK0151000US.book 198 ページ ２０１２年３月２９日　木曜日　午後６時８分

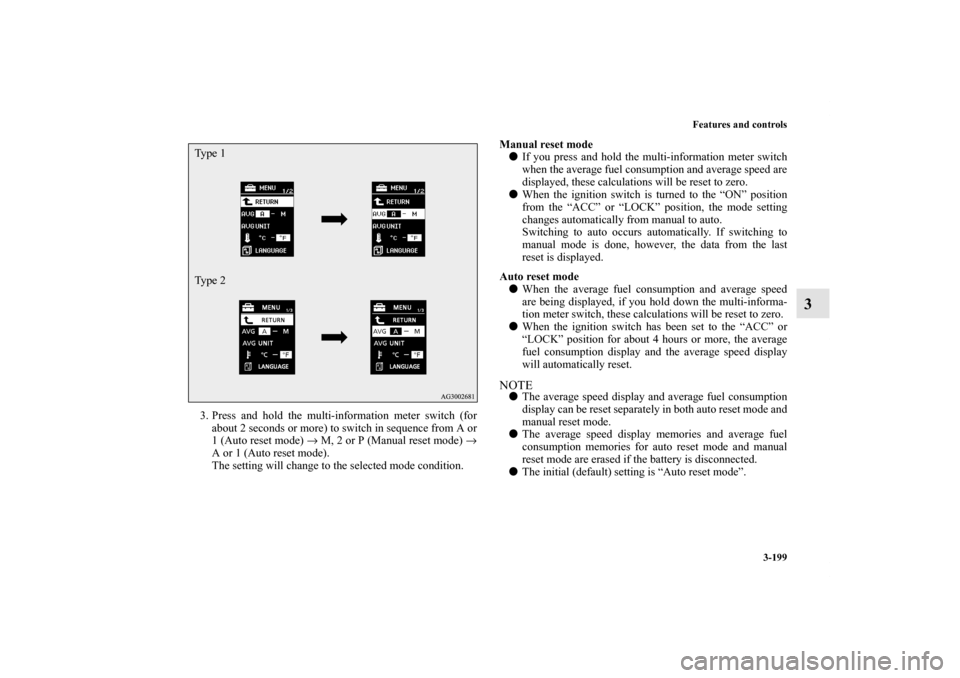

Features and controls
3-199
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from A or
1 (Auto reset mode) → M, 2 or P (Manual reset mode) →
A or 1 (Auto reset mode).
The setting will change to the selected mode condition.Manual reset mode

If you press and hold the multi-information meter switch
when the average fuel consumption and average speed are
displayed, these calculations will be reset to zero.

When the ignition switch is turned to the “ON” position
from the “ACC” or “LOCK” position, the mode setting
changes automatically from manual to auto.
Switching to auto occurs automatically. If switching to
manual mode is done, however, the data from the last
reset is displayed.
Auto reset mode

When the average fuel consumption and average speed
are being displayed, if you hold down the multi-informa-
tion meter switch, these calculations will be reset to zero.

When the ignition switch has been set to the “ACC” or
“LOCK” position for about 4 hours or more, the average
fuel consumption display and the average speed display
will automatically reset.
NOTE
The average speed display and average fuel consumption
display can be reset separately in both auto reset mode and
manual reset mode.

The average speed display memories and average fuel
consumption memories for auto reset mode and manual
reset mode are erased if the battery is disconnected.

The initial (default) setting is “Auto reset mode”.
Ty p e 1
Ty p e 2
BK0151000US.book 199 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-200 Features and controls
3

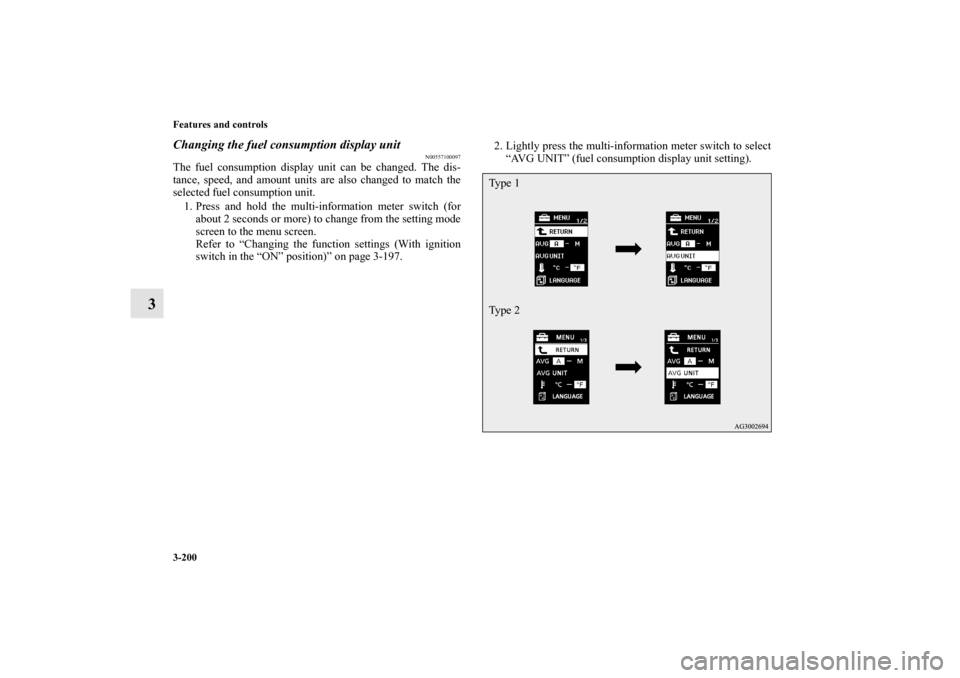

Changing the fuel consumption display unit
N00557100097
The fuel consumption display unit can be changed. The dis-
tance, speed, and amount units are also changed to match the
selected fuel consumption unit.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.2. Lightly press the multi-information meter switch to select
“AVG UNIT” (fuel consumption display unit setting).
Ty p e 1
Ty p e 2
BK0151000US.book 200 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-201
3

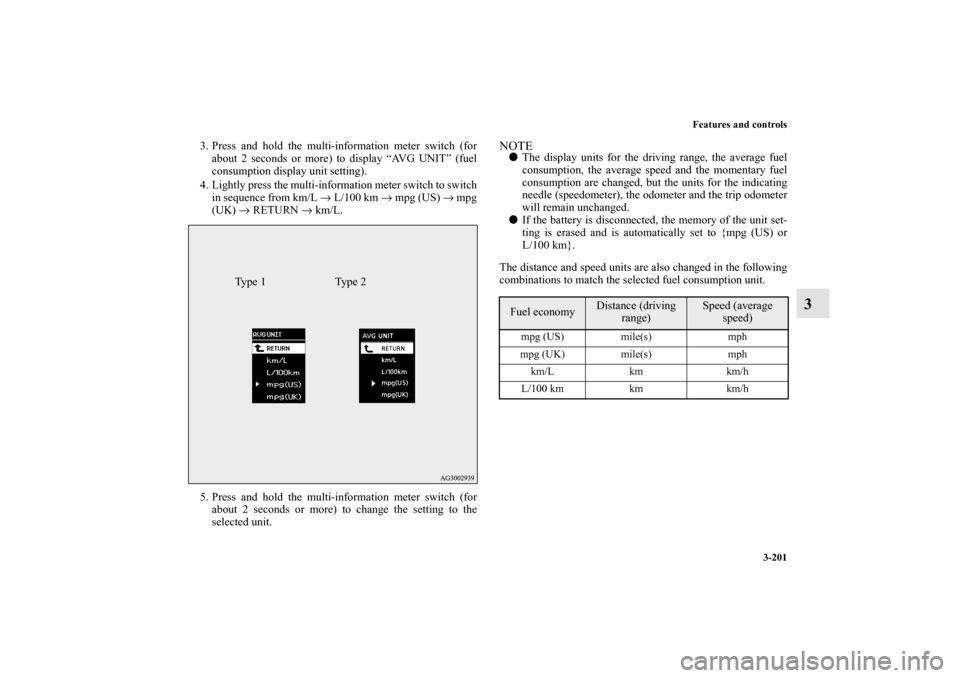

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “AVG UNIT” (fuel
consumption display unit setting).
4. Lightly press the multi-information meter switch to switch
in sequence from km/L → L/100 km → mpg (US) → mpg
(UK) → RETURN → km/L.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected unit.
NOTE
The display units for the driving range, the average fuel
consumption, the average speed and the momentary fuel
consumption are changed, but the units for the indicating
needle (speedometer), the odometer and the trip odometer
will remain unchanged.

If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to {mpg (US) or
L/100 km}.
The distance and speed units are also changed in the following
combinations to match the selected fuel consumption unit.
Type 1 Type 2
Fuel economy
Distance (driving
range)
Speed (average
speed)
mpg (US) mile(s) mph
mpg (UK) mile(s) mph
km/L km km/h
L/100 km km km/h
BK0151000US.book 201 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-202 Features and controls
3

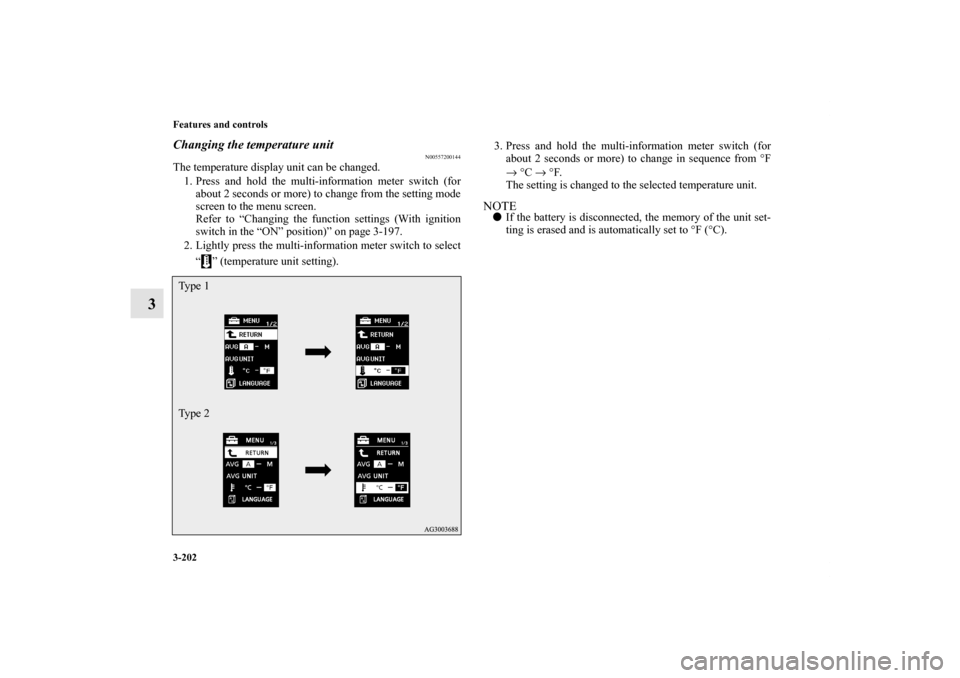

Changing the temperature unit
N00557200144
The temperature display unit can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“ ” (temperature unit setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change in sequence from °F
→ °C → °F.
The setting is changed to the selected temperature unit.
NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to °F (°C).
Ty p e 1
Ty p e 2BK0151000US.book 202 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-203
3

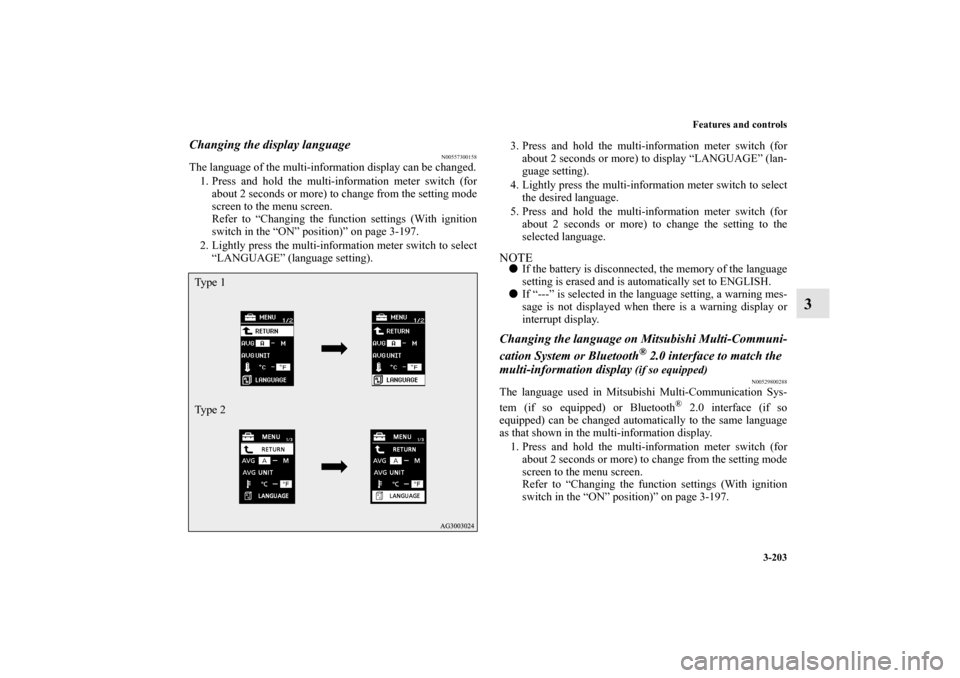

Changing the display language
N00557300158
The language of the multi-information display can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“LANGUAGE” (language setting).3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “LANGUAGE” (lan-
guage setting).
4. Lightly press the multi-information meter switch to select
the desired language.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected language.
NOTE
If the battery is disconnected, the memory of the language
setting is erased and is automatically set to ENGLISH.

If “---” is selected in the language setting, a warning mes-
sage is not displayed when there is a warning display or
interrupt display.Changing the language on Mitsubishi Multi-Communi-
cation System or Bluetooth
® 2.0 interface to match the
multi-information display
(if so equipped)
N00529800288
The language used in Mitsubishi Multi-Communication Sys-
tem (if so equipped) or Bluetooth
® 2.0 interface (if so
equipped) can be changed automatically to the same language
as that shown in the multi-information display.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
Ty p e 1
Ty p e 2
BK0151000US.book 203 ページ ２０１２年３月２９日　木曜日　午後６時８分

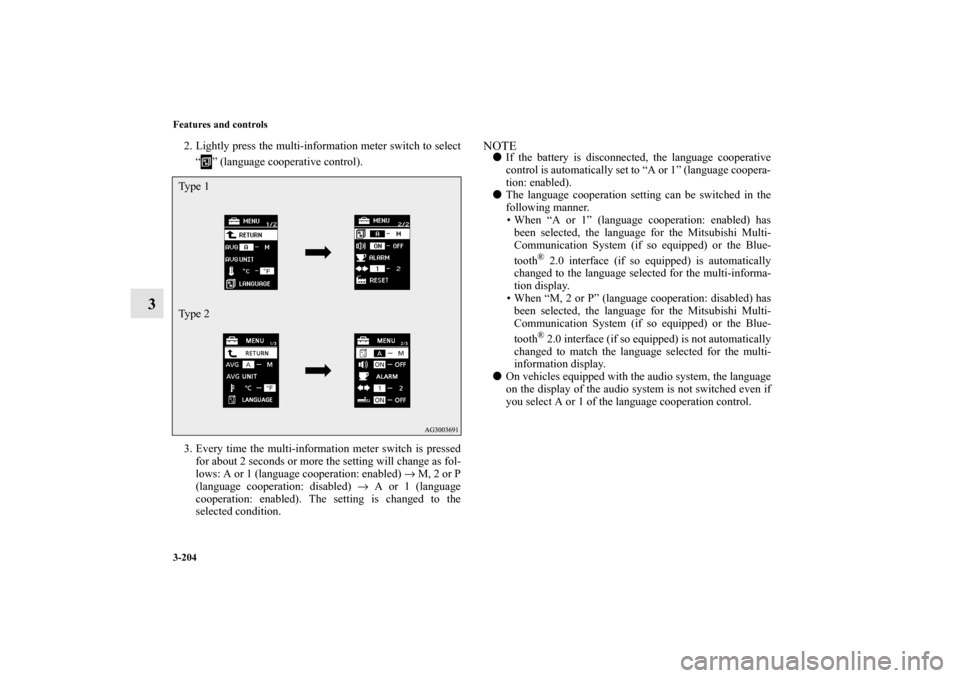

3-204 Features and controls
3
2. Lightly press the multi-information meter switch to select
“ ” (language cooperative control).
3. Every time the multi-information meter switch is pressed
for about 2 seconds or more the setting will change as fol-
lows: A or 1 (language cooperation: enabled) → M, 2 or P
(language cooperation: disabled) → A or 1 (language
cooperation: enabled). The setting is changed to the
selected condition.
NOTE
If the battery is disconnected, the language cooperative
control is automatically set to “A or 1” (language coopera-
tion: enabled).

The language cooperation setting can be switched in the
following manner.
• When “A or 1” (language cooperation: enabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the Blue-
tooth
® 2.0 interface (if so equipped) is automatically
changed to the language selected for the multi-informa-
tion display.
• When “M, 2 or P” (language cooperation: disabled) has
been selected, the language for the Mitsubishi Multi-
Communication System (if so equipped) or the Blue-
tooth® 2.0 interface (if so equipped) is not automatically
changed to match the language selected for the multi-
information display.

On vehicles equipped with the audio system, the language
on the display of the audio system is not switched even if
you select A or 1 of the language cooperation control.
Ty p e 1
Ty p e 2BK0151000US.book 204 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-205
3

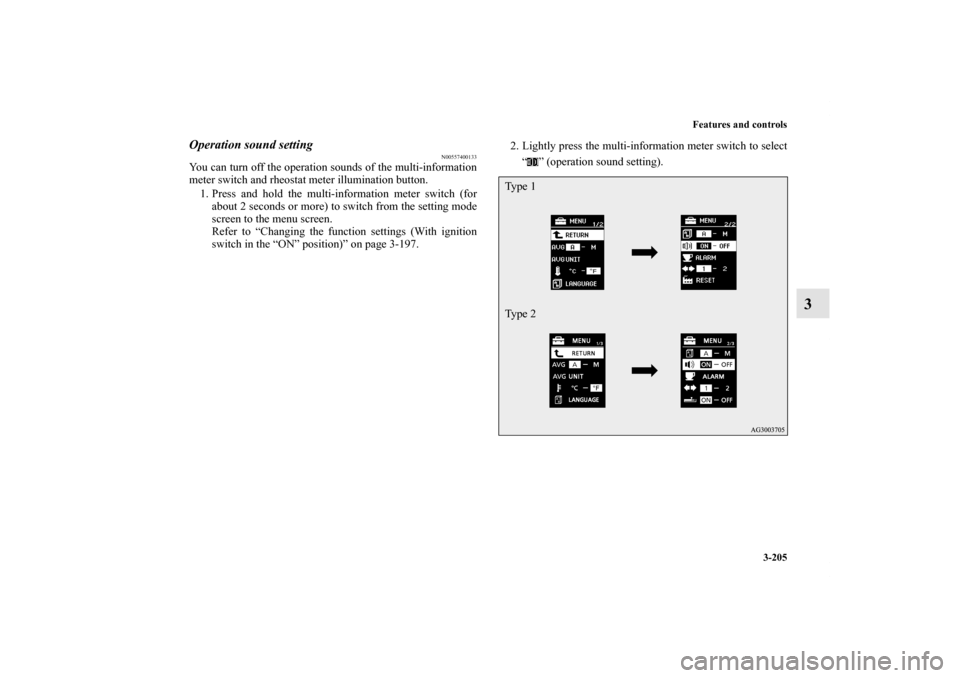

Operation sound setting
N00557400133
You can turn off the operation sounds of the multi-information
meter switch and rheostat meter illumination button.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.2. Lightly press the multi-information meter switch to select
“ ” (operation sound setting).
Ty p e 1
Ty p e 2
BK0151000US.book 205 ページ ２０１２年３月２９日　木曜日　午後６時８分

3-206 Features and controls
3

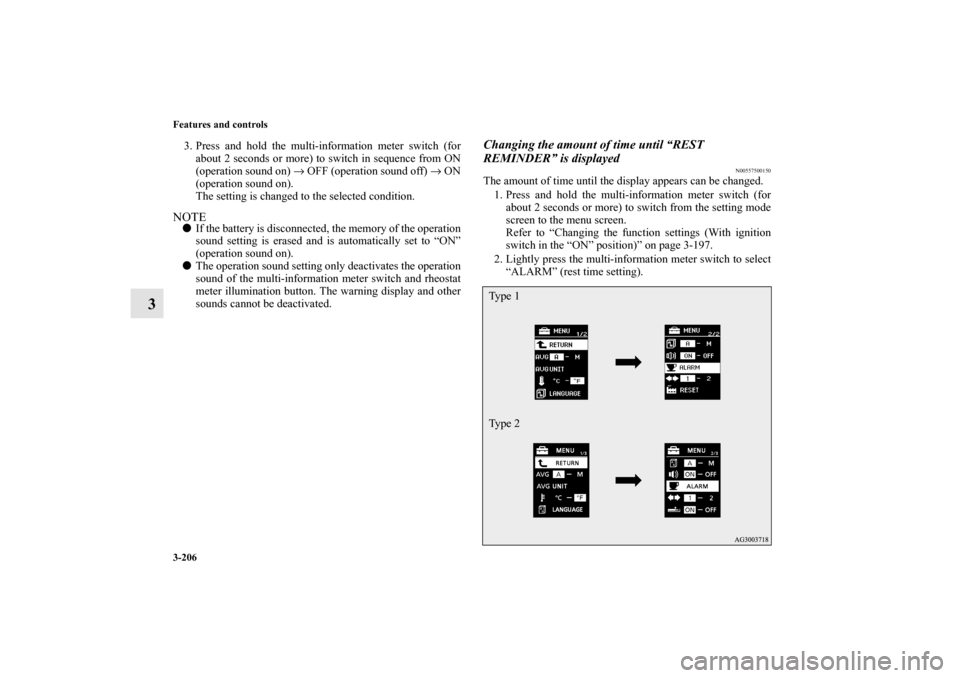

3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch in sequence from ON
(operation sound on) → OFF (operation sound off) → ON
(operation sound on).
The setting is changed to the selected condition.NOTE
If the battery is disconnected, the memory of the operation
sound setting is erased and is automatically set to “ON”
(operation sound on).

The operation sound setting only deactivates the operation
sound of the multi-information meter switch and rheostat
meter illumination button. The warning display and other
sounds cannot be deactivated.
Changing the amount of time until “REST
REMINDER” is displayed
N00557500150
The amount of time until the display appears can be changed.
1. Press and hold the multi-information meter switch (for
about 2 seconds or more) to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
“ALARM” (rest time setting).Ty p e 1
Ty p e 2
BK0151000US.book 206 ページ ２０１２年３月２９日　木曜日　午後６時８分

Features and controls
3-207
3
3. Press and hold the multi-information meter switch (for
about 2 seconds or more) to display “ALARM” (rest time
setting).
4. Lightly press the multi-information meter switch to select
the amount of time until the display appears.
5. Press and hold the multi-information meter switch (for
about 2 seconds or more) to change the setting to the
selected time.NOTE
If the battery is disconnected, the memory of the unit set-
ting is erased and is automatically set to the “OFF”.

The drive time is reset when the ignition switch is in the
“OFF” position.
Changing the turn signal sound
N00563500070
It is possible to change the turn signal sound.
1. Press and hold the multi-information meter switch for
about 2 seconds or more to switch from the setting mode
screen to the menu screen.
Refer to “Changing the function settings (With ignition
switch in the “ON” position)” on page 3-197.
2. Lightly press the multi-information meter switch to select
. (changing the turn signal sound)
Type 1 Type 2
Ty p e 1
Ty p e 2
BK0151000US.book 207 ページ ２０１２年３月２９日　木曜日　午後６時８分
