MITSUBISHI LANCER SPORTBACK 2013 8.G Owners Manual

4-14 Driving safety
4

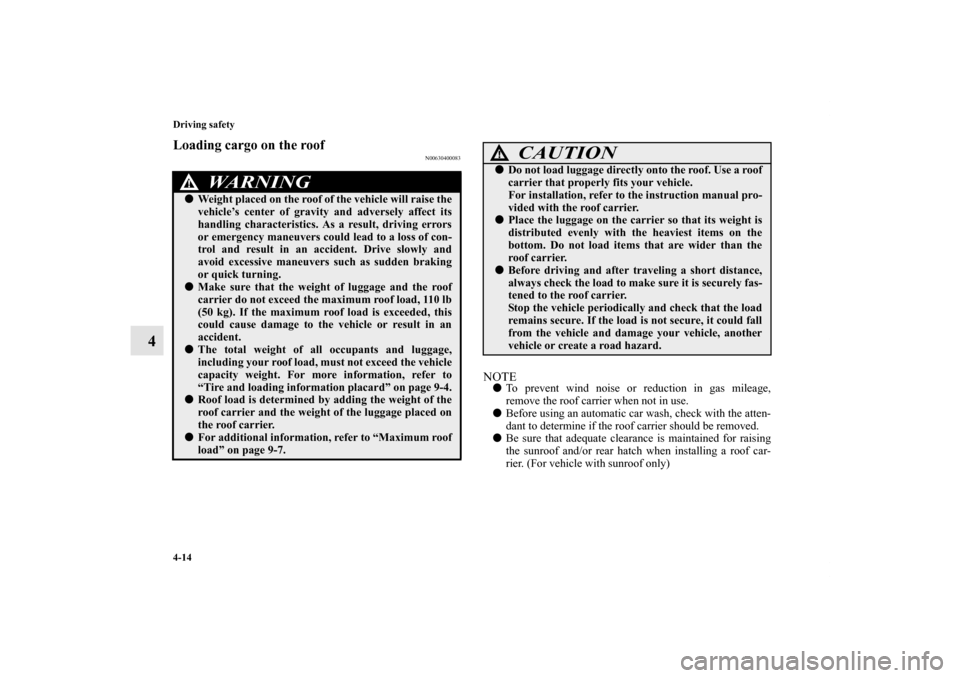

Loading cargo on the roof
N00630400083
NOTE
To prevent wind noise or reduction in gas mileage,
remove the roof carrier when not in use.

Before using an automatic car wash, check with the atten-
dant to determine if the roof carrier should be removed.

Be sure that adequate clearance is maintained for raising
the sunroof and/or rear hatch when installing a roof car-
rier. (For vehicle with sunroof only)
WA R N I N G
!
Weight placed on the roof of the vehicle will raise the
vehicle’s center of gravity and adversely affect its
handling characteristics. As a result, driving errors
or emergency maneuvers could lead to a loss of con-
trol and result in an accident. Drive slowly and
avoid excessive maneuvers such as sudden braking
or quick turning.
Make sure that the weight of luggage and the roof
carrier do not exceed the maximum roof load, 110 lb
(50 kg). If the maximum roof load is exceeded, this
could cause damage to the vehicle or result in an
accident.
The total weight of all occupants and luggage,
including your roof load, must not exceed the vehicle
capacity weight. For more information, refer to
“Tire and loading information placard” on page 9-4.
Roof load is determined by adding the weight of the
roof carrier and the weight of the luggage placed on
the roof carrier.
For additional information, refer to “Maximum roof
load” on page 9-7.
CAUTION
!
Do not load luggage directly onto the roof. Use a roof
carrier that properly fits your vehicle.
For installation, refer to the instruction manual pro-
vided with the roof carrier.
Place the luggage on the carrier so that its weight is
distributed evenly with the heaviest items on the
bottom. Do not load items that are wider than the
roof carrier.
Before driving and after traveling a short distance,
always check the load to make sure it is securely fas-
tened to the roof carrier.
Stop the vehicle periodically and check that the load
remains secure. If the load is not secure, it could fall
from the vehicle and damage your vehicle, another
vehicle or create a road hazard.
BK0151000US.book 14 ページ ２０１２年３月２９日　木曜日　午後６時８分

Driving safety
4-15
4

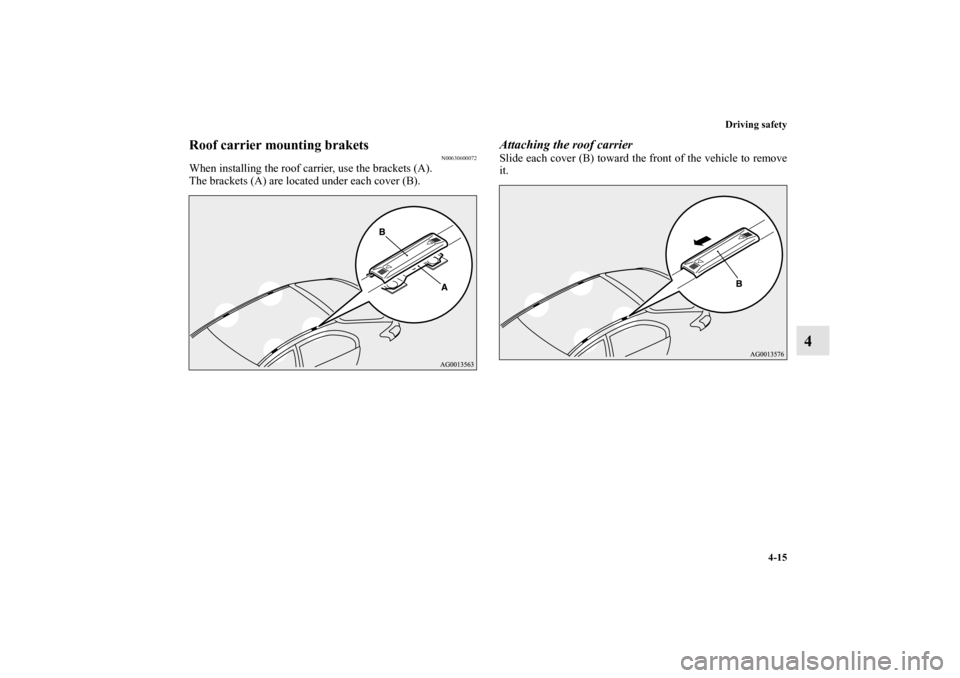

Roof carrier mounting brakets
N00630600072
When installing the roof carrier, use the brackets (A).
The brackets (A) are located under each cover (B).
Attaching the roof carrierSlide each cover (B) toward the front of the vehicle to remove
it.
BK0151000US.book 15 ページ ２０１２年３月２９日　木曜日　午後６時８分

4-16 Driving safety
4

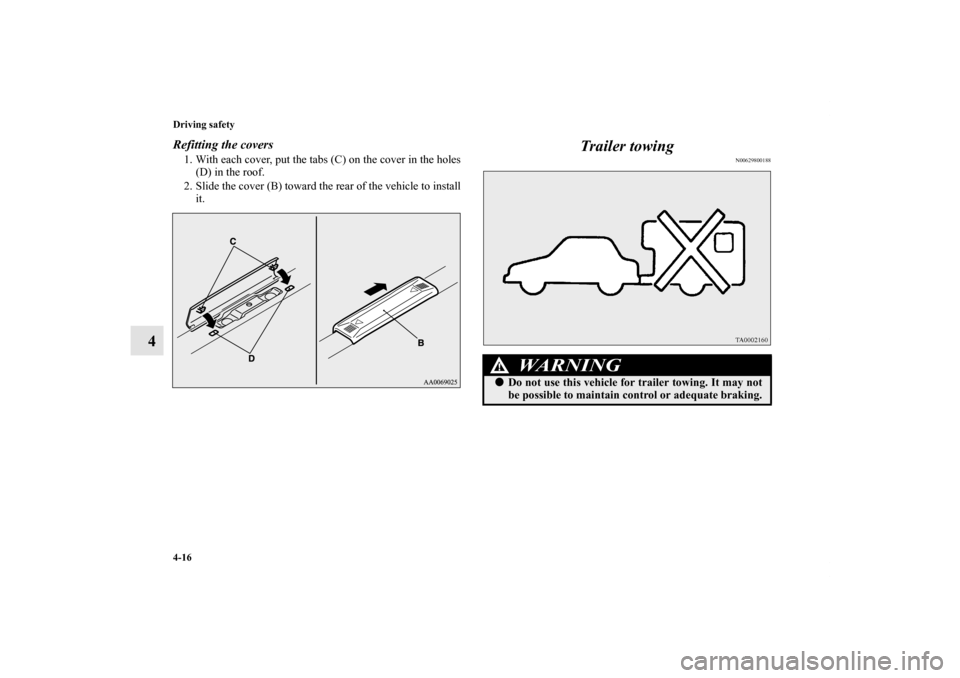

Refitting the covers1. With each cover, put the tabs (C) on the cover in the holes
(D) in the roof.
2. Slide the cover (B) toward the rear of the vehicle to install
it.
Trailer towing
N00629800188
WA R N I N G
!
Do not use this vehicle for trailer towing. It may not
be possible to maintain control or adequate braking.
BK0151000US.book 16 ページ ２０１２年３月２９日　木曜日　午後６時８分

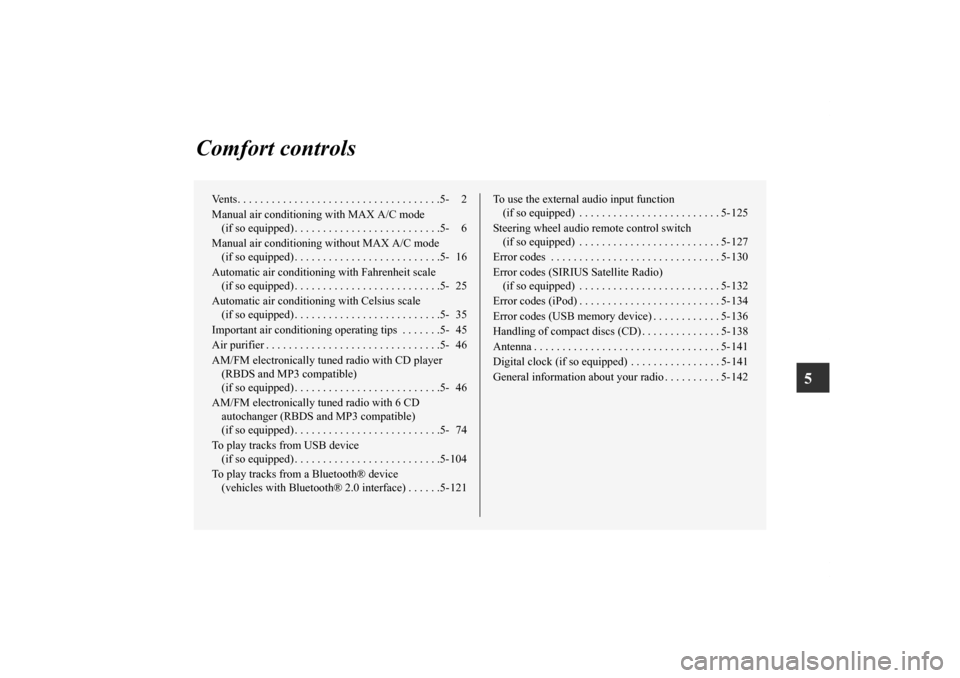

5
Comfort controls
Vents. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 2
Manual air conditioning with MAX A/C mode
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 6
Manual air conditioning without MAX A/C mode
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 16
Automatic air conditioning with Fahrenheit scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 25
Automatic air conditioning with Celsius scale
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 35
Important air conditioning operating tips . . . . . . .5- 45
Air purifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5- 46
AM/FM electronically tuned radio with CD player
(RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 46
AM/FM electronically tuned radio with 6 CD
autochanger (RBDS and MP3 compatible)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5- 74
To play tracks from USB device
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . .5-104
To play tracks from a Bluetooth® device
(vehicles with Bluetooth® 2.0 interface) . . . . . .5-121To use the external audio input function
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 125
Steering wheel audio remote control switch
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 127
Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 130
Error codes (SIRIUS Satellite Radio)
(if so equipped) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 132
Error codes (iPod) . . . . . . . . . . . . . . . . . . . . . . . . . 5- 134
Error codes (USB memory device) . . . . . . . . . . . . 5- 136
Handling of compact discs (CD) . . . . . . . . . . . . . . 5- 138
Antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5- 141
Digital clock (if so equipped) . . . . . . . . . . . . . . . . 5- 141
General information about your radio . . . . . . . . . . 5- 142
BK0151000US.book 1 ページ ２０１２年３月２９日　木曜日　午後６時８分

5-2 Comfort controls

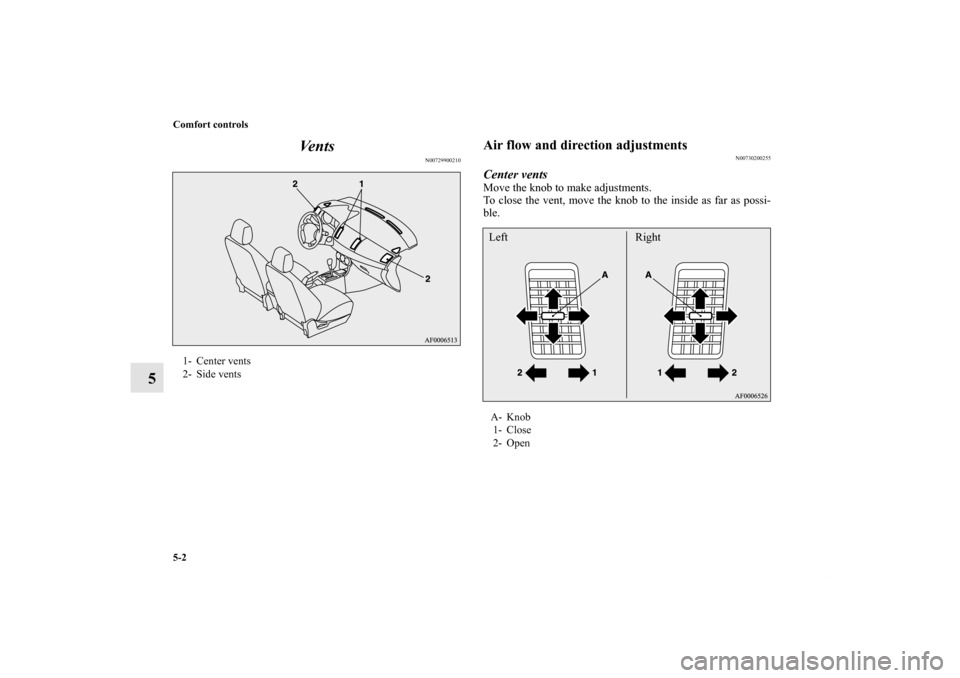

5Ve n t s
N00729900210
Air flow and direction adjustments
N00730200255
Center ventsMove the knob to make adjustments.
To close the vent, move the knob to the inside as far as possi-
ble.
1- Center vents
2- Side vents
A- Knob
1- Close
2- OpenLeft Right
BK0151000US.book 2 ページ ２０１２年３月２９日　木曜日　午後６時８分

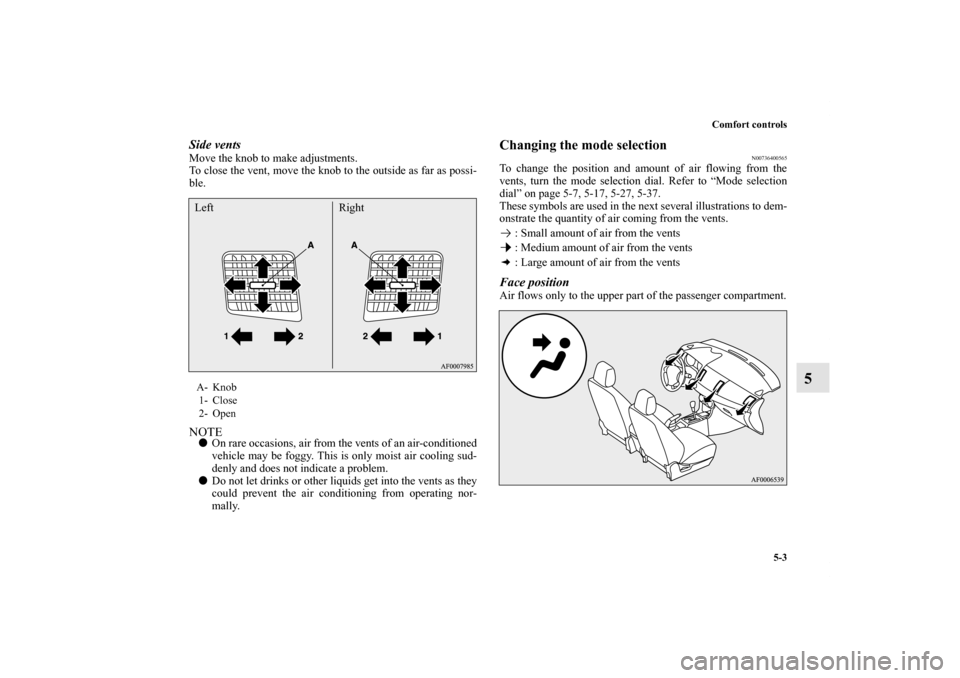

Comfort controls
5-3
5
Side ventsMove the knob to make adjustments.
To close the vent, move the knob to the outside as far as possi-
ble.NOTE
On rare occasions, air from the vents of an air-conditioned
vehicle may be foggy. This is only moist air cooling sud-
denly and does not indicate a problem.

Do not let drinks or other liquids get into the vents as they
could prevent the air conditioning from operating nor-
mally.
Changing the mode selection
N00736400565
To change the position and amount of air flowing from the
vents, turn the mode selection dial. Refer to “Mode selection
dial” on page 5-7, 5-17, 5-27, 5-37.
These symbols are used in the next several illustrations to dem-
onstrate the quantity of air coming from the vents.
: Small amount of air from the vents
: Medium amount of air from the vents
: Large amount of air from the ventsFace positionAir flows only to the upper part of the passenger compartment.
A- Knob
1- Close
2- OpenLeft Right
BK0151000US.book 3 ページ ２０１２年３月２９日　木曜日　午後６時８分

5-4 Comfort controls
5

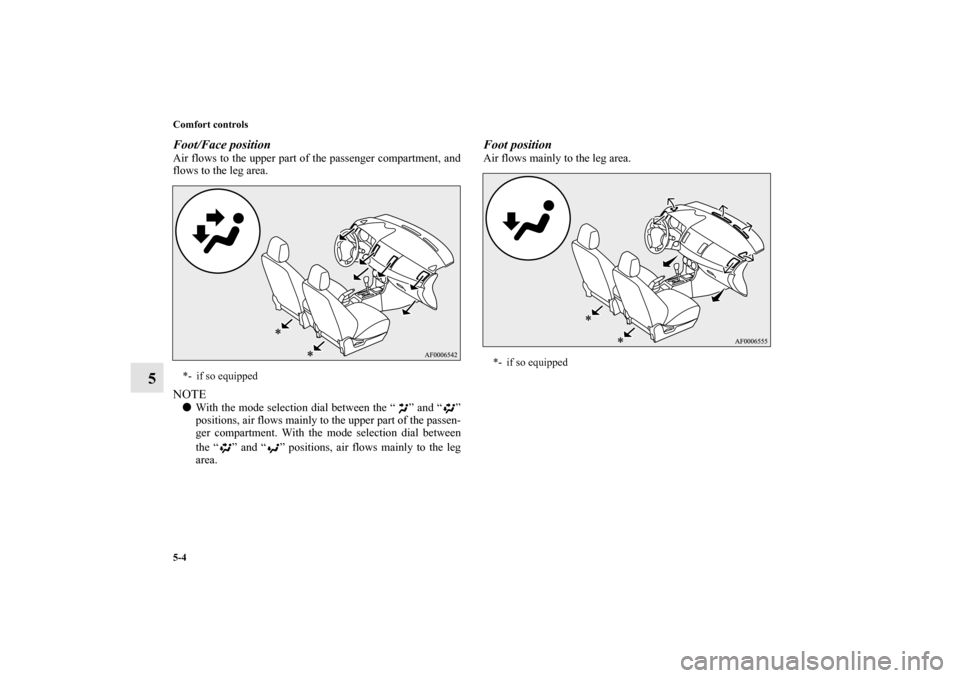

Foot/Face positionAir flows to the upper part of the passenger compartment, and
flows to the leg area.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the upper part of the passen-
ger compartment. With the mode selection dial between
the “ ” and “ ” positions, air flows mainly to the leg
area.
Foot positionAir flows mainly to the leg area.
*- if so equipped
*- if so equipped
BK0151000US.book 4 ページ ２０１２年３月２９日　木曜日　午後６時８分

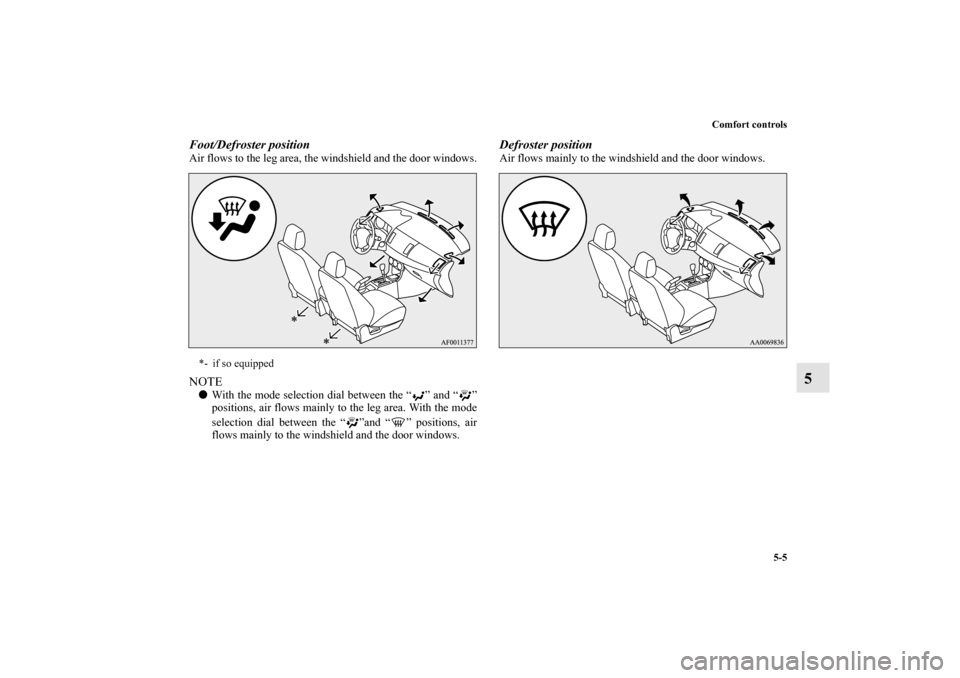

Comfort controls
5-5
5
Foot/Defroster positionAir flows to the leg area, the windshield and the door windows.NOTE
With the mode selection dial between the “ ” and “ ”
positions, air flows mainly to the leg area. With the mode
selection dial between the “ ”and “ ” positions, air
flows mainly to the windshield and the door windows.
Defroster positionAir flows mainly to the windshield and the door windows.
*- if so equipped
BK0151000US.book 5 ページ ２０１２年３月２９日　木曜日　午後６時８分

5-6 Comfort controls

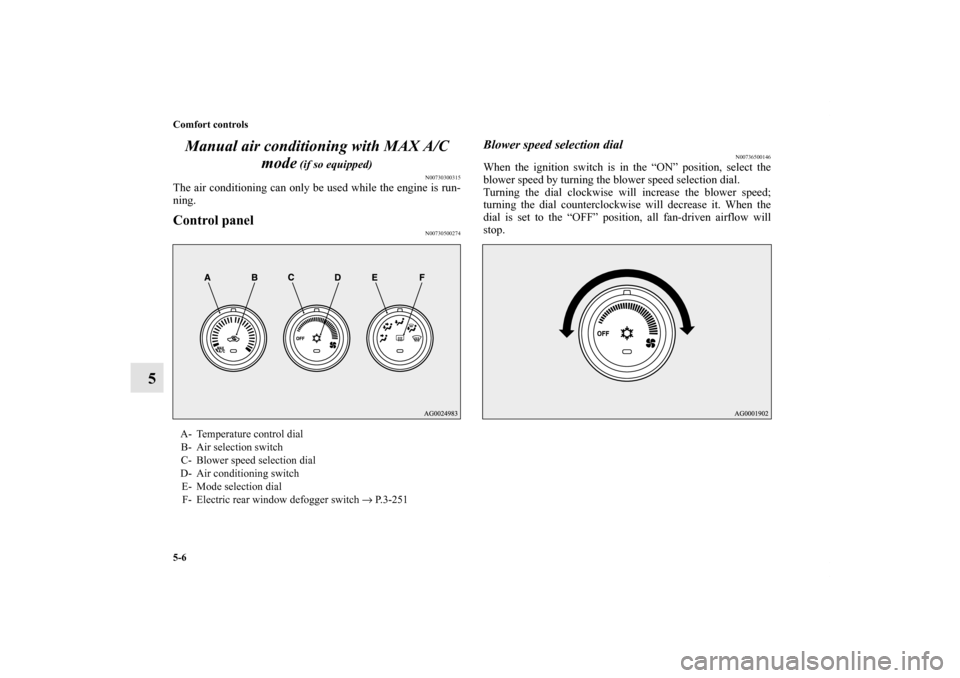

5Manual air conditioning with MAX A/C
mode
(if so equipped)
N00730300315
The air conditioning can only be used while the engine is run-
ning.Control panel
N00730500274
Blower speed selection dial
N00736500146
When the ignition switch is in the “ON” position, select the
blower speed by turning the blower speed selection dial.
Turning the dial clockwise will increase the blower speed;
turning the dial counterclockwise will decrease it. When the
dial is set to the “OFF” position, all fan-driven airflow will
stop.
A- Temperature control dial
B- Air selection switch
C- Blower speed selection dial
D- Air conditioning switch
E- Mode selection dial
F- Electric rear window defogger switch → P.3-251
BK0151000US.book 6 ページ ２０１２年３月２９日　木曜日　午後６時８分

Comfort controls
5-7
5

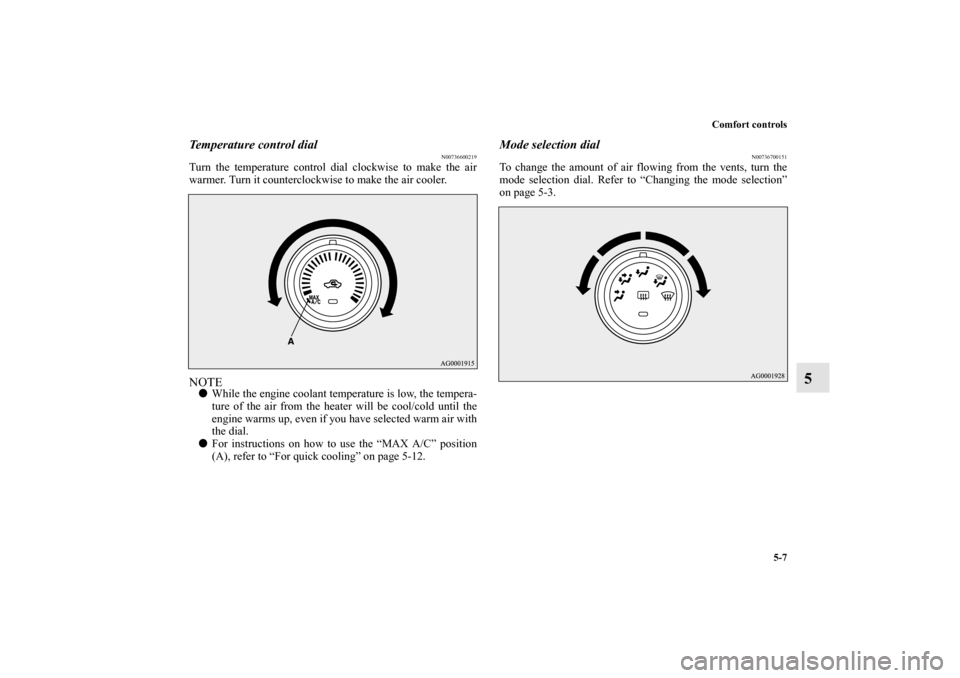

Temperature control dial
N00736600219
Turn the temperature control dial clockwise to make the air
warmer. Turn it counterclockwise to make the air cooler.NOTE
While the engine coolant temperature is low, the tempera-
ture of the air from the heater will be cool/cold until the
engine warms up, even if you have selected warm air with
the dial.

For instructions on how to use the “MAX A/C” position
(A), refer to “For quick cooling” on page 5-12.
Mode selection dial
N00736700151
To change the amount of air flowing from the vents, turn the
mode selection dial. Refer to “Changing the mode selection”
on page 5-3.
BK0151000US.book 7 ページ ２０１２年３月２９日　木曜日　午後６時８分
